Stock No.: 10715046
IN STOCK& NEW- Paul O. Abbe, Model RB-35 Ribbon Blender.
NEW & IN STOCK- Paul O. Abbe, Model RB-35 Ribbon Blender. In -Stock .35 Cubic Foot working capacity. 39 Cubic Foot total volume. Type 304 stainless steel polished. Food grade. All stainless steel construction. Trough dimensions: Approximately 33.4" wide x 59.1" long x 37.4" deep. Internal double spiral ribbon. Packing glands and pillow block bearings. 25 hp SEW Euro drive hollow bore design. 230/460 volt, 1775 rpm, 3/60 with approximately output 42 rpm. Top cover with hold down clamps and limit switch. Center Loading cover with welded safety grate, 19.7" wide x 31.5" long. Approximate 4.7" wide x 14.2" flush air operated plug valve. Discharge housing is approximate 18.5" wide x 24" long. Approximately 24" discharge height. Approximate weight 2,860 pounds. Approximate overall dimensions: 52.7" wide x 107.5" long x 84.3" high. Controls are available upon request. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
-
ManufacturerPaul O Abbe
-
ModelRB-35
-
CategoryMixers
-
SubcategoryRibbon Blenders
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information
- Manufacturer: Paul O. Abbe
- Model: RB-35
- Condition: NEW & IN STOCK
- Country of Origin: USA
- Availability: Immediate
Description
NEW & IN STOCK! The Paul O. Abbe Model RB-35 Ribbon Blender is a compact, high-performance industrial mixer designed for precision blending of powders, granules, and bulk solids. With a 35 cubic foot working capacity and 39 cubic foot total volume, this mid-sized blender is ideal for applications in food, pharmaceutical, chemical, and nutraceutical industries.
This ribbon blender features Type 304 polished stainless steel construction, ensuring food-grade compliance, sanitary operation, and resistance to corrosion. The internal double spiral ribbon offers efficient, consistent blending, reducing batch times and improving mix quality. The trough dimensions are approximately 33.4" wide x 59.1" long x 37.4" deep.
The system is powered by a 25 HP SEW Eurodrive hollow bore motor, operating at 230/460 volt, 1775 RPM, 3-phase / 60 Hz, with an output speed of approximately 42 RPM, delivering robust mixing power. It includes a top cover with hold-down clamps and a limit switch, plus a center loading cover with a welded safety grate (19.7" wide x 31.5" long) to ensure safe and efficient loading.
The discharge features a 4.7" wide x 14.2" flush air-operated plug valve, with a discharge housing approximately 18.5" wide x 24" long, and a 24" discharge height, making it easy to connect to downstream processing or packaging equipment. Weighing approximately 2,860 pounds, the unit has overall dimensions of 52.7" wide x 107.5" long x 84.3" high. Controls are available upon request.
Specifications
- Manufacturer: Paul O. Abbe
- Model: RB-35
- Condition: NEW & IN STOCK
- Construction: Type 304 Polished Stainless Steel, Food Grade
- Working Capacity: 35 Cubic Feet
- Total Volume: 39 Cubic Feet
- Trough Dimensions: 33.4" Wide x 59.1" Long x 37.4" Deep

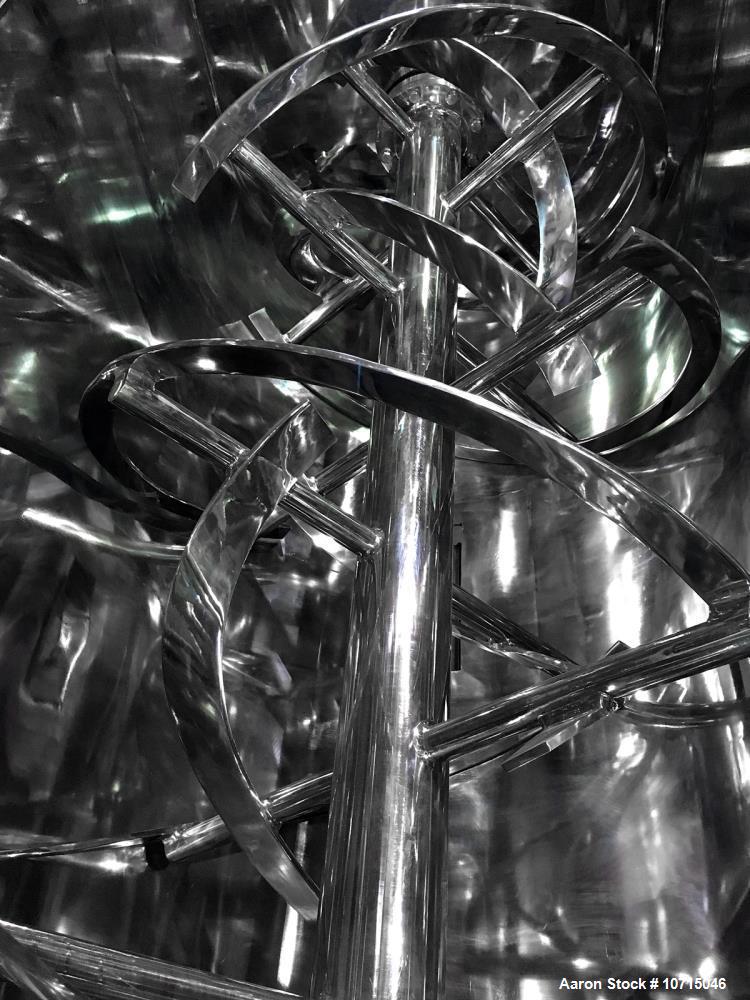

- Mixing Element: Internal Double Spiral Ribbon

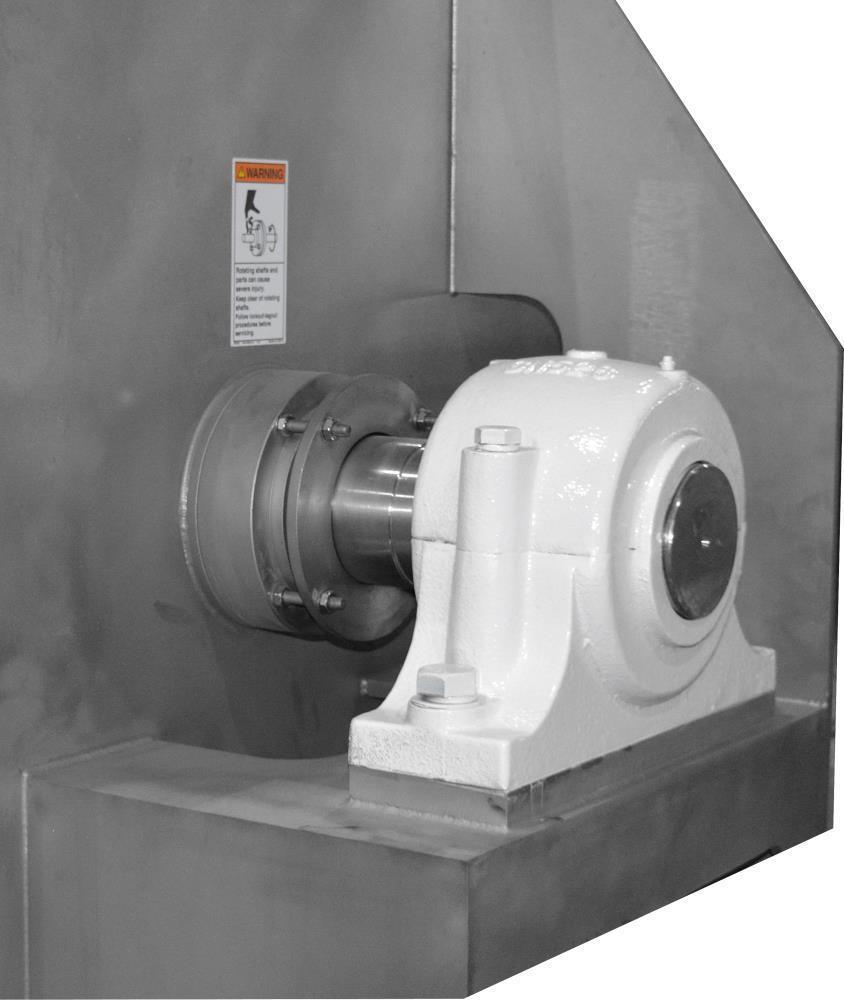

- Bearings: Packing Glands & Pillow Block Bearings
- Motor: 25 HP SEW Eurodrive Hollow Bore
- Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz
- Output Speed: Approximately 42 RPM

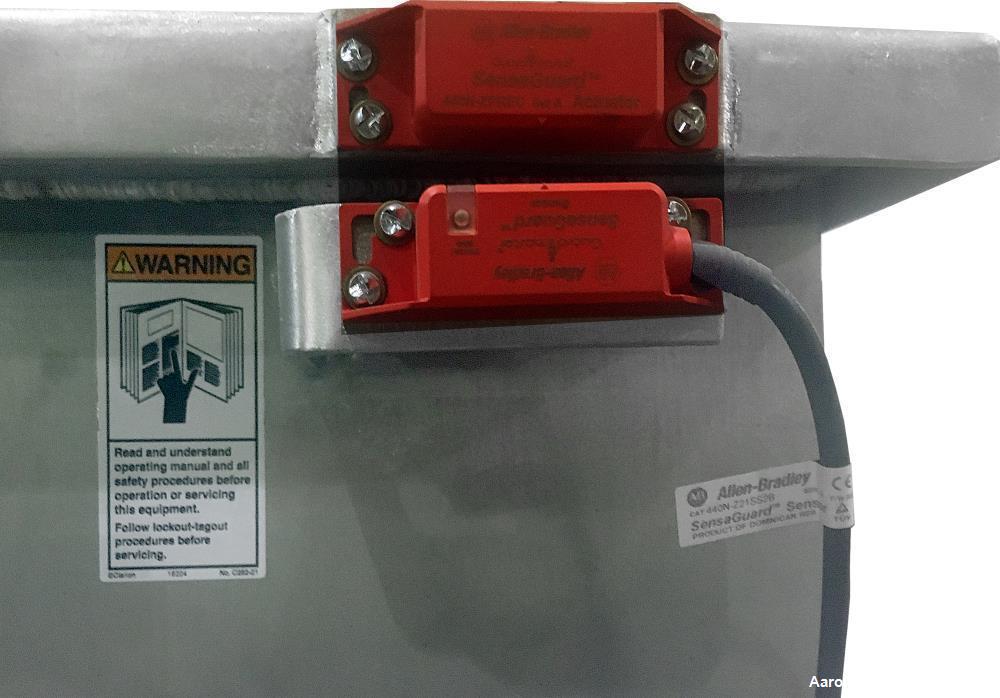

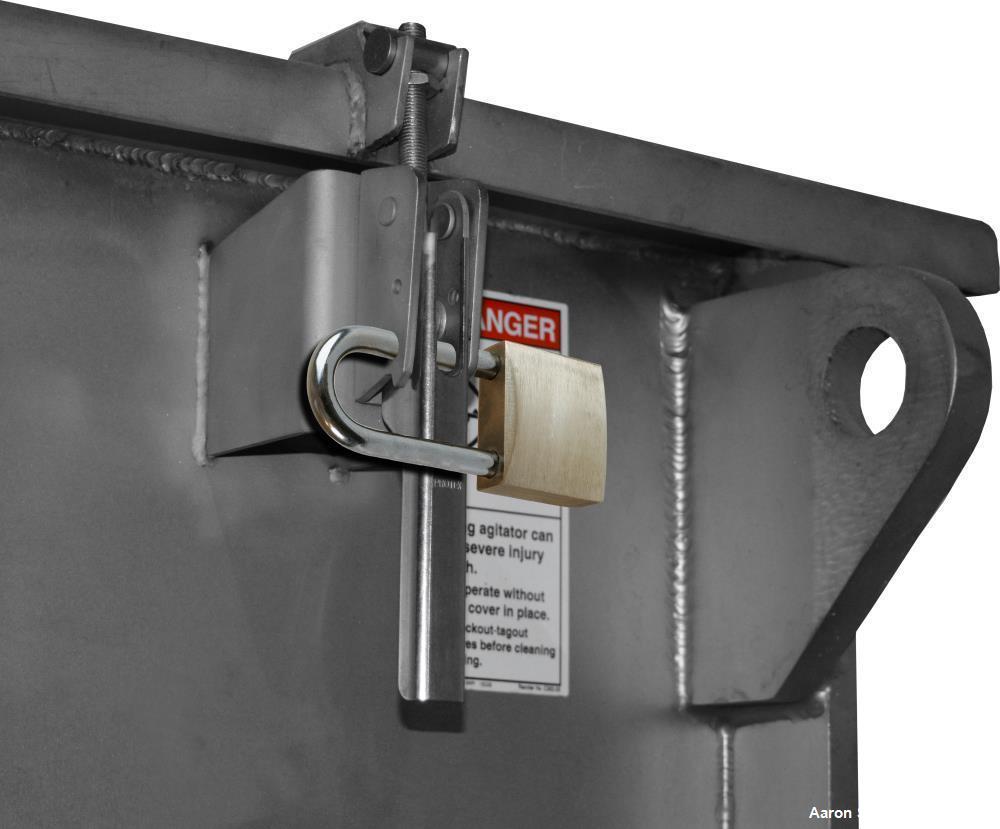

- Top Cover: Hold-Down Clamps with Limit Switch

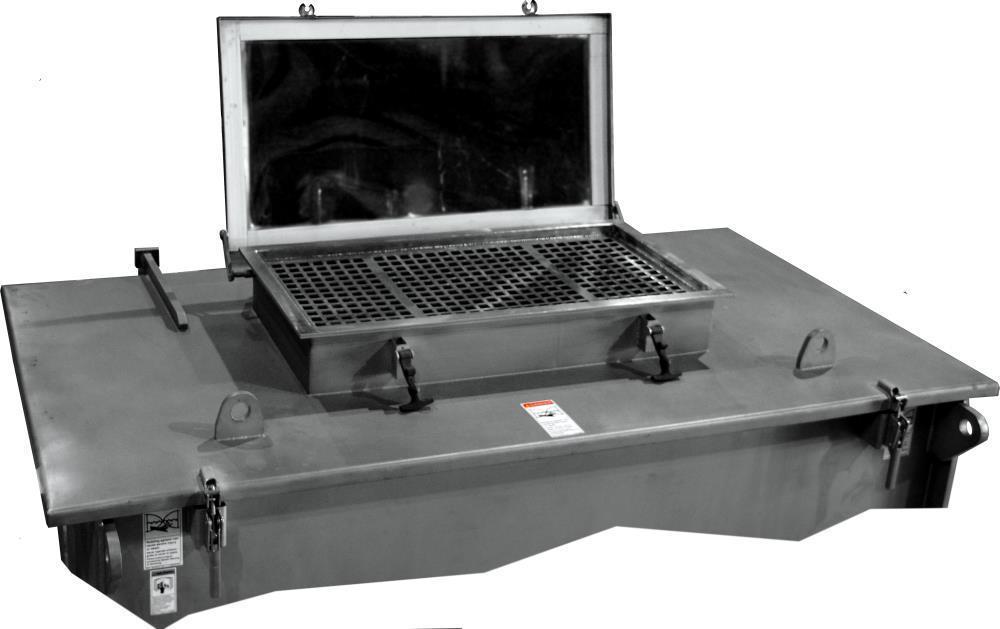

- Center Loading Cover: Welded Safety Grate, 19.7" Wide x 31.5" Long

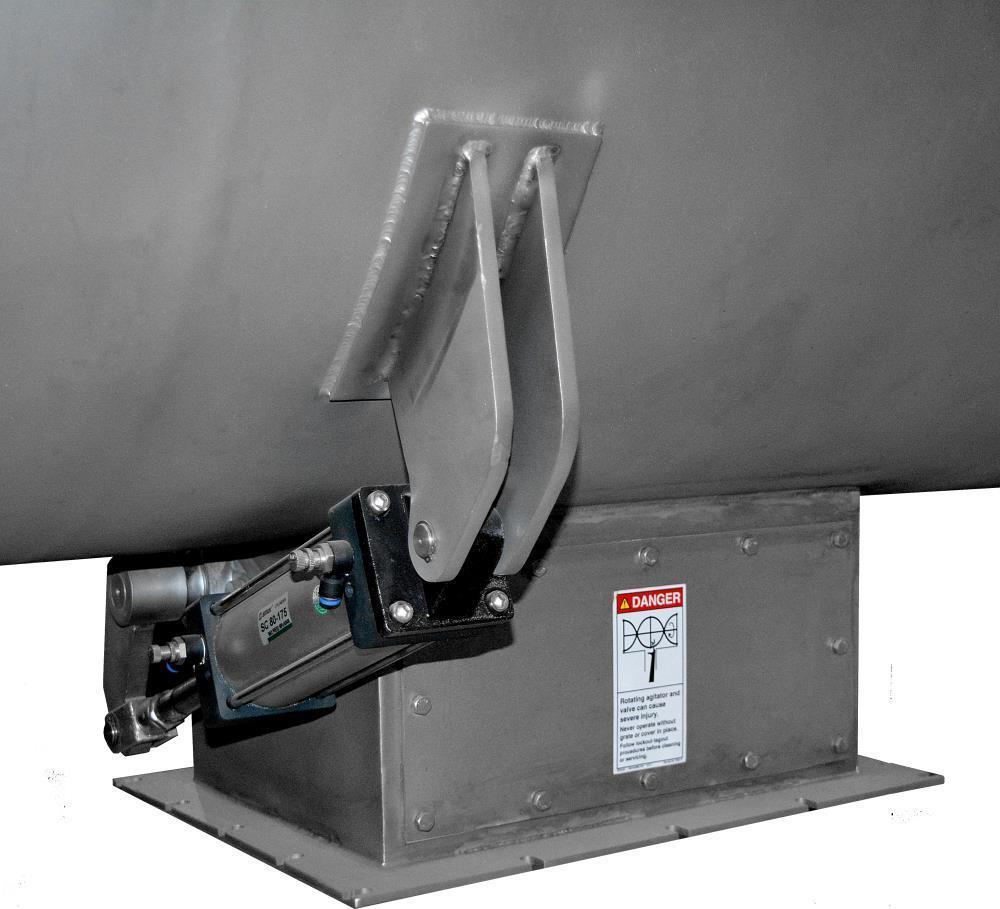

- Discharge Valve: 4.7" Wide x 14.2" Flush Air-Operated Plug Valve
- Discharge Housing: 18.5" Wide x 24" Long
- Discharge Height: Approximately 24"
- Weight: Approximately 2,860 lbs
- Overall Dimensions: 52.7" Wide x 107.5" Long x 84.3" High
- Controls: Available Upon Request
Applications
- Food processing and powder blending
- Nutraceutical ingredient mixing
- Pharmaceutical powder production
- Dry chemical blending
- Fertilizer production
- Animal feed production
- Cosmetic powder processing
- Plastic pellet mixing
- Industrial bulk material blending
- Pilot plant or small batch production
Products This Blender Can Be Used For
- Protein powders
- Nutraceutical and dietary supplements
- Pharmaceutical powders
- Spices and seasoning blends
- Chemicals and resins
- Fertilizers and soil amendments
- Plastic pellets and compounds
- Animal and pet feed
- Cosmetic powders
- Agricultural seed coatings
