IN STOCK- Paul O. Abbe Model RB-100 Ribbon Blender. New.

Manufacturer Information

• Manufacturer: Paul O. Abbe
• Model: RB-100
• Condition: NEW & IN STOCK
• Country of Origin: USA
• Availability: Immediate

Description

NEW & IN STOCK! The Paul O. Abbe Model RB-100 Ribbon Blender is a versatile, industrial-grade mixer built for blending powders, granules, and bulk solids. With a 100 cubic foot working capacity and a 108 cubic foot total volume, this ribbon blender is well-suited for mid-size batch processing in food, pharmaceutical, chemical, and nutraceutical industries.

Crafted from Type 304 polished stainless steel, this food-grade blender ensures sanitary operation, corrosion resistance, and long-lasting durability. The internal double spiral ribbon provides efficient, uniform mixing. The trough dimensions are approximately 44.9" wide x 93.8" long x 49.3" deep, designed for seamless blending operations.

Driven by a 30 HP SEW Eurodrive hollow bore motor, operating on 230/460 volt, 1775 RPM, 3-phase / 60 Hz, with an output speed of approximately 31 RPM, this unit delivers dependable and consistent performance. Safety features include a top cover with hold-down clamps and limit switch, and a center loading cover with welded safety grate (30" wide x 50" long) for added safety and efficiency.

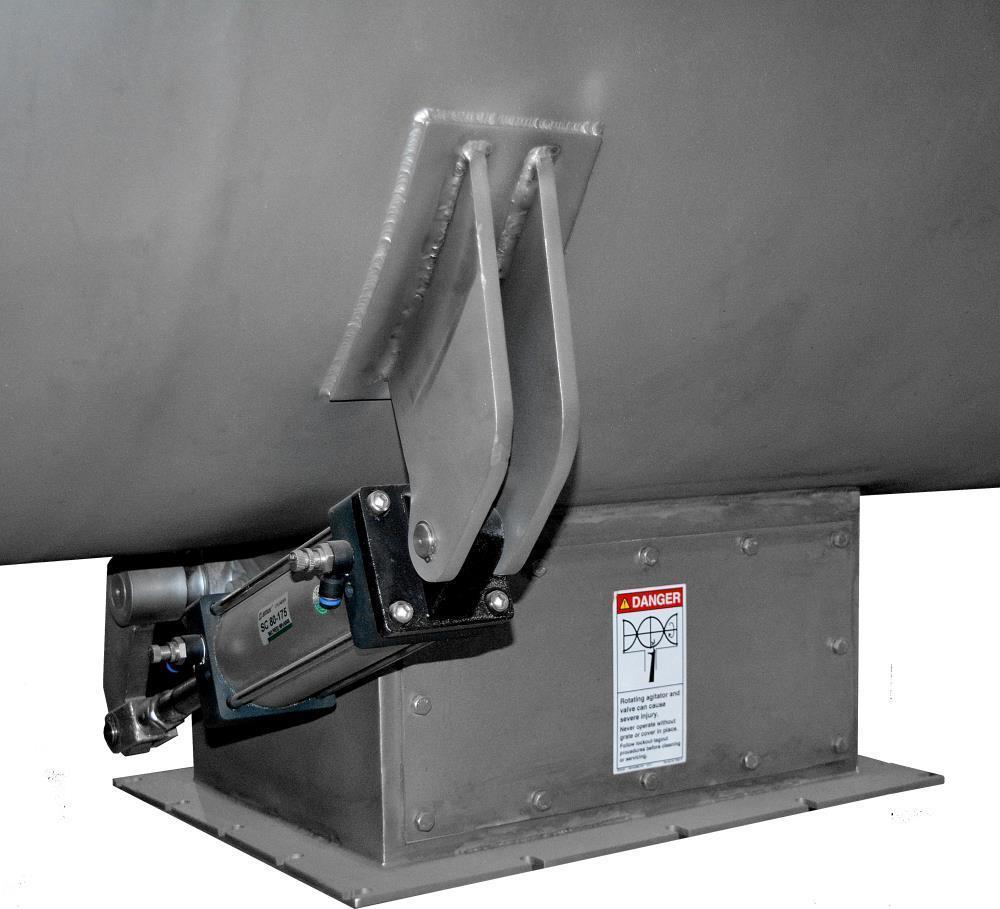

The discharge system features a 4.7" wide x 14.2" flush air-operated plug valve, a discharge housing approximately 18.5" wide x 24" long, and an 8" discharge height, providing compatibility with various material handling equipment. The total weight is approximately 7,260 pounds, with overall dimensions of 63.3" wide x 146.4" long x 80.8" high. Controls are available upon request.

Specifications

• Manufacturer: Paul O. Abbe
• Model: RB-100
• Condition: NEW & IN STOCK
• Construction: Type 304 Polished Stainless Steel, Food Grade
• Working Capacity: 100 Cubic Feet
• Total Volume: 108 Cubic Feet
• Trough Dimensions: 44.9" Wide x 93.8" Long x 49.3" Deep

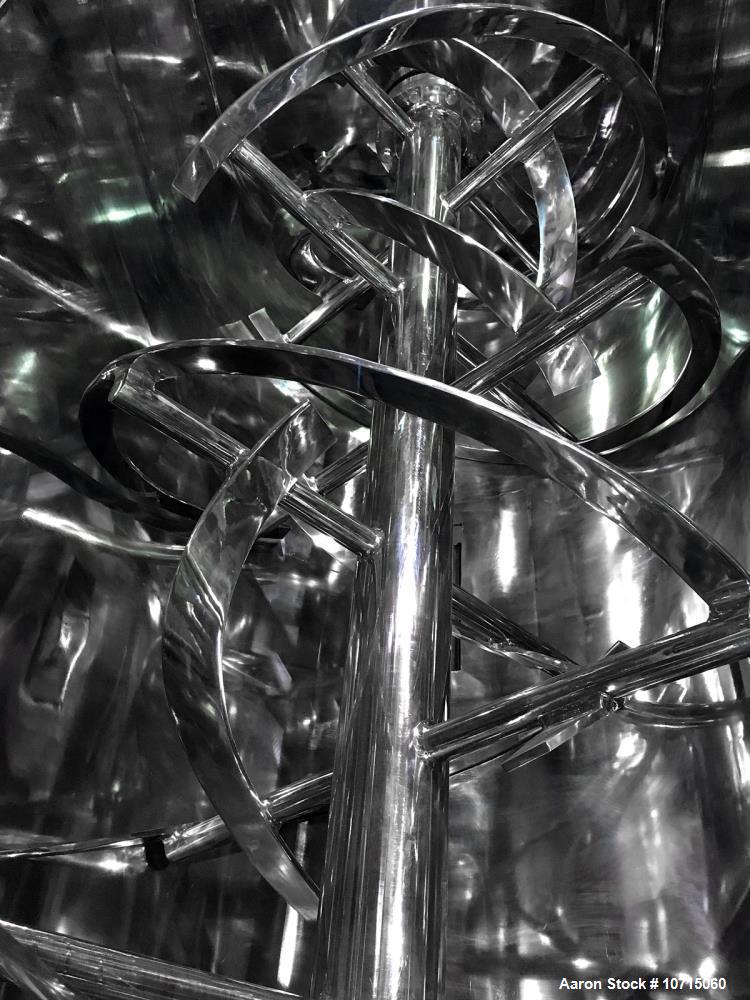

• Mixing Element: Internal Double Spiral Ribbon

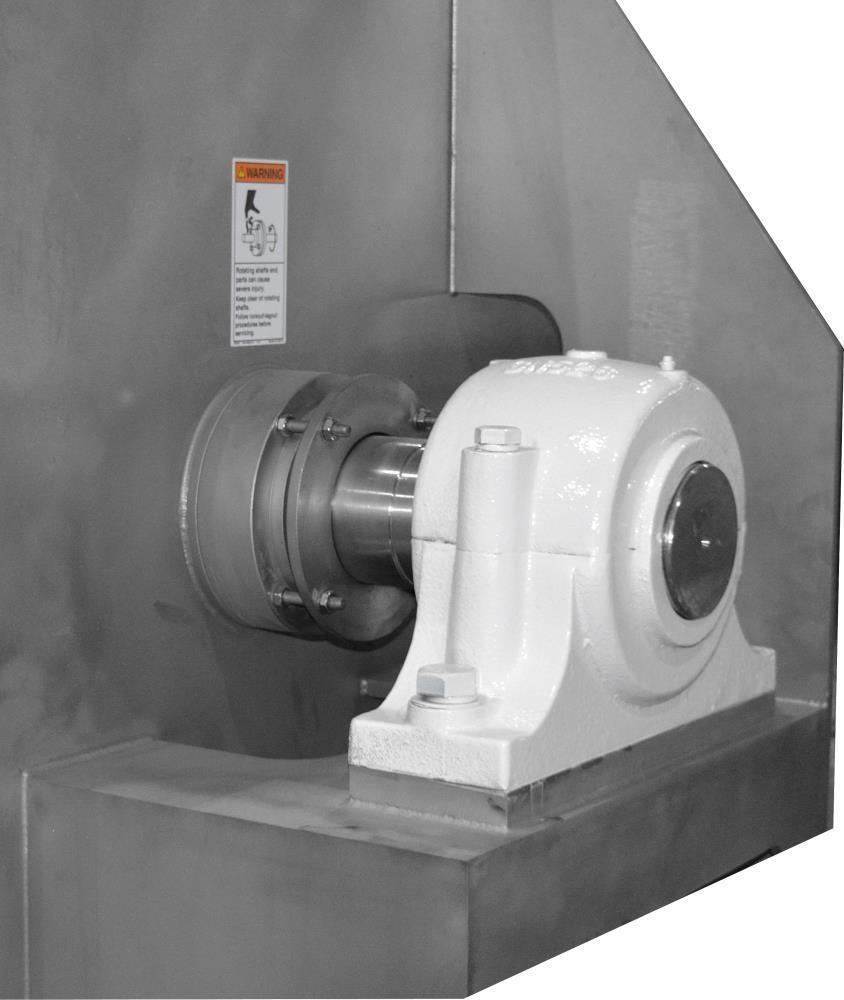

• Bearings: Packing Glands & Pillow Block Bearings
• Motor: 30 HP SEW Eurodrive Hollow Bore
• Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz
• Output Speed: Approximately 31 RPM

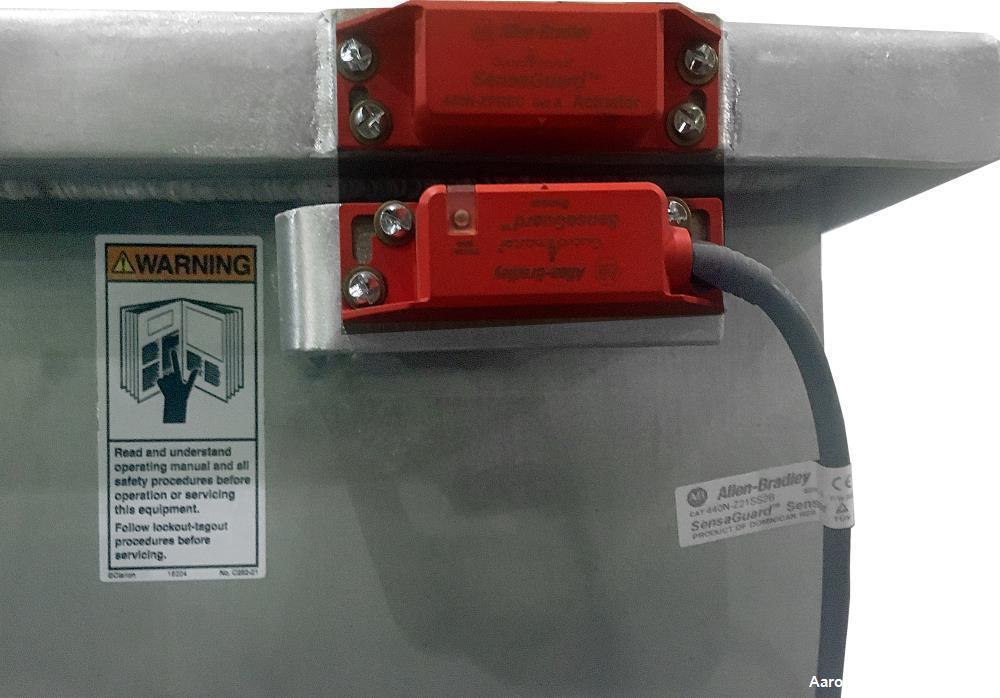

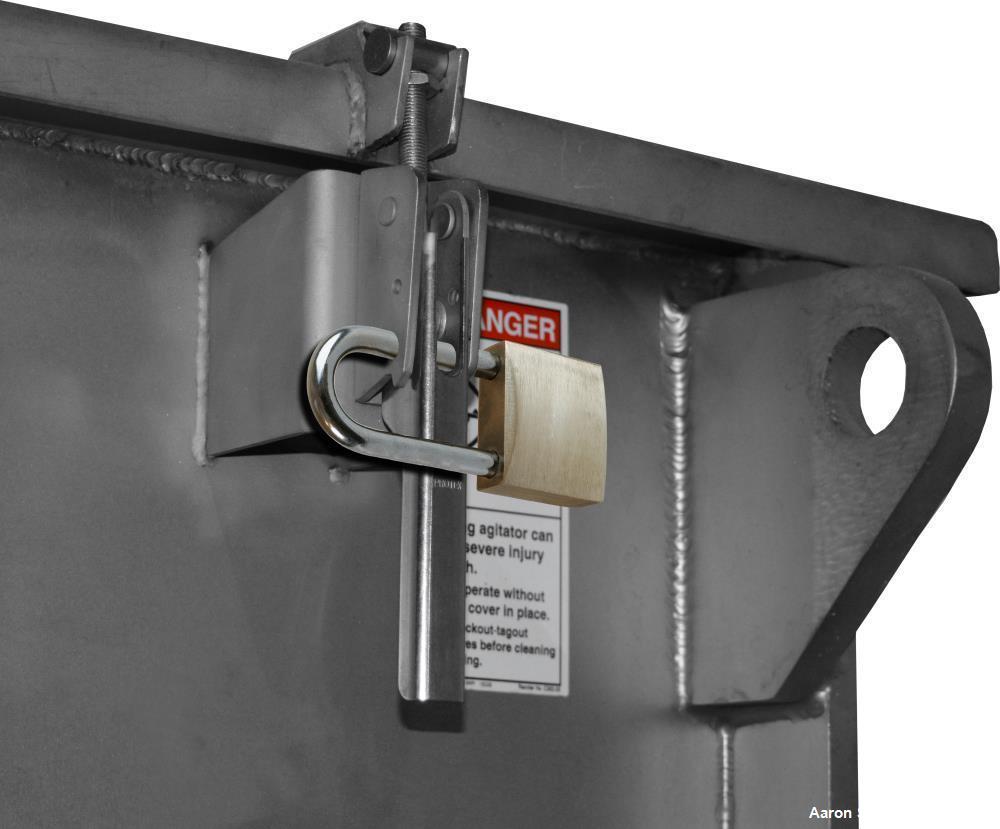

• Top Cover: Hold-Down Clamps with Limit Switch

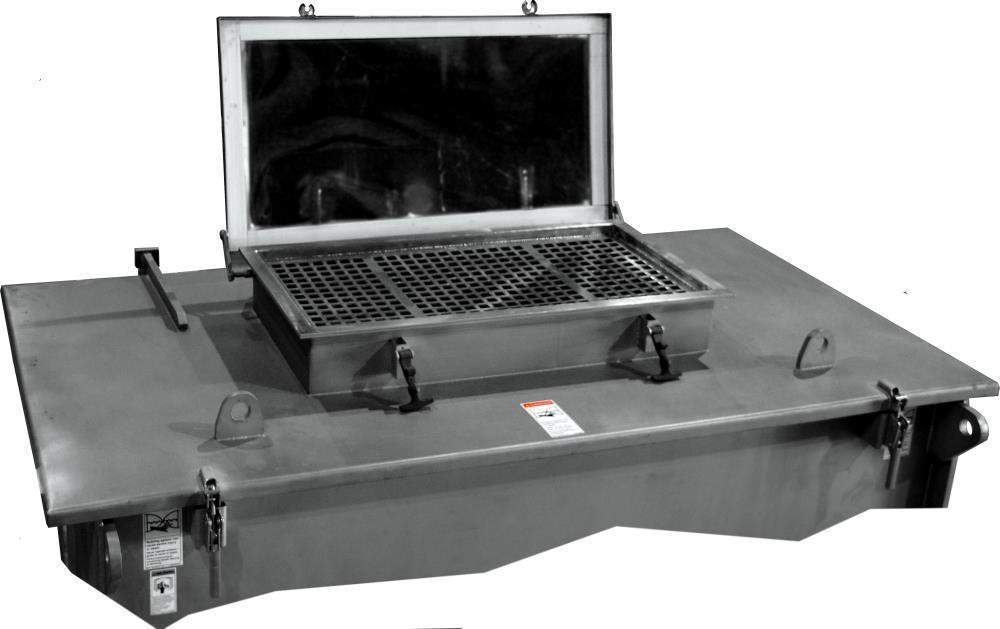

• Center Loading Cover: Welded Safety Grate, 30" Wide x 50" Long
• Discharge Valve: 4.7" Wide x 14.2" Flush Air-Operated Plug Valve
• Discharge Housing: 18.5" Wide x 24" Long
• Discharge Height: Approximately 8"
• Weight: Approximately 7,260 lbs
• Overall Dimensions: 63.3" Wide x 146.4" Long x 80.8" High
• Controls: Available Upon Request

Applications

• Food processing and powder blending
• Nutraceutical ingredient mixing
• Pharmaceutical powder processing
• Chemical blending applications
• Plastic pellets and resin mixing
• Fertilizer blending
• Animal feed production
• Cosmetic powder processing
• Bulk material blending
• Industrial dry mixing

Products This Blender Can Be Used For

• Protein powders
• Nutraceutical and dietary supplements
• Pharmaceutical powders and granules
• Spices and seasoning blends
• Chemicals and resins
• Fertilizers and soil amendments
• Plastic pellets and compounds
• Pet food and animal feed
• Cosmetic powders
• Agricultural seed coatings
