Rubicon Shell/Tube Heat Exchanger, Model VT221B1-216V

• Brand: Rubicon
• Model: VT221B1-216V

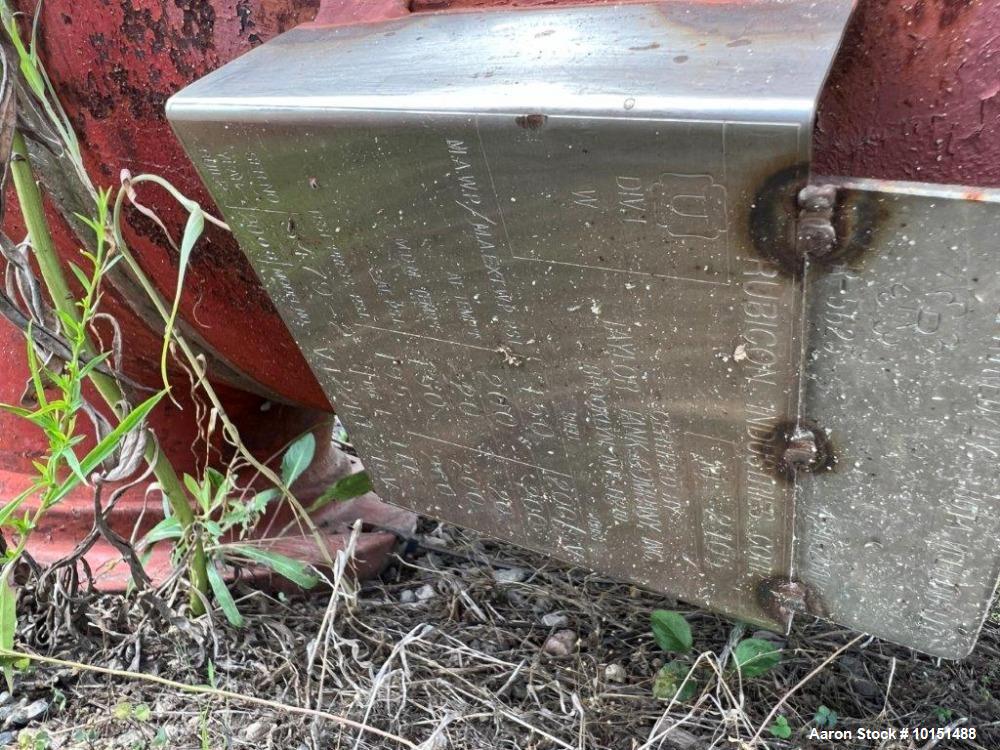

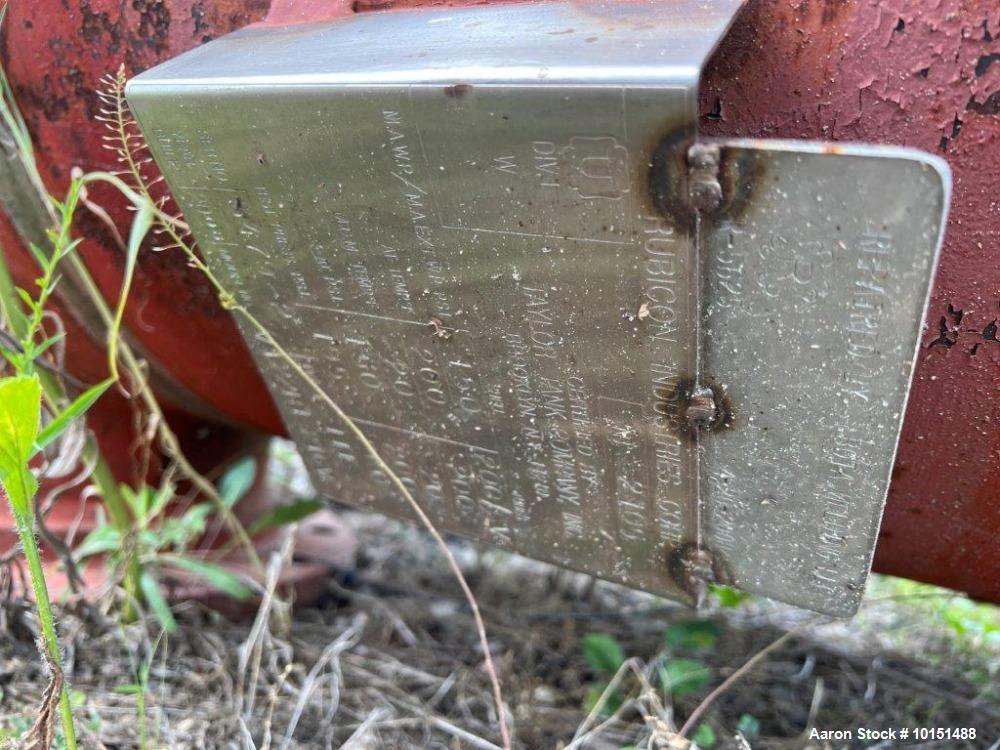

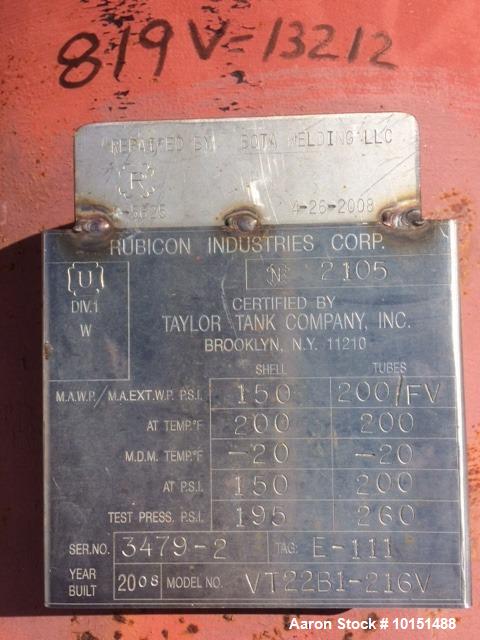

• National Board Number: 2105
• Serial Number: 3472-2
• Year Built: 2008

Description:

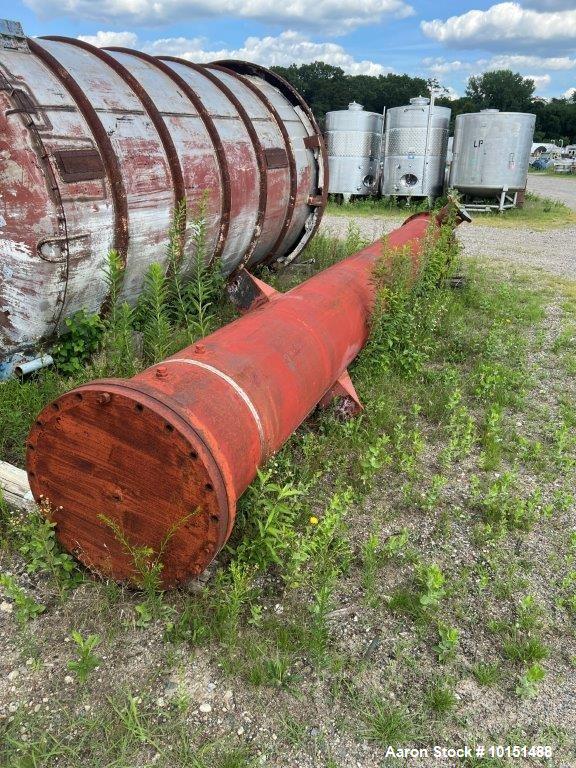

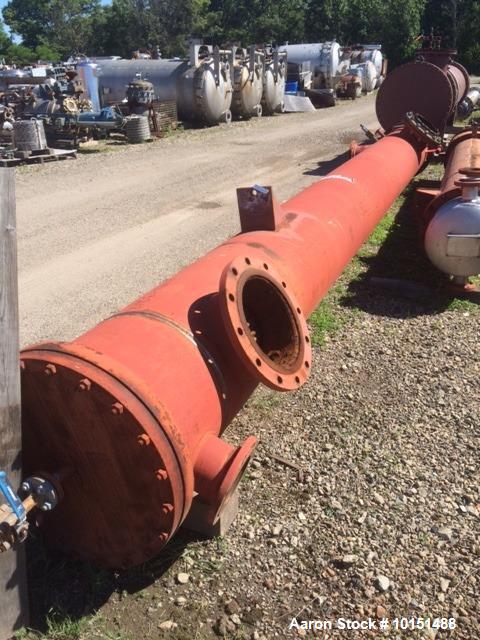

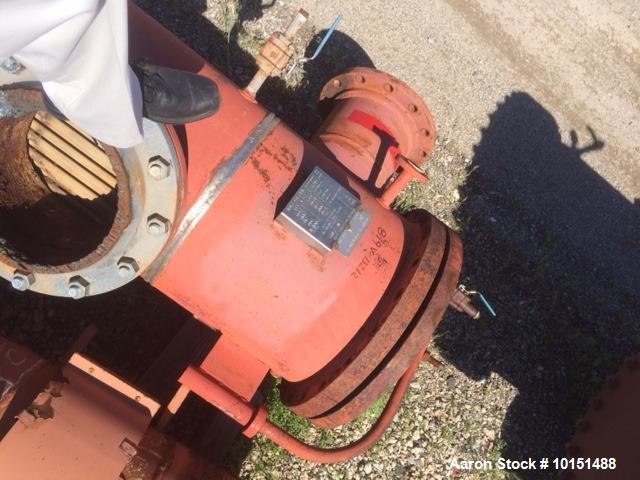

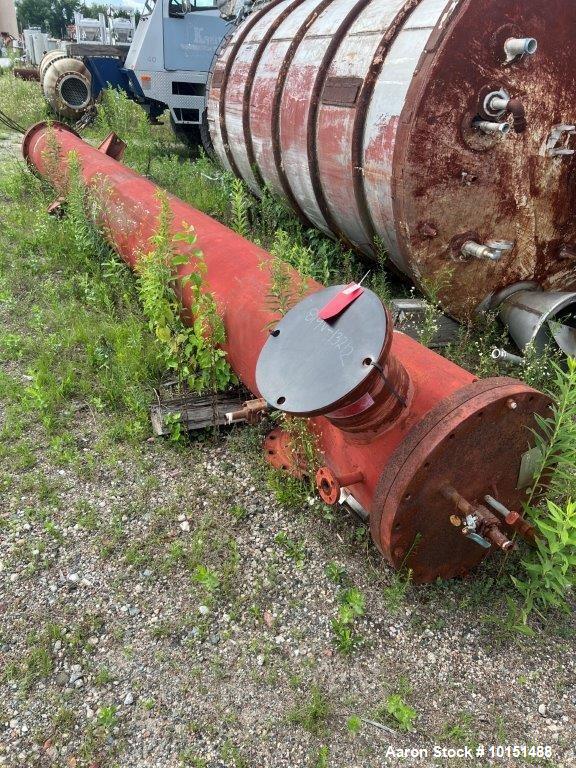

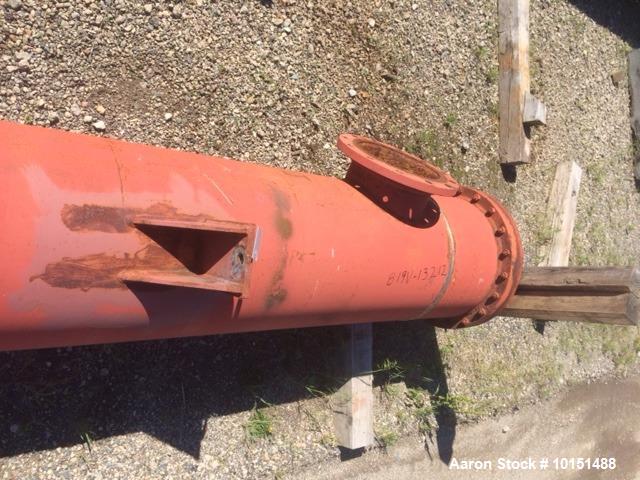

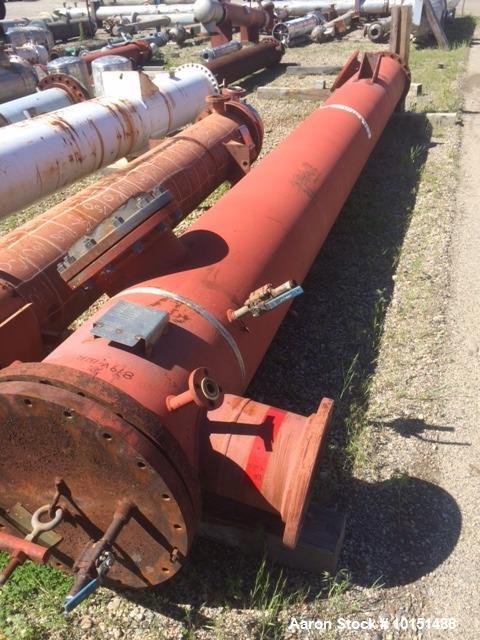

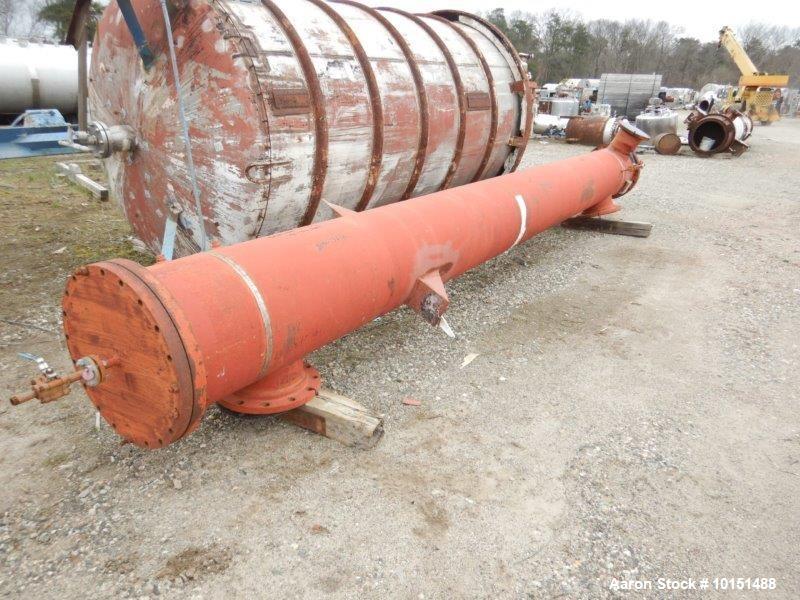

This used Rubicon shell and tube heat exchanger is a high-capacity vertical unit with a total heat transfer surface area of 1,554 square feet. It features a carbon steel shell and 304 stainless steel tubes, making it suitable for industrial heat transfer applications. The shell is rated for 150 PSI at 200°F, while the tube side is rated for 200 PSI / full vacuum (FV) at 200°F. The unit consists of (577) 0.75" diameter x 168" long 304 stainless steel tubes and has an overall dimension of 26" diameter x 216" length.

Specifications:

• Total Heat Transfer Area: 1,554 sq. ft.
• Shell Material: Carbon Steel
• Shell Pressure Rating: 150 PSI @ 200°F MAWP
• Tube Material: 304 Stainless Steel
• Tube Pressure Rating: 200 PSI / FV @ 200°F MAWP

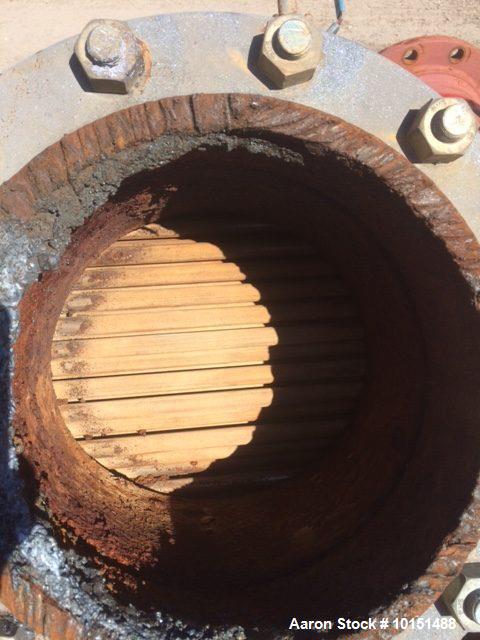

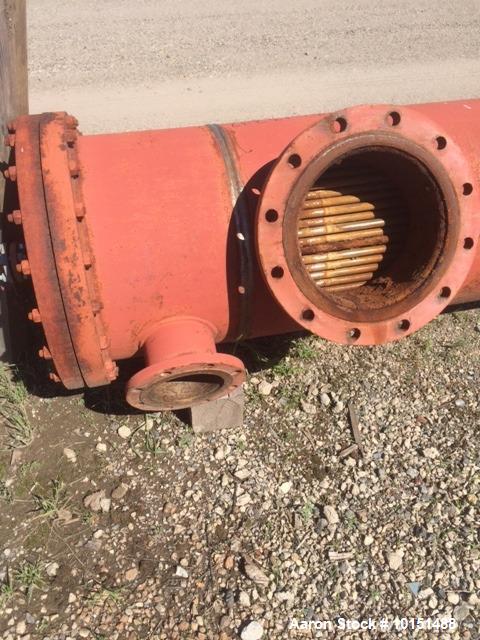

• Tube Size: (577) 0.75" diameter x 168" long
• Overall Dimensions: 26" diameter x 216" length
• Design: Vertical

Applications:

• Chemical and petrochemical processing
• Pharmaceutical and food processing
• Industrial steam heating and cooling
• Heat recovery in manufacturing plants
• Condensation and vaporization systems
• Oil and gas refining operations

Compatible Products & Systems:

• Process cooling and heating systems
• Industrial heat recovery loops
• Corrosive fluid processing units
• High-pressure steam or liquid systems
• Petrochemical and refinery exchangers
