Stock No.: 48325001
Joseph Oat Corporation 8 Pass U Tube Shell & Tube Heat Exchanger

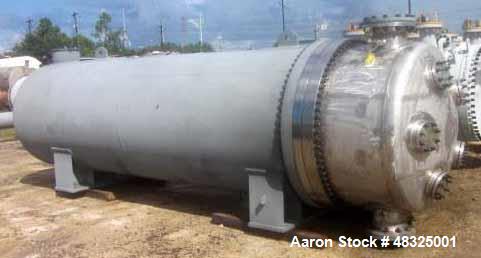

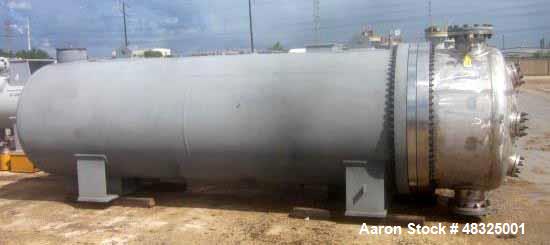

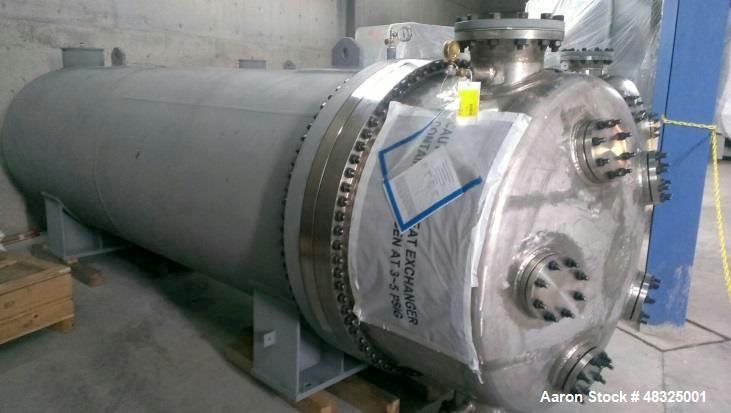

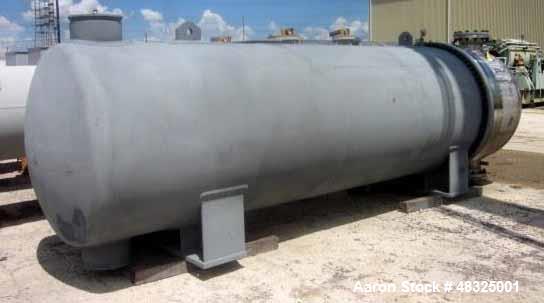

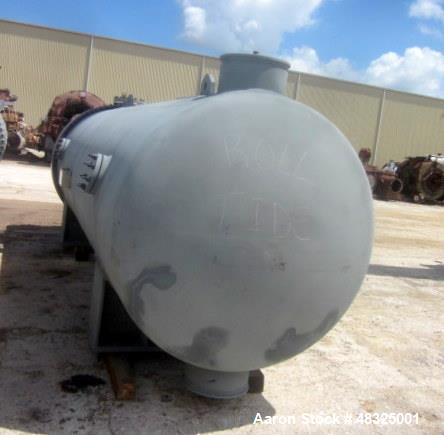

Unused- Joseph Oat Corporation 8 Pass U Tube Shell & Tube Heat Exchanger, 5700 Square Feet, Horizontal. Carbon steel shell rated 150 psi at 200 degrees F. (1194) 3/4" Diameter x 11 long 304L stainless steel tubes rated 150 psi at 200 degrees F. 304L Stainless steel head and tubesheets. Openings for shell (2) 14", for tubes (2) 10". Mounted on saddles. Serial # 2692A. National Board # 3606. Built 2012.
-
ManufacturerJoseph Oat Corp.
-
Serial #2692A
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube Stainless
-
Square Footage5700
-
Horizontal Or VerticalHorizontal
-
Shell MaterialCarbon Steel
-
Shell Pressure150 psi
-
Shell Temperature200 degrees F
-
Number Of Shell Openings2
-
Size Of Shell Openings14"
-
Tube Material304L Stainless Steel
-
Tube Pressure150 psi
-
Tube Temperature200 degrees F
-
Number Of Tube Openings2
-
Size Of Tube Openings10"
-
Head Material304L Stainless Steel
-
MountedSaddle Mounted
-
National Board No.3606
-
Overall Dimensions224"L X 64"W X 80"T
-
Year Built2012
Used equipment facts about this machine
Manufacturer Information
- Manufacturer: Joseph Oat Corporation
- Model: Unspecified

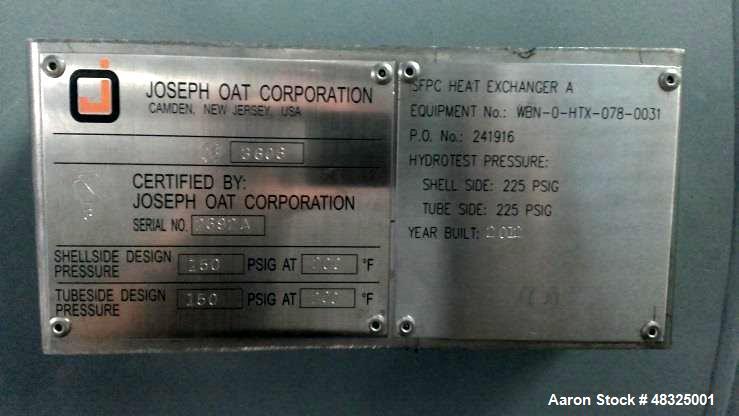

- Serial Number: 2692A
- National Board Number: 3606
- Year Built: 2012
Description
The Unused Joseph Oat Corporation 8-Pass U-Tube Shell & Tube Heat Exchanger is a high-efficiency industrial heat exchanger designed for a variety of thermal transfer applications. With a heat transfer surface area of 5700 square feet, this horizontal unit is built for durability and efficiency.
The carbon steel shell is rated at 150 psi at 200°F, while the (1194) ¾" diameter, 11' long 304L stainless steel tubes are also rated at 150 psi at 200°F. The 304L stainless steel head and tubesheets provide superior corrosion resistance. The unit is mounted on saddles for stability and features large shell (2) 14" and tube (2) 10" openings for flexible integration.
Specifications
- Type: U-Tube Shell & Tube Heat Exchanger
- Passes: 8-pass
- Orientation: Horizontal
- Surface Area: 5700 sq. ft.
- Shell Material: Carbon steel
- Tube Material: 304L stainless steel
- Head & Tubesheets Material: 304L stainless steel
- Shell Rating: 150 psi @ 200°F
- Tube Rating: 150 psi @ 200°F
- Tubes: (1194) tubes, ¾" diameter, 11' length
- Shell Openings: (2) 14"
- Tube Openings: (2) 10"
- Mounting: Saddle-mounted
Applications
- Chemical & Petrochemical Processing (cooling, heat recovery, condensation)
- Oil & Gas Industry (liquid heating, gas cooling, refining processes)
- Power Generation (steam systems, waste heat recovery)
- Food & Beverage Processing (temperature control, pasteurization)
- Pharmaceutical & Biotech Industry (sterile heating/cooling applications)
Compatible Products & Systems
- Industrial heating and cooling systems
- Steam and process fluid handling
- Oil refining and gas processing units
- Heat recovery and energy efficiency applications
Product Details
- Shell & tube heat exchanger
- U-tube heat exchanger
- Industrial heat exchanger
- 304L stainless steel heat exchanger
- Joseph Oat shell & tube heat exchanger 5700 sq. ft.
- 8-pass carbon steel heat exchanger
- Stainless steel U-tube heat exchanger 150 psi
- Horizontal heat exchanger with saddle mounting
- Unused Joseph Oat Corporation 8-pass U-tube shell & tube heat exchanger, 5700 sq. ft.
- Industrial carbon steel heat exchanger with 304L stainless steel tubes and 8-pass design
- High-efficiency shell & tube heat exchanger for chemical, oil & gas, and power generation applications
