Stock No.: 46075068
Used ITT Industries Shell & Tube Heat Exchanger, Approximate 124 Square Feet, Horizontal. Carbon steel shell rated 100 psi at -20 to 375 degrees F. (200) 3/8" Diameter x approximate 78" long 316 Stai...

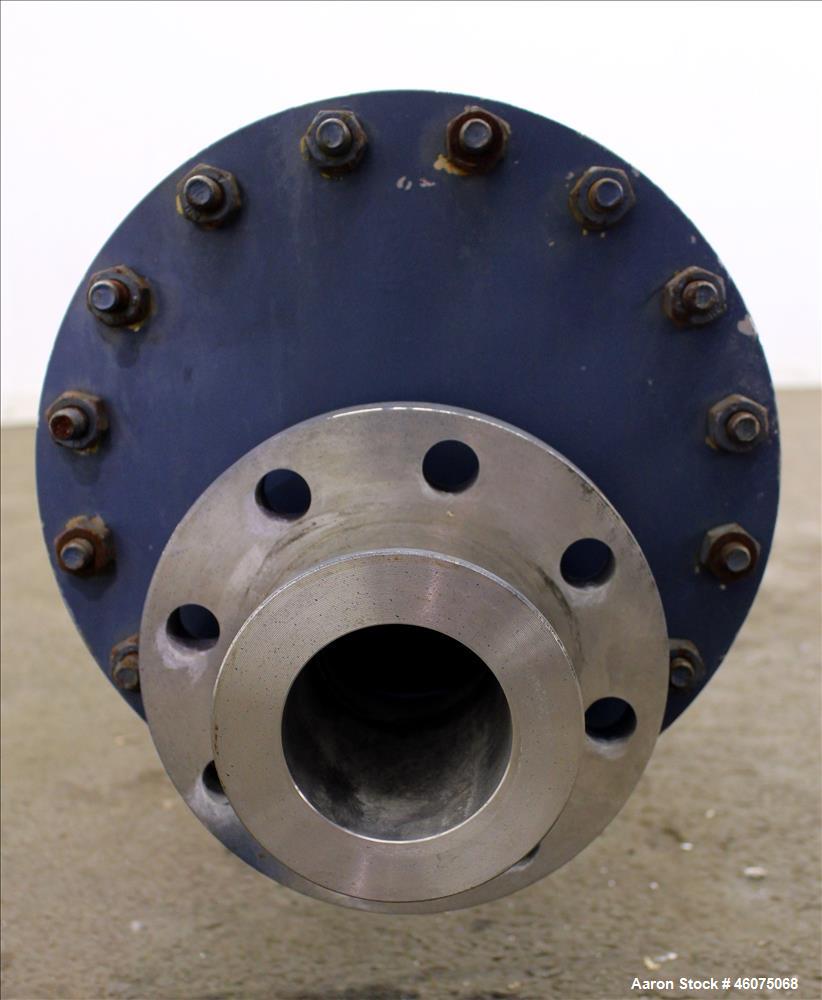

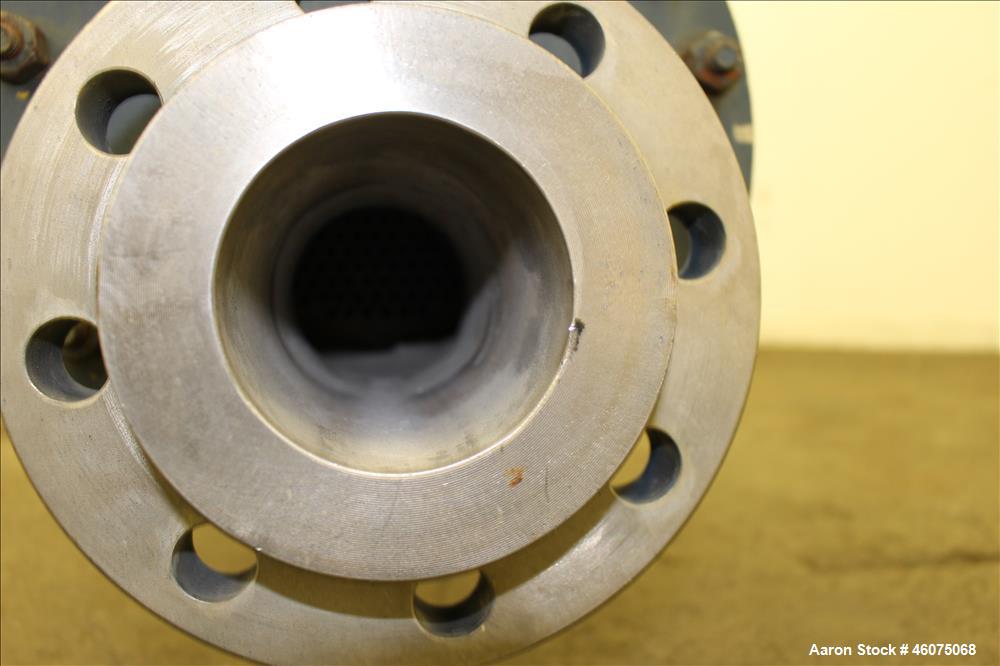

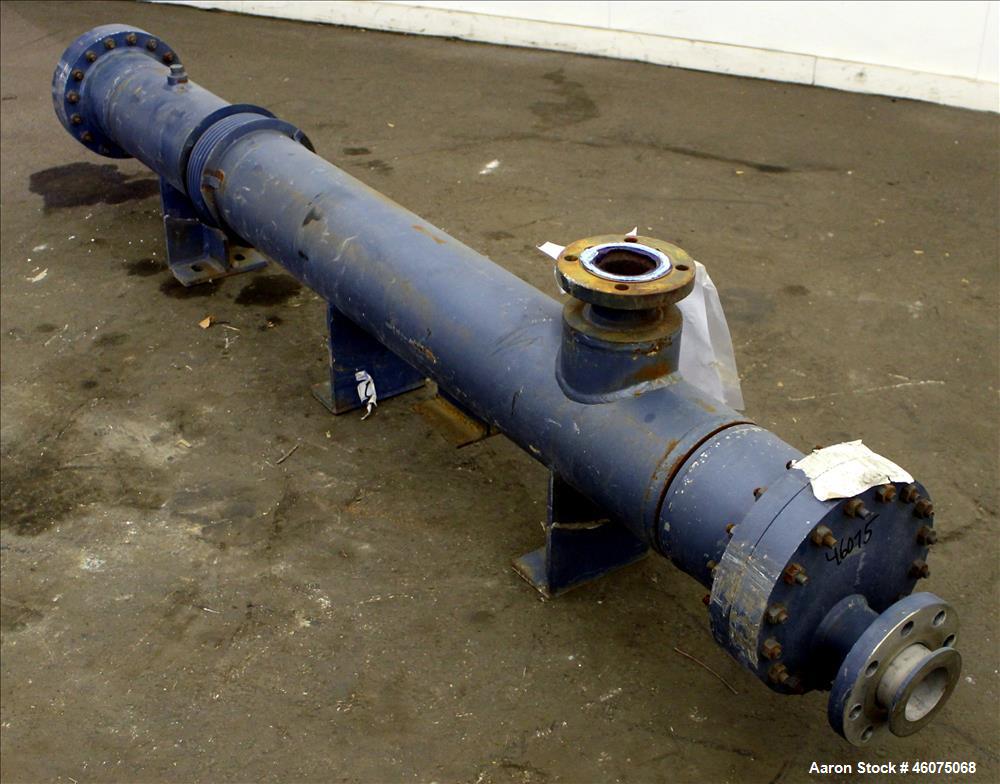

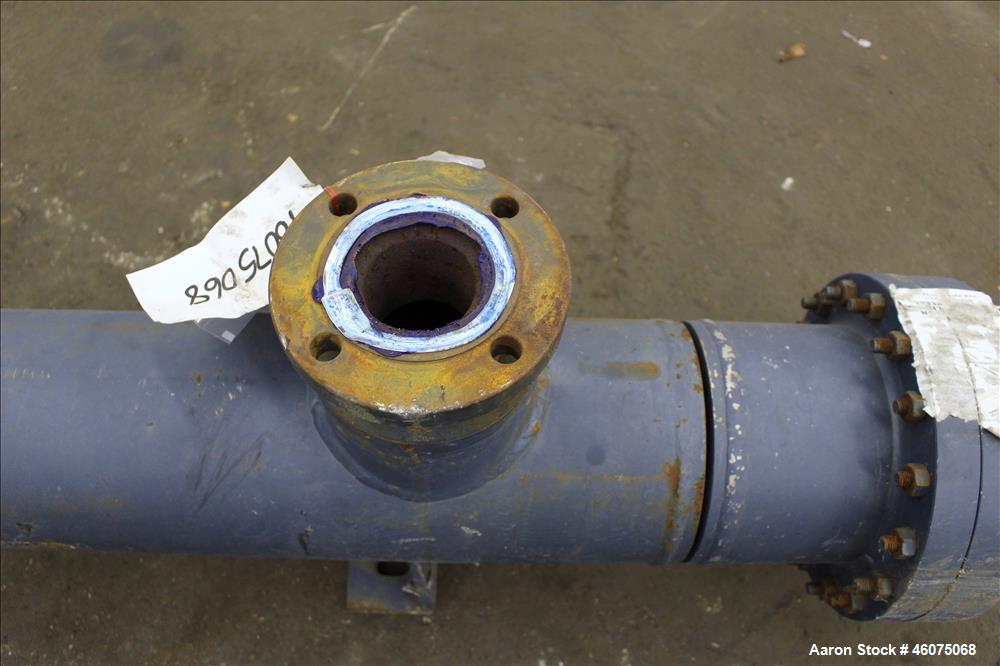

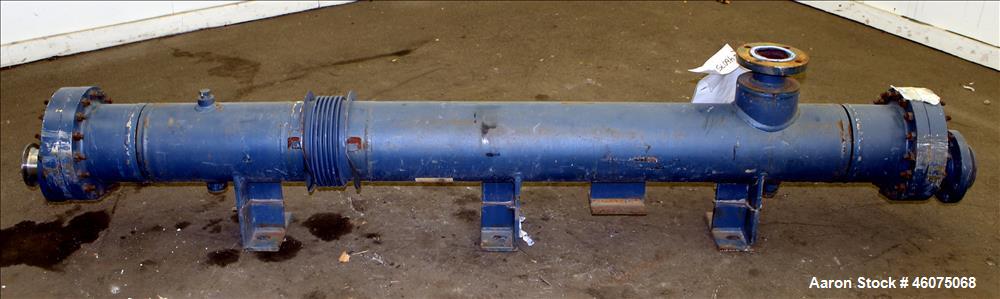

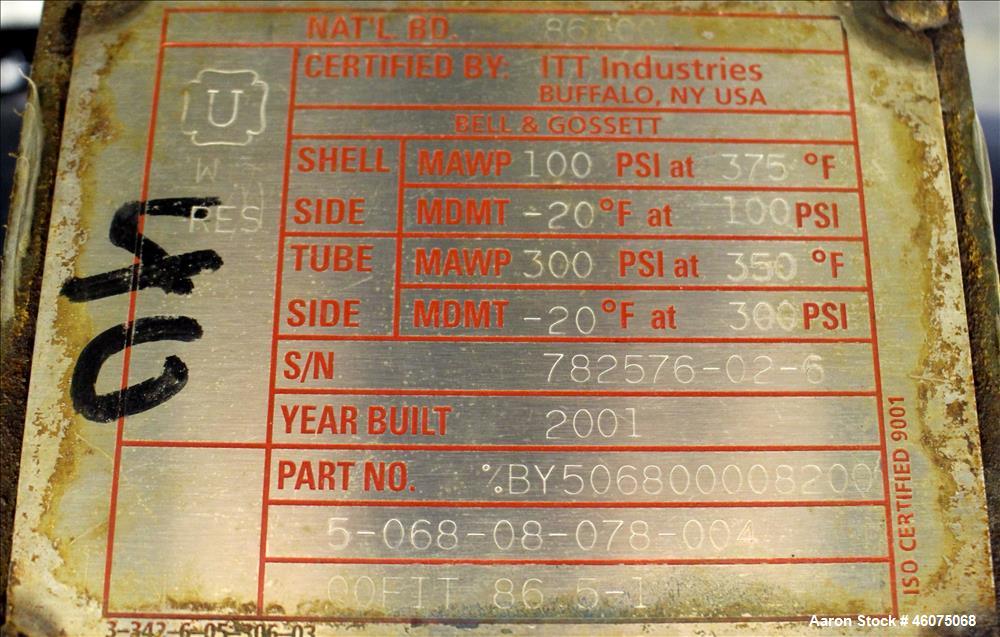

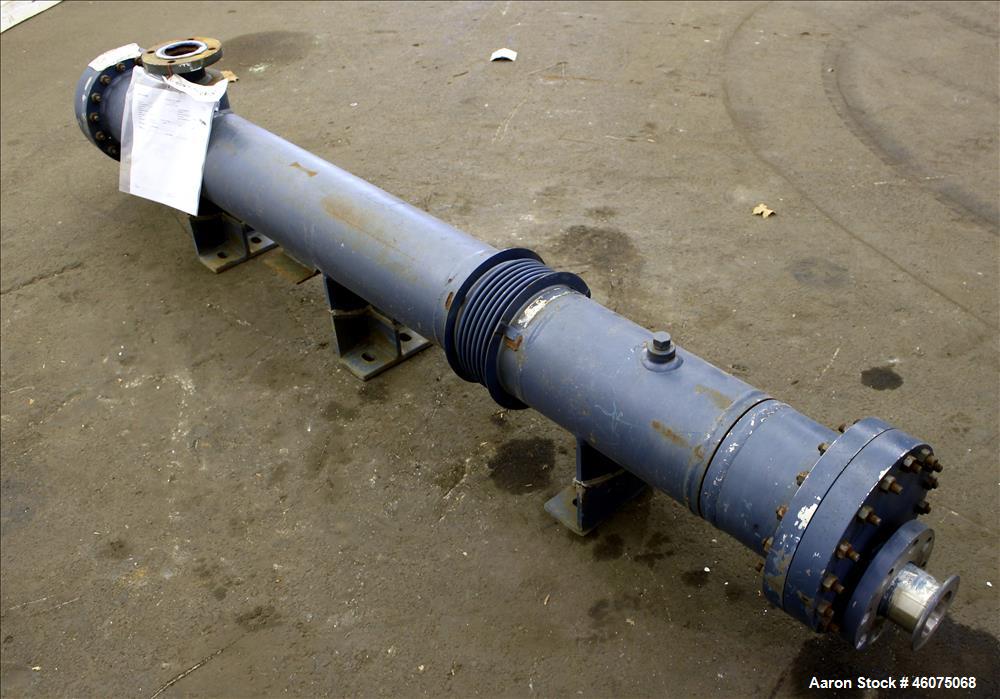

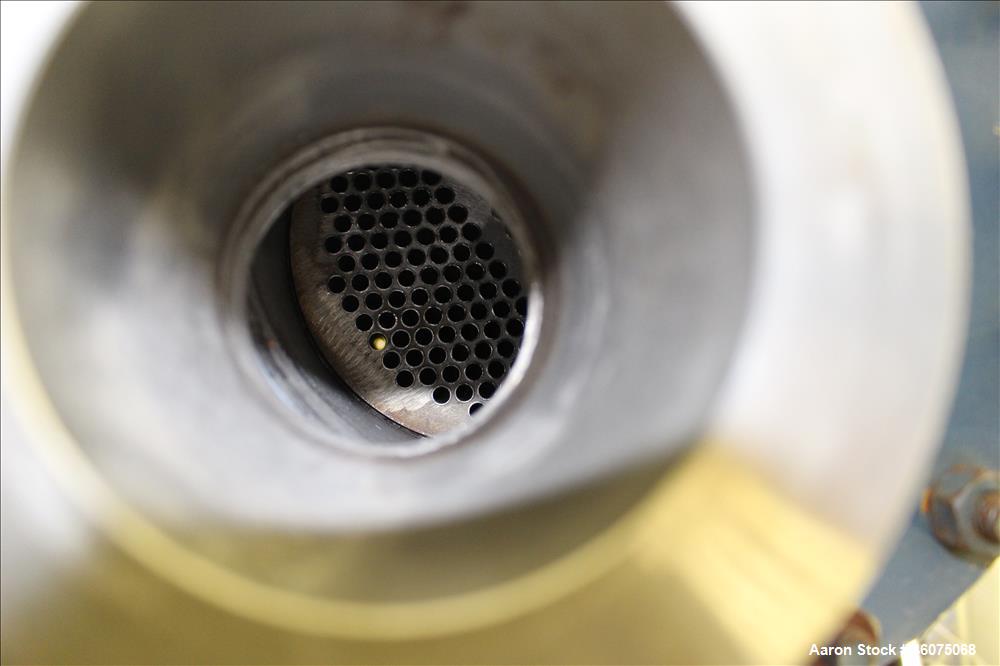

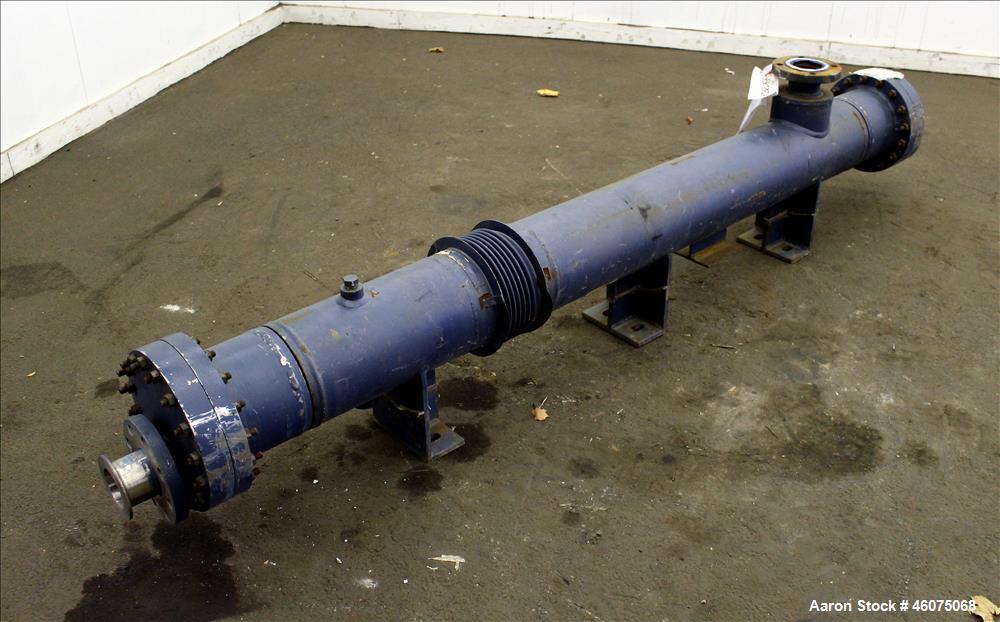

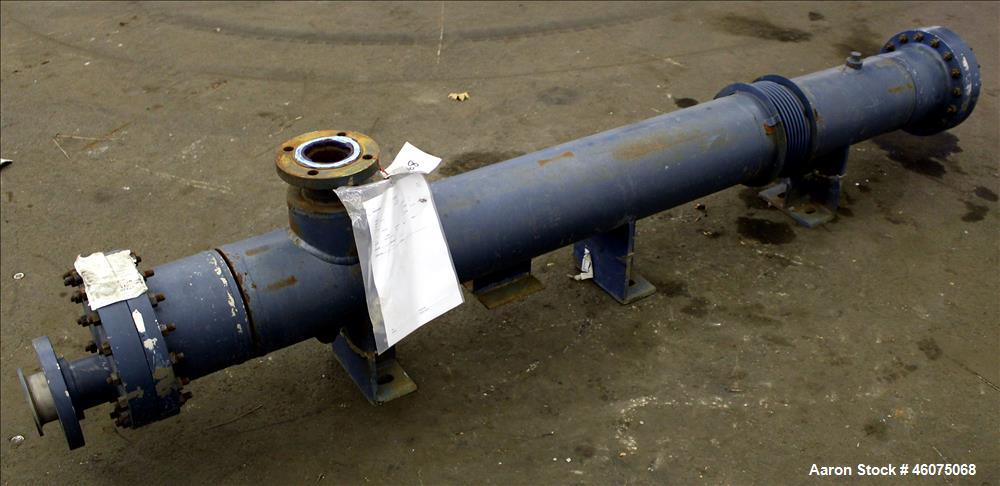

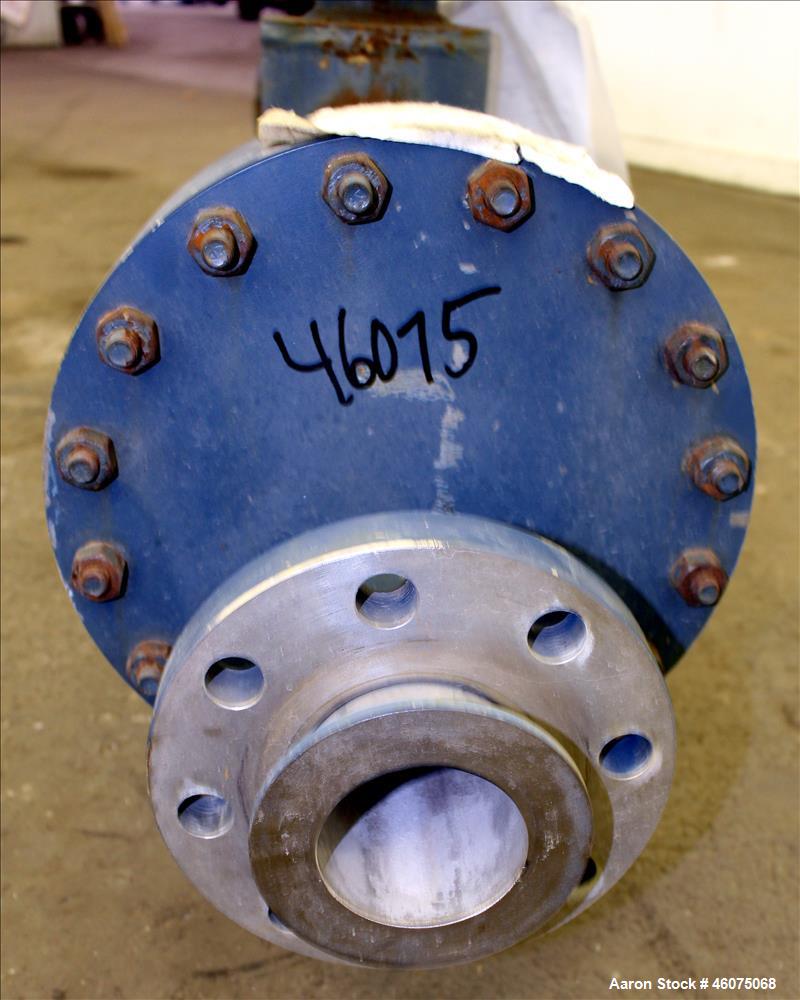

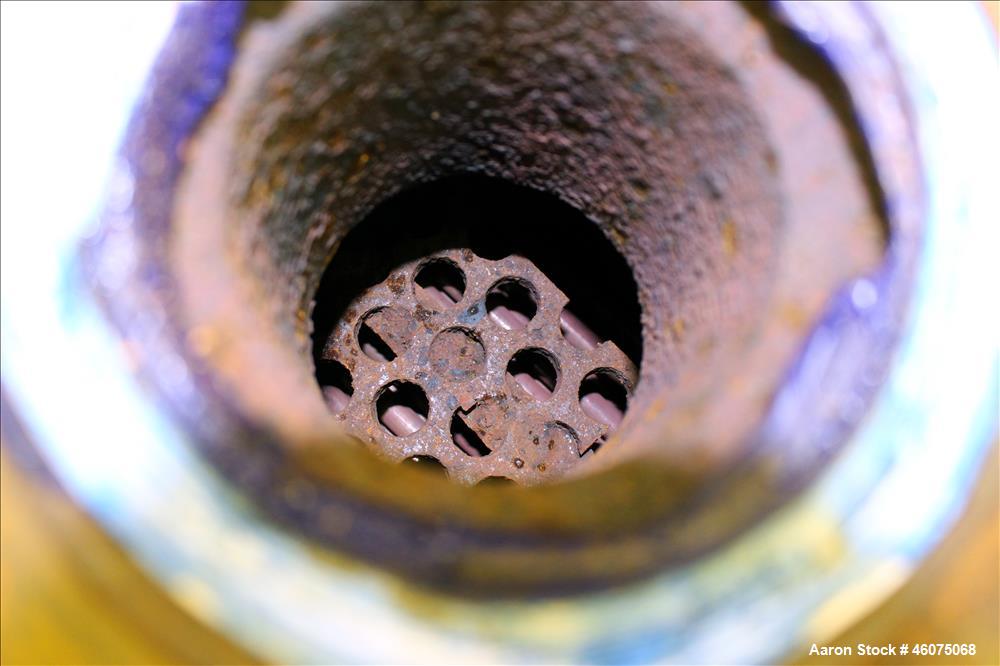

Used- ITT Industries Shell & Tube Heat Exchanger, Approximate 124 Square Feet, Horizontal. Carbon steel shell rated 100 psi at -20 to 375 degrees F. (200) 3/8" Diameter x approximate 78" long 316 Stainless steel tubes rated 300 psi at -20 to 350 degrees F. Carbon steel tube sheet, steel heads. Openings shell (1) 3", tubes (2) 3". Mounted on (3) legs. Serial# 782576-02-6. National Board# 86700. Built 2001.
-
ManufacturerITT
-
Serial #782576-02-6
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube Stainless
-
Horizontal Or VerticalHorizontal
-
Shell MaterialCarbon Steel
-
Shell Pressure100 psi
-
Shell Temperature-20 to 375 degrees F
-
Number Of Shell Openings1
-
Size Of Shell Openings3"
-
Tube Material304 Stainless Steel
-
Tube Pressure300 psi
-
Tube Temperature-20 to 350 degrees F
-
Number Of Tube Openings2
-
Size Of Tube Openings3"
-
MountedMounted on 3 Legs
-
National Board No.86700
-
Overall Dimensions106"L x 16"W x 24"T
-
Tube LengthApproximate 7'
-
Year Built2001
