Stock No.: 51637001

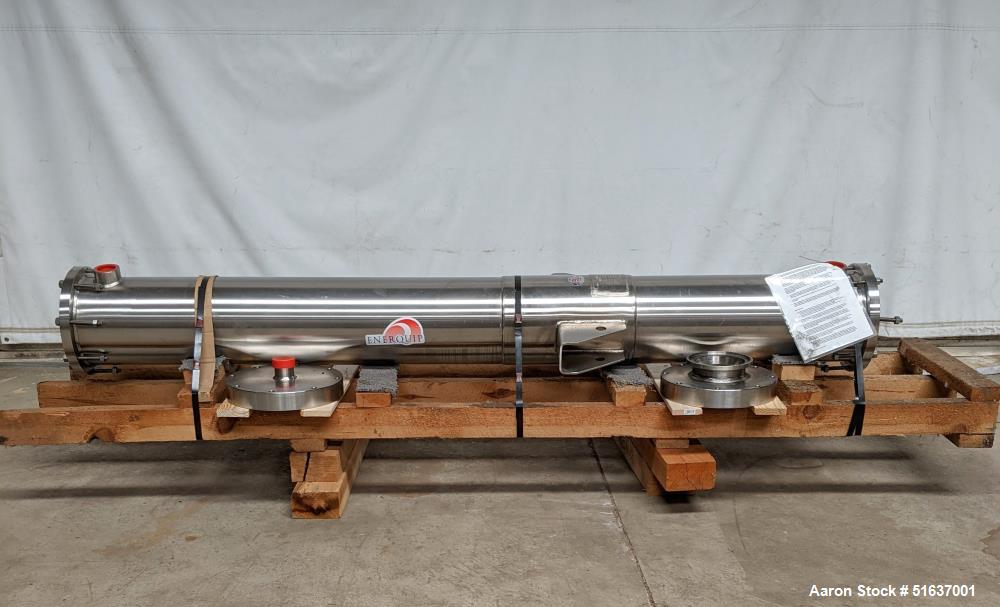

Unused- Enerquip Shell & Tube Heat Exchanger, Stainless Steel, Vertical. Approximate 132 square feet. 304L Stainless steel shell rated 150 psi at -20 to 375 degrees F. (126) 316L Stainless steel stra...

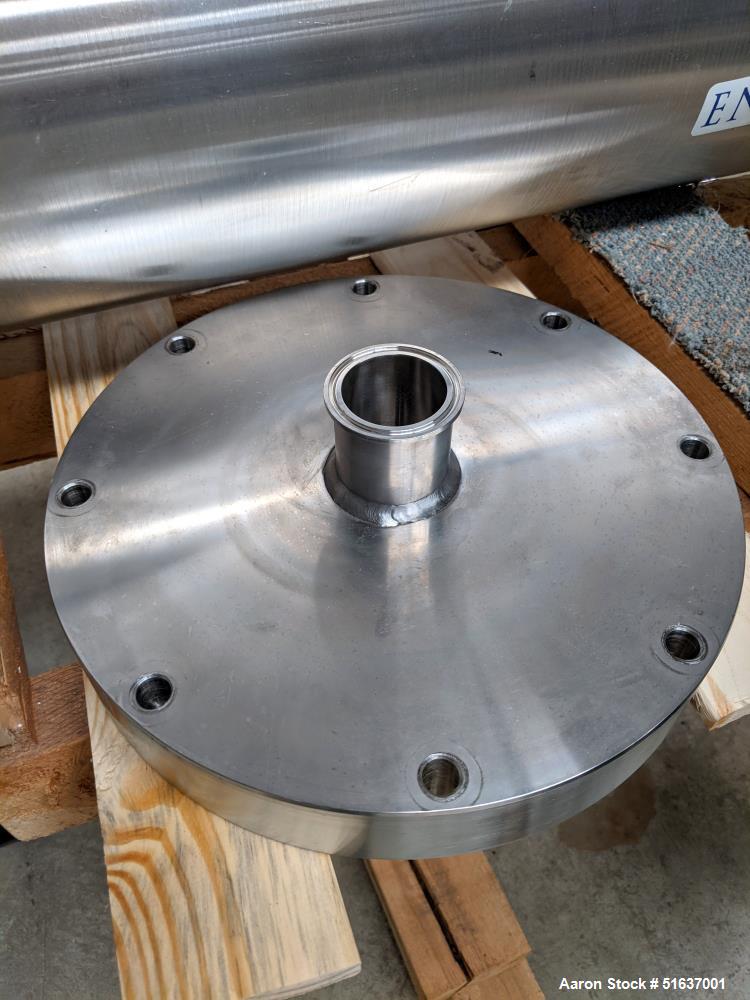

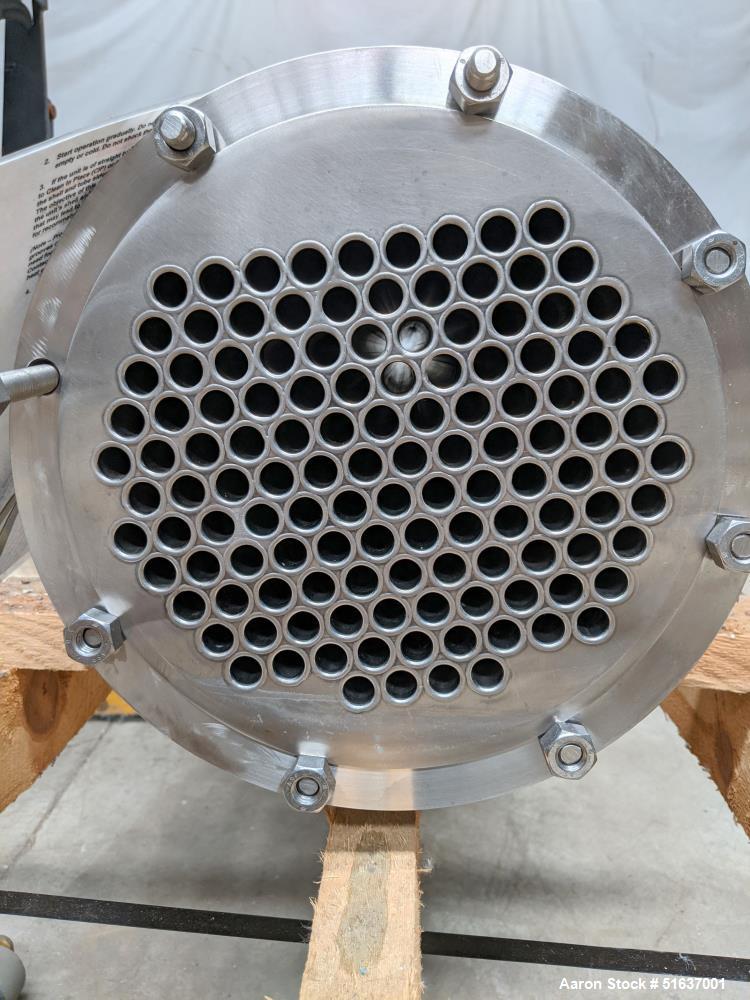

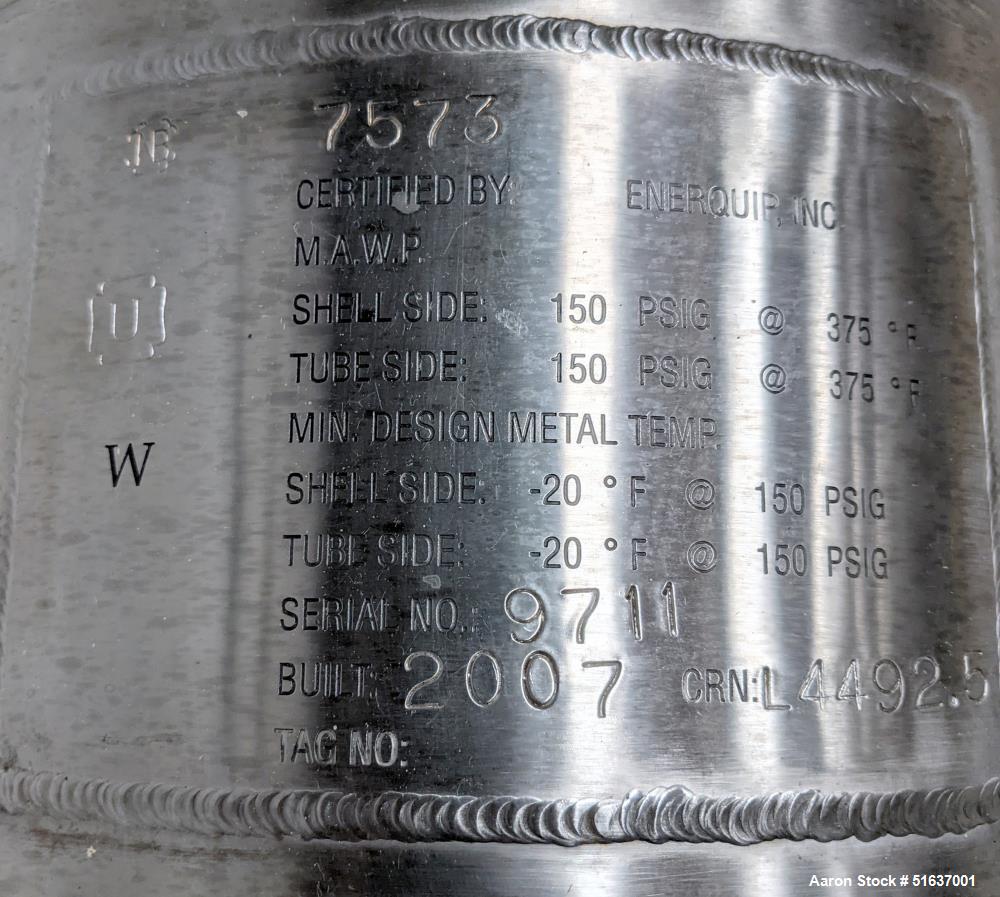

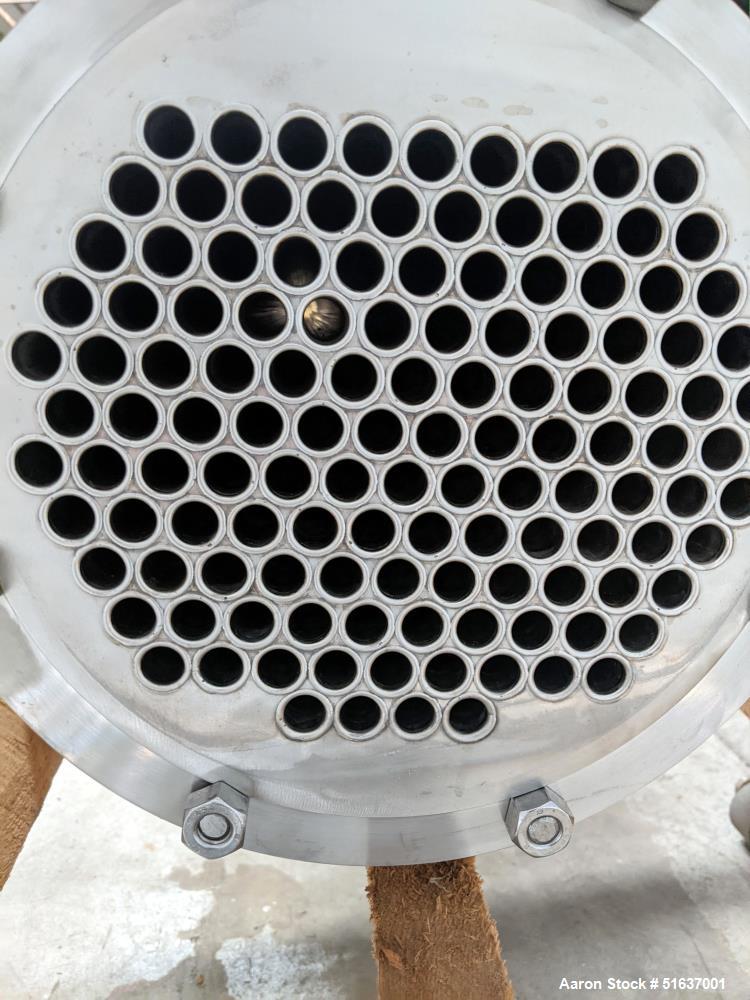

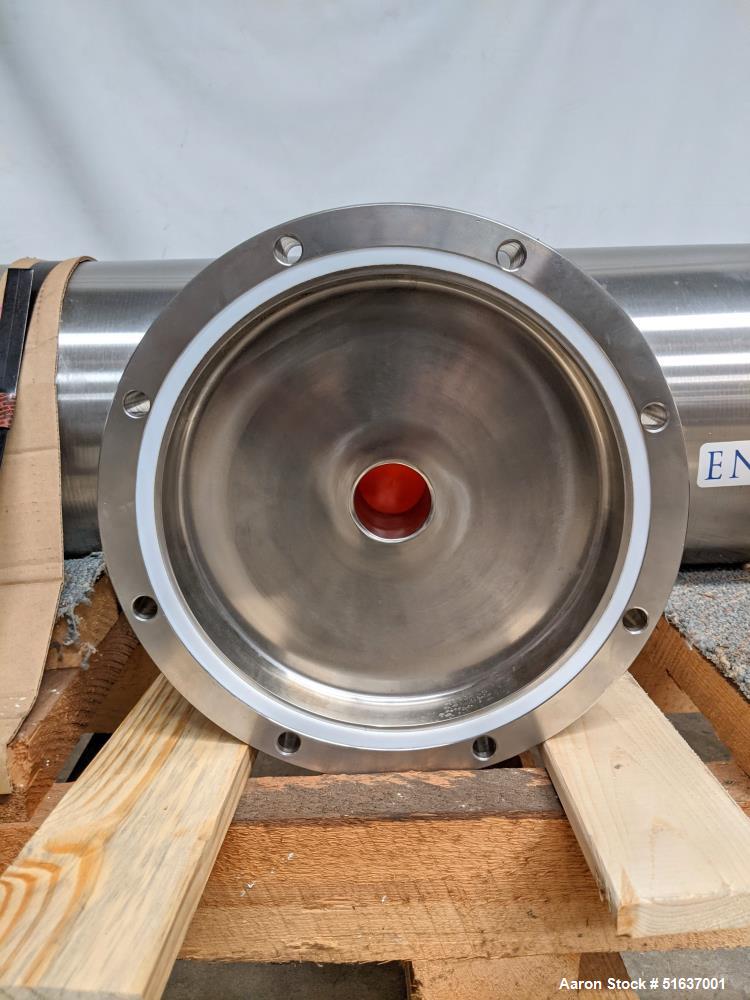

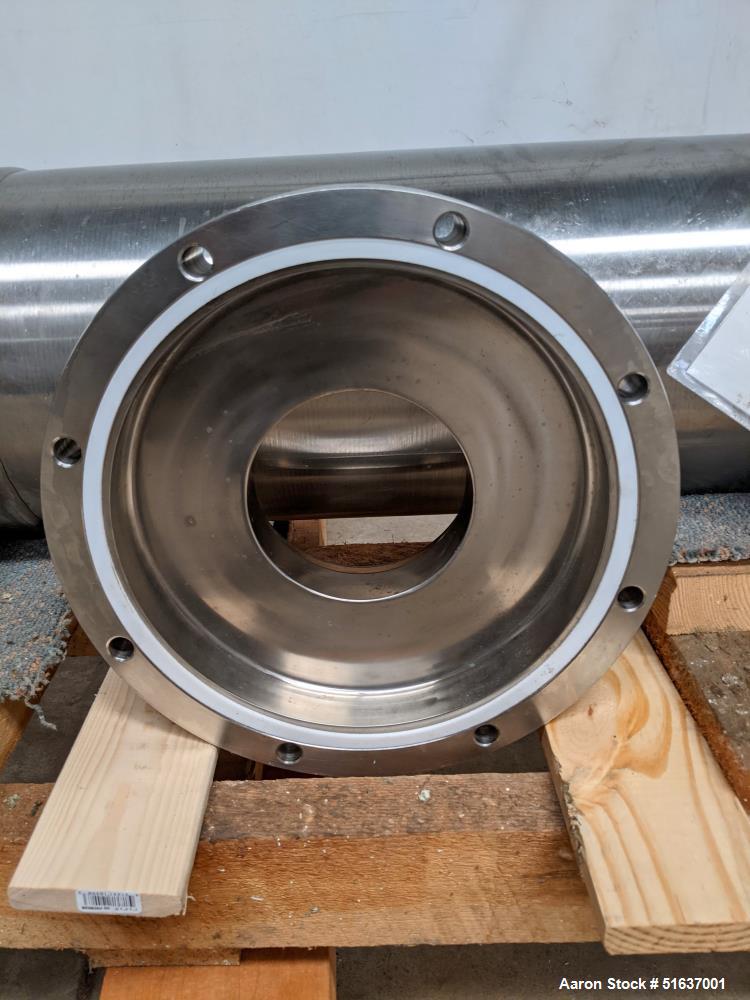

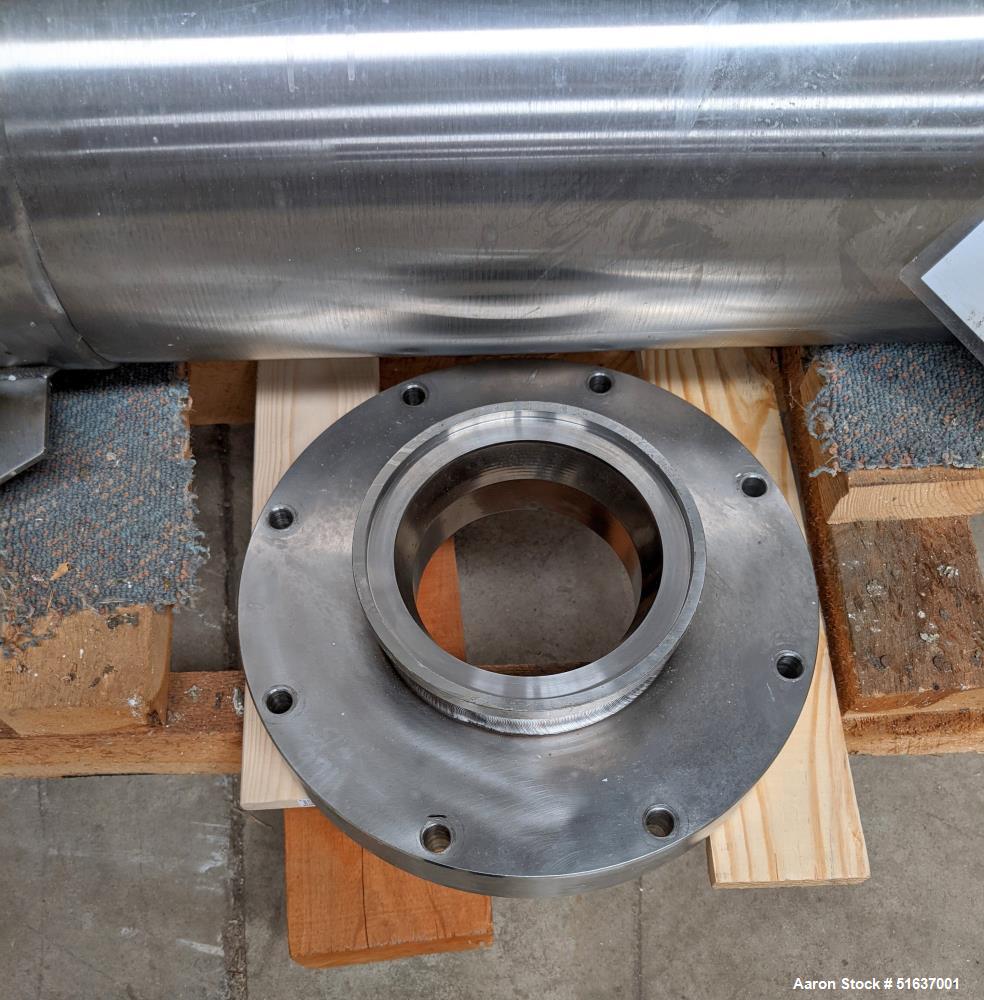

Unused- Enerquip Shell & Tube Heat Exchanger, Stainless Steel, Vertical. Approximate 132 square feet. 304L Stainless steel shell rated 150 psi at -20 to 375 degrees F. (126) 316L Stainless steel straight tubes .625" O.D. (approx. 1/2" ID) x approximate 96" long x .035" thick, rated 150 psi at -20 to 375 degrees F. Openings shell: (2) 2" NPT, tube: (1) 2-1/2" tri-clamp, (1) 7-1/2" flange with 5-1/2" tri-clamp. 316L Stainless steel heads and tubesheet. Side lug mounted. Serial# 9711, CRN# L4492.5, National Board# 7573, Built 2007.
-
ManufacturerEnerquip
-
Serial #9711
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube Stainless
-
Square Footage132
-
Horizontal Or VerticalVertical
-
Shell Material304L Stainless Steel
-
Shell Pressure150 psi
-
Shell Temperature-20 to 375 degrees F.
-
Tube Material316L Stainless Steel
-
Tube Pressure150 psi
-
Tube Temperature-20 to 375 degrees F.
-
Number Of Tube Openings126
-
Head Material316L Stainless Steel
-
MountedSide Lug Mounted
-
National Board No.7573
-
Year Built2007
-
Tube Length96"
