Stock No.: 52862009
Used Anhydro Vertical Falling Film Reboiler – 19.5 Sq Ft, Hastelloy Tubes

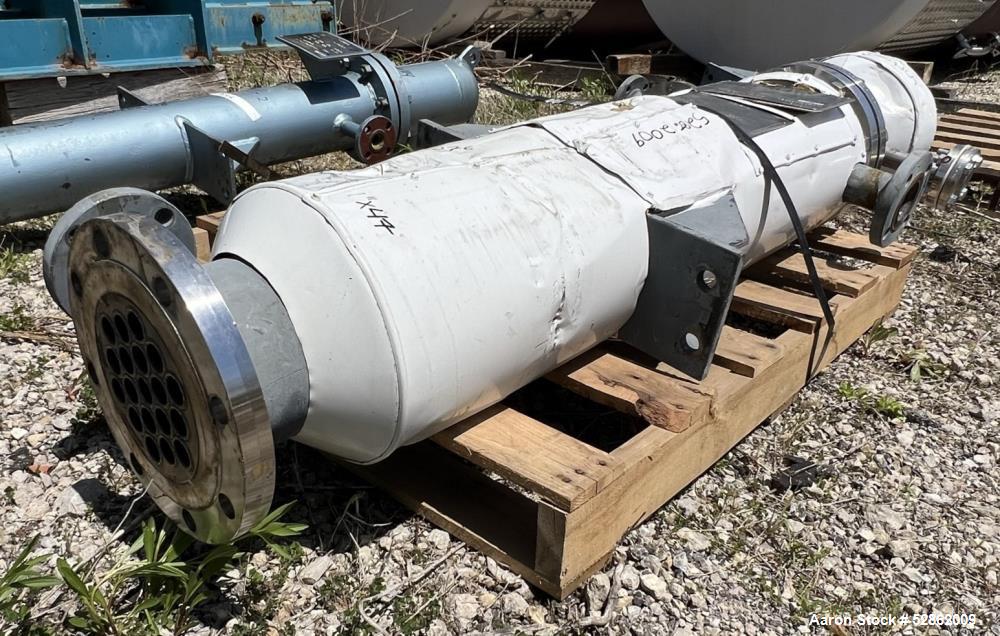

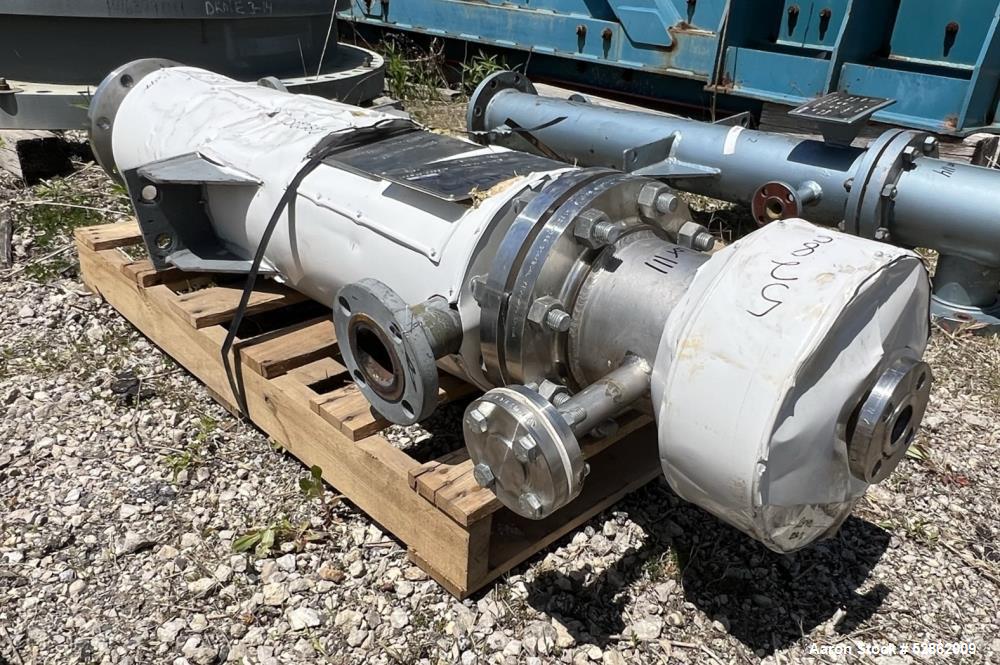

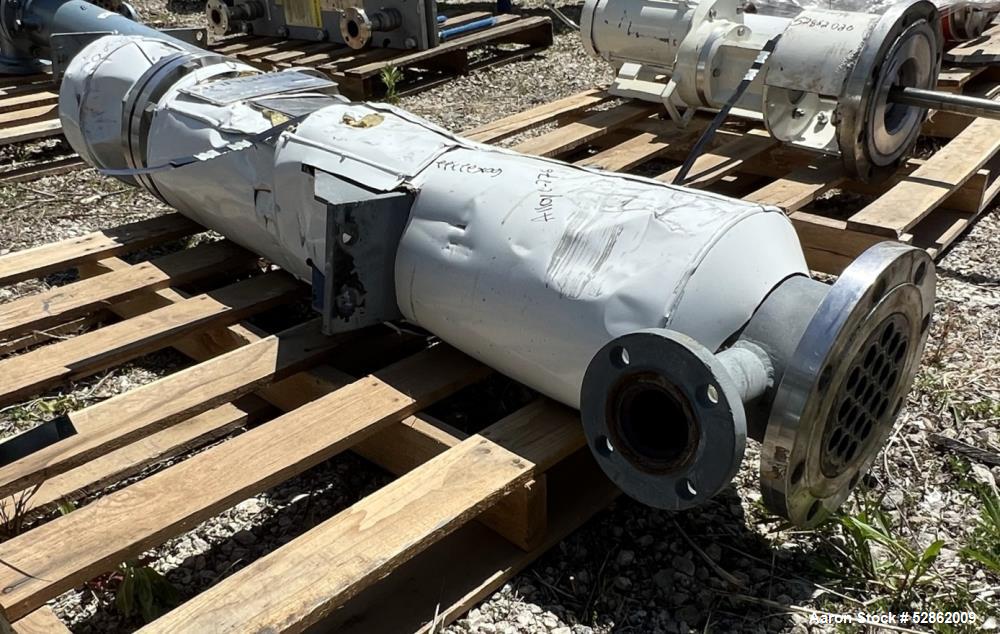

Submit Offer $7,125Used- Anhydro Vertical Falling Film Reboiler / Heat Exchanger, Approximate 19.5 Square Feet. Carbon steel shell rated 200psi / FV at -20 to 400 degrees F. (19) 1" diameter x 47" long Hastelloy C-276 tubes rated 15 psi internal / 200 psi external at -20 to 400 degrees F. Openings: (2) 2", (2) 1". 40,000 BTU/h. Side lug mounted. Certified by Orbit Industries, National Board# 1026, Serial# 8306-PV-3. No bottom head.
-
ManufacturerAnhydro
-
Serial #8306-PV-3
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube Stainless
-
Square Footage19.5
-
Horizontal Or VerticalVertical
-
Shell MaterialCarbon Steel
-
Shell Pressure200psi / fv
-
Shell Temperature-20 to 400 degrees F
-
Tube MaterialHastelloy C276
-
Tube Pressure15 psi internal / 200 psi external
-
Tube Temperature-20 to 400 degrees F
-
Number Of Tube Openings19
-
Size Of Tube Openings1"
-
MountedSide Lug Mounted
-
National Board No.1026
-
Overall Dimensions60 x 22 x 22"T
-
Year Built2008
-
Tube Length47"
Used equipment facts about this machine
Manufacturer Information
- Manufacturer: Anhydro
- Model: Unspecified
- Category: Vertical Falling Film Reboiler / Heat Exchanger
- Serial Number: 8306-PV-3
- National Board Number: 1026

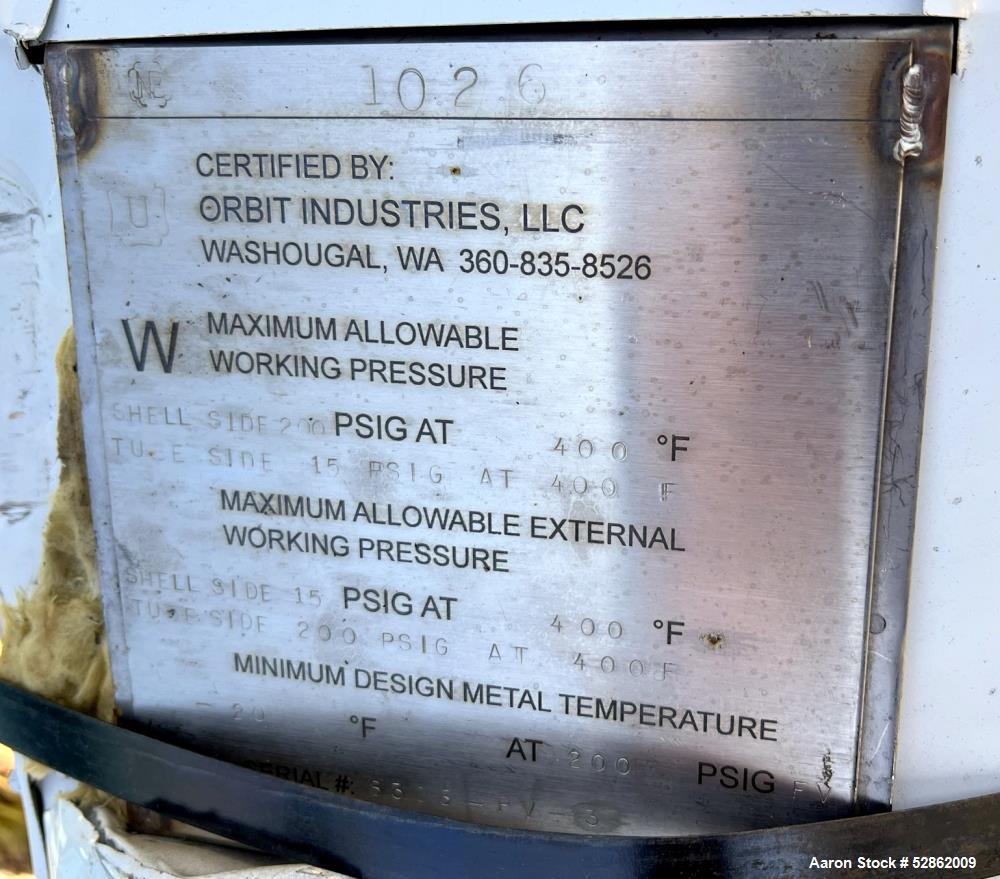

- Certified By: Orbit Industries
Description
The Used Anhydro Vertical Falling Film Reboiler / Heat Exchanger is a high-efficiency thermal transfer unit, designed for industrial heating and evaporation applications. With Hastelloy C-276 tubes, this unit provides exceptional corrosion resistance, making it ideal for chemical, pharmaceutical, and petrochemical processing.

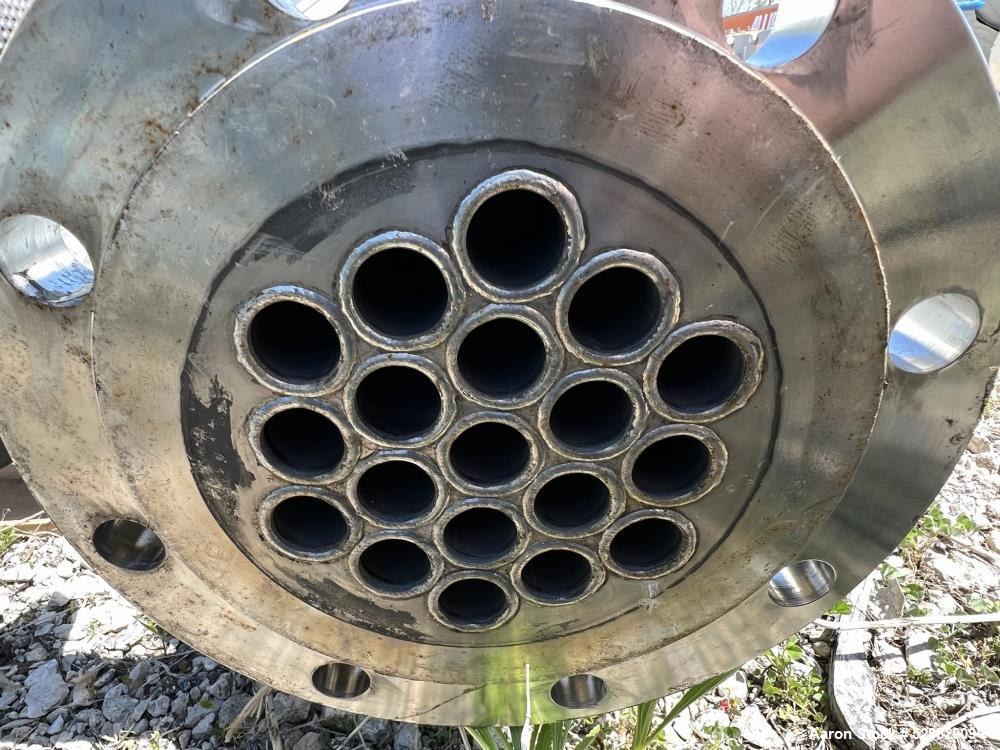

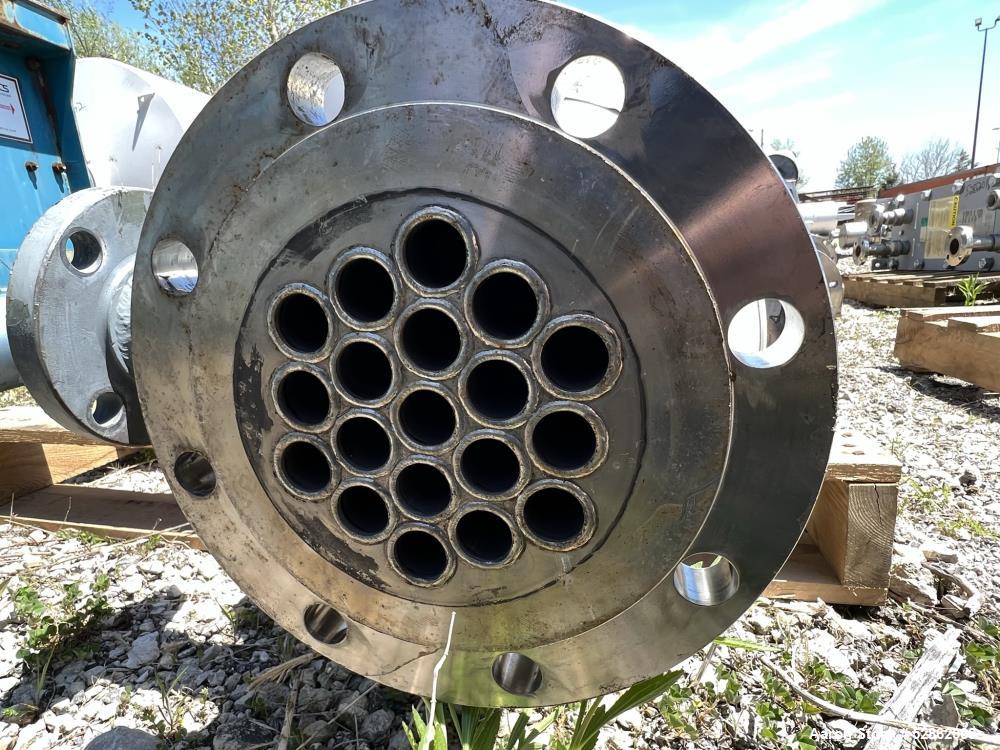

This vertical, side lug-mounted reboiler has a heat transfer surface area of approximately 19.5 square feet. It features (19) 1" diameter, 47" long Hastelloy C-276 tubes, rated for 15 PSI internal / 200 PSI external at -20 to 400°F. The carbon steel shell is rated for 200 PSI/full vacuum at -20 to 400°F.
The system is designed for 40,000 BTU/h heat transfer capacity and includes multiple openings: (2) 2" and (2) 1". Note: This unit does not include a bottom head.
Specifications
- Type: Vertical Falling Film Reboiler / Heat Exchanger
- Heat Transfer Surface Area: 19.5 sq. ft.
- Shell Material: Carbon Steel
- Shell Rating: 200 PSI / Full Vacuum @ -20 to 400°F
- Tube Material: Hastelloy C-276
- Tube Dimensions: (19) tubes, 1" diameter, 47" length
- Tube Rating: 15 PSI internal / 200 PSI external @ -20 to 400°F
- Heat Transfer Capacity: 40,000 BTU/h
- Openings:
- (2) 2"
- (2) 1"
- Mounting: Side Lug Mounted
- Bottom Head: Not Included
Applications
- Chemical & Petrochemical Processing (heat recovery, distillation, evaporation)
- Pharmaceutical & Biotech Industry (reactor heating, solvent recovery)
- Food & Beverage Processing (thermal evaporation, concentration processes)
- Oil & Gas Industry (refinery heating, process fluid conditioning)
- Power Generation & Energy Recovery (waste heat utilization, steam applications)
🧪 Applications
-
Solvent evaporation and condensation systems
-
Falling film reboiling in distillation columns
-
Thermal fluid systems with corrosive media
-
Vacuum reboilers for high-purity processing
-
Biochemical and pharmaceutical heating
-
Concentration of heat-sensitive liquids
-
Chemical production (acids, solvents, esters)
-
Waste stream heat recovery
-
Pilot-scale chemical process development
-
Skid-mounted thermal systems
