Stock No.: 10749148
Used – Praj Industries 1185 sq. ft. Horizontal Shell & Tube Heat Exchanger – 304L SS Shell, NB Code

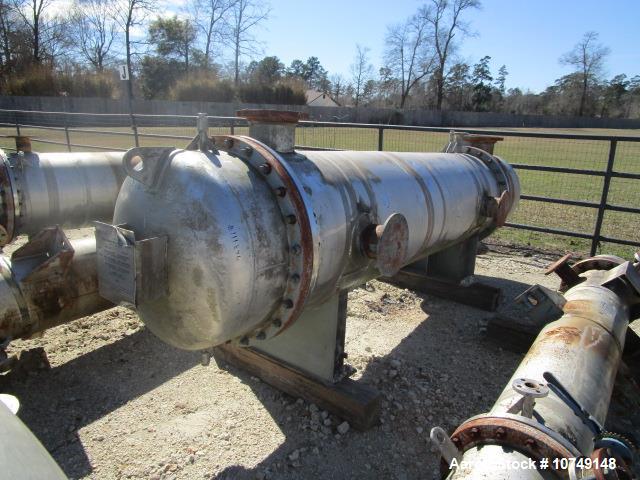

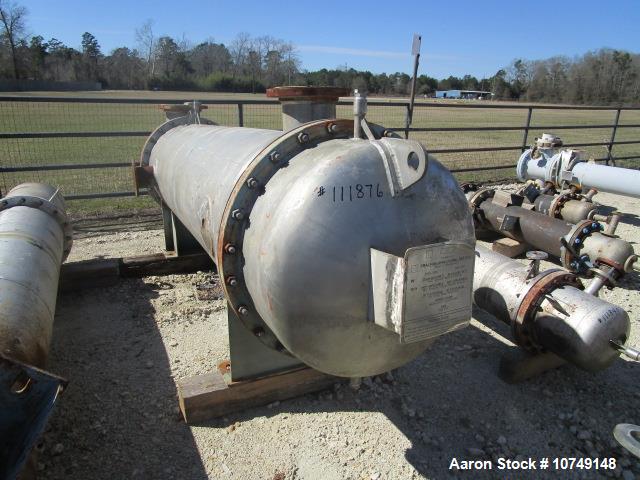

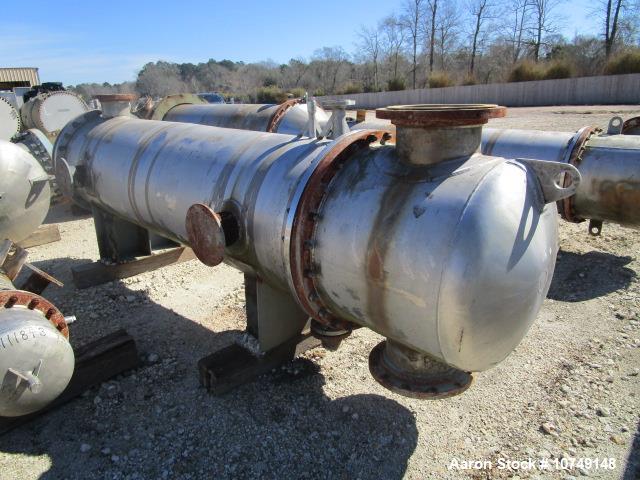

Used Praj Industries 1185 sq. ft. Horizontal Shell & Tube Heat Exchanger 304L SS Shell, NB Code. (2) saddle supports. (4) lifting trunnions. 304L stainless steel shell. 304 stainless steel tubes. 304 stainless steel heads. 25 psi @ 293 degrees F shell. 56 psi @ 122 degrees F. tubes. 1" tube diameter. 9'6" tube length. 460 tube holes. 1.25" tube pitch. .063" tube wall. 1 pass shell. 2 pass tubes. NB code. 4" and 8" shell nozzles. (2) 12" tube nozzles. (9) baffles. 10" baffle spacing. 2'8" shell diameter. 13'8" overall length. Built 2008.
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube Stainless
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information
-
Brand: Praj Industries
-
Category: Horizontal Shell & Tube Heat Exchanger
-

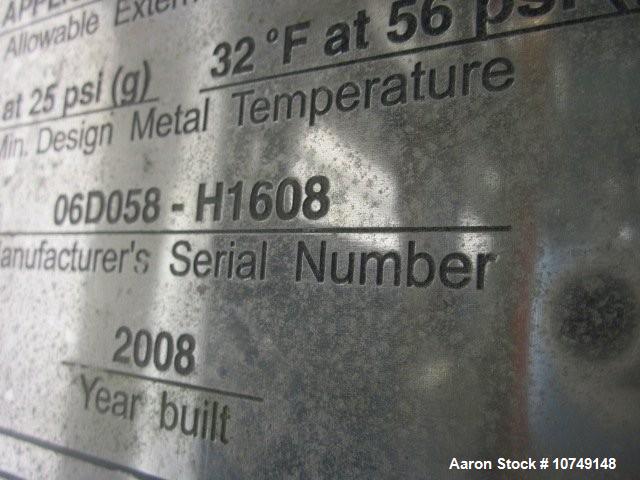

Year Built: 2008
-

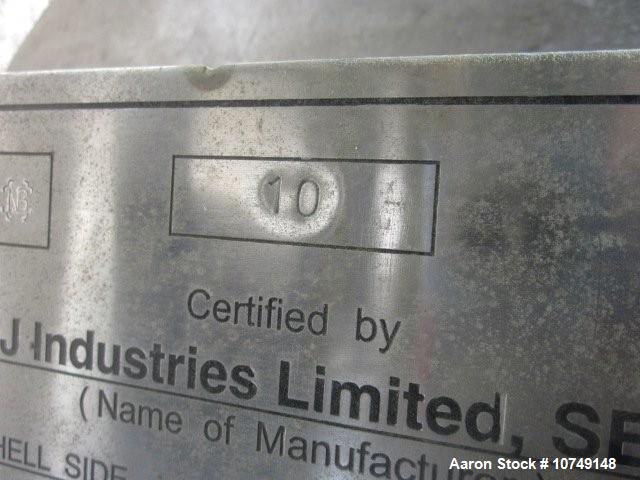

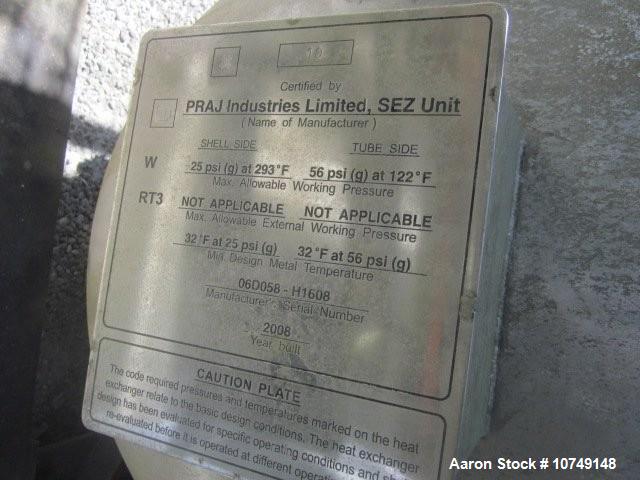

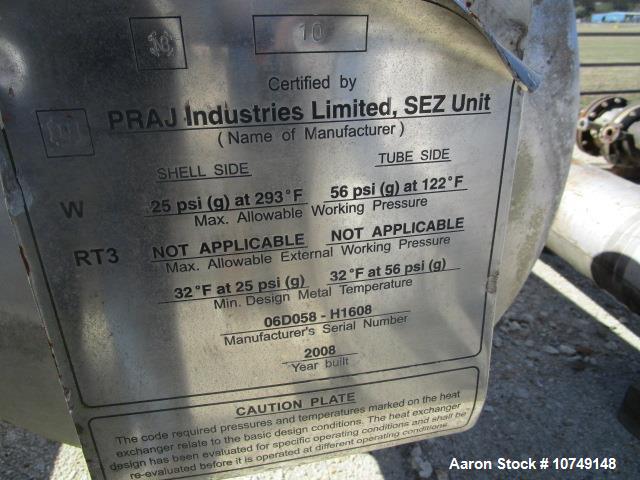

Certification: NB Code (ASME registered)
Description
The Praj Industries 1185 sq. ft. horizontal shell & tube heat exchanger is a stainless steel process exchanger designed for reliable thermal performance in demanding industrial applications. Built with a 304L stainless steel shell, 304 stainless steel tubes, and 304 stainless steel heads, it provides excellent corrosion resistance and durability.

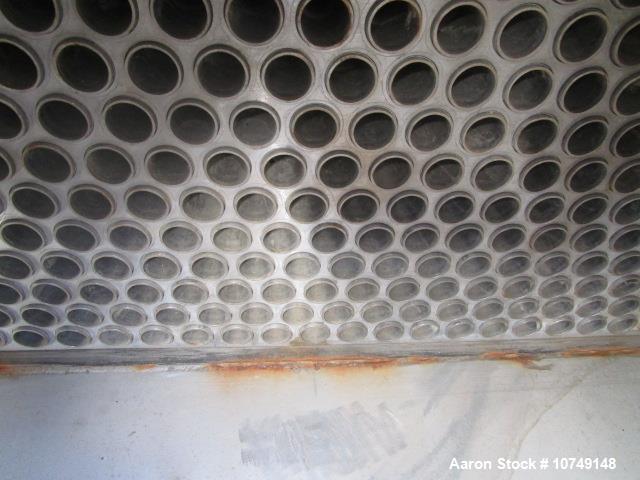

This exchanger features 460 stainless steel tubes (1” OD, .063” wall, 9’6” length) on a 1.25” pitch, with a 1-pass shell / 2-pass tube configuration. Rated 25 psi @ 293°F (shell) and 56 psi @ 122°F (tubes), it is suitable for medium-pressure process streams. The unit includes 9 baffles at 10” spacing, dual saddle supports, and 4 lifting trunnions for secure installation and handling.
With NB code compliance, multiple shell and tube nozzles, and a 13’8” overall length, this exchanger is well-suited for chemical, food, beverage, and pharmaceutical industries.
Specifications
-
Heat Transfer Area: 1185 sq. ft.
-
Configuration: Horizontal, 1-pass shell / 2-pass tubes
-
Shell Material: 304L stainless steel
-
Tube Material: 304 stainless steel, 460 tubes, 1” OD, .063” wall, 9’6” length
-
Head Material: 304 stainless steel
-
Tube Pitch: 1.25”
-
Shell Rating: 25 psi @ 293°F
-
Tube Rating: 56 psi @ 122°F
-
Baffles: 9, spaced 10”
-
Supports: (2) saddle supports, (4) lifting trunnions
-
Shell Diameter: 2’8” (32”)
-
Overall Length: 13’8”
-
Nozzles:
-
Shell: 4” and 8”
-
Tubes: (2) 12”
-
-
Certification: NB Code
-
Year Built: 2008
-
Condition: Used, stainless steel construction
Applications
-
Chemical processing (cooling, condensation, reboiling)
-
Food & beverage thermal processing
-
Pharmaceutical and biotech production
-
Water treatment & utility heat recovery
-
Oil & gas processing
-
Industrial manufacturing
-
HVAC & energy recovery systems
-
Pulp & paper industry heat transfer
-
Power generation support systems
-
General process heating and cooling
What Might This Be Used For?
This Praj Industries stainless steel heat exchanger is designed for medium-pressure heat transfer applications in chemical, food, pharmaceutical, and energy industries. Its 304L/304 stainless construction and NB code design make it reliable for corrosion-prone or sanitary service environments.
