Used – 1181 Sq. Ft. Stainless Steel Vertical Shell & Tube Heat Exchanger – Dipl.-Ing. Paul Schwingel GmbH

Manufacturer Information

• Brand: Dipl.-Ing. Paul Schwingel GmbH

• Category: Vertical Shell & Tube Heat Exchanger

• Year Built: 1985

• Design Type: Special TEMA type

• Certification: Built to industrial process standards

Description

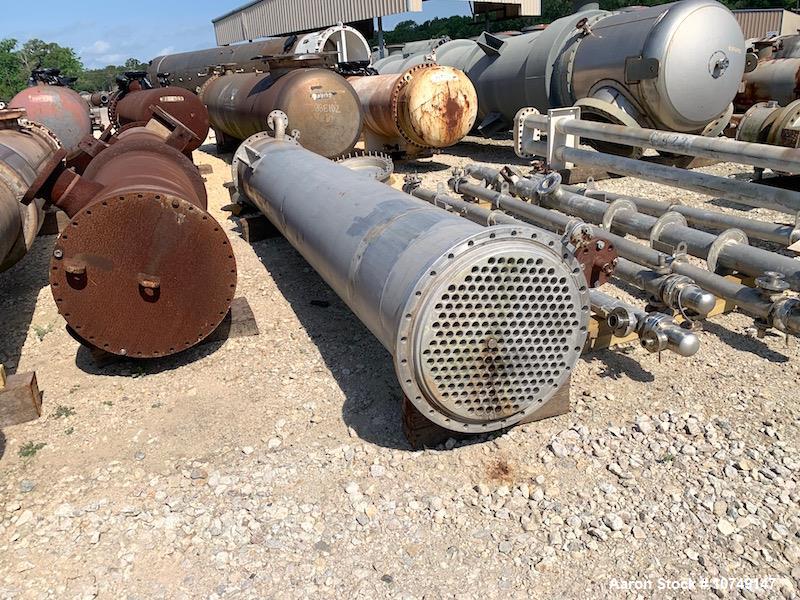

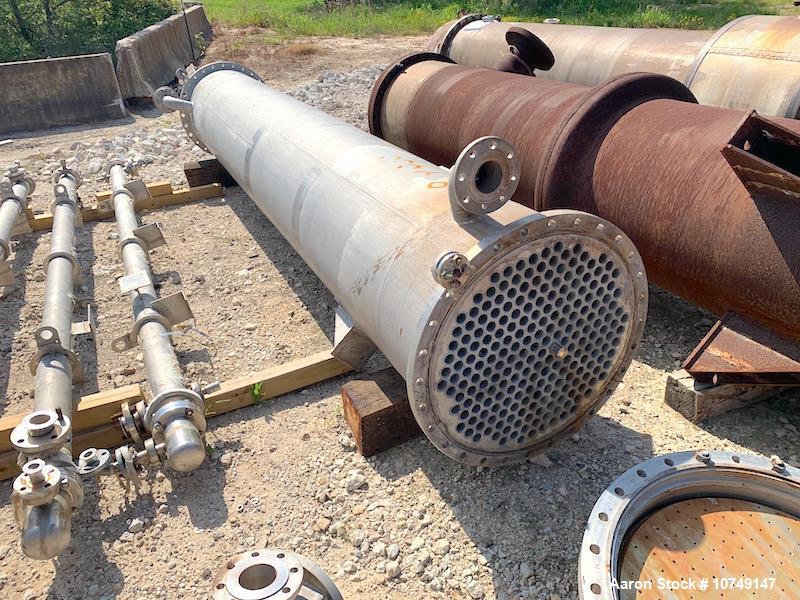

The 1181 sq. ft. vertical shell & tube heat exchanger built by Dipl.-Ing. Paul Schwingel GmbH is a heavy-duty stainless steel unit designed for industrial heat transfer. With a 316 stainless steel shell, tubes, and heads, it provides excellent corrosion resistance and durability for demanding chemical, food, and process applications.

This exchanger is rated 88 psi @ 392°F (both shell & tubes), equipped with 228 tubes (1.32” OD, .078” wall, 15’ length) on a 1.57” triangular pitch. The configuration is 1-pass shell / 1-pass tubes, supported by 11 baffles spaced at 1’3”, ensuring efficient thermal performance.

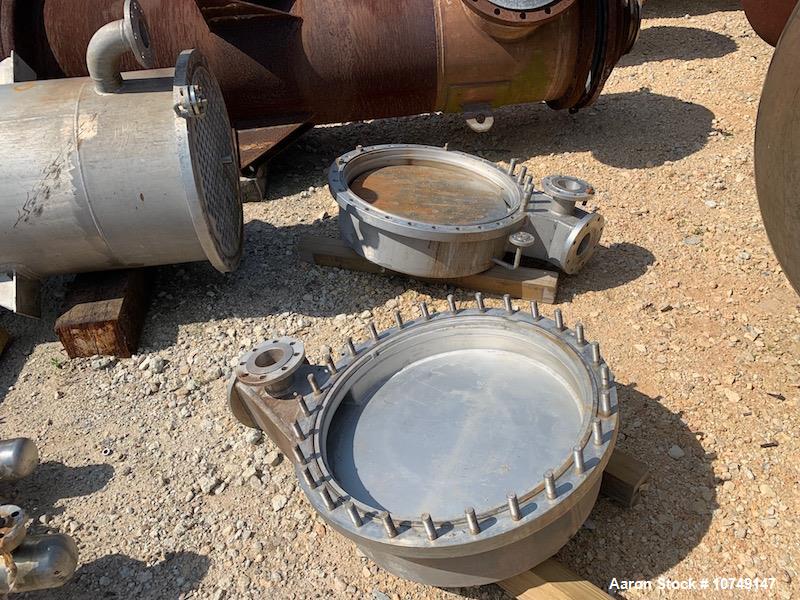

It also includes tangential nozzles for smooth flow entry, (2) 3” shell nozzles, (2) 4” tube nozzles, and measures 15’ overall length with a 2’4” shell diameter.

Specifications

• Heat Transfer Area: 1181 sq. ft.

• Manufacturer: Dipl.-Ing. Paul Schwingel GmbH

• Configuration: Vertical, 1-pass shell / 1-pass tubes

• Shell Material: 316 stainless steel

• Tube Material: 316 stainless steel, 228 tubes, 1.32” OD, .078” wall, 15’ length

• Head Material: 316 stainless steel

• Tube Pitch: 1.57” triangular pitch

• Shell Rating: 88 psi @ 392°F

• Tube Rating: 88 psi @ 392°F

• Baffles: 11, spaced 1’3”

• Shell Diameter: 2’4” (28”)

• Overall Length: 15’0”

• Nozzles:

  • Shell: (2) 3” tangential nozzles

  • Tubes: (2) 4”

• Design Type: Special TEMA type

• Year Built: 1985

• Condition: Used, stainless steel construction

Applications

• Chemical process industries (cooling, condensation, heat recovery)

• Food & beverage thermal processing

• Pharmaceutical and biotech manufacturing

• Petrochemical plants & refineries

• Power generation heat recovery systems

• Water treatment and energy recovery

• Industrial manufacturing utilities

• HVAC and district heating/cooling loops

• Oil & gas processing

• Specialty process plants requiring stainless steel heat transfer

What Might This Be Used For?

This Schwingel stainless steel shell & tube exchanger is ideal for process industries requiring high corrosion resistance and thermal reliability. Its 316 stainless steel construction and NB code design make it a strong fit for chemical, food, pharma, and energy applications.
