Stock No.: 14191131
Hydrogen Plant, designed by Hydro-Chem (a Linde company)
Used- Hydrogen Plant, designed by Hydro-Chem (a Linde company), operates at a capacity of 2,266 Nm/hr (80,000 SCFH) and produces hydrogen with a purity of 99.99%. Built in 2004, the plant was engineered to use natural gas feedstock composed of 97.97% methane, 1.37% CO2, 2.49% N2, and 3.53% ethane. The hydrogen product maintains a 99.99% purity at a maximum temperature of 100F and a minimum discharge pressure of 200 psig. The syngas reformer utilizes a nickel catalyst. The plant equipment has been dismantled and is ready for quick shipment. Major equipment includes the Feed Heater (HX-101), Desulfurizer Vessel (V-101), Steam/Gas Lateral (SP-779), Reformer (R-101), Reformer Effluent Steam Generator (WH-104), Shift Converter (V-102), Shift Effluent Steam Generator (WH-105), Process Cooler (HX-104), Deaerator Exchanger (HX-103), Boiler Feed Water Exchangers (HX-102A & B), Deaerator (V-106), Steam Drum (V-107), Cold Condensate Separator (V-104), Flue Gas Steam Superheater (WH-101), Flue Gas Steam Generator (WH-102), Blowdown Drum (V-108), Economizer (WH-103), ID Fan (F-101), Cold Condensate Drum (V-104), Vent Gas Drum (V-105), and Adsorbers (A-101A through A-101D).
-
CategoryComplete Plants
-
SubcategoryComplete Plants 2
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information
- Designer: Hydro-Chem (a Linde company)
- Built: 2004
- Condition: Dismantled & Ready for Shipment
Description
This Hydro-Chem (Linde) designed Hydrogen Plant has a production capacity of 2,266 Nm³/hr (80,000 SCFH), delivering hydrogen with 99.99% purity. Built in 2004, the plant was engineered to process natural gas feedstock containing 97.97% methane, 1.37% CO₂, 2.49% nitrogen, and 3.53% ethane.
The hydrogen product is maintained at a maximum temperature of 100°F and a minimum discharge pressure of 200 psig. The plant’s syngas reformer utilizes a nickel catalyst, providing high efficiency and reliability in hydrogen production.
This complete hydrogen plant has been dismantled and is ready for quick shipment, making it a cost-effective and fast solution for hydrogen generation needs.
Specifications
- Production Capacity: 2,266 Nm³/hr (80,000 SCFH)
- Hydrogen Purity: 99.99%
- Feedstock:
- 97.97% Methane
- 1.37% CO₂
- 2.49% Nitrogen
- 3.53% Ethane
- Product Conditions:
- Max Temperature: 100°F
- Min Discharge Pressure: 200 psig
- Catalyst: Nickel Catalyst in the Syngas Reformer
Major Equipment Included
- Feed Heater (HX-101)

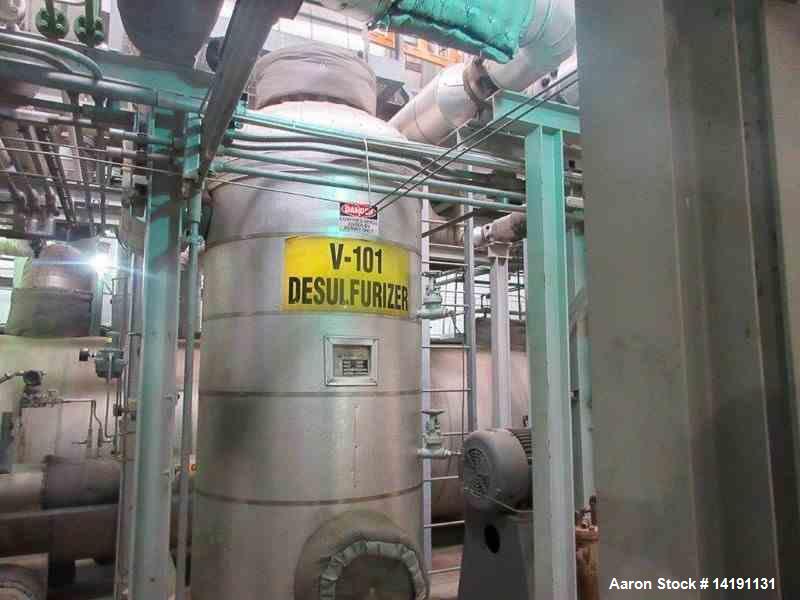

- Desulfurizer Vessel (V-101)
- Steam/Gas Lateral (SP-779)
- Reformer (R-101)
- Reformer Effluent Steam Generator (WH-104)
- Shift Converter (V-102)
- Shift Effluent Steam Generator (WH-105)
- Process Cooler (HX-104)
- Deaerator Exchanger (HX-103)
- Boiler Feed Water Exchangers (HX-102A & B)
- Deaerator (V-106)
- Steam Drum (V-107)
- Cold Condensate Separator (V-104)
- Flue Gas Steam Superheater (WH-101)
- Flue Gas Steam Generator (WH-102)
- Blowdown Drum (V-108)
- Economizer (WH-103)
- ID Fan (F-101)
- Vent Gas Drum (V-105)

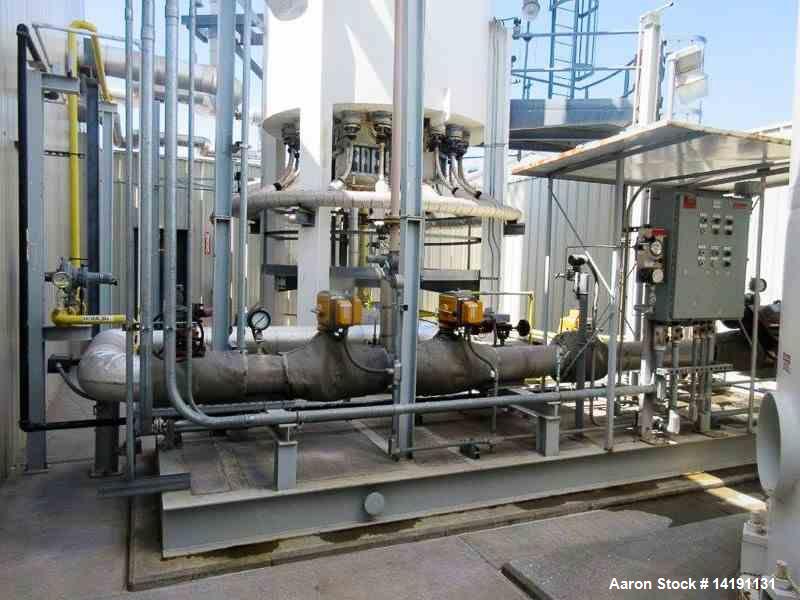

- Adsorbers (A-101A through A-101D)
Applications
- Refineries – Hydrogen production for hydrocracking, desulfurization, and other refining processes
- Ammonia and Methanol Production
- Steel Industry – Hydrogen for annealing and reduction
- Electronics – Ultra-high purity hydrogen for semiconductor manufacturing
- Fuel Cell Applications – Hydrogen supply for energy production
- Chemical Processing – Feedstock for various chemical synthesis processes
Compatible Industries
- Oil & Gas
- Petrochemical
- Renewable Energy (Hydrogen Economy/Fuel Cells)
- Industrial Gas Supply
- Steel & Metallurgy
- Semiconductor Manufacturing
