2 MMgy Biodiesel Plant

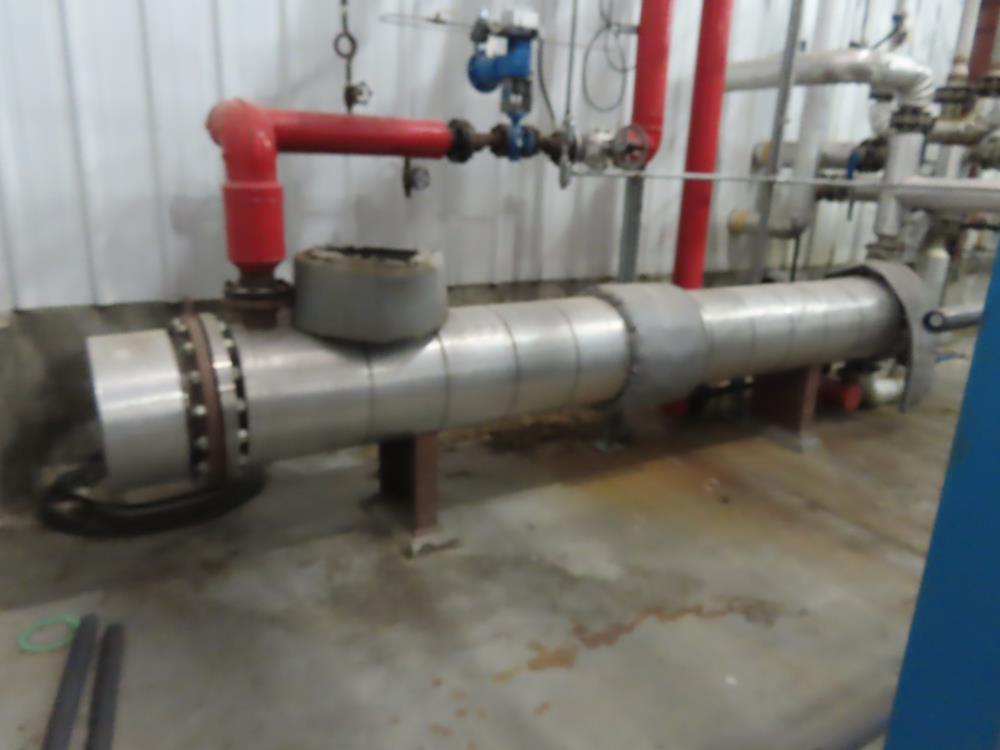

Used- Mason Manufacturing 4 Pass Shell & Tube Heat Exchanger, Approximate 448 Square Feet, Horizontal. Carbon Steel shell rated 150 psi at -20 to 366 degrees F., (176) 3/4" diameter x 13' long 316L stainless steel tubes rated 150 psi at -20 to 366 degrees F. 316L Stainless steel heads and tubesheet. Openings shell 1", 4", openin more info...

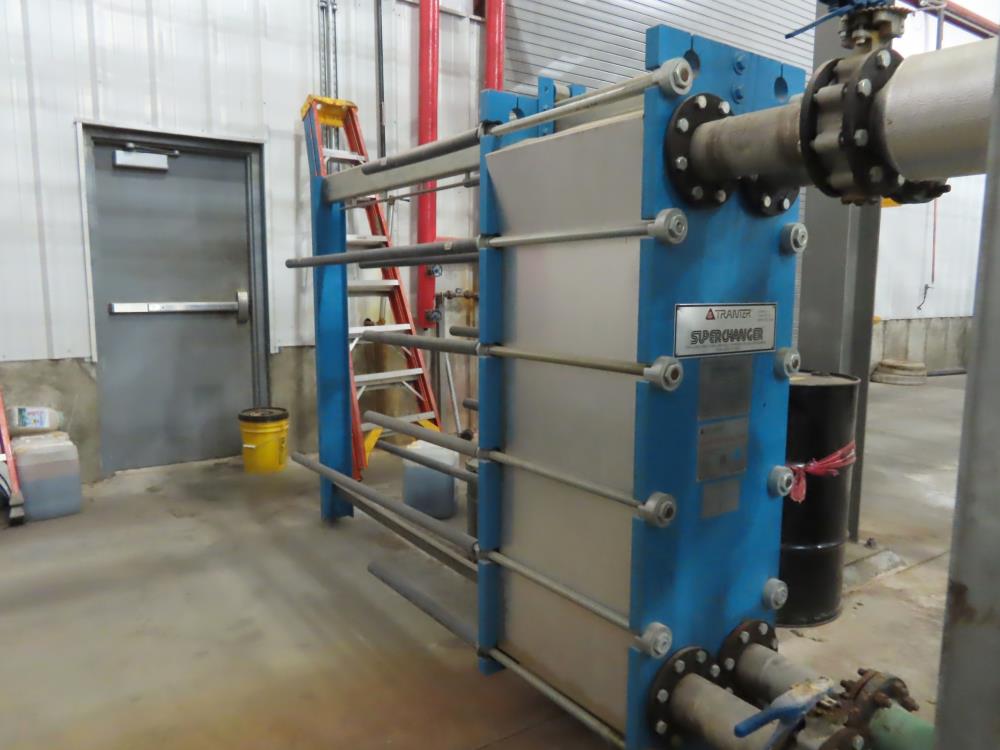

Used- Tranter GX Series Superchanger Plate Heat Exchanger. 677.27 Square Feet Surface Area, Model GXP-042-H-5-NR-145. Rated 150 psi at -20 to 200 degrees F. Serial # 01SC0361, National Board # 61778. Built 2014.

Used- Heatcraft Medium Temperature Air Cooled Condensing Unit, Approximate 2.9 Tons, Model LZT1401M6D. 3/60/460 Volt, design pressure high side 450 psig, low side 178 psig. Serial# T14B15527. Includes (4) Alfa Laval brazed plate heat exchangers and (6) Schroeder filters. Located in Sedgwick, KS. *** This will not be available more info...

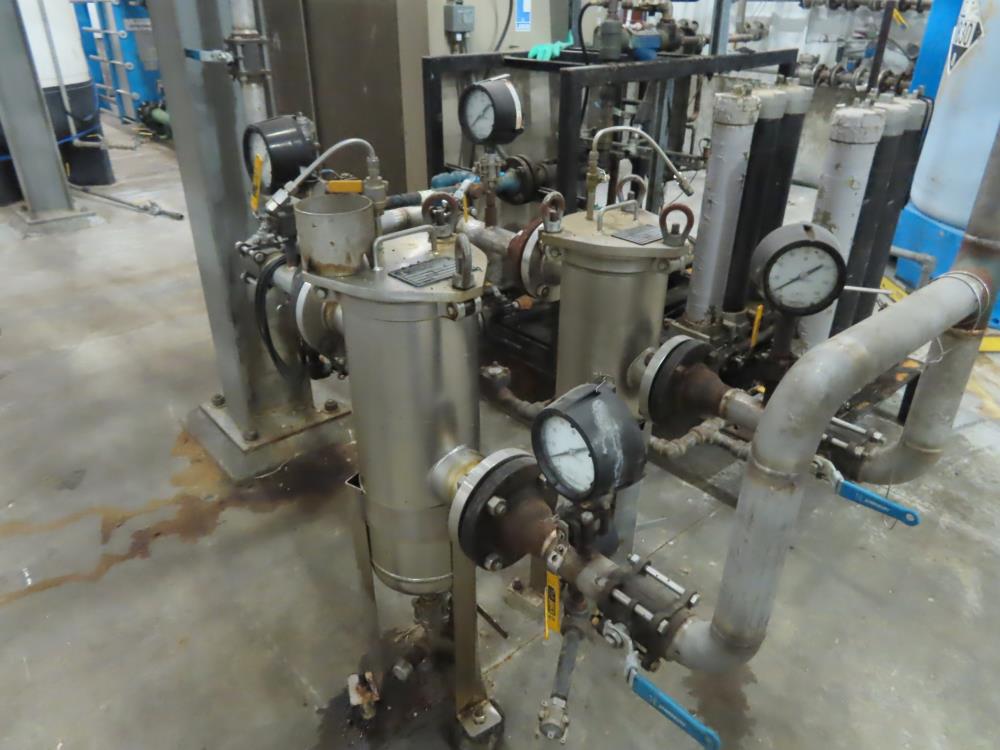

Used- Rosedale Products High Capacity Basket Strainer Filter Housing, Model 8-15-3F-2-150-SBSPB, 304 Stainless Steel. Approximate 8" diameter x 22" straight side, internal rated 150 psi. Serial# 135031, built 2001. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appoin more info...

Used- Sullair S-Energy 3000 Air Cooled Lubricated Rotary Screw Air Compressor, Model 3009 AC. Rated approximate 167 CFM at 125 psi, WS Microprocessor Controller. Driven by a 40 hp, 3/60/208-230/460 volt, 1775 motor. Work Order # 3660680, B.O.M.# P10/174192A, Serial # 201312030023. Built 2013. ** This will not be available for de more info...

Used- Manchester Pressure Receiving Tank, 400 Gallons, Carbon Steel, Vertical. Approximate 36" diameter x 72" straight side, elliptical top and bottom. Internal rated 165 psi at -20 to 650 degrees F. National Board & serial# 333934, built 2013. ** This will not be available for delivery until 1st Quarter of 2021. Price includes more info...

Used- New York Blower Pressure Blower, Carbon Steel. Rated 2000 CFM at 41.3 SP at 2983 rpm at 18.6 BHP, wheel size 2610. Driven by a 20 hp, 3/60/460 volt, 3520 rpm XP motor. Shop # F13139/100. Built 2011. *This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. more info...

Used- Flottweg AC 2000-430 Desludger Disc Centrifuge, 316 Stainless Steel. Maximum bowl speed 5700 rpm, separator design (liquid/liquid/solids separation), light & heavy phase centripetal pump liquid discharge, maximum sediment density 1.2 kg/dm3. Driven by a 40hp, 3/60/460 volt, 3530 rpm motor. Includes control panel with touch more info...

Used- Bryan Steam DSH Spray Type Boiler Feed-Water De-Aerator, Model DSH-150-21-9-3. Serial# 76879, National Board# 36347, Bryan order# 940848, built 1995. Includes (1) pump, (1) pump missing and panel. Frame mounted. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by app more info...

Used- Polypropylene Tank, Approximate 800 Gallon, Vertical. Approximate 96" diameter x 36" straight side, dished top, flat bottom. Top man way, side bottom outlet. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Used- Ironhide Manufacturing Bulk Purifier Media Vessel, Model BMV-1500, Carbon Steel. Approximate 36" diameter x 60" straight side, dished bolt on top, dished bottom. Internal rated 100 psi at -20 to 250 degrees F. Manual vessel tilt with discharge chute. Mounted on a carbon steel frame with bottom drip pan. Serial# IMI1405003 more info...

Used- Shelco Bag Filter Housing, Model BFS-2SB-2F, Stainless Steel. Approximate 8" diameter x 36" straight side. Internal rated 150 psi. Serial# 164261. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Used- Ironhide Manufacturing Polish Filter, Carbon Steel. Approximate 20" diameter x 36" straight side, dished bolt on top, dished bottom. Internal rated 100 psi at -20 to 250 degrees F. Serial# IMI1405005, National Board# 0005, built 2014. ** This will not be available for delivery until 1st Quarter of 2021. Price includes load more info...

Used- Mason Manufacturing 4 Pass U Tube Shell & Tube Heat Exchanger, Approximate 141 Square Feet, Horizontal. 316L Stainless steel shell rated 14.9 psi at -20 to 400 degrees F., (30) 3/4" diameter x 12' long 316L stainless steel tubes rated 150 psi at -20 to 160 degrees F. carbon steel head, 316L stainless steel tubesheet. Openi more info...

Used- Scrubber Column, Stainless Steel, Vertical. (3) Bolt together sections approximate 10" diameter x 20' tall.** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Used- Squibb Tank Company Aboveground Flammable Liquid Tank, 7050 Gallon, A36 Carbon Steel, Vertical. Approximate 120" diameter x 144" straight side, cone top, flat bottom. Design temperature to 350 degrees F. Openings top 4", 18" man way, side (2) 1", (2) 4", 24" man way. Serial# 13967, built 2013.

Used- A&B Process Tank, 15,000 Gallon, 304L Stainless Steel, Vertical. Approximate 144" diameter x 216" straight side, top, flat bottom. Openings top 3", 4" side (5) 2", 24" man way with davit arm and cover, 2" side bottom outlet. Serial# 1408550607, built 2014.

Used- Squibb Tank Company Above-ground Flammable Liquid Tank, 29,600 Gallon, A36 Carbon Steel, Vertical. Approximate 143" diameter x 420" straight side, cone top, flat bottom. Design temperature to 350 degrees F. Openings top 4", 18" man way, side (2) 1", (2) 4", 24" man way. Serial # 14039, built 2013.

Used- Squibb Tank Company Aboveground Flammable Liquid Tank, 15,000 Gallon, A36 Carbon Steel, Vertical. Approximate 143" diameter x 216" straight side, cone top, flat bottom. Openings top 4", 18" man way, side (2) 1", (2) 4", 24" man way. Serial# 13946, built 2013.

Used- Westmor Fluid Solutions Loading Pump Station, Approximate 600 Gallons Per Minute. Consisting of: (2) Triac XP electric actuators, model XE-2640, (1) Smith Meter 4" strainer, (1) FMC Technologies universal pulse transmitter, model XU-1000-STD-06, (1) Emco Wheaton "A" Frame Bottom Loader, model E2313, (1) Accuload III prese more info...

Used- Weatherford International Reciprocating Plunger Pump, Model T10. Rated maximum calculated flow 29 gallons per minute, pressure 1500 psi, plunger diameter 1.50, stroke length 1.575. Driven by a 5hp, 3/60/208-230/460 volt, 1160 rpm motor. Serial# 20130920. ** This will not be available for delivery until 1st Quarter of 2021. more info...

Used- Borets HPS Horizontal Multistage Centrifugal Pump, Type 538/3600, Carbon Steel. Approximate 45 gallons per minute. Options 92STG/CP/CT/V/TA/4. Driven by a 30hp, 3/60/230/460 volt, 1770 rpm motor. Includes a mechanical seal with seal pot. Base mounted. Part # 2020090, serial # 2HT13J57310. ** This will not be available for more info...

Used- Rosedale Products High Capacity Basket Strainer Filter Housing, Model 6302RFWN2825C-C, Carbon Steel. Approximate 6" diameter x 30" straight side, internal rated 825 psi at -20 to 450 degrees F. Serial# RD-13347, National Board# 4353, built 2013. ** This will not be available for delivery until 1st Quarter of 2021. Price in more info...

Used- SII Snyder Polypropylene Tank, 3000 Gallon, Vertical. Approximate 90" diameter x 108" straight side, dished top, flat bottom. Top man way, side bottom outlet. Serial# 1308279258. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwic more info...

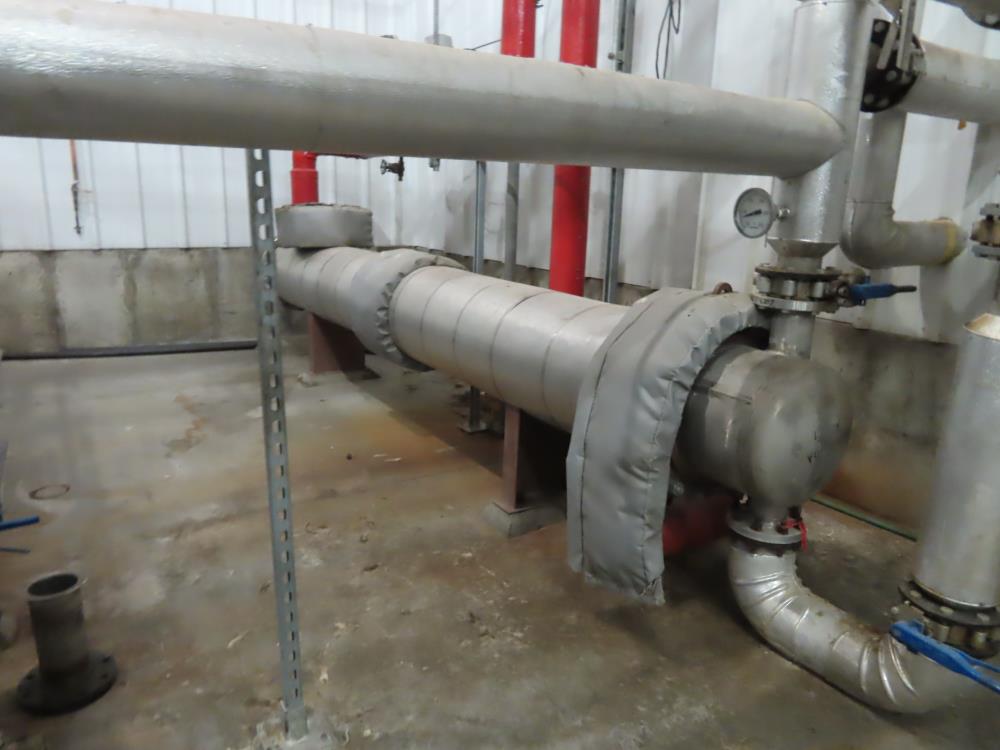

Used- Huffman U Tube Shell & Tube Heat Exchanger, Approximate 555 Square Feet, Model AFU-15-252, Horizontal. Carbon steel shell rated 150 psi at -20 to 750 degrees F., (66) 3/4" diameter x 21' long carbon steel tubes rated 825 psi at -20 to 750 degrees F. Carbon steel head and tubesheet. Openings shell 1-1/2", 2", openings head more info...

Used- Fabsco Fin Air Fin Fan Heat Exchanger, Approximate 660 Square Feet, Galvanized Housing. (158) 1" Diameter x 192" long carbon steel tubes rated 450 psi at -20 to 450 degrees F. (2) Approximate 7' diameter fans, each driven by a 15hp motor. (2) 4" inlets, (2) 3" outlets. Serial# A13-10798-1, National Board# 7818, built 2013.

Used- AHC American Heating Company Furnace. Internal chamber rated 825 psi at -20 to 850 degrees F. Serial# 1219, National Board# 291, built 2013. Includes an Industrial Combustion burner, model VGG-30, serial# 55889-1. Includes a control panel with Fireye controllers, Maxon And Honeywell valves and a stack. Frame mounted. ** Th more info...

Used- MRW Technologies Combustion Utility Flare Stack System. Includes (1) Utility Flare Stack, (1) thermal oxidizer, (1) Apache knockout tank, approximate 2500 gallon, carbon steel, vertical. Internal rated 50 psi at -20 to 750 degrees F. Serial # 744202, National Board # 290. (1) Sulzer CPT Chemical Centrifugal Pump, Model CPT more info...

Used- Westfalia OTA30-00-066 Solid Bowl Disc Centrifuge. Bowl speed 6590 rpm. Driven by a 10hp, 3/60/208-230/460 volt, 1760 rpm XP motor. Aluminum case with cover, Nickel bowl. Serial # 1676985.

Used- Sulzer CPT Chemical Centrifugal Pump, Model CPT22-1-LF, Stainless Steel. Rated 19 gallons per minute at 120' head at 1770 rpm. Driven by a 3hp, 3/60/460 volt, 1755 rpm XP motor. Serial # 100112610. Built 2013.
