Immaculate Late Model Craft Brewery

Dowlonad Brochure!

Featuring:

 GRAIN STORAGE & HANDLING EQUIPMENT

• Wheatland Malt Silo (100,000lb Cap.)
• Frisen Malt Silo (50,000lb Cap.)
• 39 ft. Flex Auger, c/w 60o Boot & 3/4hp Motor
• 100 ft. Flex Auger, c/w 60o Boot & 3/4hp Motor

MILLING & GRIST EQUIPMENT

• Rosekam Mill, 4-Roll w/ 3HP Motor Drive, Manual Slide Gate; c/w Mill Stand & Boot Assembly
• (2) Grist Augers, ¾ HP Motors & Flex Augers

BREWHOUSE – 50 BBL FINALCAST OUT

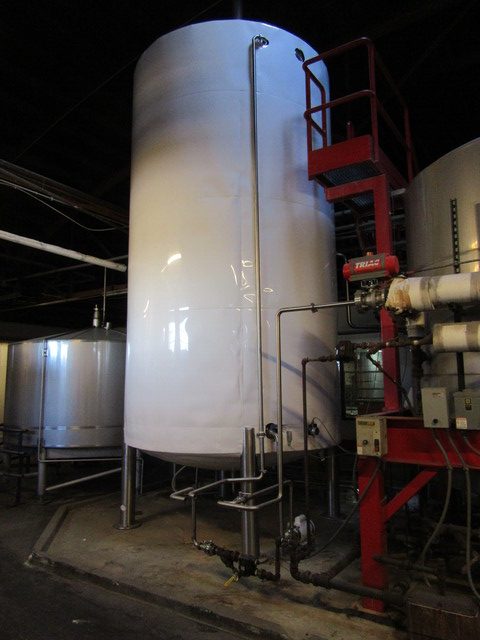

• (2017) Hot Liquor Tank – Capacity 175 bbl; c/w Heat Exchanger, Pump & Recirculation Loop, Hard-Piped to Brewhouse

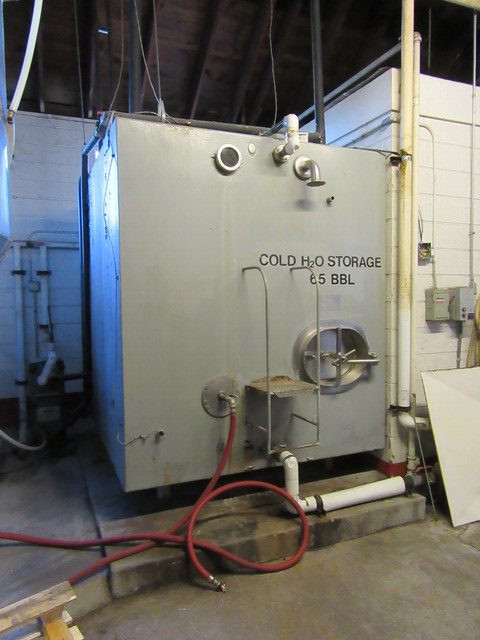

• Cold Liquor Tank – Capacity 65 bbl; c/w Heat Exchanger, Pump & Recirculation Loop, Static CIP Spray, Hard-Piped to Brewhouse
• Grist Case – Top Manway Entry, Load Cells and Scale; Double Manual Slide Gate; Manual Grist Hydrator

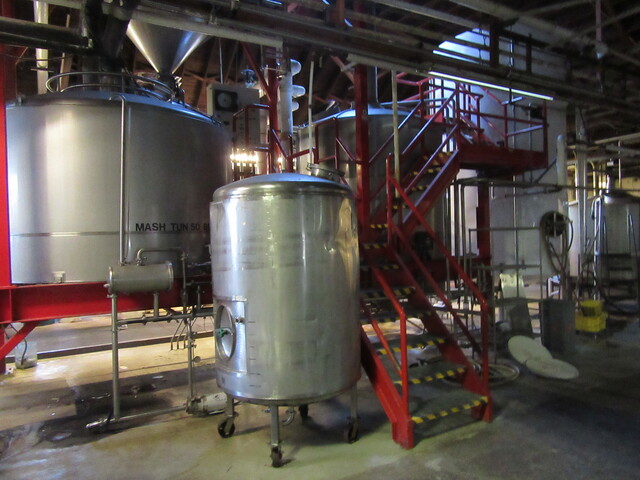

• Mash/Lauter Turn – Capacity 50 bbl; Insulated Walls S.S. Milled False Bottom Screen – Station CIP Balls; Dedicated Sparge Assembly; Bottom Pneumatic Grain Out- Closed Hot Wort Grant; Manual Valves & 2 HP Baldor Pump – Lauter Rakes (2-Arm, Variable Rotation Speed Controlled, No Elevation Adjustment) w/ Manual Release Grain Plows
• Brew Kettle – Capacity 50 bbl; LP Steam Jacketed (Bottom and Side) & LP Internal Steam Calandria; S.S. Venting Directly to Outside; Static CIP Spray Balls. SPX Pump

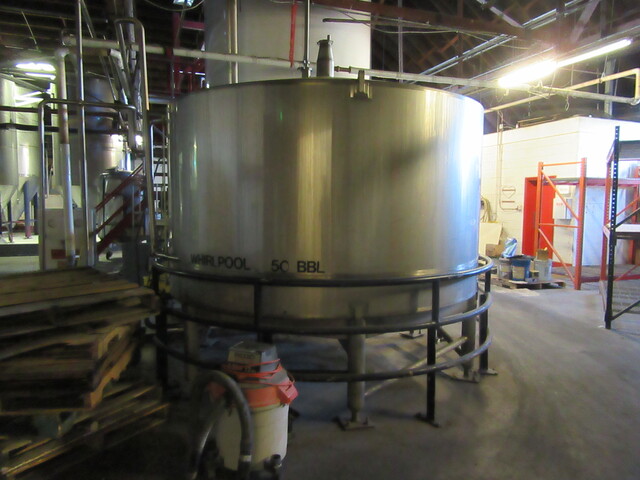

• Whirlpool – Capacity 50 bbl, Flat-Bottom Design; Manual Spent Hop Removal
• Wort Cooker – Proflow Single-Stage Plate & Frame HEX; c/w in-line Oxygenation Assembly, By-pass Piping; Manual Valves and Wort Temperature Controls
• Brewhouse Piping & Valves – Piping, Fasteners and Valves all S.S.
• Platform and Supporting Frame – Custom Build, Frame and Supports Painted Mild Steel w/ Multi-Step Non-Slip Grates
• Steam Supply & Controls – Manual Control, Pneumatic and Hand-Held Valves
• Brewhouse Process Control System – Painted Steel Control Panel w/ Separate and Independent Temperature and Motor Controls

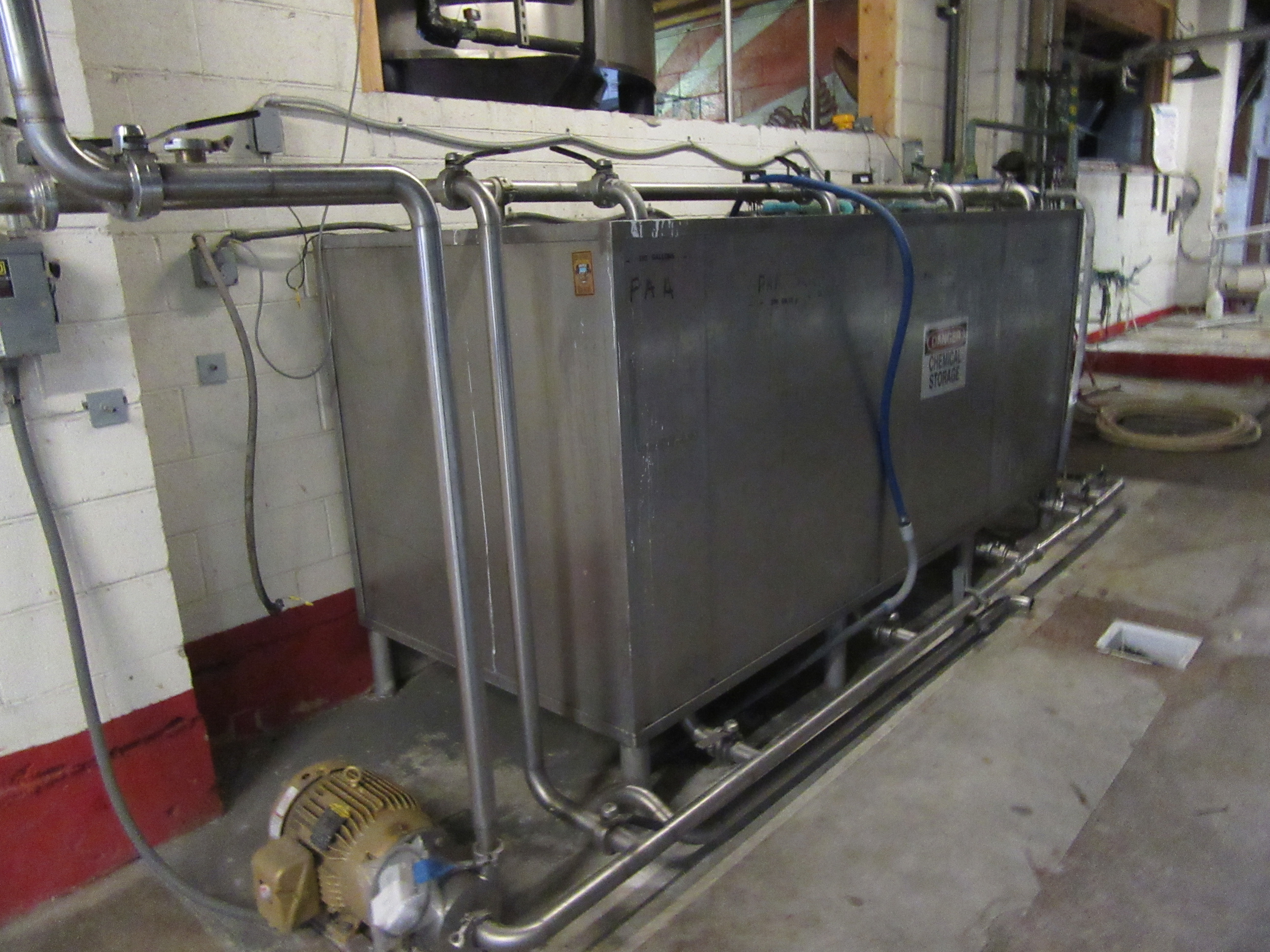

• (2011) Brewhouse CIP System – 2x CIP Tanks (Open); c/w Baldor Pump & Manual Valves

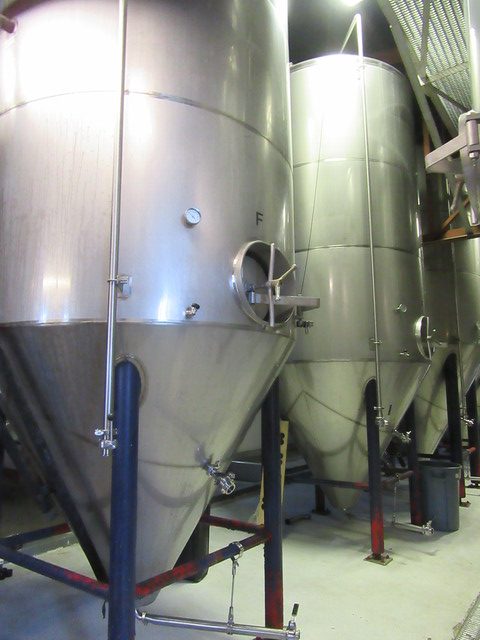

(34) FERMENTATION /AGING CELLAR EQUIPMENT

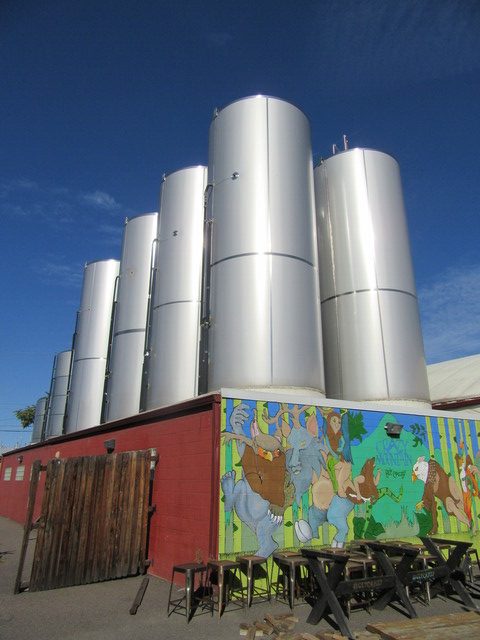

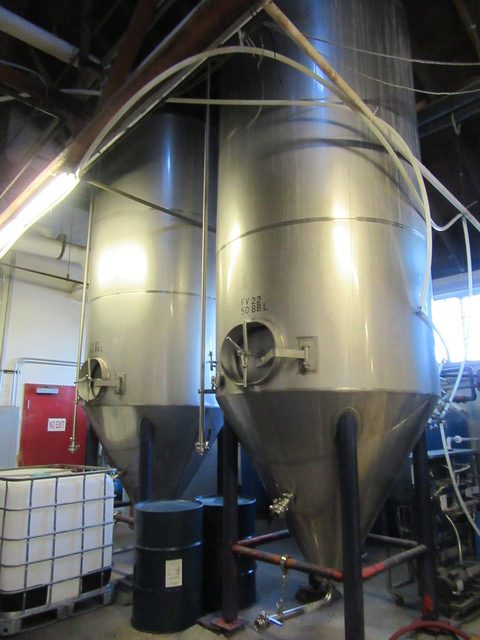

• Fermentation/Aging Tanks – (4) 50bbl Santa Rosa Unitanks; Glycol Jacketed; c/w S.S. Racking Arm & Valve; CIP/Venting Arm and Manual Valve; Supporting Legs Mild Painted Steel

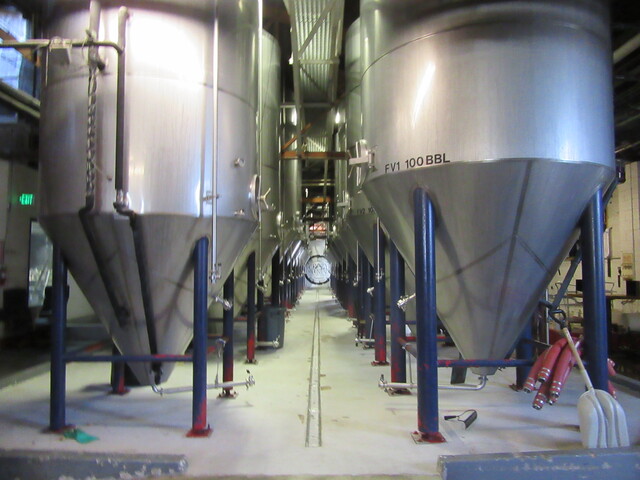

• Fermentation/Aging Tanks – (18) 100bbl Santa Rosa Unitanks; Glycol Jacketed; c/w S.S. Racking Arm & Valve, CIP/Venting Arm and Manual Valve; Supporting Legs Mild Painted Steel
• Fermentation/Aging Tanks – (2) 150bbl Santa Rosa Unitanks; Glycol Jacketed; c/w S.S. Racking Arm & Valve, CIP/Venting Arm and Manual Valve; Supporting Legs Mild Painted Steel
• (2011) Fermentation/Aging Tanks – (2) 200bbl Santa Rosa Unitanks; Glycol Jacketed; c/w S.S. Racking Arm & Valve, CIP/Venting Arm and Manual Valve; Supporting Legs Mild Painted Steel
• (2012) Fermentation/Aging Tanks – (8) 300bbl Santa Mueller Fermenters; Glycol-Jacketed; c/w S.S. Racking Arm & Valve; CIP/Venting Arm and Manual Valve, Drain Valve; Supporting Legs S.S.
• Unitanks Temp Control System – Separate Individual Temp Controllers per Unitank, Mounted into S.S. Temp Controller Cabinets
• Beer Transfer Pumps – (2) Portable Baldor Pumps (2HP) w/ VFDs

FILTRATION & BRIGHT BEER CELLAR EQUIPMENT

• Filtration – Velo 7.5 sq. Meter DE Filter, all Stainless; Manual Valves and Pump Starter; Pall Candle Filter; Housing Stainless, c/w Supports, Manual Valves & Associated Piping
• Cellar CIP Station – CIP Station Production w/ (2) – 1/2HP; CIP Chemical Holding Tanks
• Bright Beer Tanks – (3) 100bbl Santa Rosa BBT; Glycol Jacketed; c/w S.S. Carbonating Stone, CIP/Venting Arm and Manual Valves
• Bright Beer Tanks – (1) 150bbl Santa Rosa BBT; Glycol Jacketed; c/w S.S. Carbonating Stone, CIP/Venting Arm and Manual Valves
• (2011) Bright Beer Tanks – (1) 200bbl Mueller BBT; Glycol Jacketed; c/w S.S. Carbonating Stone, CIP/Venting Arm and Manual Valves

UTILITY SERVICE EQUIPMENT

• (2012) Refrigeration System – Glycol Chiller 80 Ton Carrier (Outdoor Rated); c/w 4 Scroll Compressors, 150 Gal. Glycol Reservoir; Baldor Vari. Spd. 5hp for Glycol; Weinman Glycol Pump w/ 5hp Motor; 300 Gal. Holding Glycol Reservoir (Insulated)
• Air Compressors – Ingersoll Rand T30 Air Compressors (30HP)
• (2012) Air Compressors – Quincy Vari. Spd. Air Compressor (30 HP), 400 Gal. Compressed Air Holding Tank, Zek Compressed Air Dryer
• Compressed Air Dryer – Premier Refrigeration Compressed Air Drier, 30 SCFM
• Primary LP Boiler – Ajax Boiler Mod. HNG3000, Refurbished Natural Gas Low Pressure Steam Boiled – Derated by 20% Max Output 1,920,000 BTU/Hr

PACKAGING EQUIPMENT

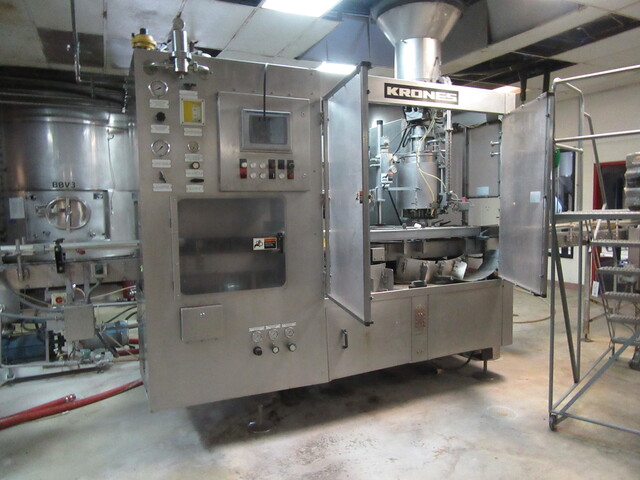

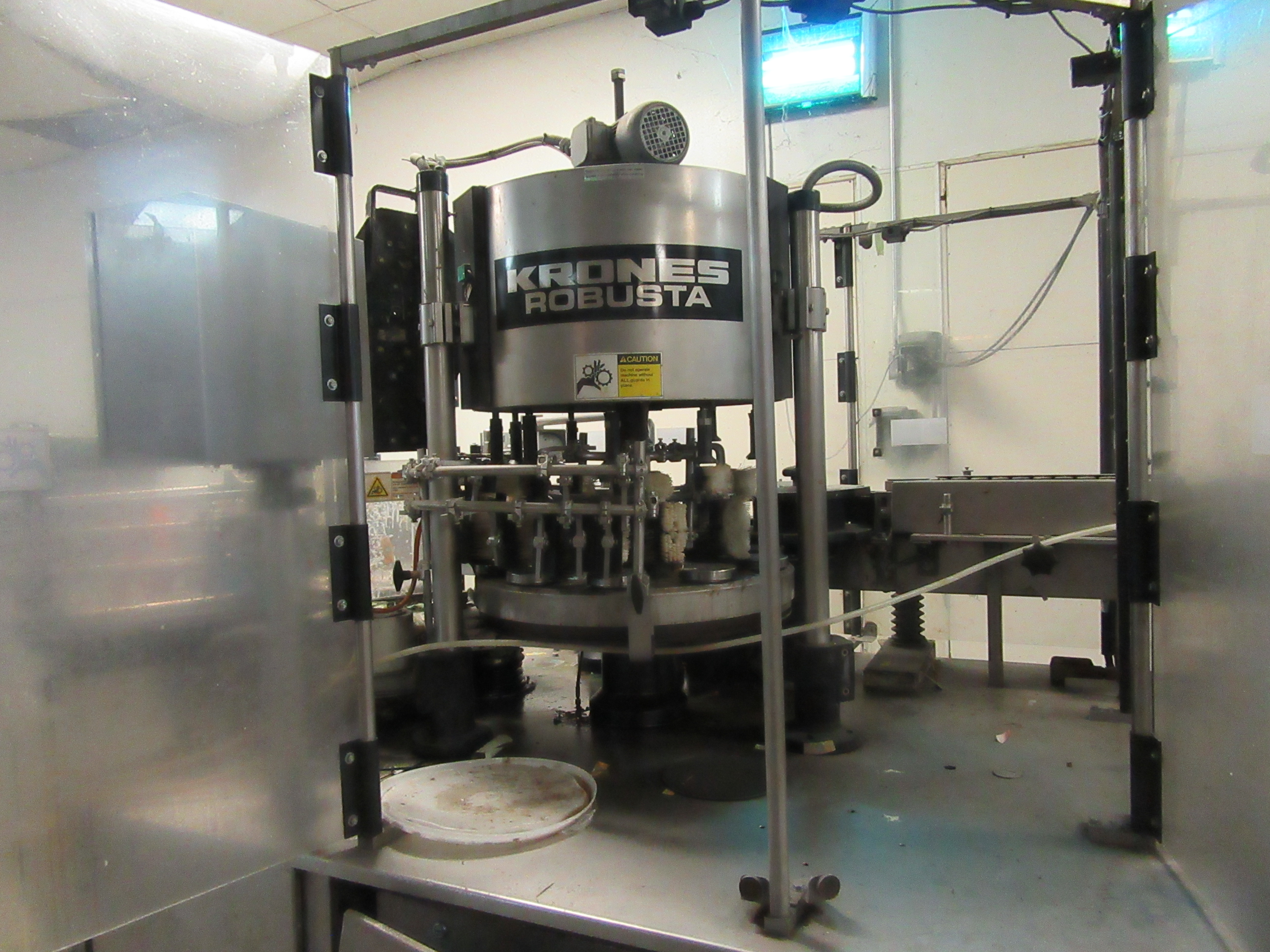

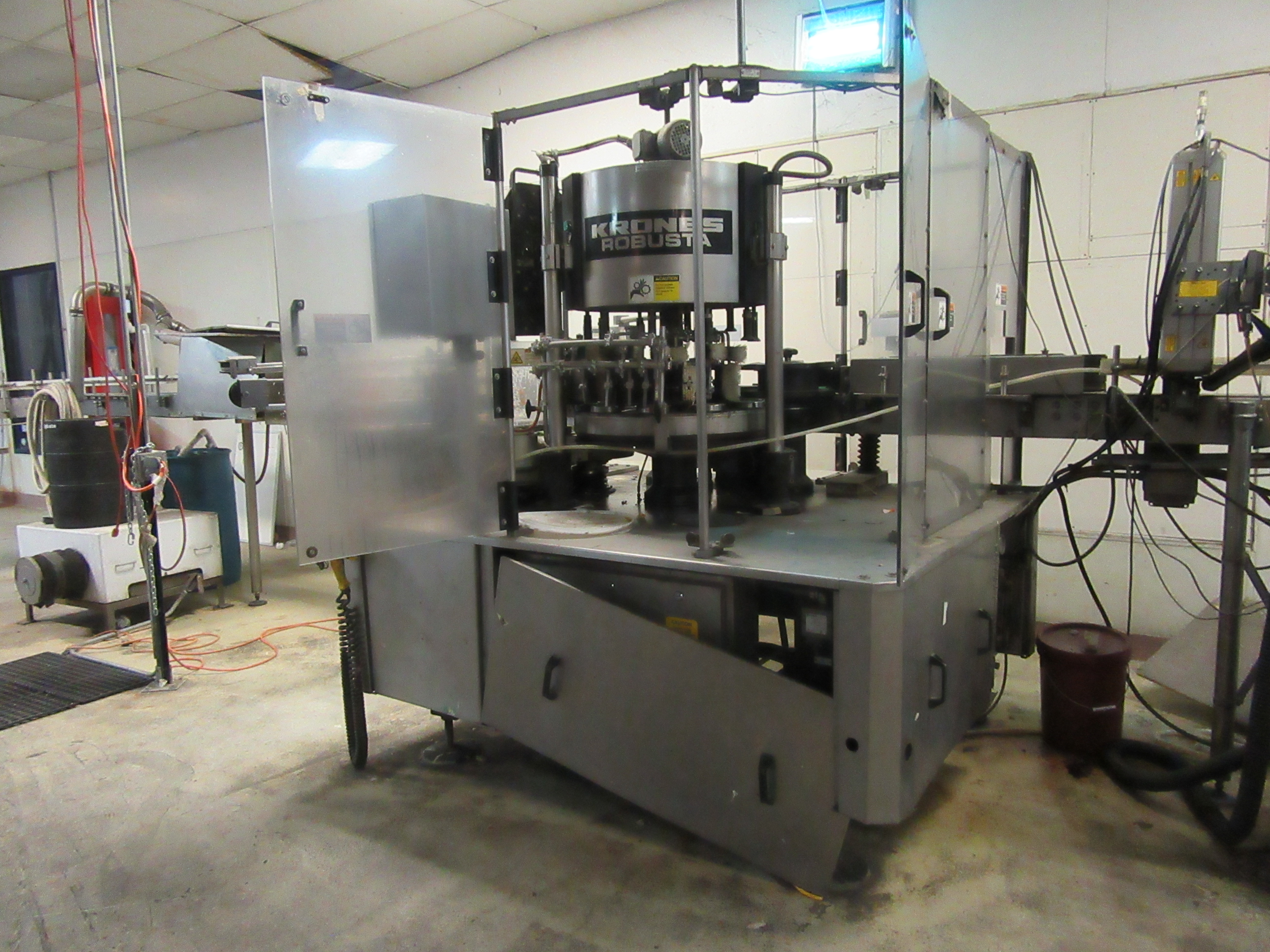

• Bottle Line – Climax Uncaser; Unipack Twist Rinser; Krones 20 Valve Bottle Filler Mod. VK2V 132/ZZKK-103 Filler Crowner (S/N 120-613); Krones Robusta Neck Labeler (S/N 722-509); Domino D320i Ink Jet Coder; 3M Matic Case Sealing System & Tape Machine; (4) Pearson Carrier Opener; Pearson Multipacker; ABC Bottle Sealer; Gray Depalletizer; Conveyors
• Canning Line – Wild Goose Canning Line

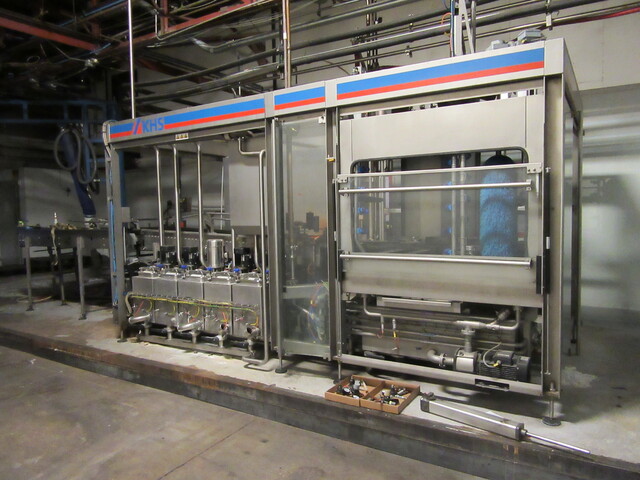

• (2012) Keg Washer/Filler – KHS-Mono Bloc Kegging Line; Vari. Spd. Pump for Keg Line; Step Up Transformer for Keg Line; Schmalze Keg Vacuum Picker; Bryan Electric Boiler for KHS Keg Line; CIP Transfer Pumps for Keg Line
• Unisource Stretch Wrapper

MISC. EQUIPMENT

• (2015) Yard King Portable Ramp – Painted Steel Frame w/ S.S. Non-Slip Ramp
• Self-Dumping Hoppers – (3) Galbraith Self-Dumping Hoppers
• Cold Room & Refrigeration System – Cooler, c/w 4 x 3 HP Cooling Units (Trenton Refrigeration); Draft System
• Draft System – Glycol Desk for Speak Easy
• Komatsu Propane Forklift
• Big Ass Fan w/ 7.5’ Wing Span
• Toyota 40,000lb. Mast Forklift

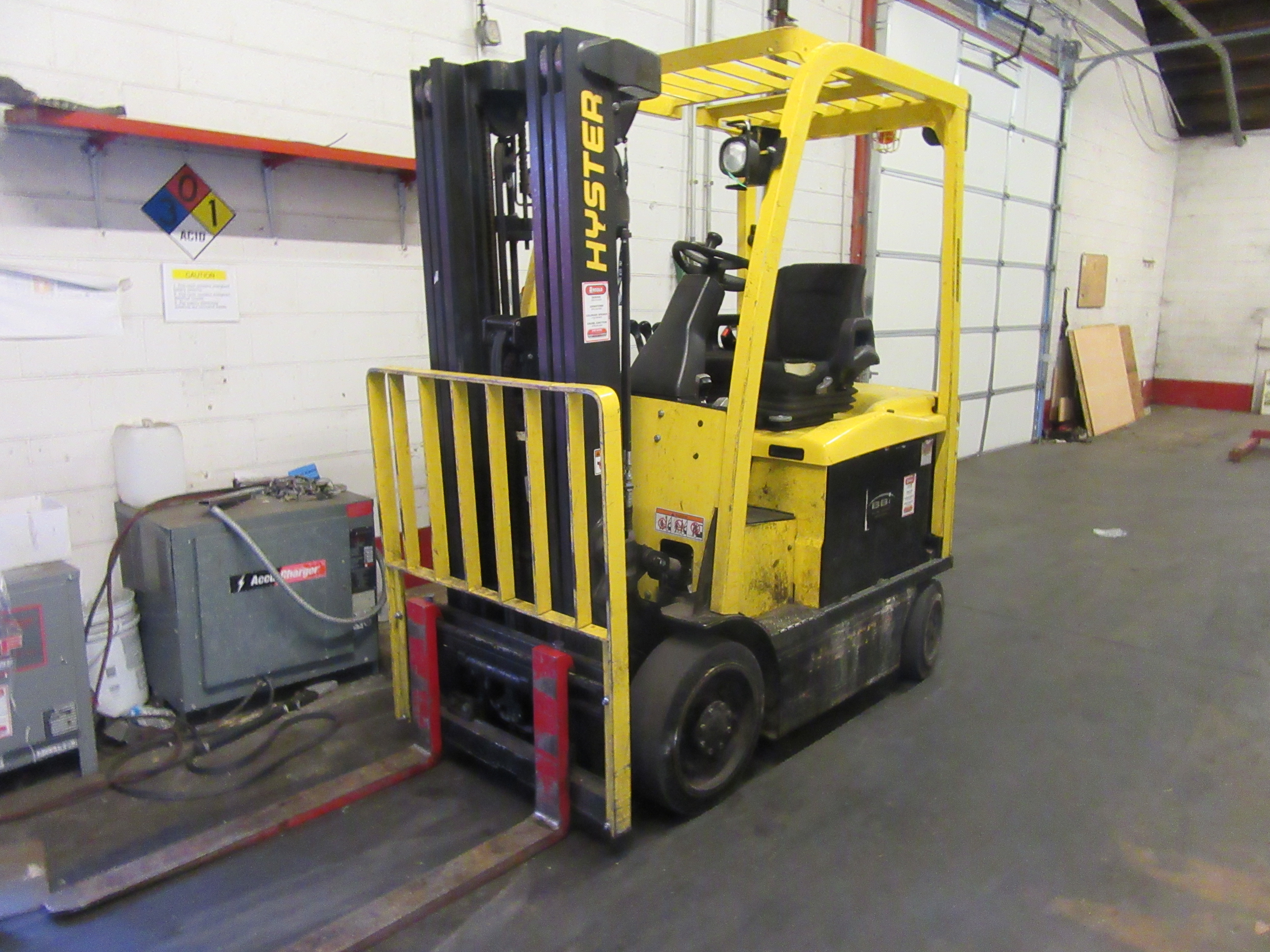

• Hyster Electric Forklift
• Bliff 16,000 Pump
