Stock No.: 50723002

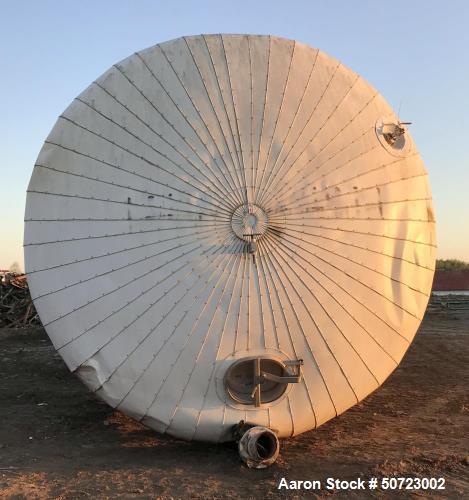

Used Mueller Tank, 45,000 Gallon

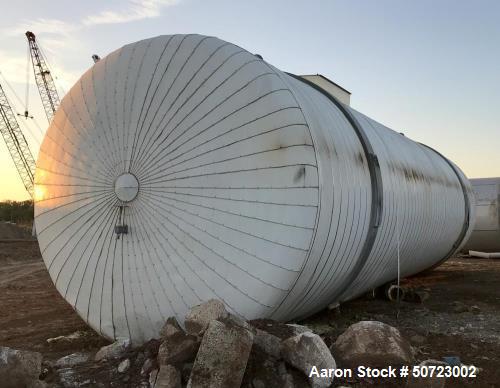

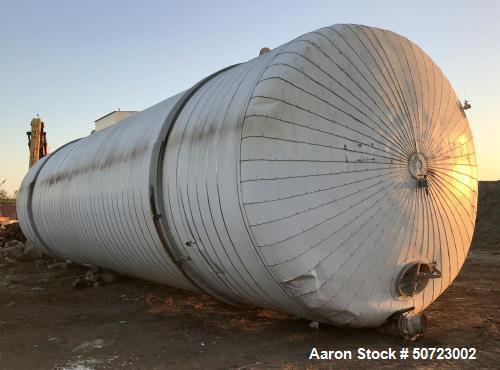

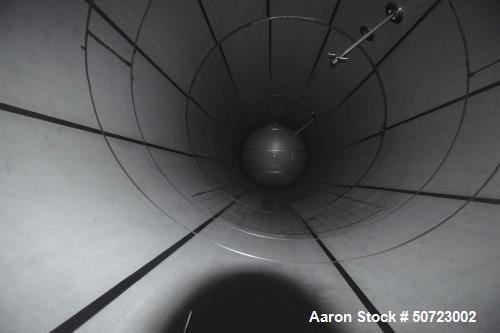

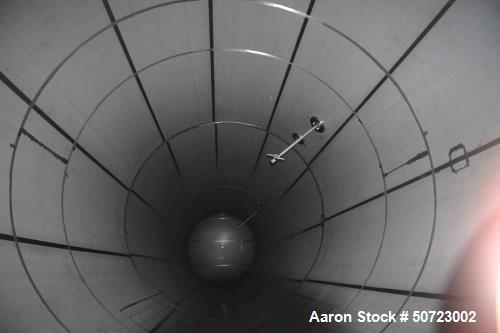

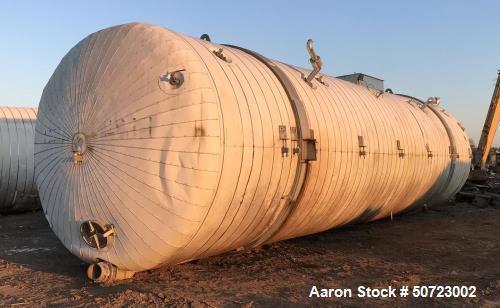

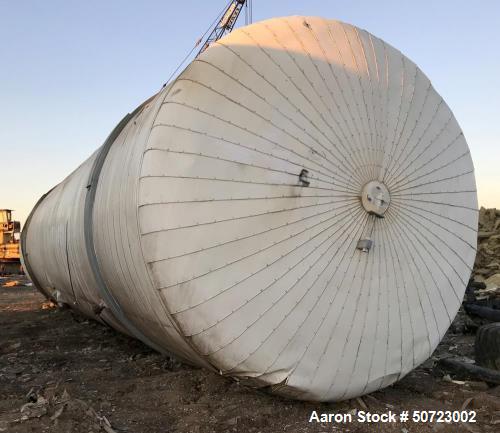

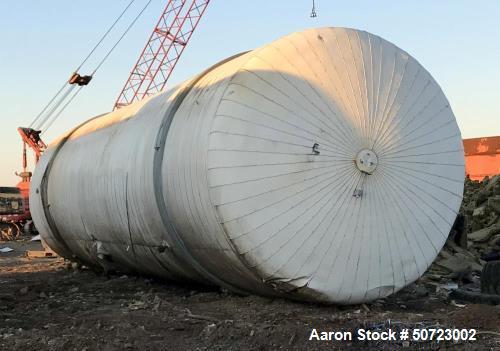

Used- Mueller Tank, 45,000 Gallon, Model H. 316L Stainless Steel, Horizontal. Approximate 148-1/2" diameter x 564" straight side, dished heads. Shell and heads are 0.25" thick. Internal rated 9 psi at 32 to 300 degrees F. 304 Stainless steel dimple jacket section on bottom of tank, approximate 328-3/4" long, volume 5.95 cubic feet, rated 40 psi at 32 to 300 degrees F. Openings top (1) stainless steel alcove with (2) 4", (2) 3", 2", (2) 1" alcove drains, (4) 6" sight glass mounts, (2) 6" spray ball mounts with nozzles. Head 16" x 20" oval man way with cover. (1) 8" End bottom outlet with 90 degree elbow. (2) Carbon steel channel support rings, (2) top lifting lugs. Built 1997.
-
ManufacturerMueller Corp
-
ModelH
-
CategoryTanks
-
SubcategoryStainless 5000 Gal and up
-
Gallons45,000
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalHorizontal
-
Diameter148.5"
-
Straight Side564"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure9psi
-
Internal Temperature32 to 300 degrees F
-
Opening16" x 20" oval man way with cover
-
Opening CoverYes
-
Outlet Size8"
-
Outlet LocationBottom
-
Year Built1997
