Used Alloy Fab 12,000-Gallon 304 Stainless Steel Mix Tank – 7.5 HP Agitator & Internal Heating Coils

Manufacturer Information

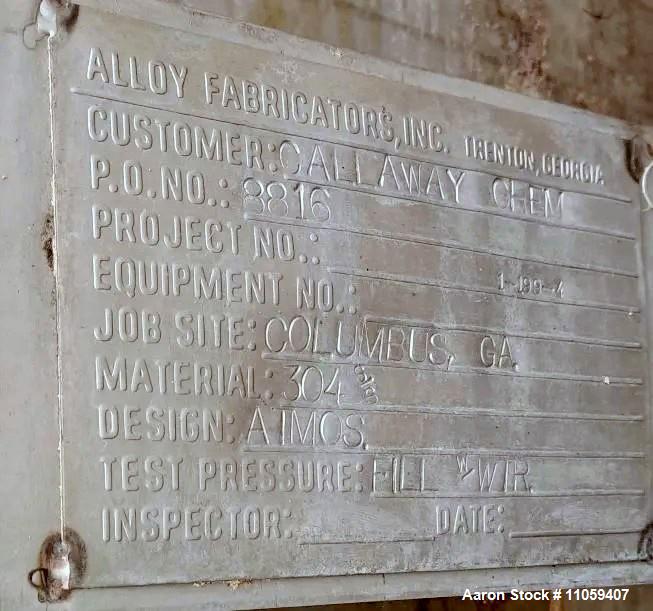

Alloy Fabricators / Alloy Fab

Alloy Fab manufactures fabricated stainless steel tanks, vessels, and process equipment for industrial liquid storage, mixing, blending, and temperature-controlled processing applications.

This 12,000-gallon Alloy Fab mixing tank combines large-capacity 304 stainless steel construction with a top-entry agitator and internal heating coils for applications requiring both product mixing and thermal processing.

Description

Available for sale is a used Alloy Fab 12,000-gallon stainless steel mix tank with internal heating coils.

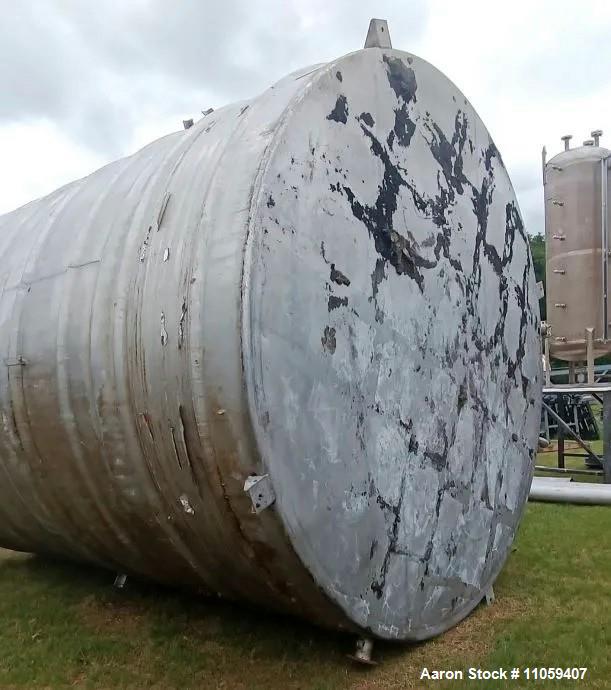

Constructed of 304 stainless steel, the vessel measures approximately 12' in diameter x 15'8" high, with a stated 216" (18') overall height. The tank features a flat top and flat bottom configuration.

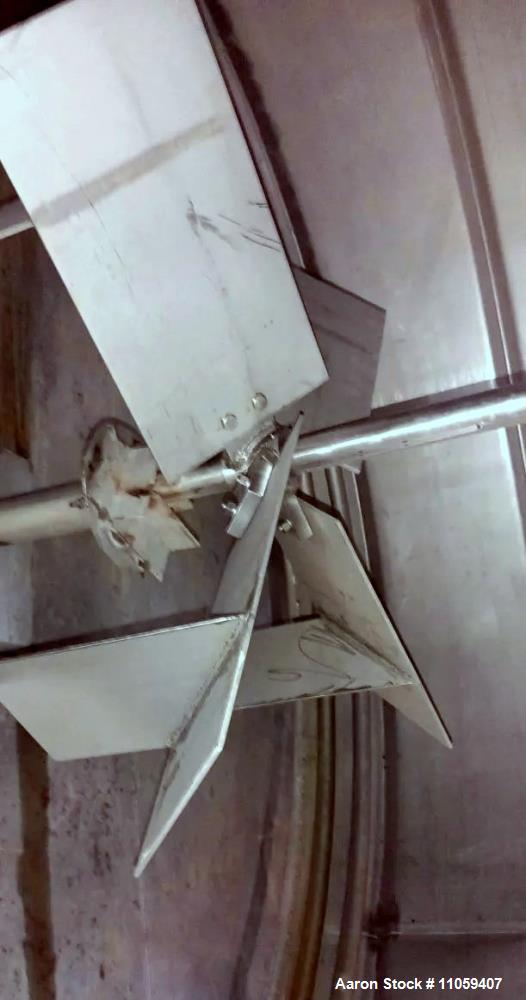

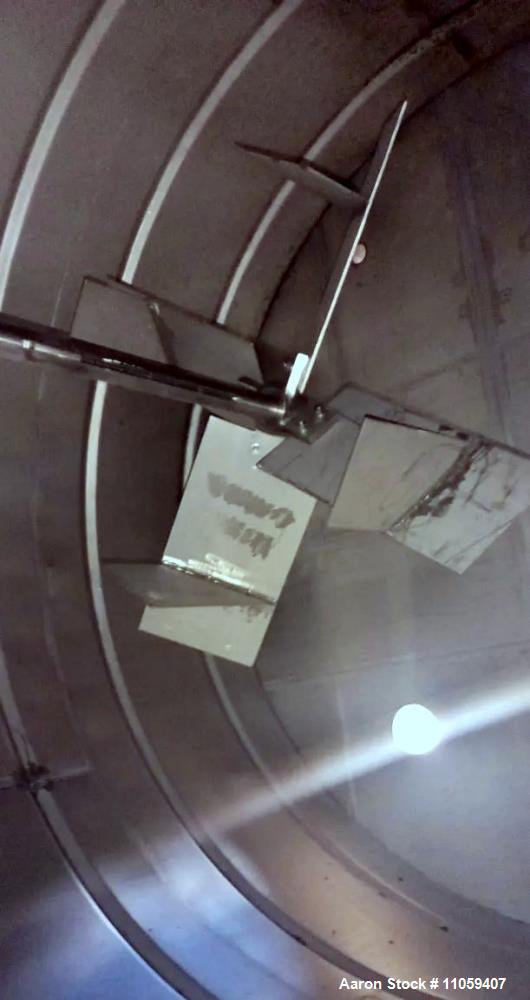

Mixing is provided by a 7.5 HP top-entering agitator, providing mechanical agitation for compatible liquid products, solutions, ingredients, and other process materials.

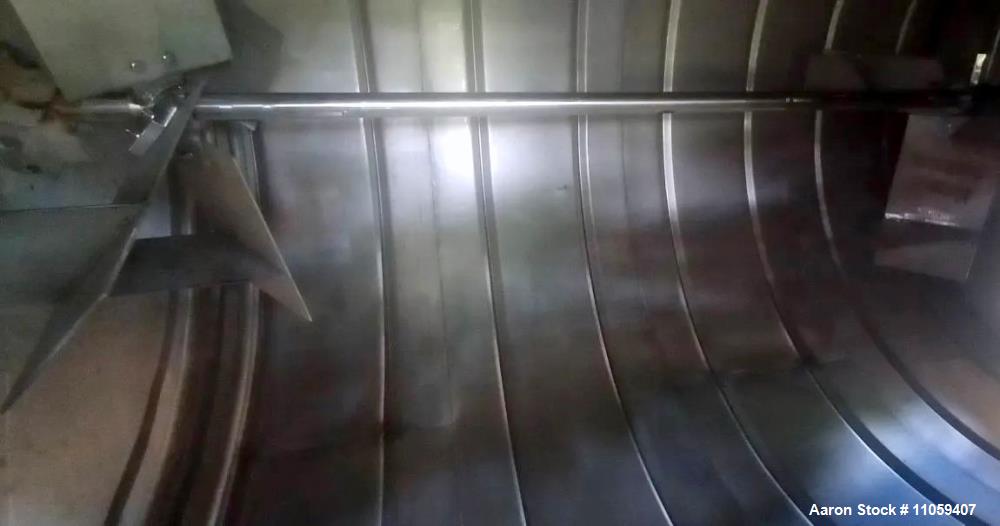

For temperature-controlled processing, the vessel contains two loops of 2" internal heating coils. These coils can provide indirect product heating when connected to a compatible thermal utility and operated within their applicable design limits.

The tank offers numerous process connections for integration into an existing production system. Top connections include an 8" 150-lb flange, three 1.5" threaded ports, two 3" threaded ports, and a 3" vent pipe.

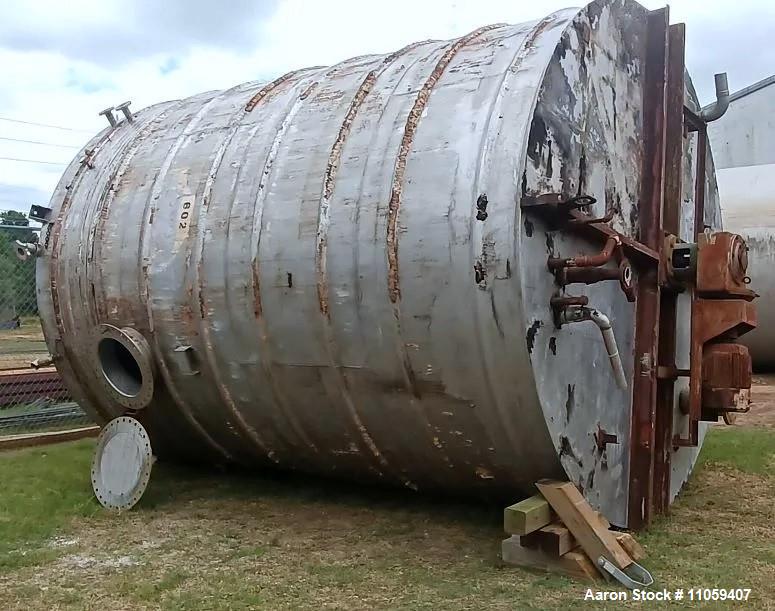

Side connections include a large 19" manway, along with multiple threaded and 150-lb flanged inlet/outlet connections.

With its 12,000-gallon capacity, 304 stainless steel construction, 7.5 HP agitator, internal heating coils, and extensive process connections, this Alloy Fab vessel provides a versatile solution for large-volume industrial mixing, heated blending, ingredient preparation, and process holding.

Specifications

Top Connections

• (1) 8" 150-lb flange
• (3) 1.5" threaded ports
• (2) 3" threaded ports
• (1) 3" vent pipe

Side Connections

• (1) 19" manway
• (1) 2" threaded port
• (2) 3" threaded ports
• (1) 1" threaded port
• (2) 1/2" threaded ports
• (2) 150-lb flanged inlet/outlet connections

Typical Applications

• Large-volume liquid mixing
• Heated batch blending
• Ingredient preparation
• Solution preparation
• Chemical processing
• Temperature-controlled mixing
• Process-liquid holding
• Batch formulation
• Product conditioning
• Industrial liquid storage
• Intermediate product holding
• General manufacturing processes

Products This Mix Tank Could Be Used For

• Water-based solutions
• Chemical formulations
• Liquid food ingredients
• Syrups and concentrates
• Cleaning products
• Liquid additives
• Agricultural formulations
• Process water
• Heated liquid formulations
• Industrial process liquids
• Compatible low-to-moderate viscosity mixtures
• Other products compatible with 304 stainless steel

Actual product and heating suitability depends on material compatibility, viscosity, specific gravity, operating temperature, coil design ratings, heating medium, agitation requirements, and vessel condition.

Frequently Asked Questions

• What is the capacity of this Alloy Fab tank? The vessel has an approximate 12,000-gallon capacity, making it suitable for large-volume industrial mixing, processing, and holding applications.
• Does the tank include a mixer? Yes. The vessel is equipped with a 7.5 HP top-entering agitator for mixing and circulation of compatible products.
• Can the product be heated inside the tank? The vessel contains two loops of 2" internal heating coils that can provide indirect heating when connected to a suitable thermal utility. Coil ratings and condition should be verified before use.
• What process connections are available? The tank has numerous top and side connections, including an 8" 150-lb top flange, multiple threaded ports, 3" vent, 19" side manway, and two side 150-lb flanged inlet/outlet connections.
• What are the tank dimensions? The vessel is approximately 12' in diameter x 15'8" high, with a stated overall height of approximately 216" (18').
• Can Aaron Equipment assist with shipping and logistics? Yes. Because this vessel is approximately 12 feet in diameter, oversized-load transportation will likely be required. Aaron Equipment can assist with rigging and loading coordination, oversized freight planning, and domestic or international shipping logistics.
