Used- Andritz Conical Bottom Tank, 5,000 Gallon Vertical 304L Stainless Steel

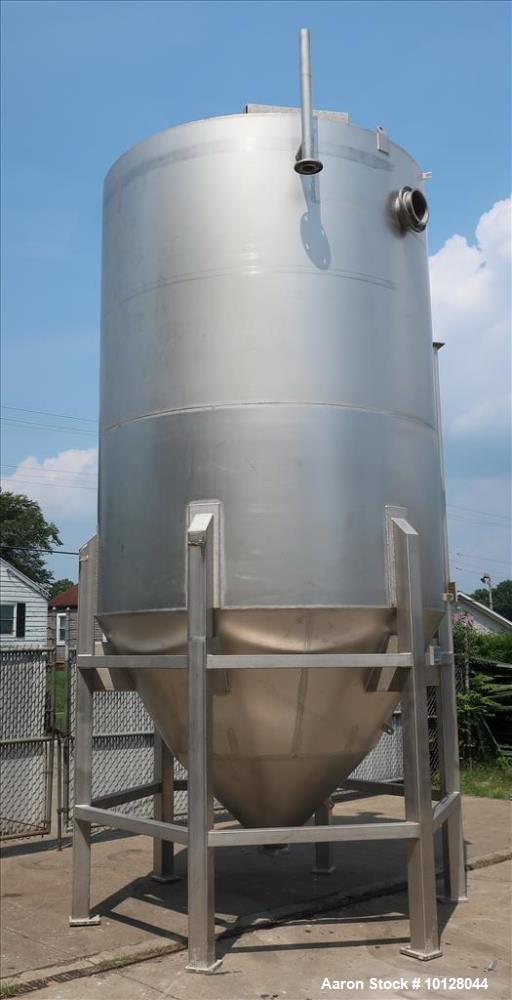

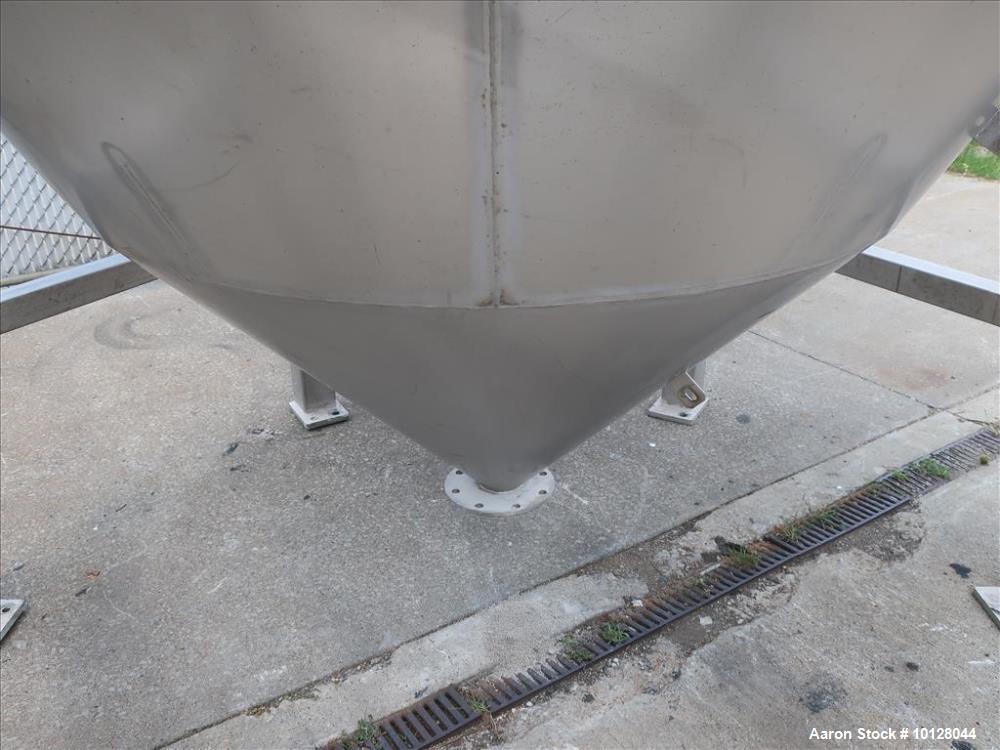

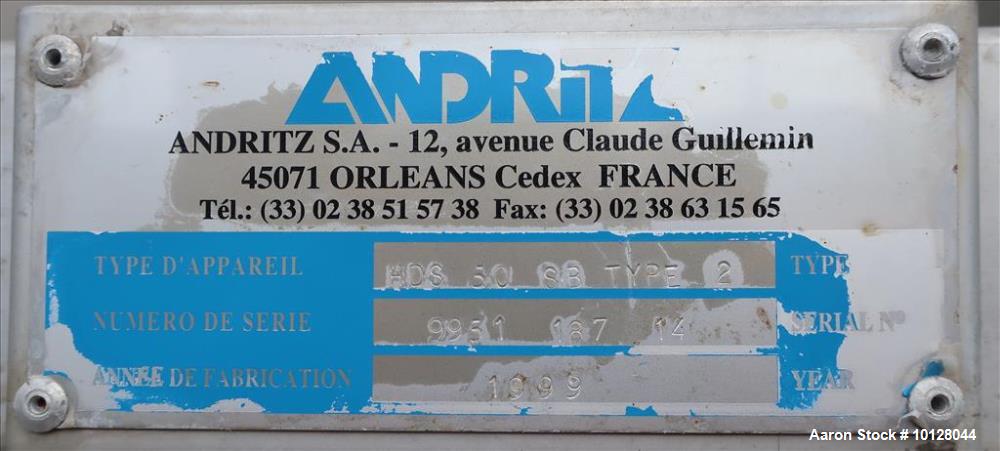

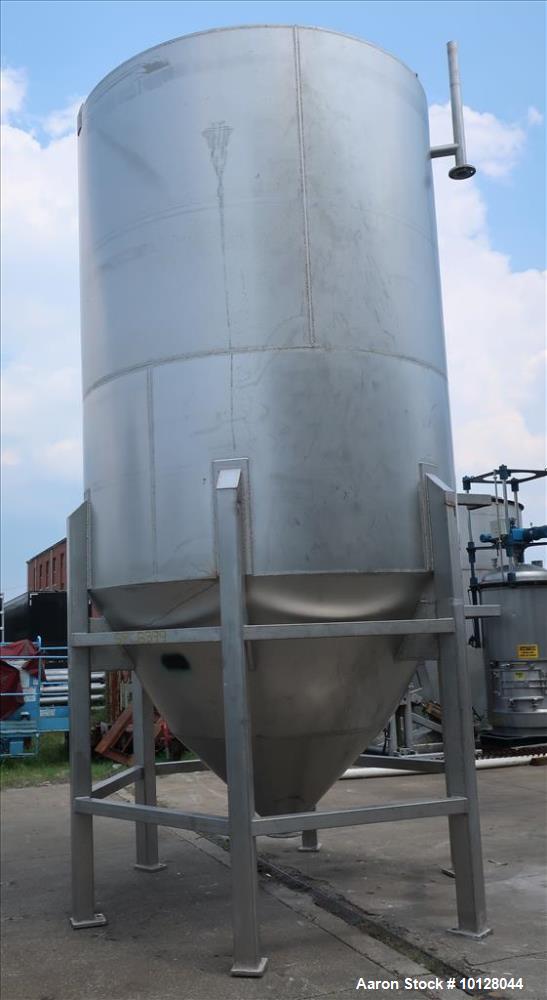

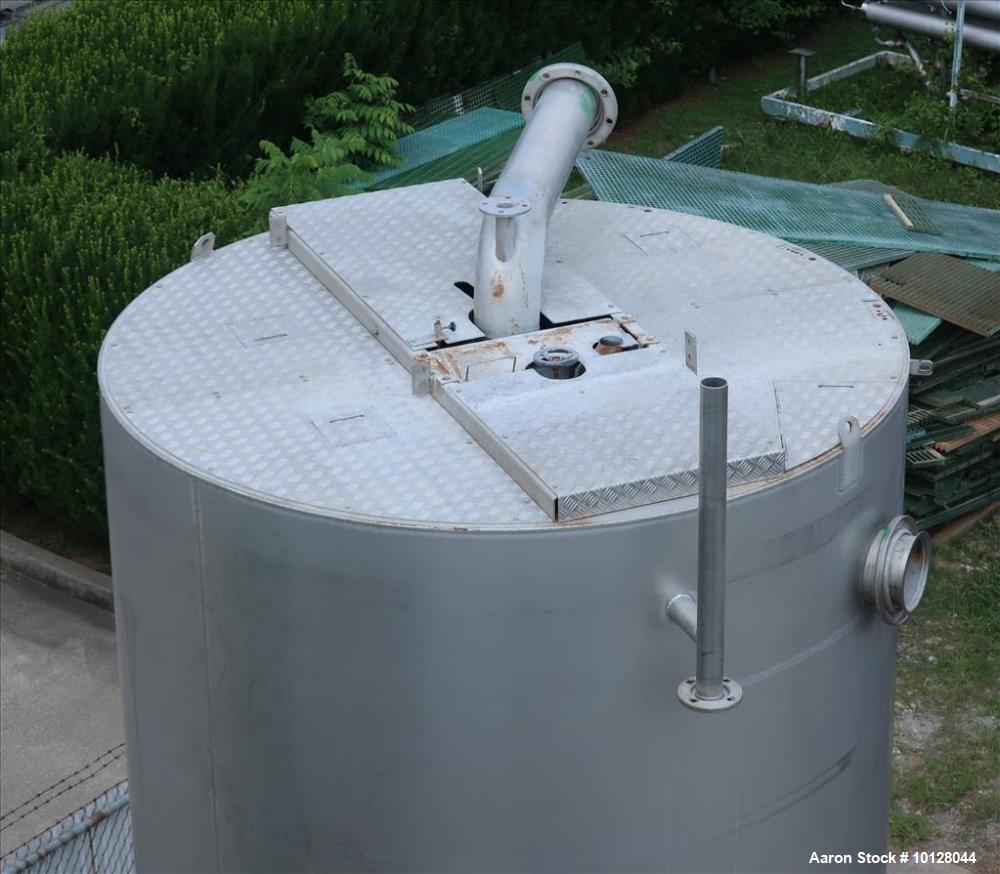

Used- Andritz Conical Bottom Tank, 5,000 gallon. Vertical 304L Stainless Steel, 100.5" diameter, 120.5" straight side height. 64.5" conical bottom. 217" overall height. 3" center bottom discharge. The side has 1 each 8" flanged fitting and 1 each 3" over flow connections. The top has 1 each 8" flanged fitting. It stands on 6 stainless steel legs. The top is bolted on and is easily removable aluminum treadplate. Heavy built tank. This tank was an Andritz Hydrasand HDS50 SB Type II self washing continuous sand filter. The sand has been removed. Used to remove suspended solid particles from water. With a new charge of sand it will have 5.1 sq.m. of filtration area and can process up to 65 cubic meters of water per hour depending on the feed water conditions.
