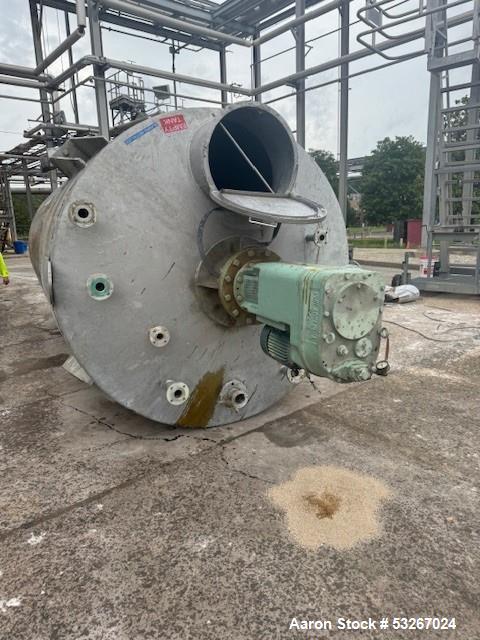

Used Approximately 5600 gallon Mix Tank, Manufactured by Alloy Fabricators Inc.

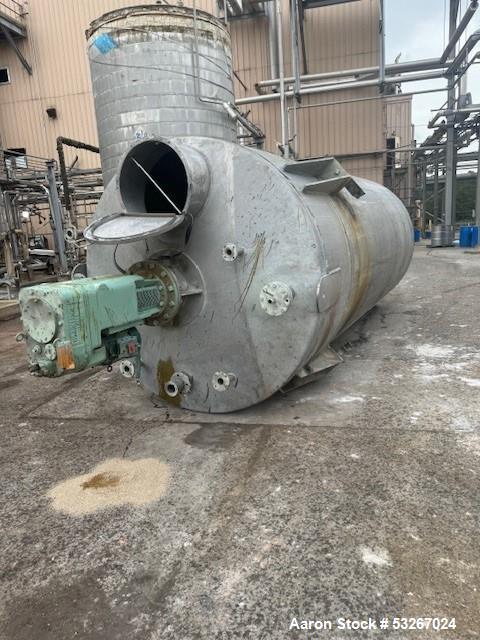

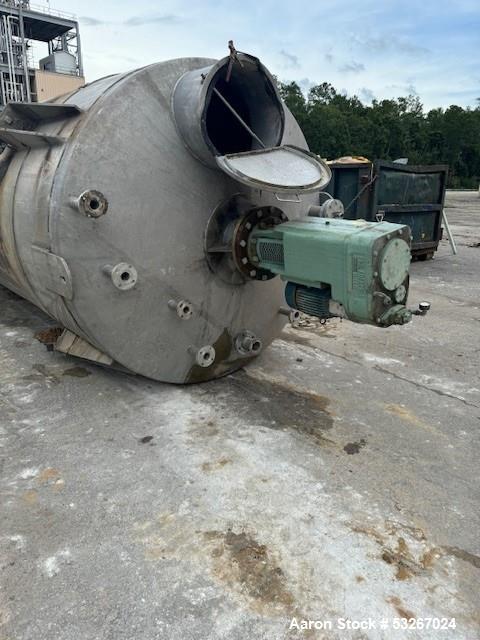

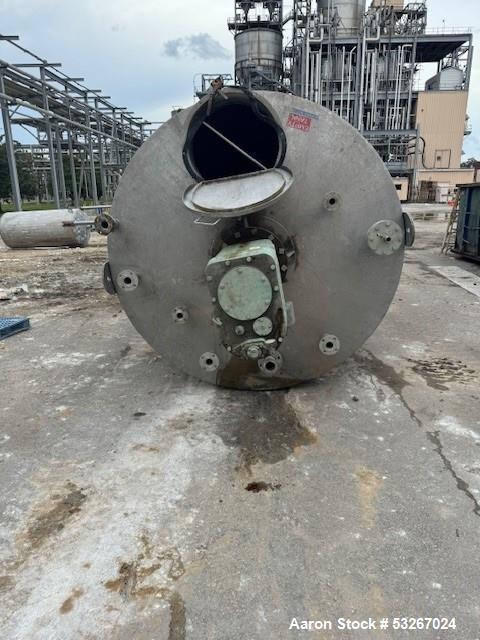

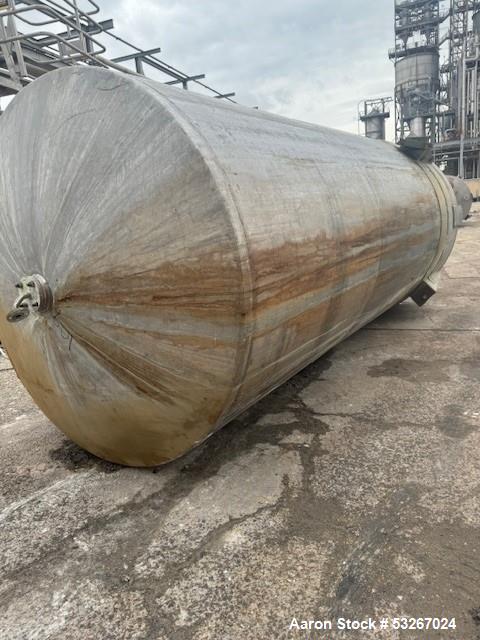

Used Approximately 5600 gallon Mix Tank, Manufactured by Alloy Fabricators Inc. 304 stainless steel vertical mix tank. 90" diameter X 17' high straight side. Internal rated ATMOS @ 200 F. Dished heads. Top fittings: 21" manway, (2) 1.5", (4) 2", (1) 3", and (1) 4". 3" center bottom drain. Has (4) internal baffles. Equipped with dual flight 4-blade agitator driven by Philadelphia model PTERVS-08 S/N 307573, Ratio 38.9-1. Rated 1750 RPM input, 45 RPM output. Powered by 5 HP 3/60/460 volt motor. Lug mounted. Built 1979. OAH 27'
| Manufacturer | Alloy FabAlloy Fab |
| Category | TanksTanks |
| Subcategory | Stainless 5000 Gal and upStainless 5000 Gal and up |
| Gallons | 5600 |
| Material of Construction | 304 Stainless Steel |
| Horizontal or Vertical | Vertical |
| Diameter | 90" |
| Straight Side | 17' |
| Top Head Style | Dished Head |
| Bottom | Dished Bottom |
| Internal Pressure | Atmospheric |
| Internal Temperature | 200 F |
| Mixer Type | Dual 4 Blade Turbine |
| Opening | 21" manway, (2) 1.5", (4) 2", (1) 3", and (1) 4" |
| Opening Cover | Yes |
| Outlet Size | 3" |
| Outlet Location | Bottom |
| Mounted | Side Lug Mounted |
Description:
This used 5600-gallon 304 stainless steel vertical mix tank, manufactured by Alloy Fabricators Inc., is designed for industrial mixing and liquid processing. With a 90" diameter and 17' straight side height, it is internally rated for atmospheric pressure at 200°F. The tank features dished heads for durability and four internal baffles to improve mixing efficiency.

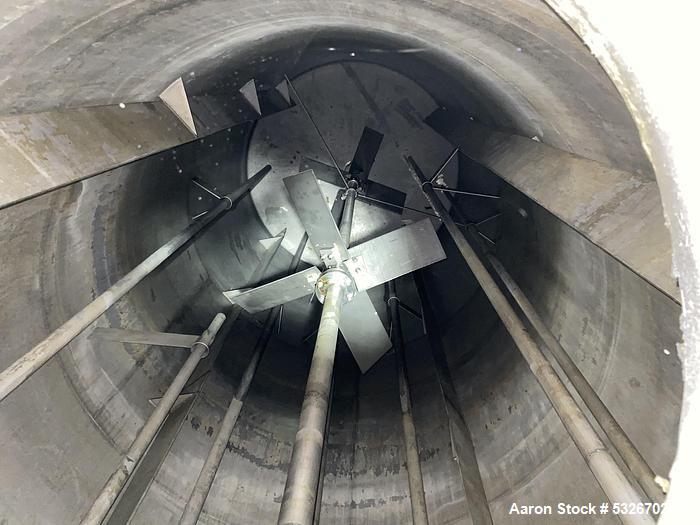

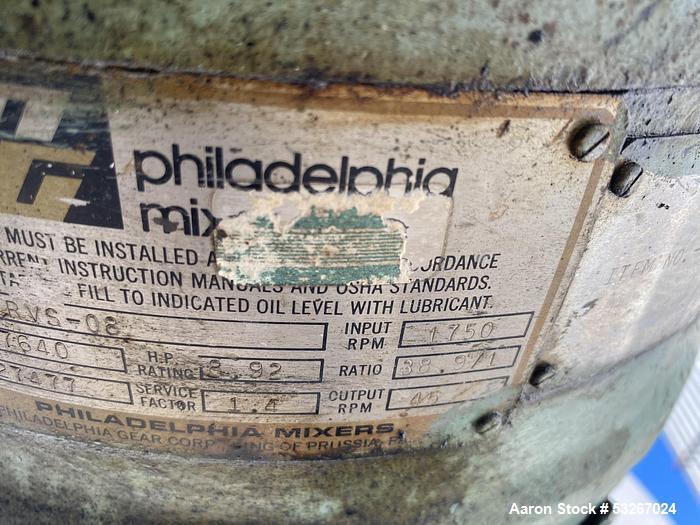

The tank is equipped with a dual flight 4-blade agitator, driven by a Philadelphia Model PTERVS-08 drive (S/N 307573), with a 38.9:1 ratio, 1750 RPM input, and 45 RPM output. A 5 HP 3/60/460V motor powers the agitator. The unit is lug-mounted and has an overall height of 27 feet.
Specifications:
- Capacity: Approx. 5600 gallons
- Material: 304 stainless steel
- Dimensions:
- Diameter: 90”
- Straight Side Height: 17’
- Overall Height (OAH): 27’
- Pressure Rating: Atmospheric (ATMOS) at 200°F
- Top Fittings:

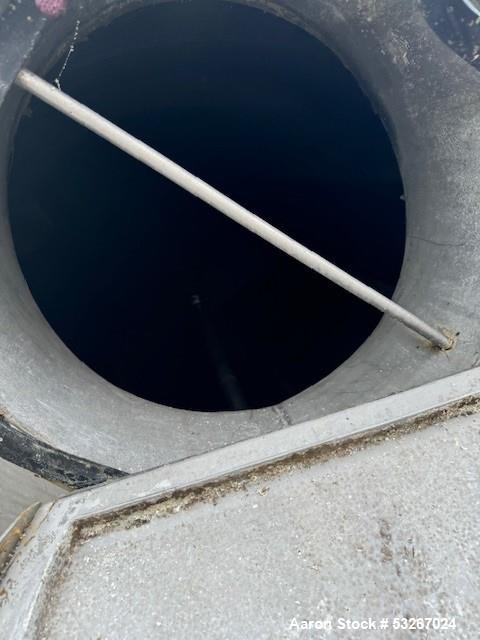

- Manway: 21”
- Other Ports: (2) 1.5", (4) 2", (1) 3", (1) 4"
- Bottom Drain: 3” center bottom drain
- Agitation System:
- Agitator Type: Dual flight 4-blade
- Drive: Philadelphia Model PTERVS-08
- Drive S/N: 307573
- Speed: 1750 RPM input, 45 RPM output
- Motor Power: 5 HP, 3-phase, 60 Hz, 460V
- Mounting: Lug-mounted
Applications:
This stainless steel mix tank is suitable for liquid processing, agitation, and industrial mixing, making it ideal for industries such as:
- Chemical processing
- Pharmaceutical and biotech manufacturing
- Food and beverage production
- Dairy and liquid food blending
- Cosmetic and personal care product formulation
- Water treatment and wastewater processing
- Petrochemical and industrial fluid mixing
Compatible Products:
- Chemical solutions and industrial liquids
- Food-grade liquids (e.g., syrups, dairy, beverages)
- Paints, coatings, and adhesives
- Pharmaceutical and biotech formulations
- Essential oils and cosmetic mixtures
- Water and wastewater treatment solutions
- Used Alloy Fabricators mix tank
- 5600-gallon stainless steel tank
- Industrial mixing tank for sale
- Philadelphia agitator tank
- Stainless steel vertical mixing tank
- Stainless steel industrial mix tank
- Food-grade mixing tank
- Large-capacity stainless steel tank
- Heavy-duty mixing tank
- 5600-gallon stainless steel industrial mix tank
- Used vertical stainless steel agitation tank
- 304 stainless steel mixing tank with Philadelphia agitator
- Industrial mix tank with 5HP motor
- Heavy-duty chemical mixing tank for sale
- Stainless steel tank with bottom drain and top fittings
- Used Alloy Fabricators tank with industrial agitator
- Food-grade 5600-gallon stainless steel mix tank
- Used Alloy Fabricators 5600-gallon 304 stainless steel vertical mix tank with Philadelphia agitator
- Industrial liquid mixing tank with dual flight 4-blade agitator and 5HP motor
- Stainless steel chemical processing tank with high-capacity agitation system
- Large-capacity stainless steel mix tank for food, pharma, and chemical industries
- Heavy-duty 5600-gallon stainless steel agitation tank for sale
- Vertical stainless steel mixing tank with Philadelphia drive and internal baffles
- Used stainless steel tank with multiple top fittings and bottom drain
Used Approximately 5600 gallon Mix Tank, Manufactured by Alloy Fabricators Inc. 304 stainless steel vertical mix tank. 90" diameter X 17' high straight side. Internal rated ATMOS @ 200 F. Dished heads. Top fittings: 21" manway, (2) 1.5", (4) 2", (1) 3", and (1) 4". 3" center bottom drain. Has (4) internal baffles. Equipped with dual flight 4-blade agitator driven by Philadelphia model PTERVS-08 S/N 307573, Ratio 38.9-1. Rated 1750 RPM input, 45 RPM output. Powered by 5 HP 3/60/460 volt motor. Lug mounted. Built 1979. OAH 27'
