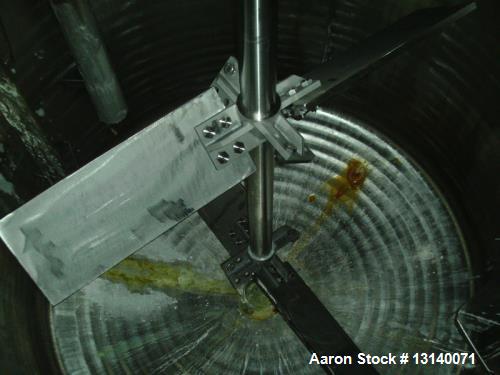

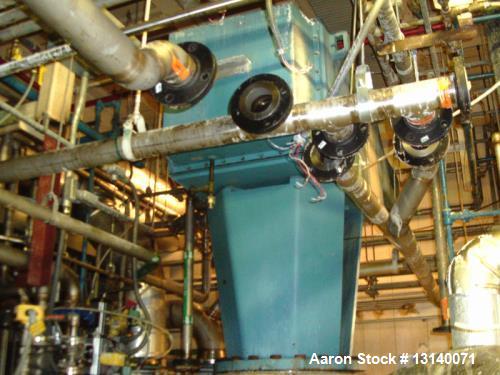

Used Alloy Fabricators, Approximately 8,100 Gallon Stainless Steel Vertical Jacketed Mix Tank. 132" diameter x 138" high straight side. Internal rated ATM -20 to 250 degrees F. Jacket rated 150 PSI at -20 to 400 degrees F. Welded dished heads. Shell and head thickness .25". Top Fittings: 24" manway, (1) 1-1/2", (4) 2", (4) 3", (3) 4", (1) 6", (1) 8", (2) 10". (4) internal baffles. 10" center bottom outlet. Equipped with dual flight (2) pitched blade stainless steel agitator driven by Chemineer Model 10HTNSM-100. 45 rpm output powered by 100HP motor. Built 1992. Weight 12,800lbs. Mounted on legs.
Used Alloy Fabricators, Approximately 8,100 Gallon Stainless Steel Vertical Jacketed Mix Tank. 132" diameter x 138" high straight side. Internal rated ATM -20 to 250 degrees F. Jacket rated 150 PSI at -20 to 400 degrees F. Welded dished heads. Shell and head thickness .25". Top Fittings: 24" manway, (1) 1-1/2", (4) 2", (4) 3", (3) 4", (1) 6", (1) 8", (2) 10". (4) internal baffles. 10" center bottom outlet. Equipped with dual flight (2) pitched blade stainless steel agitator driven by Chemineer Model 10HTNSM-100. 45 rpm output powered by 100HP motor. Built 1992. Weight 12,800lbs. Mounted on legs.
