Used Alloy Fabricators, 316L Stainless Steel Vertical Pressure Tank, 9,000 Gallon (approximately). 9’ diameter x 16’ high straight side. Internal rated 15/FV at 350 degrees F. Welded dished heads. To...

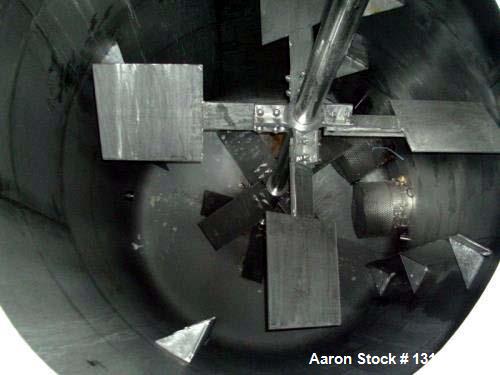

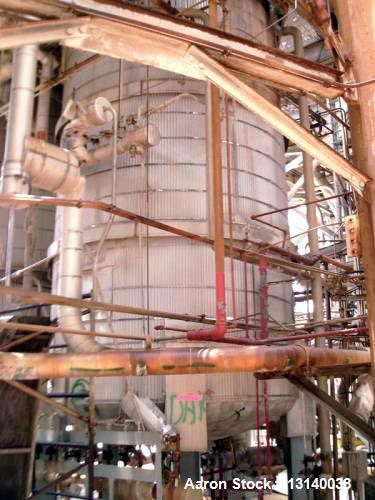

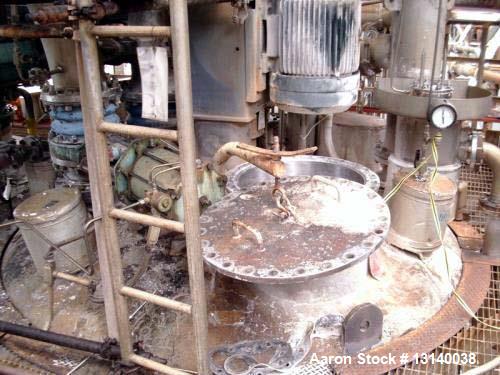

Used- Alloy Fabricators, 316L Stainless Steel Vertical Pressure Tank, 9,000 Gallon (approximately). 9’ diameter x 16’ high straight side. Internal rated 15/FV at 350 degrees F. Welded dished heads. Top Fittings: (1) 24” manway, (1) 16”, (3) 10”, (5) 4”, (3) 2”, (1) 6”, and (1) 3”. 2.5” center bottom drain, (4) 2” off center spargers. (2) 4” side inlets for level transmitter, (1) 1.5” for temperature, and (2) 4” outlets on side. Equipped with tri-flight (4) pitched blade stainless steel agitator driven by 40 HP Philadelphia model MTE210-PTM drive. 1150 RPM Input, 37 RPM Output, 31.4-1 ratio. Mounted on legs.
