Used 316 Stainless Steel Mix Tank, coiled, 8000 gallons

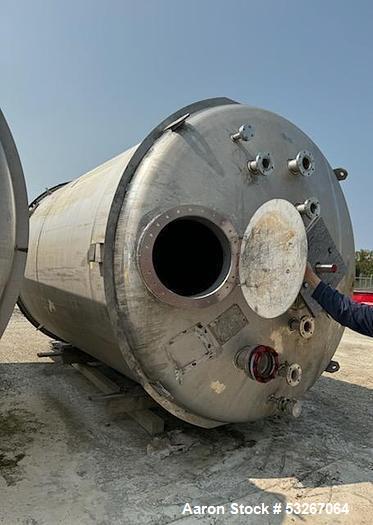

Used Used 316 Stainless Steel Mix Tank, Coiled, 8000 Gallons, Vertical. Manufactured by ALPS. Dished Top & Bottom. 120" diameter X 168" high straight side. Internal rated -3 to 10 PSIG @ 350 degrees F. 8 turns of 6" internal coils rated 160 PSIG/FV @ 450 degrees F. Has (4) internal baffles and a diptube. Top fittings: 24" manway, (2) 1.5", (5) 3", (1) 4", and (1) 6". 4" center bottom drain. (3) 1" side opening. (1) 10" side bottom opening. Equipped with top mounted Lightnin 10 HP mixer drive, 3 blade pitched turbine shaft. Vortex breaker located at drain. Mounted on (4) heavy duty legs with mounting pads.
Manufacturer Information:
- Brand: ALPS Welding
- Type: Mix Tank with Internal Coils
- Capacity: Approximately 8,000 gallons
- Material: 316L Stainless Steel
- Orientation: Vertical
- Construction: Dished top & bottom
Description:
The Used ALPS Welding 8000-Gallon Mix Tank is a high-capacity stainless steel processing vessel designed for industrial mixing and heating applications. Built with 316L stainless steel, this durable, corrosion-resistant tank ensures superior performance in chemical, pharmaceutical, food, and beverage processing.

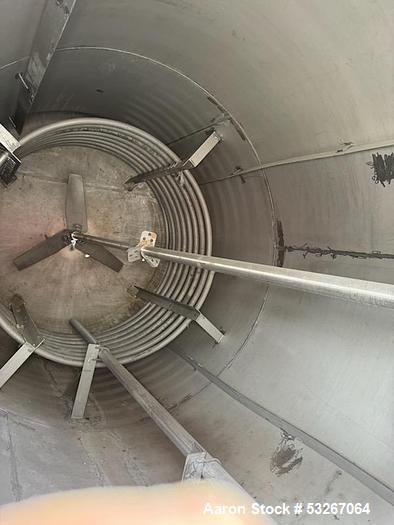

The tank features 8 turns of 6” internal heating coils rated for 160 PSIG/FV @ 450°F, allowing for precise temperature control. It has an internal pressure rating of -3 to 10 PSIG at 350°F and is equipped with (4) internal baffles and a diptube for enhanced mixing efficiency.
A top-mounted Lightnin 10 HP mixer drive with a 3-blade pitched turbine shaft provides powerful, consistent agitation, making it ideal for high-viscosity and heat-sensitive materials. The vortex breaker at the 4” center bottom drain minimizes turbulence, ensuring smooth material flow. The unit is supported by (4) heavy-duty legs with mounting pads for stability.
Specifications:
- Tank Capacity: 8,000 gallons
- Material: 316L Stainless Steel
- Orientation: Vertical
- Internal Pressure Rating: -3 to 10 PSIG @ 350°F
- Coils:
- 8 turns of 6” internal coils
- Rated 160 PSIG/FV @ 450°F
- Mixing System:
- Top-mounted Lightnin 10 HP mixer drive
- 3-blade pitched turbine shaft
- Drain & Openings:
- 4” center bottom drain
- (3) 1” side openings
- (1) 10” side bottom opening
- Top Fittings:
- 24” manway
- (2) 1.5” ports
- (5) 3” ports
- (1) 4” port
- (1) 6” port
- Additional Features:
- (4) Internal baffles & diptube for optimized mixing
- Vortex breaker at drain for controlled flow
- Mounted on (4) heavy-duty legs with mounting pads
Applications:
The ALPS Welding 8000-Gallon Mix Tank is ideal for industries requiring precise mixing and temperature control, including:
- Food & Beverage Processing – Dairy, sauces, syrups, brewing, fermentation
- Pharmaceutical & Biotech – API formulation, liquid blending
- Chemical Processing – Specialty chemicals, coatings, adhesives
- Cosmetics & Personal Care – Creams, lotions, bulk ingredient storage
- Industrial & Petrochemical Processing – Oil blending, resin mixing
Cheese, Chemical Plants, Chemical Products, Chemicals, Chocolate, Chocolate Tempering, Chocolates, Dairy, Dairy Industry, Dairy Products, ferment, Fermentation, Food and Beverage, Pharmaceutical, Pharmaceutical Industries, Pharmaceutical Products, Sterile, Sterilization, Sterilizer, Temperature Control
- Liquid Food Products – Syrups, dairy, liquid sugar processing
- Pharmaceutical Liquids – Sterile solutions, API formulations
- Chemical Compounds – Polymers, resins, coatings
- Personal Care Products – Lotions, gels, creams
- Industrial Fluids – Oils, lubricants, emulsions
- Used ALPS Welding 8000-gallon mix tank for sale
- 316L stainless steel mixing tank with heating coils
- Lightnin 10 HP mixer with 3-blade turbine shaft
- Large-capacity industrial mix tank with vortex breaker
- High-pressure jacketed mixing vessel for food and pharma
- 8,000-gallon vertical mix tank with top-mounted agitator
- Stainless steel tank for chemical and industrial processing
- Heavy-duty mixing tank with internal baffles and diptube
- Used 8000-gallon ALPS Welding mix tank with internal heating coils
- Stainless steel mixing tank with 10 HP Lightnin mixer for industrial processing
- Large-scale food and pharmaceutical mixing tank with internal baffles
- 316L stainless steel jacketed mixing vessel for sale
- High-capacity chemical process mixing tank with vortex breaker
- Industrial mixing tank with internal coils rated for 450°F
- Vertical stainless steel tank with 4-stage filtration and agitation system
