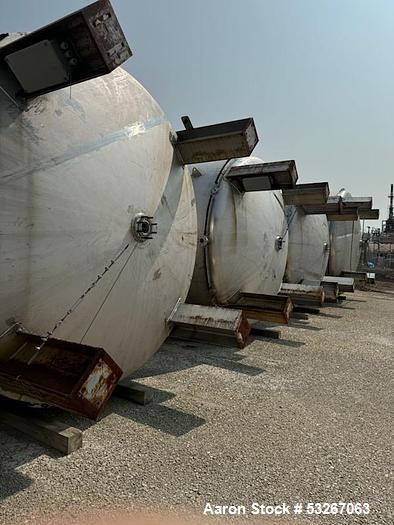

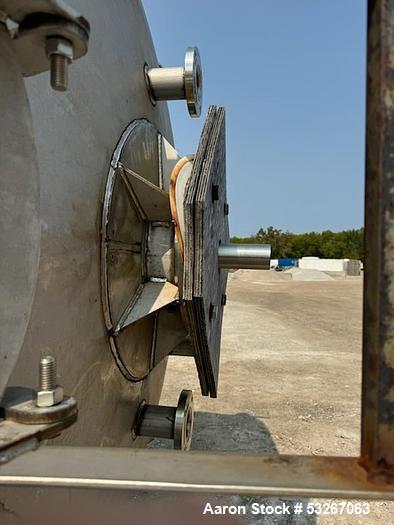

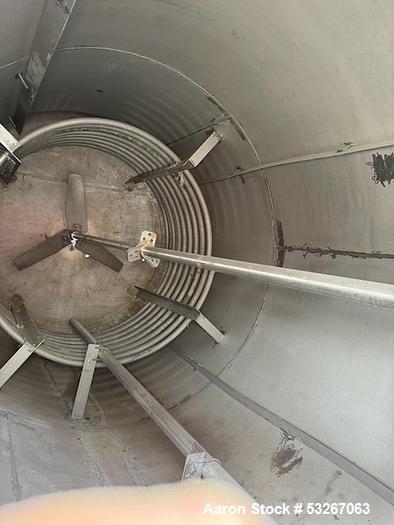

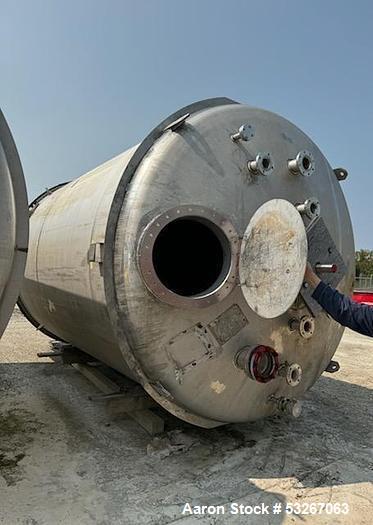

Used ALPS Welding Mix Tank With Coils. Approximately 8000 gallon capacity, 316L stainless steel, vertical. Dished Top & Bottom. 120" diameter X 168" high straight side. Internal rated -3 to 10 PSIG @ 350 degrees F. 8 turns of 6" internal coils rated 160 PSIG/FV @ 450 degrees F. Has (4) internal baffles and a diptube. Top fittings: 24" manway, (2) 1.5", (5) 3", (1) 4", and (1) 6". 4" center bottom drain. (3) 1" side opening. (1) 10" side bottom opening. Equipped with top mounted Lightnin 10 HP mixer drive, 3 blade pitched turbine shaft. Vortex breaker located at drain. Mounted on (4) heavy duty legs with mounting pads.
Category | TanksTanks |
Subcategory | Stainless 5000 Gal and upStainless 5000 Gal and up |
Gallons | 8000 |
Material of Construction | 316L Stainless Steel |
Horizontal or Vertical | Vertical |
Diameter | 120" |
Straight Side | 168" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | -3 to 10psi |
Internal Temperature | 350 F |
Agitator Location | Top Offset |
Mixer Type | 3 Blade Turbine |
Agitator Manufacturer | Lightnin |
Agitator HP | 10 |
Opening | Top fittings: 24" manway, (2) 1.5", (5) 3", (1) 4", and (1) 6", (3) 1" side opening. (1) 10" side bottom opening |
Opening Cover | Yes |
Outlet Size | 4" |
Outlet Location | Bottom |
Mounted | Mounted on 4 Legs |
Food and Beverage:
Chemical Processing:
Pharmaceutical Manufacturing:
Other Applications:
Key Advantages of Coiled Mix Tanks:
Cheese, Chemical Plants, Chemical Products, Chemicals, Chocolate, Chocolate Tempering, Chocolates, Dairy, Dairy Industry, Dairy Products, ferment, Fermentation, Food and Beverage, Pharmaceutical, Pharmaceutical Industries, Pharmaceutical Products, Sterile, Sterilization, Sterilizer, Temperature Control
