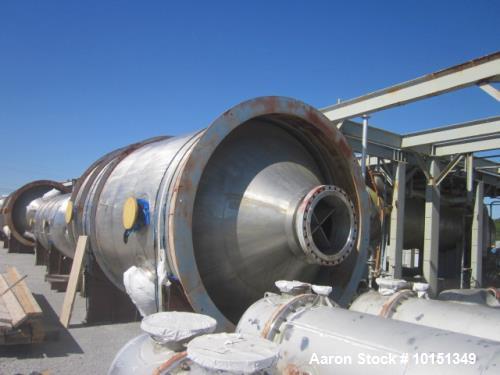

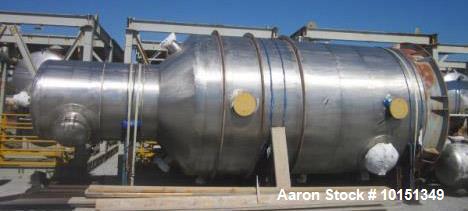

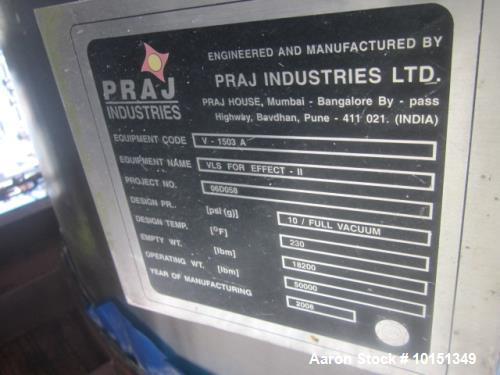

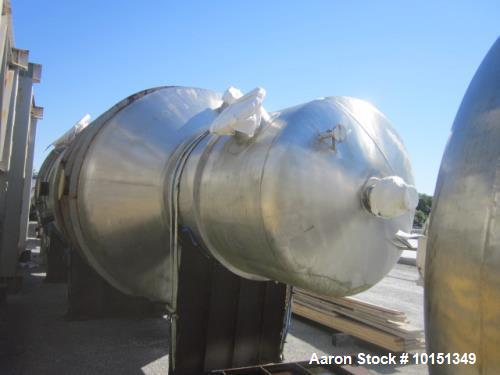

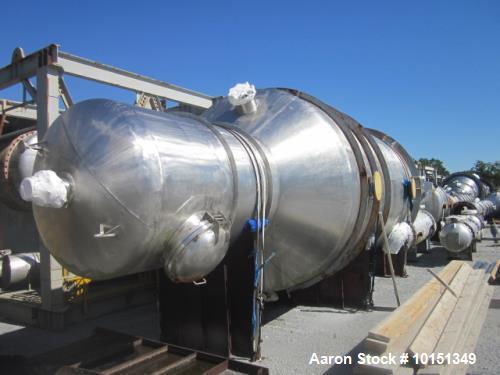

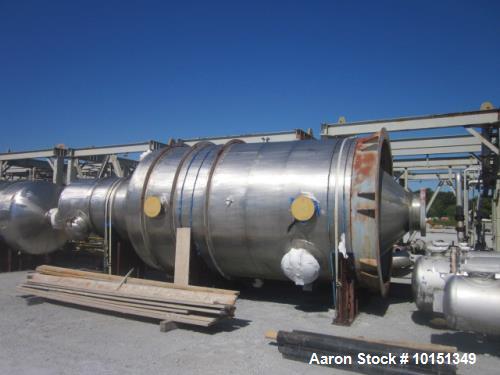

Unused- Praj Industries 9535 Gallon Vertical 316 Stainless Steel Pressure Vessel. 316 Stainless Steel 117" diameter x 30'9" overall height 9'9" diameter x 14' straight side with 4'10" cone bottom, 2'6" top cone transition with 5'3" diameter, 6'11" top head section. Dished top. Coned bottom 10 psi/full vacuum at 230 degree F .315" and .236" shell Skirt lug ring support. Nozzles; top 1/2", 1", 6"; side (2) 24" manways, 1/2", 2", (2) 3"; bottom 28". Built 2008.
CIT offers a variety of programs including no payments for 90 days and a cash loan in adding to any equipment financing.
LEARN MORE APPLY NOWCategory | TanksTanks |
Subcategory | Stainless 5000 Gal and upStainless 5000 Gal and up |
Gallons | 9535 |
Material of Construction | 316 Stainless Steel |
Horizontal or Vertical | Horizontal |
Diameter | 117 |
Straight Side | 168" |
Top Head Style | Dished Head |
Bottom | Coned Bottom |
Internal Pressure | 10psi |
Internal Temperature | 230F |
Year Built | 2008 |
Unused- Praj Industries 9535 Gallon Vertical 316 Stainless Steel Pressure Vessel. 316 Stainless Steel 117" diameter x 30'9" overall height 9'9" diameter x 14' straight side with 4'10" cone bottom, 2'6" top cone transition with 5'3" diameter, 6'11" top head section. Dished top. Coned bottom 10 psi/full vacuum at 230 degree F .315" and .236" shell Skirt lug ring support. Nozzles; top 1/2", 1", 6"; side (2) 24" manways, 1/2", 2", (2) 3"; bottom 28". Built 2008.
or
HAVE A SIMILAR MACHINE FOR SALE?Category | Tanks |
Subcategory | Stainless 5000 Gal and up |
Gallons | 9535 |
Material of Construction | 316 Stainless Steel |
Horizontal or Vertical | Horizontal |
Diameter | 117 |
Straight Side | 168" |
Top Head Style | Dished Head |
Bottom | Coned Bottom |
Internal Pressure | 10psi |
Internal Temperature | 230F |
Year Built | 2008 |
