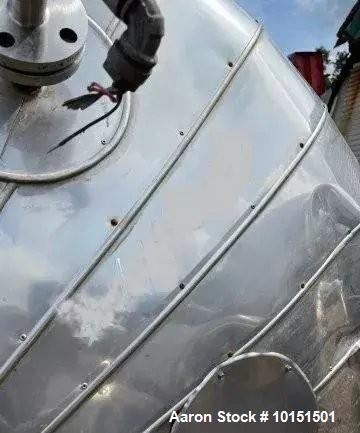

Alloy Fabricators Approximately 1,950 Gallon Mix Tank with Internal Coils

DOWNLOAD ALL PHOTOS FOR THIS ITEM WITHOUT AARON WATERMARK

SELL US YOURS

Stock # 10151501

Used Alloy Fabricators Approximately 1,950 Gallon Mix Tank with Internal Coils. 304 Stainless Steel Jacketed. 78" diameter x 81" straight side; Dished top and bottom; Internal rated 15/FV at 335 degrees F; Jacket rated 44 psi at 335 degrees F; Coils rated 44 psi at 335 degrees F; (4) side wall baffles; 7.5 hp axial type agitator, 304 stainless steel, Foam breaker at top - 2 blade, 51" dia; dual hub with 3 blades - upper 50" dia; lower 30" dia, 18" dia. 2 blade radial flow at bottom. Serial # 1-151A; Built 1991.

SPECIFICATIONS

Manufacturer	Alloy & Steel FabAlloy & Steel Fab
Serial #	1-151A
Category	TanksTanks
Subcategory	Stainless 1000-4999 GalStainless 1000-4999 Gal

Used Equipment Facts About This Machine

Brand: Alloy Fabricators
Condition: Used

Description

The Alloy Fabricators 1,950-Gallon Stainless Steel Jacketed Mix Tank is a high-performance mixing vessel, designed for food, pharmaceutical, chemical, and industrial applications. Constructed from 304 stainless steel, it offers excellent corrosion resistance and durability.

This jacketed tank has a 78" diameter and 81" straight side, featuring a dished top and bottom for optimal structural integrity and drainage. It is internally rated at 15 psi / full vacuum (FV) at 335°F, with the jacket and internal coils rated at 44 psi at 335°F, making it ideal for temperature-controlled mixing processes.

Equipped with a 7.5 HP axial-type agitator, the system includes:

Foam Breaker: 2-blade, 51" diameter (Top)
Dual Hub Agitator:
- Upper Hub: 3-Blade, 50" Diameter
- Lower Hub: 3-Blade, 30" Diameter
Radial Flow Blade: 2-blade, 18" diameter (Bottom)
(4) Side Wall Baffles for enhanced mixing efficiency

Specifications

Capacity: 1,950 Gallons
Material: 304 Stainless Steel
Tank Dimensions:
- Diameter: 78"
- Straight Side Height: 81"
Top & Bottom: Dished
Pressure Ratings:
- Internal: 15 psi / FV @ 335°F
- Jacket: 44 psi @ 335°F
- Coils: 44 psi @ 335°F
Agitator:
- Type: 7.5 HP Axial
- Material: 304 Stainless Steel
- Blade Configuration:
  - Foam Breaker: 2-Blade (51" Diameter)
  - Upper Hub: 3-Blade (50" Diameter)
  - Lower Hub: 3-Blade (30" Diameter)
  - Bottom Radial Flow Blade: 2-Blade (18" Diameter)
Mixing Enhancements: (4) Side Wall Baffles

Applications

Food & Beverage Processing – Mixing dairy, syrups, and liquid ingredients
Pharmaceutical & Biotech – Controlled mixing and batch processing
Chemical Processing – Blending of temperature-sensitive chemicals
Industrial Wastewater Treatment – Chemical conditioning and sludge processing
Cosmetic & Personal Care – Emulsification of lotions, creams, and gels

Compatible Products

Stainless steel jacketed mixing tanks
Temperature-controlled blending systems
Pharmaceutical and food-grade processing vessels
Industrial reaction tanks for heating and cooling

Common Keywords for this Used Machine Type

Chemical, Chemical Industries, Chemical Oxygen Demand (COD), Chemical Plants, Chemical Powders, Chemical Products, Chemical Storage, Chemical Transferring, Chemicals

PRODUCT DETAILS

Stainless steel mix tank, jacketed tank, industrial agitator
Used 1,950-gallon stainless steel tank, Alloy Fabricators mixing vessel, temperature-controlled mix tank
Alloy Fabricators 1,950-gallon stainless steel mix tank with internal coils, used high-capacity stainless steel mixing tank with foam breaker, industrial mixing vessel with jacketed and coil heating system
