Stock No.: 51367001

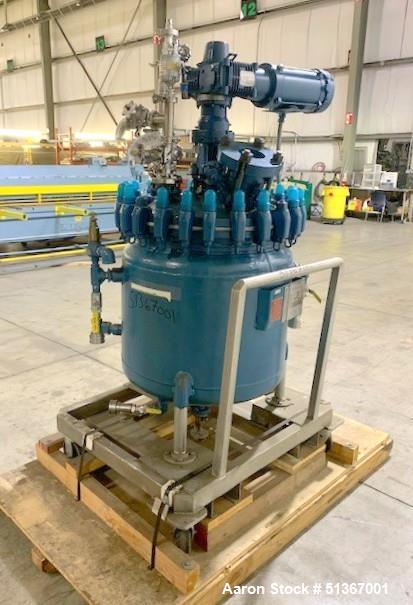

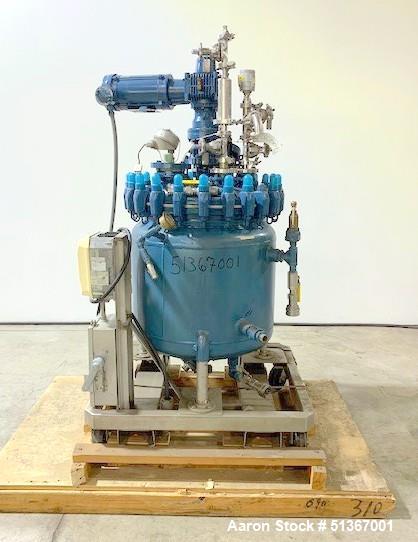

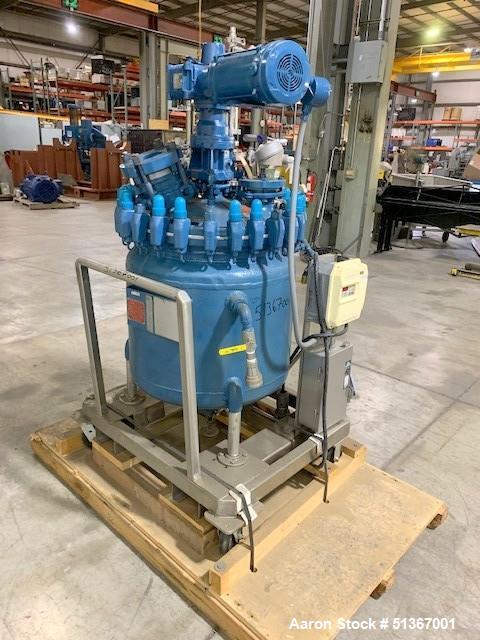

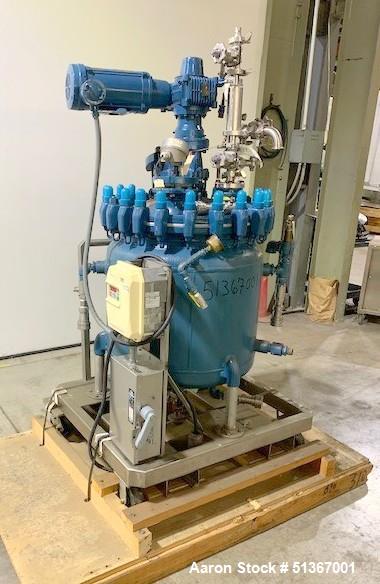

Used Pfaudler Glass Lined Reactor, 50 Gallons

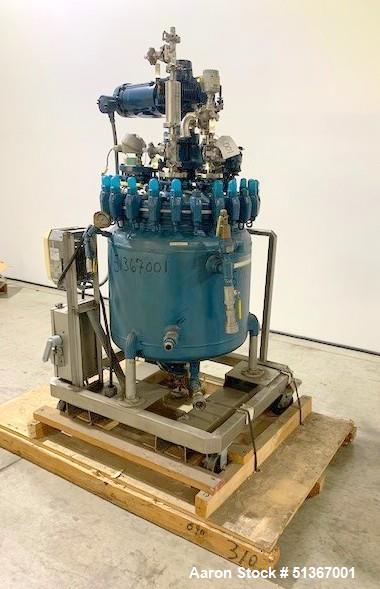

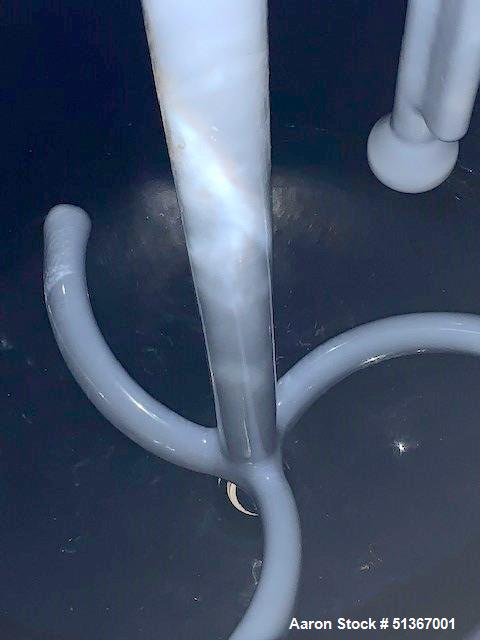

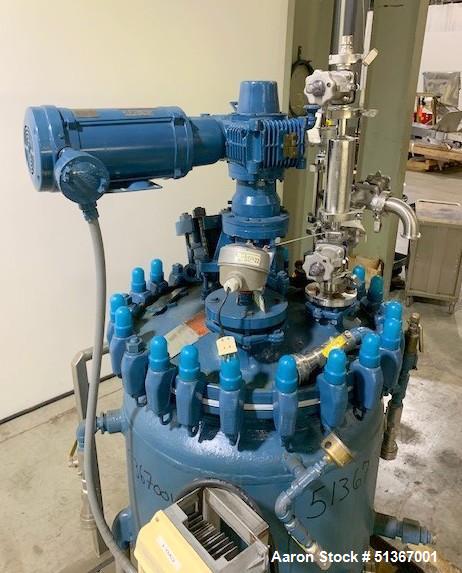

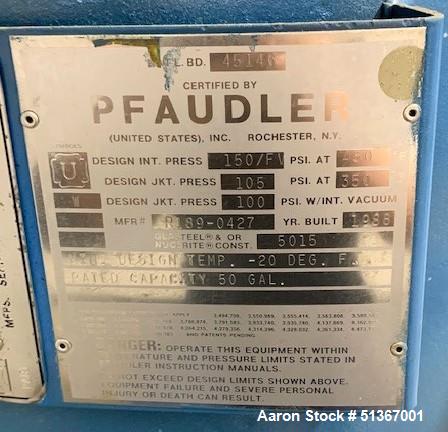

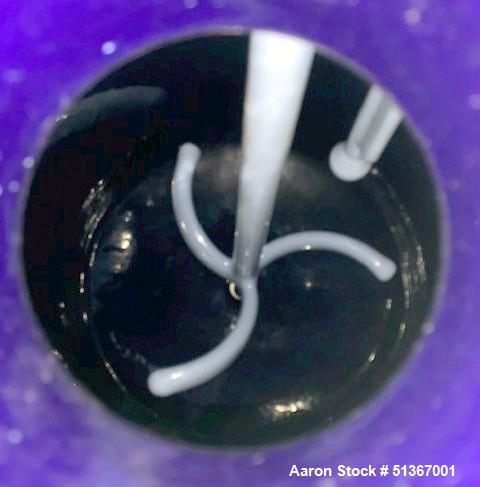

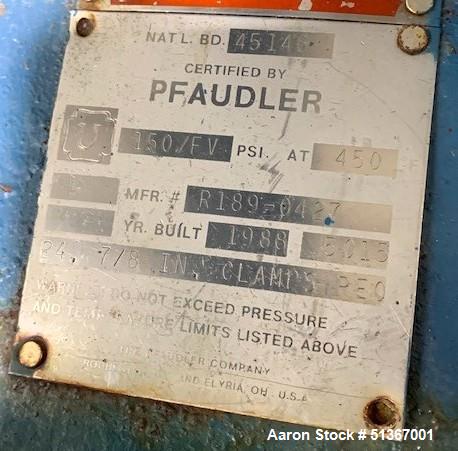

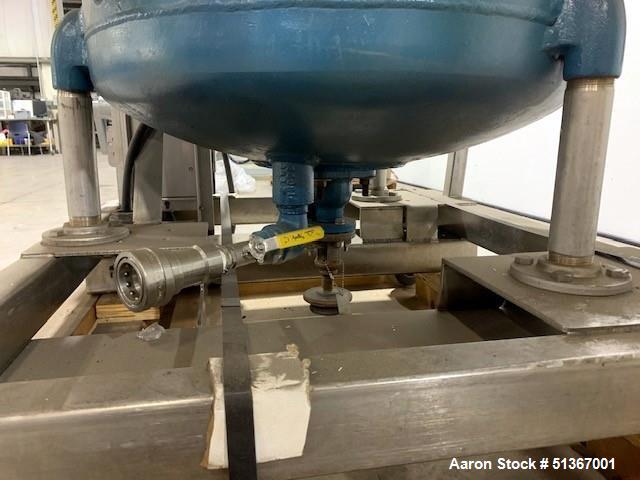

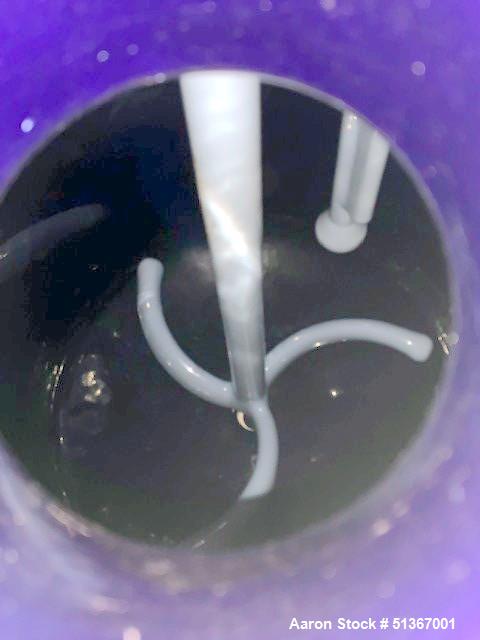

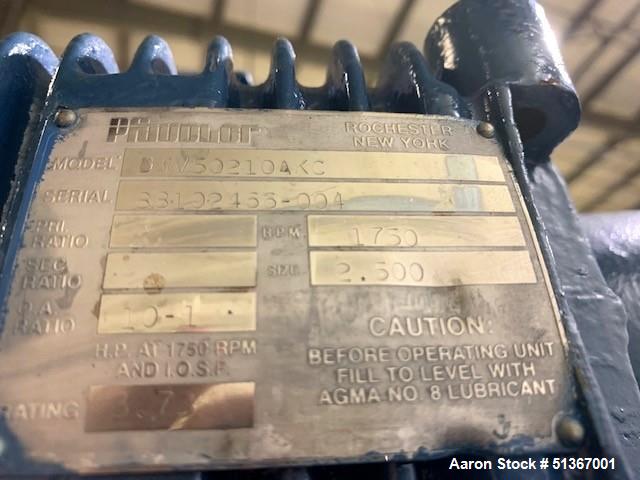

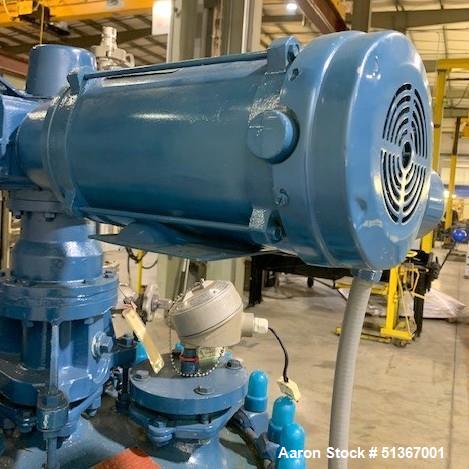

Used- Pfaudler Glass Lined Reactor, 50 Gallons, 5015 Glass, Vertical. Approximately 24" diameter x 20" straight side, dished clamp top, dish bottom. Internal rated 150 psi/full vacuum at 450 degrees F. Carbon steel jacket rated 100 psi at 350 degrees F. (1) baffle, 3 blade retreat curve agitator with Nucerite glass. Driven by a Pfaudler 2.0 Cone drive. Openings top: (1) 2" agitator, (1) 1-1/2" baffle, (1) 4" handhole. 2" Center bottom outlet. Has (3) legs mounted to cart with casters. National Board # 45146, Serial # R189-0427. Built 1988.
-
ManufacturerPfaudler
-
ModelP24-50-150-105
-
Serial #R189-0427
-
CategoryReactors
-
SubcategoryGlass Lined Reactors
-
Gallons50
-
Material Of ConstructionGlass Lined
-
Horizontal Or VerticalVertical
-
Diameter24"
-
Straight Side20"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure150 psi/FV
-
Internal Temperature450 F
-
Pressure Jacket100 psi
-
Temperature Jacket350 F
-
Agitator LocationTop Center
-
Agitator ManufacturerPfaudler
-
Agitator TypeFixed Mount
-
Agitator Hp2
-
Agitator Shaft MaterialGlass Lined
-
Outlet LocationBottom
-
MountedMounted on Cart
-
National Board No.45156
-
Year Built19898
