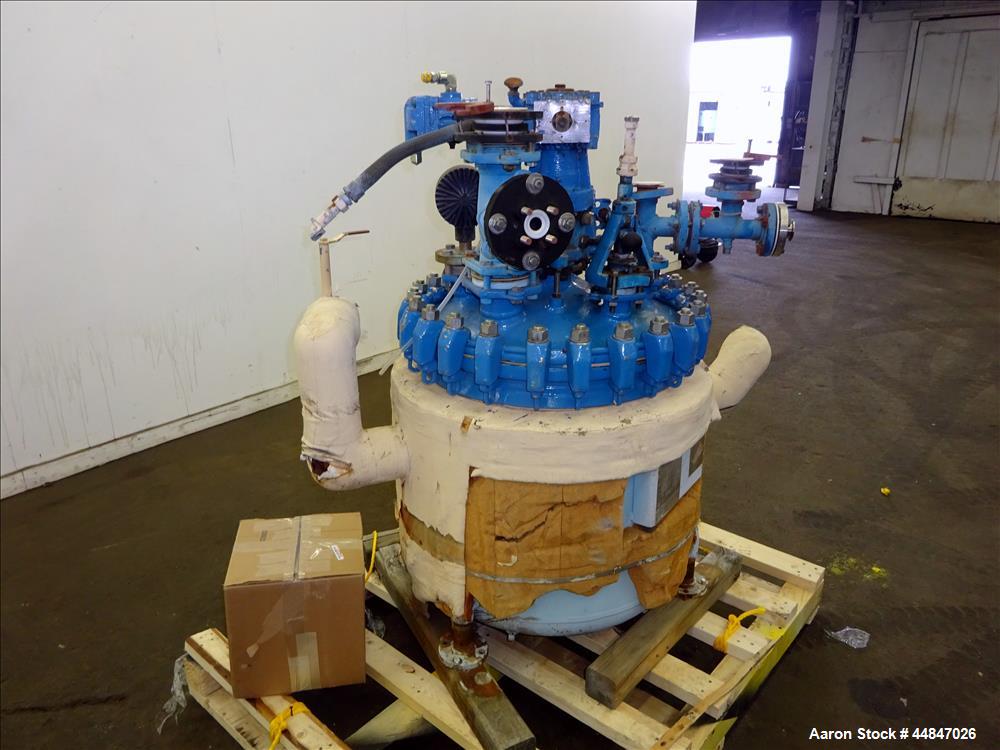

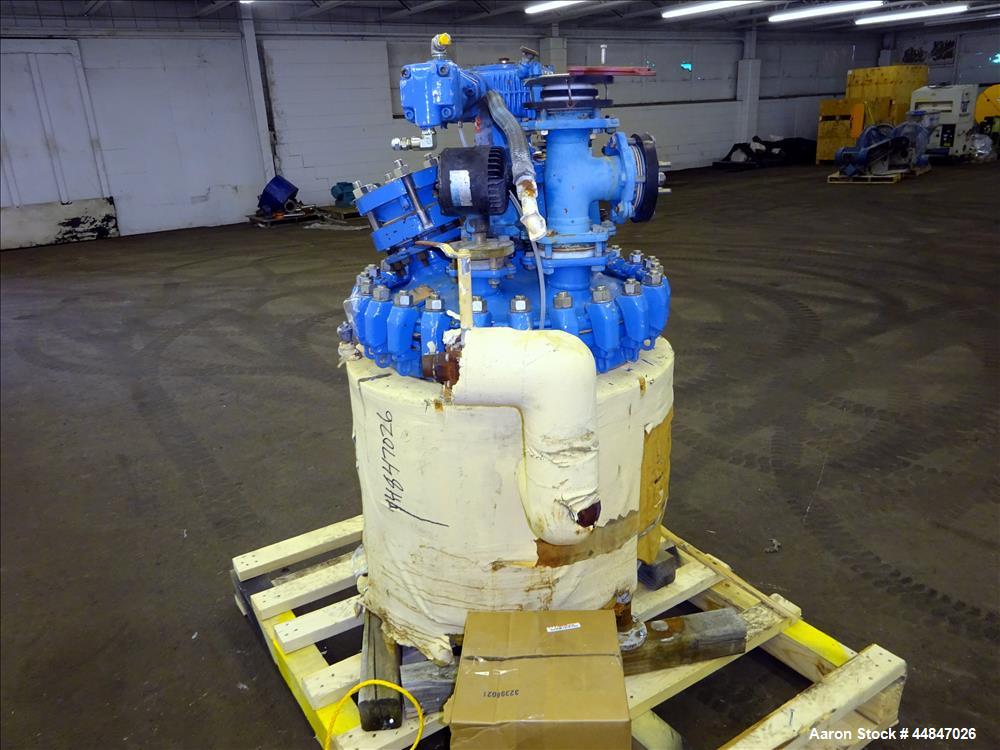

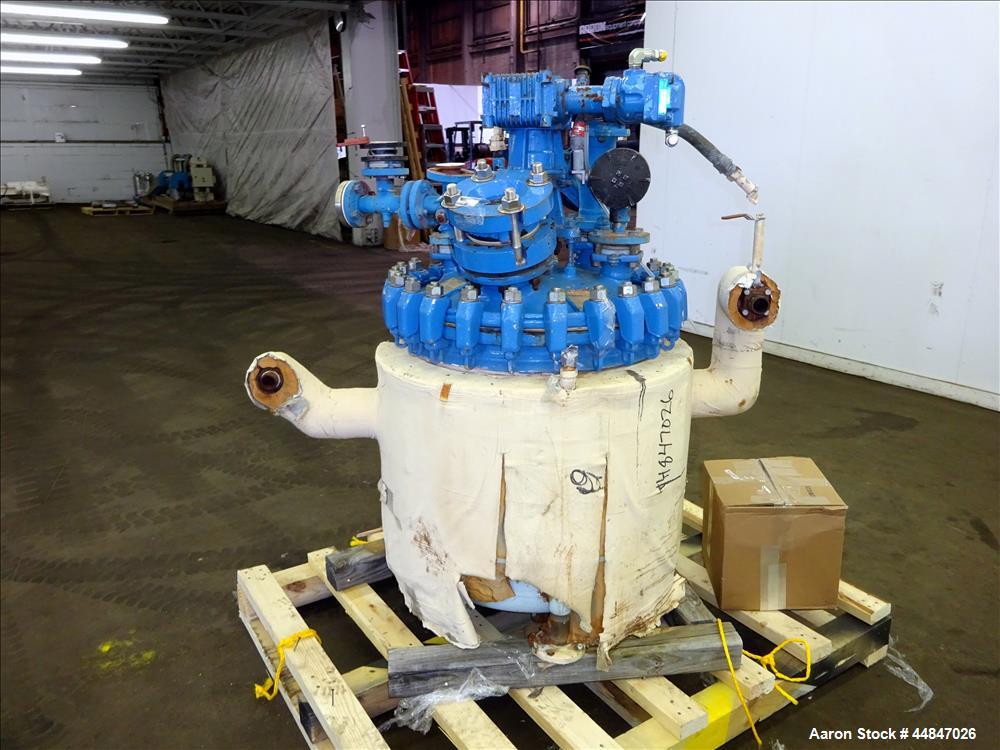

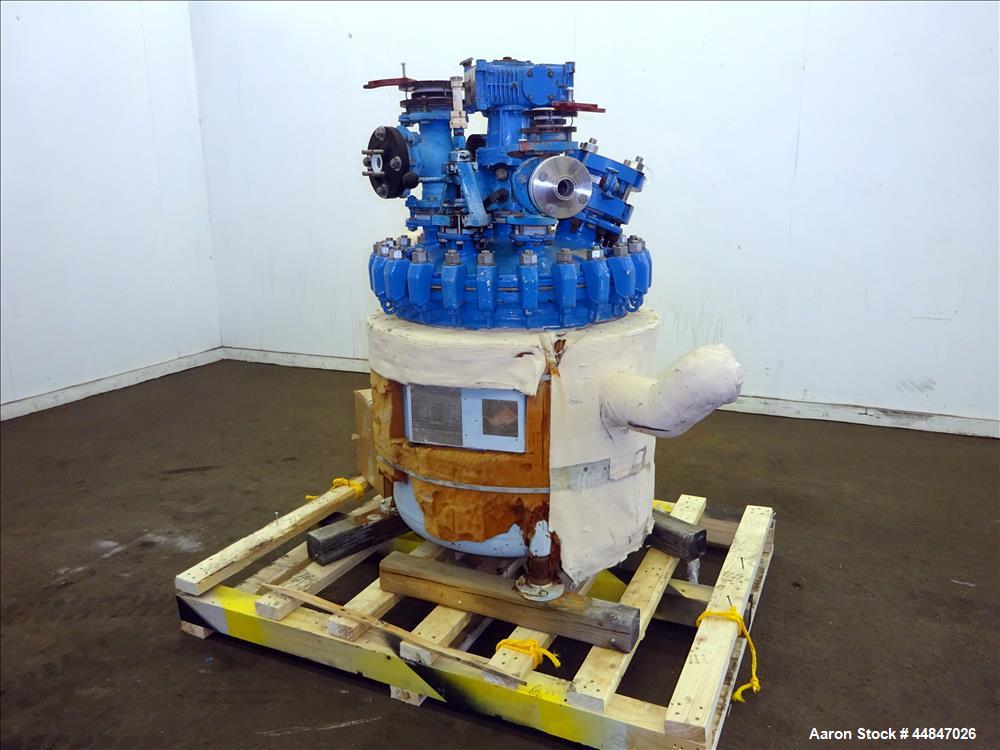

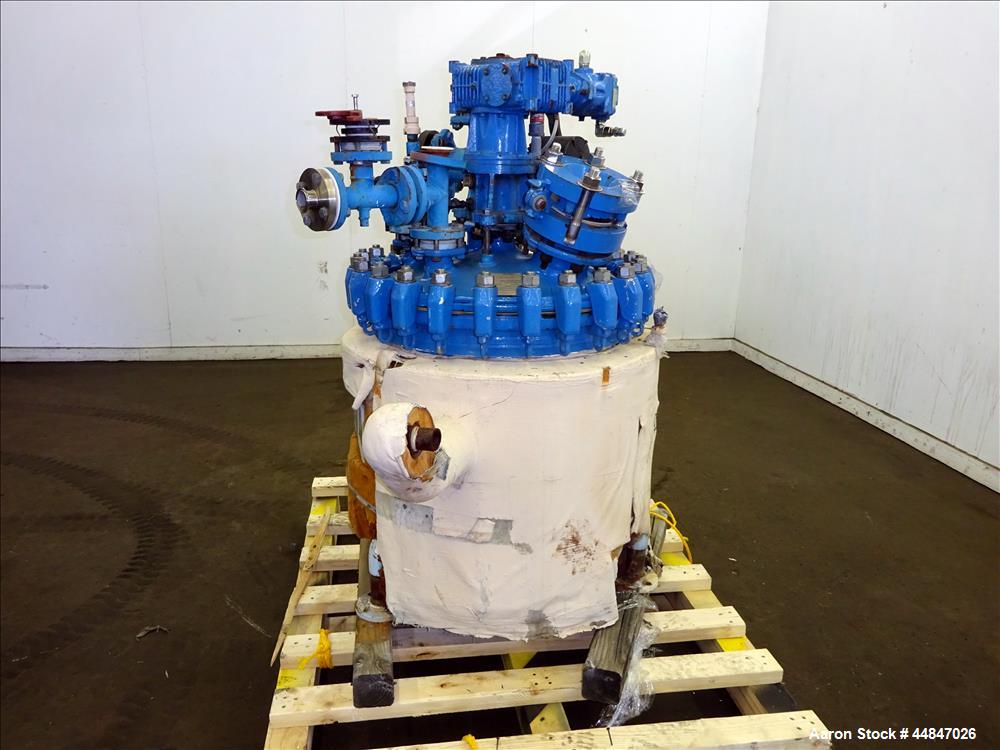

Used- Pfaudler Clamp Top Glass Lined Reactor, 50 Gallons

Stock# 44847026

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 44847026

HAVE A SIMILAR MACHINE FOR SALE?

DESCRIPTION

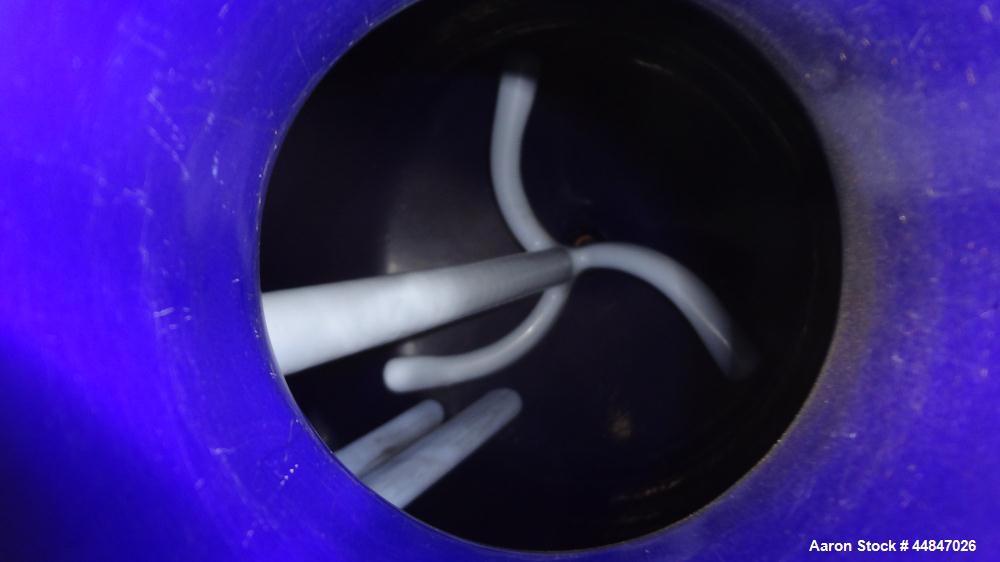

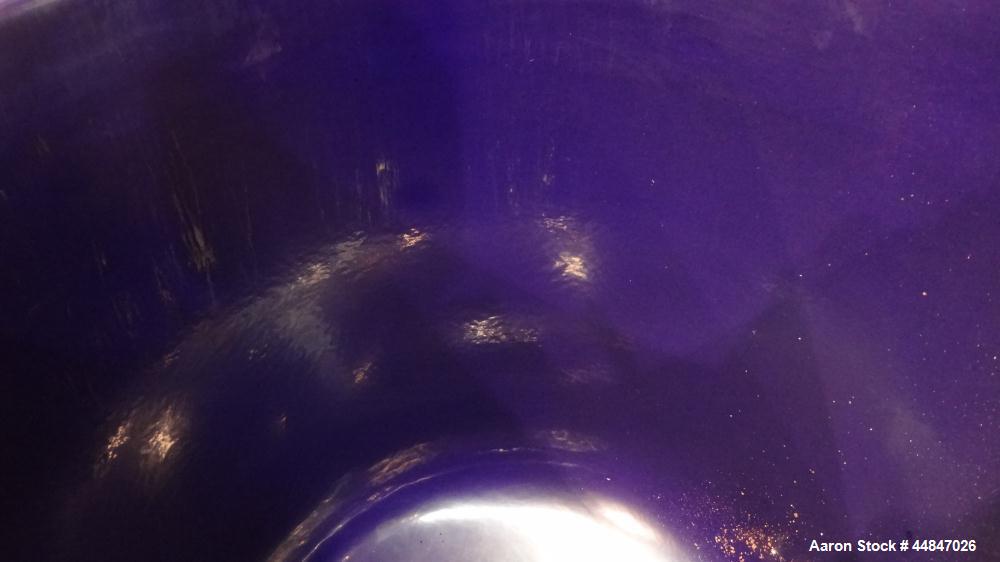

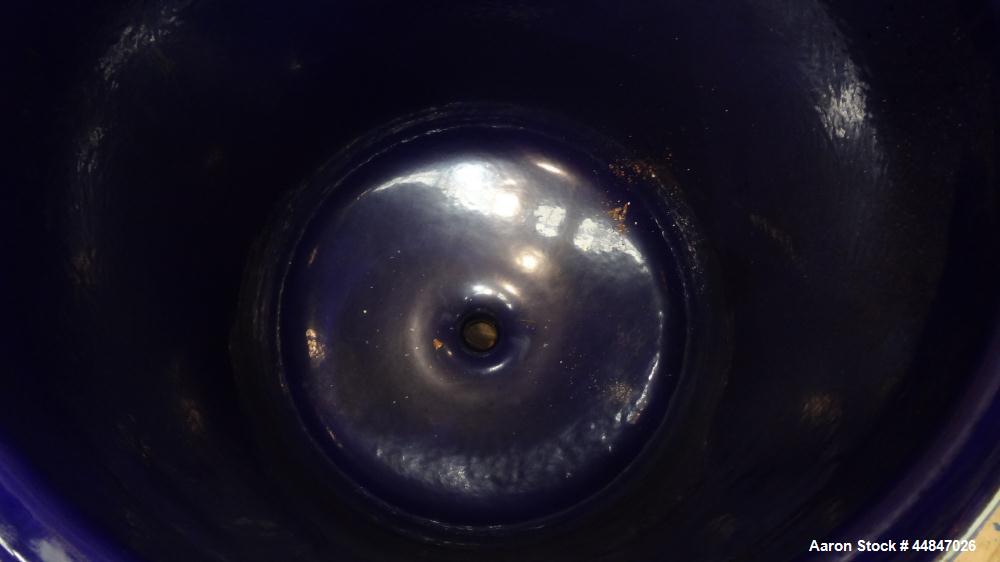

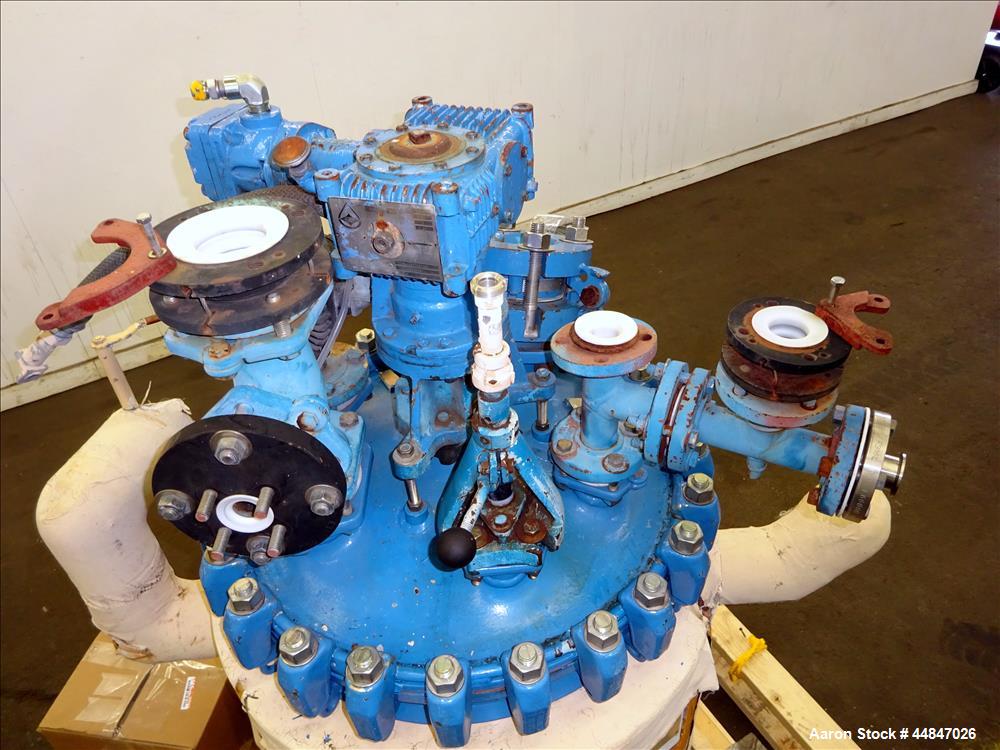

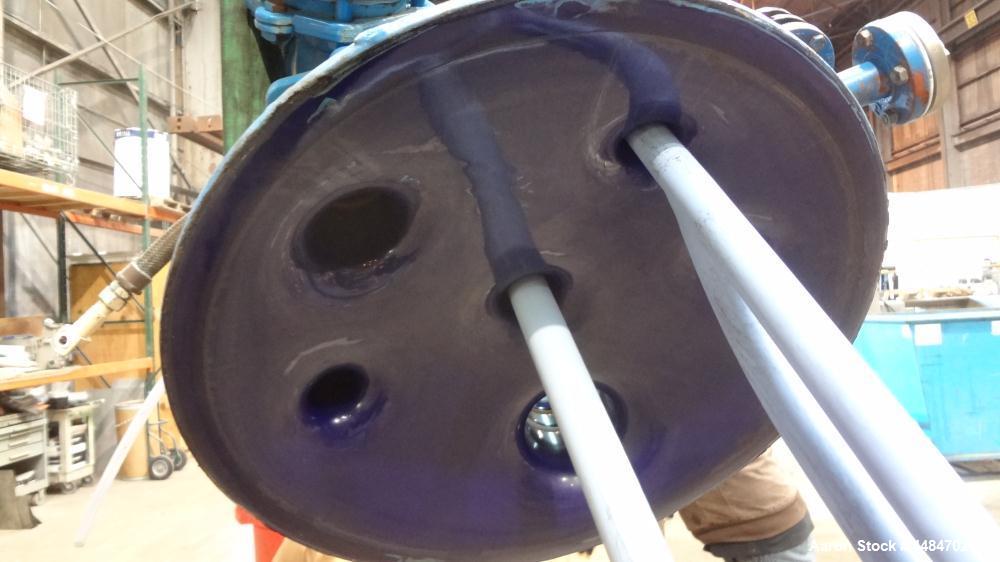

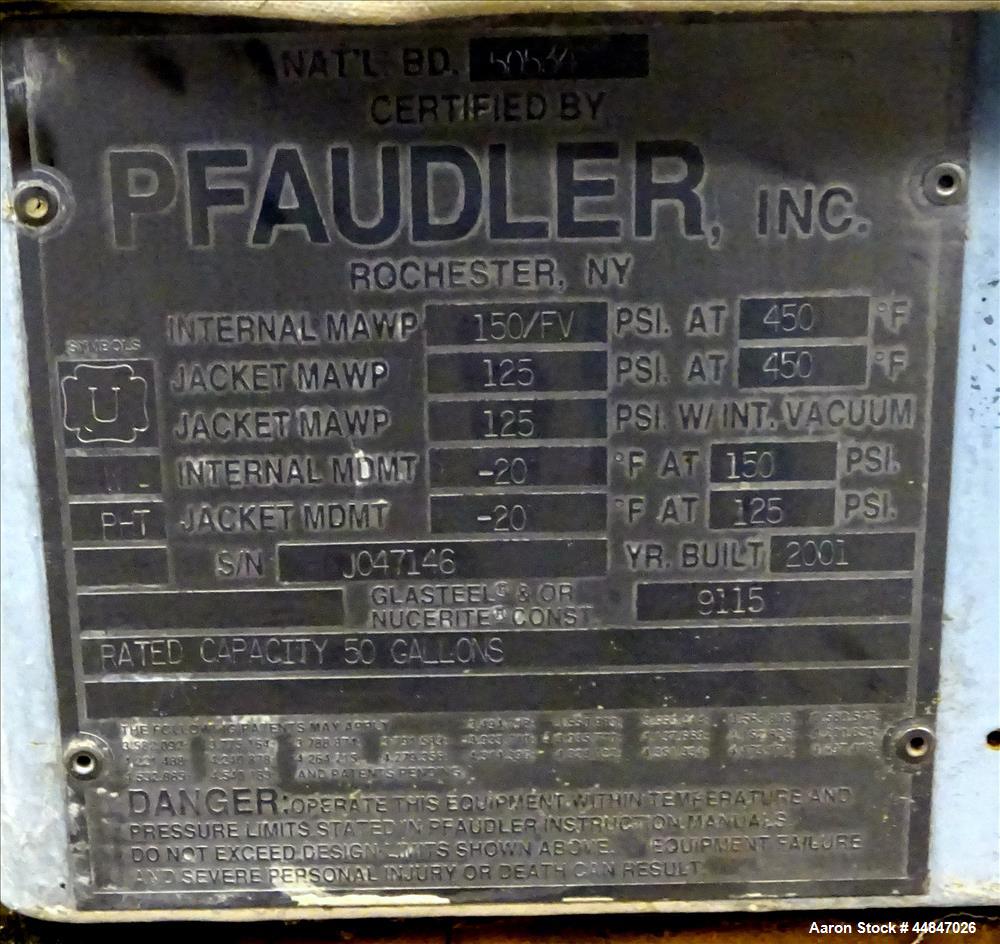

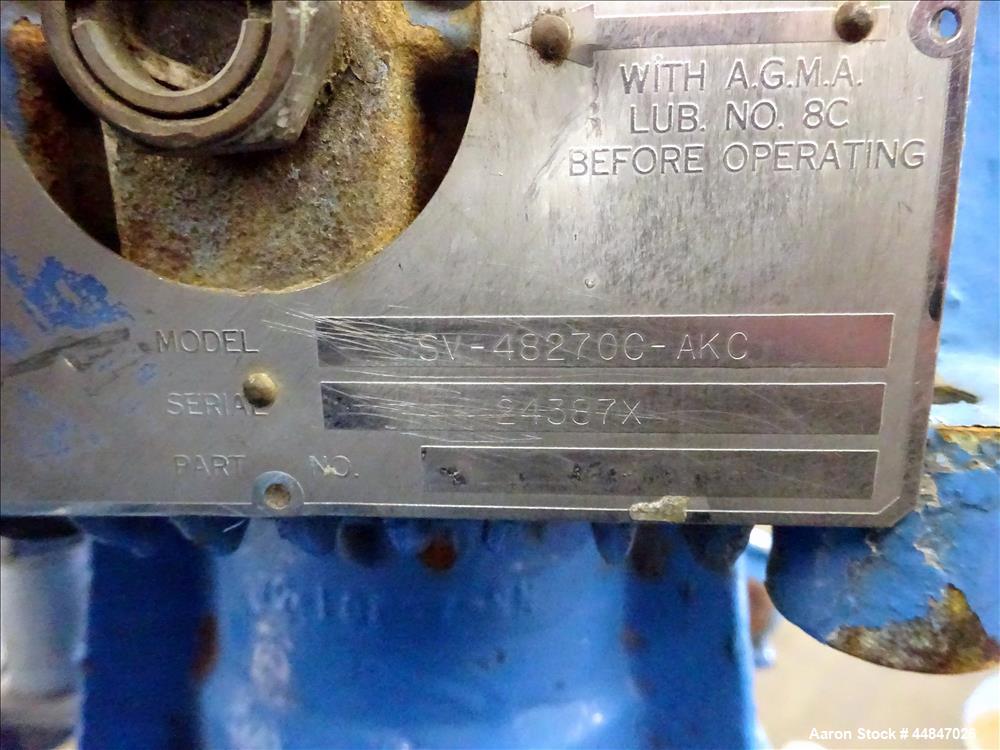

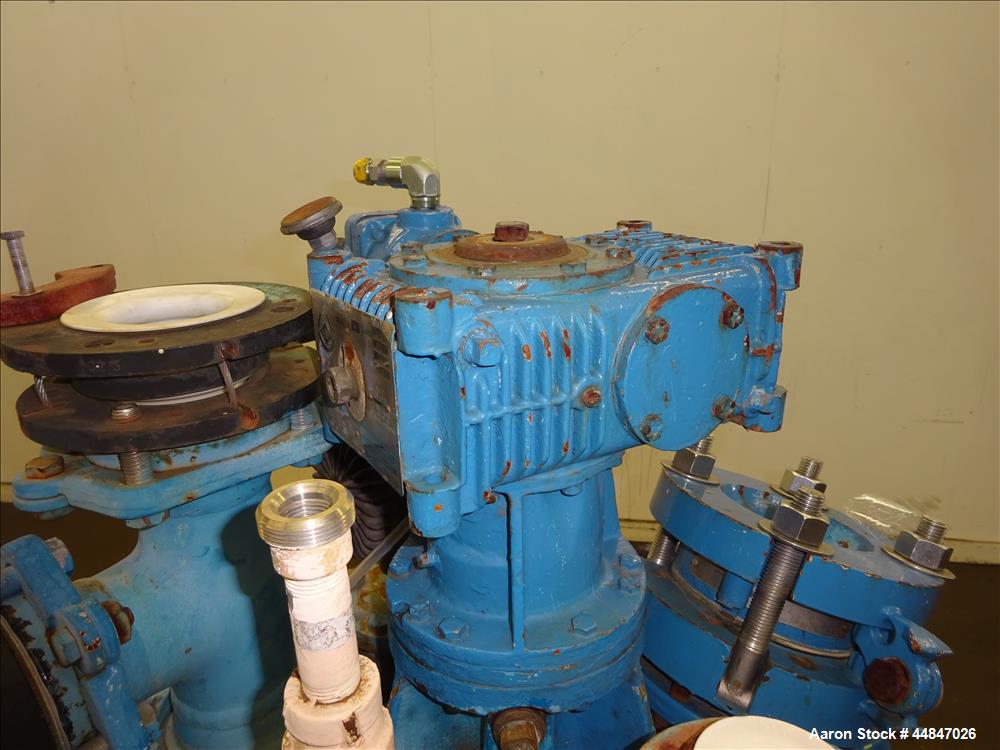

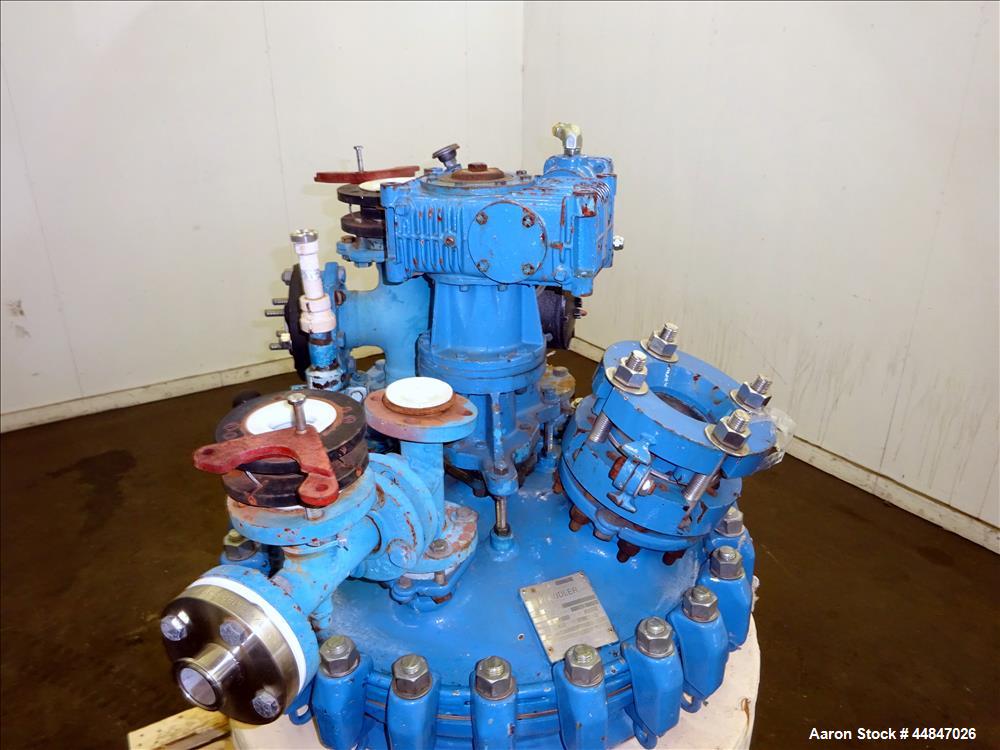

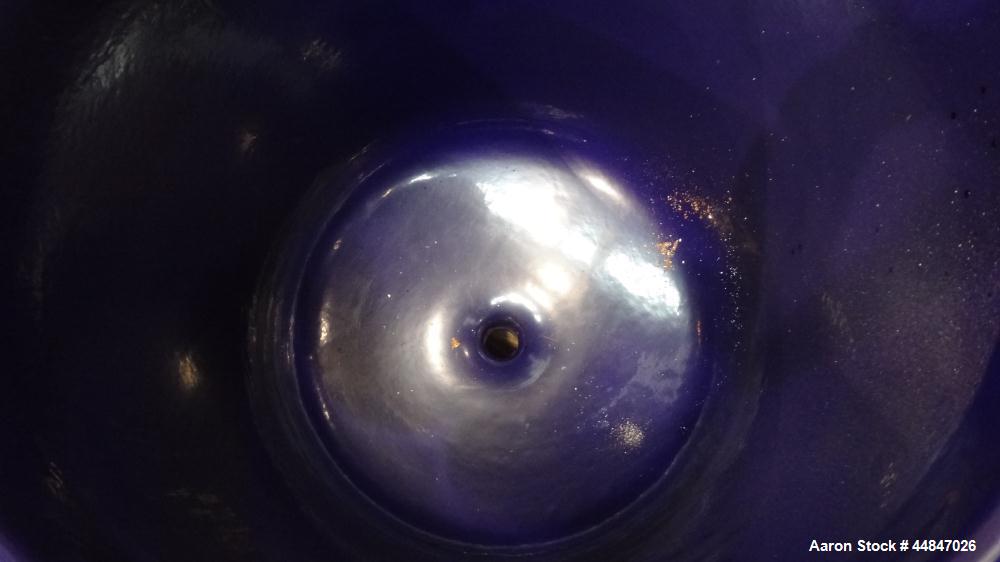

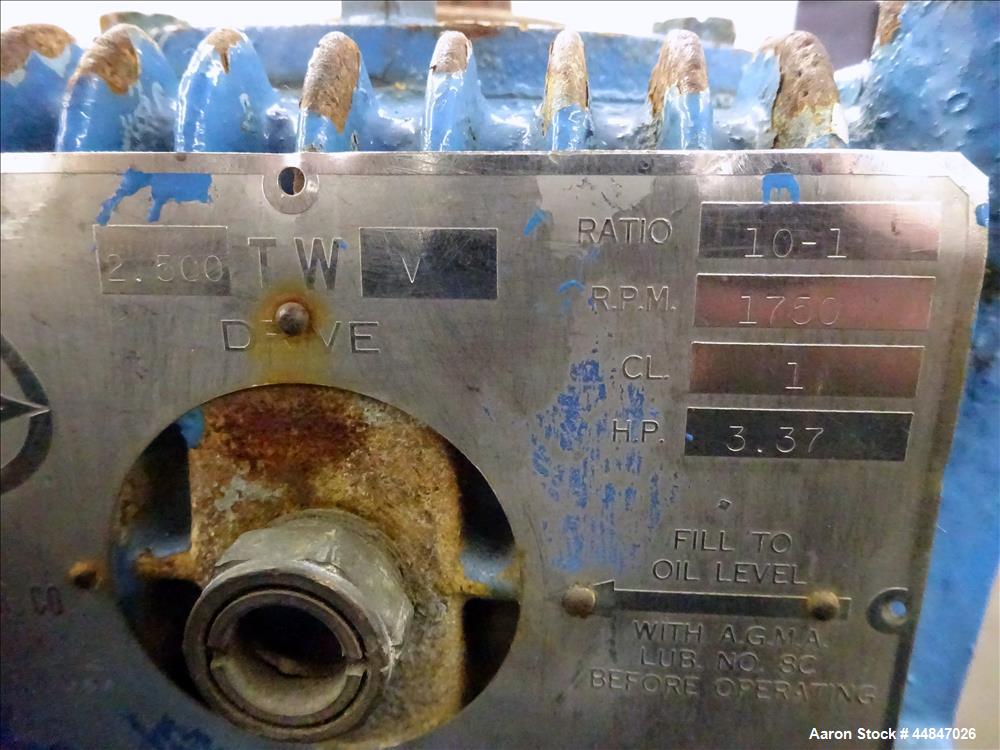

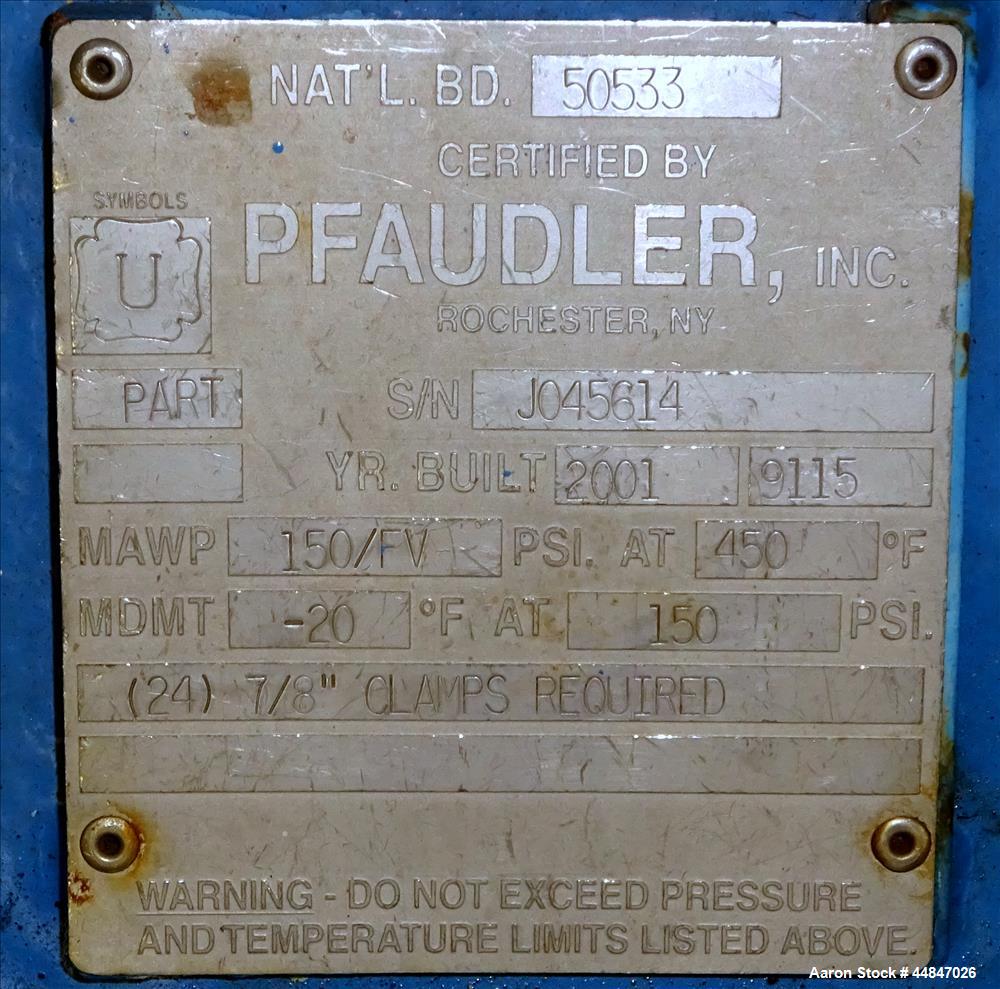

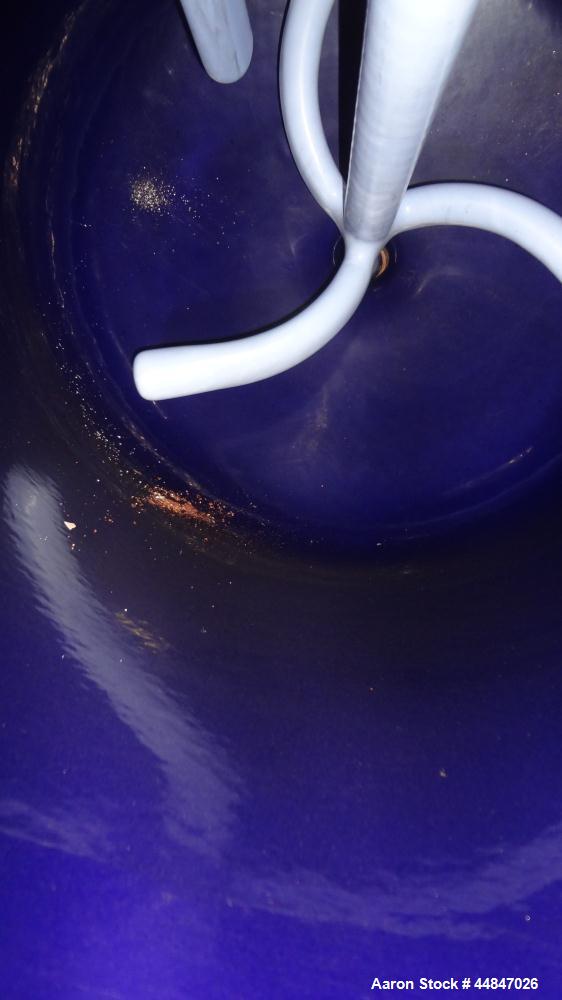

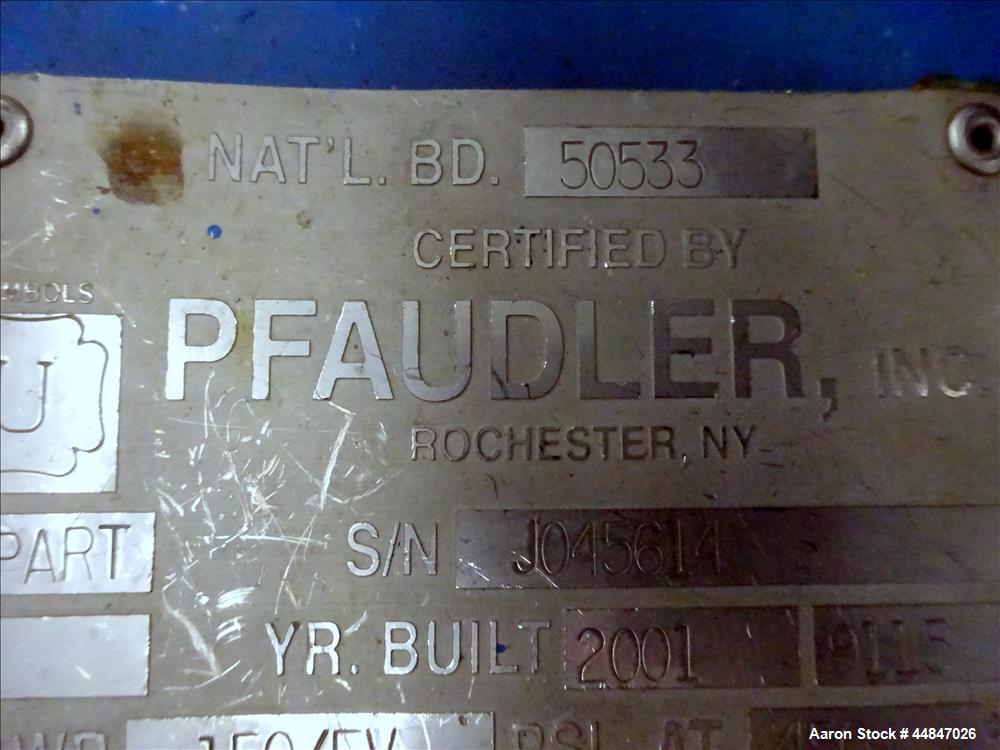

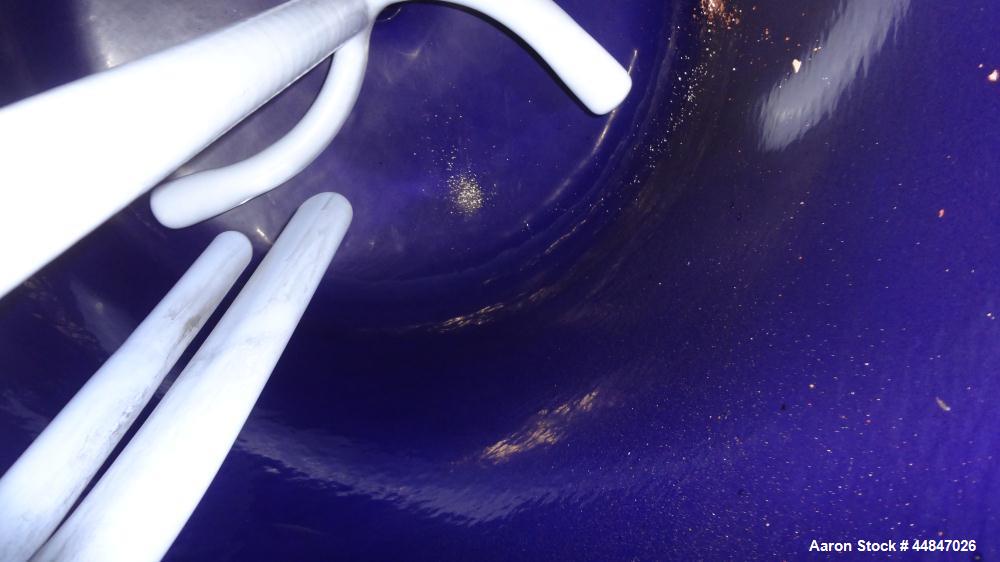

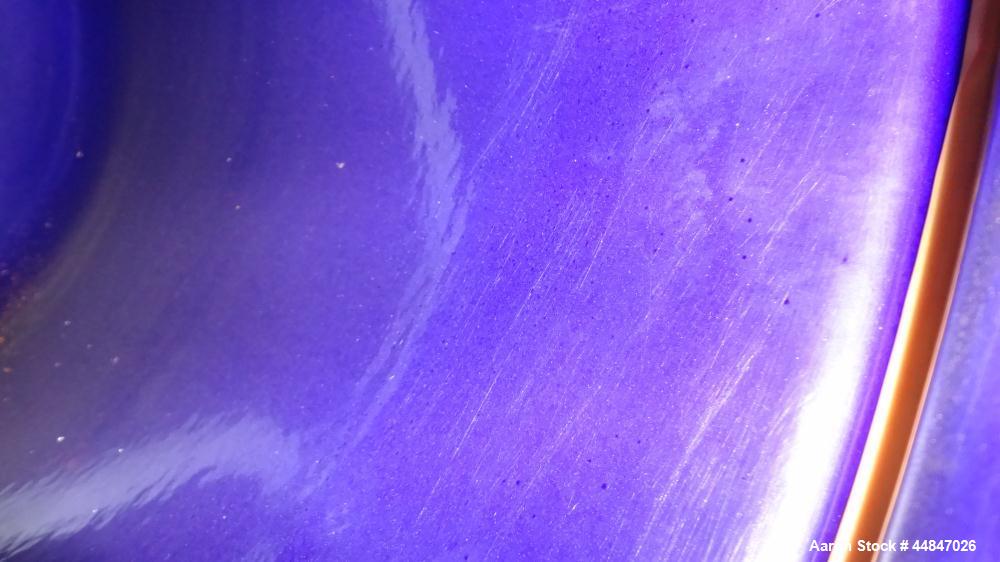

Used- Pfaudler Clamp Top Glass Lined Reactor, 50 Gallons, 9115 Blue Glass, Vertical. Approximately 24" diameter x 24" straight side, dished clamp top, dish bottom. Internal rated 150/full vacuum psi at -20 to 450 degrees F, carbon steel jacket rated 125 psi at -20 to 450 degrees F. (1) "H" baffle, 3 blade retreat curve agitator (no good, has pin holes) driven by a Pfaudler drive, size 2.5 TWV, model SV-48270C-AKC, serial #24387X, ratio 10 to 1, set up for hydraulic drive, no power pack. Openings: top (2) 1-1/2", 2", 3", 4" hand hole with sight glass cover; 2" center bottom outlet. Provision for 3 legs. National Board #50534, serial #J047146, built 2001.
