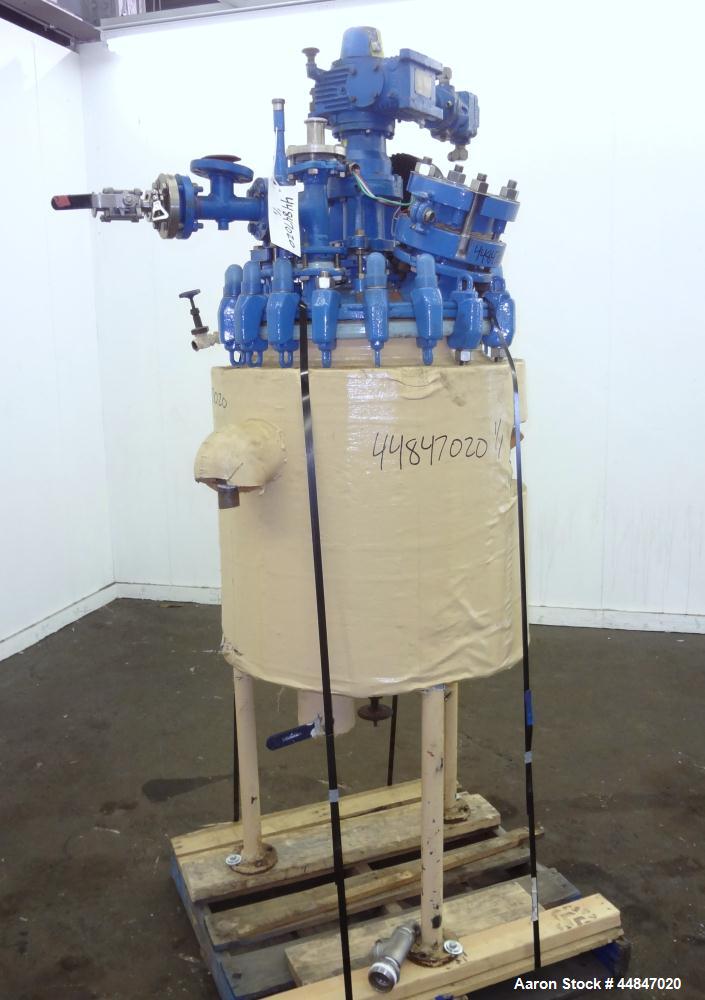

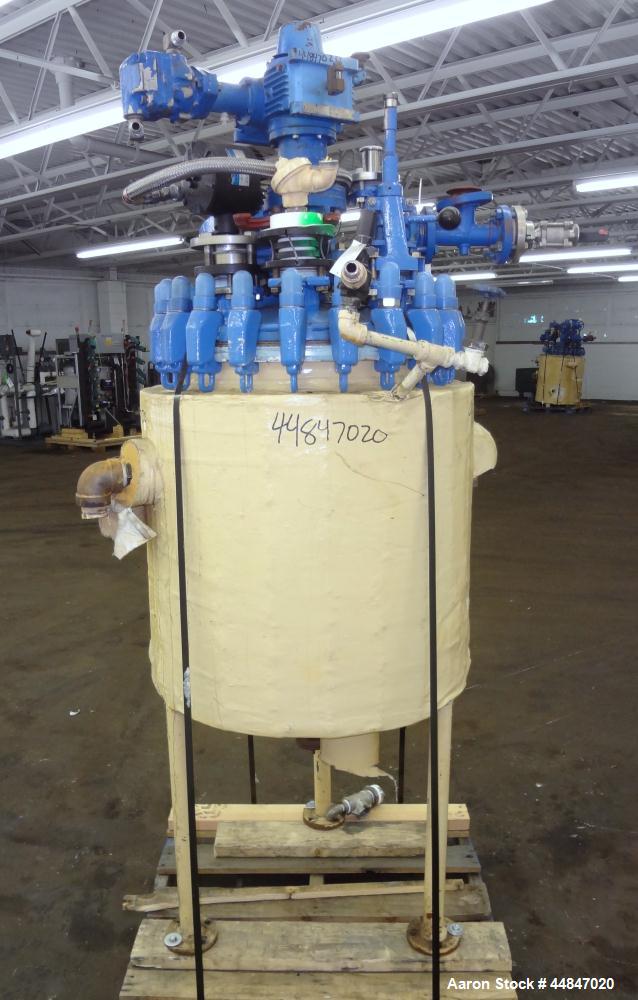

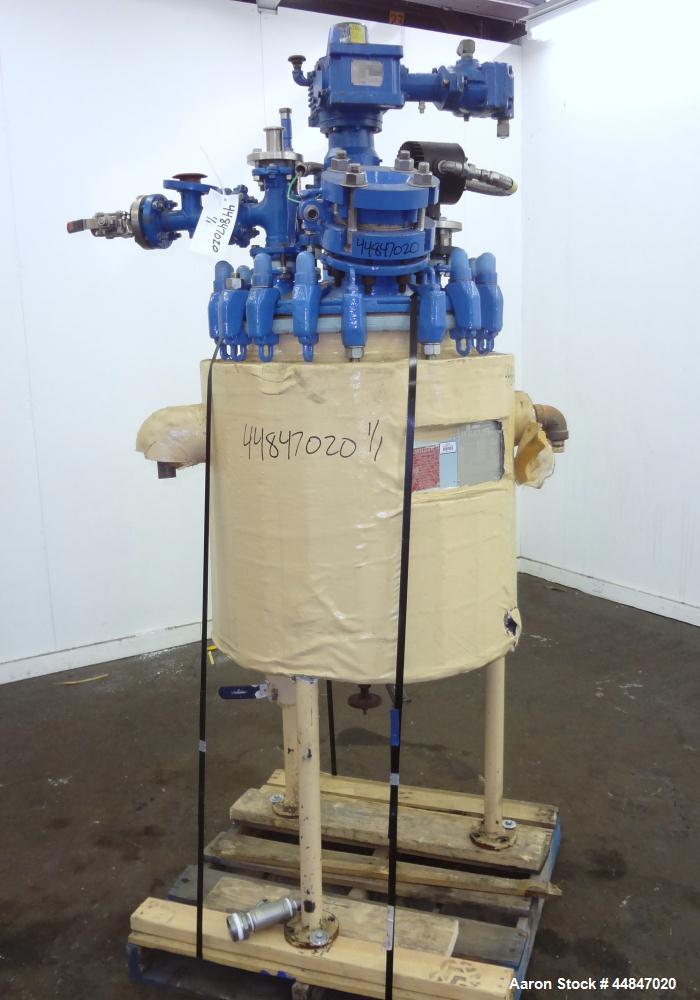

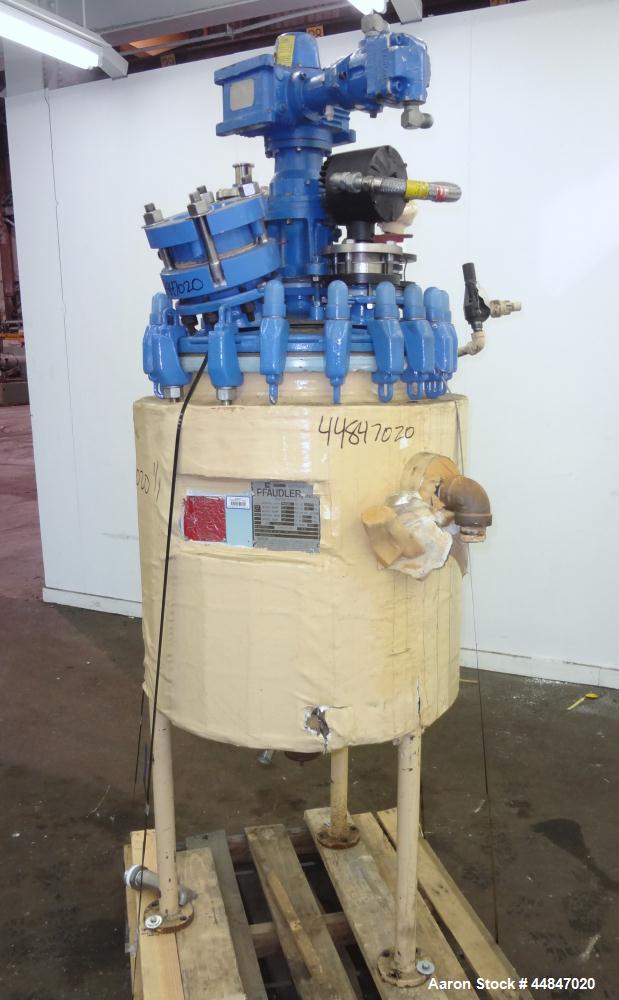

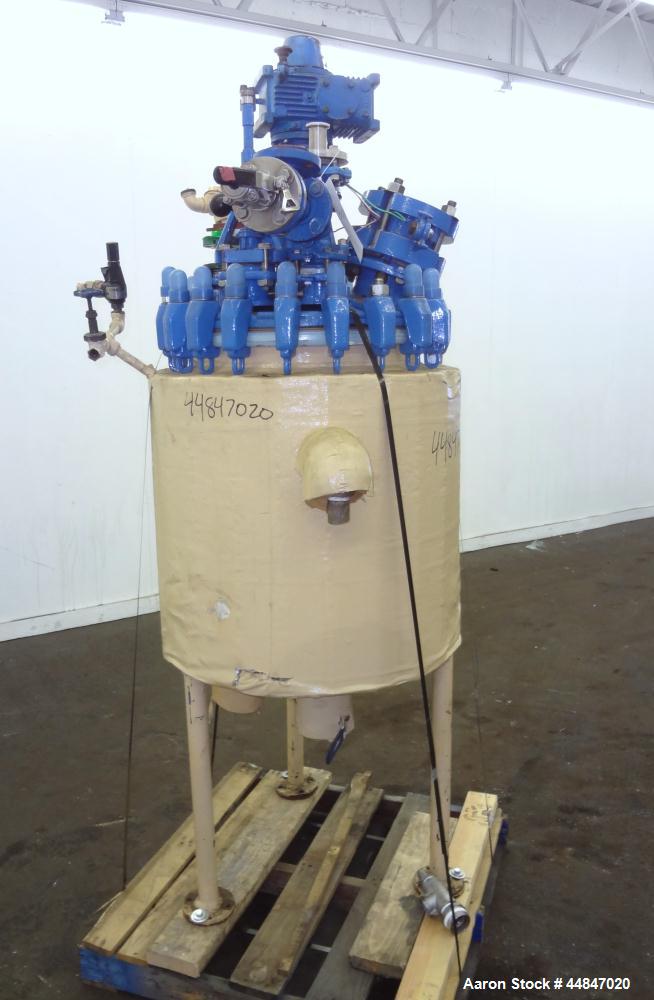

Used- 30 Gallon Pfaudler Clamp Top Glass Lined Reactor

Stock# 44847020

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 44847020

ITEM SOLD!

View All 30 available items

HAVE A SIMILAR MACHINE FOR SALE?

DESCRIPTION

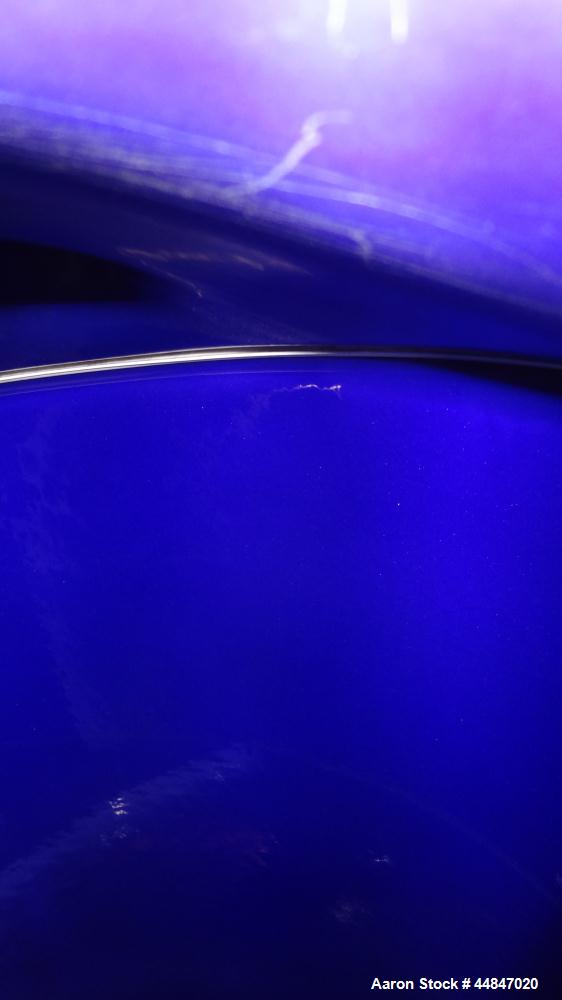

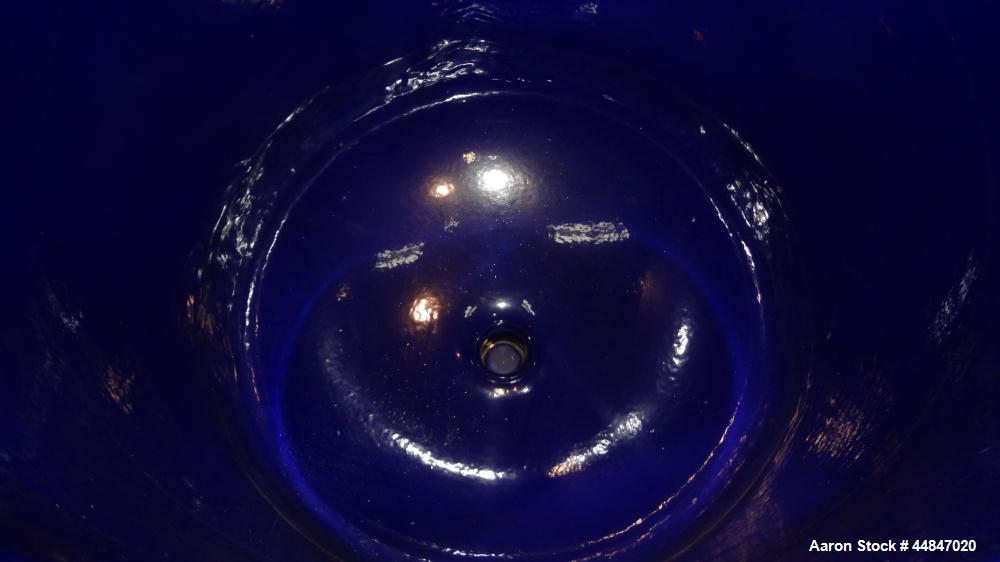

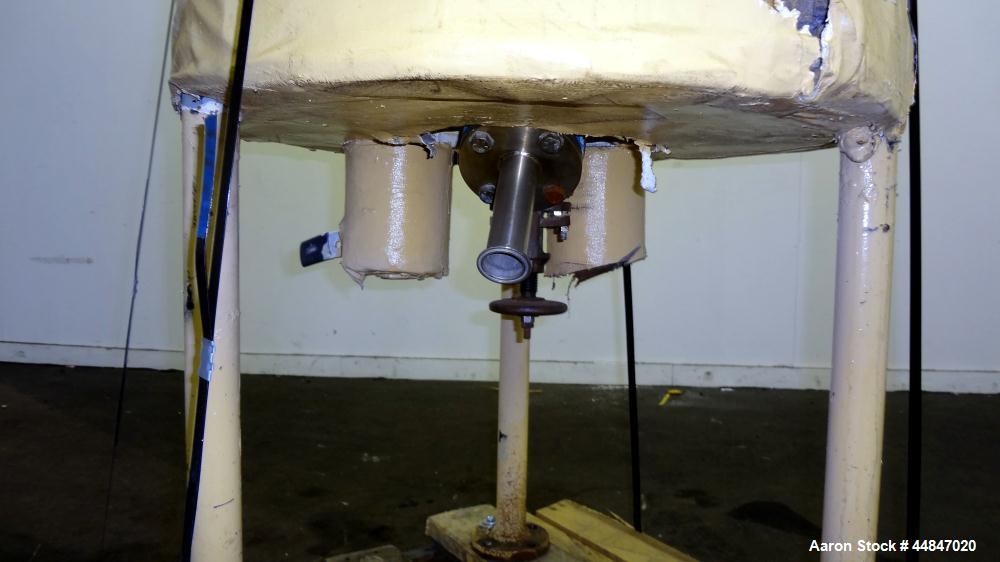

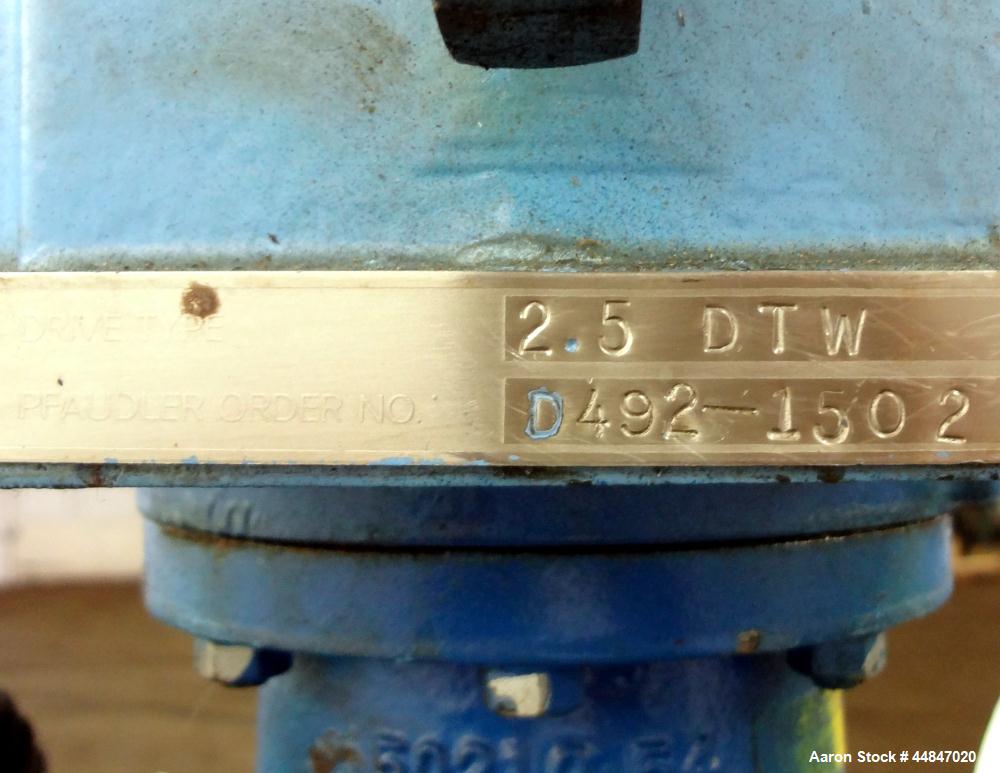

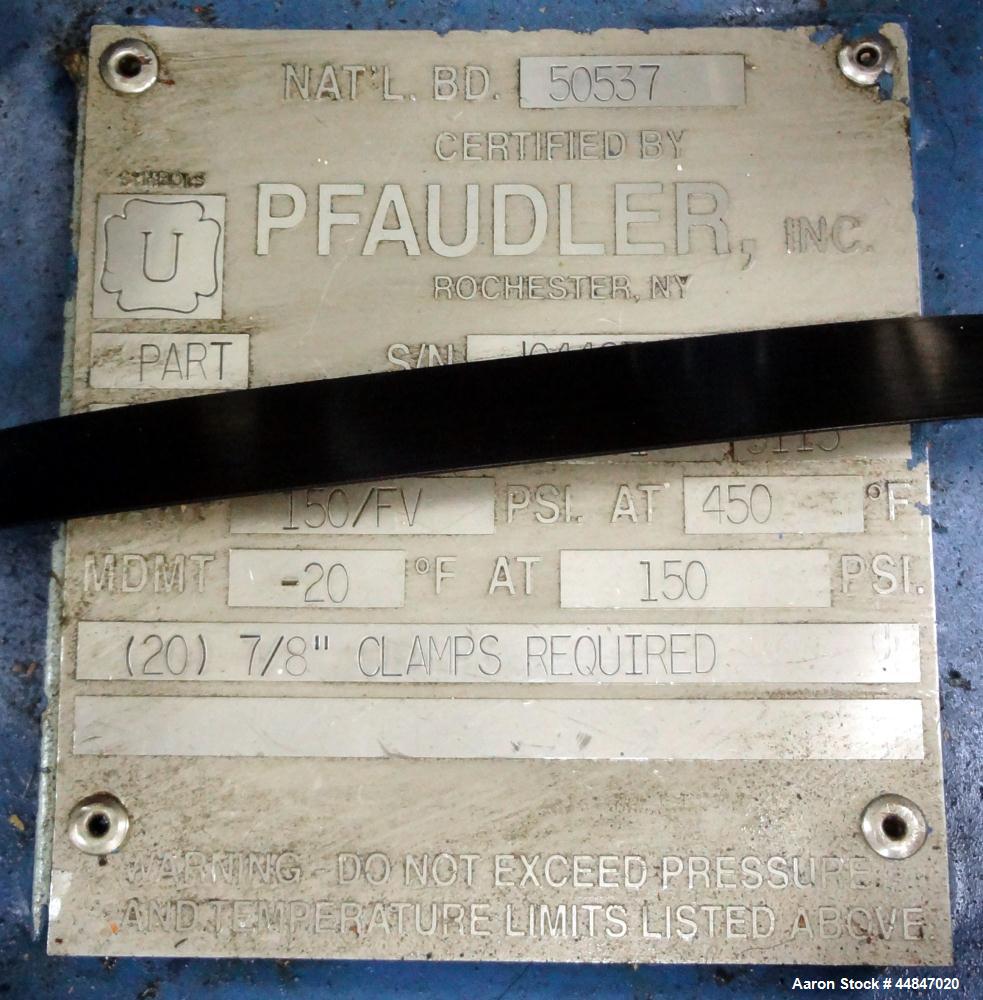

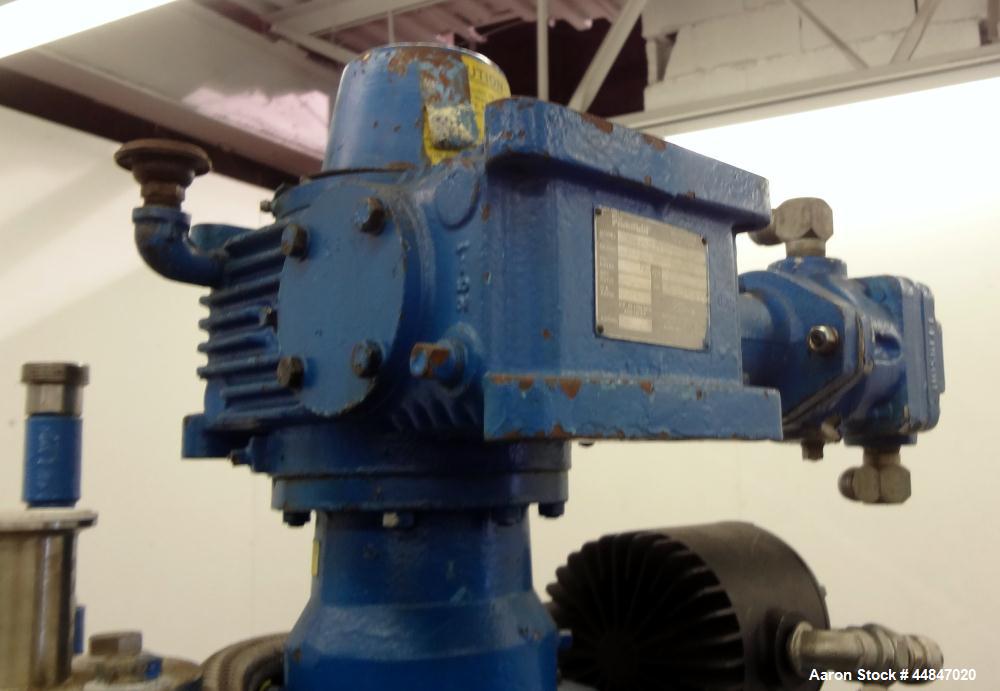

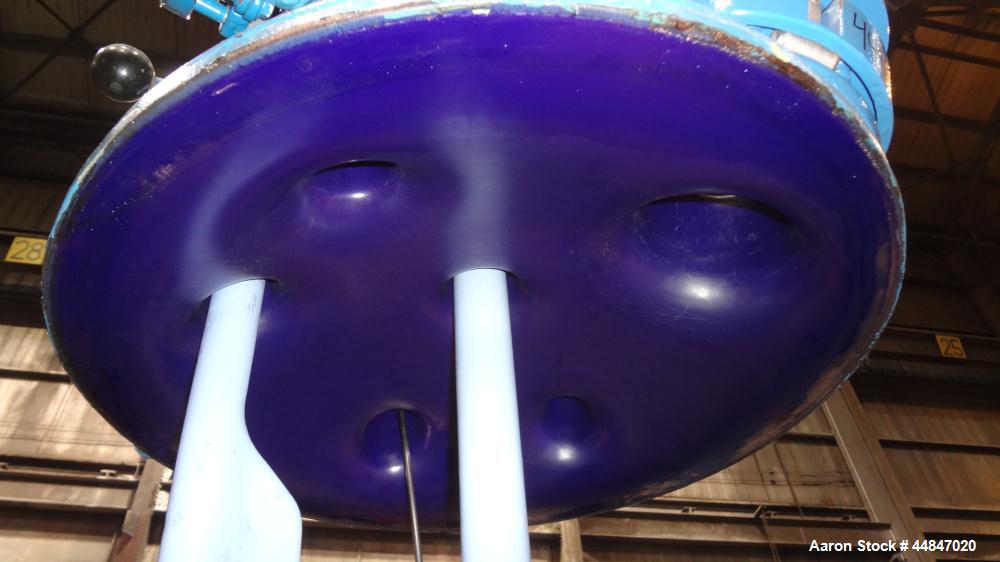

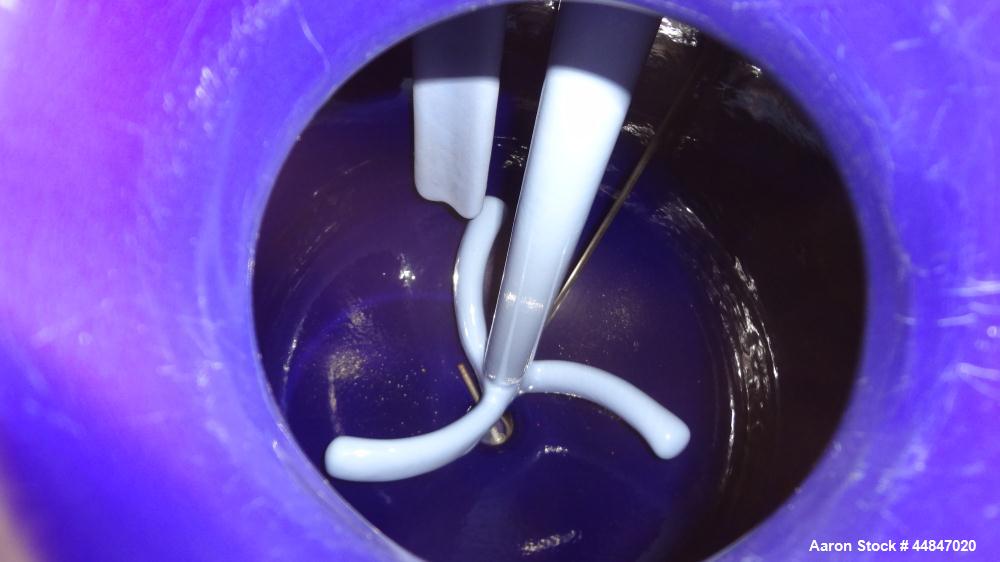

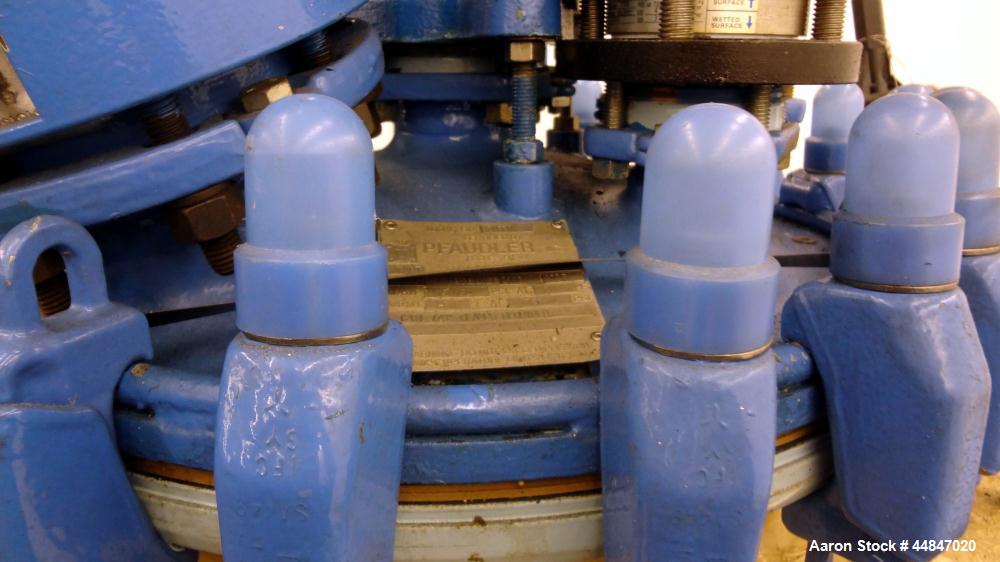

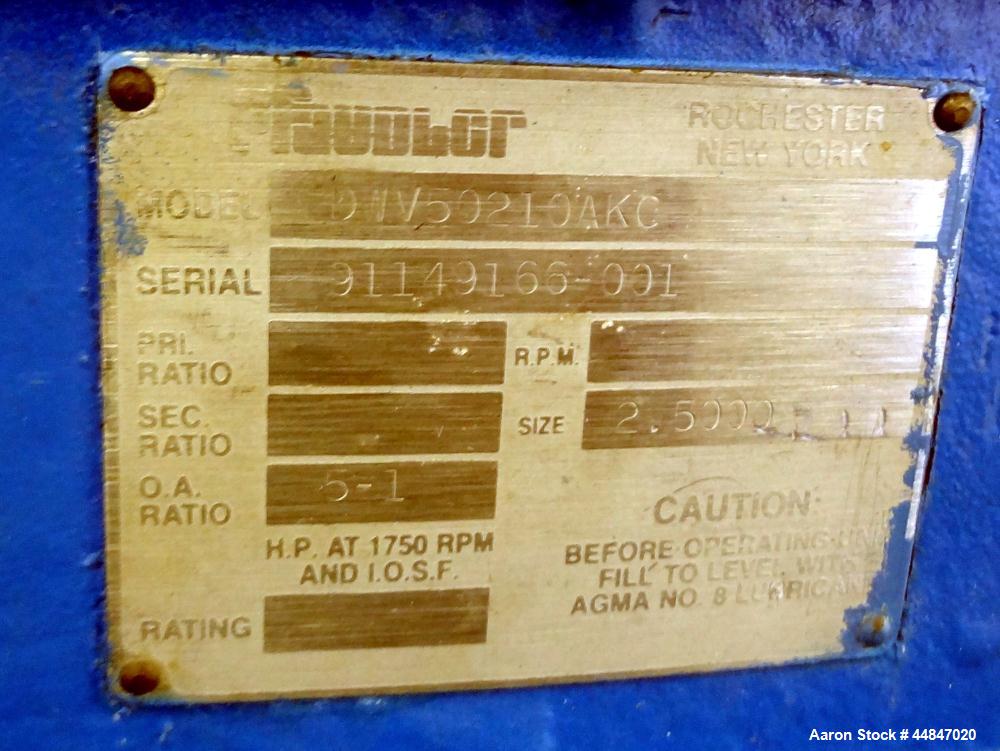

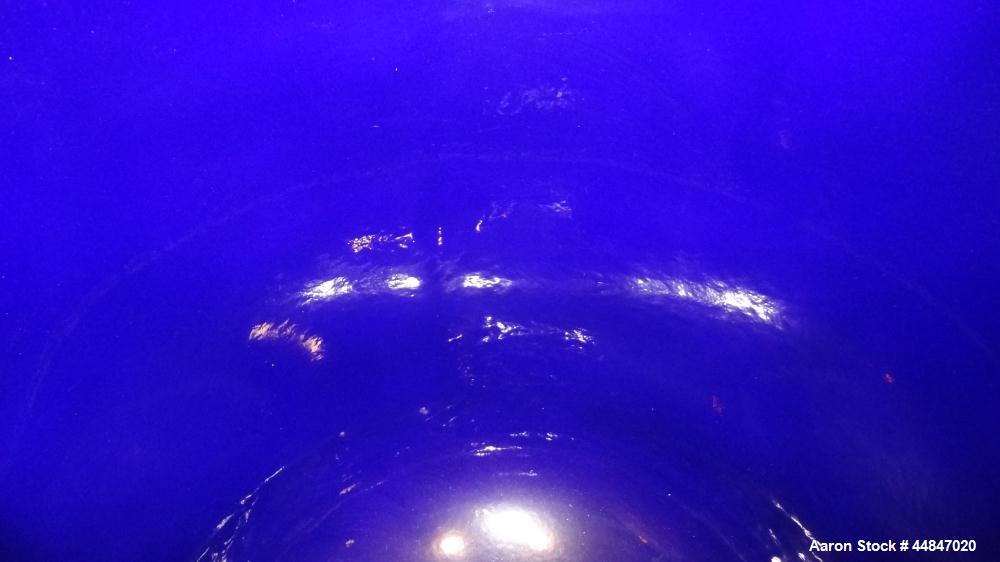

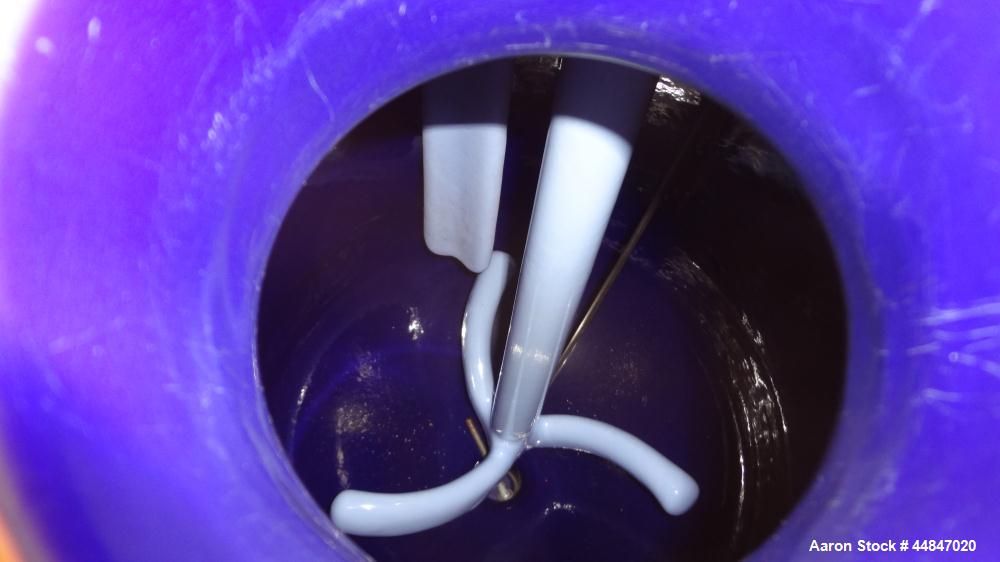

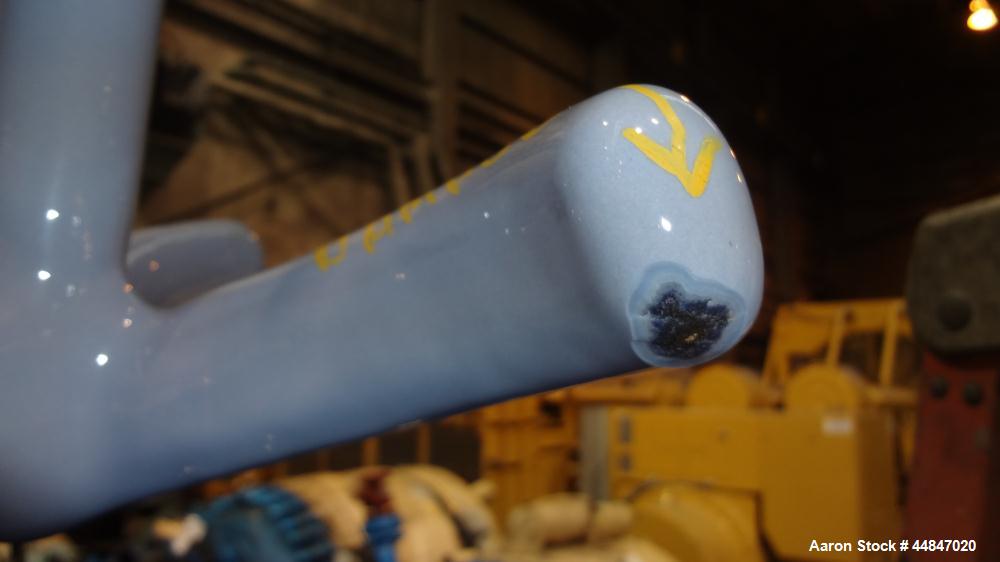

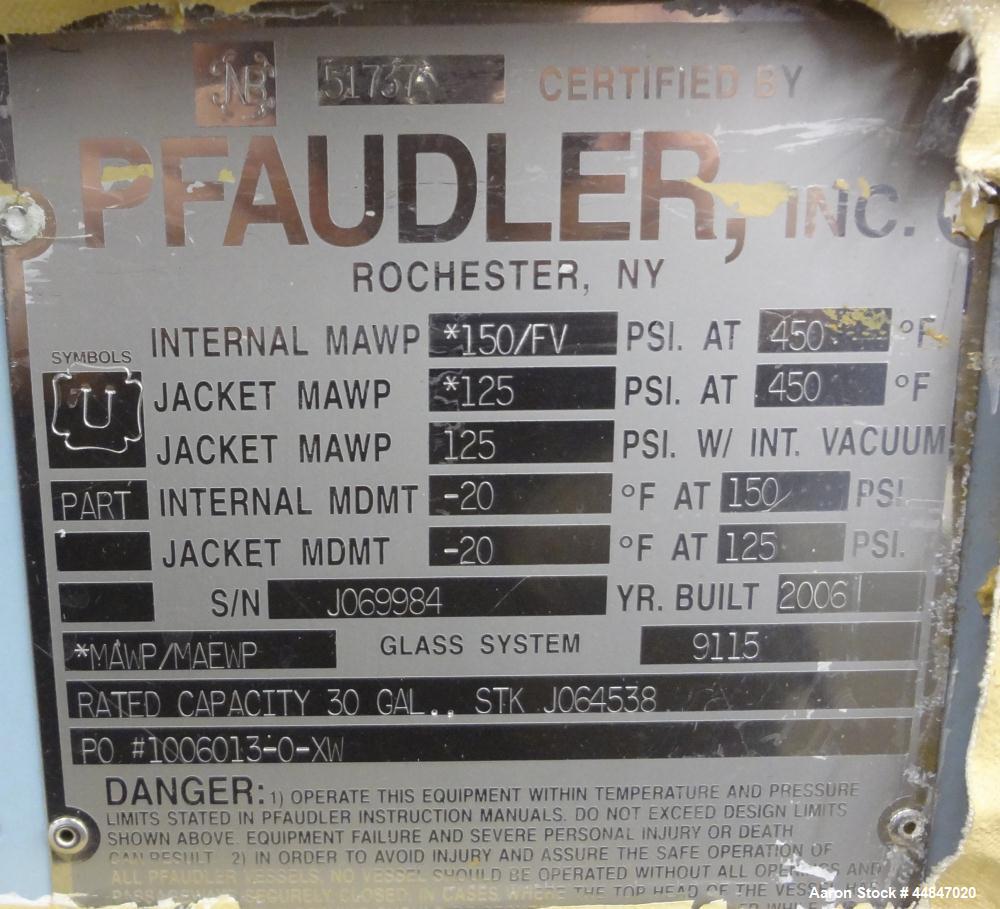

Used- Pfaudler Clamp Top Glass Lined Reactor, 30 Gallon, 9115 Blue Glass, Vertical. Approximately 20" diameter x 20" straight side, dished clamp top, dish bottom. Internal rated 150/full vacuum psi at -20 to 450 degrees F, carbon steel jacket rated 125 psi at -20 to 450 degrees F. (1) Fin baffle (etched), 3 blade retreat curve agitator (no good) driven by a Pfaudler drive, size 2.5 DTW, Model DWV50210AKC, Serial #91149166-001, ratio 5 to 1, set up for hydraulic drive, no power pack. Openings: top (2) 1-1/2", (2) 2", 4" hand hole with sight glass cover; 2" center bottom outlet. Provision for 3 legs. National Board #51737, Serial #J069984, built 2006.
