Stock No.: 44847018

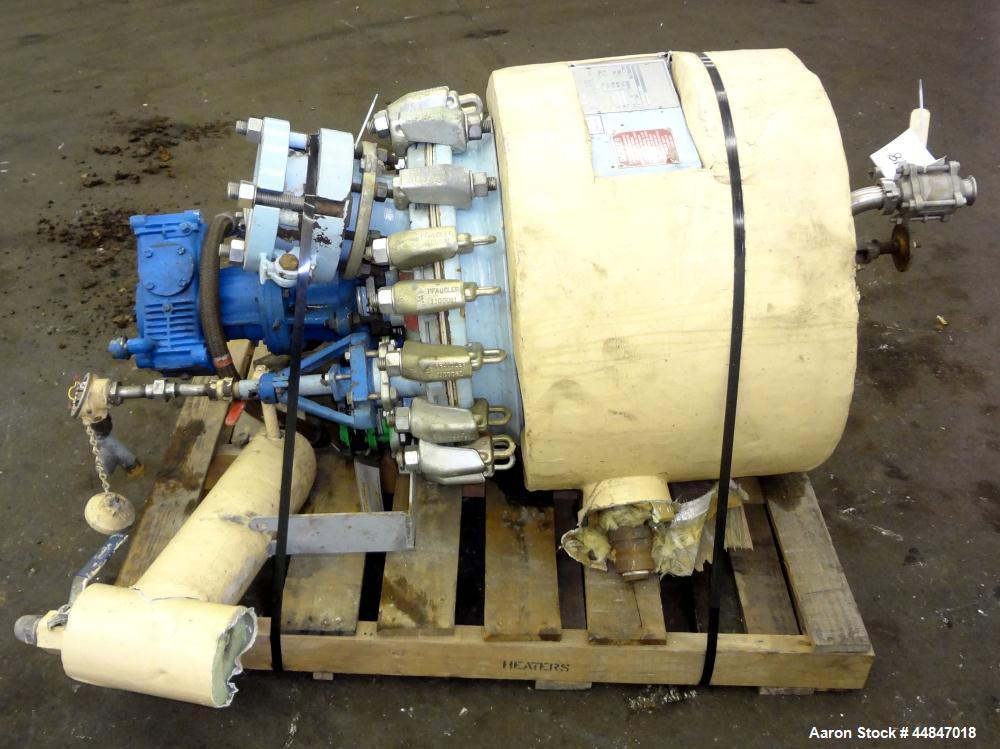

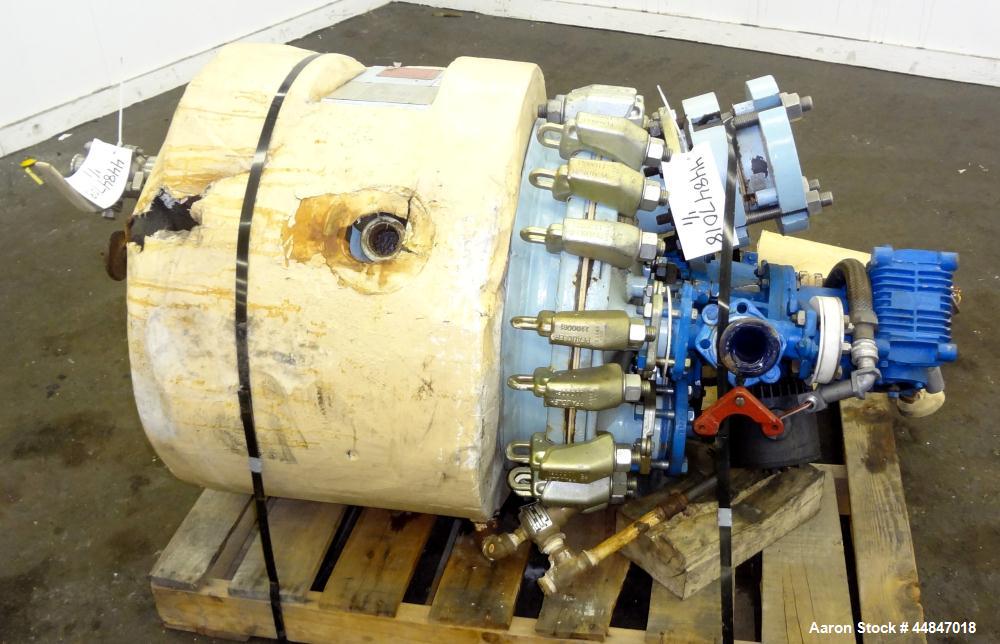

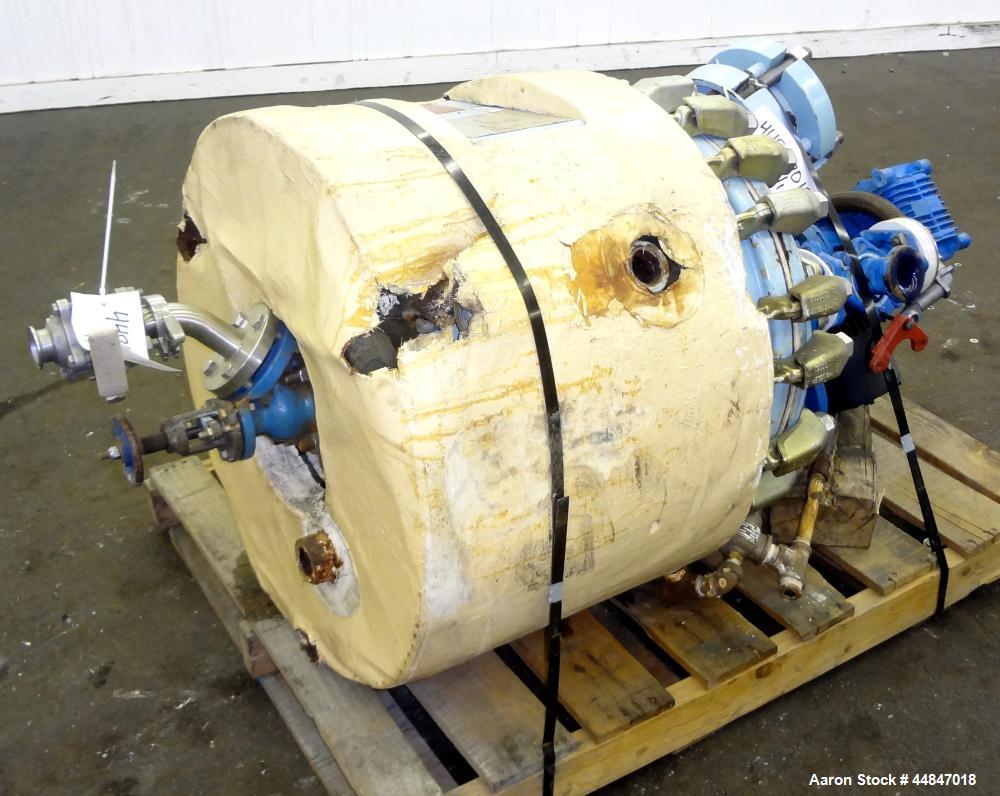

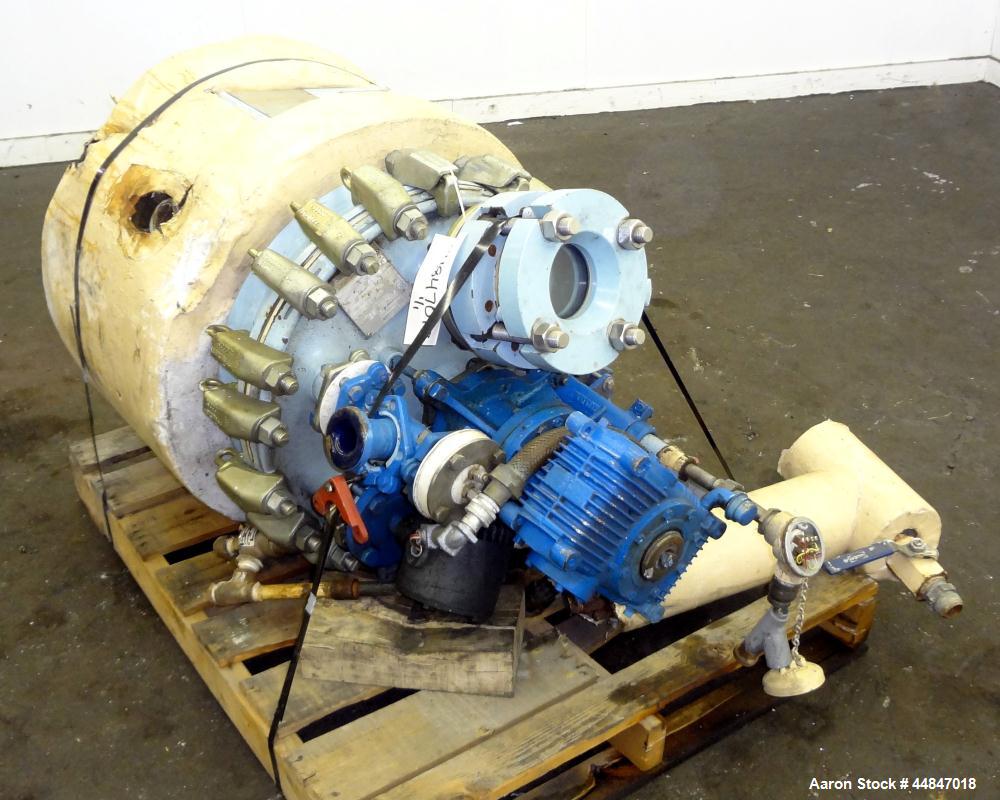

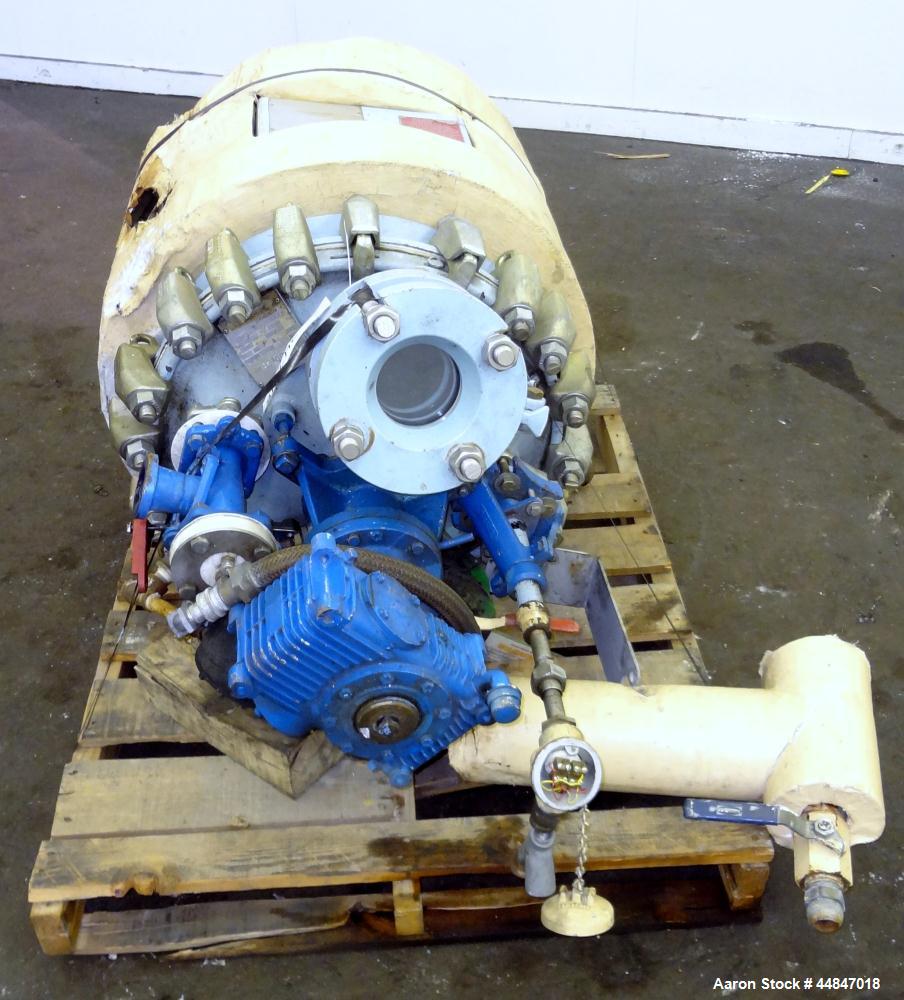

Used 20 Gallon Pfaudler Clamp Top Glass Lined Reactor

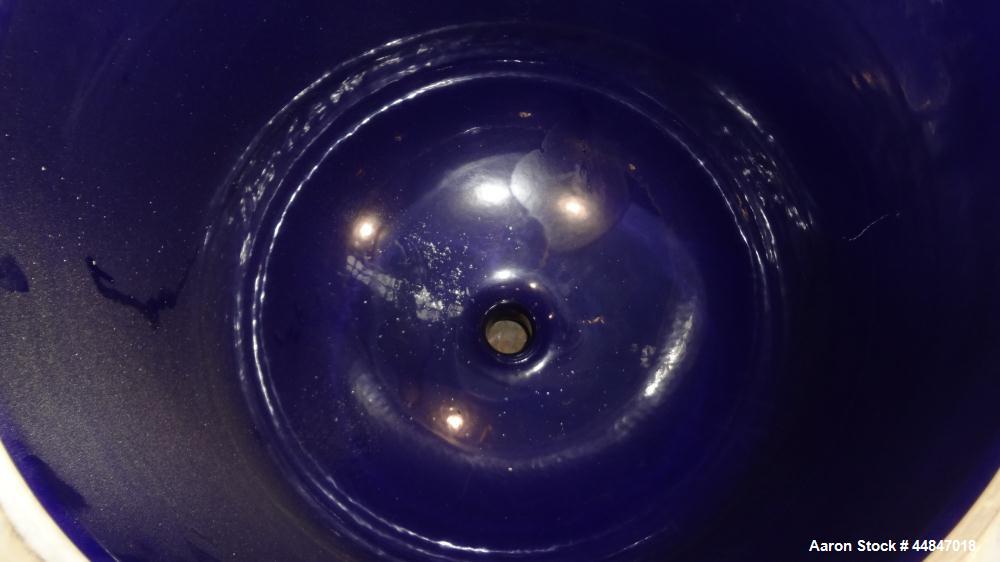

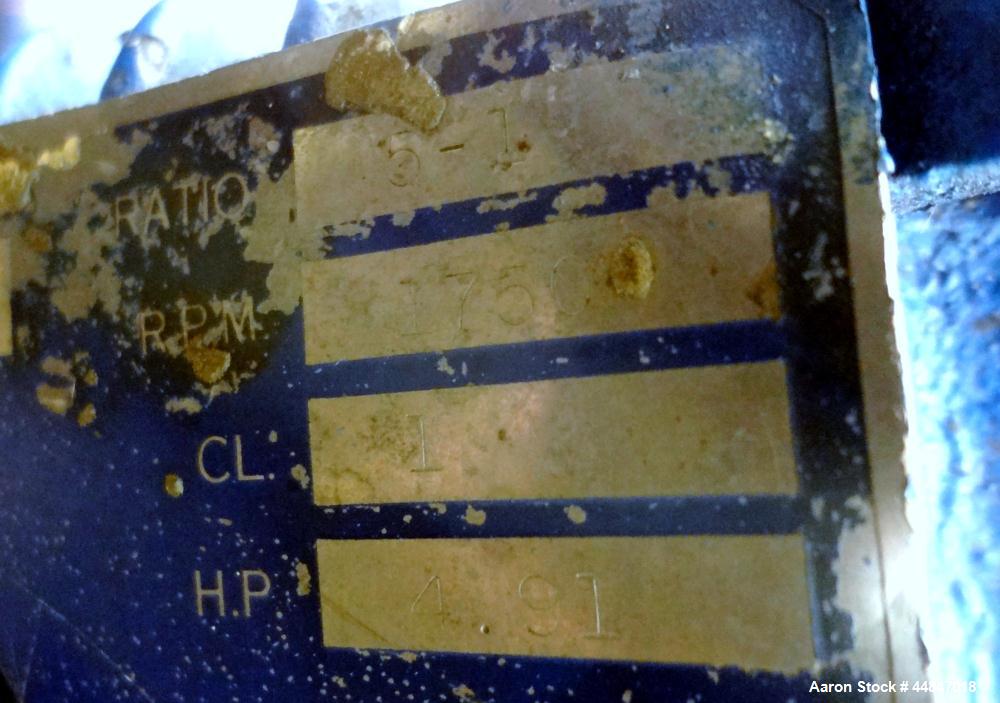

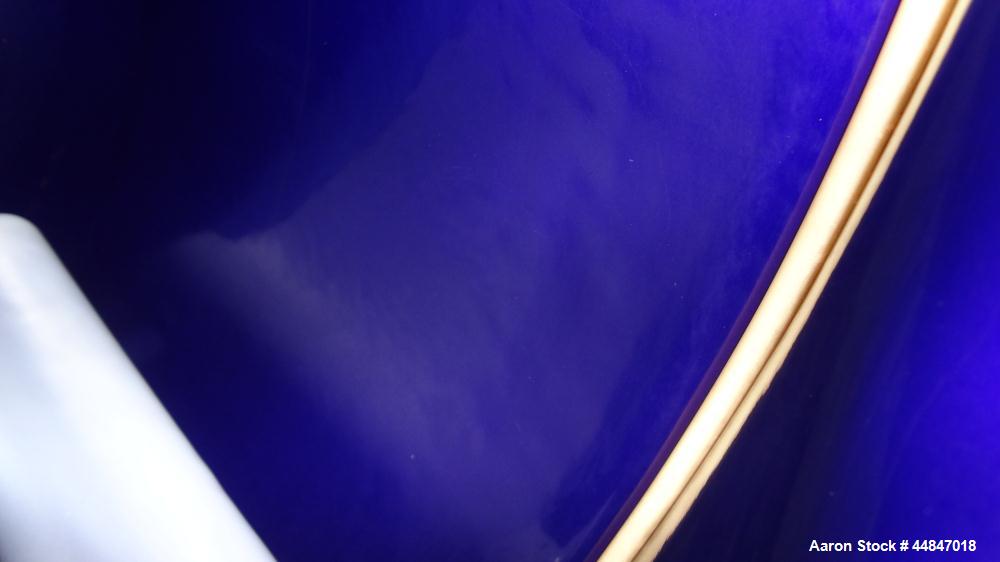

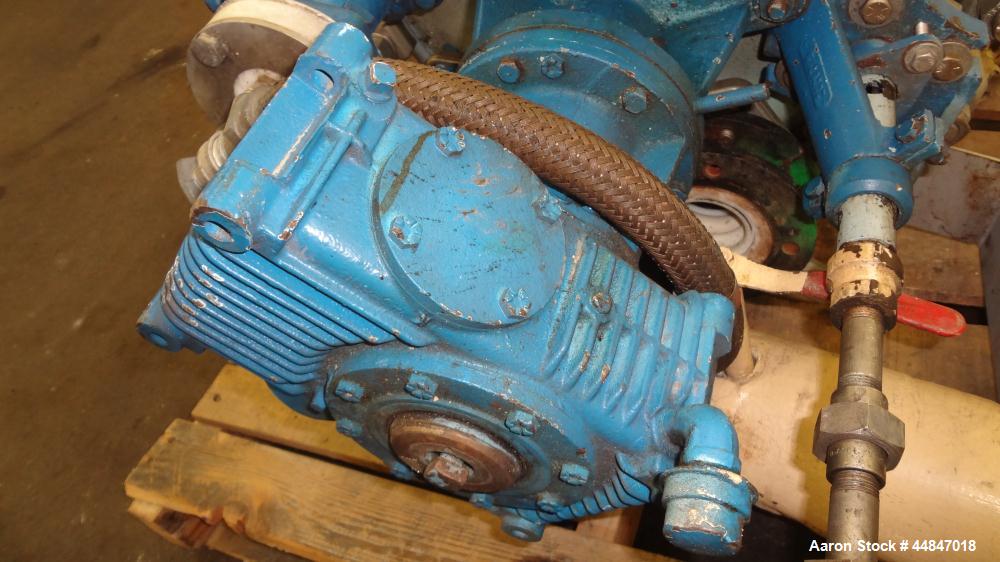

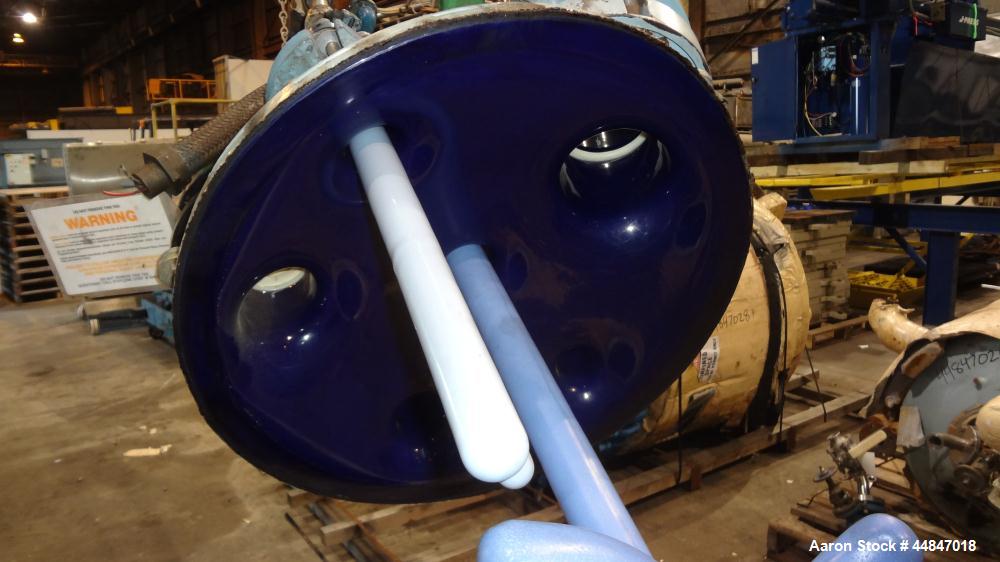

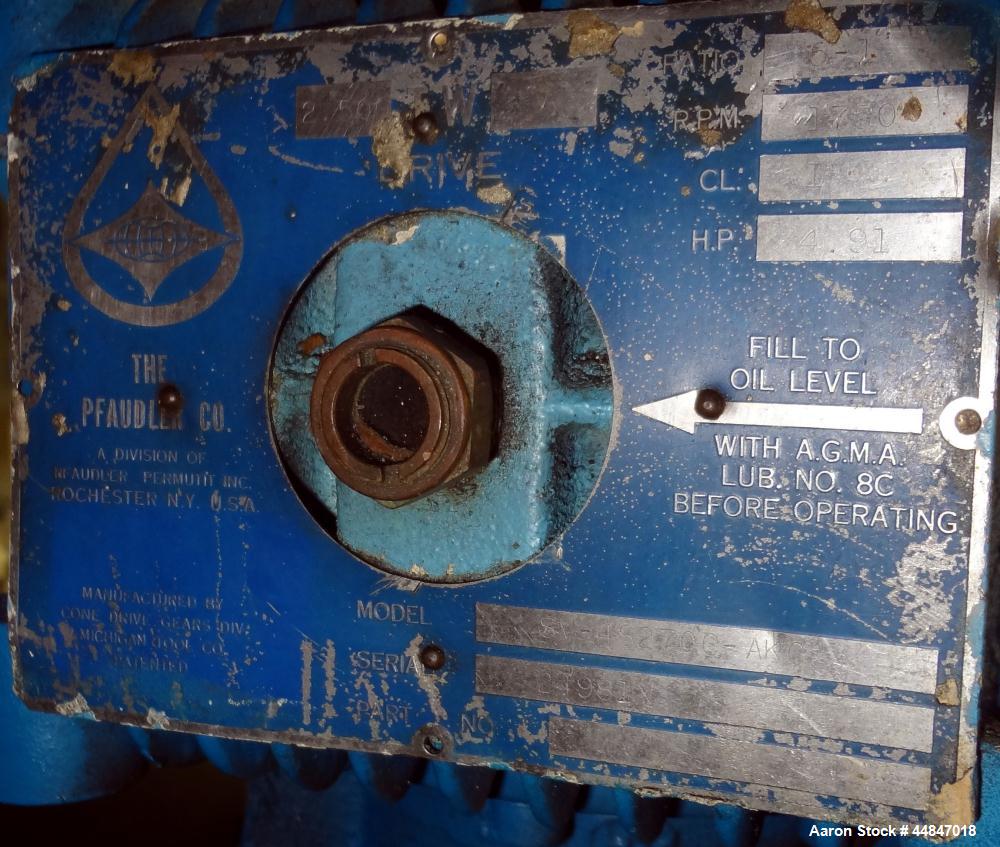

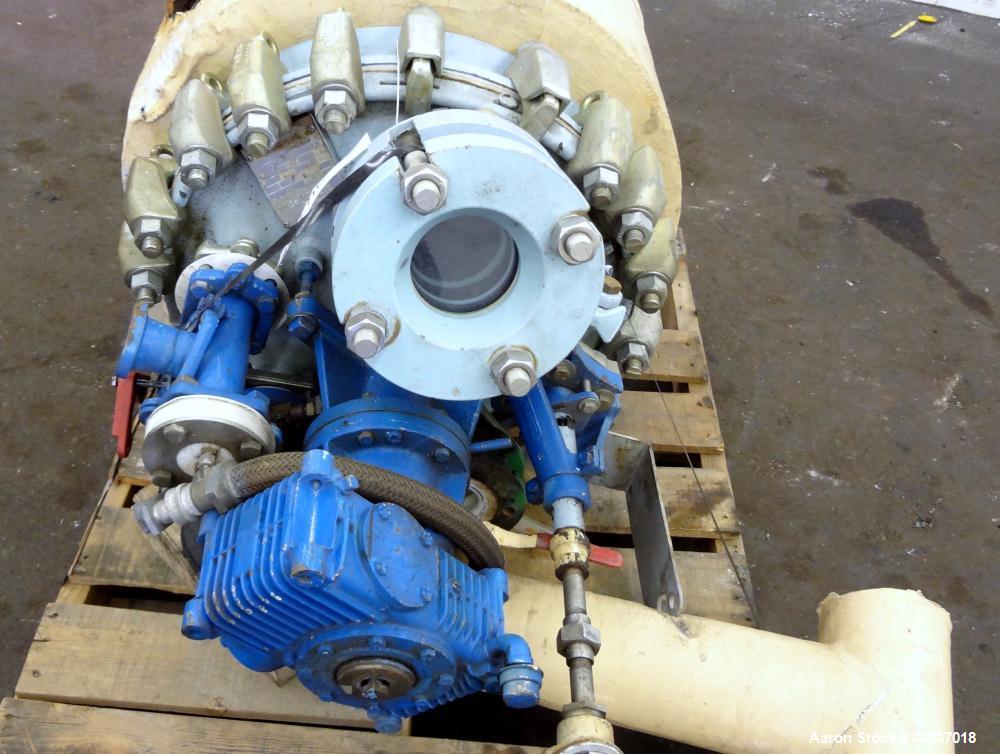

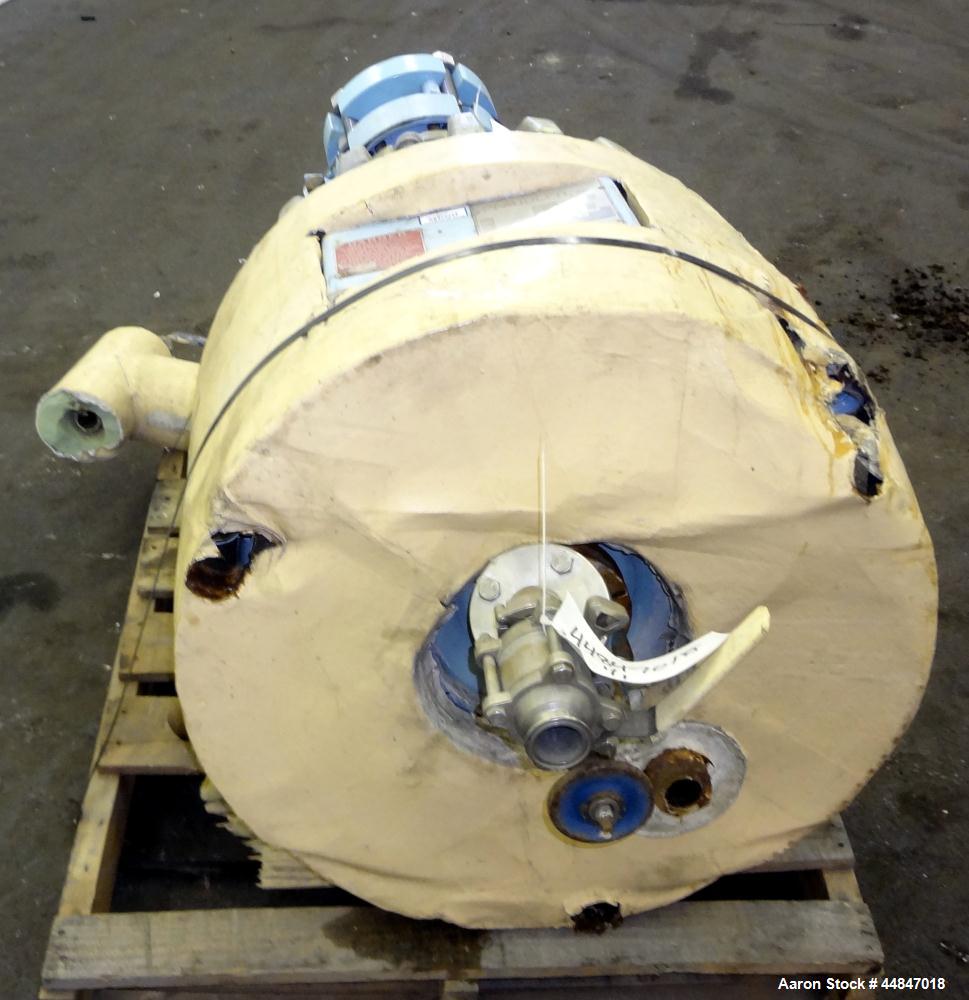

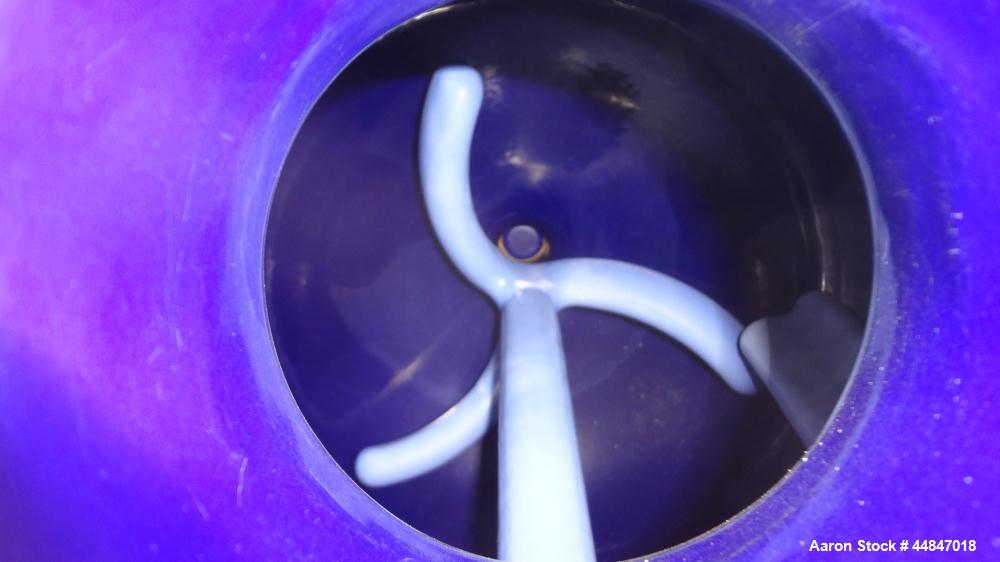

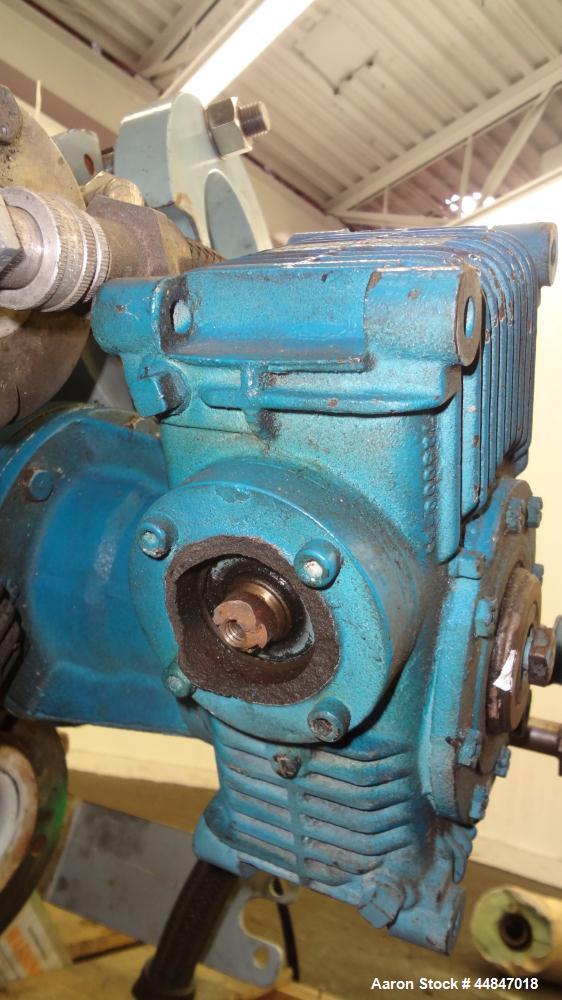

Used- Pfaudler Clamp Top Glass Lined Reactor, 20 Gallon, 9115 Blue Glass, Vertical. Approximately 20" diameter x 14-1/2" straight side, dished clamp top, dish bottom. Internal rated 150/full vacuum psi at -20 to 450 degrees F, carbon steel jacket rated 125 psi at -20 to 450 degrees F. (1) Fin baffle, 3 blade retreat curve agitator driven by a Pfaudler drive, size 2.5 TWV, model SV-48270C-AKC, serial # 24981X. Ratio 5 to 1, set up for hydraulic drive, connection for drive broken off and missing, no power pack. Openings: top (2) 1-1/2", (2) 2", 4" hand hole with sight glass cover; 2" center bottom outlet. Provision for 3 legs. National Board # 51396, serial # J062355. Built 2005.
-
ManufacturerPfaudler
-
Serial #J062355
-
CategoryReactors
-
SubcategoryGlass Lined Reactors
-
Gallons20
-
Material Of ConstructionGlass Lined
-
Horizontal Or VerticalVertical
-
Diameter20"
-
Straight Side14-1/2"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure150 psi/FV
-
Internal Temperature-20 to 450F
-
Pressure Jacket125
-
Temperature Jacket-20 to 450F
-
Agitator LocationTop Center
-
Agitator ManufacturerPfaulder
-

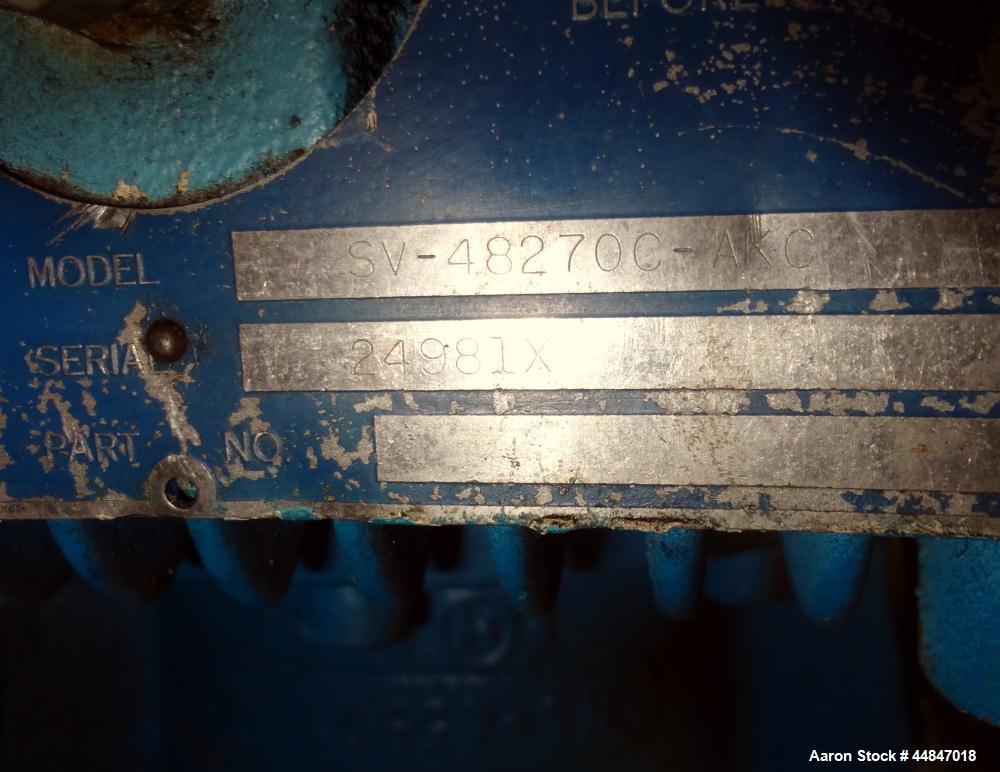

Agitator ModelSV-48270C-AKC
-
Agitator Serial No.24981X
-
Agitator TypeTop Entering
-
Openingtop (2) 1-1/2", (2) 2", 4" hand hole with sight glass cover
-
Opening CoverYes
-
Outlet Size2"
-
Outlet LocationBottom
-
Overall Dimensions64"L X 44"W X 44"T
-

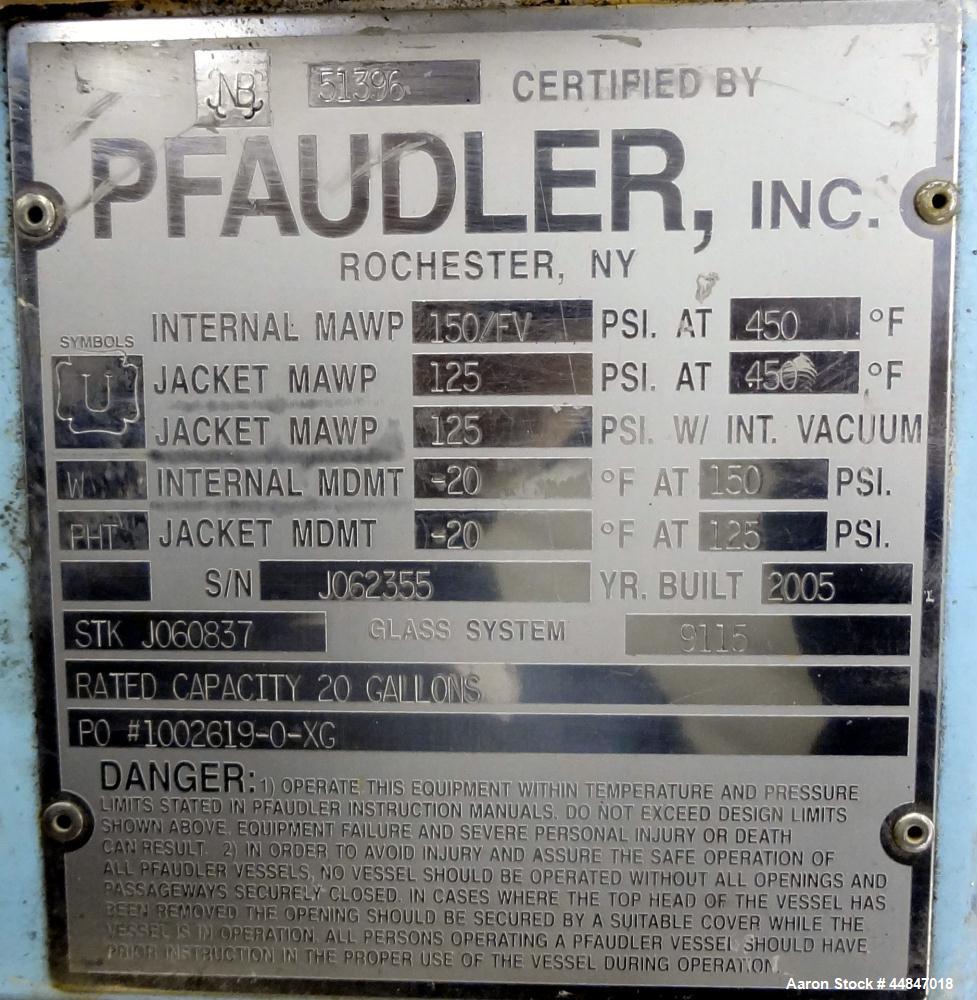

National Board No.51396
-
Year Built2005
