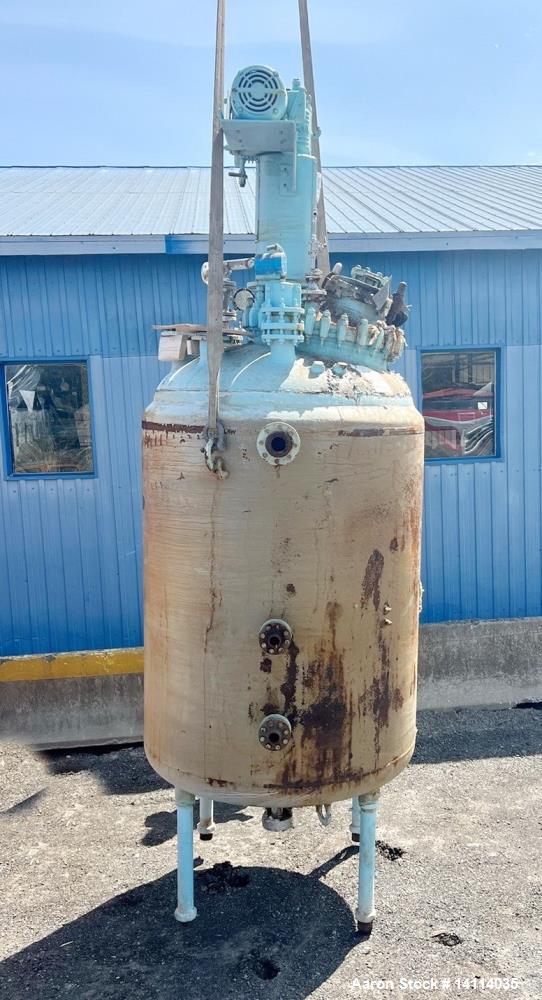

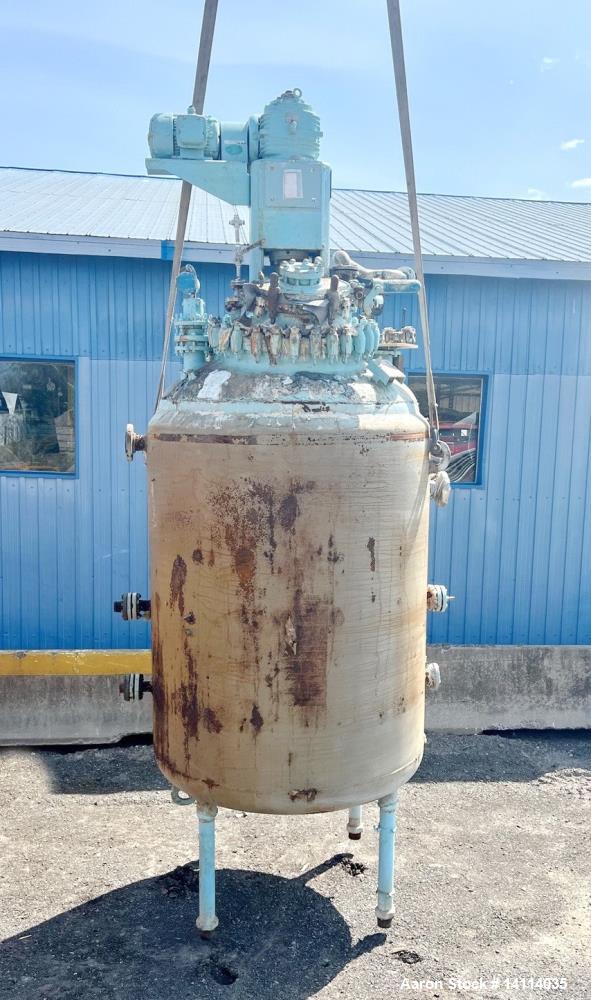

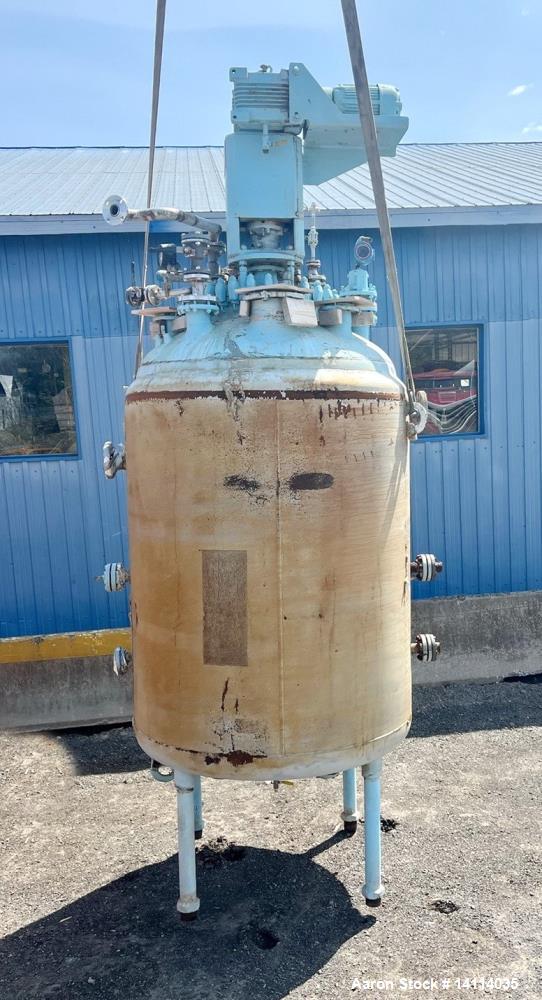

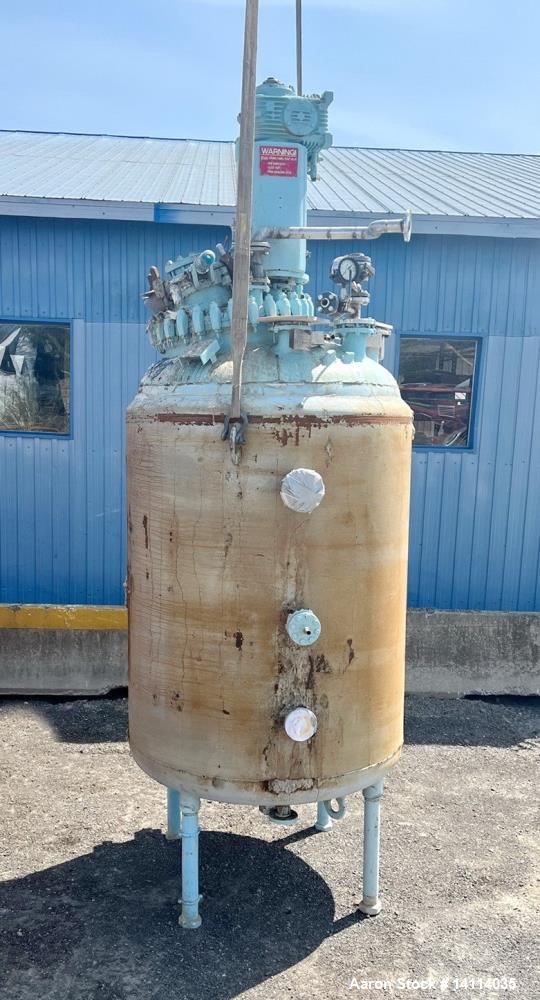

Used 1,000 Gallon Pfaudler Glass Lined Reactor

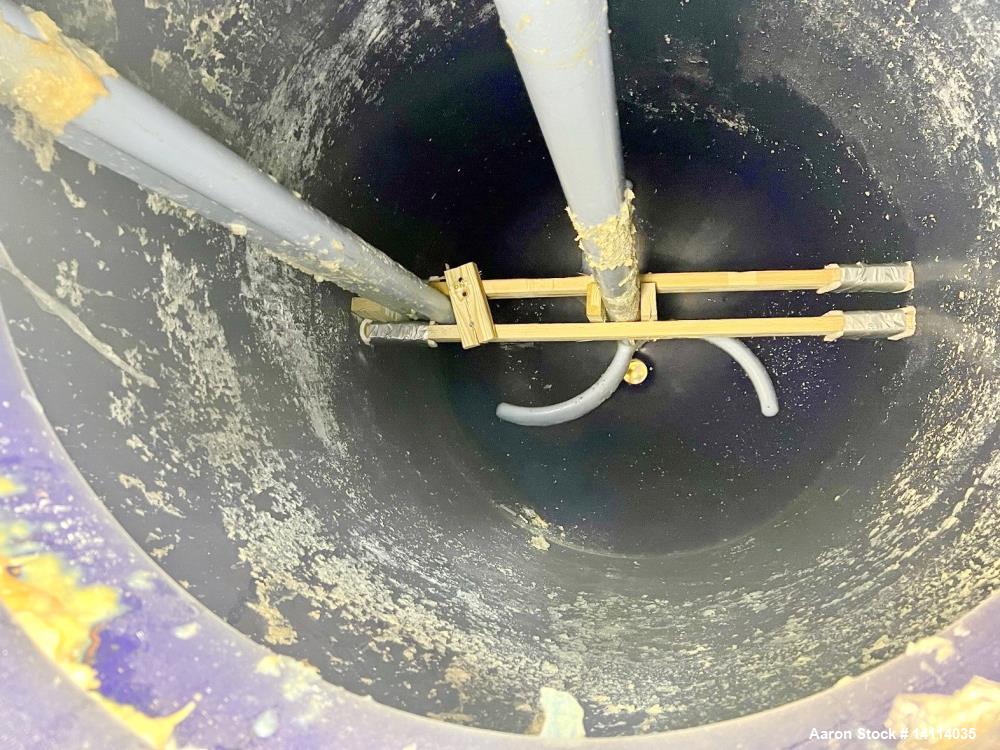

Used-1,000 Gallon Pfaudler Glass Lined Reactor; Full Vacuum; 100 psi @ 450 degrees F; Jacket Rated 90 psi @ 450 degrees F. 48" Diameter x 80" Straight Side; Dish top and bottom; 4" center discharge; Top entry mixer; 1.25 HP/7.5 HP; 240/1755 RPM; 460 volt; 3 phase, with baffle; Overall Height 16', Approximately 9,000 lbs. National Board# 46994, Serial# R192-0149.

ManufacturerPfaudler
Serial #R192-0149
CategoryReactors
SubcategoryGlass Lined Reactors
Gallons1000
Material Of ConstructionGlass Lined
Horizontal Or VerticalVertical
Diameter48"
Straight Side80"
Top Head StyleDished Head
BottomDished Bottom
Internal Pressure100/FV
Internal Temperature-20 to 450 F
Pressure Jacket90
Temperature Jacket-20 to 450 F

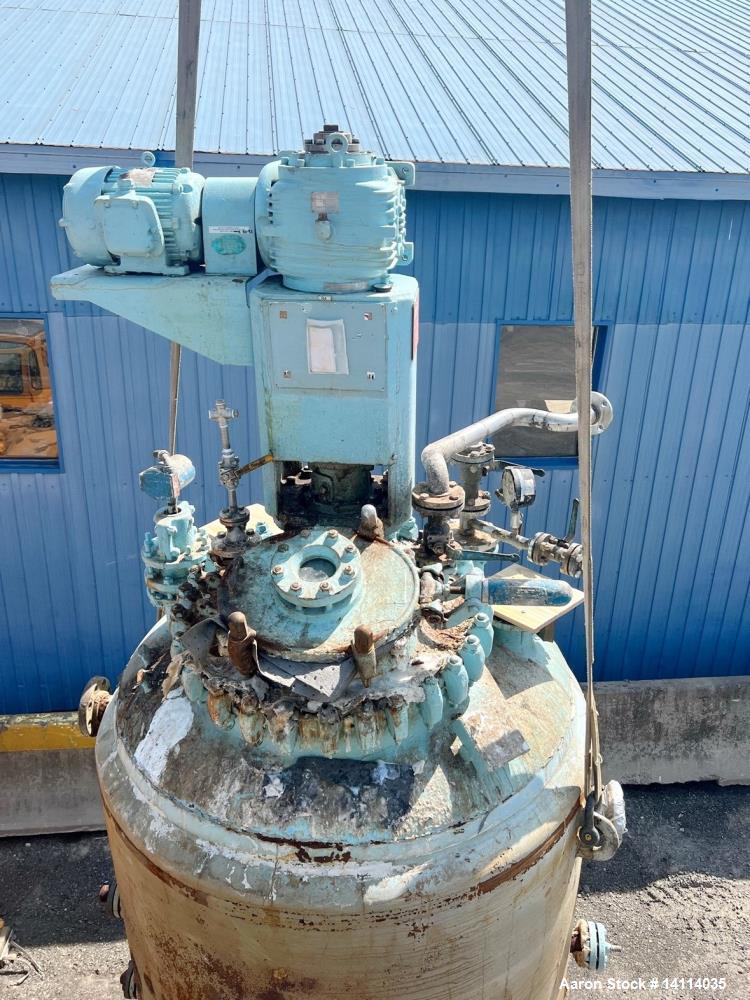

Agitator LocationTop Center

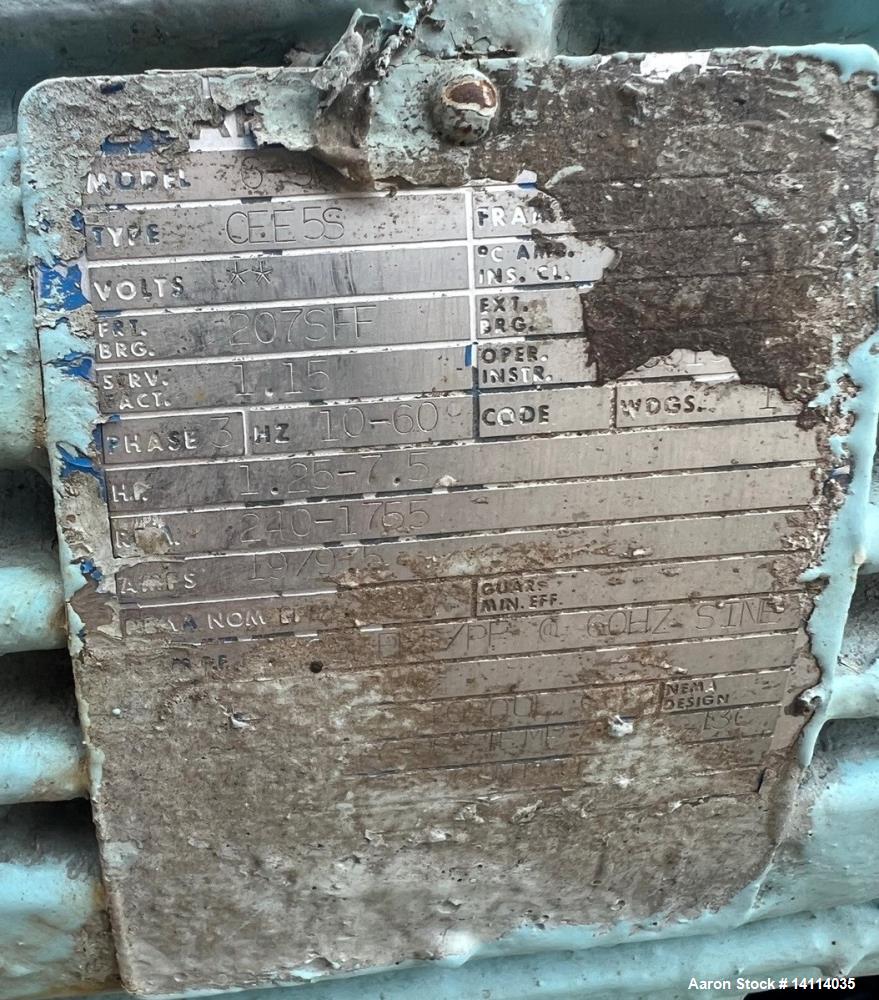

Agitator Hp1.25-7.5
Agitator Phase3
Agitator Cycle60
Agitator Rpm240-1755

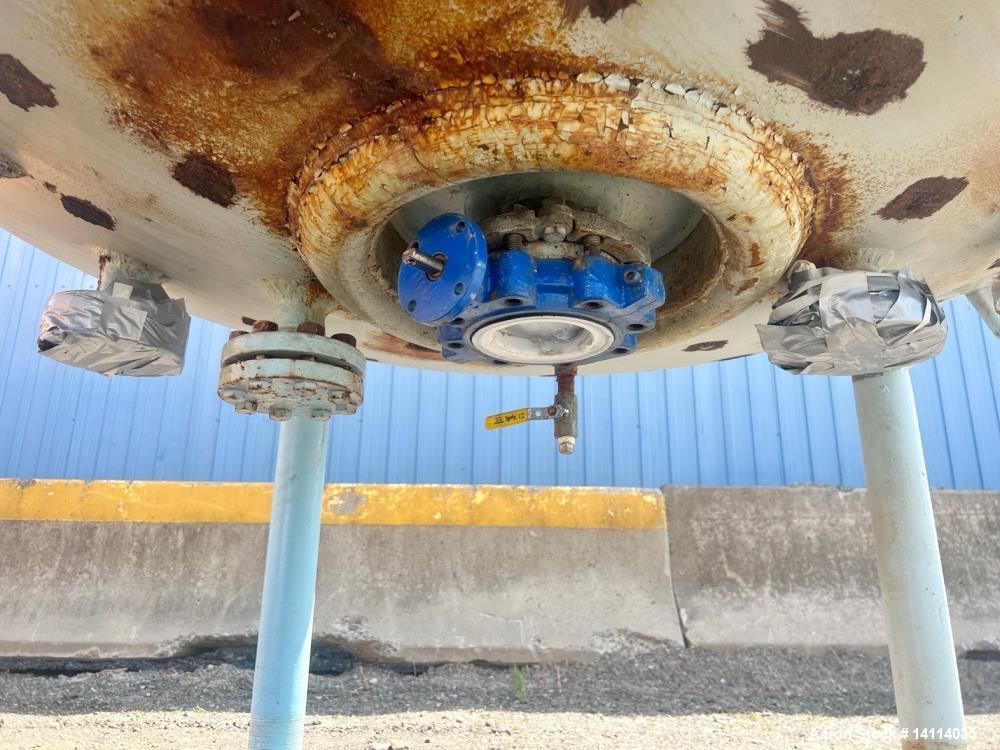

Outlet Size4"
Outlet LocationBottom
MountedMounted on 4 Legs

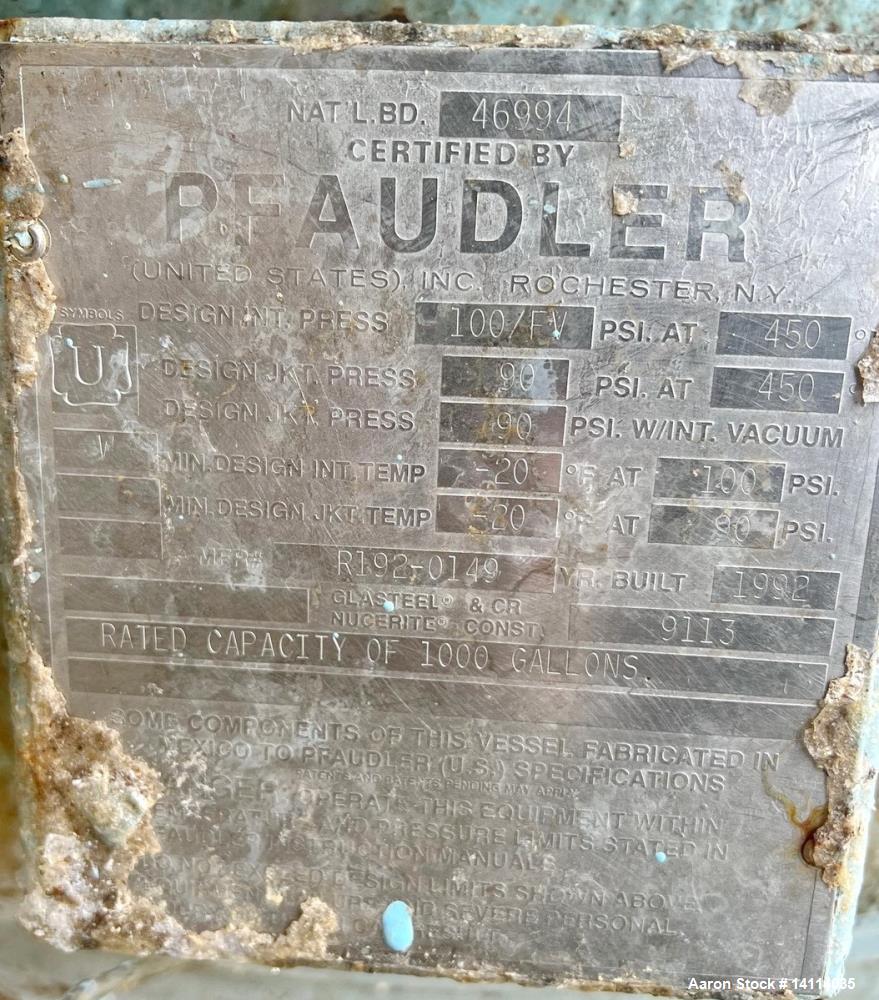

National Board No.46994
Year Built1992

We offer a variety of finance programs. Please contact your sales person for more information.
