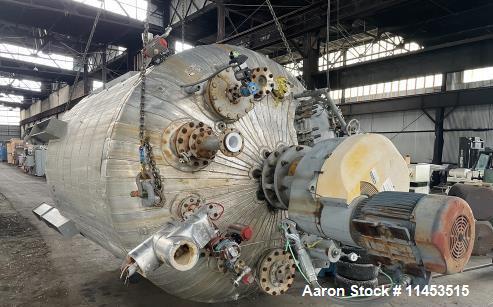

Used 6,000 Gallon Dedietrich Glass Lined Reactor

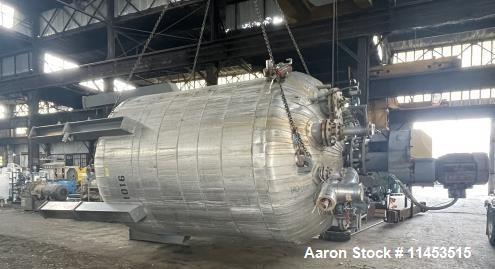

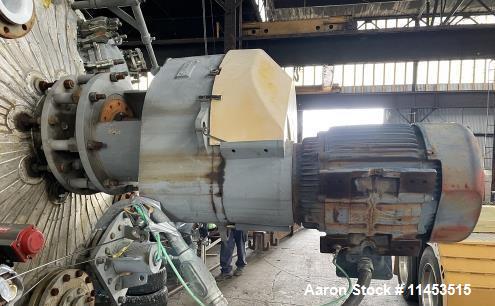

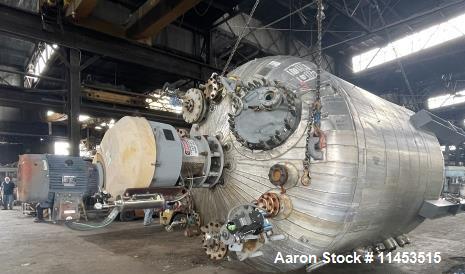

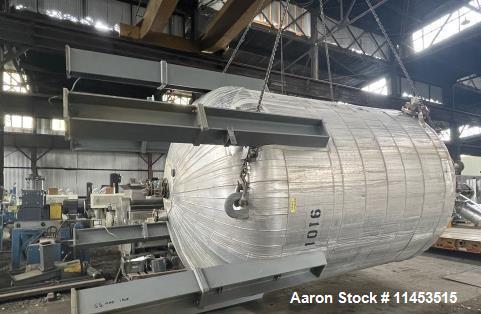

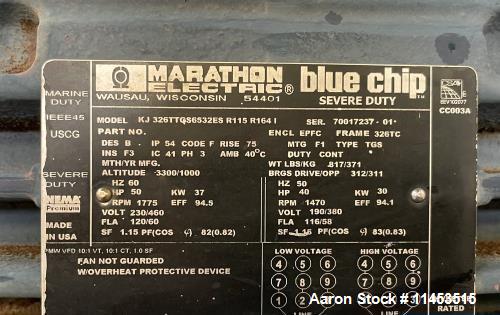

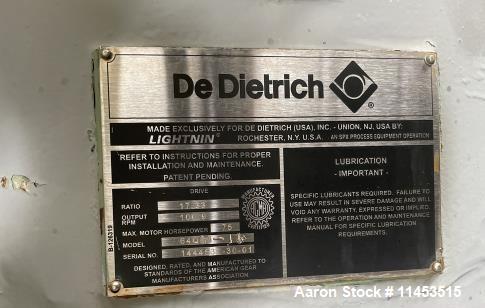

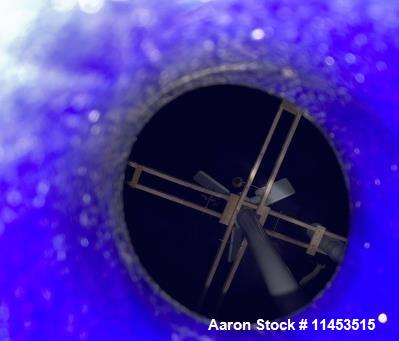

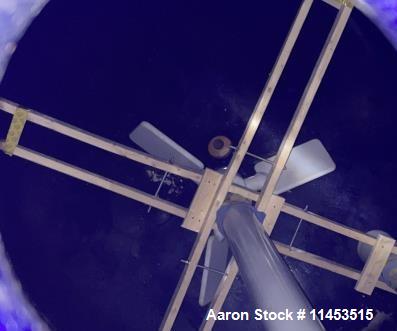

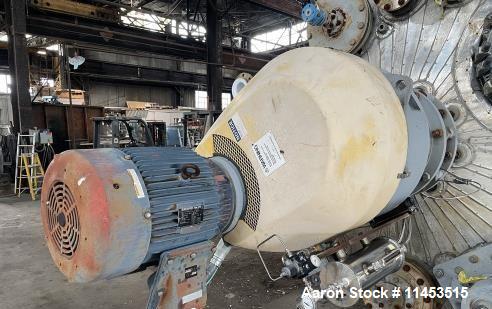

Used-6,000 Gallon Dedietrich Glass Lined Reactor, model GL-6000, rated 130 psi and full vacuum at 450 f internal, jacketed for 90 psi at 450 f, 50 hp series 60 Dedietrich agitator drive with mechanical seal, 3 blade Glasslock pitched blade agitator, Beavertail baffle, 24" manway with Davit arm and pro-ring, 12", 10", (3)6", (4)4" top nozzles, 6" bottom outlet, 3009 glass, on 6 legs.

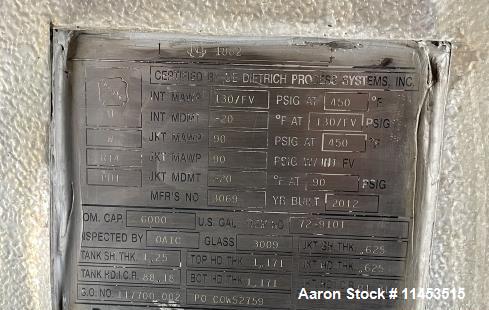

ManufacturerDedietrich
ModelGL-6000
Serial #3069
CategoryReactors
SubcategoryGlass Lined Reactors
Gallons6000
Material Of ConstructionGlass Lined
Horizontal Or VerticalVertical

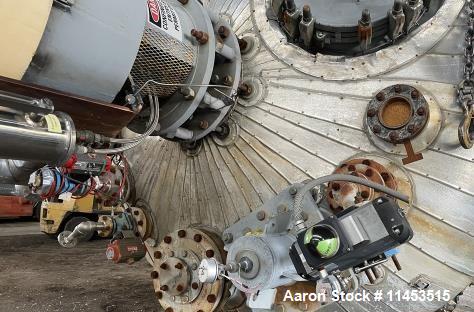

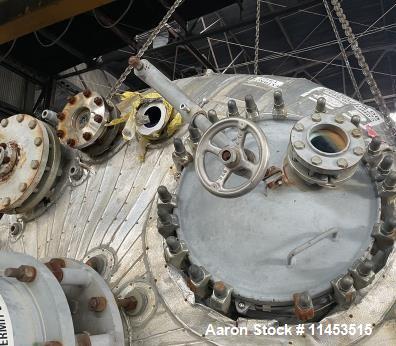

Opening24" manway with Davit arm and pro-ring, 12", 10", (3)6", (4)4" top nozzles
Opening CoverYes

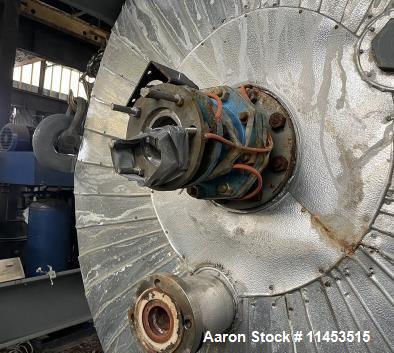

Outlet Size6"
Outlet LocationBottom

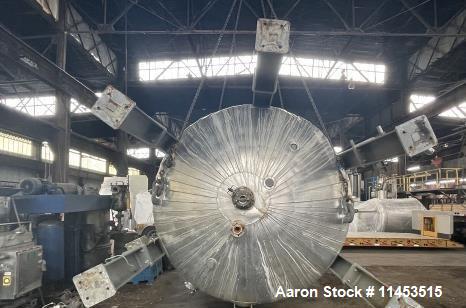

MountedMounted on 6 Legs
Year Built2012

We offer a variety of finance programs. Please contact your sales person for more information.
