Stock No.: 52862001

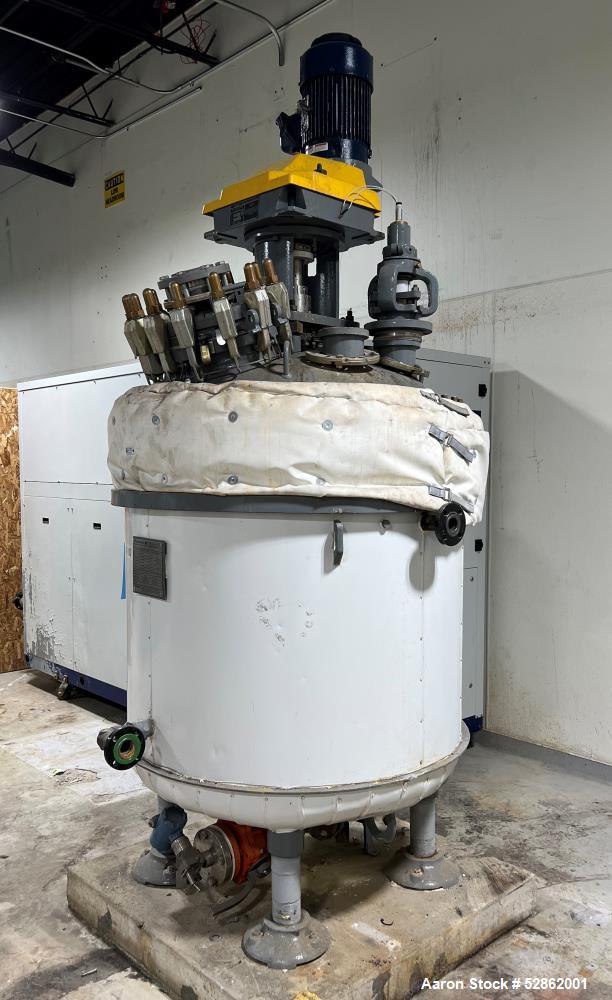

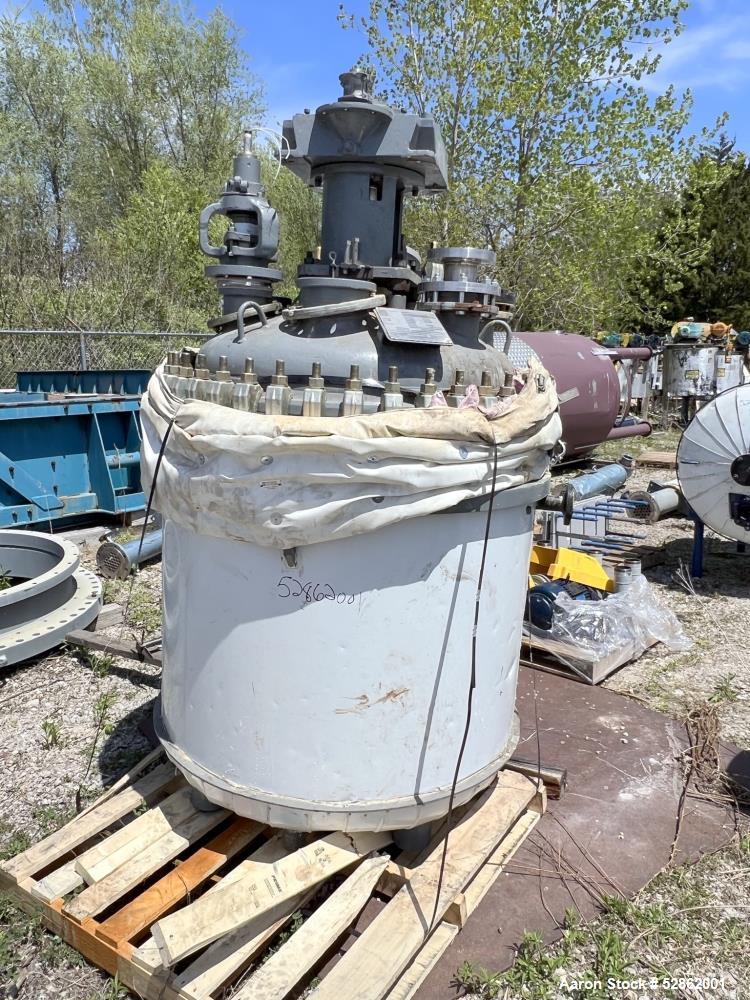

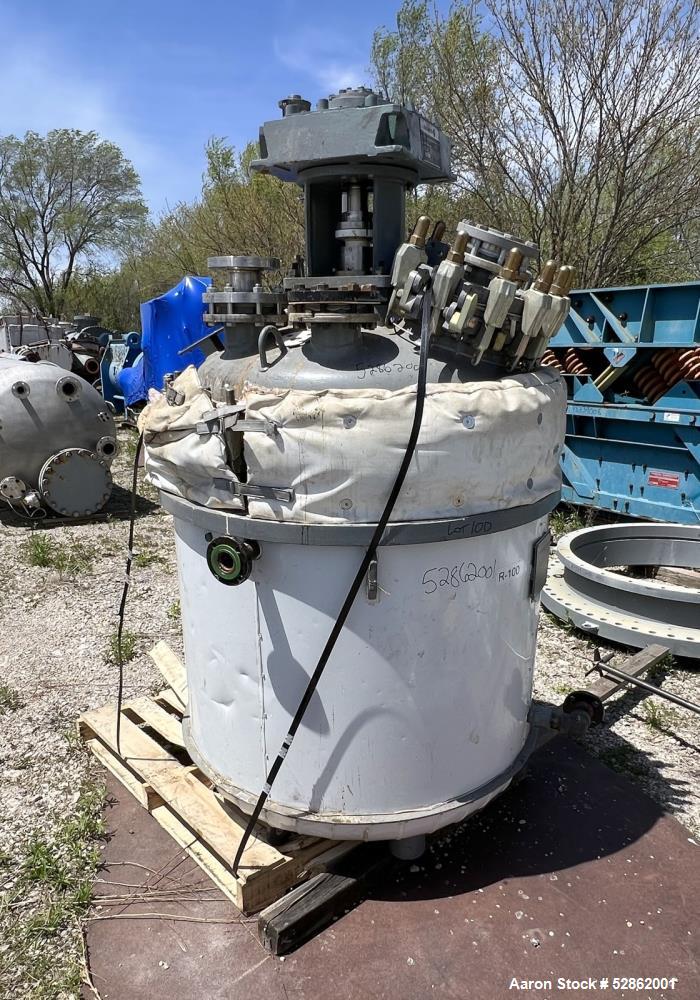

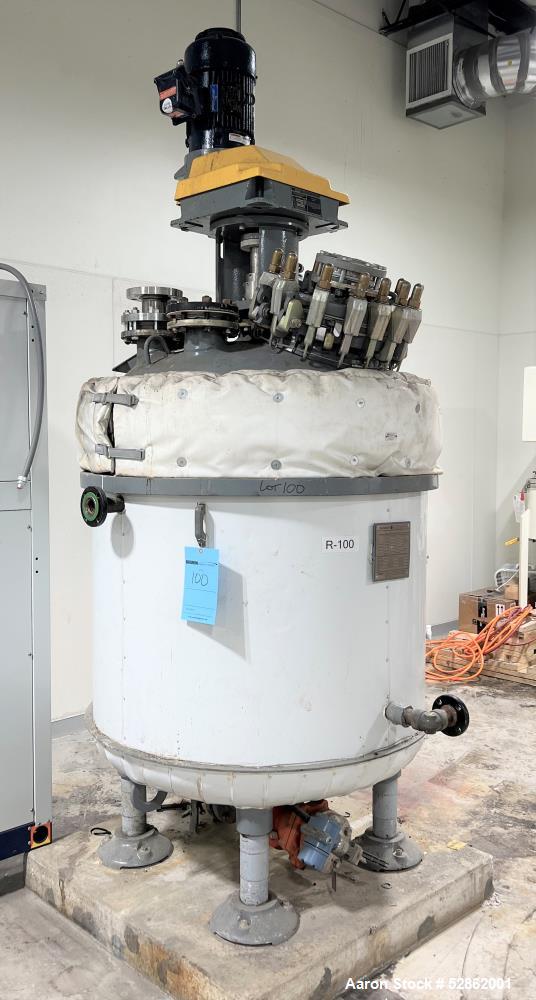

DeDietrich 200 Gallon Clamp Top Glass Lined Reactor, Model CTJ-40-200

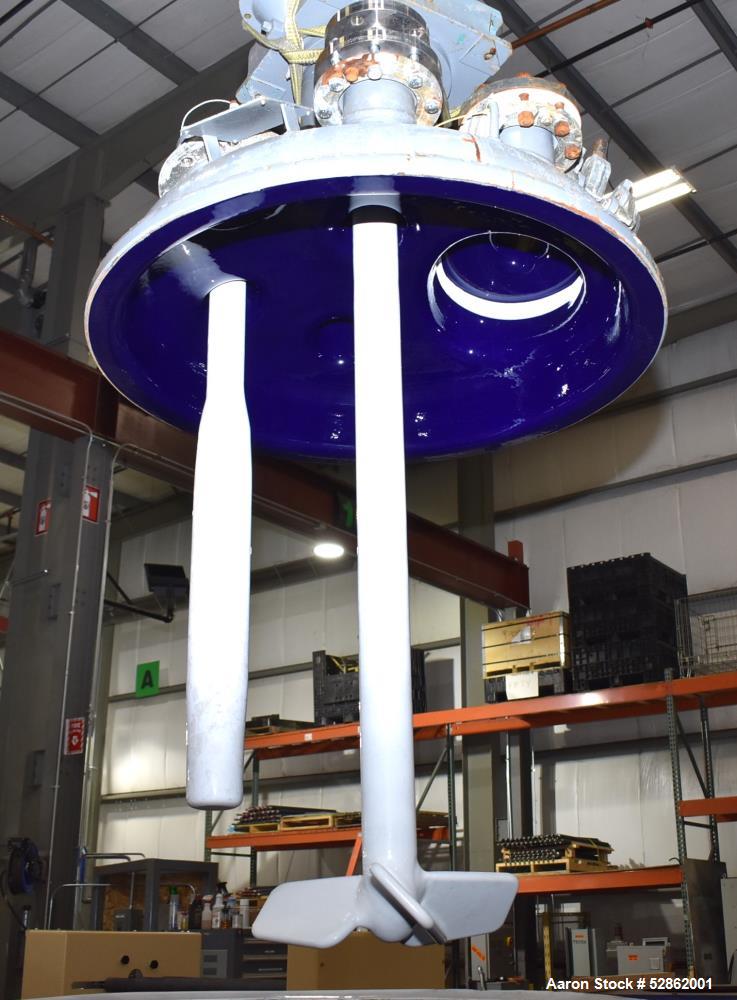

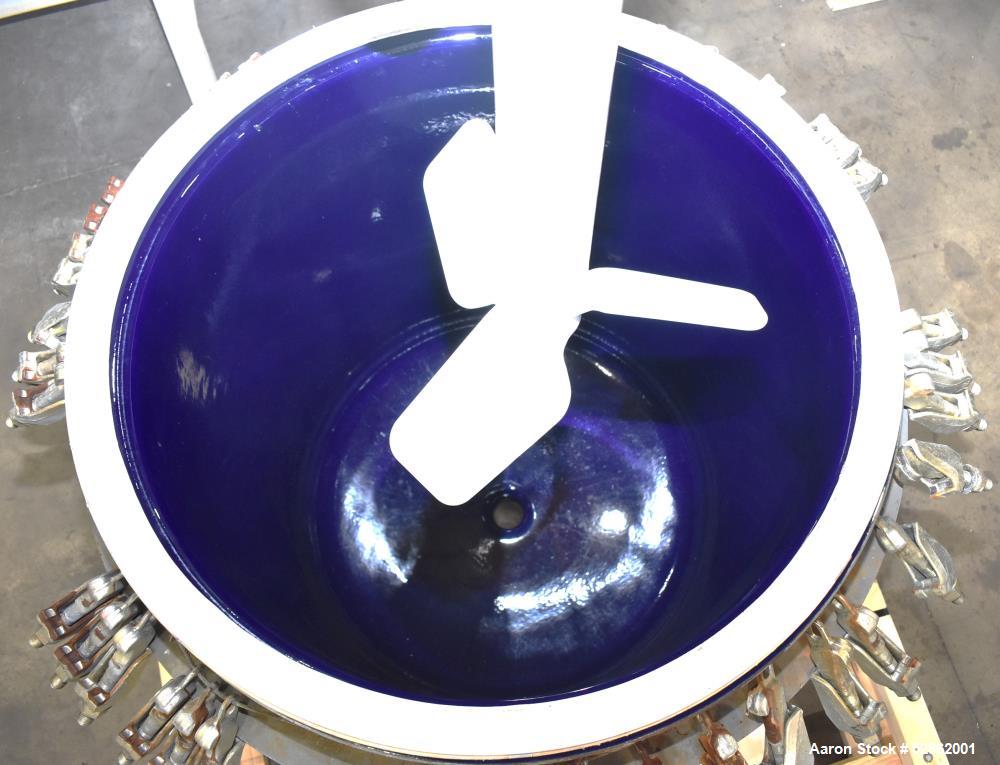

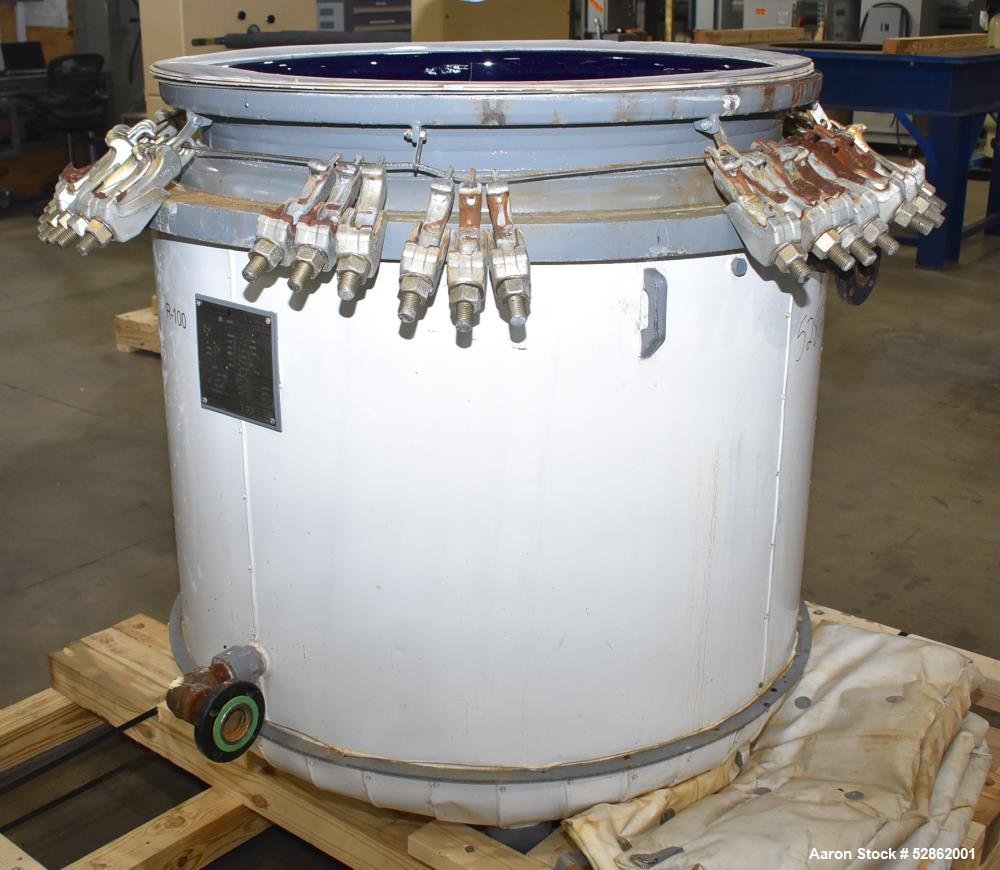

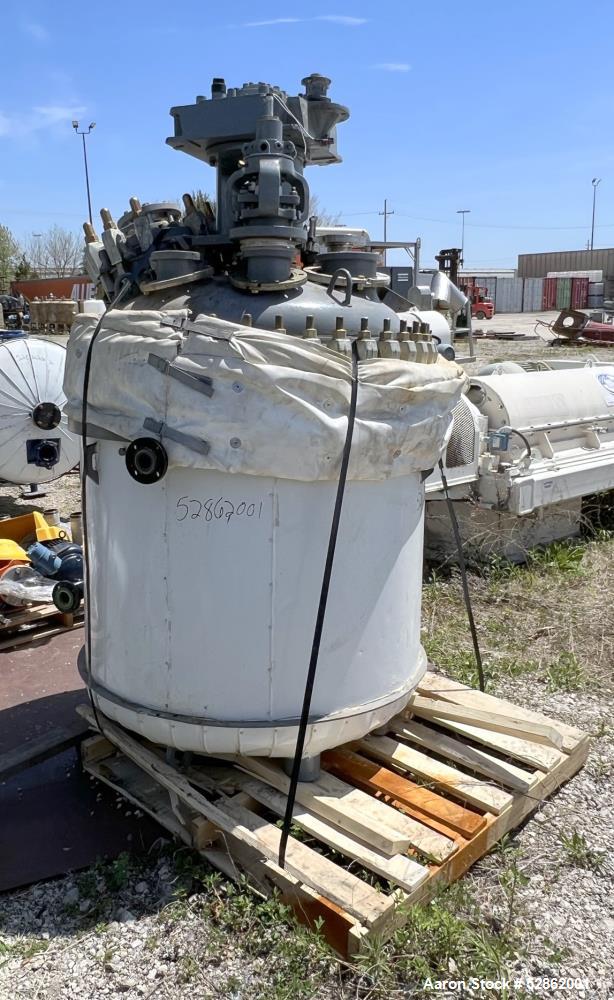

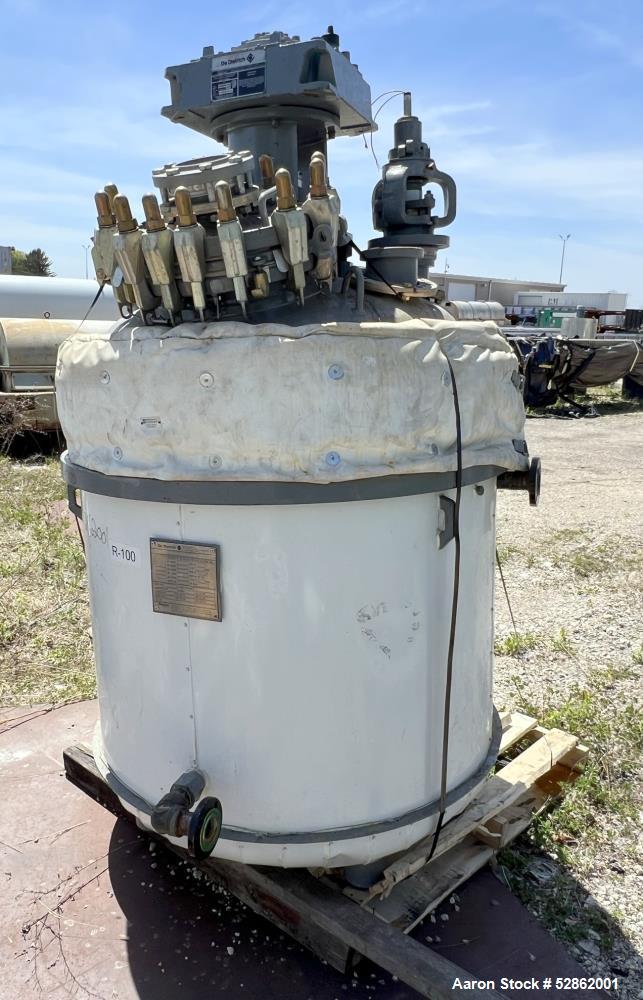

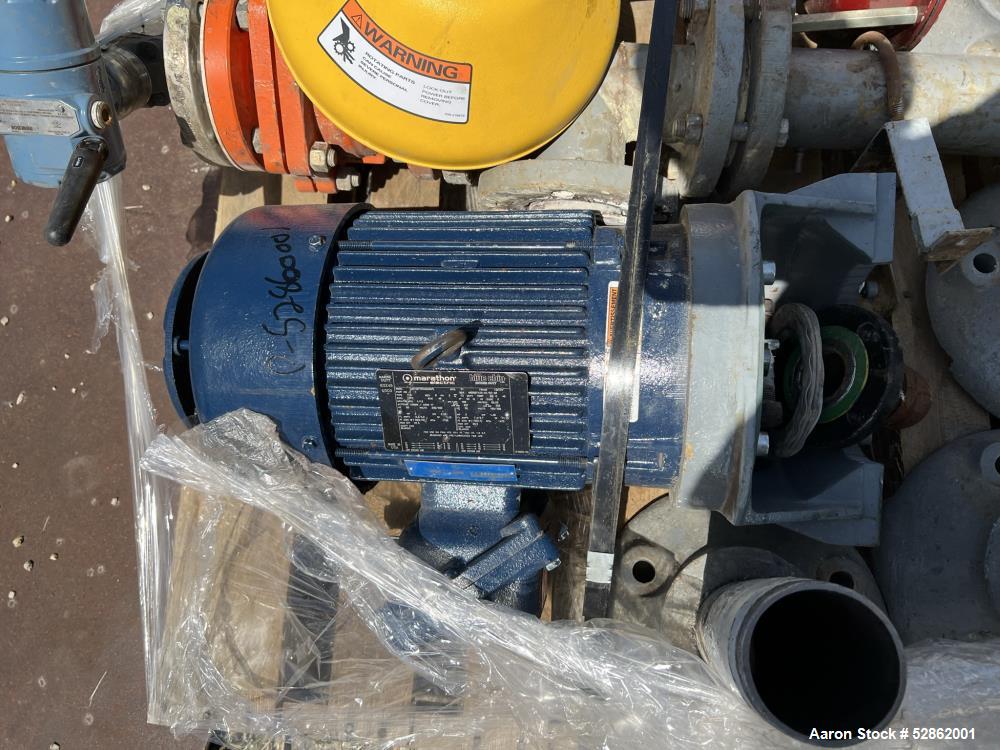

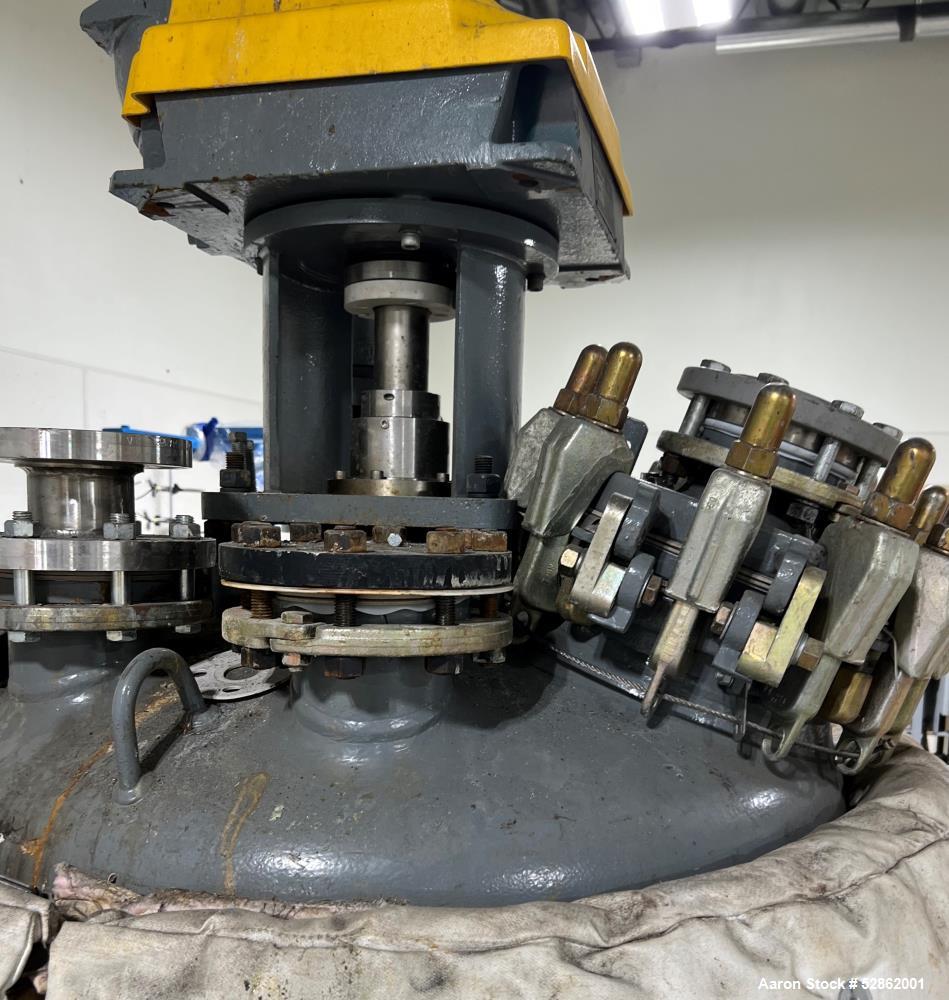

Used- DeDietrich Glass Lined Agitated Reactor, 200 Gallon capacity, Model CTJ-40-200, 3009 Blue / U White Glass, Vertical. Approximately 39" diameter x 38" straight side, clamp-on dished top and dished bottom. Internal rated 90 psi / FV at -20 to 500 degrees F. Carbon steel 28.5 square foot jacket rated 105 psi or 90/FV at -20 to 500 degrees F. Top entering Lightnin agitator with 3 blade propeller, model 61Q06, ratio 14.06:1, output rpm 124.4, serial# 1307438-10-02. Driven by a 3hp 3/60/230/460 volt, 1760 rpm XP motor. Openings Top 18" manway, 6" for agitator, 6", (4) 4". Approximately 3" center bottom outlet. Top entering baffle. Mounted (4) threaded pipe legs. National Board# 1905, Serial# 3126, built 2013.
-
ManufacturerDedietrich
-
ModelCTJ-40-200
-
Serial #3126
-
CategoryReactors
-
SubcategoryGlass Lined Reactors
-
Gallons200
-
Material Of ConstructionGlass Lined
-
Horizontal Or VerticalVertical
-
Diameter30"
-
Straight Side32"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure90 F/V Psig
-
Internal Temperature-20 to 500 degrees F
-
Pressure Jacket105 psi
-
Temperature Jacket-20 to 500 degrees F
-
Agitator LocationTop Center
-

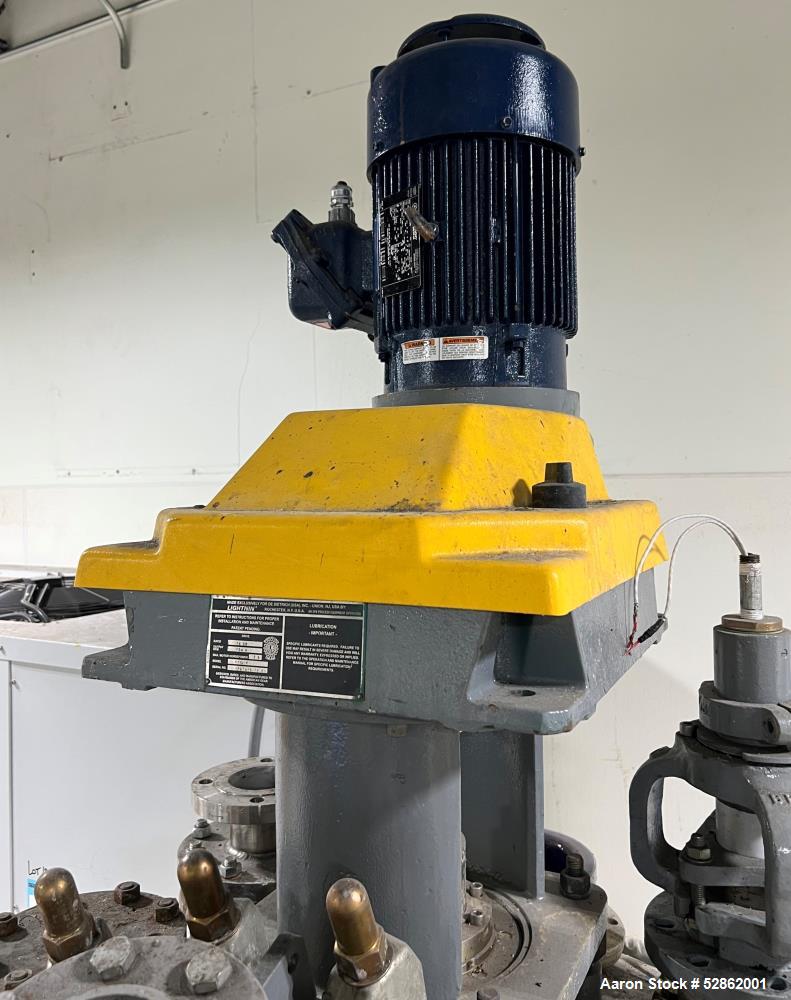

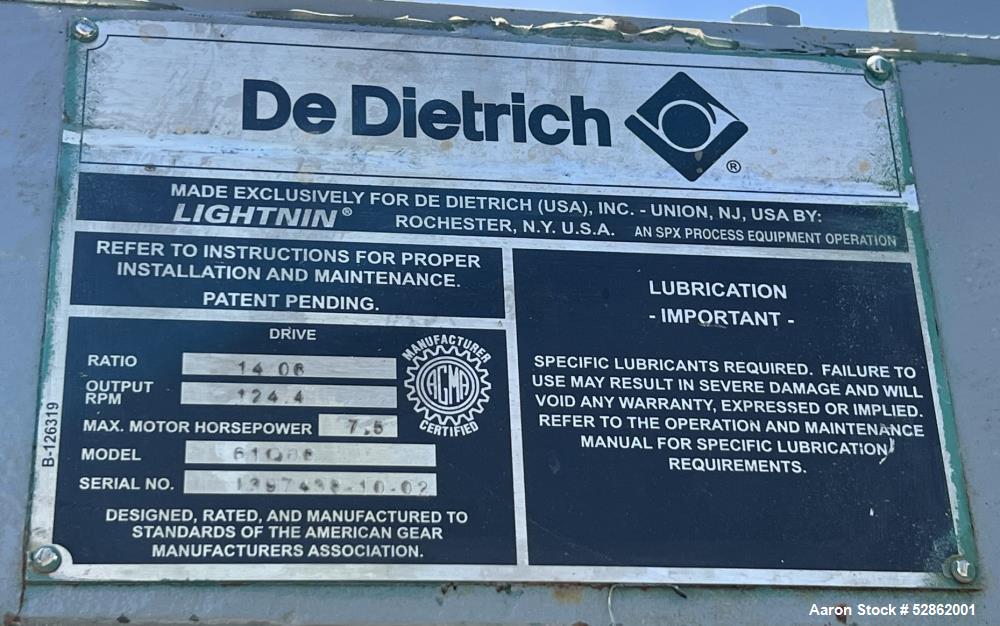

Agitator ManufacturerLightnin
-
Agitator Model61Q06
-
Agitator Serial No.1307438-10-02
-
Agitator TypeTop Entering
-

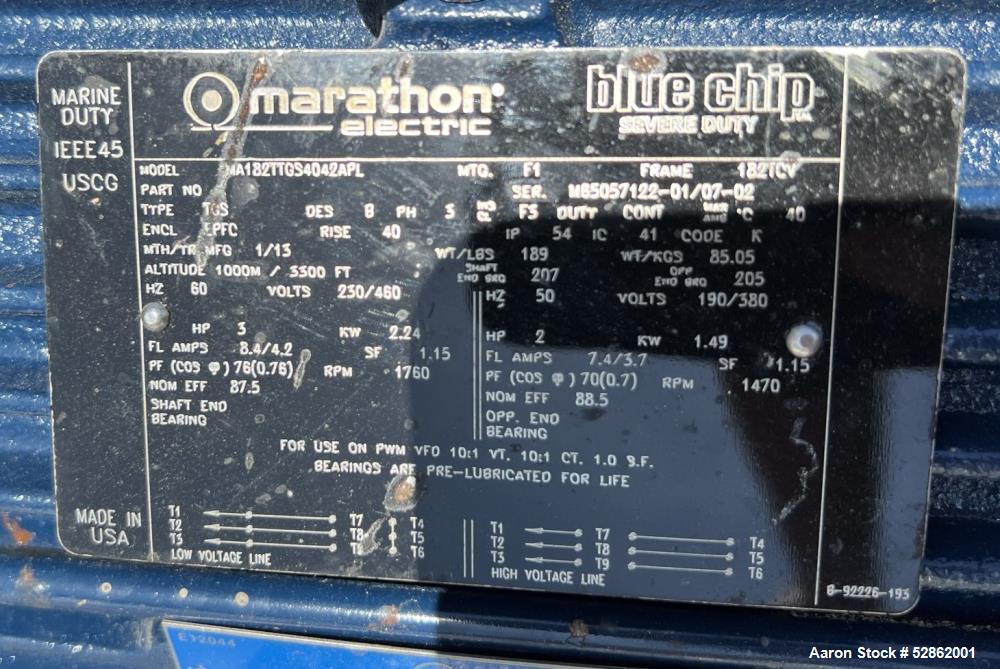

Agitator Hp3
-
Agitator Phase3
-
Agitator Cycle60
-
Agitator Voltage208-230/460 Volt
-
Agitator Rpm1760
-
Agitator Ratio14.06:1
-

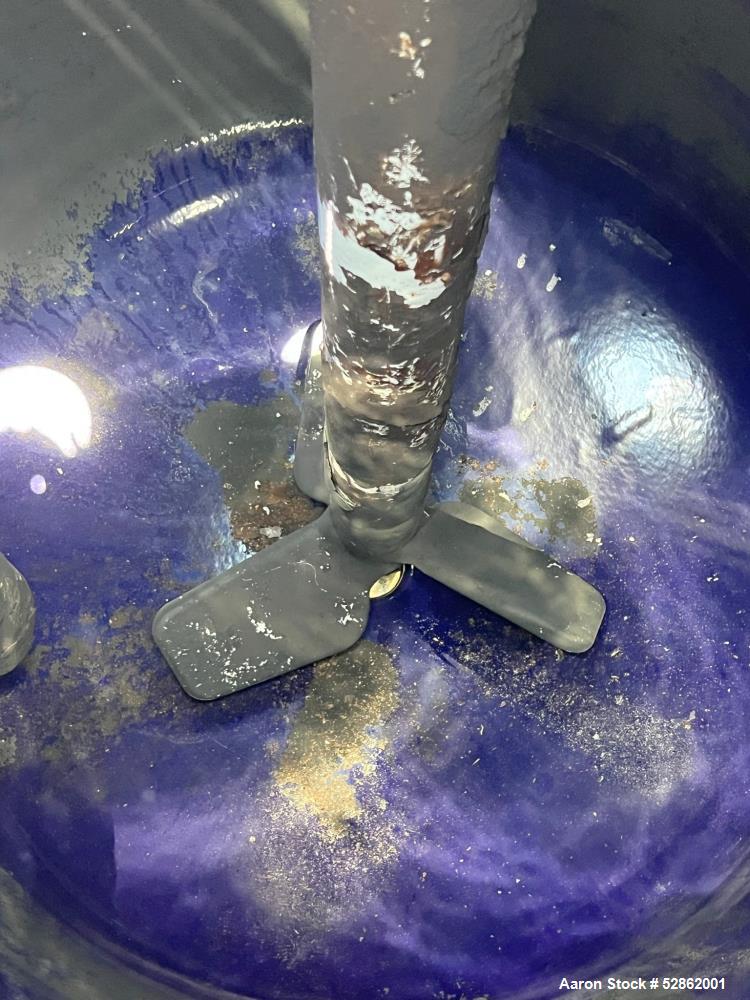

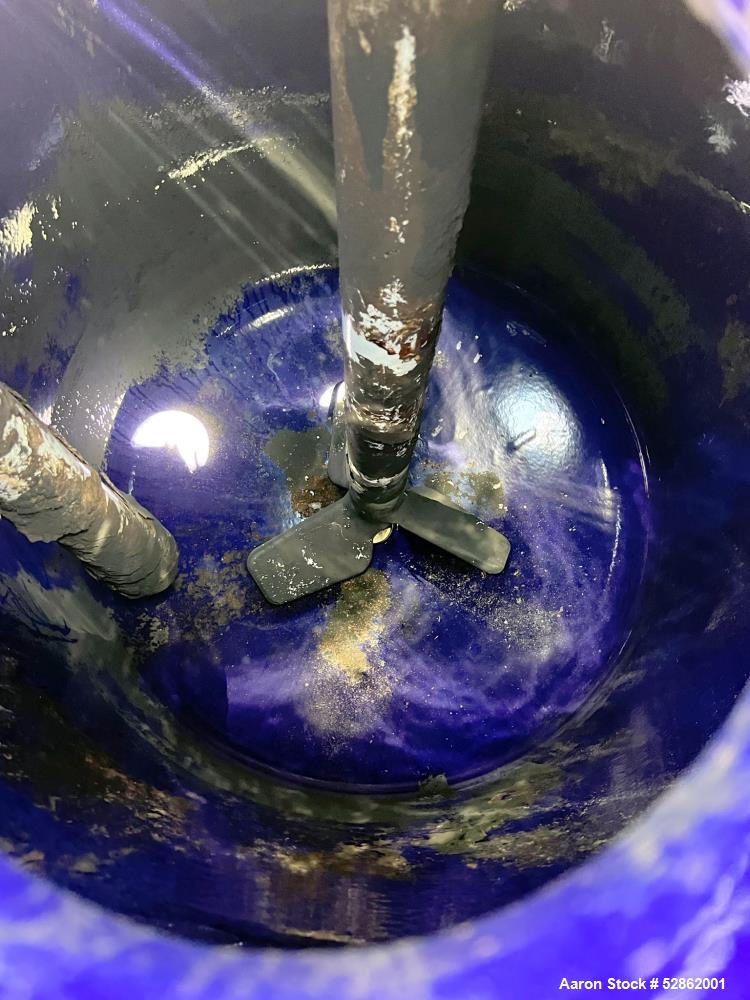

Mixer Type3 Blade Prop
-

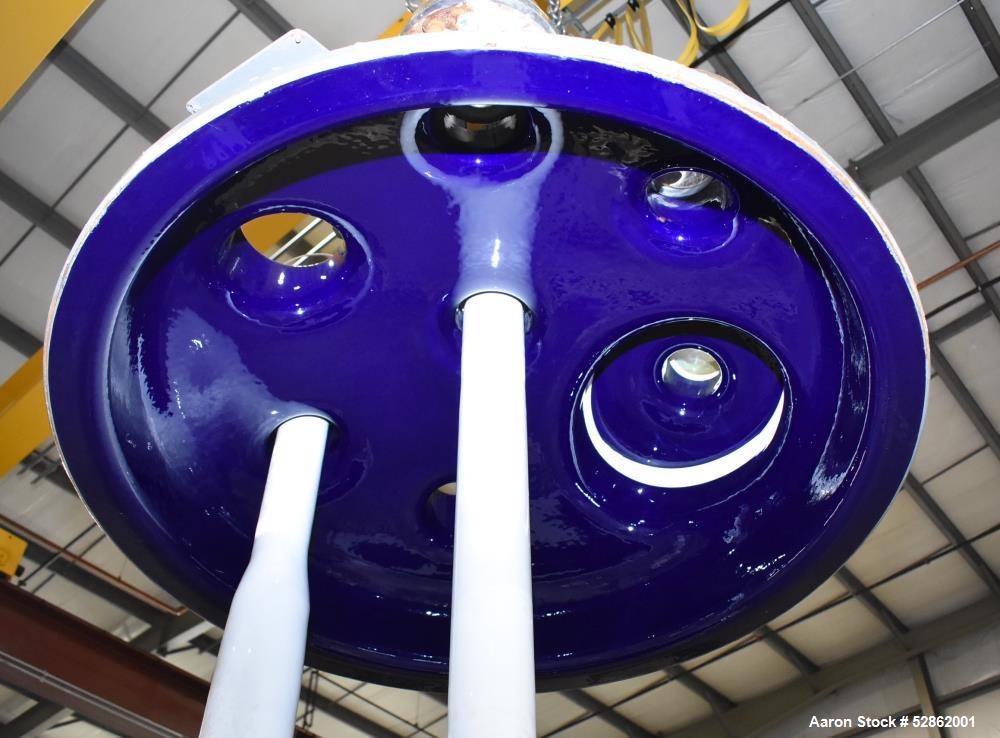

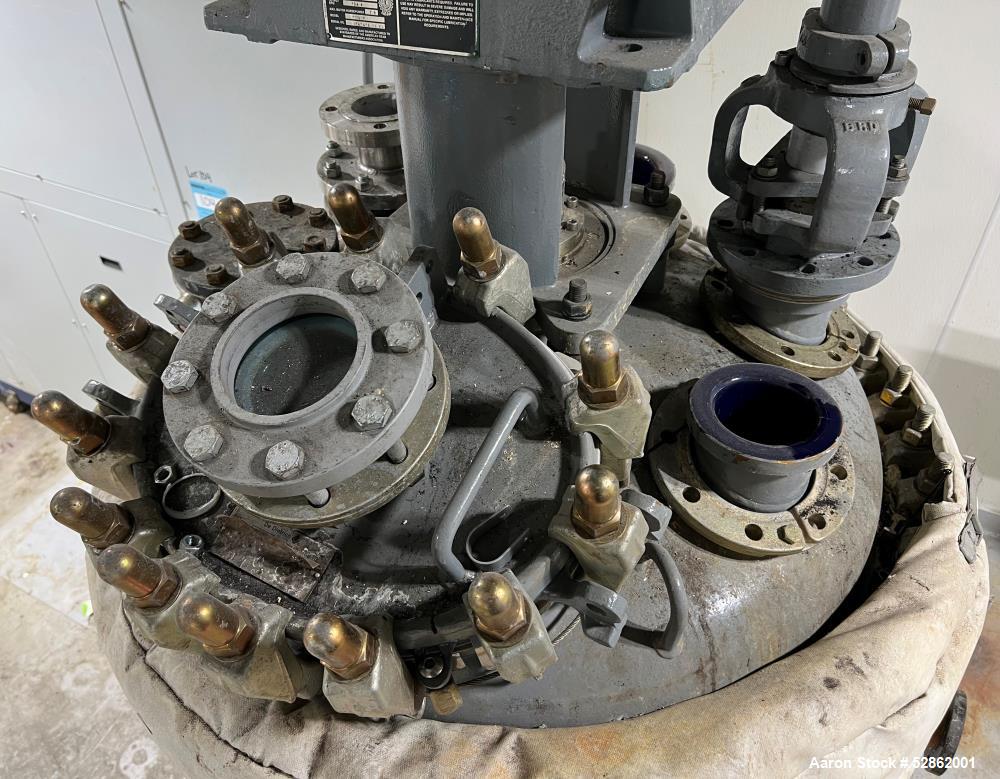

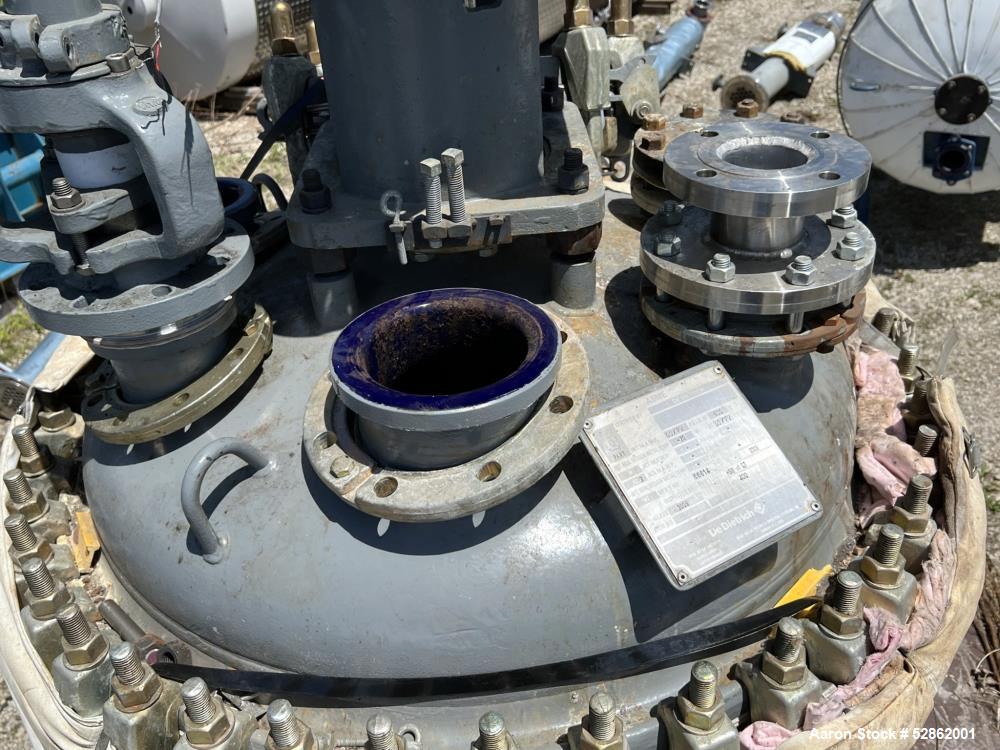

Opening18" manway, 6" for agitator, 6", (4) 4"
-
Opening CoverYes
-
Outlet Size4"
-
Outlet LocationBottom
-

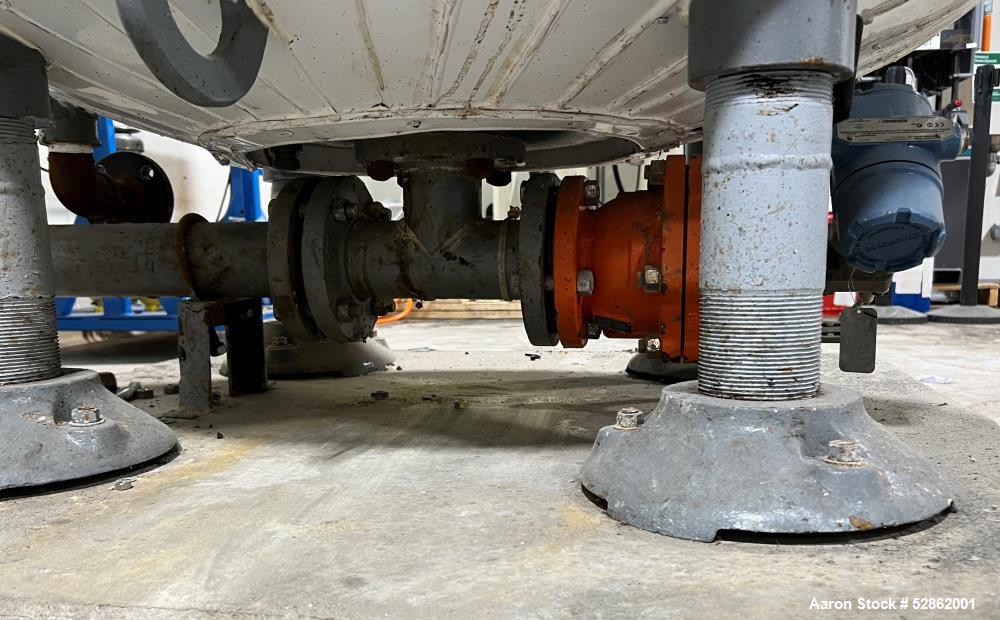

MountedMounted on 4 Legs
-

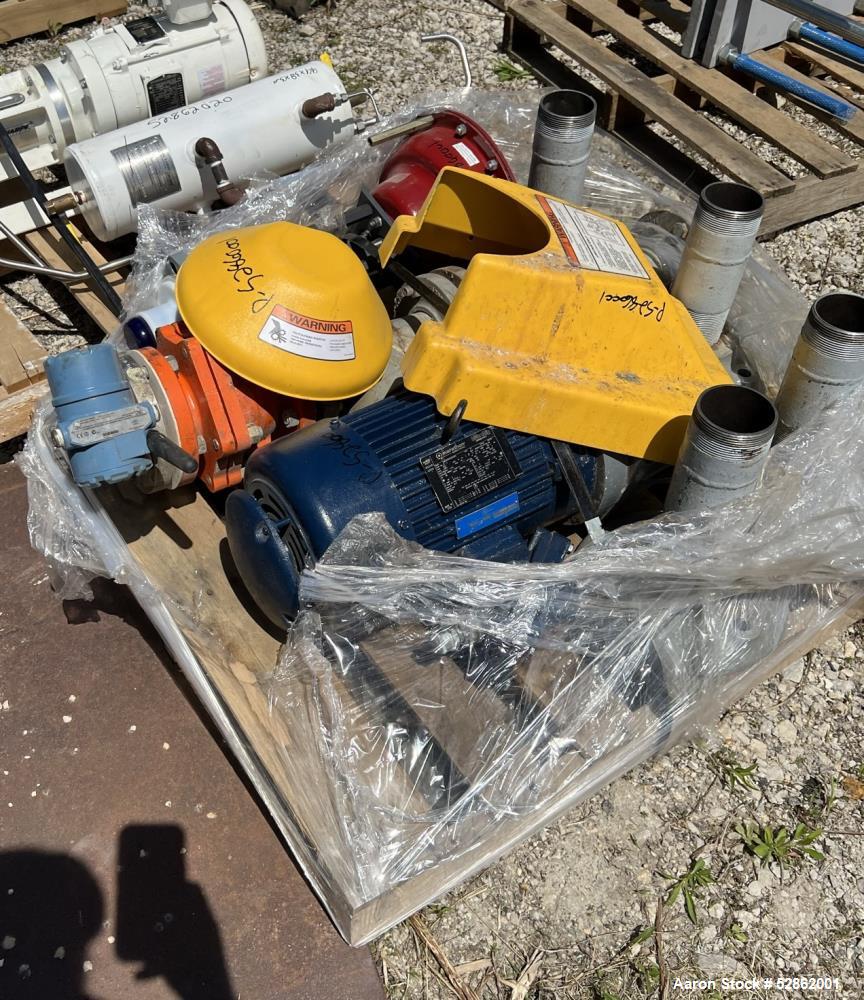

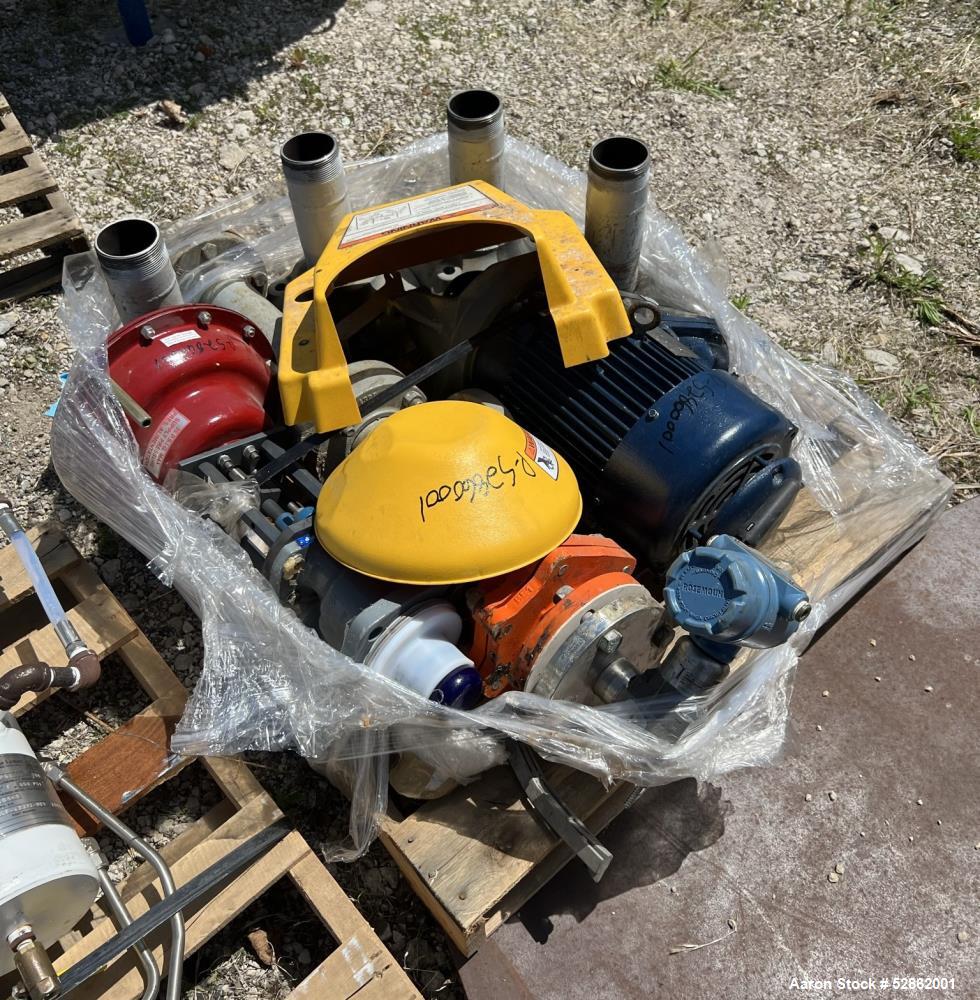

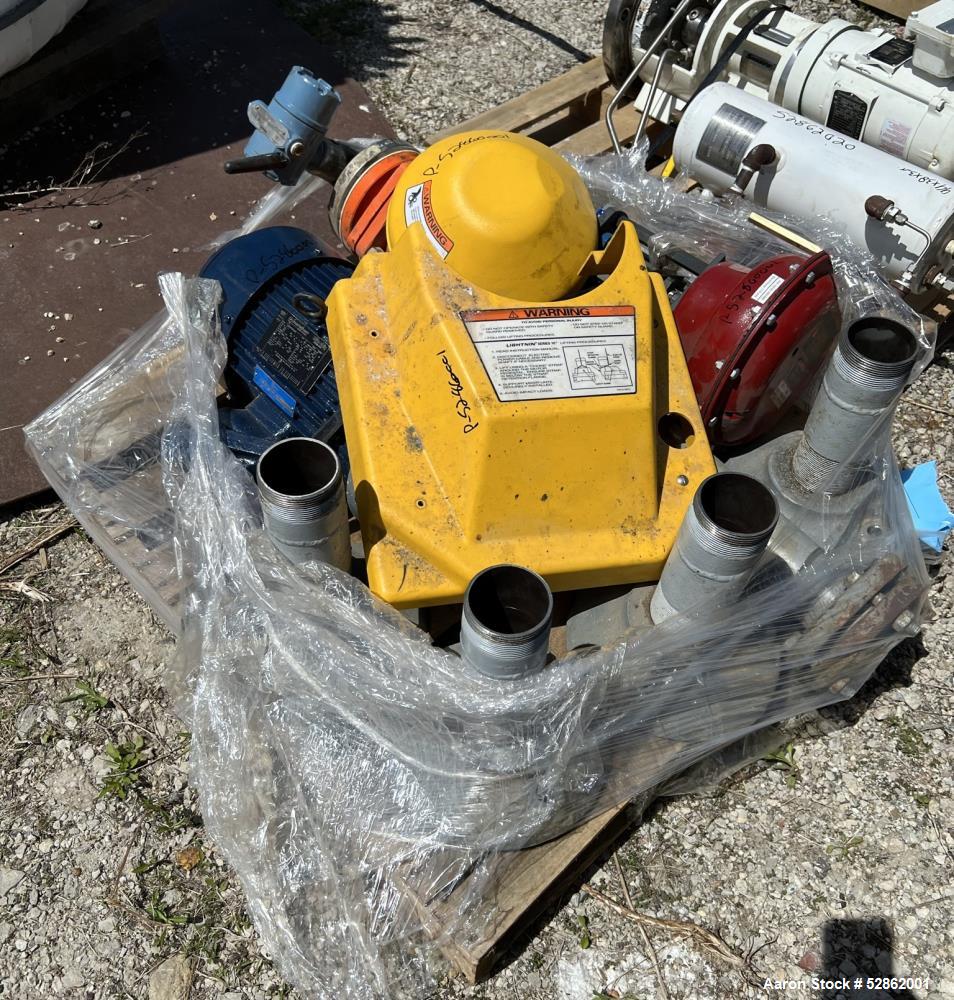

Overall Dimensions54 x 54 x 90"T, Skid of parts 48" x 40" x 26"T
-

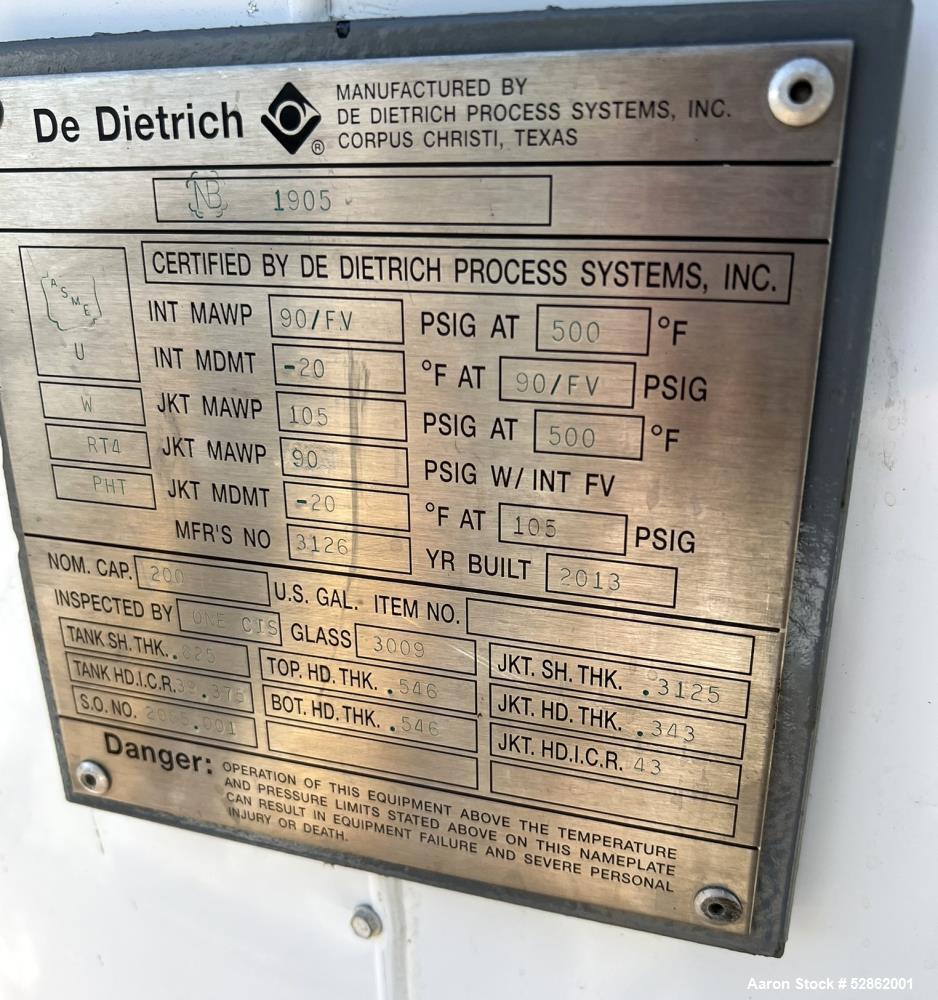

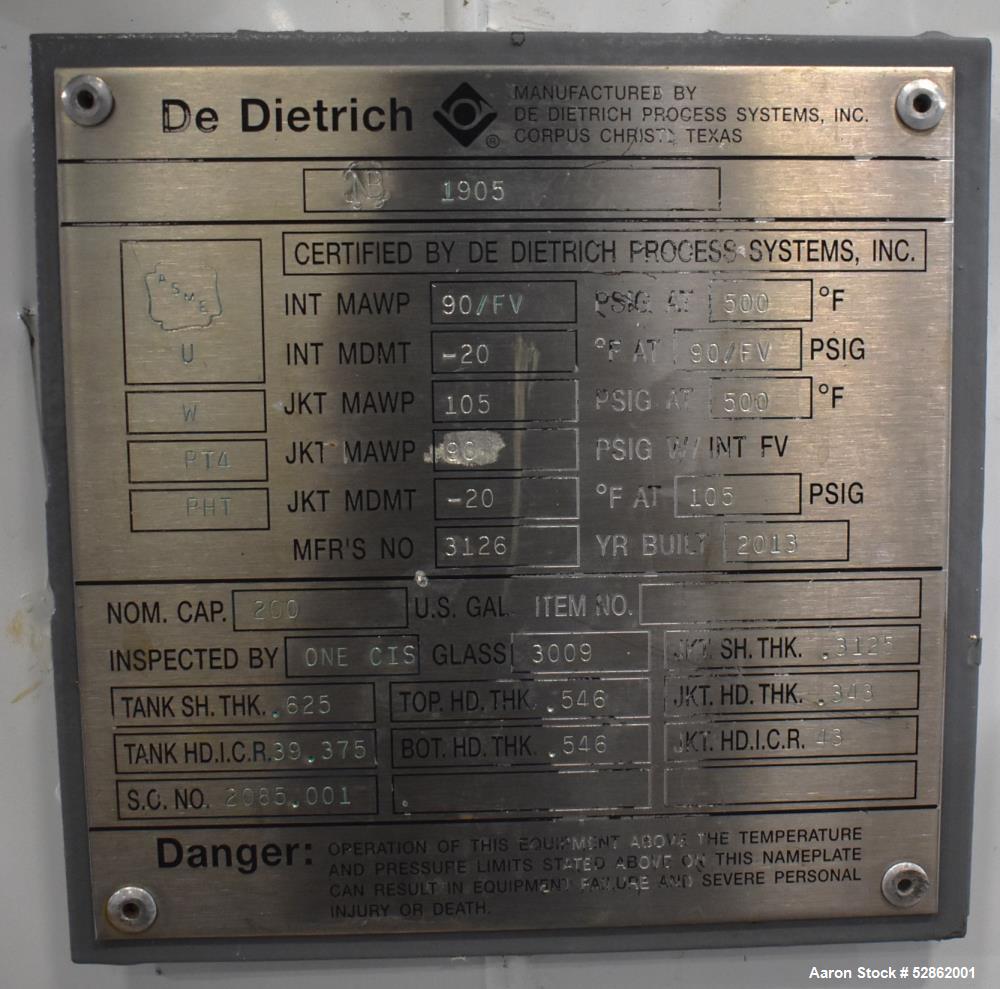

National Board No.1905
-
Year Built2013
