Used- Dedietrich 5000 Gallon Glass Lined Reactor
Stock# 49330007
DESCRIPTION

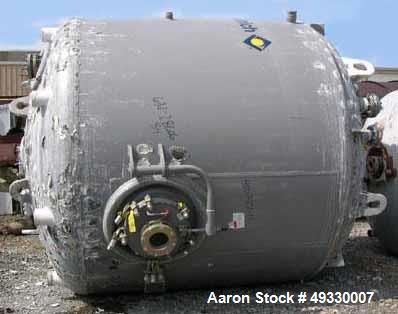

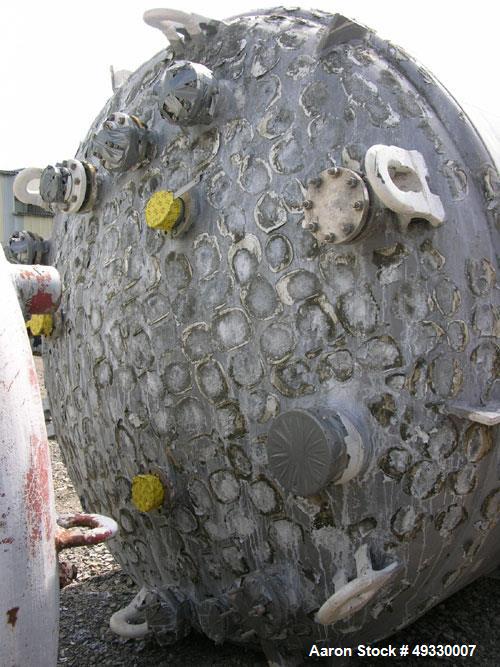

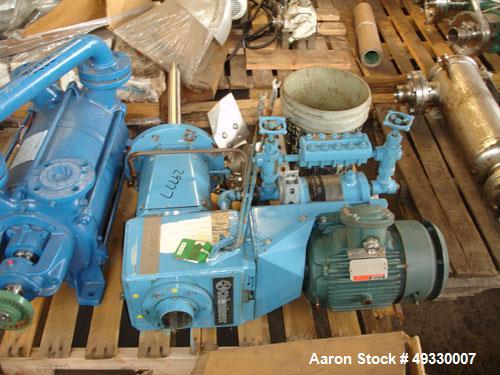

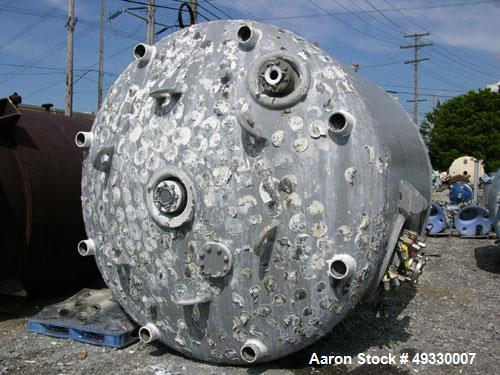

Dedietrich Glass Lined Reactor, 5000 Gallon, 3009 Blue Glass. Approximately 108" diameter x 90" straight side, dished top and bottom. Internal rated 90/fv psi at 400 degree F, jacket rated 90 psi at 400 degree F. Side entering Chemineer agitator, Model 2HSN-5, 350 output rpm, 3 blade stainless steel turbine, driven by a 5 hp, 3/60/230/460 volt, 1750 rpm xp motor. 18" side bottom manway with a sight glass, 4" off center bottom outlet, 4" center bottom outlet. Mounted on 8 legs. Serial # 2402, National Board # 1298. Built 2003.
SPECIFICATIONS
| Manufacturer | De Dietrich |
| Serial # | 2402 |
| Category | ReactorsReactors |
| Subcategory | Glass Lined ReactorsGlass Lined Reactors |
| Gallons | 5000 |
| Material of Construction | Glass Lined |
| Horizontal or Vertical | Vertical |
| Diameter | 108 |
| Straight Side | 90 |
| Top Head Style | Dished Head |
| Bottom | Dished Bottom |
| Internal Pressure | 90/FV |
| Internal Temperature | 400 |
| Pressure - Jacket | 90 |
| Temperature - Jacket | 400 |
| Agitator Location | Side Bottom |
| Agitator Manufacturer | CHEMINEER |
| Agitator Model | 2HSN-5 |
| Agitator Serial No. | 545233-1 |
| Agitator HP | 5 |
| Agitator Phase | 3 |
| Agitator Cycle | 60 |
| Agitator Voltage | 208-230/460 Volt |
| Mixer Type | 3 Blade Turbine |
| Outlet Size | 4 |
| Outlet Location | Bottom |
| Mounted | Mounted on 8 Legs |
| National Board No. | 1298 |
| Year Built | 2003 |
