Stock No.: 43567018

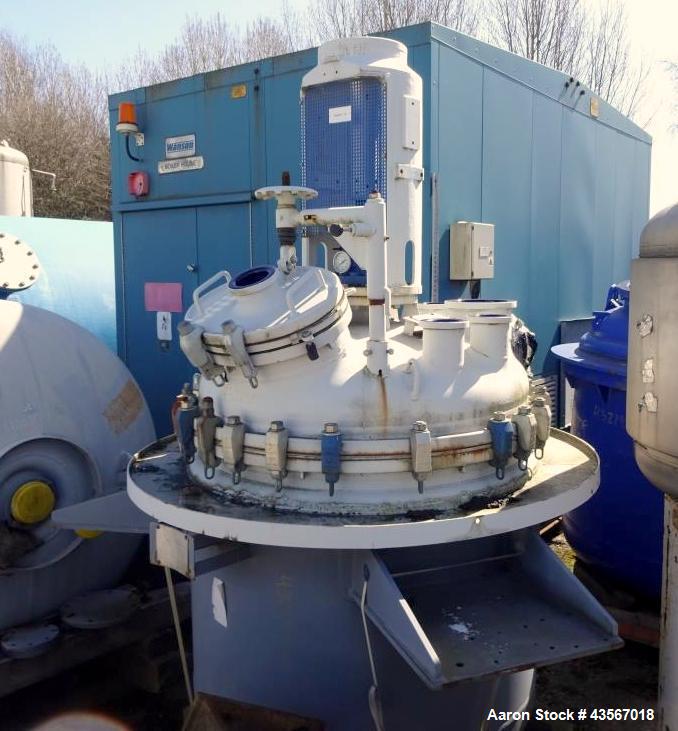

Used De Dietrich Glass Lined Reactor, 1180 Liter (311.81 Gallon), 3009 Blue Glass, Vertical. Approximately 48" diameter x 40" straight side. Dished clamp on top, dished bottom. Internal rated -1/6 ba...

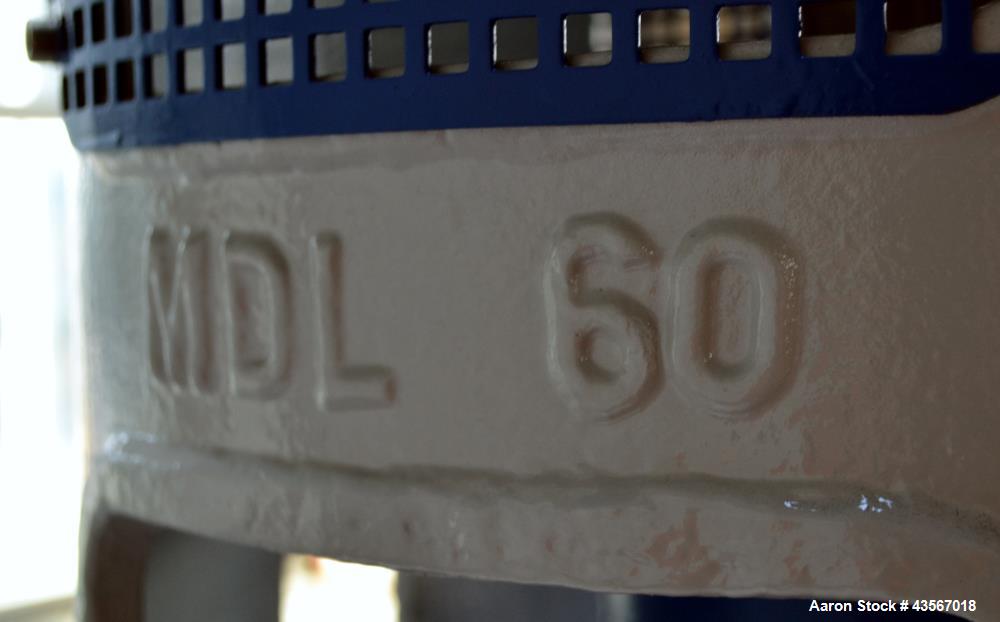

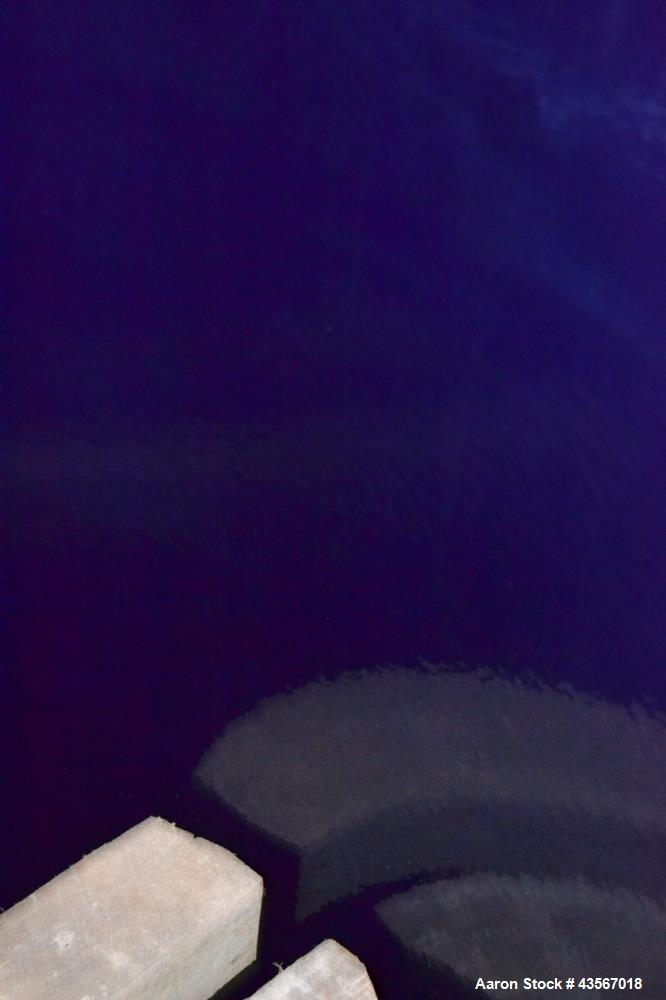

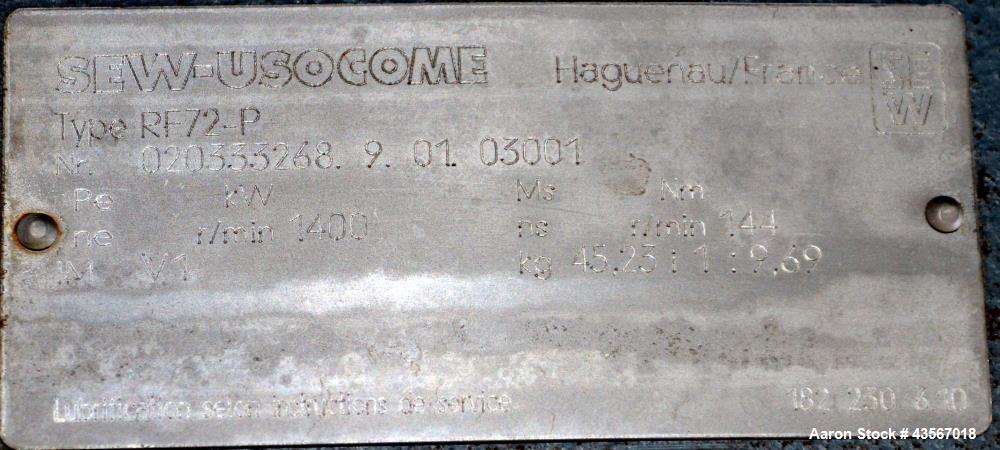

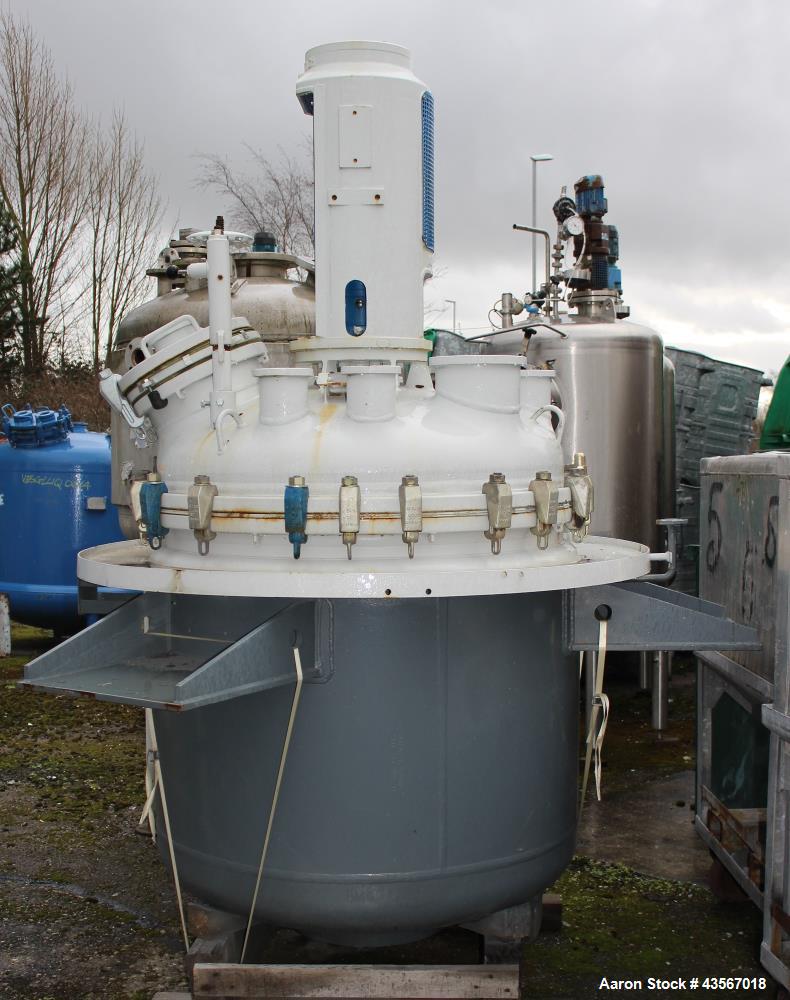

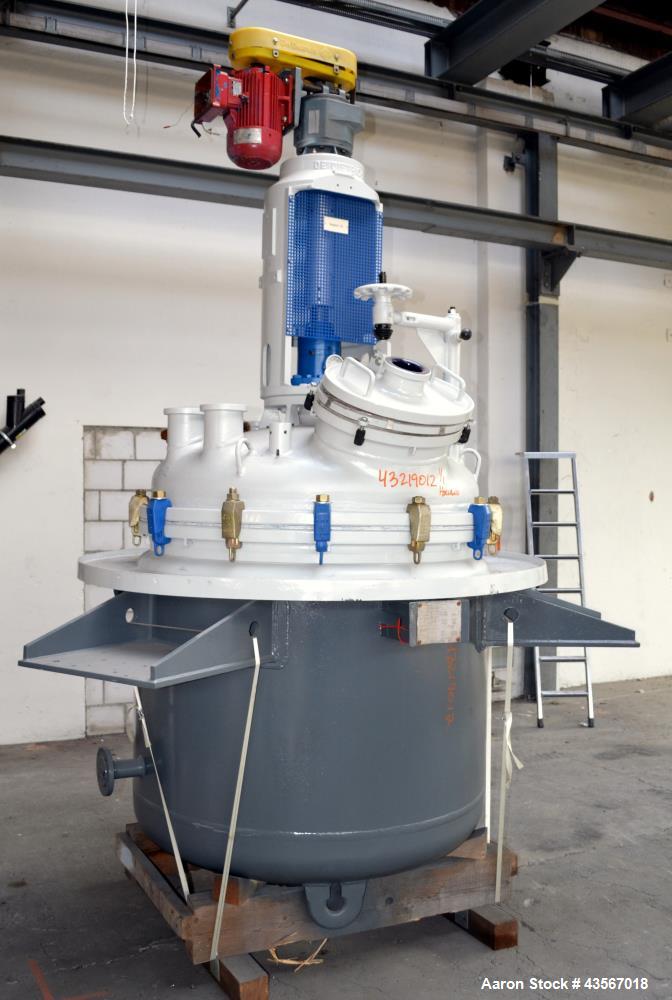

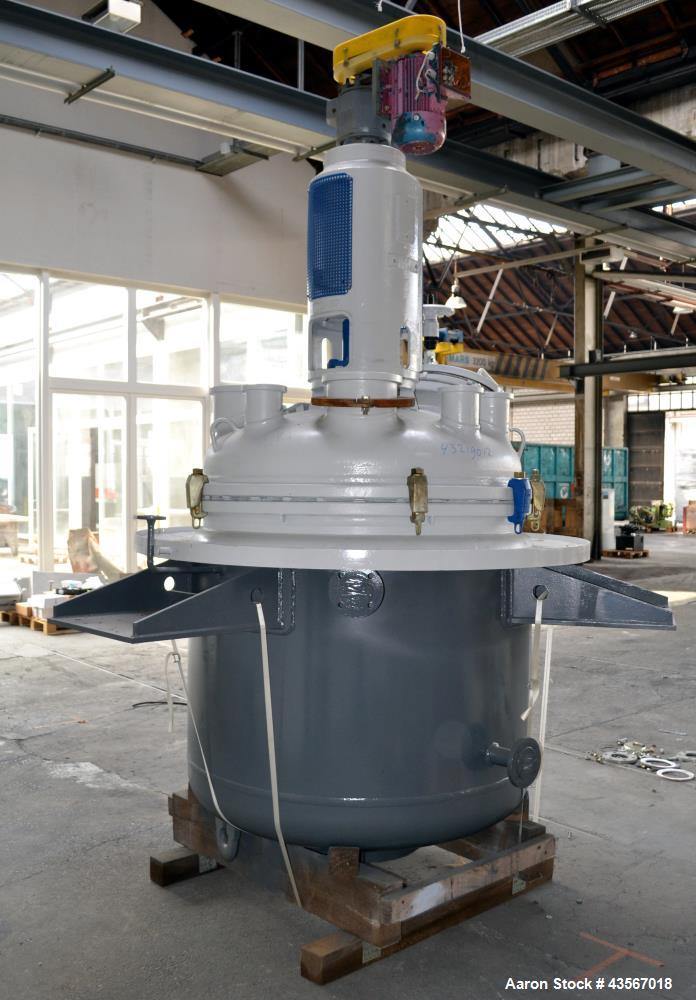

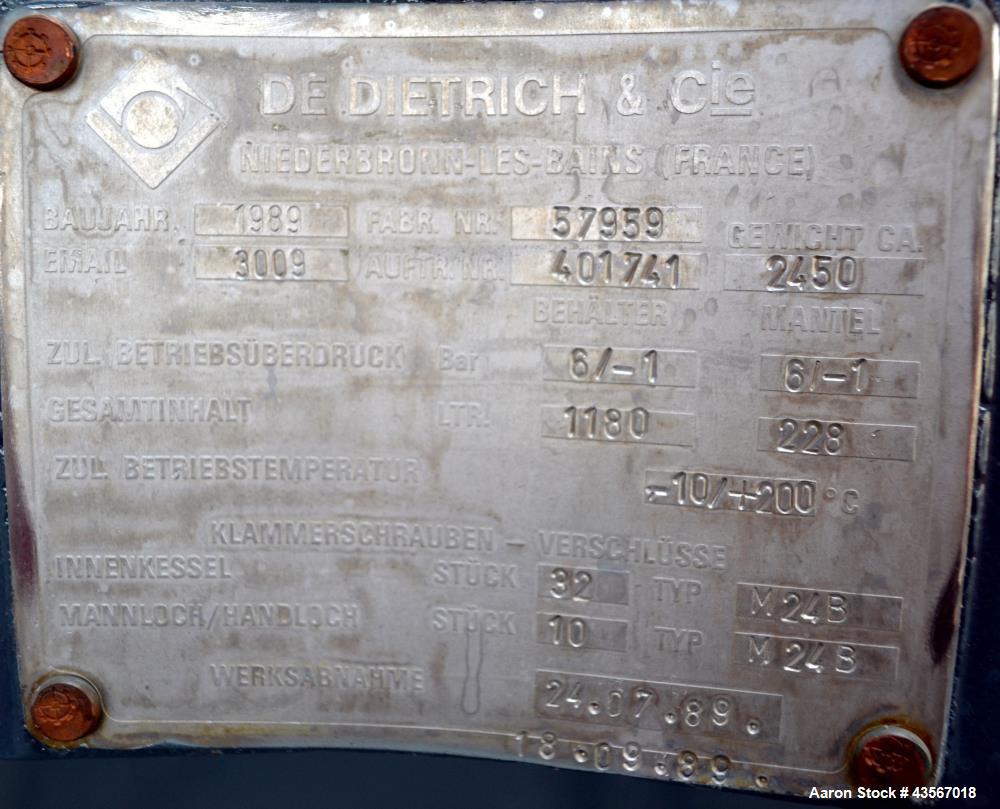

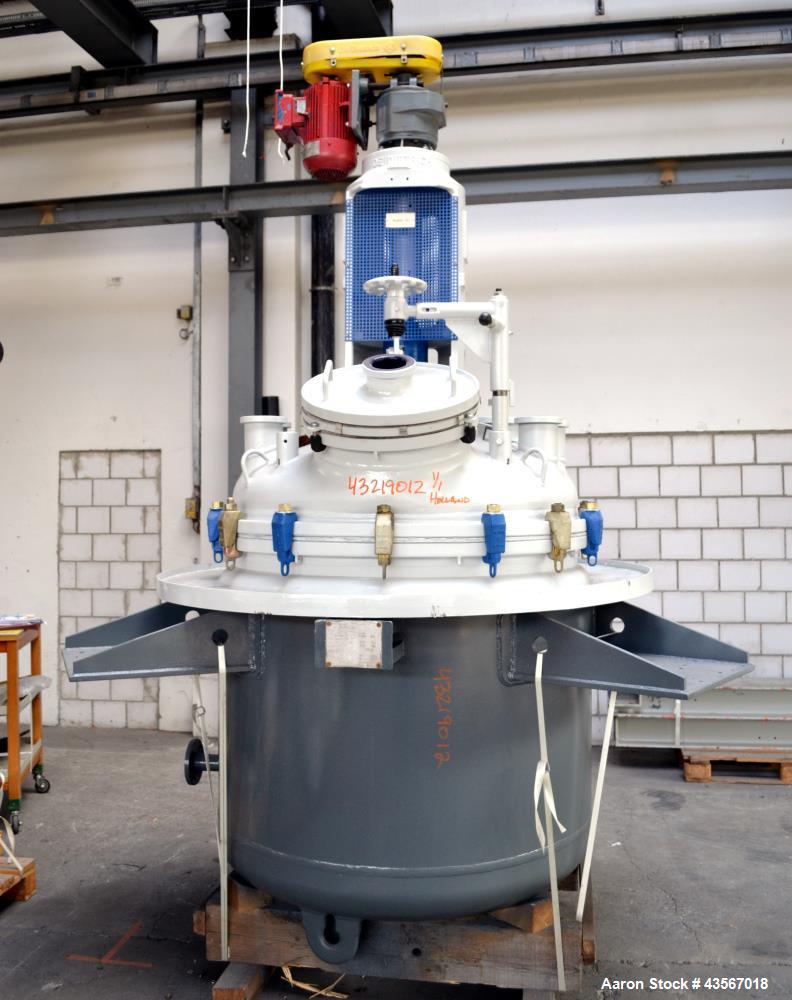

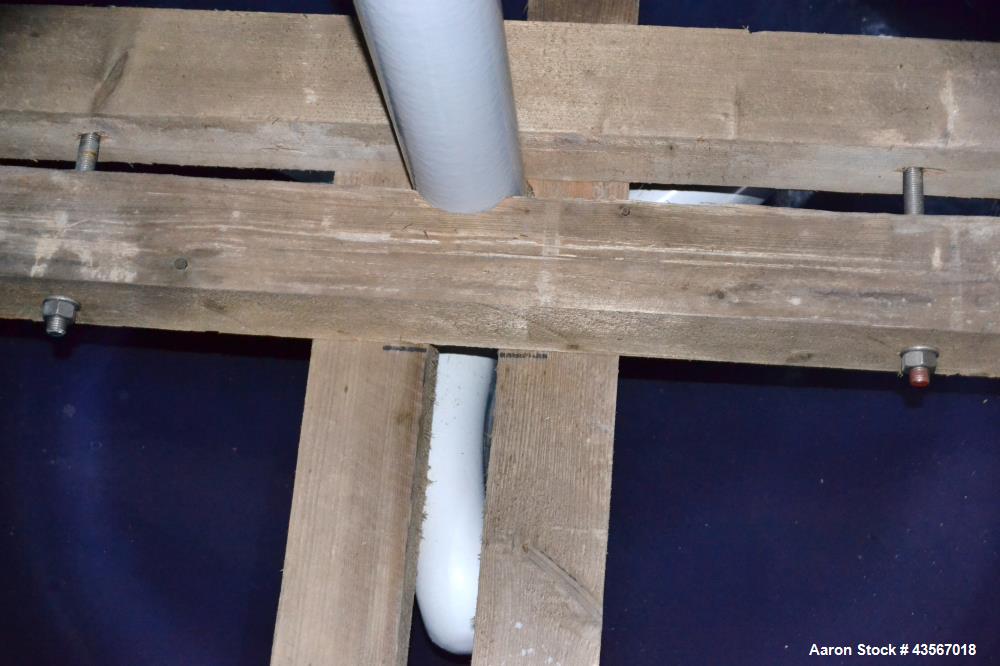

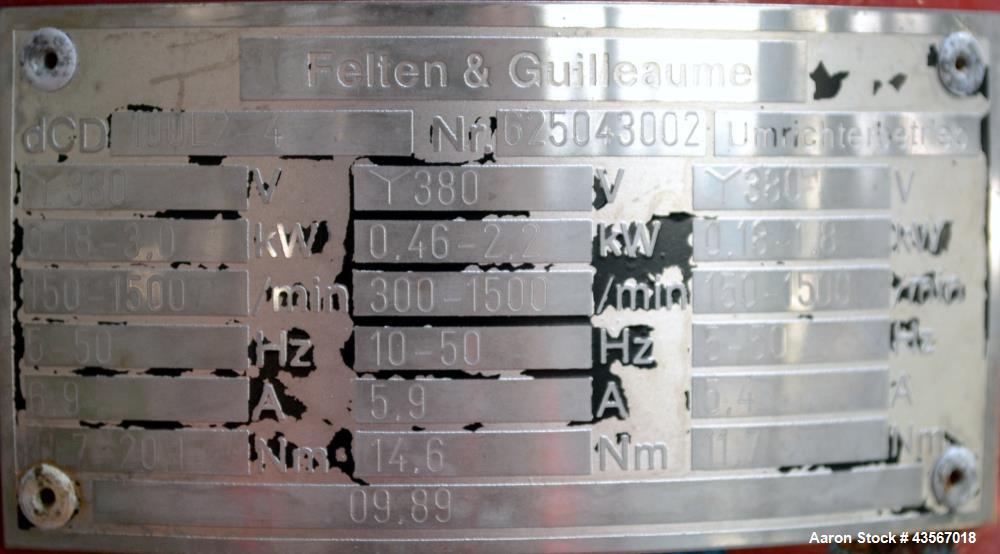

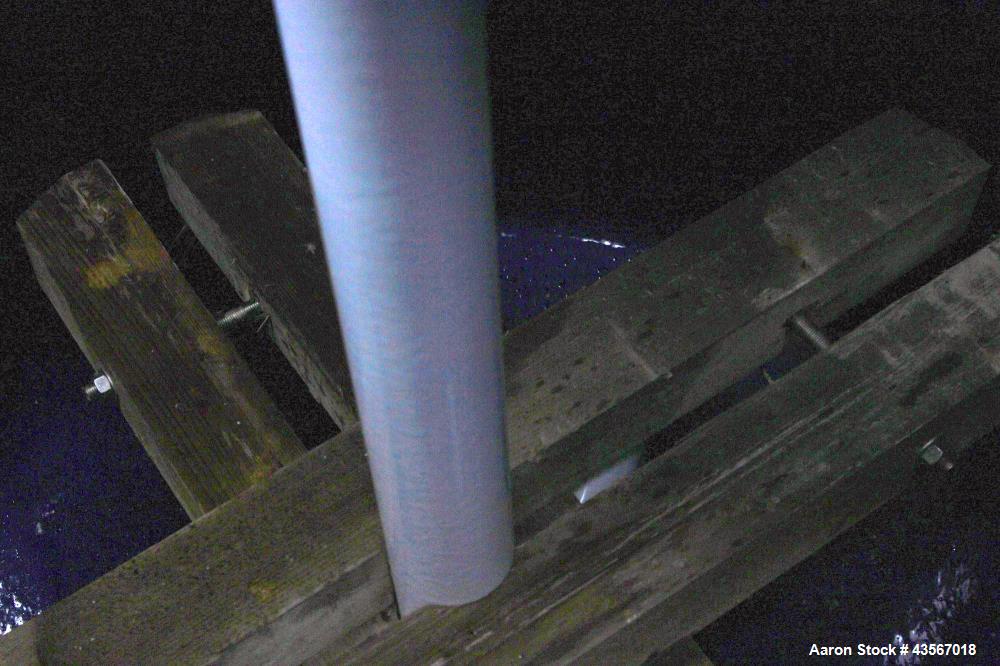

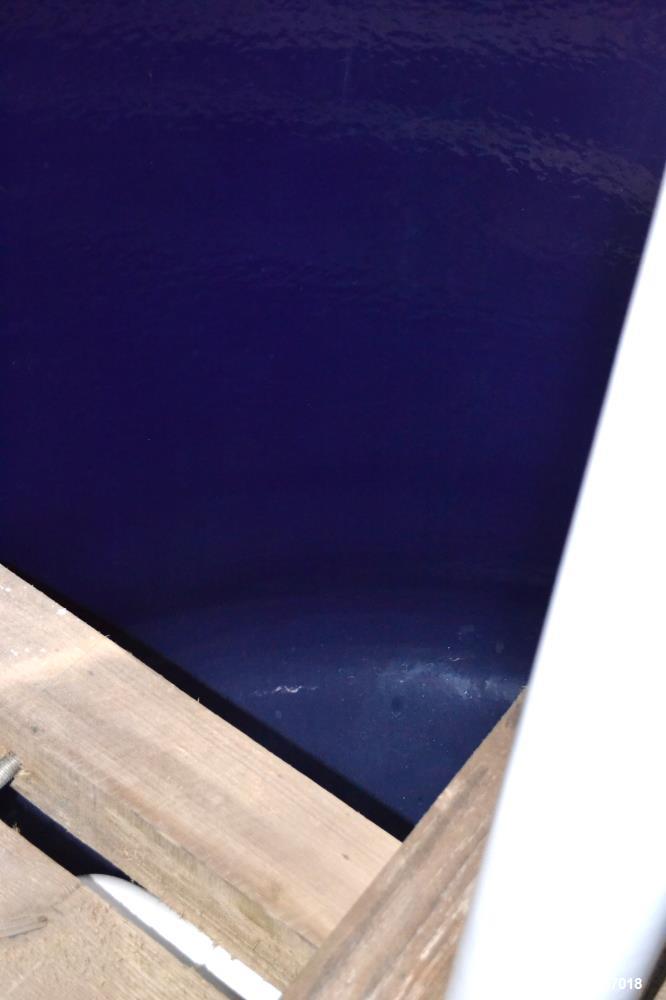

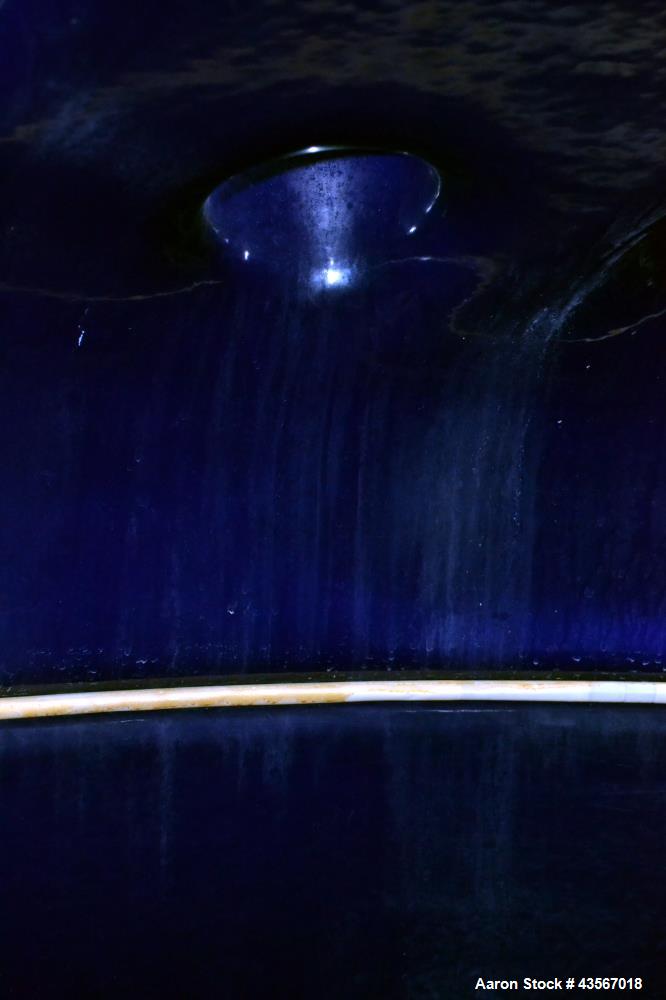

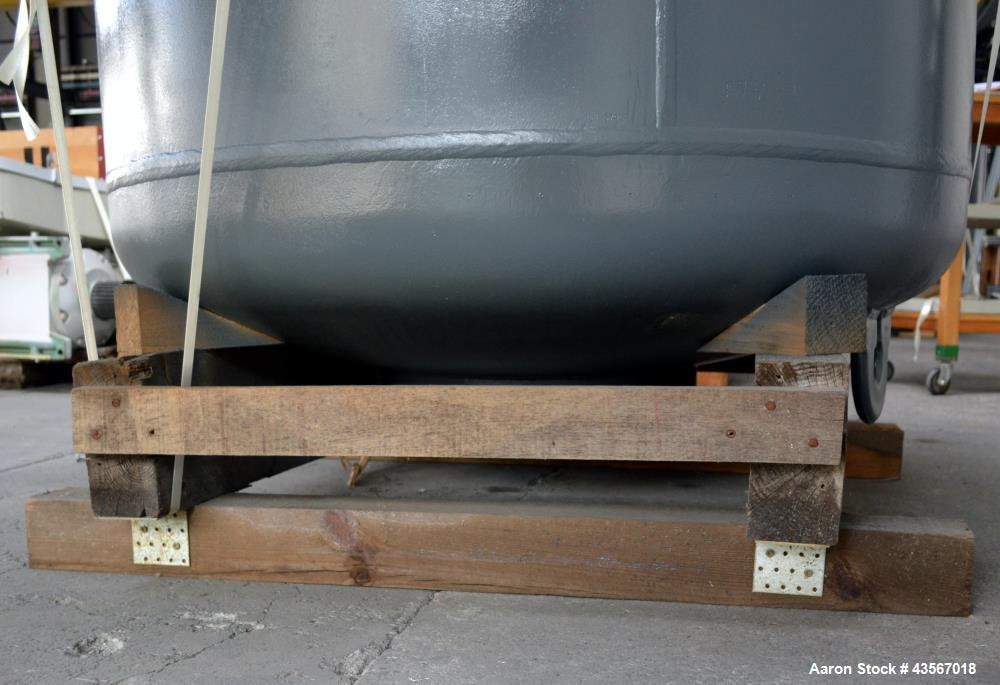

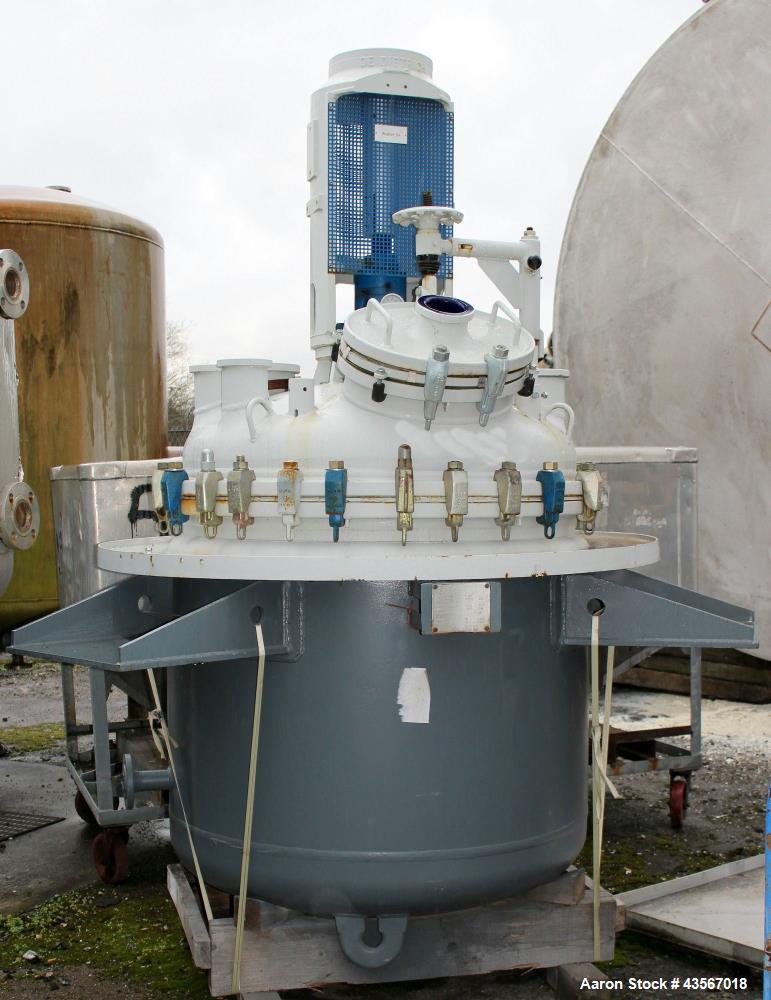

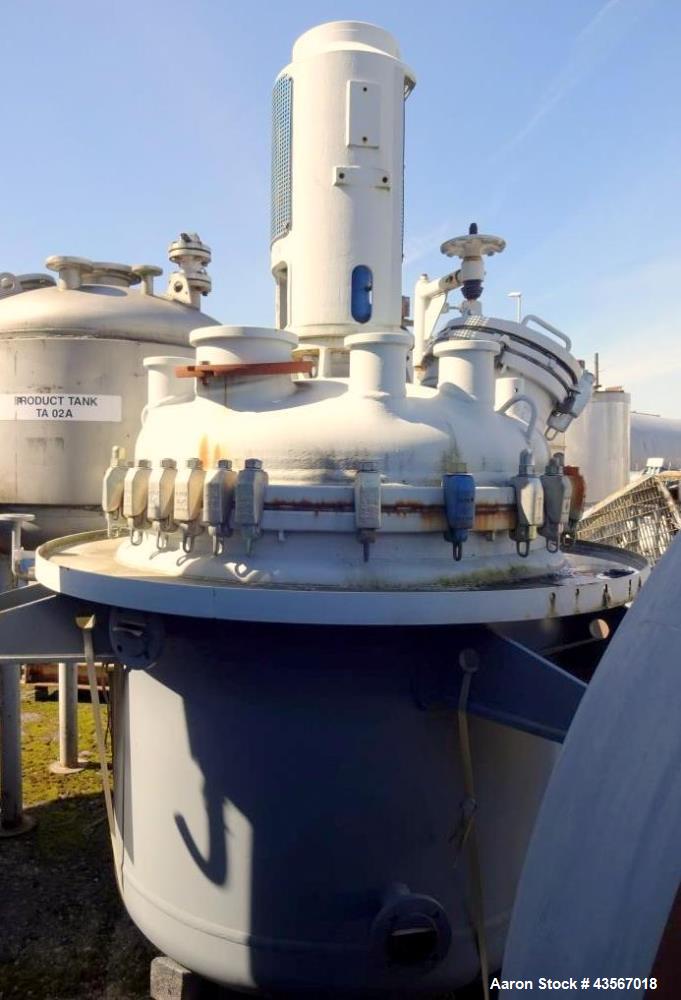

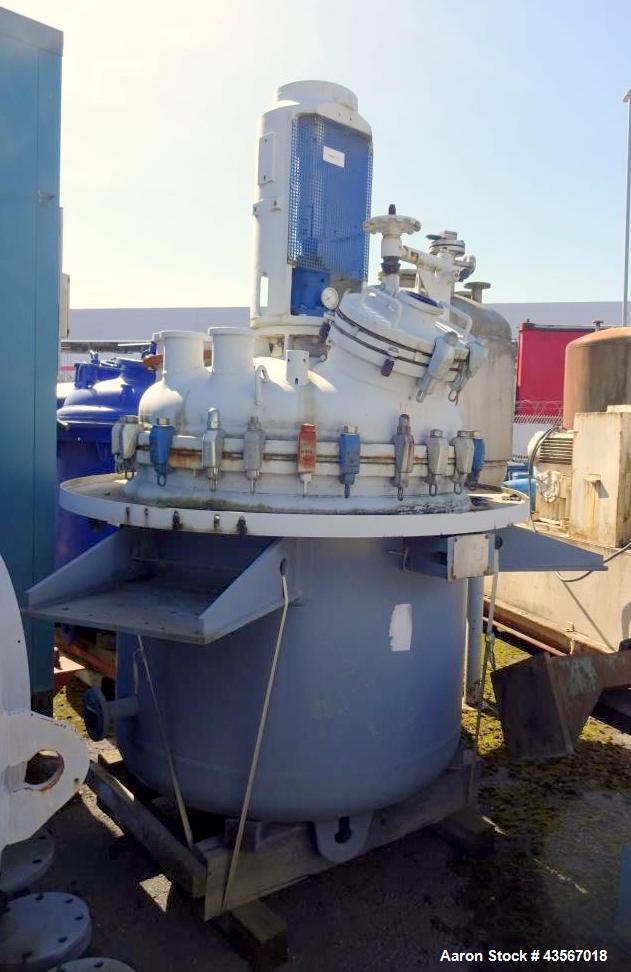

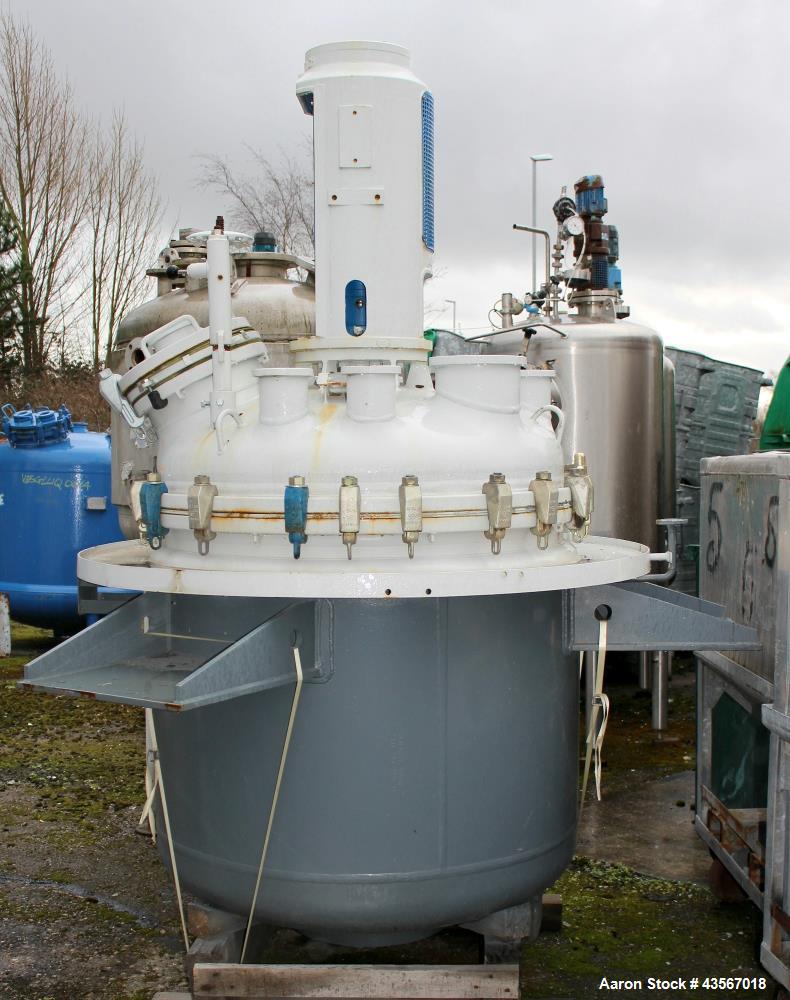

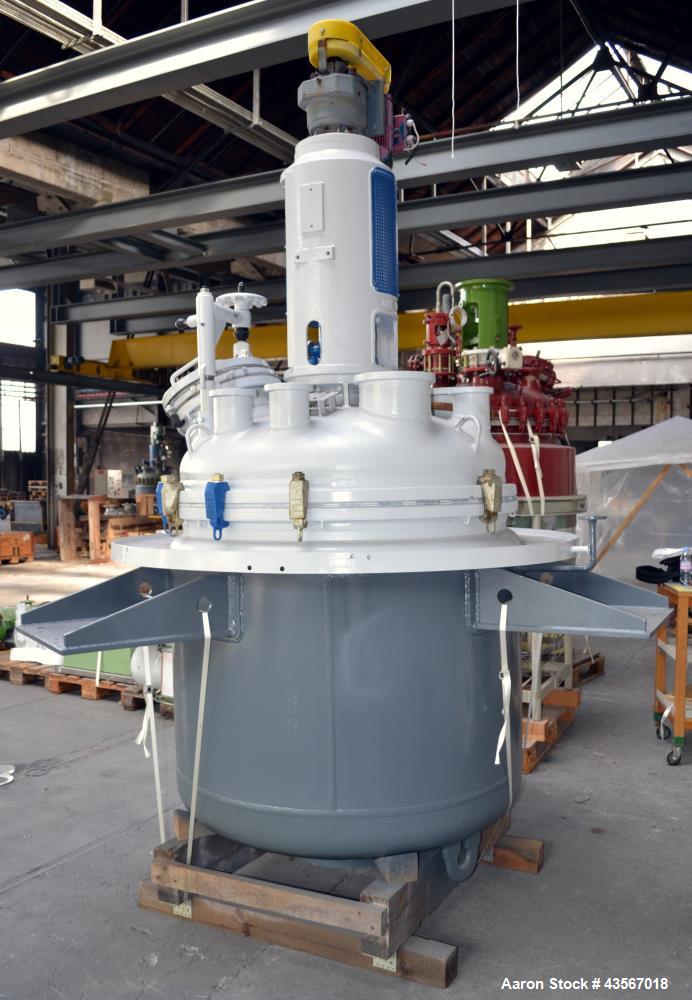

Used- De Dietrich Glass Lined Reactor, 1180 Liter (311.81 Gallon), 3009 Blue Glass, Vertical. Approximately 48" diameter x 40" straight side. Dished clamp on top, dished bottom. Internal rated -1/6 bar (-14.5/87 psi) at –10 to 200 degrees C (14 to 392 F). Carbon steel jacket rated -1/6 bar (-14.5/87 psi) at –10 to 200 degrees C (14 to 392 F). De Dietrich agitator, model 60. 3 Blade RCI, driven by a 3kw (4 hp), 3/50/380 volt, 1500 rpm variable hertz motor. Openings top (5) 4’’, (2) 8’’, 12’’ x 16’’ man way with cover. Bottom outlet. Mounts on side lugs.
-
ManufacturerDe Dietrich
-

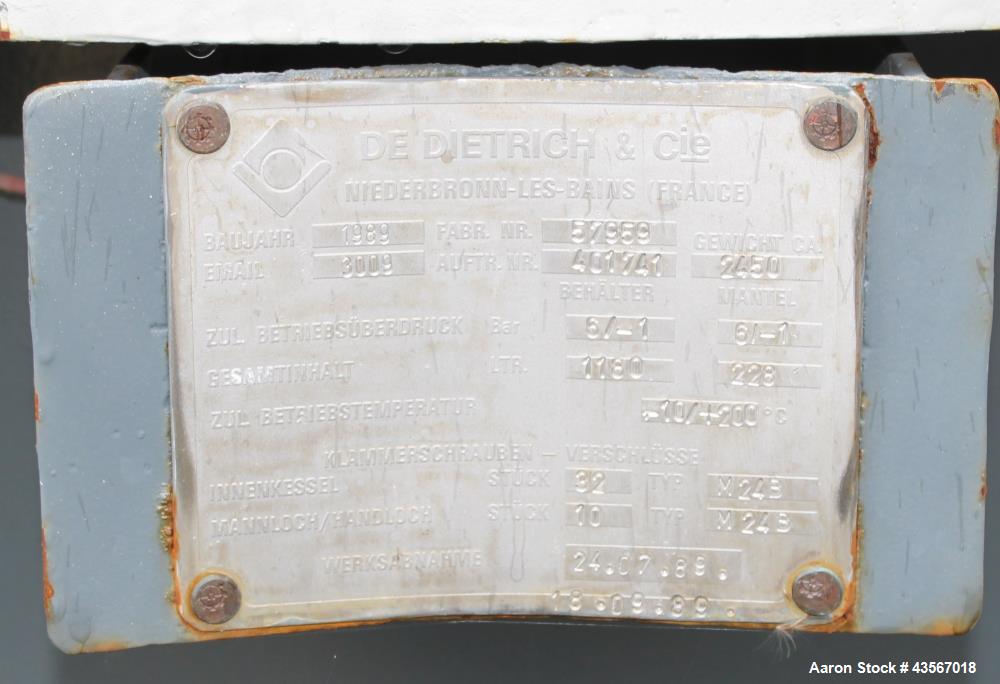

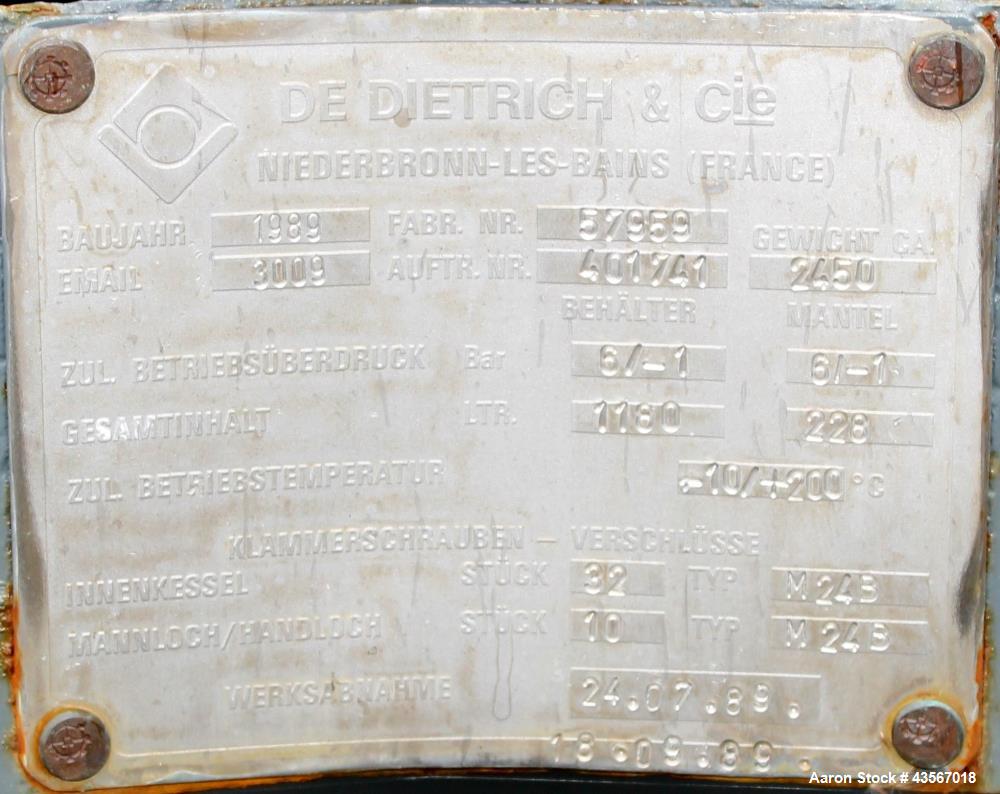

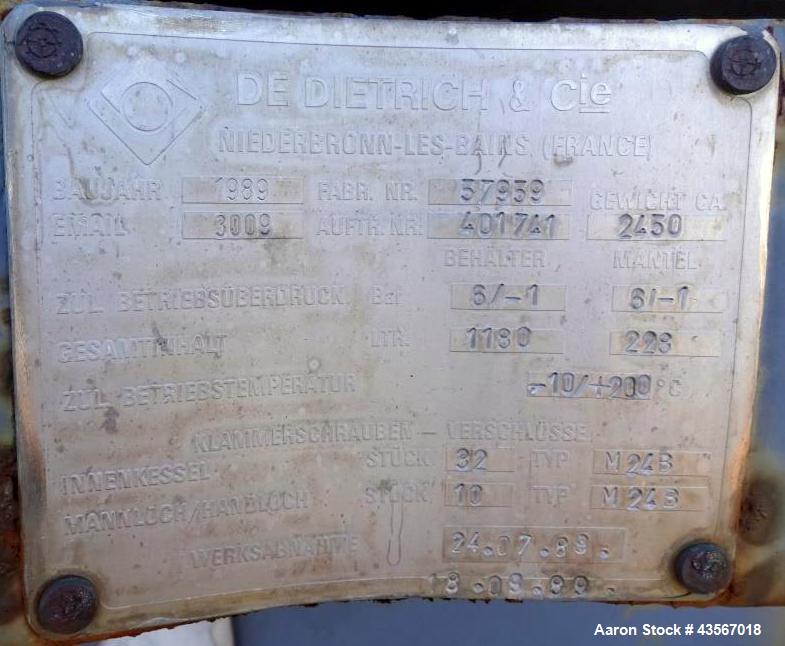

Serial #57959
-
CategoryReactors
-
SubcategoryGlass Lined Reactors
