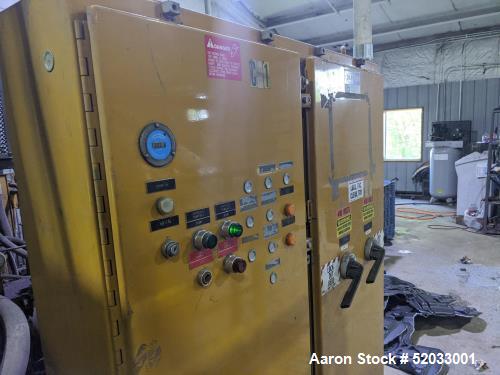

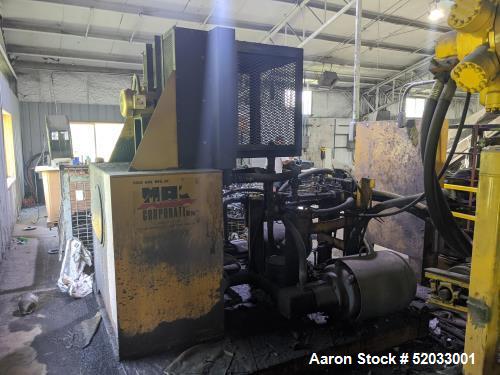

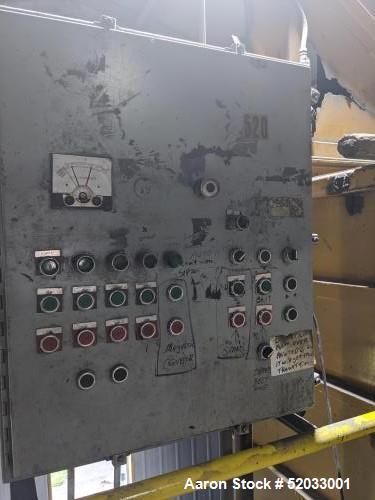

Used Granutech Saturn Model 62-40 HT Dual Shaft Shredder. Inlet 55" x 38". Outside Dimensions are 130" x 61" X 43". Power Unit Dimensions are 96" x 86" x 96". Weight is 20,000 lbs. Power unit is 8000 lbs (dry). Cutter Shaft Torque: Fast 64,776 ft/lbs Torque: Slow 78,653 ft/lbs. Cutter Shaft Speed: Fast 22 Speed: Slow 18. Cutter Force Fast: 77,732 lbs Slow: 94,383 lbs.Cutter Diameter 20.5" at hooks. Power Unit Open Loop, Skid Mounted; Electrical Power 200 HP (2 x 100) (Optional 150-300HP); Hydraulic Flow 156 GPM; Rated Pressure 3000 PSI Operator initiated pushbutton controls, featuring Allen Bradley PLC. Motor controls include primary disconnect with short circuit protection, full load contactors, and electronic overload detection. Control power derived from a single-phase transformer. All components assembled and wired in a NEMA enclosure.
