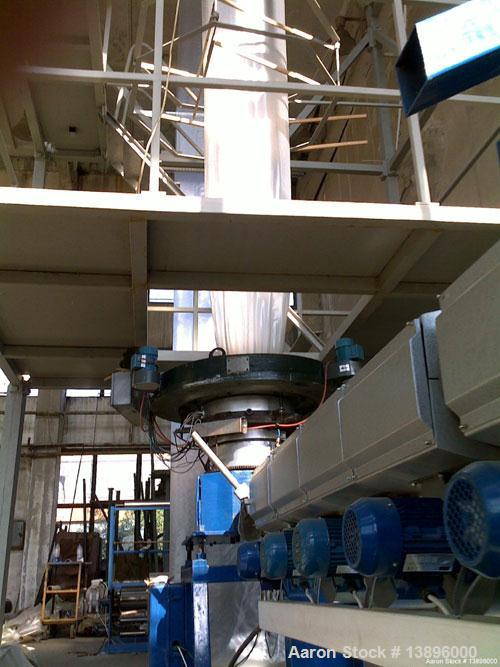

Used-Blown Film Extrusion Line comprised of: (1) Extruder for LDPE, built 2004, 53.3 hp/40 kW, diameter 3.54" (90 mm), L/D ...

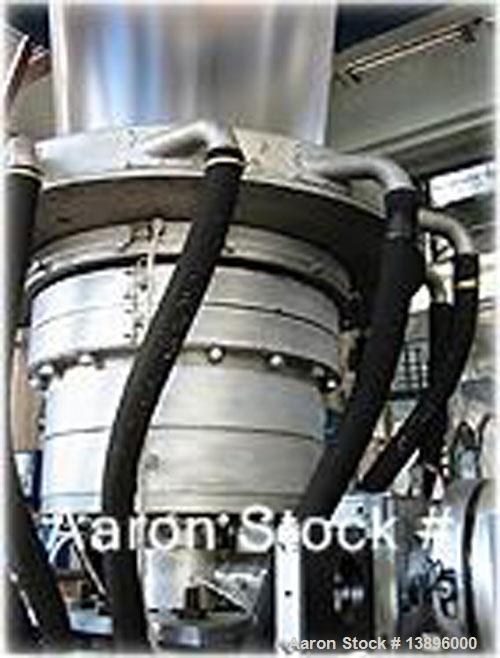

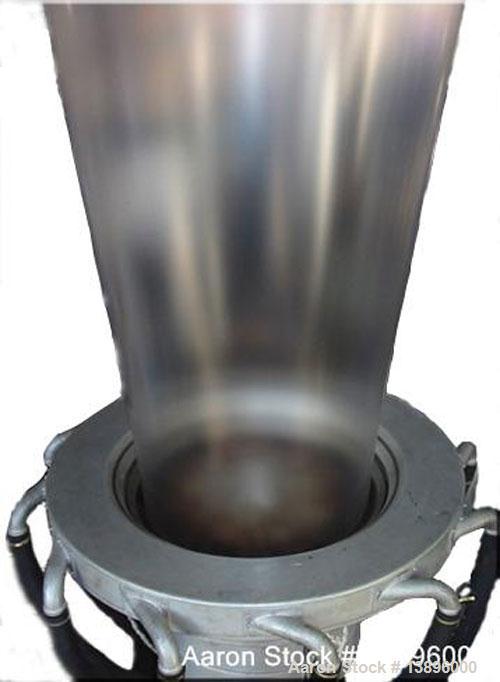

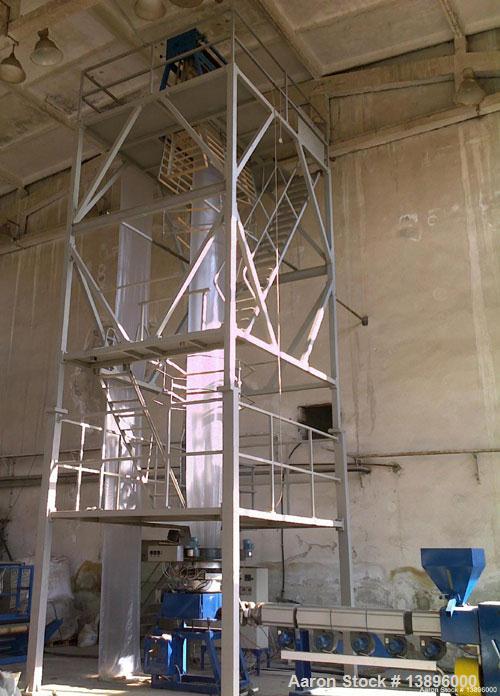

Used-Blown Film Extrusion Line comprised of: (1) Extruder for LDPE, built 2004, 53.3 hp/40 kW, diameter 3.54" (90 mm), L/D 25, 5 heating zones with separate cooling and adjustment, thermal control, 16 kW heating power, water cooled, nitrated screw and barrel, 0-120 screw rpm. (1) Manual filtering device, built 207, 2.7 hp/2 kW heating power. (1) Die, width of sleeve 157.5" (4000 mm), foil thickness 0.002" - 0.0047" (0.05 - 0.120 mm), 3 x 0.18 kW cooling fans, cooling ring, 3 heating zones. (1) Draw out device, built 2007, pull shaft length 55.1" (1400 mm), pneumatic shaft opening and closing, draw speed 5 - 50 meters/minute, 2 hp/1.5 kW power. (1) Winder, built 2007, shaft length 55" (1400 mm), 2 winding positions, maximum roll diameter 15.8" (400 mm), spool diameter 3" (76 mm). (1) Tower, steel standers, built 2007, 380V/50 hz/3 phase.
