Filamatic DAB-32-2 Series Heavy Duty Filling Machine

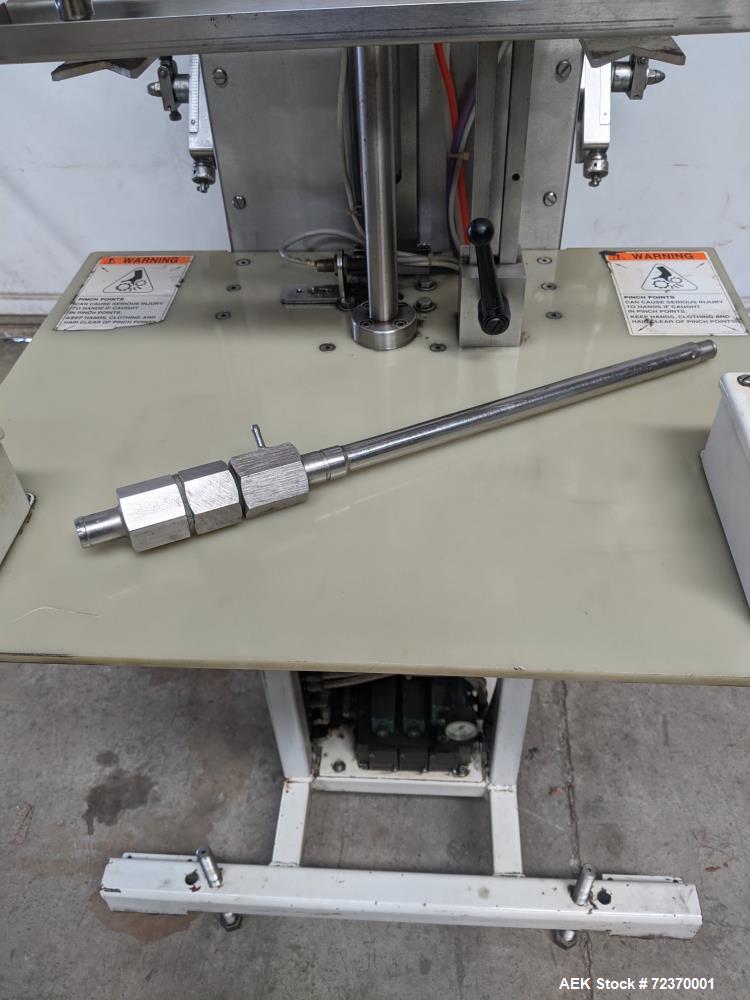

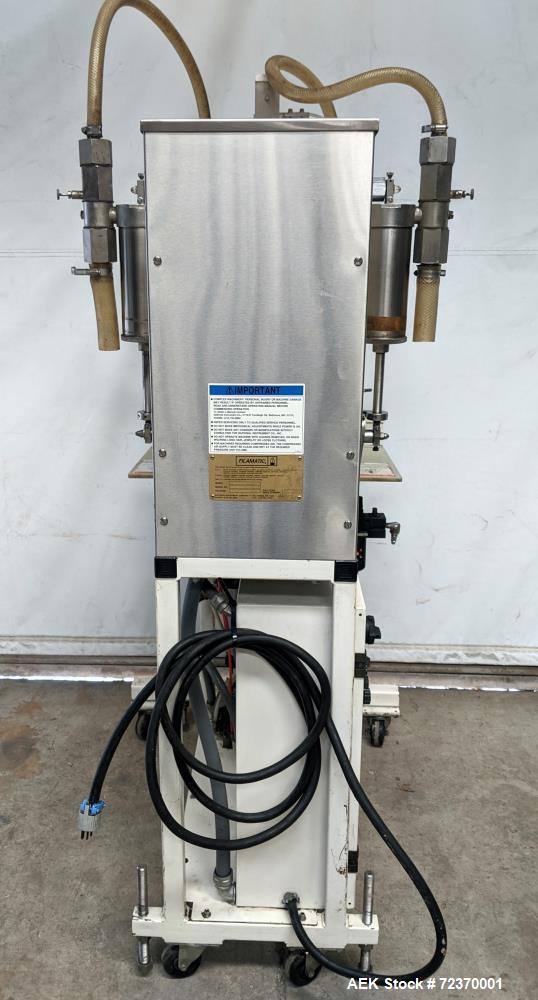

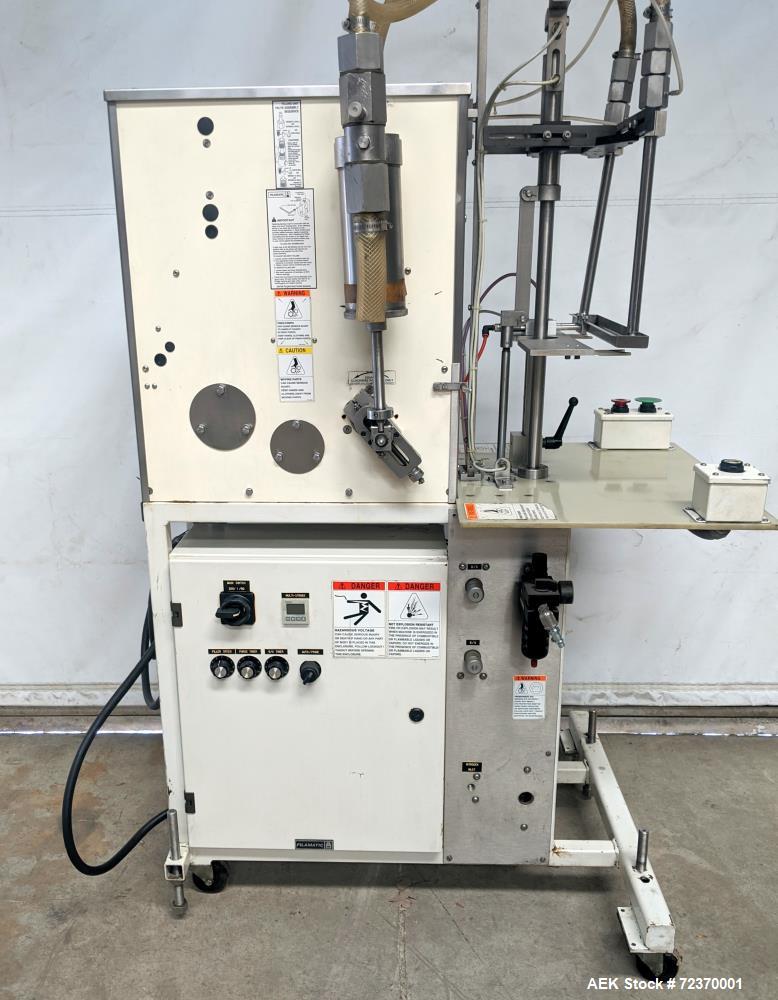

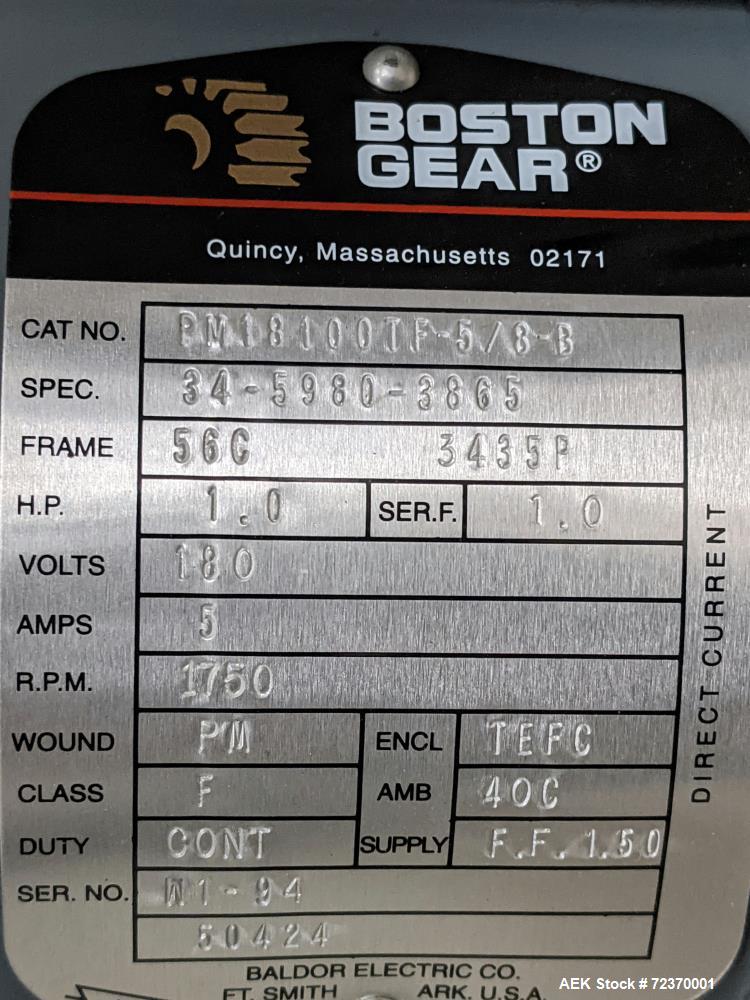

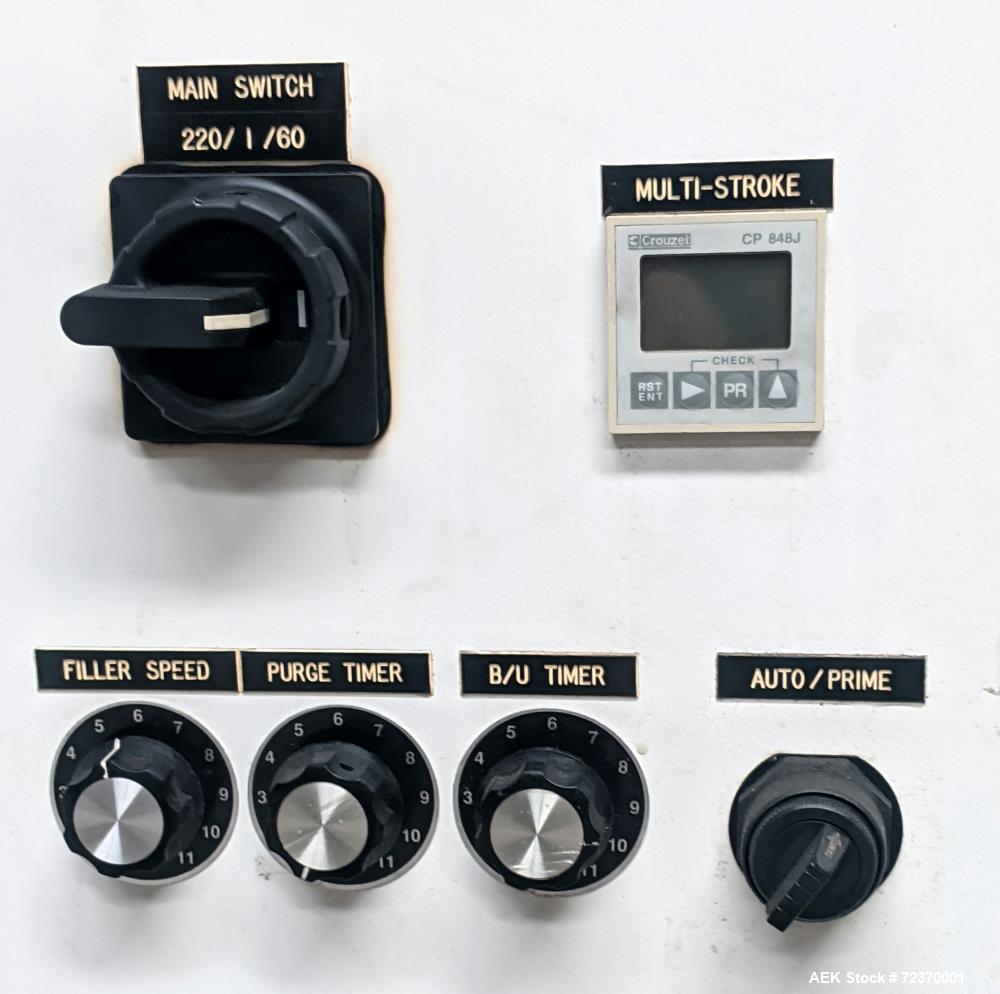

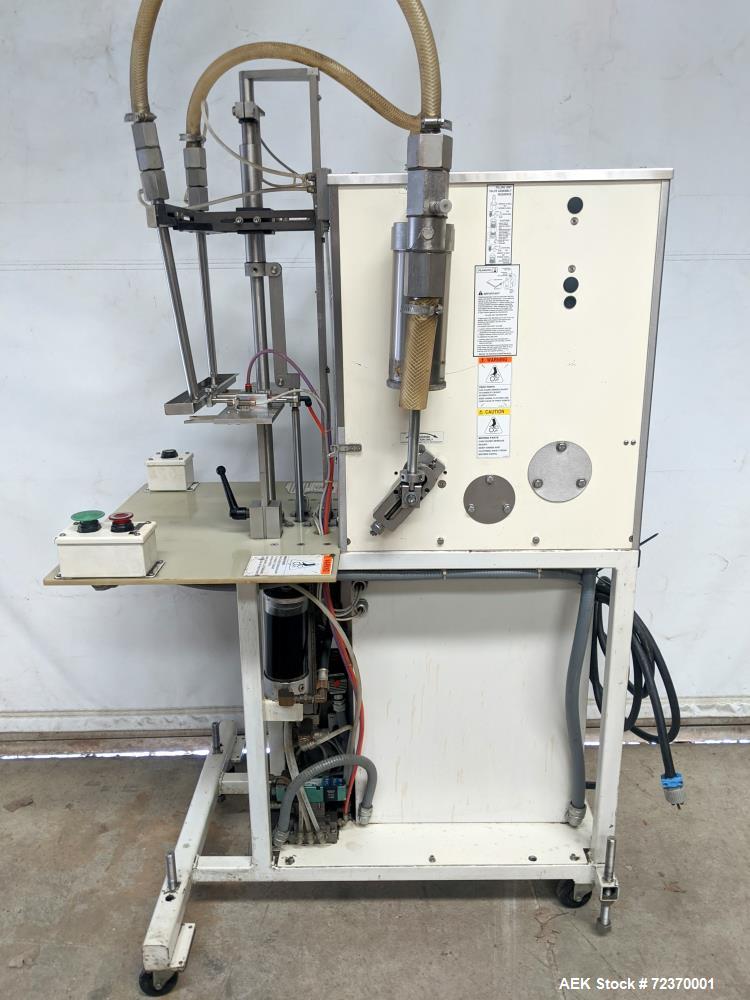

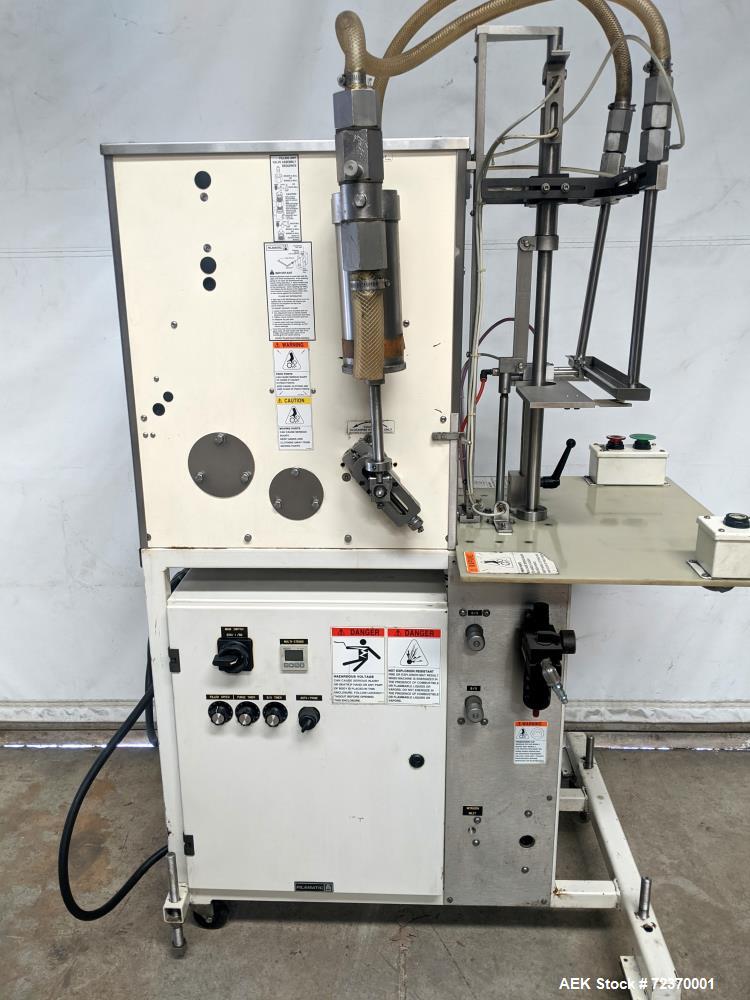

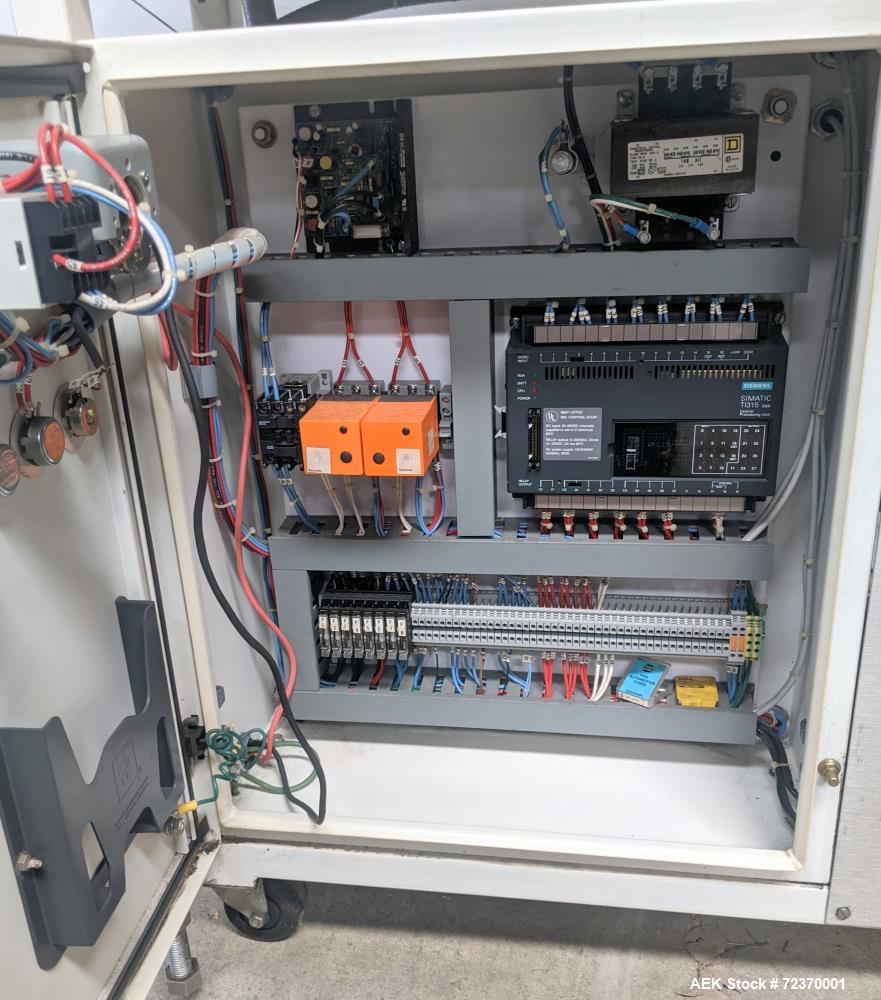

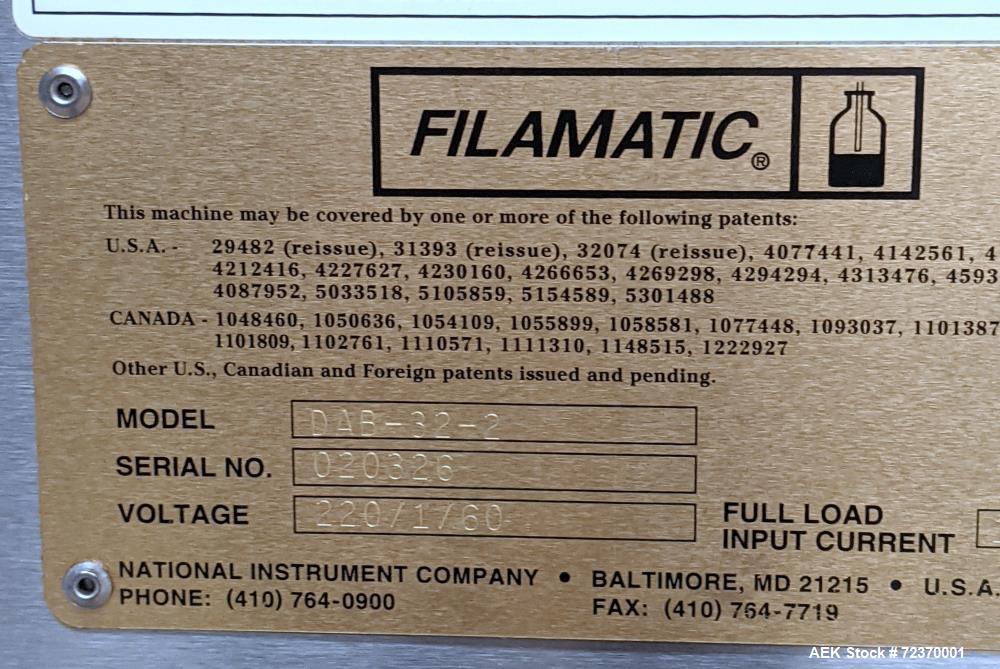

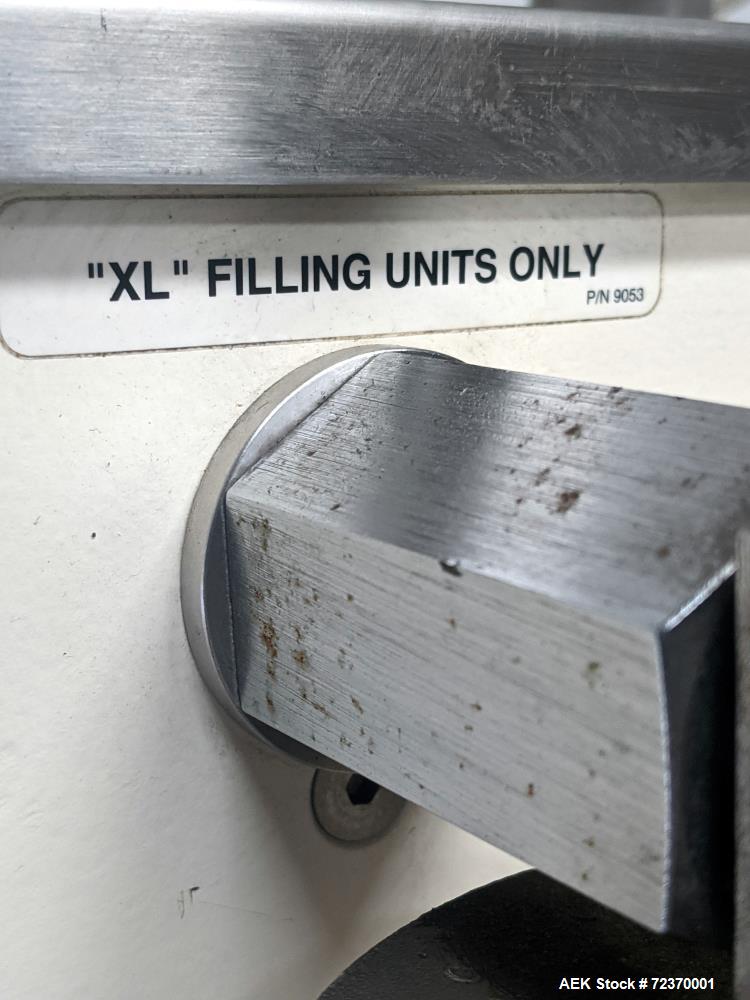

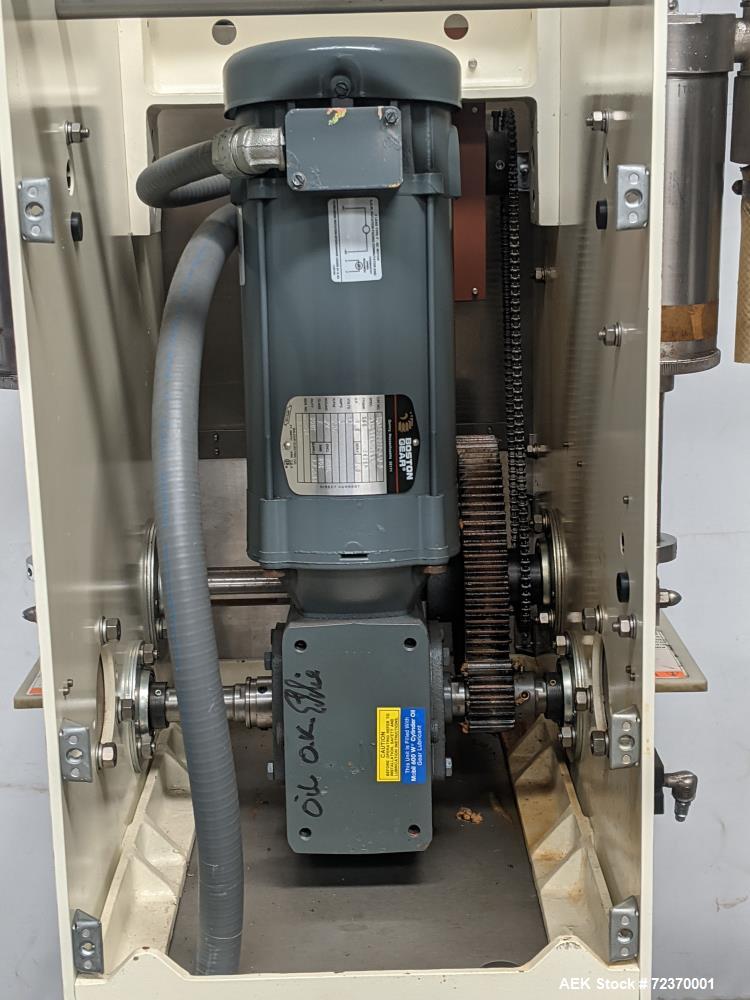

Used- Filamatic Model DAB-32-2 Semi Automatic Twin Piston Heavy Duty Filler. Filling speed up to 24 rpm or 24 cycles per minute. Fill volumes from 10ml to 1100ml depending on size of the pump required. Bottom up fill. Approximate 3/4" diameter spouts with nitrogen purge system filler. FKS/XL pistons, 3-1/2" diameter x 8-1/2" long. Driven by a variable speed 1 hp, 1750 rpm, 180 volt gear motor. Speed control, purge timer, bottom up time, Crouzet multistroke timer, auto-prime switch. Equipped with a stainless steel drip tray, (1) spare 3/4" spout, Siemens Simatic TI315 PLC, (2) PALM button start switches missing (1) button. Mounted on painted frame with casters. Serial # 020326. 1/60/220 volt, 15 amp.
