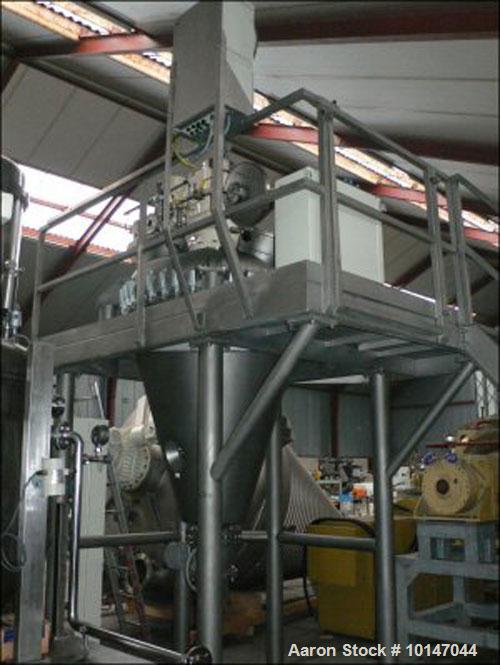

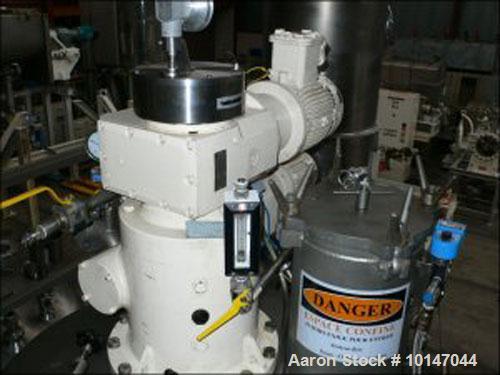

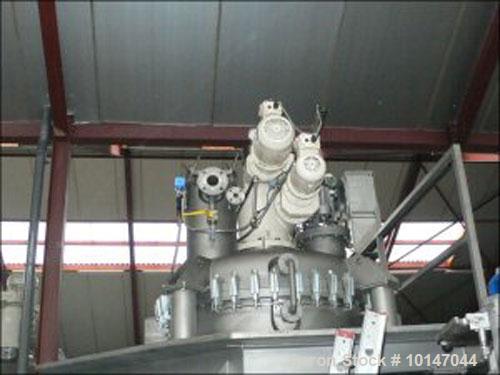

Used- Stainless Steel Bolz MF-030 Conical Dryer

Used-Bolz MF-030 Conical Dryer, 316L stainless steel (1.4404). Total capacity 34.6 cubic feet (980 liters), working capacity 10.6 cubic feet (300 liters). Largest cone diameter 4.2' (1260 mm), cone height 4.7' (1428 mm), insulted, dished top with a 15.8" (400 mm) diameter inspection hatch. Stainless steel arm, 5.3 hp/4 kW, 380V + 1 hp/0.7 kW, 220/380V, 50 hz motor. Working pressure 72.5 psi (5 bar) vacuum, test pressure 94.2 psi (6.5 bar), with jacket 9+16.7+5 gallons (34+63+19 liters), working pressure 87 psi (6 bar), test pressure 132 psi (9.1 bar), max temperature 302 deg F (150 deg C), bottom outlet with ball segment valve DN200, with filter, switchgear and mechanical seal. Mounted on frame.
