Used Walker 6000 Gallon 316L Stainless Steel Kettle – Jacketed, 20 HP Agitator, CIP, Tri-Clover Ports, 2018

Manufacturer Info:

• Manufacturer: Walker

• Model: PZ-CB-SP

• Year Built: 2018

• Material: 316L Stainless Steel (interior & exterior)

• Capacity: 6000 gallons

• Mounting: (4) stainless steel legs

• Finish: #4 polished inside and out

• Last Application: Food-grade product

Product Description:

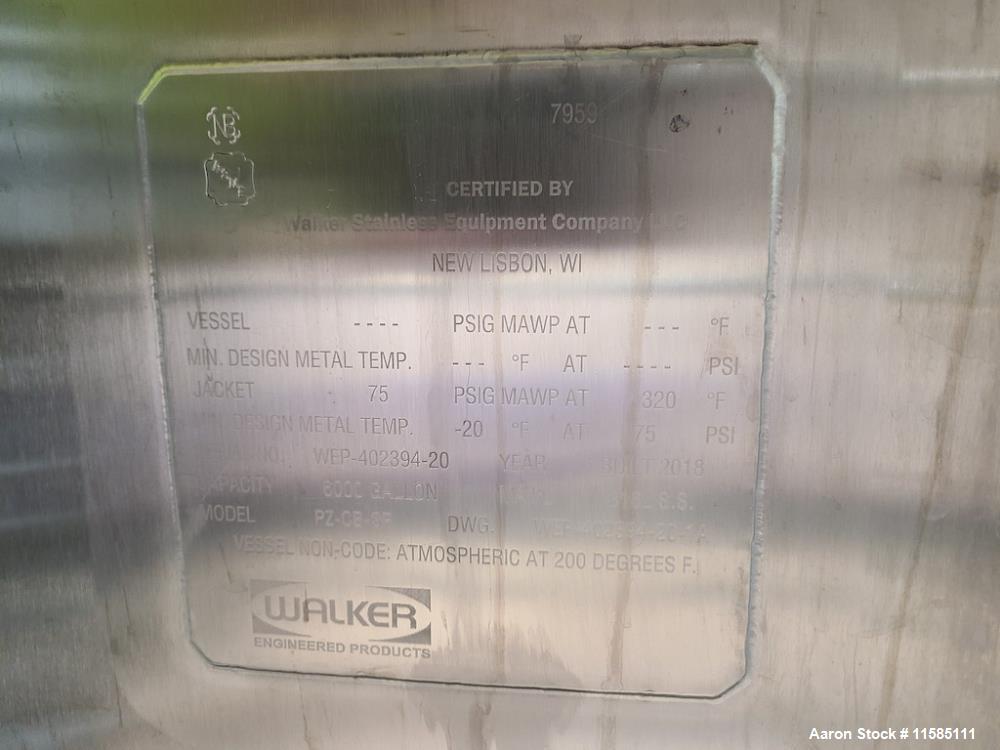

This Used Walker 6000 Gallon 316L Stainless Steel Kettle is a high-quality, sanitary-grade, jacketed mixing and processing vessel, designed for high-volume food, beverage, or pharmaceutical applications. Built in 2018, it features a jacketed side and bottom rated 75 PSI @ 320°F, with atmospheric internal pressure and low-temp tolerance down to -20°F.

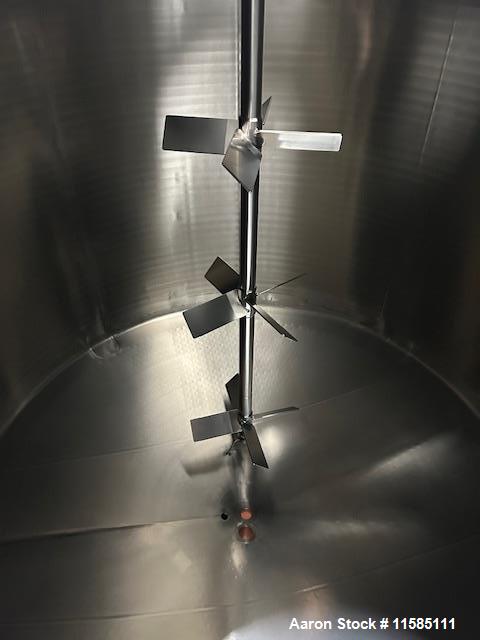

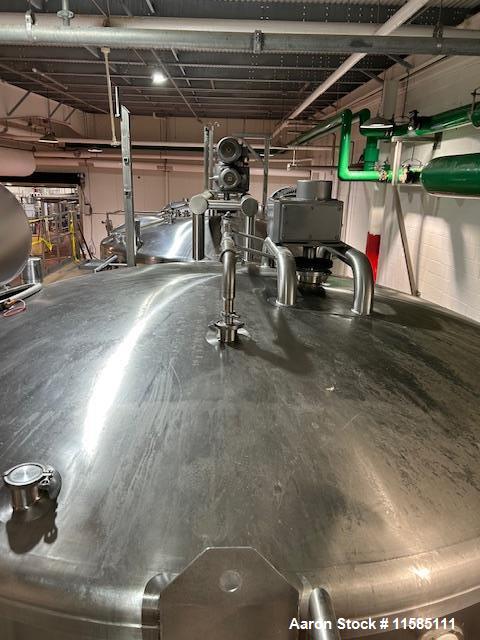

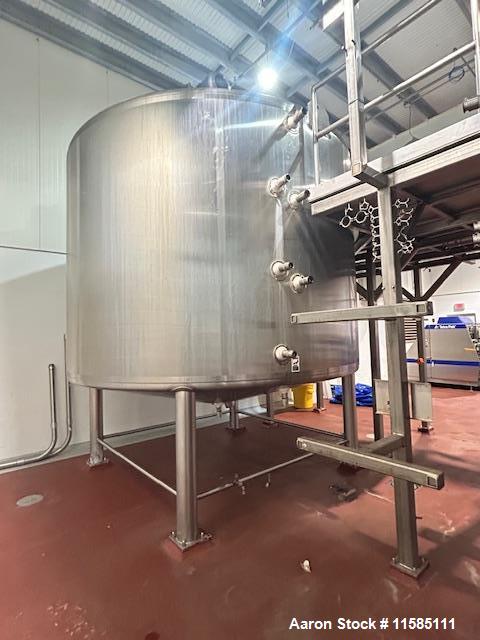

The kettle is powered by an off-center top-mounted 20 HP agitator operating at 155 RPM, fitted with (3) 4-blade propeller agitators, allowing for consistent mixing and product circulation. The vessel includes (6) 3.5" Tri-Clamp top inlets, a 4" breather, and a 20" manway for access and cleaning. Both the top and bottom are dished, with CIP spray balls installed for cleaning-in-place functionality. The kettle measures 11’6” in diameter (12'2" overall) and 15’4” high, and is mounted on (4) stainless steel legs.

Key Specifications:

• Capacity: 6000 gallons

• Model: PZ-CB-SP

• Material: 316L Stainless Steel

• Jacket Rating: 75 PSI @ 320°F; -20°F @ 75 PSI

• Vessel Pressure: Atmospheric

• Agitator: 20 HP, 155 RPM, 3/60/230/460V motor

• Agitator Type: Single motion with (3) 4-blade propeller agitators

• Top Fittings:

  • (6) 3.5” Tri-Clamp inlets

  • (1) 4” breather

  • (1) 20” manway

• Top & Bottom Heads: Dished

• Cleaning System: CIP spray balls

• Vessel Dimensions:

  • Diameter: 11’6” (12’2” overall)

  • Height: 15’4”

• Finish: #4 polished inside and outside

• Mounting: (4) stainless steel legs

• Year Built: 2018

• Last Service: Food-grade processing

Applications:

• Food and beverage ingredient blending

• Dairy or liquid sweetener storage and mixing

• Ready-to-drink beverage batch processing

• Pharmaceutical bulk liquid compounding

• Nutraceutical and supplement blending

• Soup, sauce, or pasteurization vessels

• Brewery mash or wort conditioning

• Chocolate or confectionery melting

• Cosmetic or personal care liquid production

• Industrial-scale sanitary batch formulation

What Might This Be Used For?

This kettle is designed for sanitary food-grade mixing and heating at scale, ideal for processors requiring consistent heat transfer, gentle agitation, and hygienic design. Its CIP system, Tri-Clamp ports, and polished 316L stainless steel surfaces make it perfect for FDA-compliant and clean-in-place environments, including food, beverage, pharmaceutical, and cosmetic production lines.
