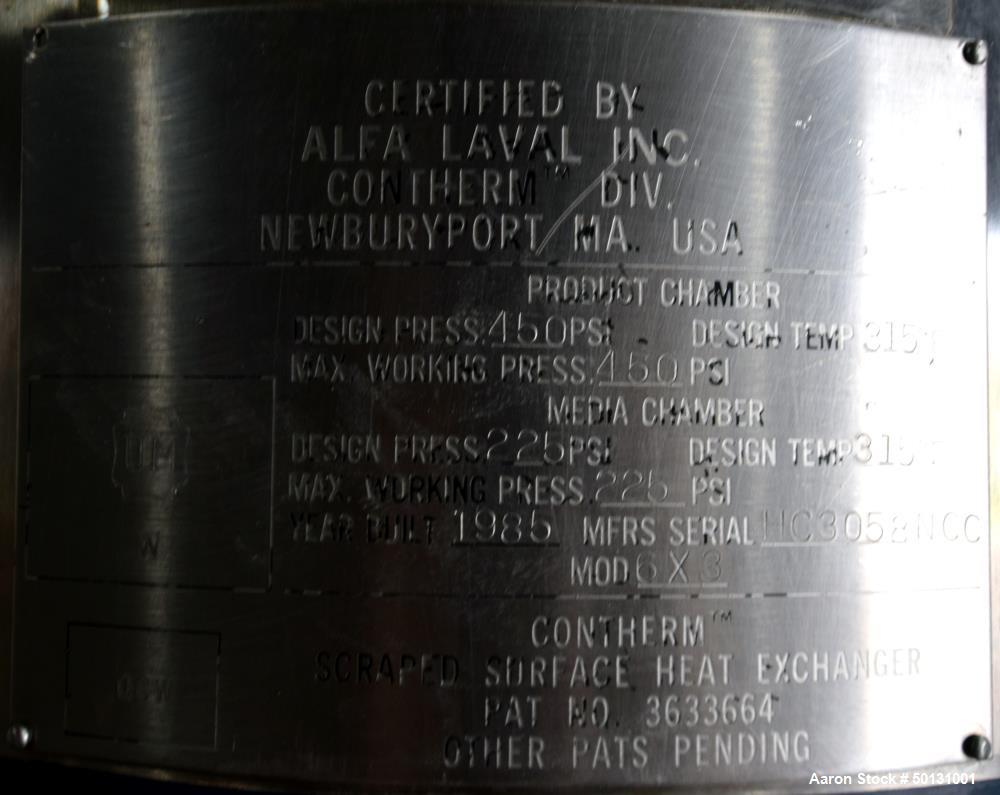

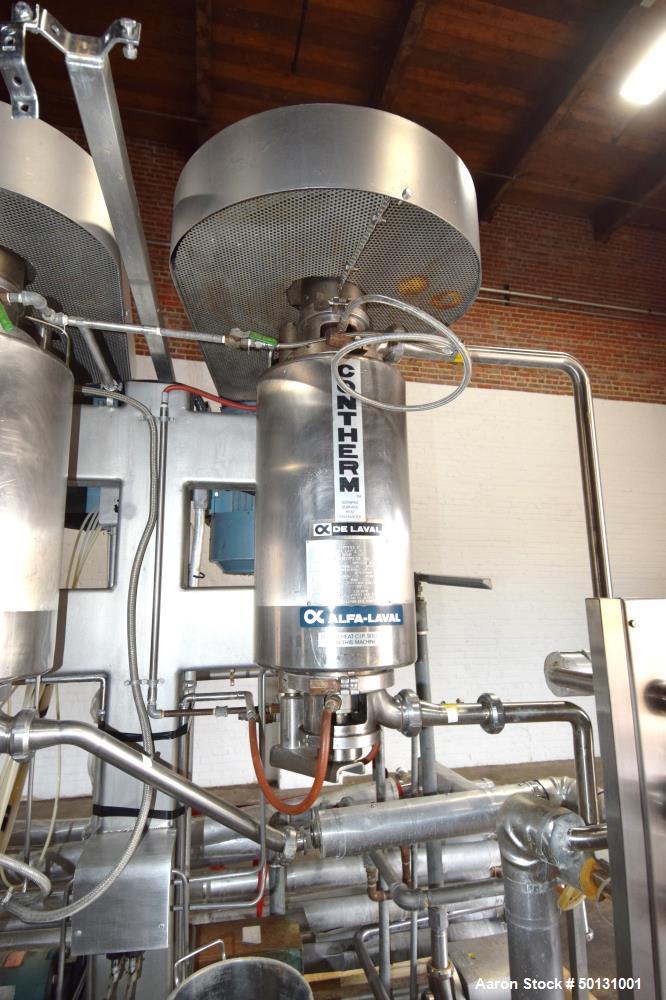

Used Alfa Laval Viscolab Scraped Surface Heat Exchanger System. 6 Total Square Feet Heating Surface, Nickel & Stainless Steel. Dual process tower integrated system consisting of: (1) Alfa Laval Contherm scraped surface heat exchanger, model 6 x 3, 3 square feet heating surface. Internal rated 450 psi at 315 degrees F, jacket rated 225 psi at 315 degrees F, serial # HC3058NCC, built 1985. Driven by a 7.5hp, 3/60/380 volt, 865 rpm motor. (1) Alfa Laval Contherm scraped surface heat exchanger, model 6 x 3, 3 square feet heating surface. Internal rated 300 psi at -30 to 300 degrees F, jacket rated 250 psi at -30 to 300 degrees F. Serial # HC9002NCC, National Board # 261, built 2007. Driven by a 5.5hp, 3/60/380 volt, 1130 rpm motor. Mounted within a support structure with a 1/2hp hydraulic raise and lower for rotors. Includes (1) spare 6 x 3 Contherm chamber, serial # HC9591NCC, National Board # 511, built 2009. Control panel with SAMI frequency converter and Altivar drives. Alfa Laval plate heat exchanger with tank, (4) pumps, miscellaneous piping and valves.
Manufacturer | Alfa LavalAlfa Laval |
Model | 6X3 |
Serial # | HC9002NCC |
Category | Heat ExchangersHeat Exchangers |
Subcategory | Scraped SurfaceScraped Surface |
Square Footage | 6 |
Horizontal or Vertical | Vertical |
Shell Material | 316L Stainless Steel |
Shell Length | 36 |
Shell Pressure | 300 |
Shell Temperature | 300 |
Number of Shell Openings | 2 |
Size of Shell Openings | 2 |
Tube Material | 316L Stainless Steel |
Tube Pressure | 300 |
Tube Temperature | 300 |
Number of Tube Openings | 2 |
Size of Tube Openings | 2 |
Head Material | 316L Stainless Steel |
Mounted | Frame Mounted |
National Board No. | 261 & 511 |
Overall Dimensions | 96"L X 72"W X 101"T |
Year Built | 2007 & 2009 |
Alfa Laval Contherm Scraped Surface Heat Exchanger (Model 6 x 3)
Alfa Laval Contherm Scraped Surface Heat Exchanger (Model 6 x 3)
Spare Contherm Chamber (Model 6 x 3)
Support Structure: Includes a ½ HP Hydraulic Raise & Lower System for Rotors
Control Panel:
Alfa Laval Plate Heat Exchanger with Tank
(4) Pumps
Miscellaneous Piping and Valves
Used Alfa Laval Viscolab Scraped Surface Heat Exchanger System. 6 Total Square Feet Heating Surface, Nickel & Stainless Steel. Dual process tower integrated system consisting of: (1) Alfa Laval Contherm scraped surface heat exchanger, model 6 x 3, 3 square feet heating surface. Internal rated 450 psi at 315 degrees F, jacket rated 225 psi at 315 degrees F, serial # HC3058NCC, built 1985. Driven by a 7.5hp, 3/60/380 volt, 865 rpm motor. (1) Alfa Laval Contherm scraped surface heat exchanger, model 6 x 3, 3 square feet heating surface. Internal rated 300 psi at -30 to 300 degrees F, jacket rated 250 psi at -30 to 300 degrees F. Serial # HC9002NCC, National Board # 261, built 2007. Driven by a 5.5hp, 3/60/380 volt, 1130 rpm motor. Mounted within a support structure with a 1/2hp hydraulic raise and lower for rotors. Includes (1) spare 6 x 3 Contherm chamber, serial # HC9591NCC, National Board # 511, built 2009. Control panel with SAMI frequency converter and Altivar drives. Alfa Laval plate heat exchanger with tank, (4) pumps, miscellaneous piping and valves.
Alfa Laval Contherm Scraped Surface Heat Exchanger (Model 6 x 3)
Alfa Laval Contherm Scraped Surface Heat Exchanger (Model 6 x 3)
Spare Contherm Chamber (Model 6 x 3)
Support Structure: Includes a ½ HP Hydraulic Raise & Lower System for Rotors
Control Panel:
Alfa Laval Plate Heat Exchanger with Tank
(4) Pumps
Miscellaneous Piping and Valves
Manufacturer | Alfa Laval |
Model | 6X3 |
Serial # | HC9002NCC |
Category | Heat Exchangers |
Subcategory | Scraped Surface |
Square Footage | 6 |
Horizontal or Vertical | Vertical |
Shell Material | 316L Stainless Steel |
Shell Length | 36 |
Shell Pressure | 300 |
Shell Temperature | 300 |
Number of Shell Openings | 2 |
Size of Shell Openings | 2 |
Tube Material | 316L Stainless Steel |
Tube Pressure | 300 |
Tube Temperature | 300 |
Number of Tube Openings | 2 |
Size of Tube Openings | 2 |
Head Material | 316L Stainless Steel |
Mounted | Frame Mounted |
National Board No. | 261 & 511 |
Overall Dimensions | 96"L X 72"W X 101"T |
Year Built | 2007 & 2009 |
