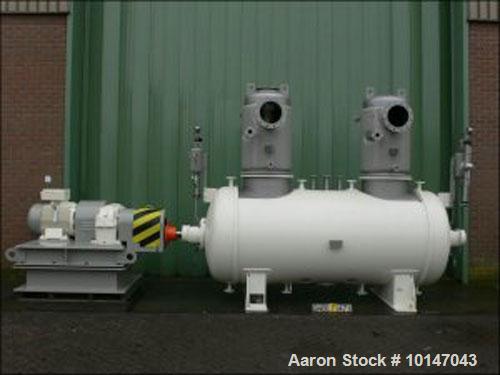

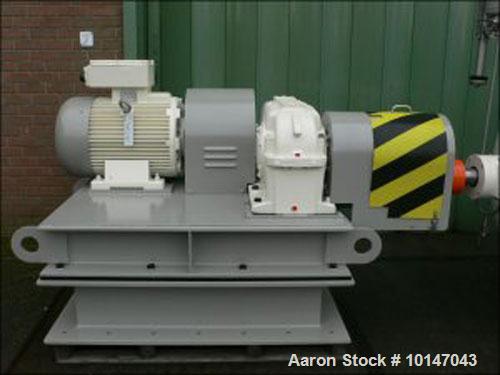

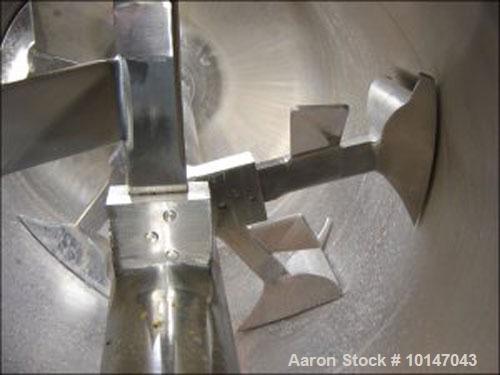

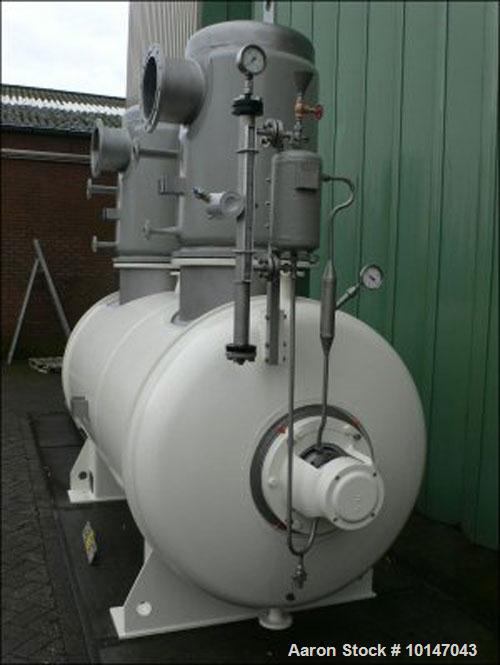

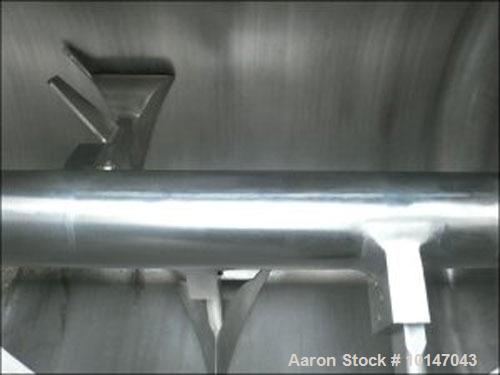

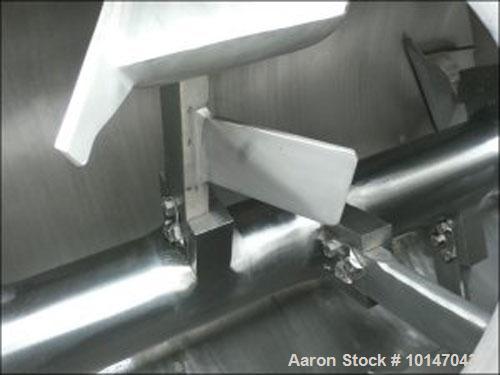

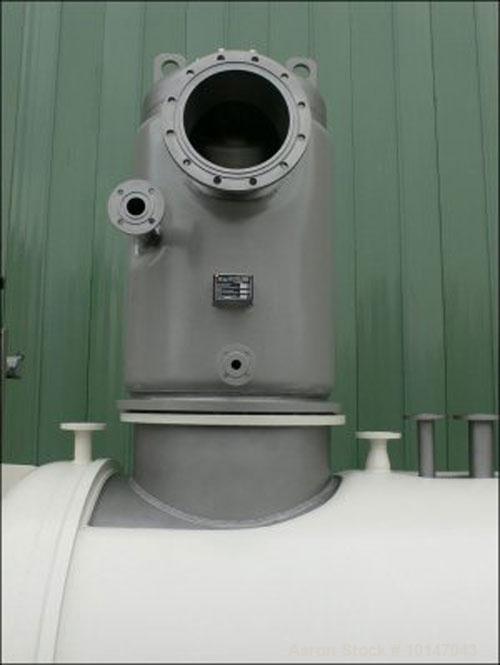

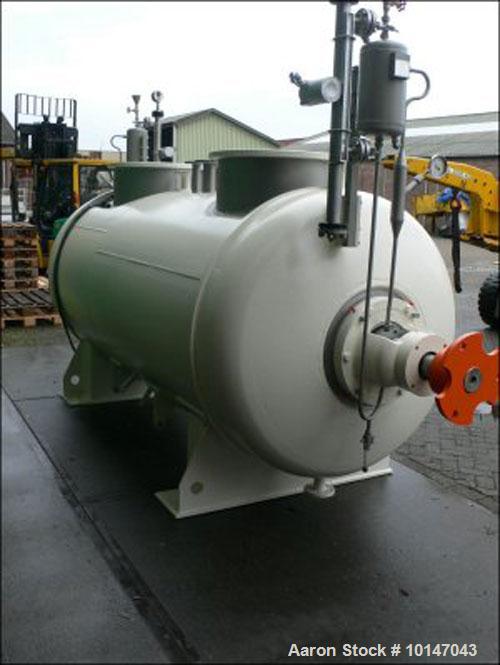

Used Lodige DVT-4000 Paddle Dryer, stainless steel (1.4571), capacity 141.3 cubic feet (4000 liters). Trough sizes: diameter 4.3' x 11.5' (1320 x 3500 mm), inlet diameter 3.2" (80 mm) + 2x 1.7" (50 mm) diameter. Manhole / filter flange 2x 26.6" (675 mm) diameter, outlet diameter 9" (230 mm). Working pressure vacuum, test pressure 29 psi (2 bar), with jacket 100 gallons (380 liters), working pressure 232 psi (16 bar), test pressure 320.46 psi (22.1 bar). Max temperature 392 deg F (200 deg C). With mechanical seal, motor 42.7 hp/60 hp/32 kW/45 kW, 500V, 50 hz.
Used Lodige DVT-4000 Paddle Dryer, stainless steel (1.4571), capacity 141.3 cubic feet (4000 liters). Trough sizes: diameter 4.3' x 11.5' (1320 x 3500 mm), inlet diameter 3.2" (80 mm) + 2x 1.7" (50 mm) diameter. Manhole / filter flange 2x 26.6" (675 mm) diameter, outlet diameter 9" (230 mm). Working pressure vacuum, test pressure 29 psi (2 bar), with jacket 100 gallons (380 liters), working pressure 232 psi (16 bar), test pressure 320.46 psi (22.1 bar). Max temperature 392 deg F (200 deg C). With mechanical seal, motor 42.7 hp/60 hp/32 kW/45 kW, 500V, 50 hz.
