Used- Ekato & Mischtechnik GmbH Schopfheim Ribbon Dryer

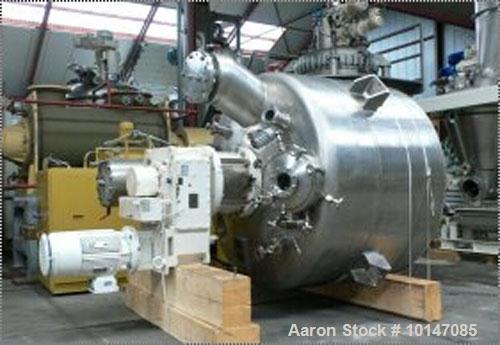

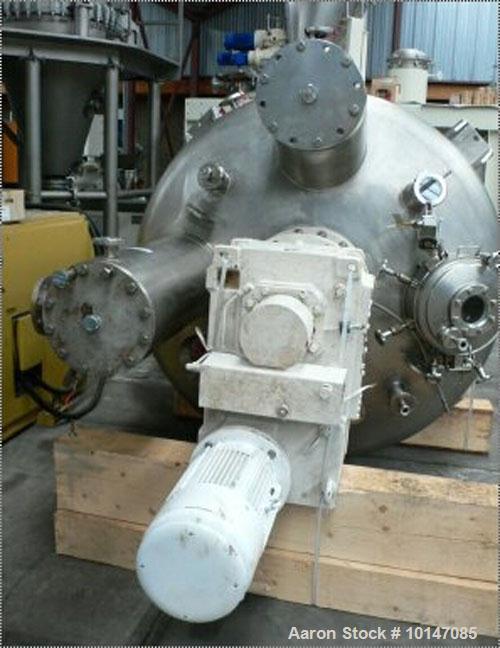

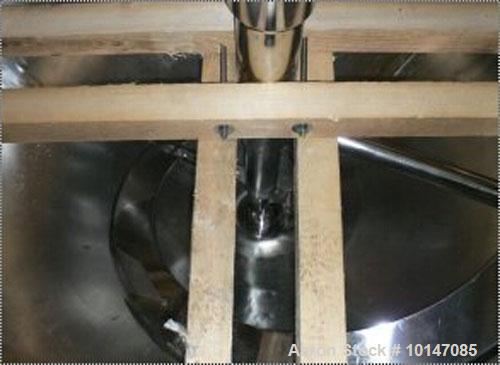

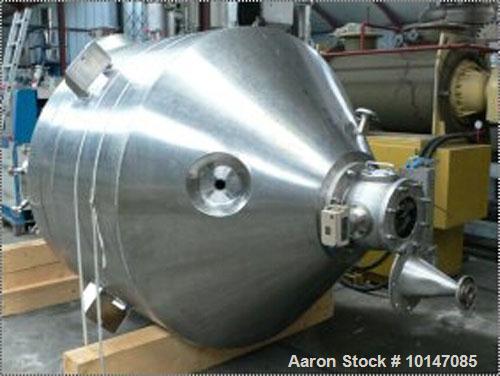

Used-Ekato & Mischtechnik GmbH Schopfheim Ribbon Dryer, vertical process dryer, type VST-2000 "Vertikaler Schuttgut Trockner". Material of construction is Hastelloy 2.4602, polished inside. Total capacity 95.3 cubic feet (2700 liter), working capacity 17.7-73.1 cubic feet (625-2070 liter). Body size diameter 5'2" x 2'7" (1584 mm x 831 mm), conical bottom 2'1" (643 mm), manhole diameter 15.6" (400 mm), outlet diameter 7.8" (200 mm). Jacketed, working pressure full vacuum -1 and 90 psi (6 bar), test pressure 180 psi (12 bar), with jacket 225 liter, working pressure vac/6 bar, test pressure 11.7 bar, working temperature -4/+392 deg F (-20/+200 deg C). With mechanical seal, motor 22.5 hp/15.0 kW, 400 volt (Ex)/50 cycle/3 ph. Includes (1) dust filter type FI-0.75 (0.75 m2). With Hosokawa Micron ball segment valve, type SEM-YSP-200. Overall dimensions dryer: 5'9" x 5'9" x 14' high (1800 mm x 1800 mm x 4300 mm high).
