Stock No.:
10755161Used Prodex 4.5" Pelletizing Line with 300 HP Extruder & Cumberland Pelletizer
Used- Prodex Pelletizing Line Prodex 4.5" 32:1 L/D extruder having an electrically heated, water cooled (closed loop), and side vented barrel. The gearbox is a Lufkin change gear gearbox and driven in a tuck under manner by a 300 HP A/C motor with Yaskawa inverter. Includes stand-alone cooling system for the gearbox. Over-sized on center oblong feed throat with water cooling and volumetric screw feeder. Free-standing temperature control panel has ten (10) zones of temperature controls. Inverter is free standing and mounted in its own enclosure. Mounted on the extruder discharge is a hydraulic slide plate screen changer having two (2) nominal 4.5" diameter breakers with hydraulic power pack, stand, and strand die. Downstream includes an 11" Cumberland "Quietizer" pelletizer with solid helical rotor. Powered by a 25 HP A/C motor and Yaskawa model V1000 inverter. Pelletizer feeds 10" x 72" Witte two deck screener. Offered less extruder screw.
MFR: Prodex
Stock No.:
53844015Used Littleford Model DVT-130 Mixer/Reactor – High-Performance Industrial Proces
Used Littleford Model DVT-130 Mixer/Reactor, Stainless Steel. 3.1 Cubic feet working capacity (4.6 total). Jacketed chamber approximately 20" diameter x 26" long, bolt-on flat hinged jacketed cover. Jacket rated 75 psi at 32 to 320 degrees F. Internal rated 100 psi / Full vacuum at 32 to 320 degrees F. Side chopper motor, driven by 15hp, 3/60/230/460 volt, 3495 rpm (not installed). Includes control panel with voltage/phase indicators, gauges, piping. National Board#4298. Serial# 41779-4298. 3/60/480 Volt.
Stock No.:
10151368Werner & Pfleiderer ZSK40 Twin Screw Extruder for Sale – 40mm, 50 HP
Used-Werner & Pfleiderer Model ZSK40, 40mm Co-rotating twin screw extruder. 1990 Model year. 46:1 L/D vented barrel with 11-barrel sections and a 41" centerline height. Driven by 50 hp 500 volt 1750/2100 rpm DC motor with SCR control and with a screw speed of 517 rpm. Includes Acrison 1.5 hp weight loss differential feeder, 2.2 kw Tervac vacuum pump, and side feeder.
MFR: Werner & Pfleiderer
Stock No.:
42505001Used 304 Stainless Steel Rotary Blancher – 40" x 98" Perforated Drum, Variable Speed
Used- Rotary Blancher, 304 Stainless Steel. Perforated drum approximately 40" diameter x 98" long, driven by a 2 hp, 3/60/208-230/460 volt, 1755 rpm Reeves variable speed motor, ratio 70.6 to 1, minimum / maximum rpm 6.6/60. 3/16" Diameter screen holes, side access doors. End feed and discharge. Mounted on a stainless steel frame.
MFR: Unknown
Stock No.:

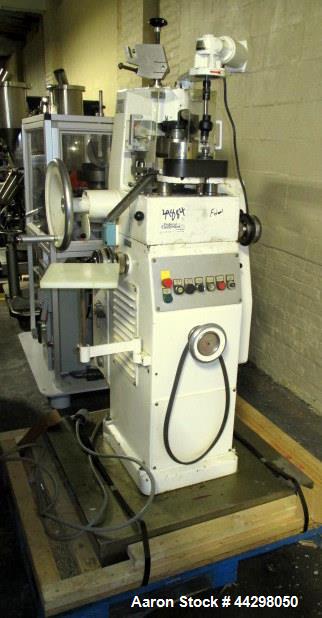

44298050Used Korsch PH 106/DMS Rotary Tablet Press – 6 Station, 40 KN, 32,400 Tablets/Hour
Used- Korsch Rotary Tablet Press, Model PH 106/DMS, 6 station, 40 KN compression pressure, 15 mm max tablet diameter, 15 mm max depth of fill, rated up to 32,400 tablets/hour, machine #1.0037.95.
MFR: Korsch
Stock No.:
47577006Used Ross HSM-40 Vacuum Double Helical Mixer Reactor – Stainless, Jacketed, Explosion-Proof
used- Ross HSM-40 Vacuum Double Helical Mixer Reactor, 316 stainless steel. This unit will mix most things that a double planetary mixer will mix, and in many cases, better and faster. Unit has air/oil lift mechanism to raise and lower the drive to allow the removal of the mix tank. Designed for operations under vacuum & a positive pressure of 35 psi @ 350f, jacket maximum allowable working pressure 100 psi @ 350f. Minimum design metal temperature 0f at 100 psi.7.5hp motor. ross metal fabricators Serial# 11801-1, National Board# 463, CRN 15925. stainless steel contact parts. jacketed mix can with provision for thermocouple, insulated with sheathing. explosion proof motor runs on 575 volts, 3 phase, 60 hz. no controls. mixer dimensions for the ross hsm-40: 43" w x 68" l x 91" h lowered position tank id is about 23 and about 27.5 deep. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
MFR: Ross Industries
Stock No.:
47577015Used Ross HDM-40 Gallon Double Planetary Mixer – Vacuum Rated, 316SS, 15 HP (Approx.)
Used- Ross HDM-40 Gallon Double Planetary Mixer. 5 to 40-gallon working capacity. Designed to mix under a full vacuum 29-1/2" HG. An air over oil hydraulic lift system is included to raise and lower the top of the mixer with drives and mixing blades. All product contact parts 316SS with a 150-grit finish and exterior stainless with an 80-grit finish. Driven by a 15 HP (to be confirmed) motor with a mechanical variable speed drive. All carbon steel surfaces are painted with a two component epoxy. Fitted with standard rectangular profile mixing blades.Comes with a control panel suitable for 3 PH / 60HZ /480v. Vacuum hood has a 2" sight port, a light fixture, a vacuum exhaust port and a port with 80 Watts / 120 volts EX-PROOF light. Mixer comes with one mix (not jacketed) can as follows: Made from 316 SS with interior finish 150-grit and exterior finish 80-grit, internally machined for use with a discharge press, designed for vacuum mixing, bottom outlet is a 4" Tri-Clover 316L SS flush plug connection with a 4" flush plug, mounted on casters, push pull handle. Prior use for manufacturing oral care products. Approximate weight of the mixer is 6234 Lbs. Manufactured in 2003.
MFR: Ross Industries
Stock No.:
50757001Used Gifford-Wood Model V/P-A AGI-Mixer – 40 Gallon Vacuum Kettle, Homogenizer Mixer, Stainless Steel
Used- Gifford-Wood AGI-Mixer, Model V/P-A, Consisting of: (1) J.C. Pardo & Sons Vacuum Kettle, 40 Gallon, 316 Stainless Steel. Approximate 26" diameter x approximate 26" deep. Lift out clamp on domed top cover, hemispherical bottom. Internal rated 15 psi or full vacuum at 250 degrees F. 304 Stainless steel jacket rated 40 psi at 287 degrees F. Tilt out agitator bridge with inner bar agitator and an anchor style scrapper agitator. (1) Gifford Wood homogenizer mixer, all set up for hydraulic drive. 2" Center bottom outlet. Mounted on (4) legs. Serial# 4402, National Board# 2158. Includes an operator panel, control panel, 0.75hp circulation pump and a Watlow electric heater. Mounted on a common carbon steel base.
MFR: Gifford
Stock No.:
53147027Precision Stainless 150 Liter (40 Gallon) 316L Stainless Steel Reactor Vessel.
Used- Precision Stainless 150 Liter (40 Gallon) 316L Stainless Steel Reactor Vessel. Rated for a maximum allowable working pressure (MAWP) of 45 PSI Full Vacuum at 300 degrees Fahrenheit. Jacket rated for 100 PSI at 300 degrees Fahrenheit. Multiple top inlets, clamps and probes, dished bottom. Forklift ready, mobile on casters. Manufactured in 1991. National Board Number 3424, Serial number 5203-4. Previously used in biotech operation.
MFR: Precision Stainless
Stock No.:
53147028Precision Stainless Reactor 150 Liter (40 Gallon) 316L Stainless Steel Vessel
Used- Precision Stainless 40 Gallon (150 Liter) 316L Stainless Steel Reactor Vessel. Rated for a maximum allowable working pressure (MAWP) of 45 PSI. Full Vacuum at 300 degrees Fahrenheit. Jacketed for 100 PSI @ 300 degrees Fahrenheit. Multiple top inlets, clamps and probes, dished bottom. Forklift ready, mobile on casters. Previously used in biotech operation.
MFR: Precision Stainless
Stock No.:
53147029Precision Stainless 150 Liter (40 Gallon) 316L Stainless Steel Vertical Reactor
Used- Precision Stainless Vertical 150 Liter (40 Gallon) 316L Stainless Steel Reactor Vessel. Rated for a maximum allowable working pressure (MAWP) of 45 PSI. Full Vacuum at 300 degrees Fahrenheit. Jacket rated for 100 PSI at 300 degrees Fahrenheit. 316L internal vessel, 304L jacket construction. Multiple top inlets, clamps and probes, dished bottom. Forklift ready, mobile on casters. Manufactured in 1991. Serial number 5203-3. National Board Number 3423. Previously used in biotech operation.
MFR: Precision Stainless
