Stock No.:
54687153Used Myers Engineering model V550/500A-3-3 vacuum mixer has a 14" diameter x 14" deep stainless steel jacketed tank that is rated for 14 psi maximum. Mixing blades are lowered/raised via air over oi...
Used-Myers Engineering model V550/500A-3-3 vacuum mixer has a 14" diameter x 14" deep stainless steel jacketed tank that is rated for 14 psi maximum. Mixing blades are lowered/raised via air over oil lift. Driven by two (2) variable speed 3 hp motors that are UL tagged for hazardous locations and require 230/460 vac, 3 ph electricity. Unit is equipped with vacuum cover but not vacuum pump. High speed agitator has a 1.25" diameter shaft with a 4" sawtooth blade. Slow speed agitator has 3 blades on bottom that extend 10" up the sides as wipers. Unit is also equipped with a safety chain for the tank. Serial no. 673
MFR: Myers
Stock No.:
50467039Buy Used Ketema Shell & Tube Heat Exchanger – 3.2 Sq. Ft., High-Pressure Rated
Used- Ketema Shell & Tube Heat Exchanger, 3.2 Square Feet, Type MVHT-1-A-SS. (28) .375" diameter x 14" long 316 stainless steel tubes rated 300 psi and full vacuum at 650 degrees F. Carbon steel shell rated 150 psi at 400 degrees F. Size 4-Y-14. 1.5" tubes inlet/outlets, 1" shell inlet/outlets. Serial # WL-950429/2.
MFR: Ketema
Stock No.:
50467040Used Ketema MVHT-1-A-SS Shell & Tube Heat Exchanger – 3.2 Sq. Ft., 300 PSI
Used- Ketema Type MVHT-1-A-SS Shell & Tube Heat Exchanger, 3.2 Square Feet. (28) .375" Diameter x 14" long 316 stainless steel tubes rated 300 psi and full vacuum at 650 degrees F. carbon steel shell rated 150 psi at 400 degrees F, Size 4-Y-14. 1.5" tubes inlet/outlets, 1" shell inlet/outlets. Serial # WL-950429/A1,
MFR: Ketema
Stock No.:
10755151Gloucester Model 35250R2 3.5" Diameter Single Screw Extruder – Industrial Used
Used- Gloucester Model 35250R2 3.5" Diameter Single Screw Extruder. 3.5" diameter screw, 32:1 L/D. Has an electrically heated, air cooled, vented, and plugged barrel at approximately a 65? center line height. Barrel is set up for Contra-Cool but does not include blower. Gearbox has a reduction ratio of 18.17:1 and is direct driven in a wraparound manner by a 100 HP Baldor D/C motor with Saftronics SCR control. One (1) HP pump with heat exchanger on the gearbox. Originally manufactured in 1995 and completely reconditioned in 2011 and never put back into service. All wiring on the extruder is run to a terminal strip. New control panel has fourteen (14) zones of temperature controls. Drive control is loose. Includes three (3) new / rebuilt screws. 460/3/60. Serial# 36736/12.
MFR: Gloucester
Stock No.:
114534753.5" Readco Twin Screw Continuous Processor
Used- 3.5" Readco Twin Screw Continuous Processor, model 3 1/2 HVY DU. Heavy duty design, stainless steel product contact surfaces, jacketed barrel rated 150 psi at 600 f, cored shafts with rotary units, driven by 50 hp, 460 volt motor, machine currently set up with cantilevered screws with adjustable gap ribbon die, with spare set of screw splines set up for end bearing housing, on base. Mfg. 1987.
MFR: Readco
Stock No.:
44604001Used J.H. Day Plow Type Turbulent Mixer – 304 Stainless Steel, 3.5 Cu. Ft. | High-Performance Industrial Mixer with Side-Entering Pinned Disc Mill
Used- J.H. Day Plow Type Turbulent Mixer, 304 Stainless Steel. 3.5 Cubic feet total capacity. Non-jacketed chamber approximately 20" diameter x 22" straight side. 3" Diameter shaft with blades and end scrapers. Driven by a 7.5 hp, 3/60/230/460 volt, 1800 rpm Sterling variable Speed-trol motor. Includes a side entering pinned disc mill, driven by a 10 hp, 3/60/230/460 volt, 3490 rpm motor. Top access door with a charge port, 8" center bottom outlet with a manually operated plug valve. Includes a control panel. Mounted on a carbon steel frame.
MFR: J H Day
Stock No.:
53713026Used Conair / Jetro Model 304 Strand Pelletizer – 600 lb/hr Plastic Pelletizing
Used Conair / Jetro Model 304 Strand Pelletizer 600 lb/hr Plastic Pelletizing Machine. Approximate capacity up to 600 lbs. per hour (depending on rotor and speed). Approximate 6" diameter x 4" face cutting rotor with 20 fixed blades. Approximate feed opening 3.5". Strand diameter 0.12", upper feed roll 3-1/4" diameter x 3-1/4" face, lower feed roll 1-9/16" diameter x 4" face. Driven by 2hp 3/60/230/460v 1750rpm XP motor. Serial# 6-040894.
MFR: Conair
Stock No.:
10755147Used Tria Model 900 NS-R Pull Roll Granulator – High-Performance Industrial Granulator
Used Tria Model 900 NS-R Pull Roll Granulator. 12.5" x 40" feed throat (1020mm x 320mm). Five (5) knife open rotor with two (2) bed knives. Rotor is belt driven by a 22 Kw (30 HP). Feed hopper with rear mounted 36" wide steel / serrated pull rolls. Air actuated feed rolls are powered by a 1 Kw (1.5 HP) A/C motor. 9" x 19.5" front material hopper entrance. 12.6 Kw (17 HP) blower discharge with Kongskilde OK160 piping and cyclone with filter bag. Approximate production rate of 400-600 kg/hr. (880-1320 lbs./hr.). Includes free standing panel with controls. 480/3/60
MFR: Tria
Stock No.:
11059397Used ROSS HSM-430SC Inline High Shear Mixer with SLIM Powder Injection System – 30 HP Explosion Proof Mixing Platform
Used ROSS HSM-430SC Inline High Shear Mixer with SLIM Powder Injection System 30 HP Explosion Proof Mixing Platform. Solids (powder) / Liquid Injection Manifold (SLIM). Equipped with 3" Liquid inlet, 2.5" Powder Inlet and 3" Liquid outlet. Driven by 30 HP, 208-230/460 volt, 1760 rpm Explosion Proof (XP) Motors. Powder / Liquid Dispersing / Mixing System. The Liquid stream enters the mixer and immediately encounters the powder (solids) at the high shear zone (rotor and stator assembly). The resulting dispersion is expelled centrifugally through the stator opening at high velocity.
MFR: Ross Industries
Stock No.:

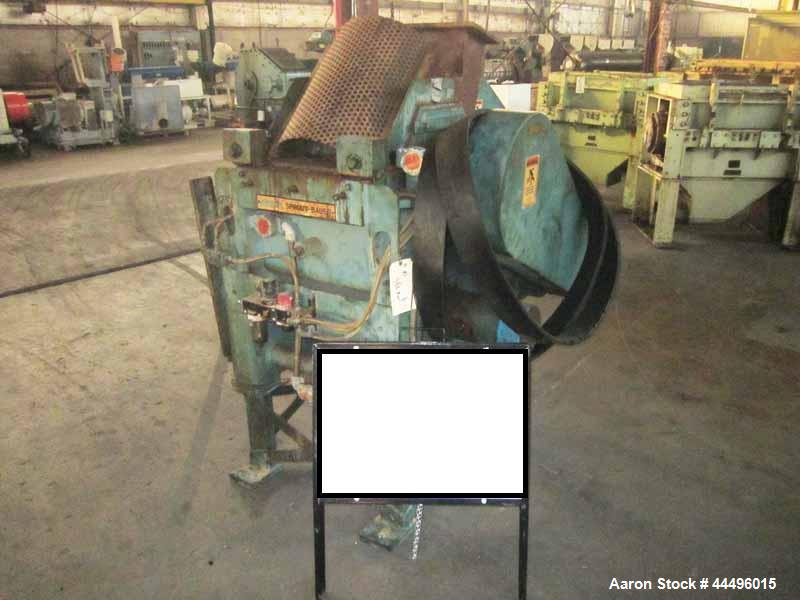

44496015Used Andritz Sprout-Bauer DSF1518 Granulator – 30HP, Film Granulation, 7 Knife Rotor
Used- Andritz Sprout-Bauer Granulator, Model DSF1518. 7 knife rotor, 2 bed knife. Driven by 30HP, 3/60/460 Volt only motor. Belt driven 5? x 18? blow-in in-feed hopper, vacuum take off discharge. Mounted on a short leg base. No starter or controls. Designed for film granulation. Serial# 2000-00373.
MFR: Sprout Bauer
Stock No.:

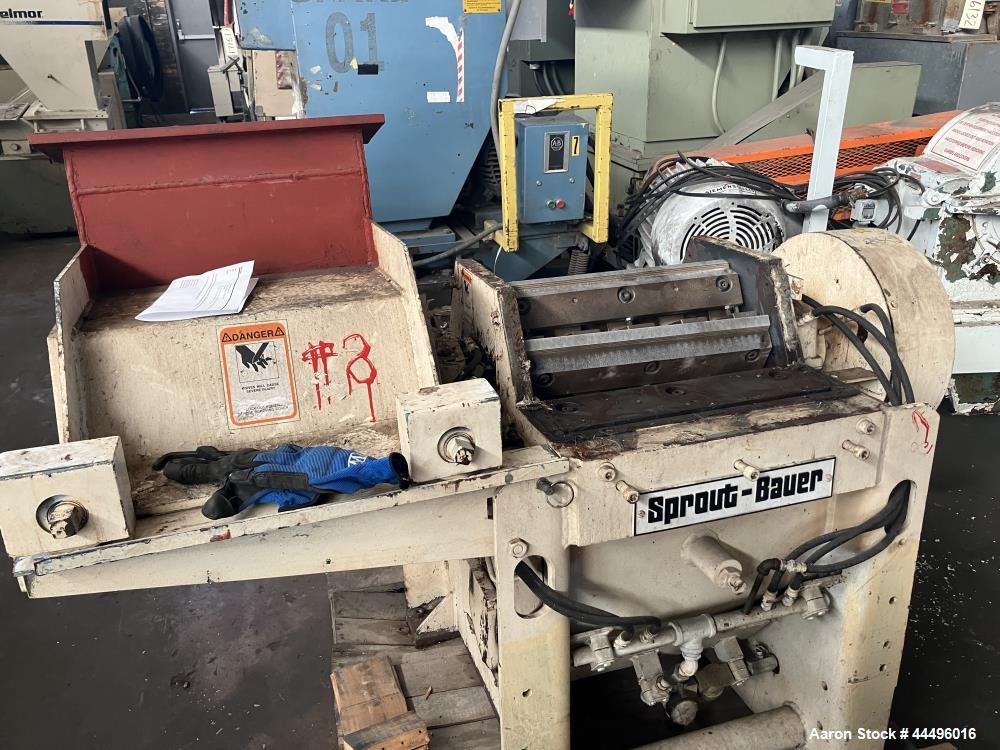

44496016Industrial Plastic Granulator – Andritz Sprout-Bauer DSF1518, 30HP, Film Recycling
Used- Andritz Sprout-Bauer Model DSF1518 Granulator. 7-knife rotor, 2 bed knife. Driven by 30 HP 460 volt only motor, belt drive. 5" X 18" blow-in in-feed hopper, vacuum take-off discharge. Mounted on a short leg base. No starter/controls. Designed for film granulation. Previously used for recycling polyester film edge trim.
MFR: Sprout Bauer
Stock No.:

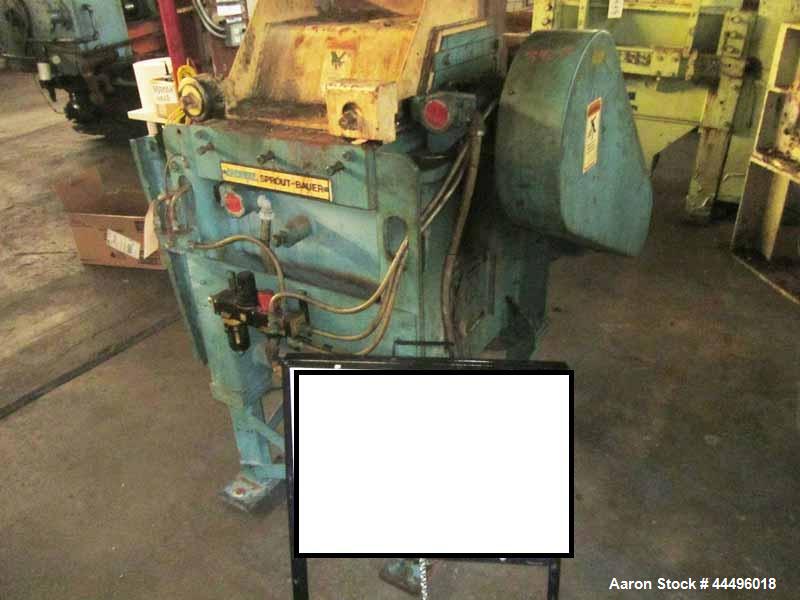

44496018Used 30HP Plastic Granulator – Andritz Sprout-Bauer DSF1518, 7-Knife Rotor
Used- Andritz / Sprout-Bauer 30HP Model DSF1518 Granulator. 7-knife rotor, 2 bed knife. Driven by 30 HP 460 volt only motor, belt drive. 5" X 18" blow-in in-feed hopper, vacuum take-off discharge. Mounted on a short leg base. No starter/controls. Designed for film granulation. Previously used for recycling polyester film edge trim.
MFR: Sprout Bauer
