Used Lundberg Carbon Steel Vertical Tank, Approx. 18,000 gallon capacity

Used- Lundberg Carbon Steel Vertical Tank, Approx. 18,000 gallon capacity. Slight cone top, flat bottom; 12 diameter X 22 high straight side; Multiple top fittings and side bottom outlets; 24" side bottom manway. Insulated and covered with sheathing. Includes ladder with safety cage. Built 2017. Previously stored 50% caustic.

Used 18,000 Gallon Reco Industries Vertical Stainless Steel Tank – Insulated Bulk Storage Vessel

Used 18,000 Gallon Reco Industries Vertical Stainless Steel Tank Insulated Bulk Storage Vessel. SA36 Stainless steel. Approximately 11' 6'' diameter x 24' tall. Insulated. Vertical.

MFR: Reco

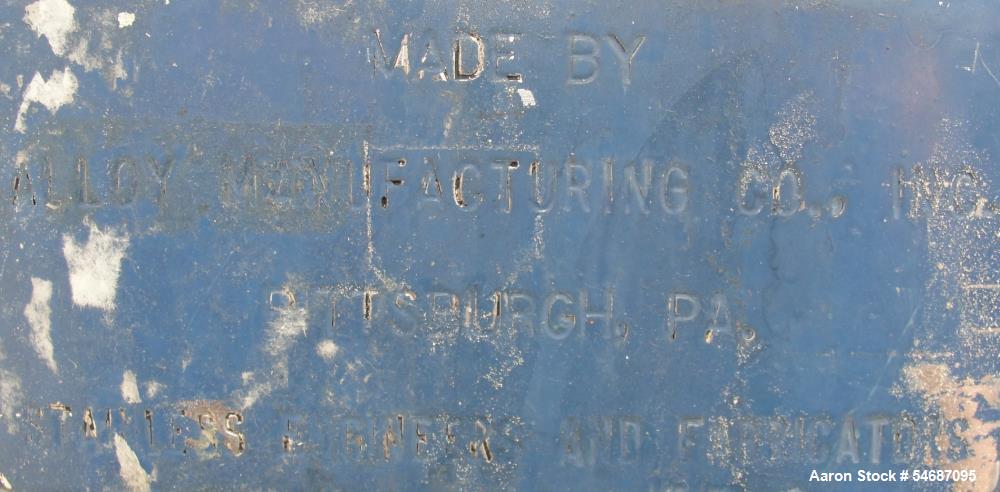

Used Alloy Manufacturing Co. 1821 gallon vertical INCONEL 600 tank. INCONEL 600 is used in applications which require resistance to corrosion and heat. This tank has a flat top and a sloped bottom. T...

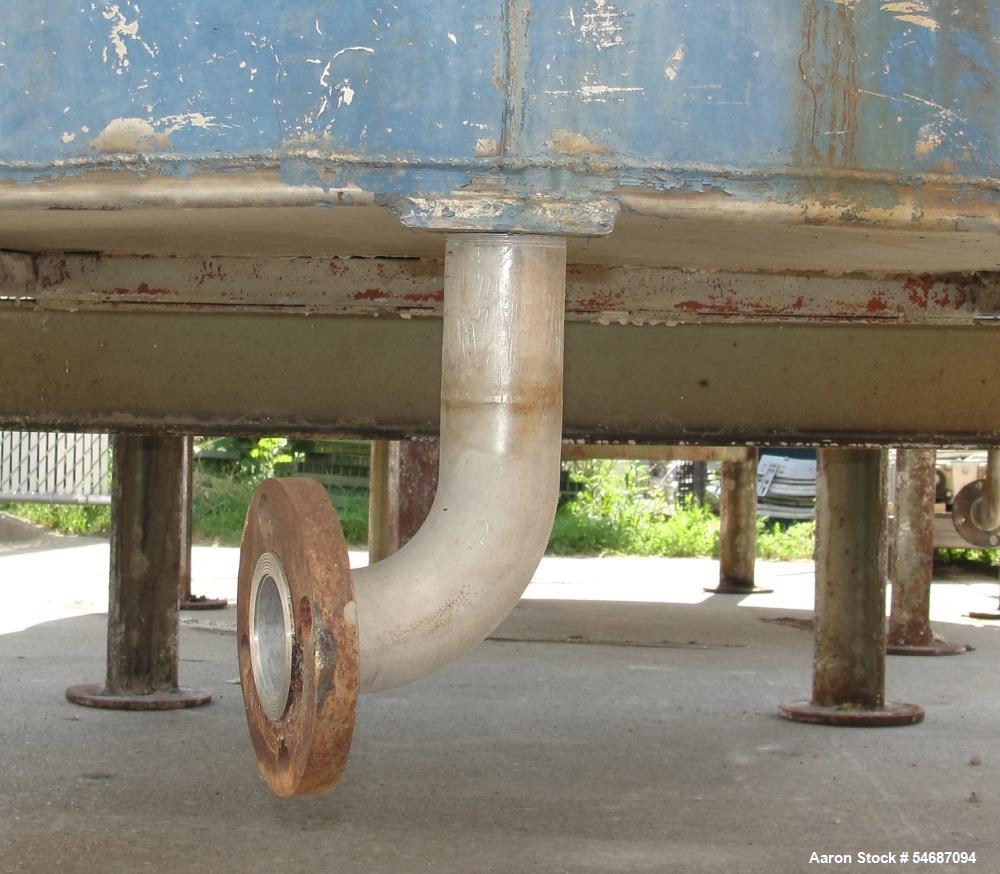

Used-Alloy Manufacturing Co. 1821 gallon vertical INCONEL 600 tank. INCONEL 600 is used in applications which require resistance to corrosion and heat. This tank has a flat top and a sloped bottom. The tank diameter is 76", the overall height is 125", the straight side height is 90", and the slope is 6". The top has an 18" manway, a 2" flange, a 2" Tri-clamp, and a 1" NPT. The side has (3) 1/2" NPT, (1) 1/2" flange, and (1) 2" NPT. The bottom has a 2" diameter flanged discharge 10.5" from the ground. The overall dimensions are 80" diameter x 125" tall. Last used for beverage alcohol.

Doyle & Roth 1,824 Sq Ft. Heat Exchanger

Used- Doyle & Roth Shell & Tube Heat Exchanger, 1,824 Square Feet. (929) 304 stainless steel .75" diameter x 10' long Tubes rated 86 psi/ FV at 400 degrees F. Carbon steel Shell rated 150 psi at 150 degrees F. National Board# 15755, Serial# J-6759-4, Built 1992.

MFR: Doyle & Roth

Used Alloy Manufacturing Co. 1832 gallon vertical INCONEL 600 tank. INCONEL 600 is used in applications which require resistance to corrosion and heat. This tank has a flat top and a sloped bottom. T...

Used-Alloy Manufacturing Co. 1832 gallon vertical INCONEL 600 tank. INCONEL 600 is used in applications which require resistance to corrosion and heat. This tank has a flat top and a sloped bottom. The tank diameter is 76", the overall height is 125", the straight side height is 90", and the slope is 6". The top has an 18" manway, a 2" Tri-clamp, and a 1" NPT. The side has (3) 1/2" NPT, (1) 1/2" flange, and (1) 2" NPT. The bottom has a 2" diameter flanged discharge 10.5" from the ground. The overall dimensions are 80" diameter x 125" tall. Last used for beverage alcohol.

Used 1850 Gallon Waukesha Cherry-Burrell Stainless Steel Tank with Tri-Clamp Discharge

Used- 1850 Gallon Waukesha Cherry Burrell 316 Stainless Steel Tank. Interior Dimensions: 80" x 74" straight side. Center discharge: 4" tri-clamp. Side ports: 2" and 1/5". Top manway lid. Distance from discharge to floor is 42". (4) adjustable stainless steel legs with pads. Serial# H-486-95. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

MFR: Waukesha

Used Gemco 1,400-Gallon Jacketed V-Blender – 187 Cu. Ft. Stainless Mixing Chamber with 100 PSI Thermal Jacket

Used- Gemco Jacketed V-Blender. 1,400-gallon (approximately 187 cubic foot total) V-blender total capacity, with estimated working capacity of approximately 94112 cubic feet depending on product characteristics and recommended fill level. Stainless steel mixing chamber. Jacket rated 100 psi at -20 to 250 degrees F. Mixer includes a cold trap. Mounted on a structural steel support frame. Serial # 98120. Possible applications include large-batch blending and thermal processing of powders, granules, dry ingredients, chemical products, pharmaceutical materials, nutraceutical blends, and other free-flowing particulate products.

MFR: Gemco

Used Leistritz Micro18-GGL Twin Screw Pelletizing Line – Industrial Polymer Extruder

Used- Leistritz Twin Screw Pelletizing Line, Model Micro18-GGL. 18 mm Screws, counter rotating screws, 40:1 1/d, 500 rpm screw speed, electrically heated, water cooled barrel, 2.3 kw, 210/260 volt, 2950 rpm de motor with SCR controller, (8) barrel sections with (1) jacketed feed, (1) vented, (1) vented and plugged, (5) non vented barrel sections, on board control panel with (10) Eurotherm controllers, with 10" wide x 96" long cooling conveyor. Leistritz Serial# 481 739. 2" Film die and a rod die for the extruder.

MFR: Leistritz Corporation

Used Anhydro Vertical Falling Film Reboiler – 19.5 Sq Ft, Hastelloy Tubes

Used- Anhydro Vertical Falling Film Reboiler / Heat Exchanger, Approximate 19.5 Square Feet. Carbon steel shell rated 200psi / FV at -20 to 400 degrees F. (19) 1" diameter x 47" long Hastelloy C-276 tubes rated 15 psi internal / 200 psi external at -20 to 400 degrees F. Openings: (2) 2", (2) 1". 40,000 BTU/h. Side lug mounted. Certified by Orbit Industries, National Board# 1026, Serial# 8306-PV-3. No bottom head.

MFR: Anhydro

Steam Heated Falling Film Reboiler

Used- Anhydro Vertical Falling Film Reboiler / Heat Exchanger, Approximate 19.5 Square Feet. Carbon steel shell rated 200psi / FV at -20 to 400 degrees F. (19) 1" diameter x 47" long Hastelloy C-276 tubes rated 15 psi internal / 200 psi external at -20 to 400 degrees F. Openings: (2) 2", (2) 1". 40,000 BTU/h. Side lug mounted. Certified by Orbit Industries, National Board# 1027, Serial# 8306-PV-4. No bottom head.

MFR: Anhydro

Used Nu-Con Engineering Stainless Steel Centrifugal Rotary Sifter – Model 300U

Used- Nu-Con Engineering Stainless Steel Centrifugal Rotary Sifter, Model 300U. 10" diameter top gravity feed. Approximately 39" long x 19-1/2" wide x 25-1/2" tall chamber. 8" diameter center bottom outlet, with 13-1/2" discharge height. Includes (2) Screens, (1) 39" long x 12" diameter with 3/16" diameter holes, (1) 39" long x 12" diameter with 1/16" diameter holes. Driven by a 5hp 3/60/575v 1750 rpm motor. Serial# 394088. Mounted on Casters.

Doyle and Roth Vertical Shell and Tube Condenser

Used- Doyle and Roth Vertical Shell and Tube Condenser, Approximate 19.6 Square Feet. Carbon steel shell rated 150psi / FV external at -20 to 400 degrees F. (55) 3/4" Diameter x 24" long Hastelloy C-276 tubes rated 15psi / FV at -20 to 450 degrees F. Approximate 12,733 BTU/h.Single pass. 3.875" Baffle spacing. Side lug mounted. National Board# 20736, serial# S1993-2.

MFR: Doyle & Roth
