Used Alloy Manufacturing Co. 1832 gallon vertical INCONEL 600 tank. INCONEL 600 is used in applications which require resistance to corrosion and heat. This tank has a flat top and a sloped bottom. T...

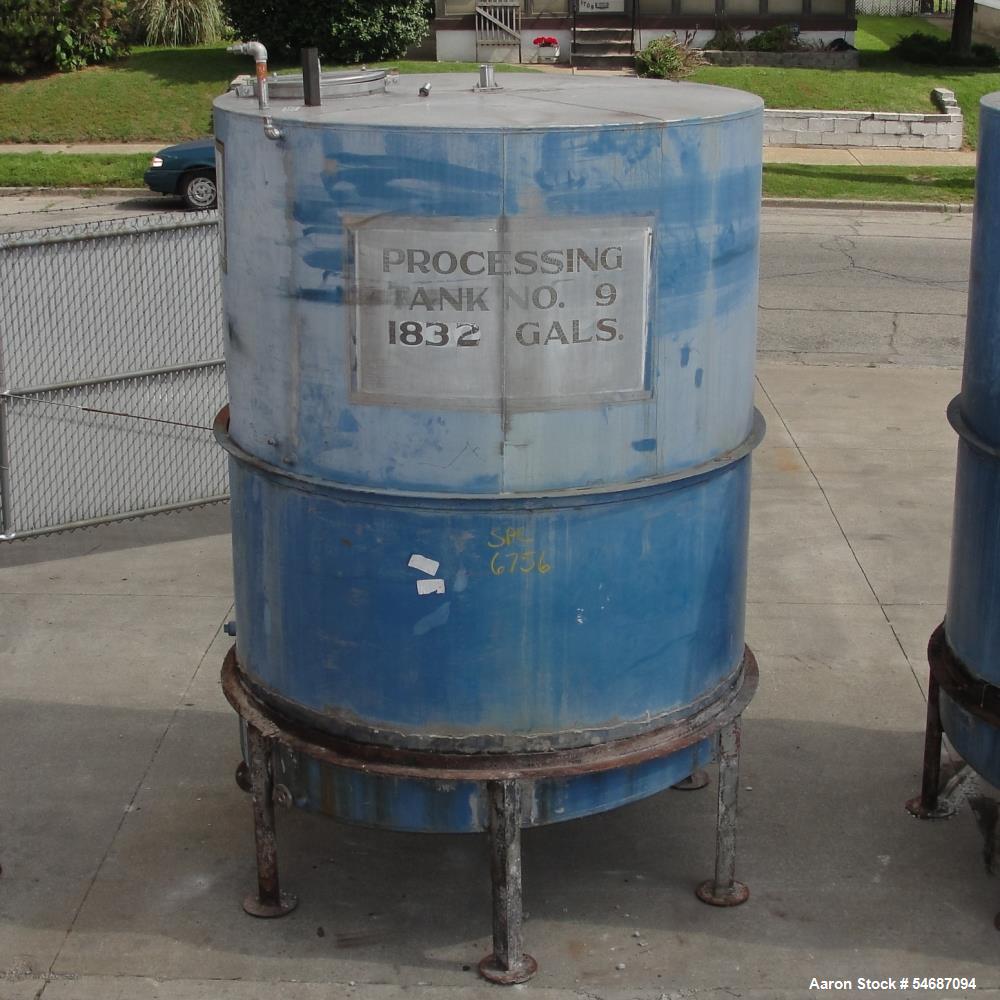

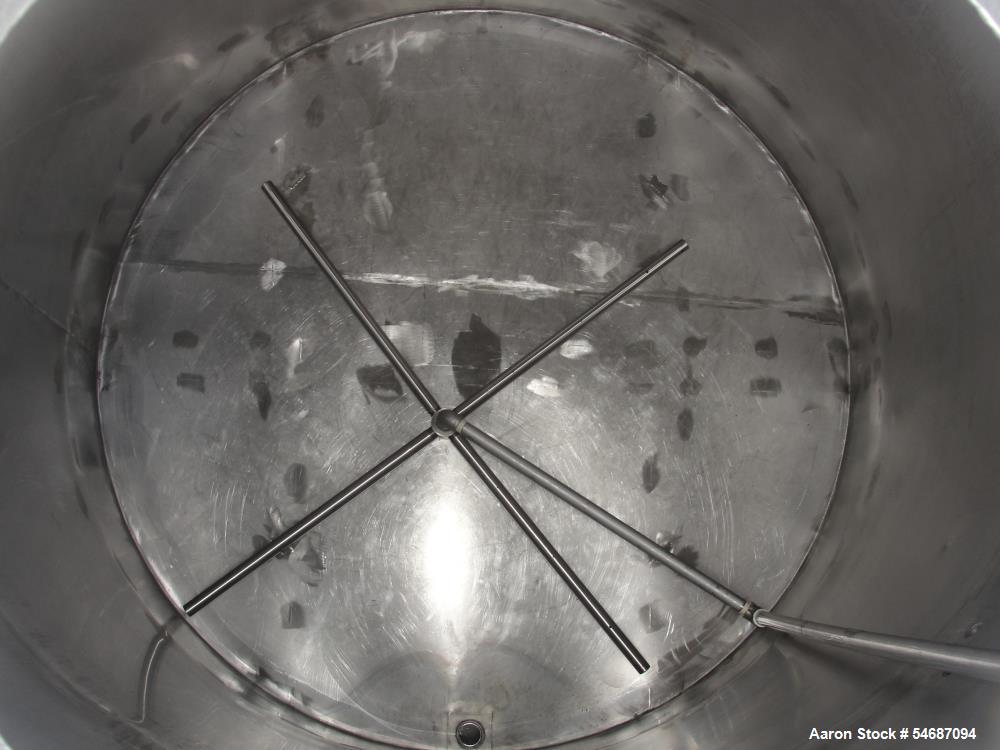

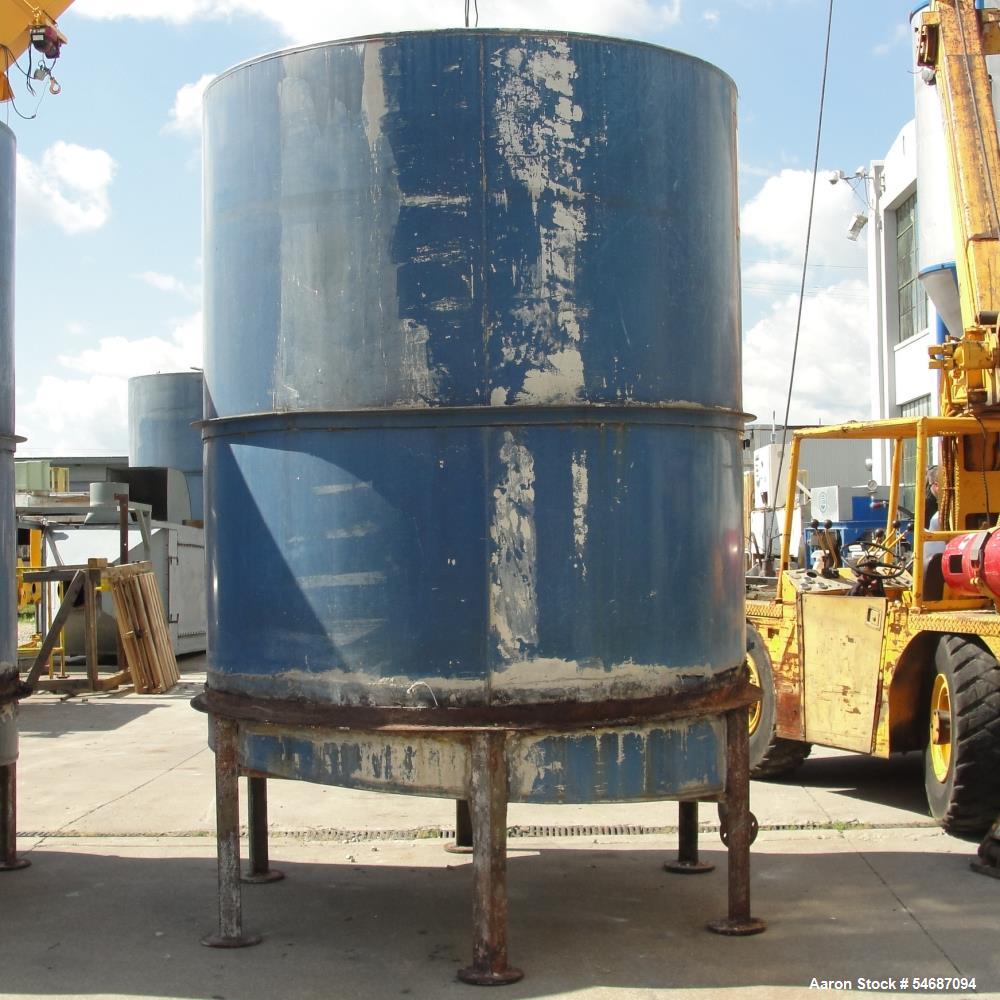

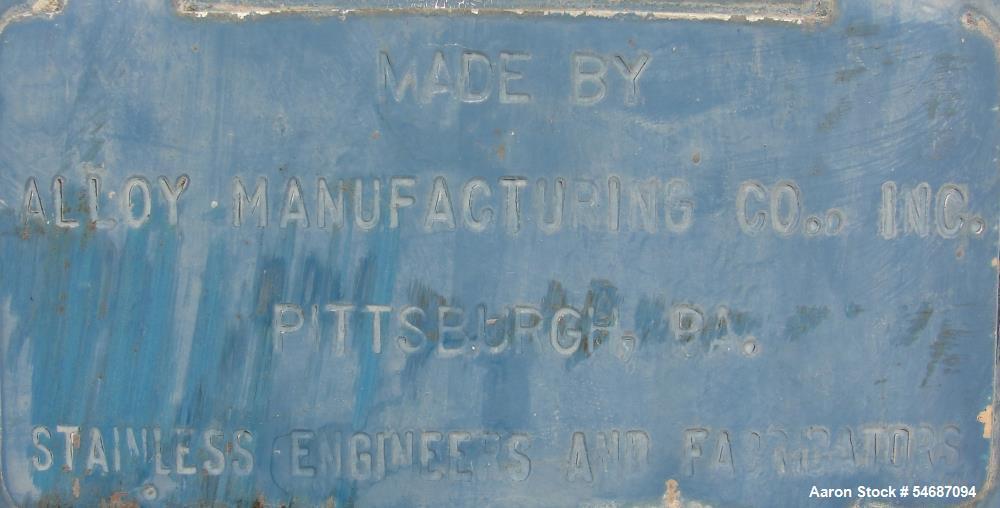

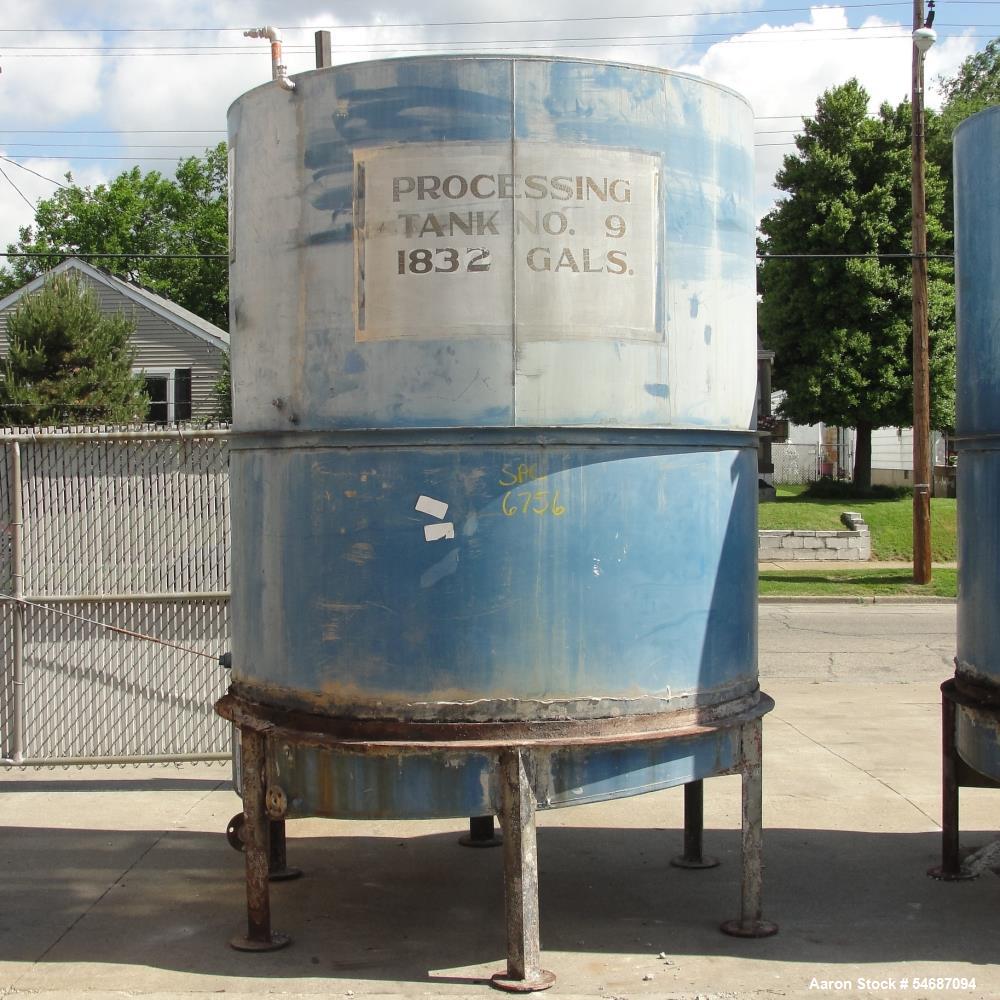

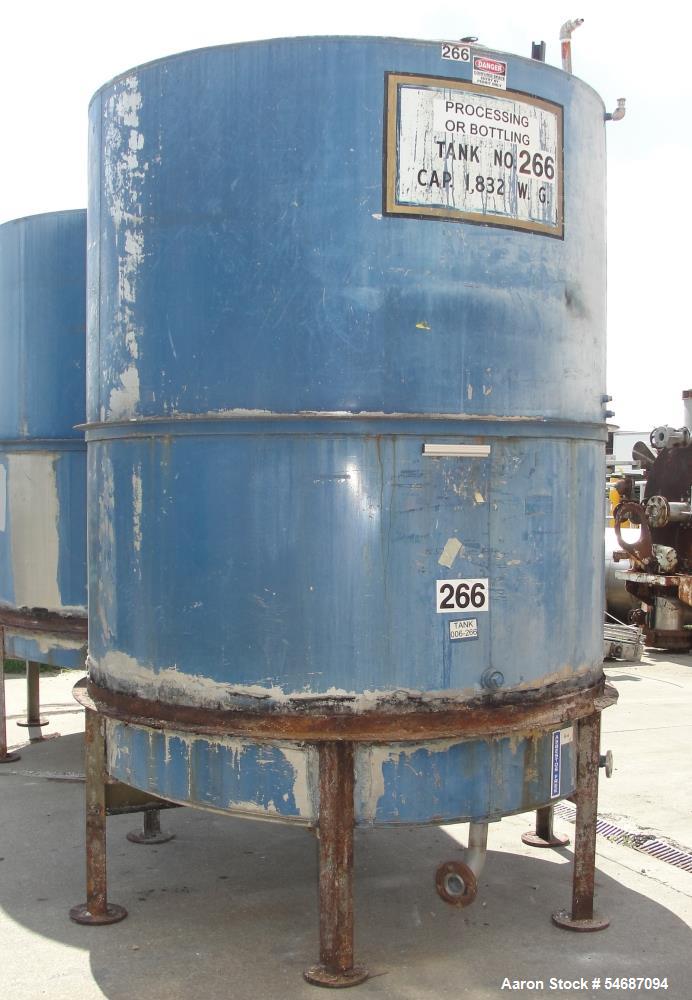

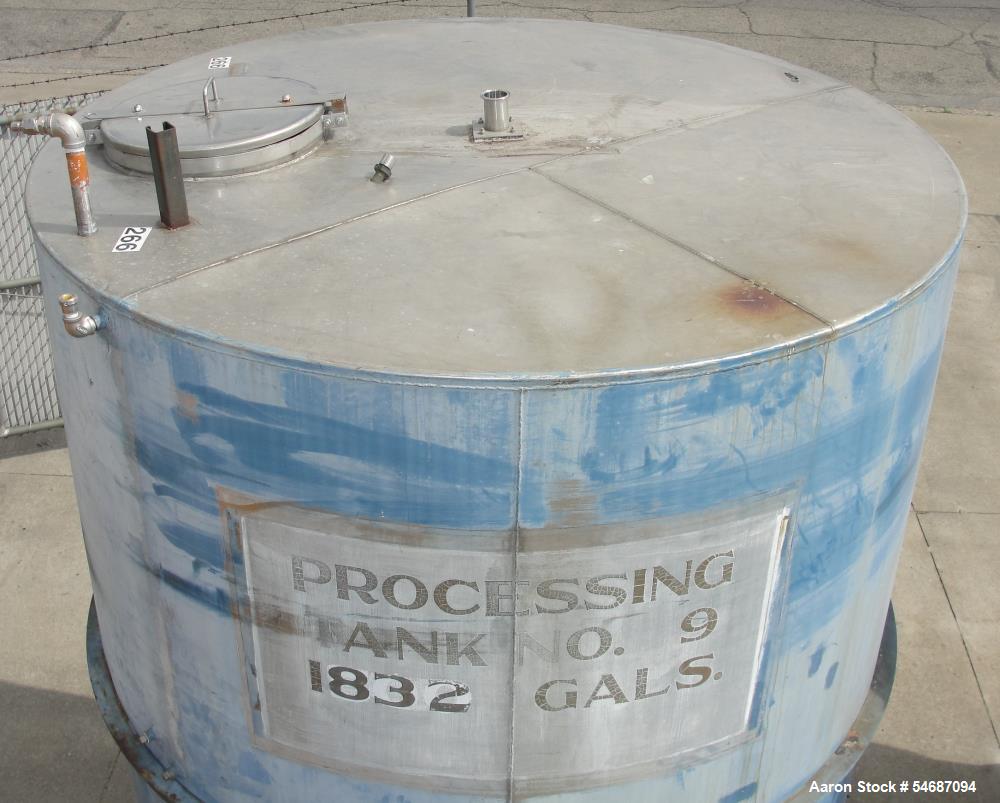

Used-Alloy Manufacturing Co. 1832 gallon vertical INCONEL 600 tank. INCONEL 600 is used in applications which require resistance to corrosion and heat. This tank has a flat top and a sloped bottom. The tank diameter is 76", the overall height is 125", the straight side height is 90", and the slope is 6". The top has an 18" manway, a 2" Tri-clamp, and a 1" NPT. The side has (3) 1/2" NPT, (1) 1/2" flange, and (1) 2" NPT. The bottom has a 2" diameter flanged discharge 10.5" from the ground. The overall dimensions are 80" diameter x 125" tall. Last used for beverage alcohol.
