Reglassed Pfaudler Glass Lined Reactor, 6000 Gallon

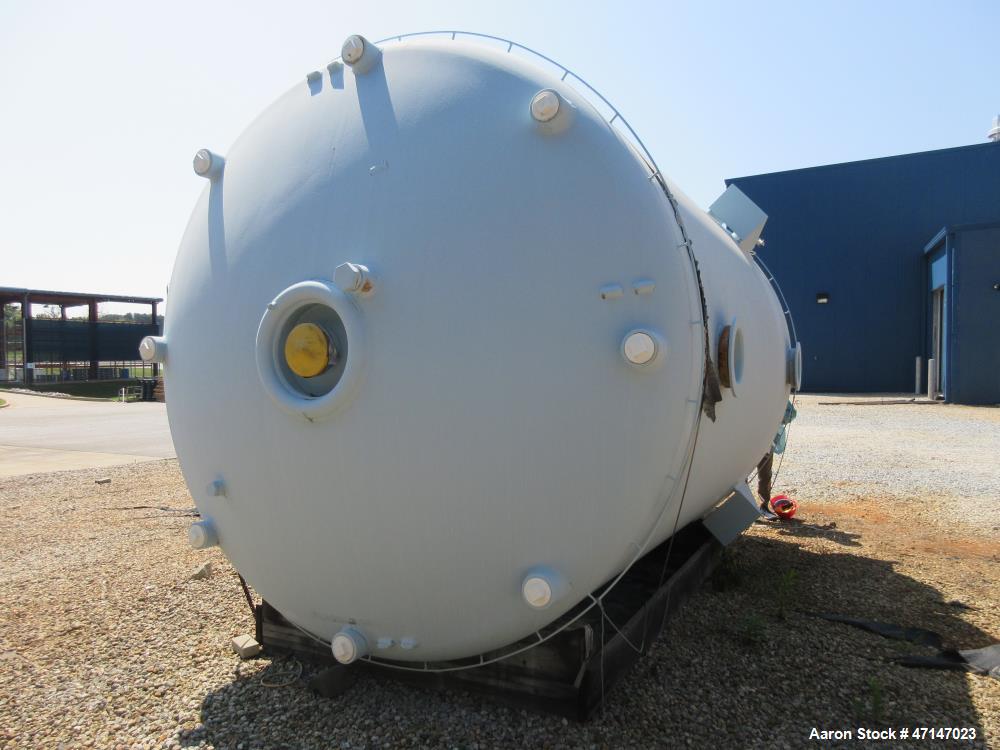

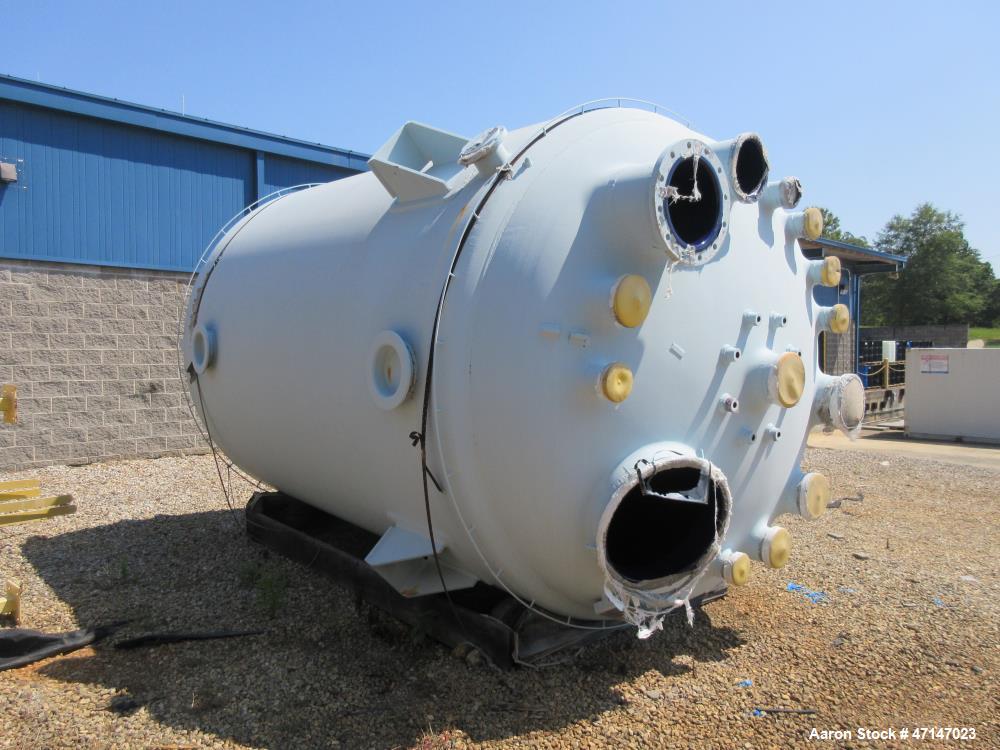

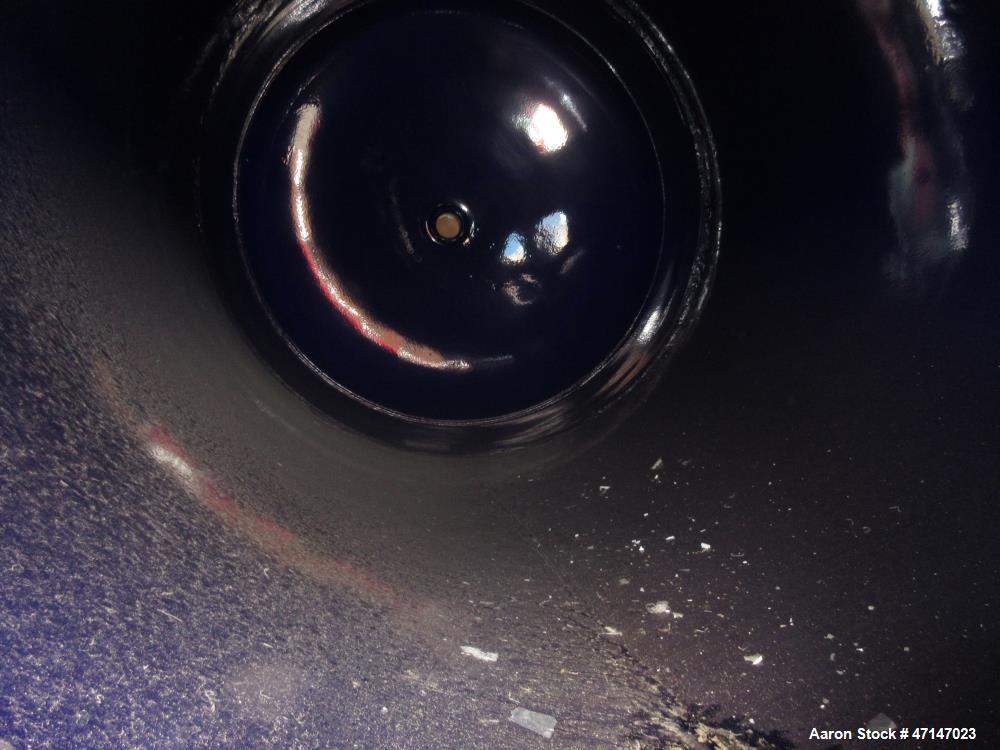

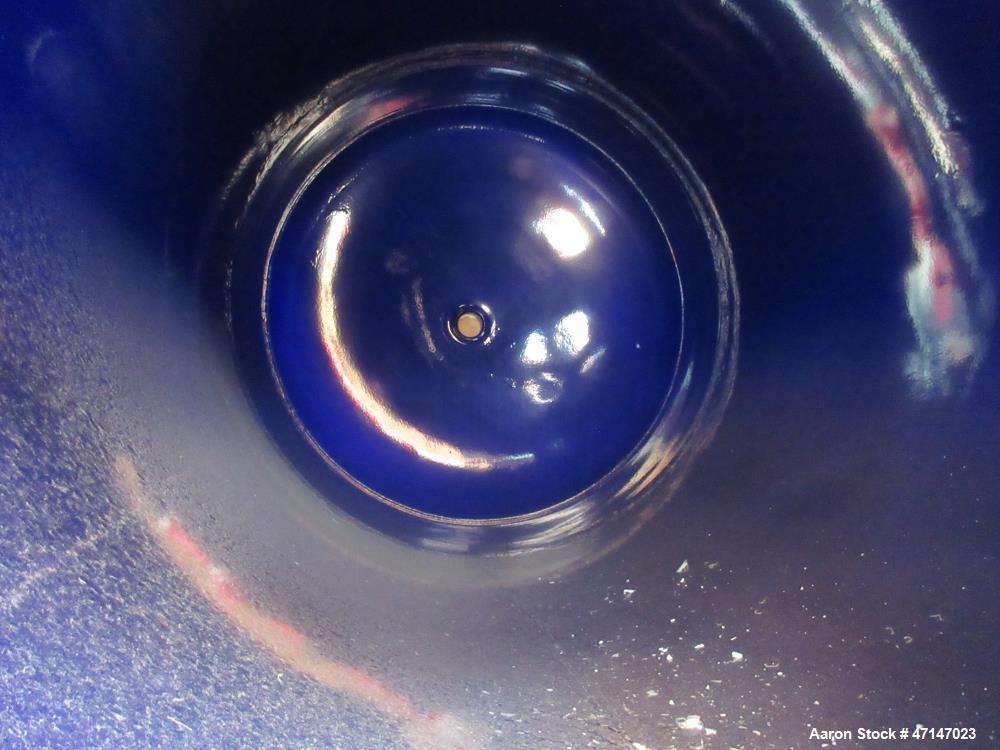

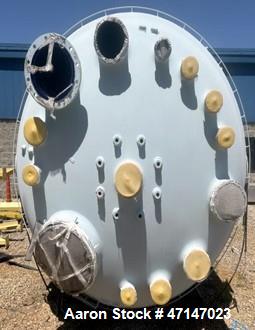

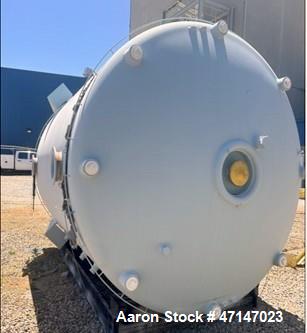

Used- Reglassed Pfaudler Glass Lined Reactor, 6000 Gallon, Type 9119 Blue Glass, Vertical. Approximately 108" diameter x 144" straight side. Dished top and bottom. Internal rated 125/FV psi at 450 deg F, carbon steel jacket rated 90 psi at -20 - 350 deg F. Top 18 manway, bottom outlet. Side lug mounts. Reglassed in 2015. Body only.

ManufacturerPfaudler

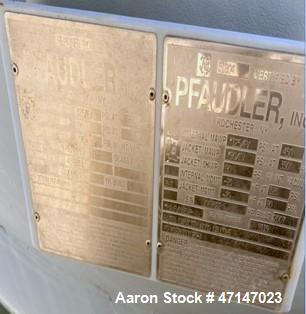

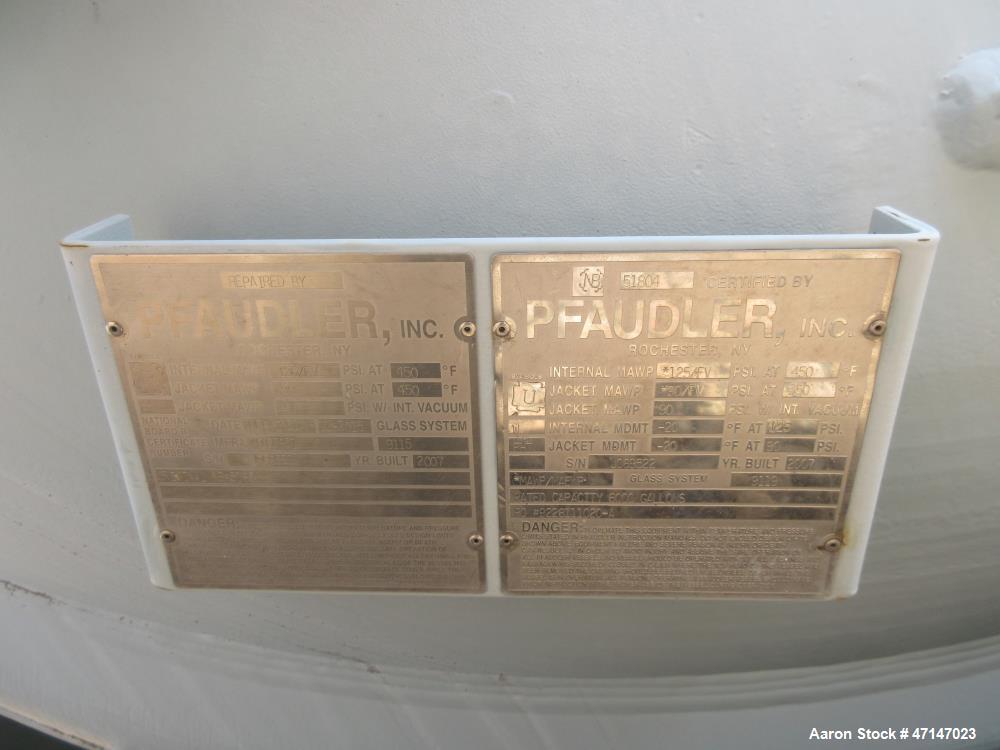

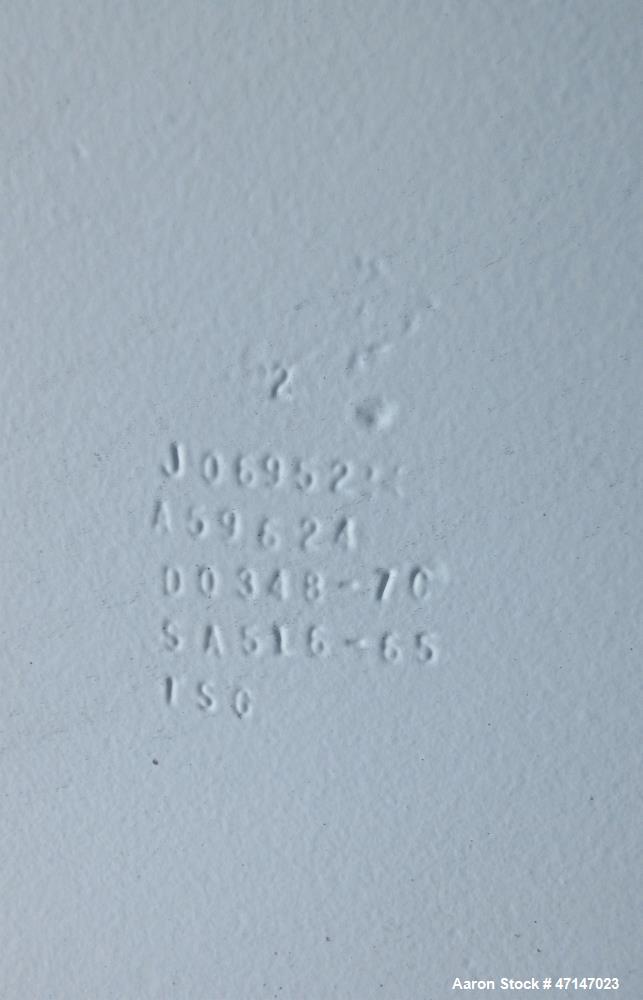

Serial #J069522
CategoryReactors
SubcategoryGlass Lined Reactors
Gallons6000
Material Of ConstructionGlass Lined
Horizontal Or VerticalVertical
Diameter108"
Straight Side144"
Top Head StyleDished Head
BottomDished Bottom
Internal Pressure125 f/v
Internal Temperature450F
Pressure Jacket90
Temperature Jacket-20 to 350 degrees F
MountedSide Lug Mounted

We offer a variety of finance programs. Please contact your sales person for more information.
