Used SSI 200-H/200 Dual-Shaft Industrial Shredder – 200 HP with Ram Hopper & Incline Conveyor

Manufacturer Information

SSI Shredding Systems

SSI Shredding Systems manufactures industrial shredders and size-reduction systems for recycling, waste processing, material recovery, product destruction, and manufacturing applications. Its low-speed, high-torque dual-shaft shredders are designed to process a broad range of bulky and difficult industrial materials.

This SSI Model 200-H/200 combines a 200 HP drive, 2" thick cutters, variable 13–16 RPM shaft speeds, ram hopper, and incline discharge conveyor into a heavy-duty industrial shredding system.

Description

Available for sale is a used SSI Dual-Shaft Shredder, Model 200-H/200, designed for demanding industrial size-reduction and material-destruction applications.

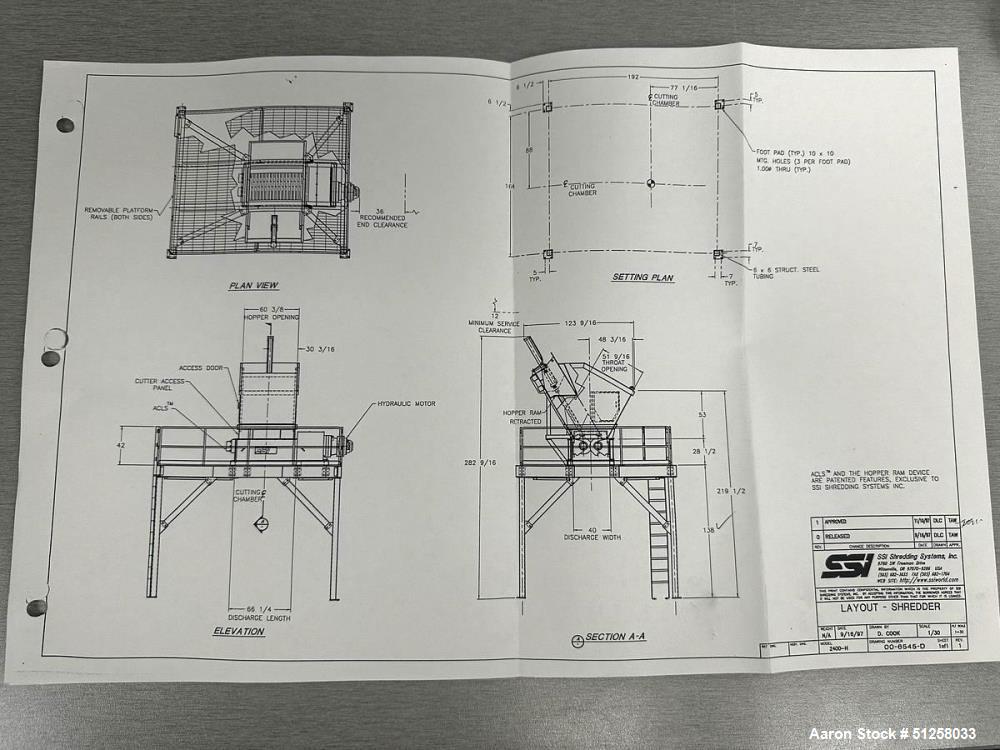

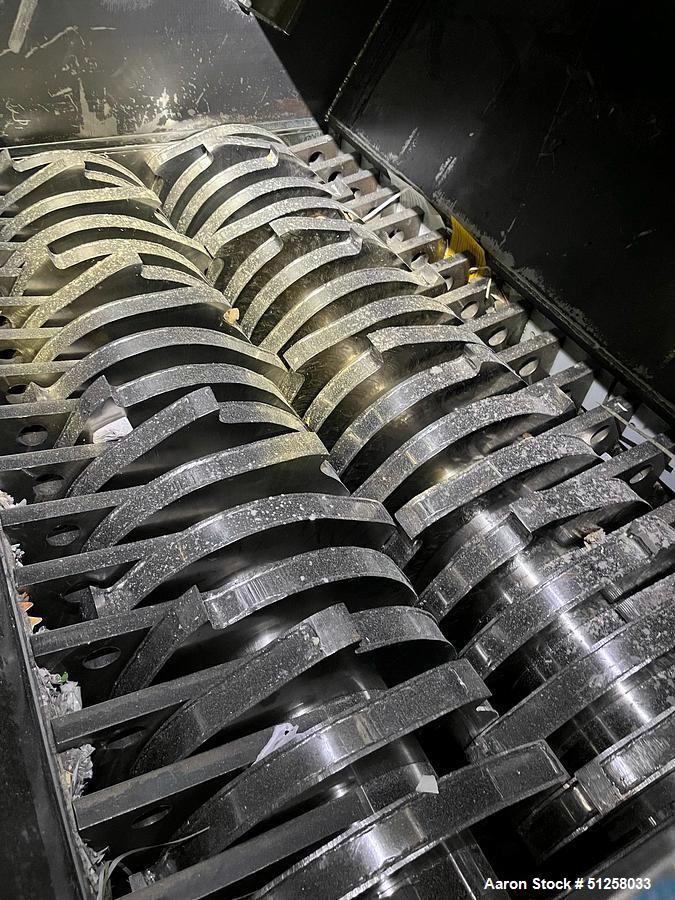

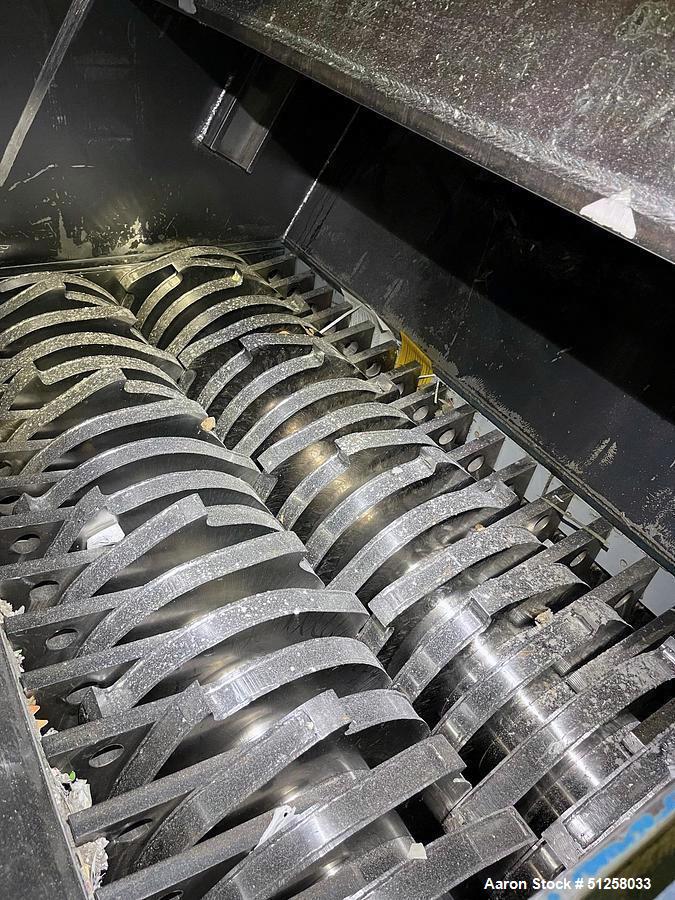

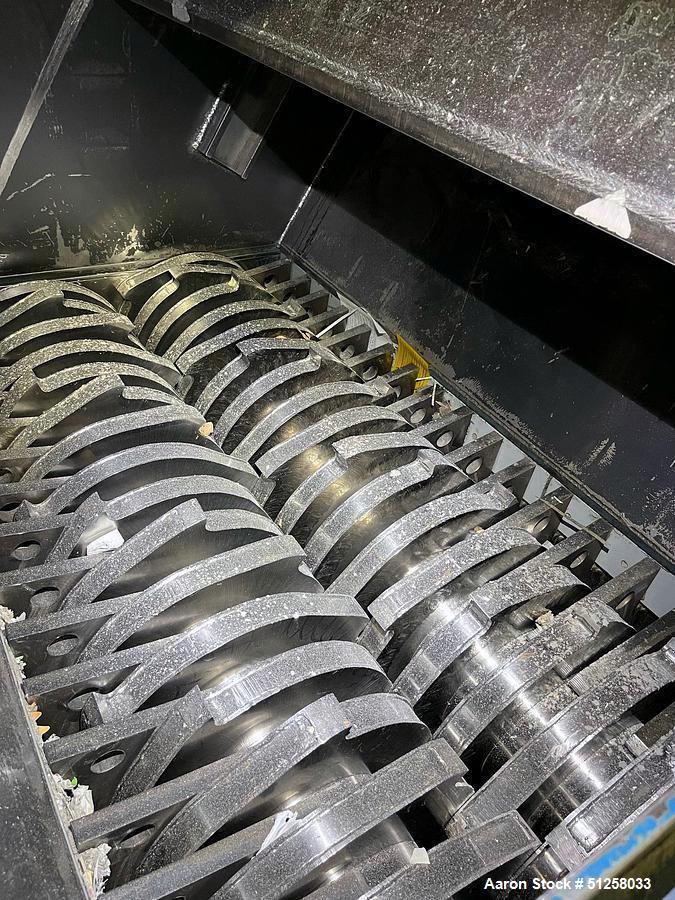

The shredder features a large 40" wide x 60" long x 22.50" high cutting chamber equipped with 2" thick cutters measuring approximately 20.3" in diameter. Variable shaft speeds of approximately 13–16 RPM provide low-speed shredding action for processing compatible bulky and difficult materials.

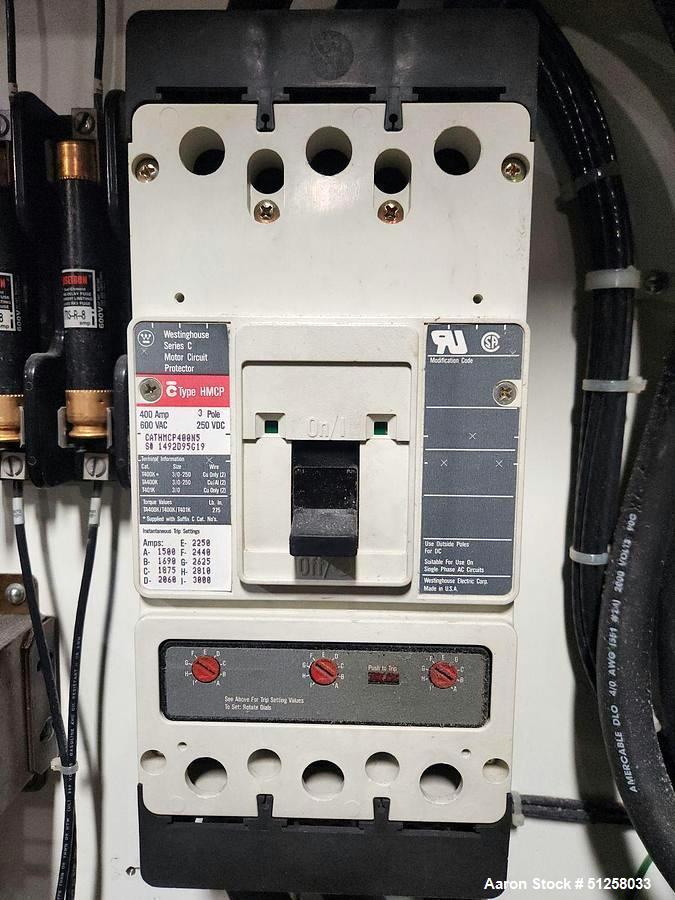

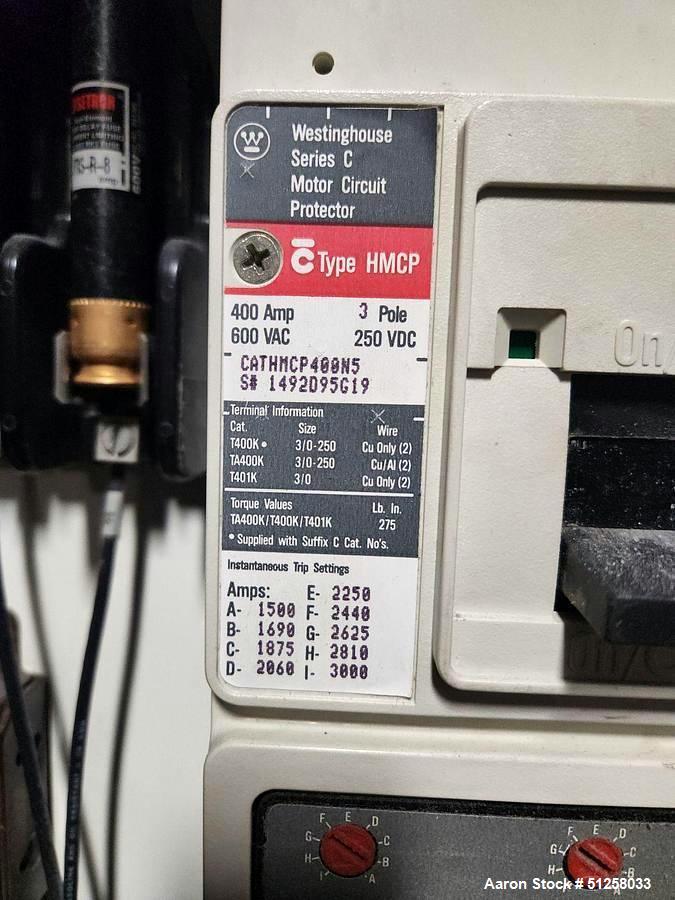

Power is supplied by a substantial 200 HP motor operating on 460V, 3-phase, 60 Hz electrical service.

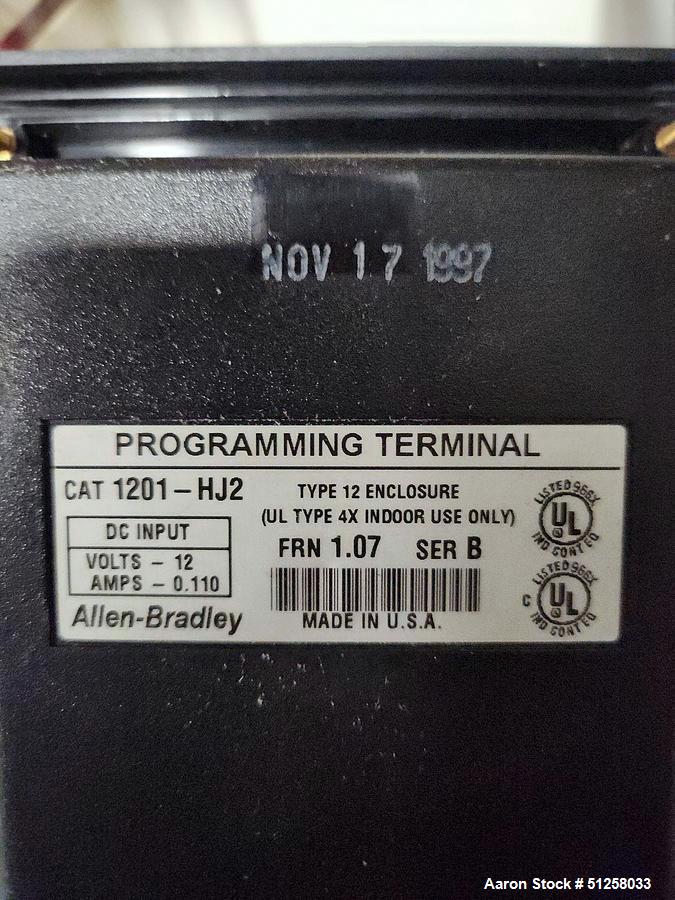

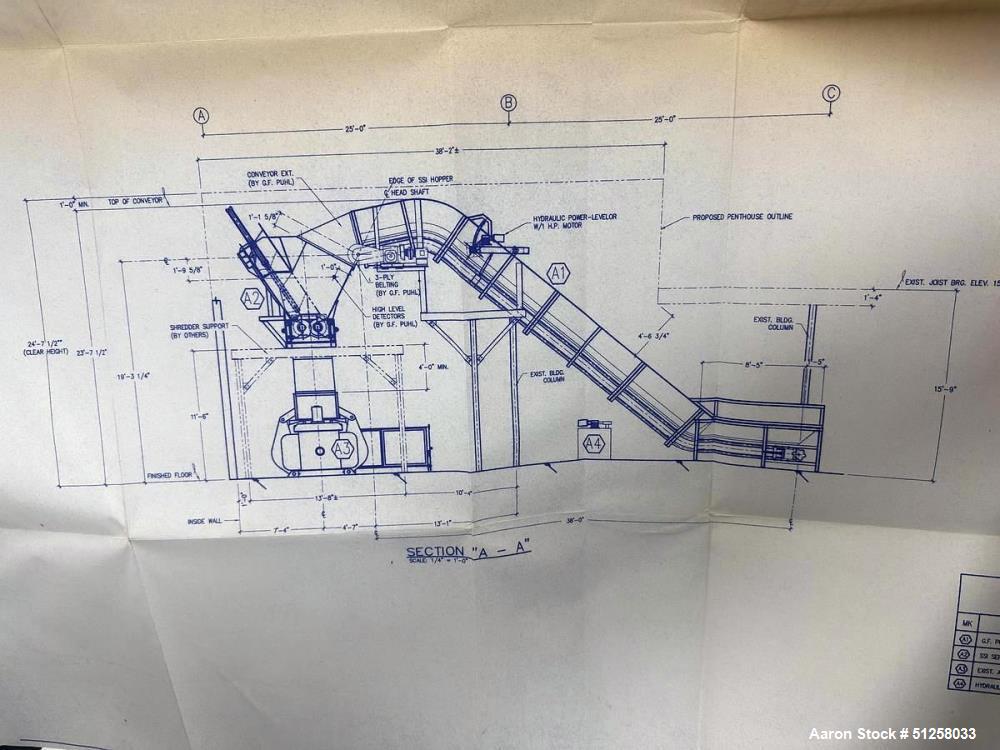

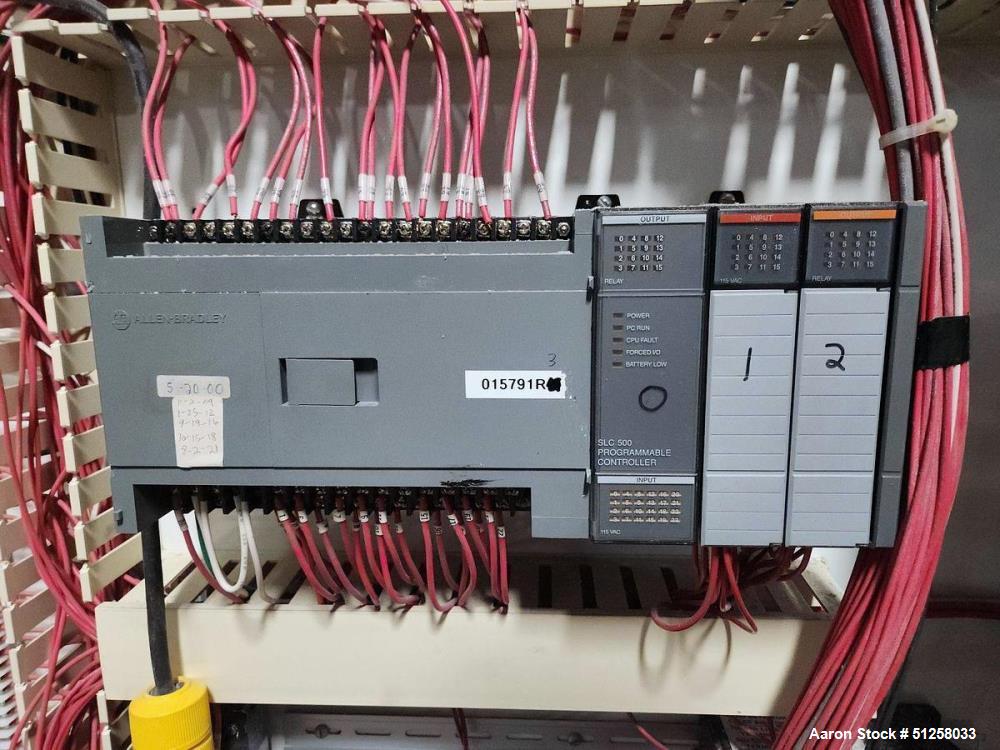

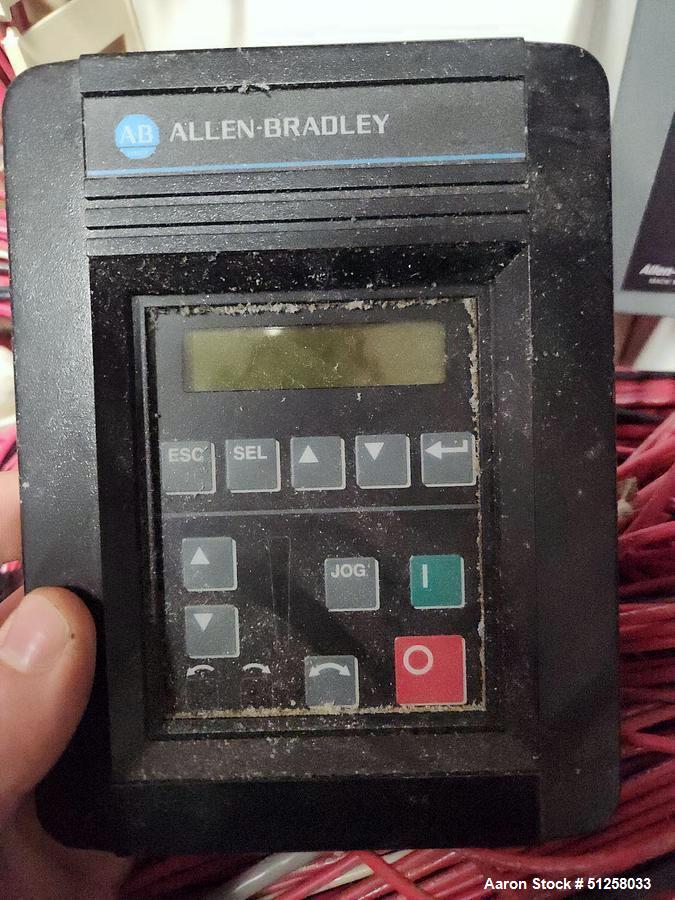

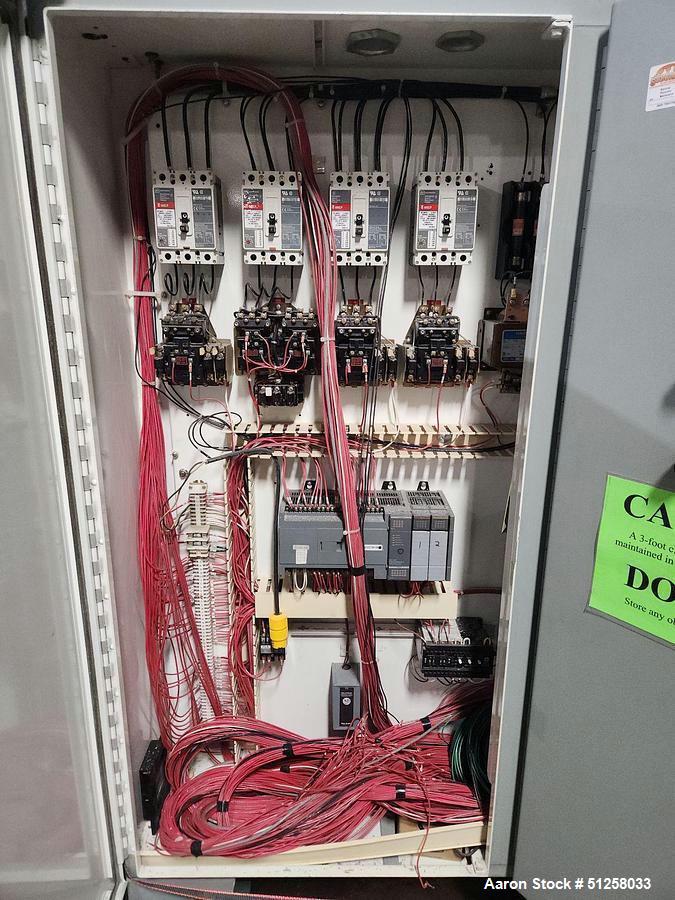

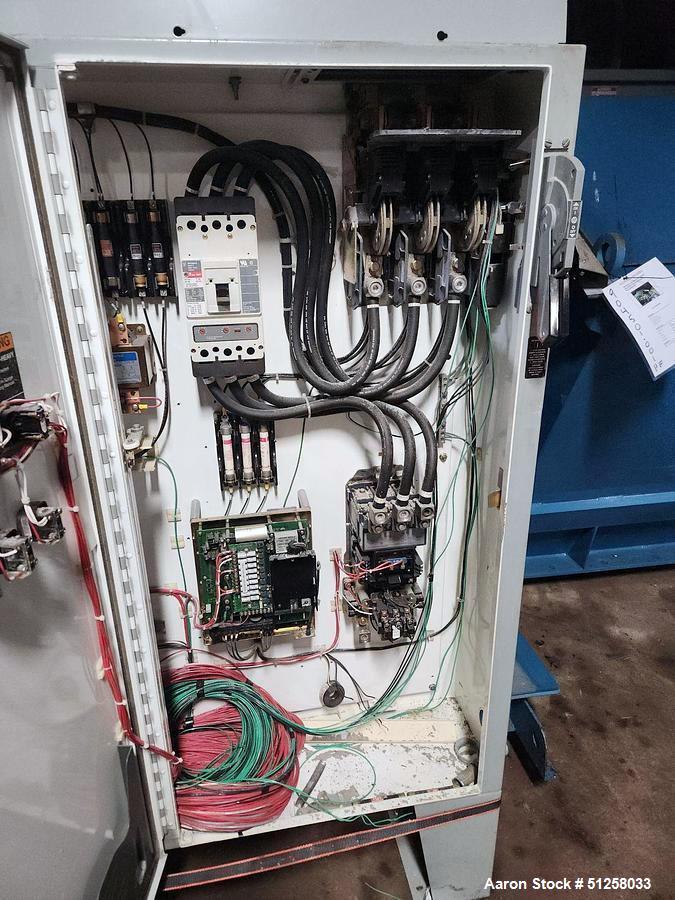

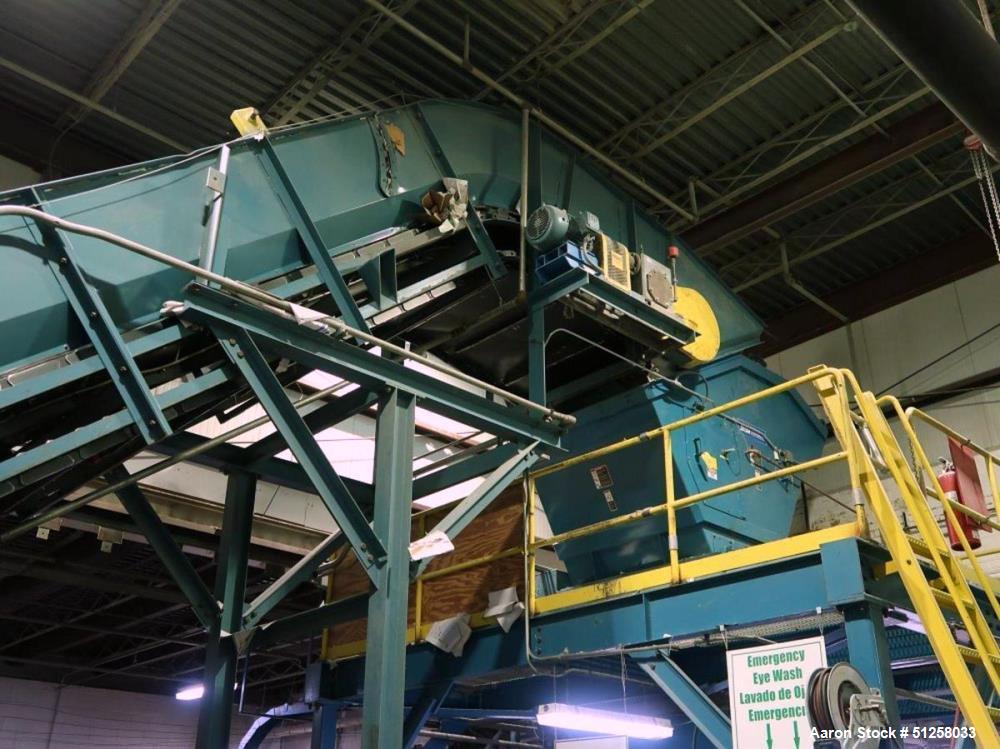

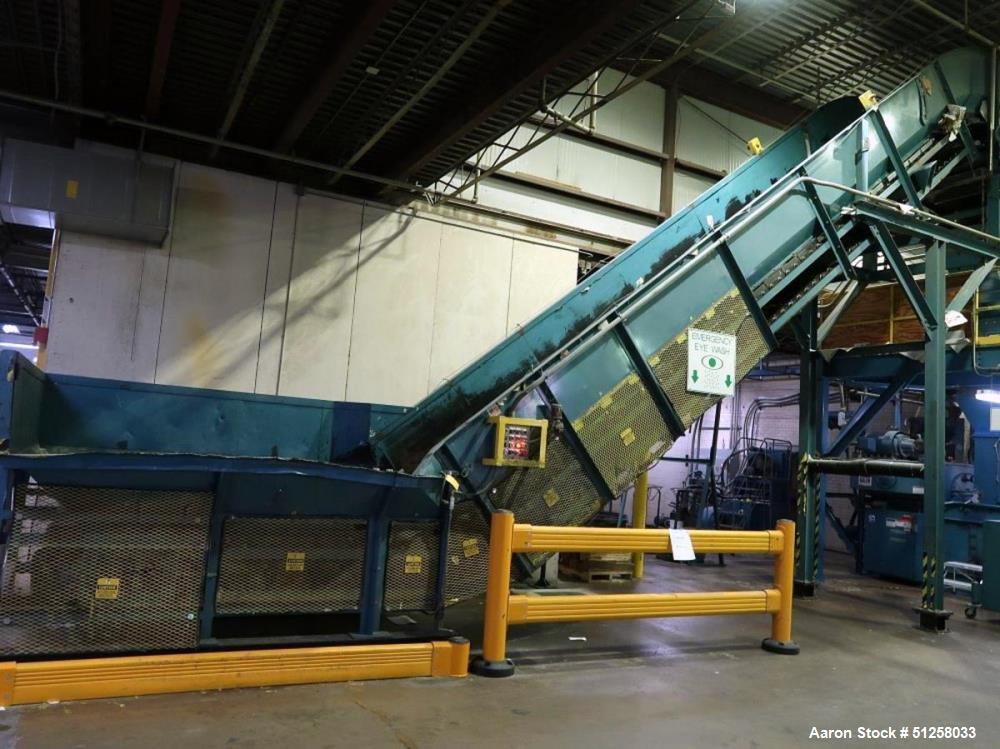

The system includes a ram hopper, which can assist in presenting bulky material to the cutting chamber, as well as an incline conveyor for material discharge. A hopper control panel is also included.

Potential applications include shredding and primary size reduction of plastics, tires, selected metals, wood, bulky waste, manufacturing scrap, and other compatible industrial materials requiring low-speed dual-shaft processing.

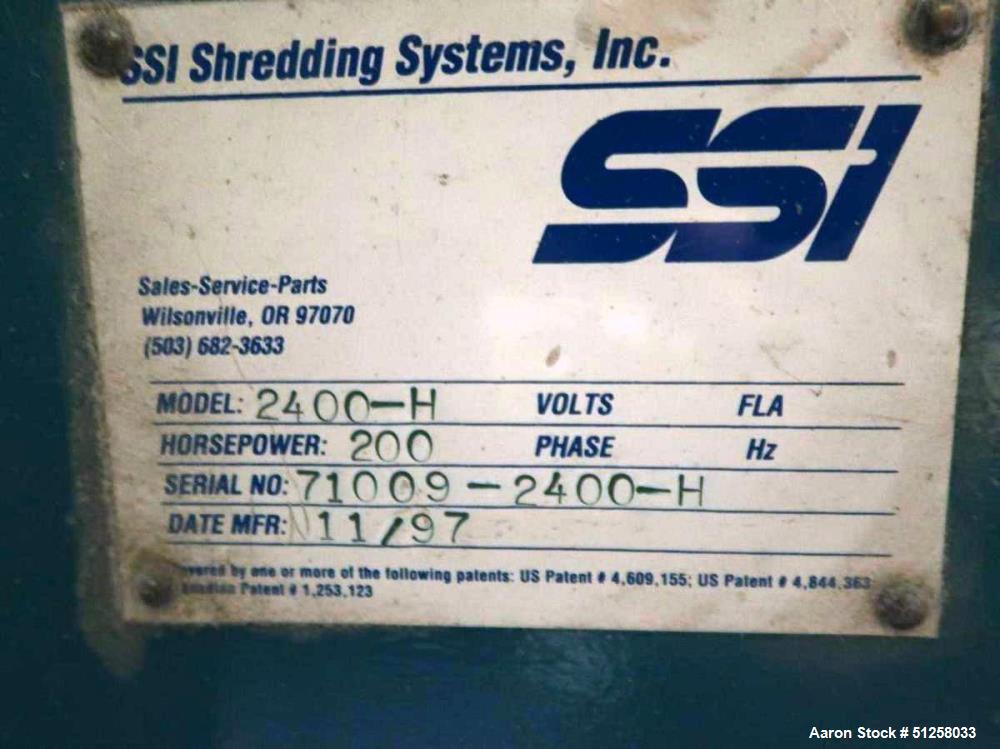

Serial Number: 71009-2400H

Specifications

Typical Applications

• Industrial size reduction
• Primary shredding
• Recycling operations
• Waste volume reduction
• Product destruction
• Manufacturing scrap processing
• Bulky waste processing
• Material recovery
• Pre-shredding
• Tire processing
• Plastic recycling
• Industrial scrap reduction

Products & Materials This Shredder Could Be Used For

• Plastic scrap
• Plastic containers and components
• Passenger and compatible tires
• Wood and wooden products
• Pallets
• Selected metal scrap
• Manufacturing waste
• Bulky industrial waste
• Packaging materials
• Production rejects
• Compatible mixed recycling materials
• Other materials requiring low-speed dual-shaft shredding

Actual throughput and suitability depend on material composition, dimensions, density, hardness, contaminants, desired output size, cutter condition, feeding method, and downstream equipment. Metals, tires, batteries, e-waste, and other challenging materials should be specifically evaluated for compatibility with the installed cutter configuration.

Frequently Asked Questions

• How large is the cutting chamber? The SSI 200-H/200 has a 40" wide x 60" long x 22.50" high cutting chamber for processing compatible bulky materials.
• What cutter configuration does this shredder use? The machine has 2" thick cutters with an approximately 20.3" cutter diameter.
• How fast do the shredder shafts operate? The unit has variable shaft speeds from approximately 13 to 16 RPM, providing low-speed shredding action.
• What size motor powers the SSI shredder? This unit is equipped with a 200 HP motor and requires 460V, 3-phase, 60 Hz electrical service.
• Does the shredder include material-handling equipment? Yes. The system includes a ram hopper, incline conveyor, and hopper control panel, providing a more complete shredding and material-handling package.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for heavy industrial shredders. Specialized or oversized transportation requirements can be evaluated using the final shipping dimensions and weights.
