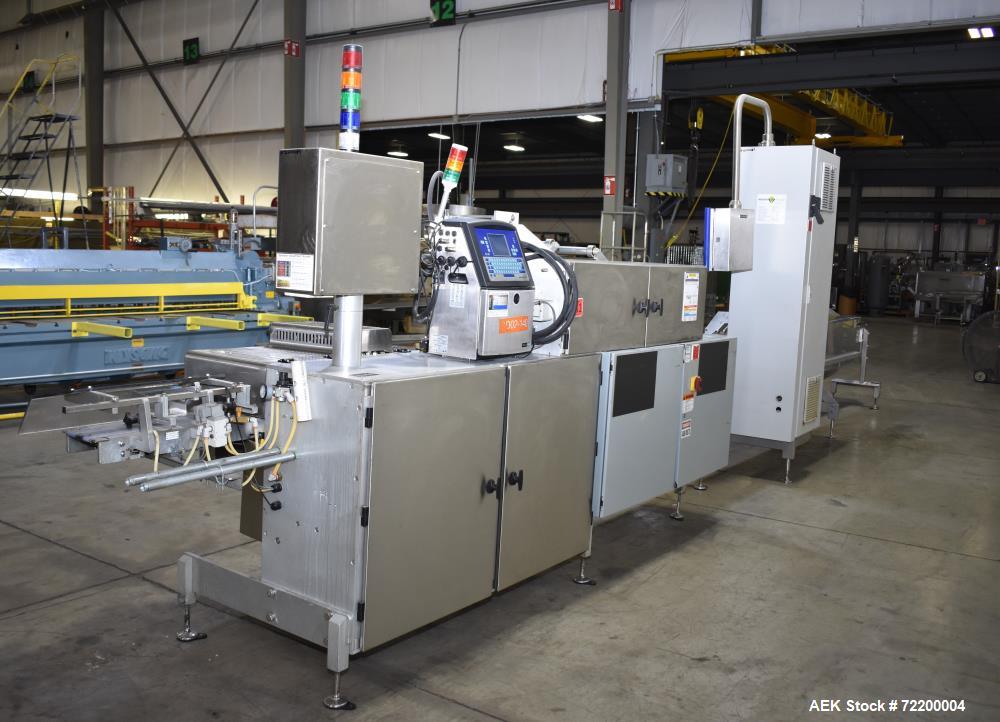

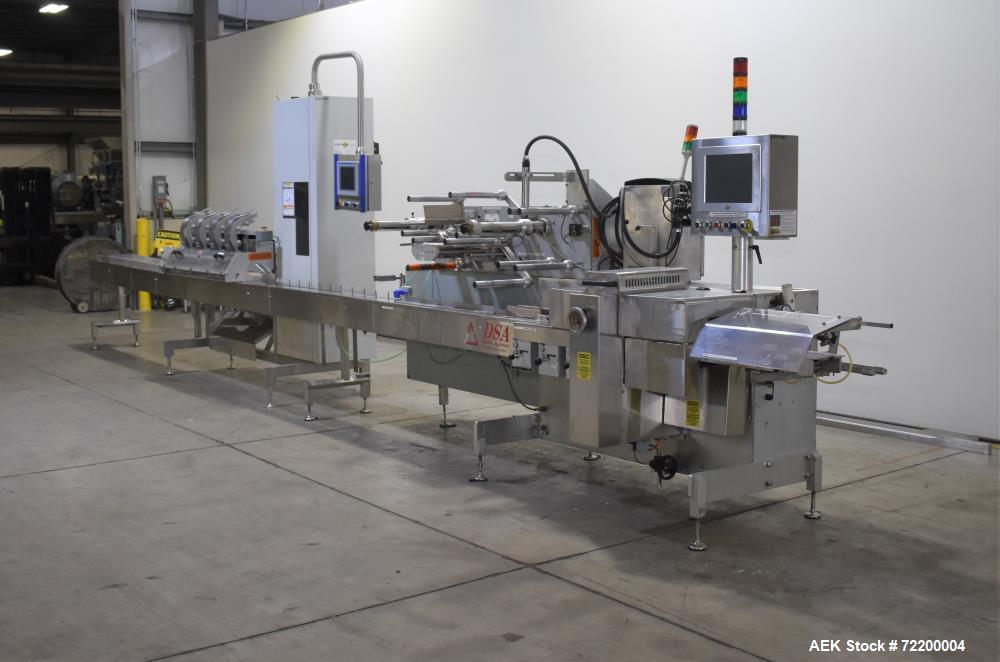

Ilapak Eagle High-Speed Flow Wrapper – Used Delta Systems Packaging Machine

Manufacturers Info:

• Manufacturer: Delta Systems / Ilapak
• Model: Eagle High-Speed Flow Wrapper
• Condition: Used

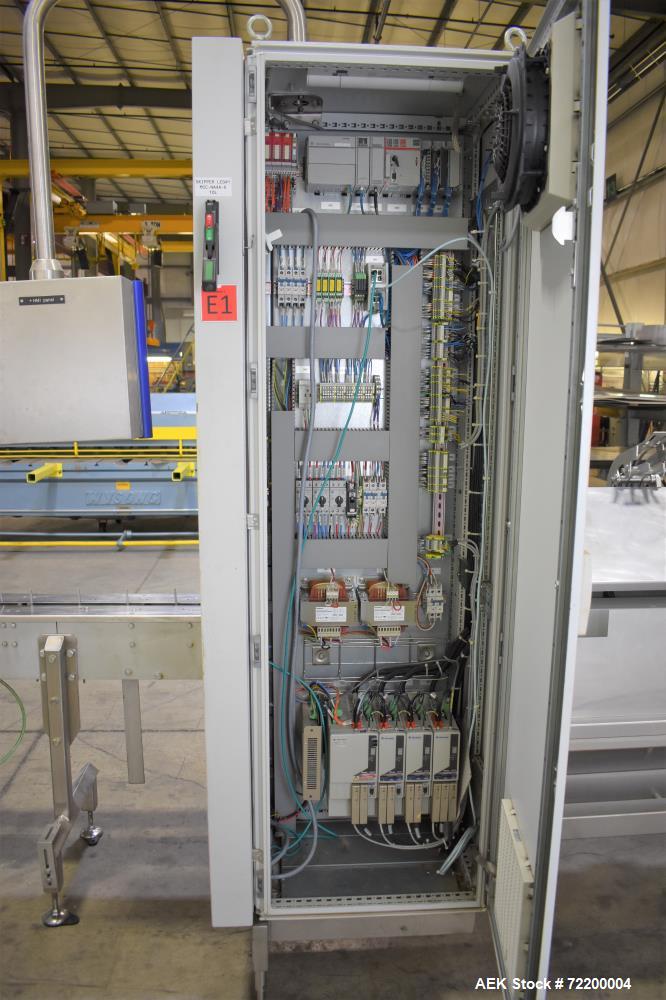

• Control System:

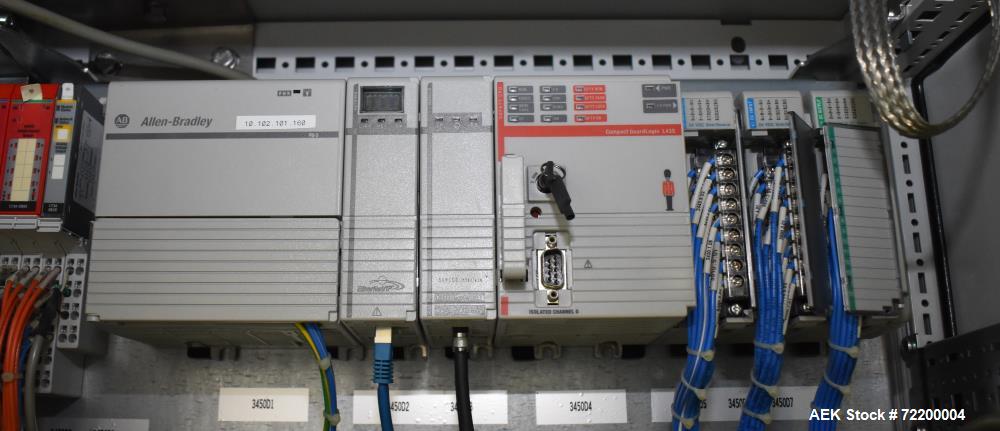

  • Allen Bradley CompactLogix L435 PLC

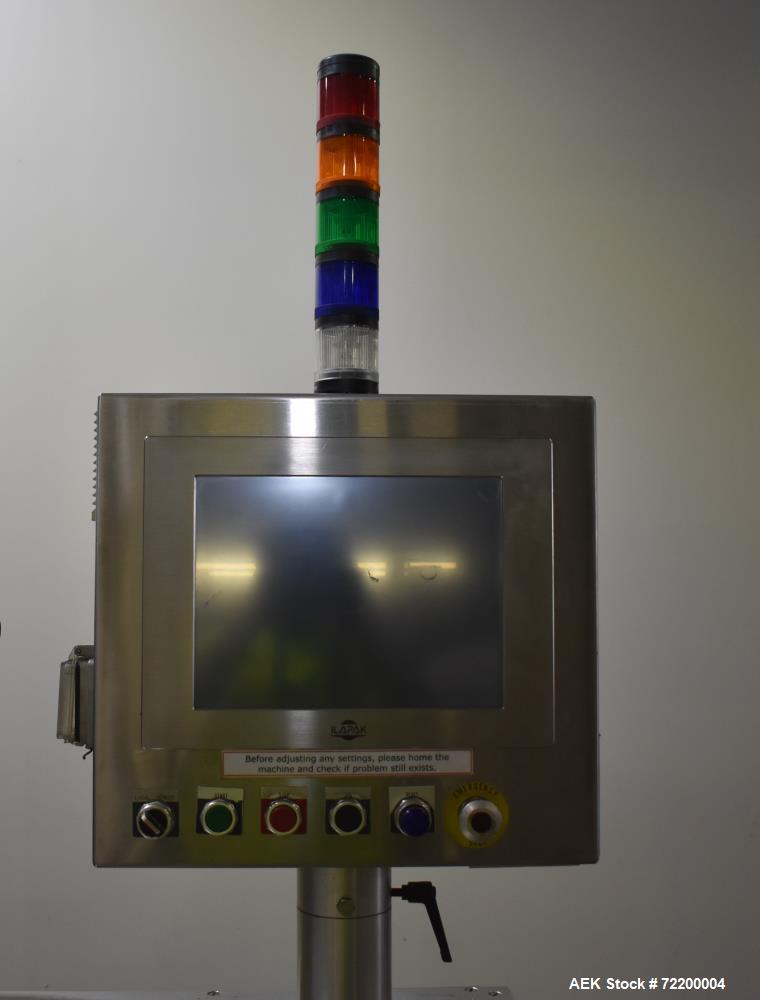

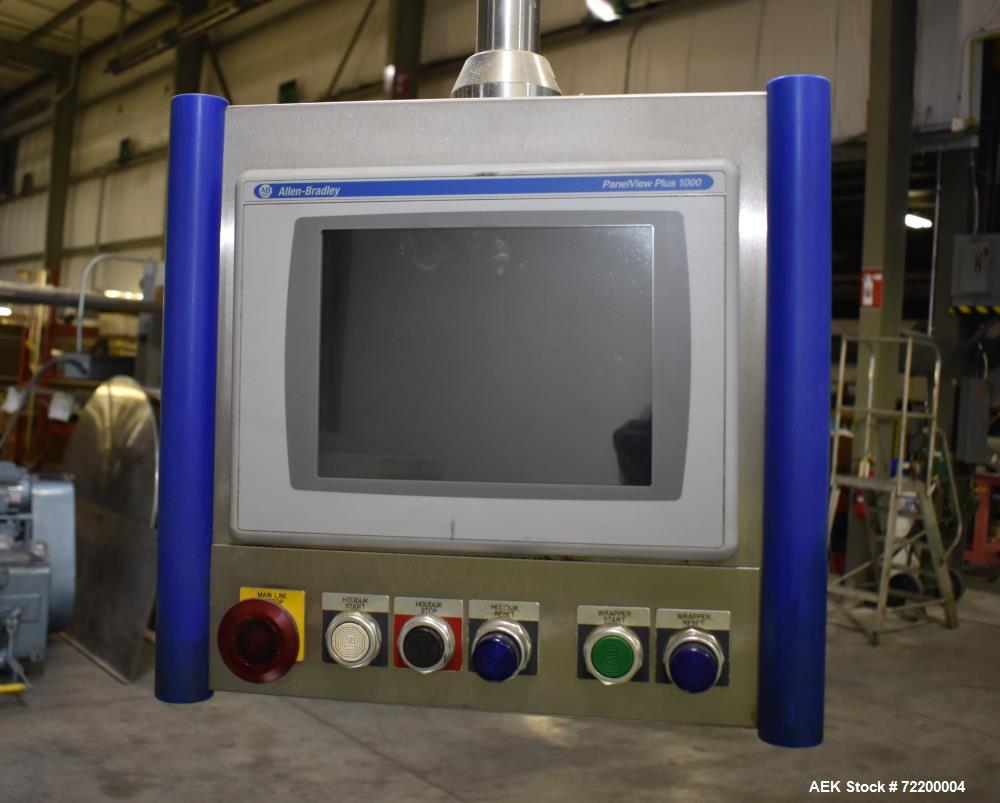

  • Allen Bradley PanelView Plus 1000 HMI
• Motion Control:

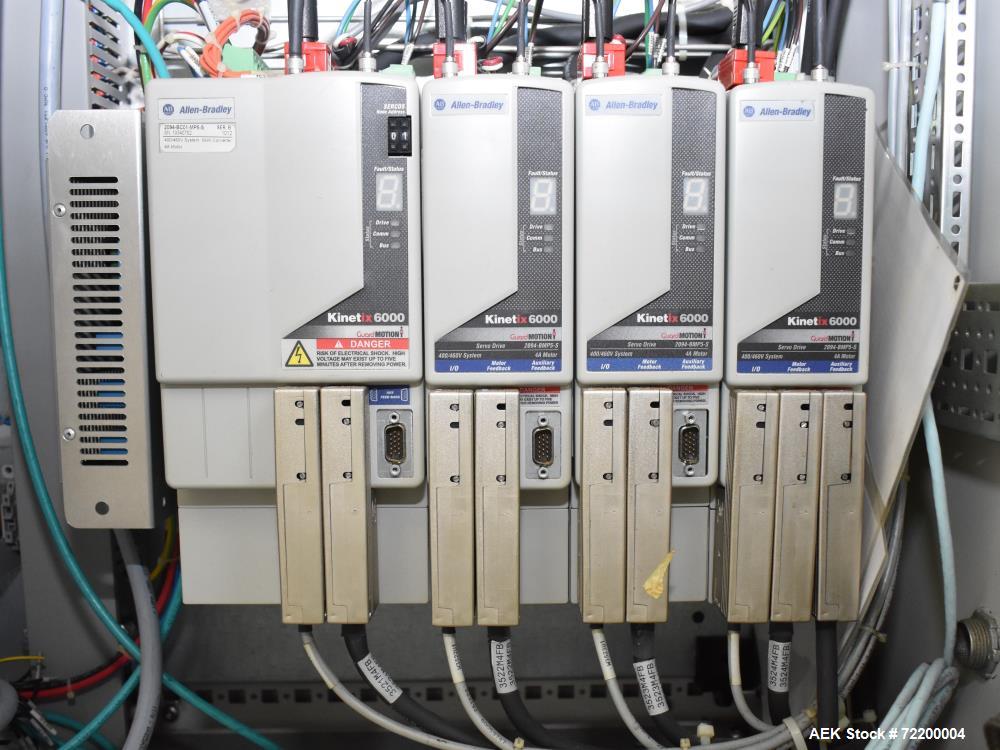

  • AB Kinetix 6000 Servo Motion Drives (Cracker Feeder)

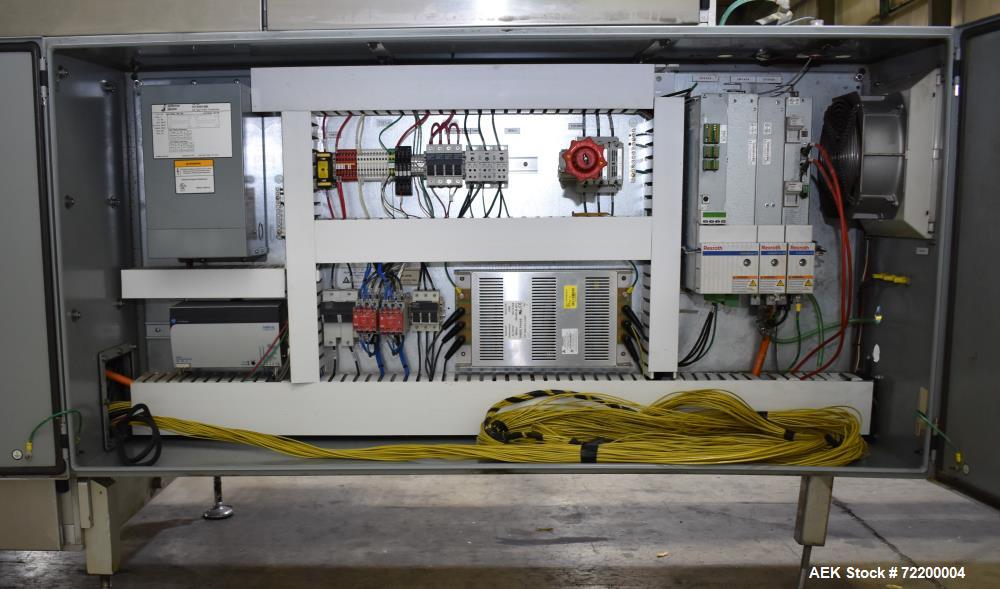

  • Rexroth Servo Motion Indradrives (Wrapper)
• Electrical Specs: 3-Phase, 60 Hz, 480V

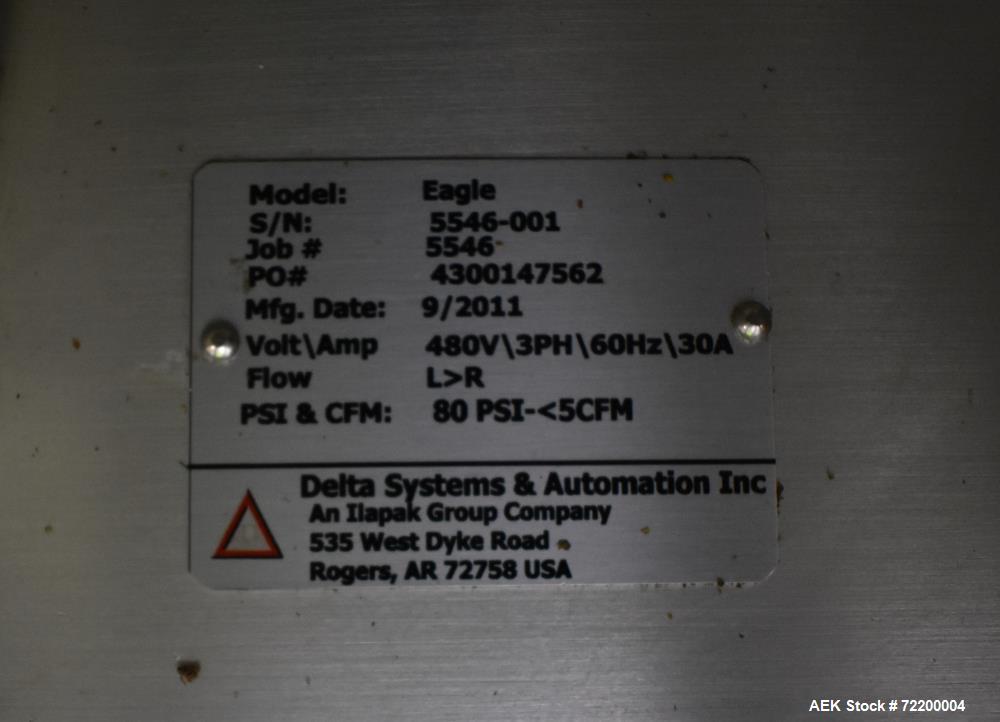

• Serial Number: 5546-001
• Year Built: 2011

Facts About the Delta Systems / Ilapak Eagle Flow Wrapper:

• High-speed horizontal flow wrapper capable of production rates up to 240 packages per minute (PPM).
• Left-to-right product flow for seamless integration into existing packaging lines.

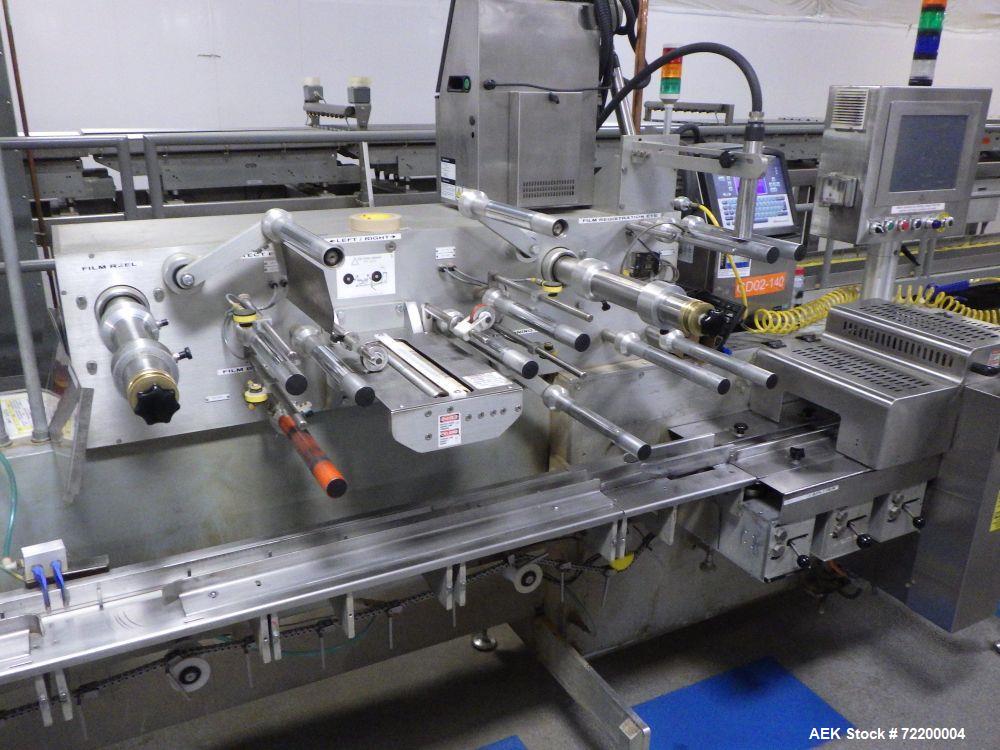

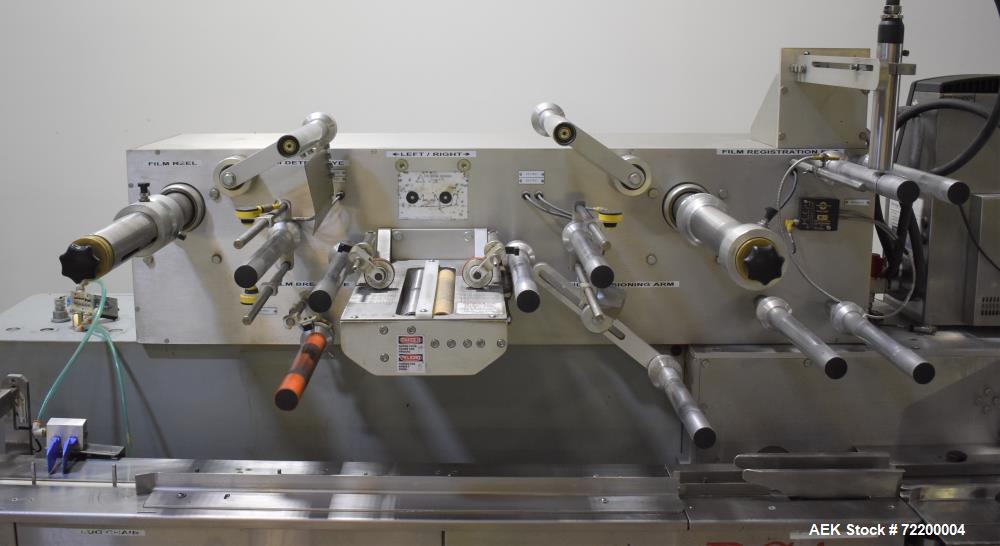

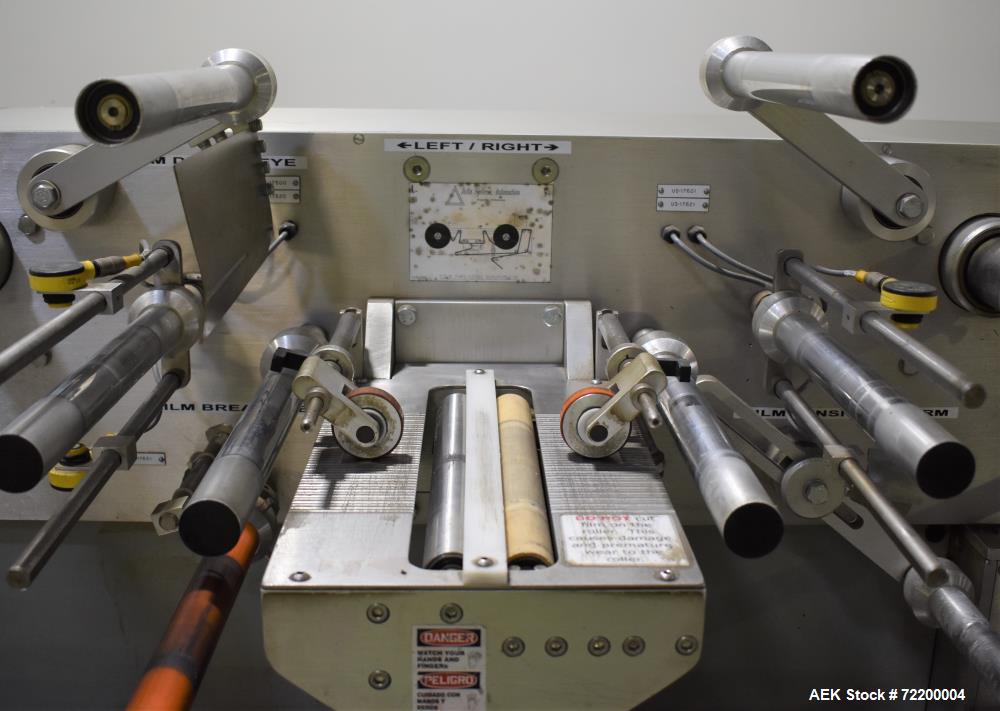

• Dual arbor film feed with automatic film splicer for continuous operation.
• Printed film registration system for precise package alignment.
• Handles structured cold seal film with a maximum 12.24" web width.

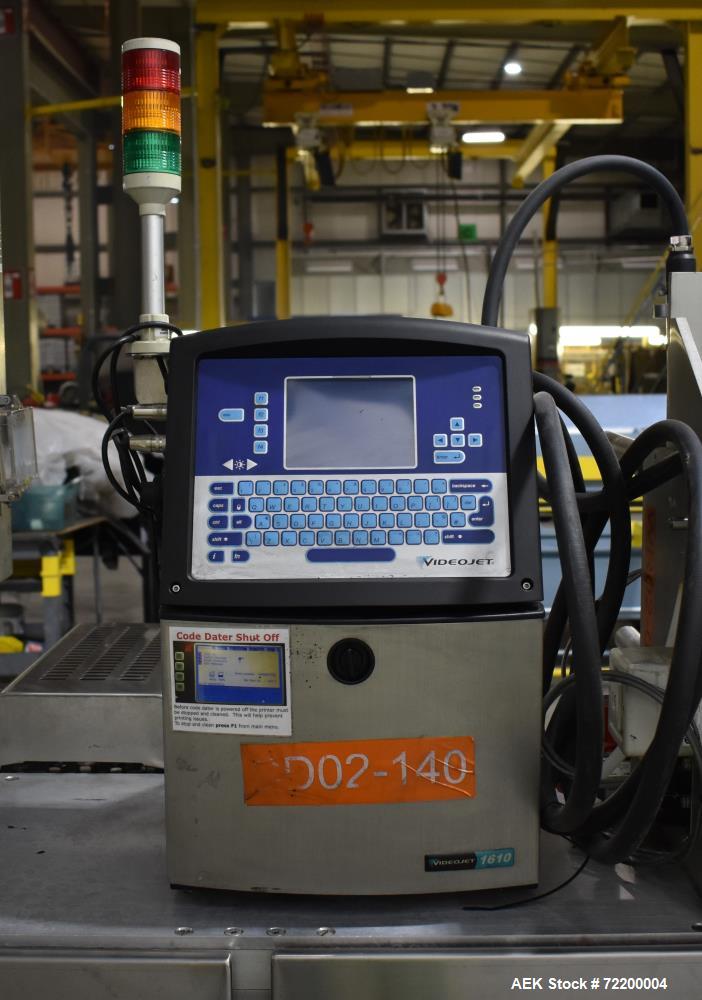

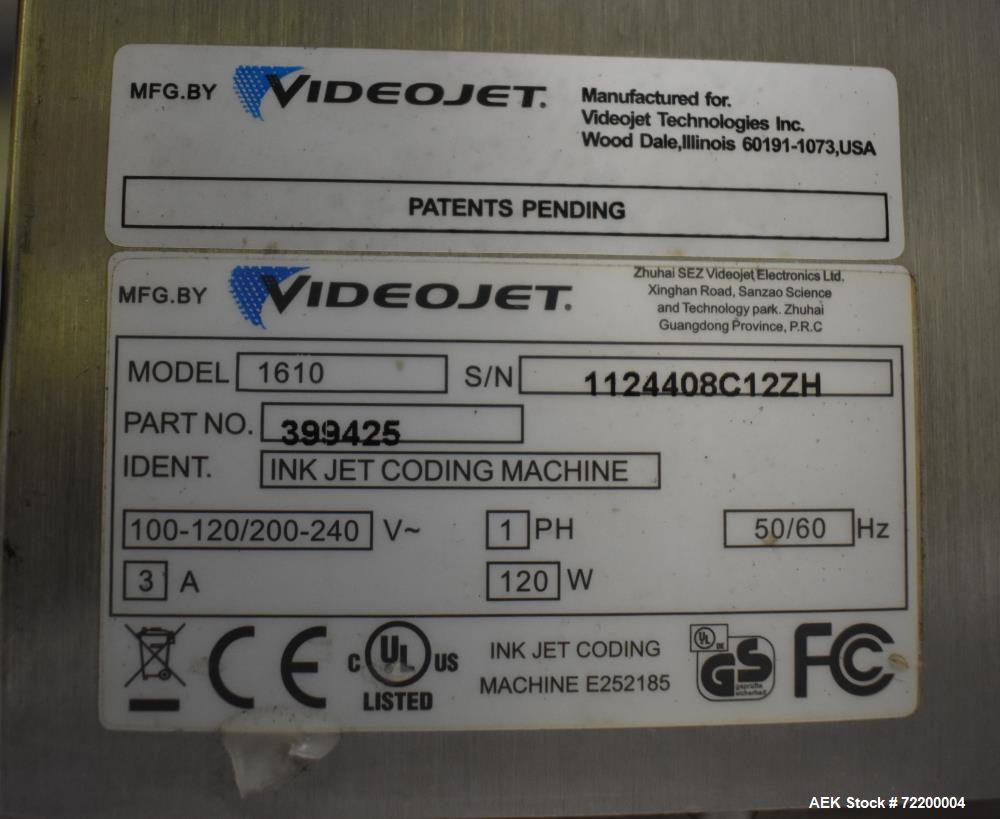

• Equipped with Video Jet 1610 Ink Jet Code Printer for batch & date coding.

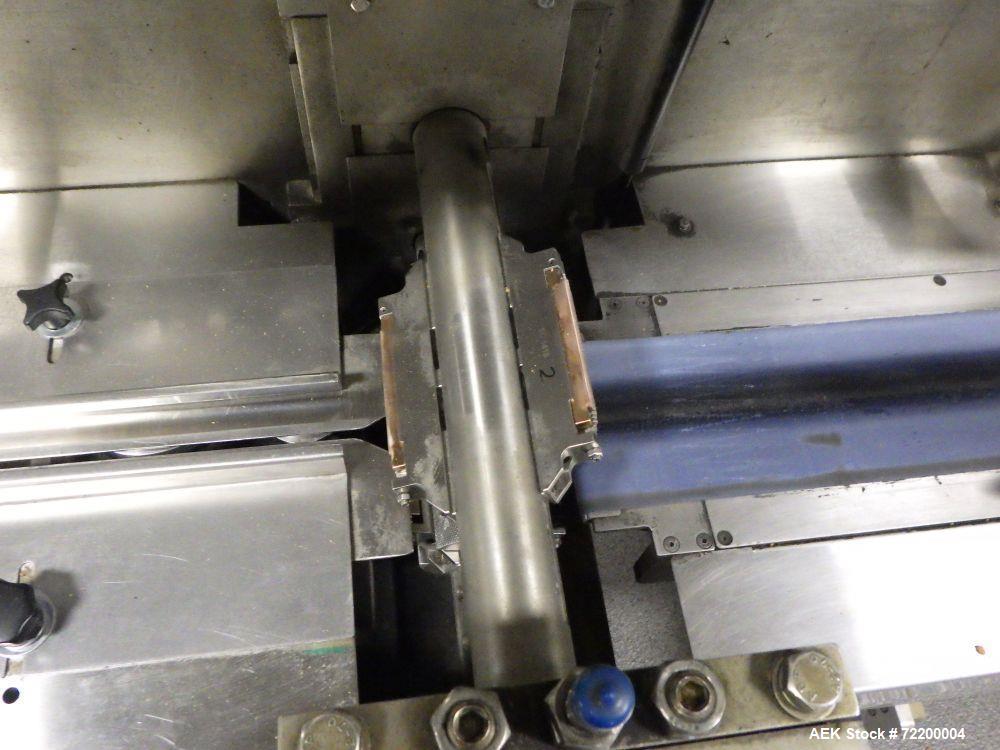

• 2-up, 3-1/4" wide end seal crimpers with horizontal line pattern and serrated knife cut-off for clean and secure package sealing.
• Last used for biscuit cracker stacks (approx. 2" x 4", variable heights up to 2").

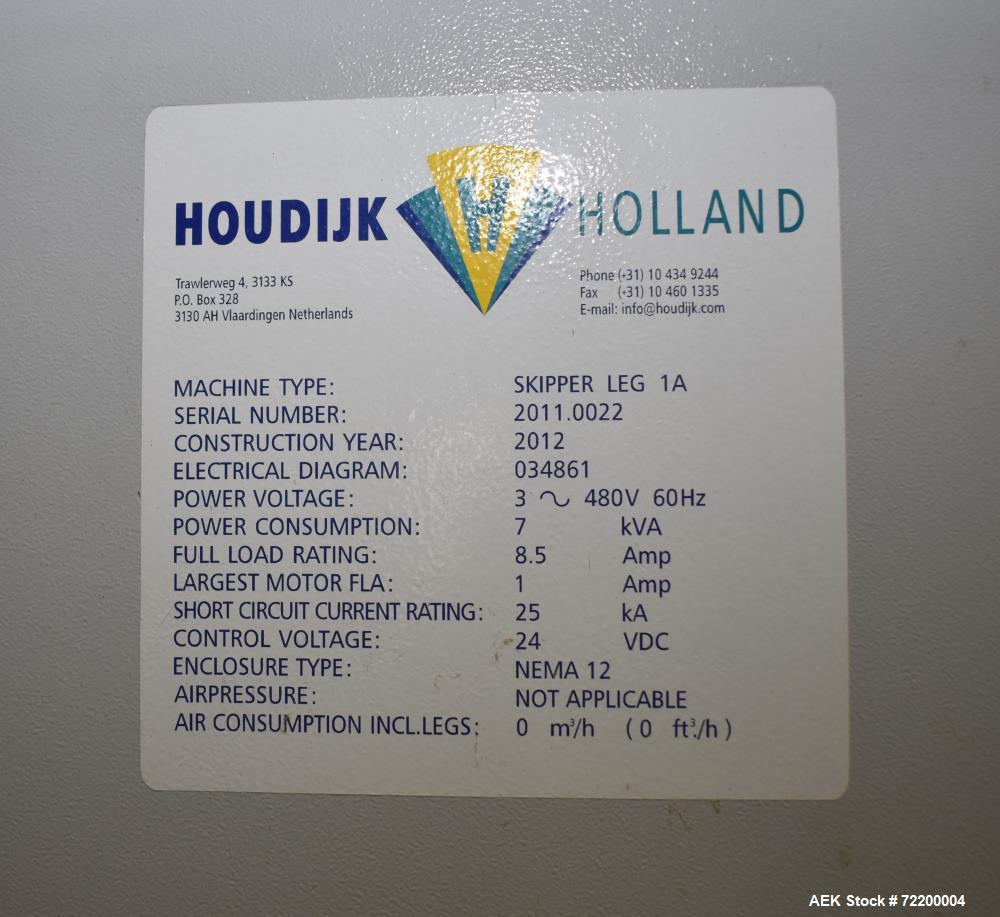

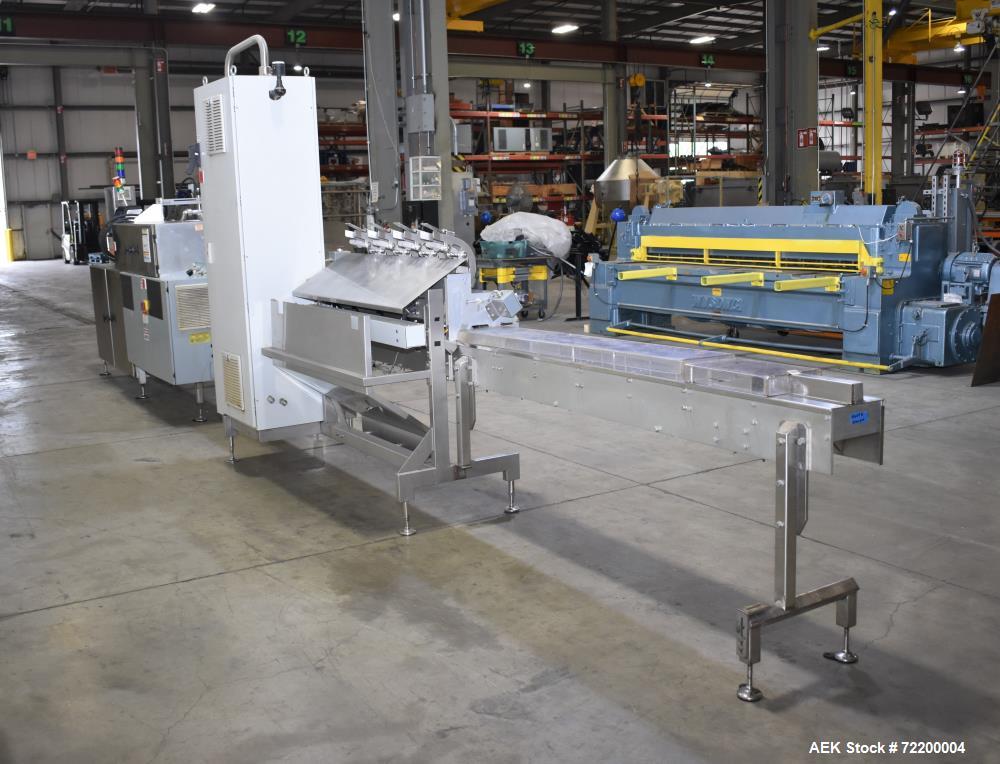

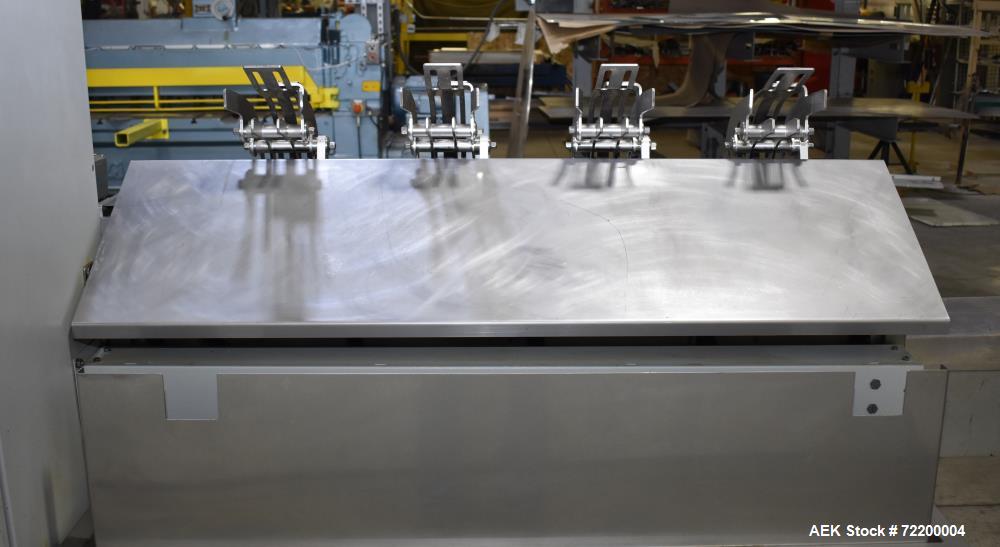

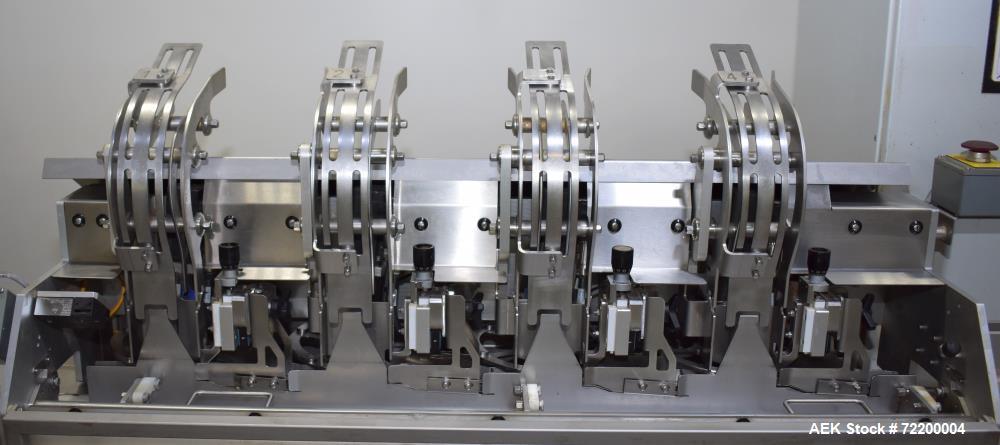

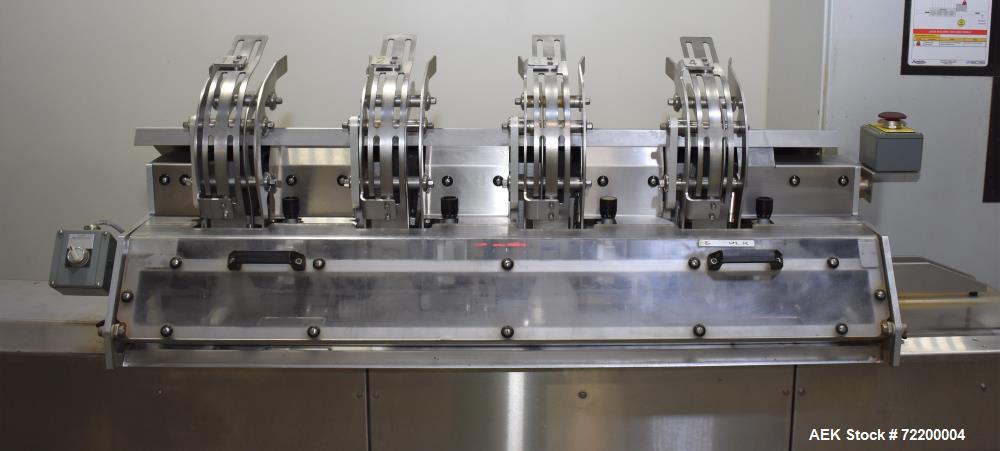

• Includes Houdijk Holland 4-row automated biscuit cracker feeder for variable-height stacking.

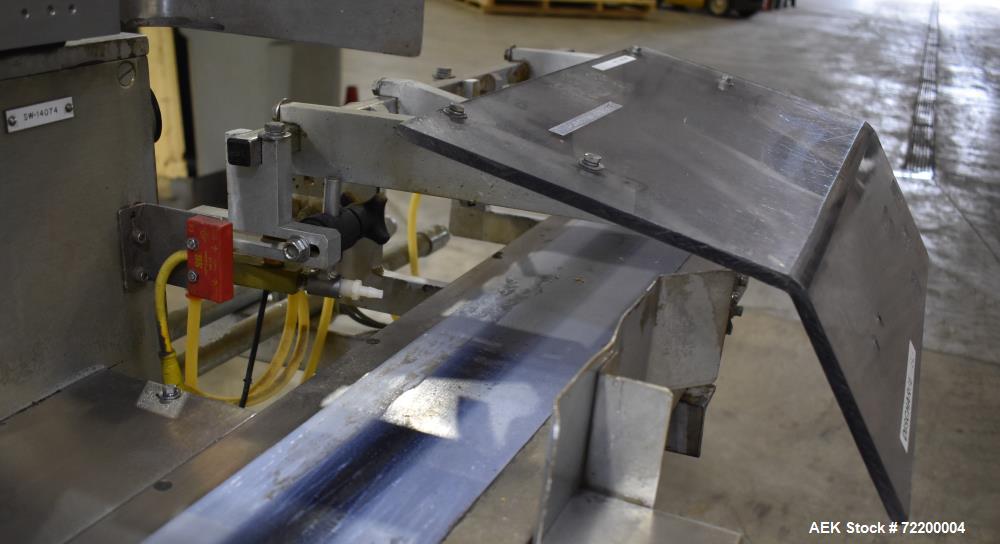

• Air knife reject system for detecting and removing over-height stacks.
• Allen Bradley servo-driven system ensures smooth and precise motion control.

Description:

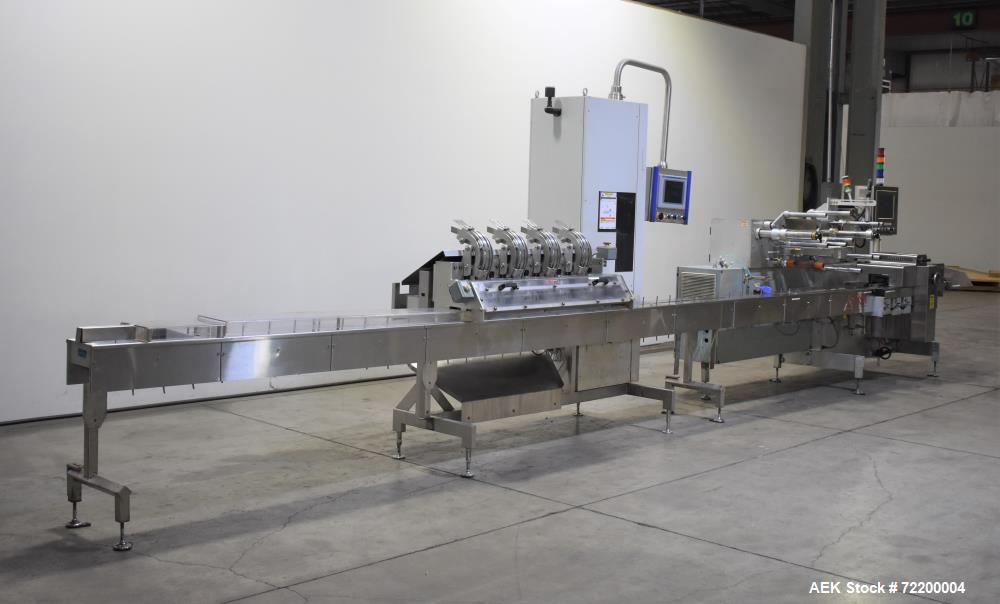

This used Delta Systems / Ilapak Eagle High-Speed Horizontal Flow Wrapper is a fully automated packaging solution designed for high-speed food and snack wrapping applications. Capable of operating at up to 240 packages per minute, this machine is ideal for continuous, high-output production environments.

Equipped with dual arbor film feed, film splicer, and printed film registration, the system ensures precise and efficient packaging with structured cold seal film. The Video Jet 1610 Ink Jet Code Printer provides on-the-fly batch and date coding. The 2-up, 3-1/4" wide end seal crimpers with horizontal line pattern and serrated knife cut-off deliver secure, tamper-proof sealing.

The Houdijk Holland 4-row automated biscuit cracker feeder allows for precise variable-height stacking, and the air knife reject system removes over-height stacks. Featuring Allen Bradley CompactLogix L435 PLC and PanelView Plus 1000 HMI, the system offers intuitive operation and real-time monitoring.

With Rexroth servo motion Indradrives on the wrapper and AB Kinetix 6000 Servo Drives on the cracker feeder, this servo-driven system ensures exceptional accuracy and reliability.

Specifications:

• Speed: Up to 240 packages per minute (PPM)
• Film Handling:
  • Dual Arbor Film Feed with Automatic Film Splicer
  • Printed Film Registration System
  • Max Web Width: 12.24"
  • Structured Cold Seal Film Compatible
• Sealing System:
  • 2-up, 3-1/4" Wide End Seal Crimpers with Horizontal Line Pattern
  • Serrated Knife Cut-Off for Clean Cutting
• Product Handling:
  • Left-to-Right Product Flow

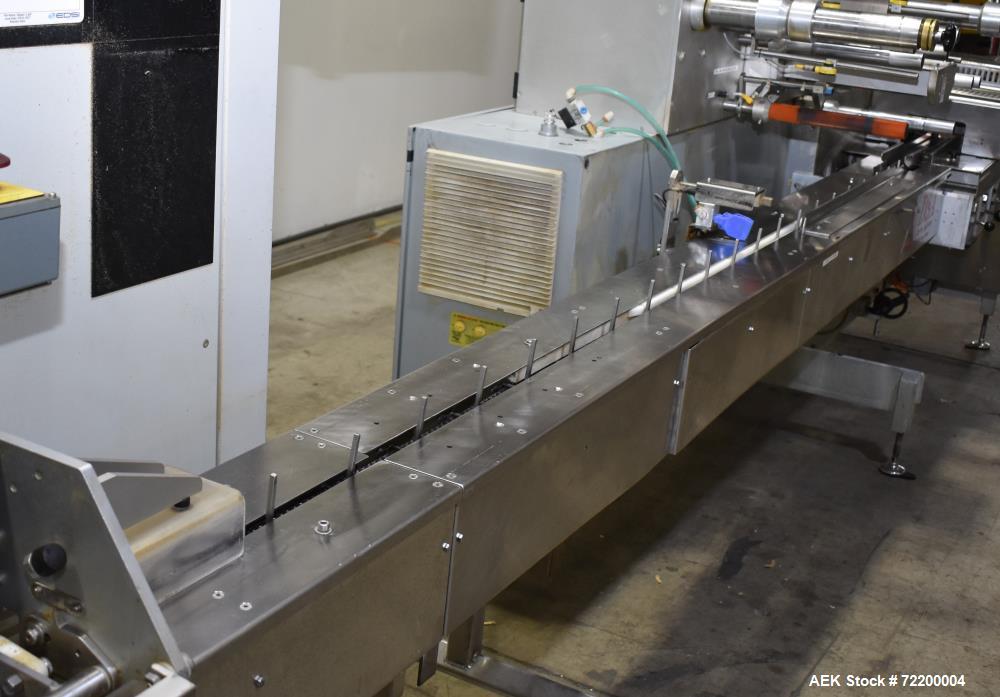

  • 68" Long Infeed on 5-7/8" Centers

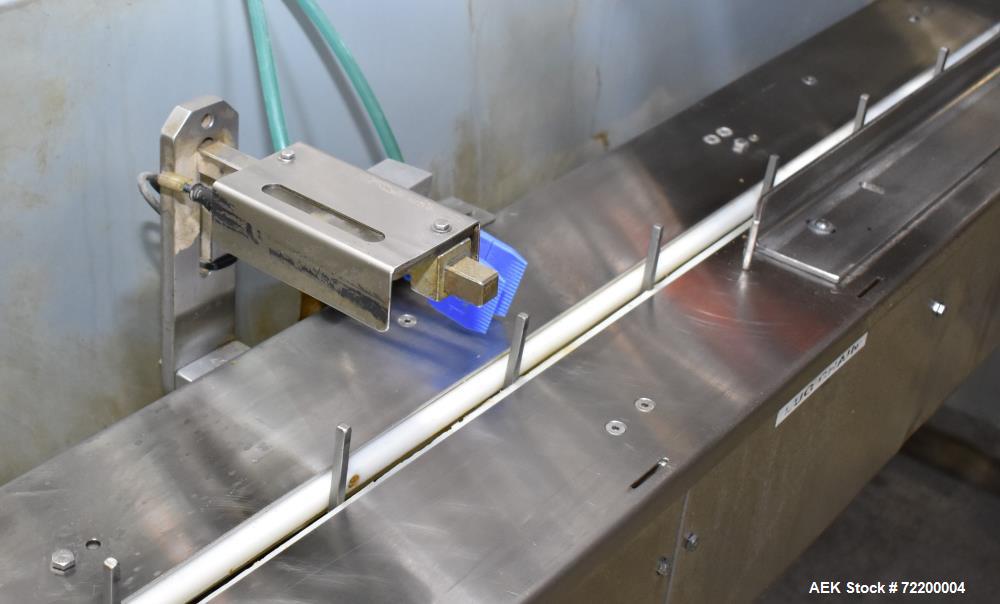

  • 2" High Pin Lugs on 6" Centers
  • Houdijk Holland 4-Row Automated Biscuit Cracker Feeder
  • Air Knife Reject System for Over-Height Stacks
• Control System:
  • Allen Bradley CompactLogix L435 PLC
  • Allen Bradley PanelView Plus 1000 HMI
• Motion Control:
  • AB Kinetix 6000 Servo Drives (Cracker Feeder)
  • Rexroth Servo Motion Indradrives (Wrapper)
• Coding & Printing: Video Jet 1610 Ink Jet Code Printer
• Electrical Requirements: 3-Phase, 60 Hz, 480V
• Serial Number: 5546-001
• Year Built: 2011

Applications:

• Snack & Confectionery Packaging
• Bakery & Biscuit Wrapping
• Frozen Food & Meal Kit Packaging
• Granola Bars, Protein Bars & Cereal Bars
• Medical & Pharmaceutical Product Packaging
• Dairy & Cheese Stick Packaging

What Products Would This Be Used For?

• Biscuit & Cracker Stacks
• Snack Bars & Energy Bars
• Frozen Waffles, Pancakes & Pastries
• Wrapped Candies & Chocolates
• Pre-Packaged Bakery Goods
• Medical & Personal Care Products
