Fuji FW 3410/Ba7 Box Motion Flow Wrapper – Up to 150 PPM

Manufacturer Information

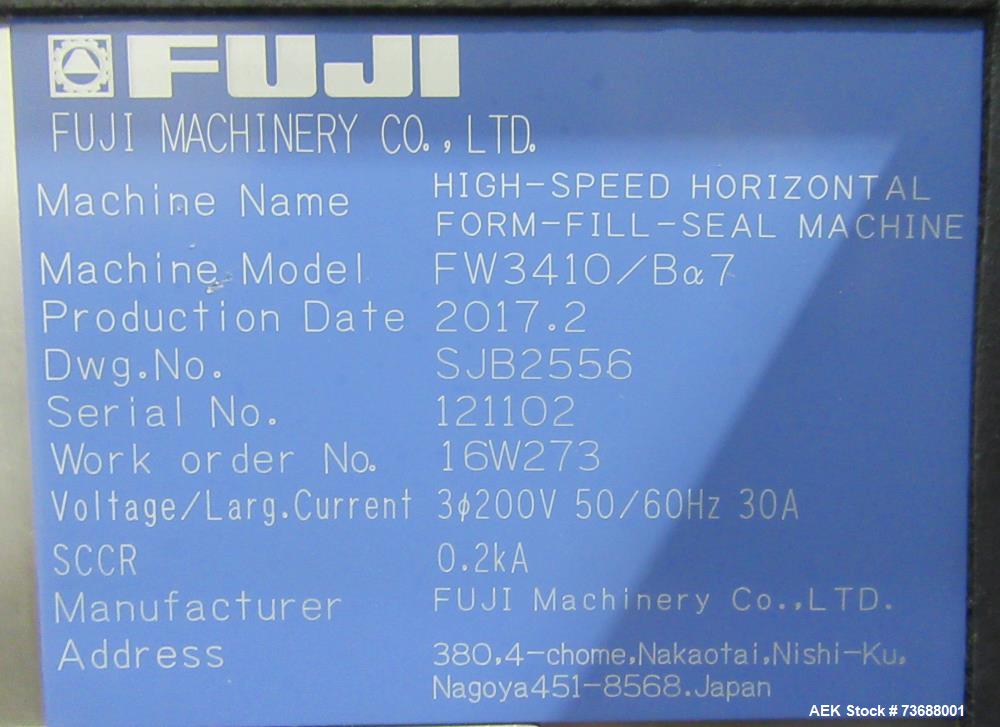

Manufacturer: Fuji
Model: FW 3410/Ba7

Main Product Description

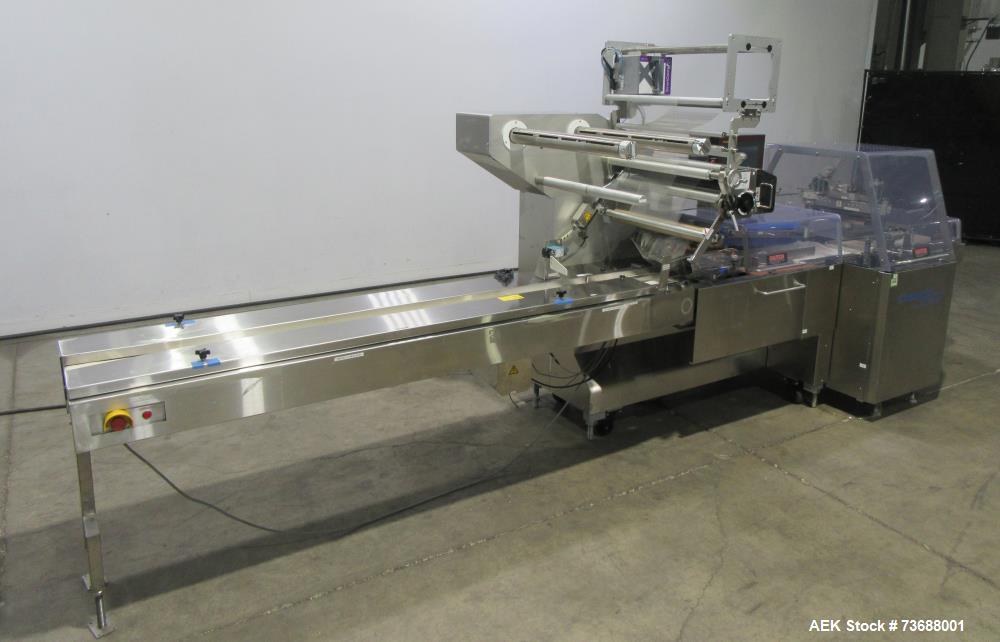

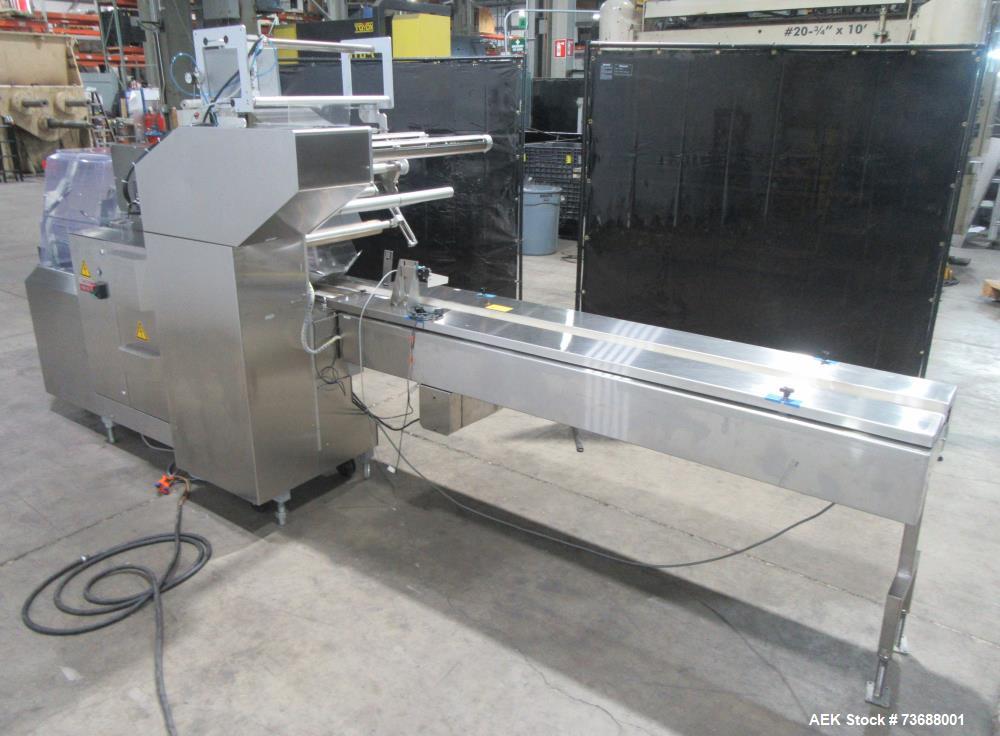

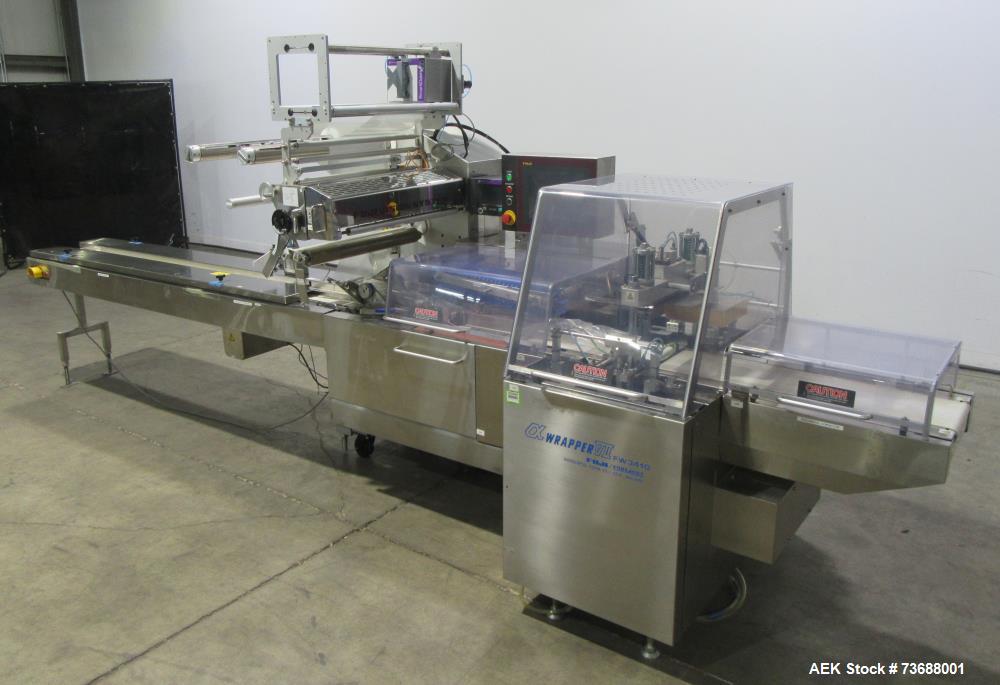

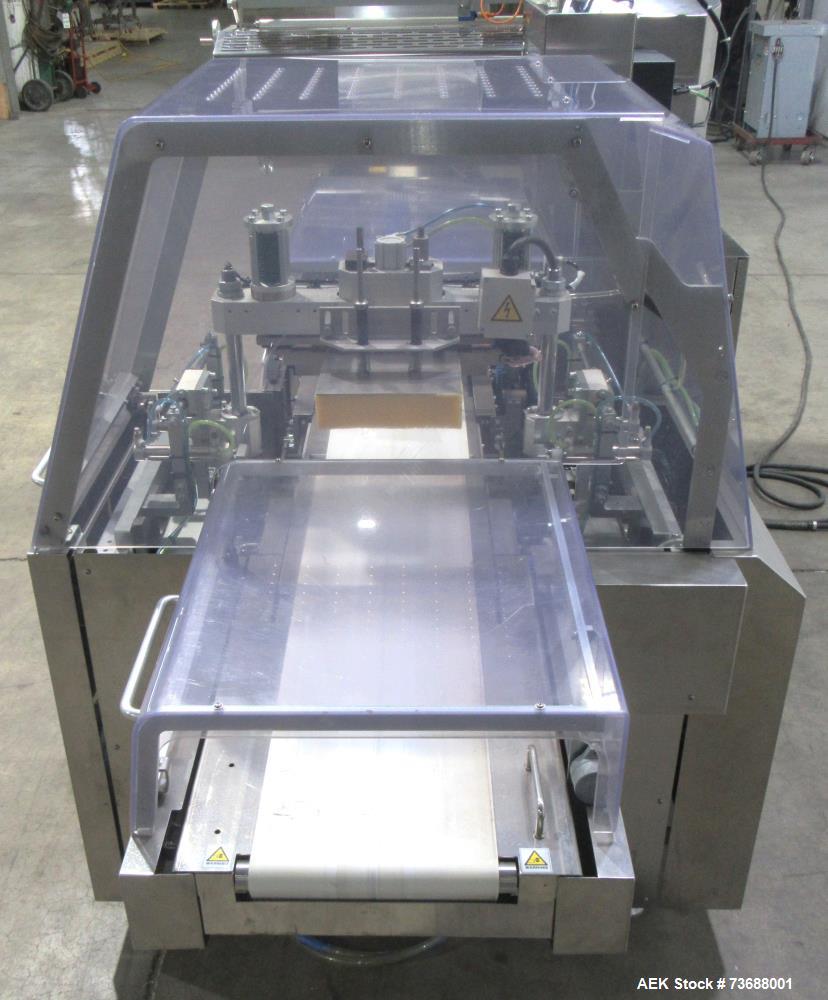

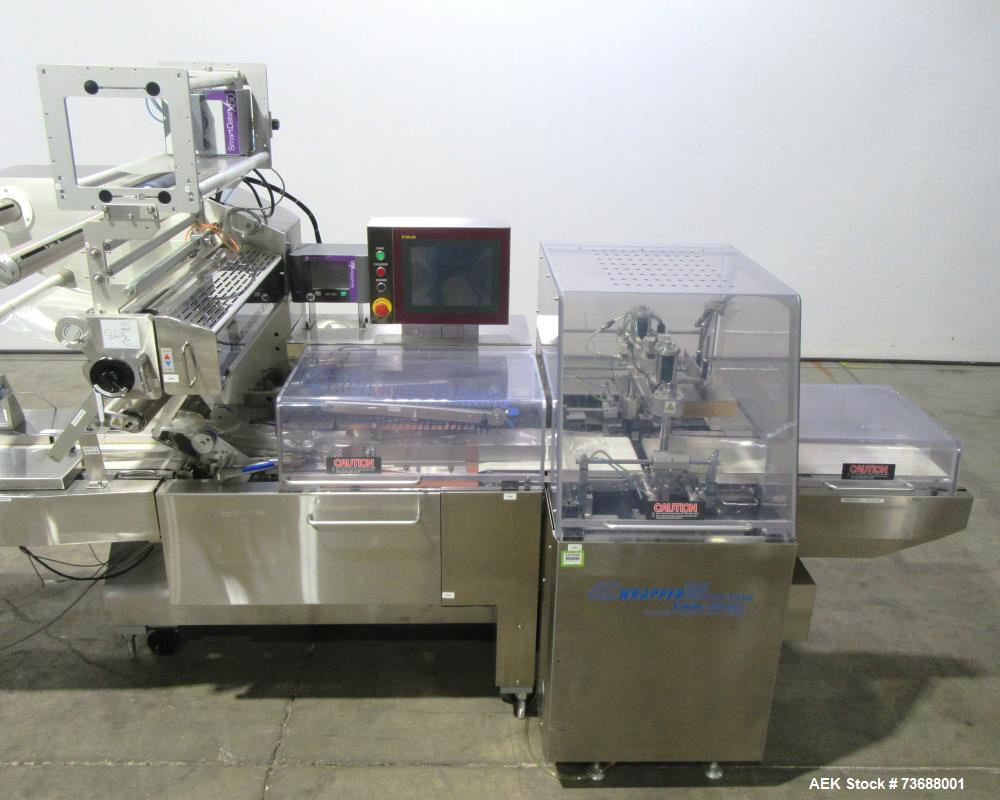

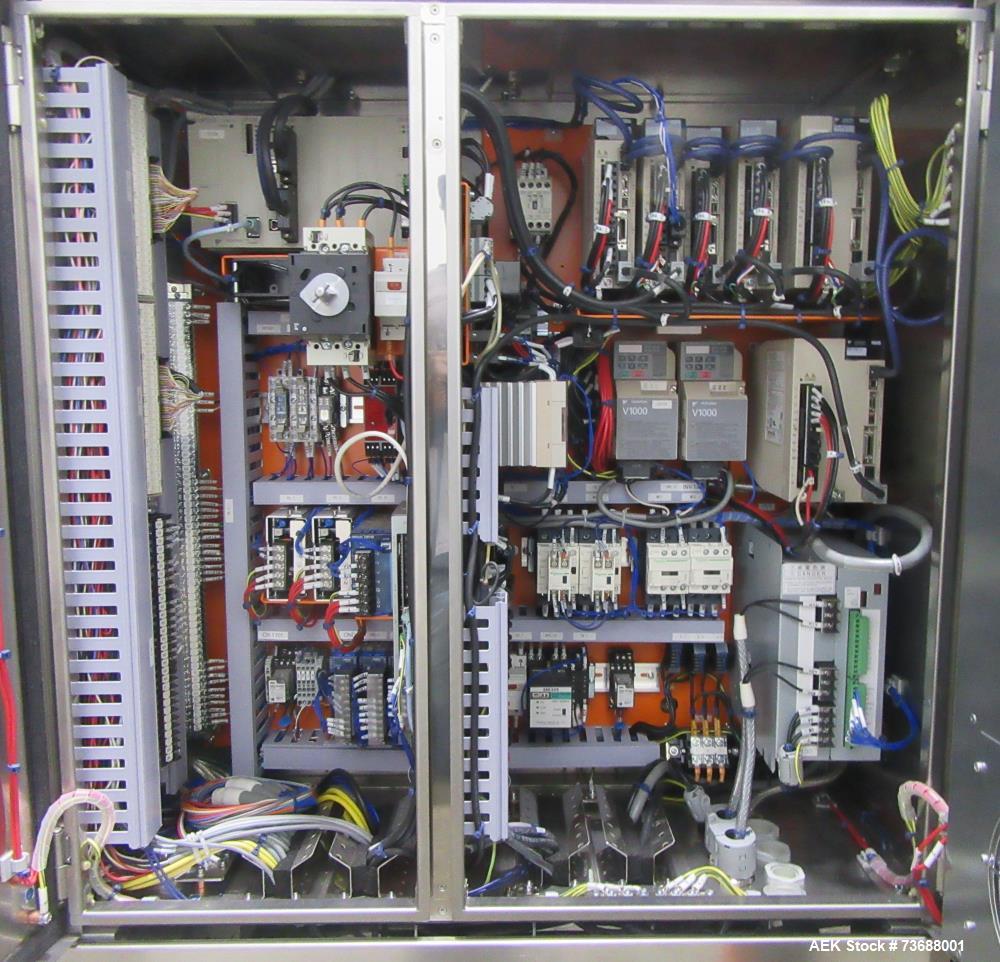

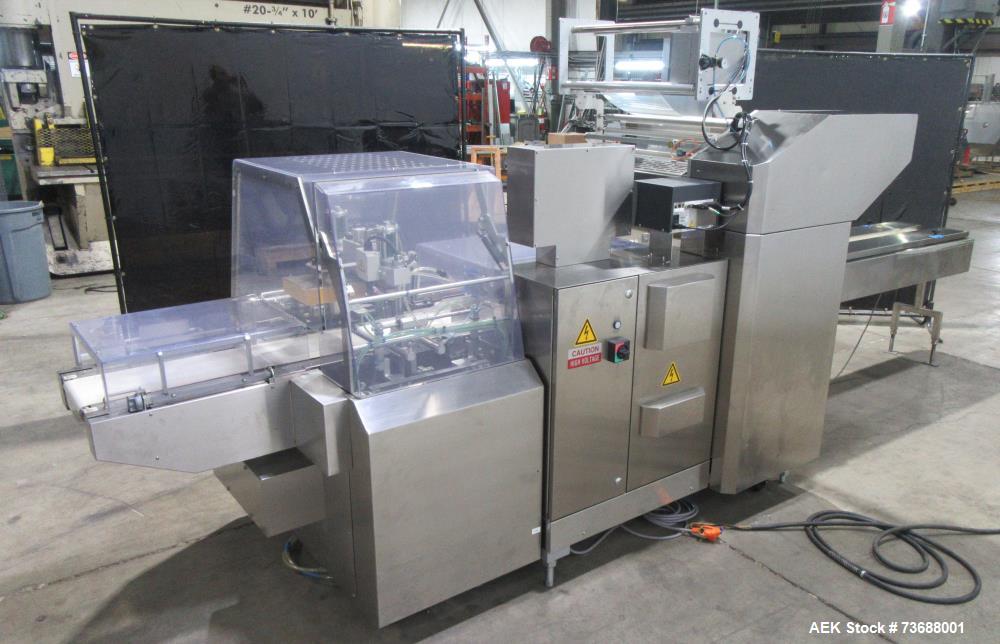

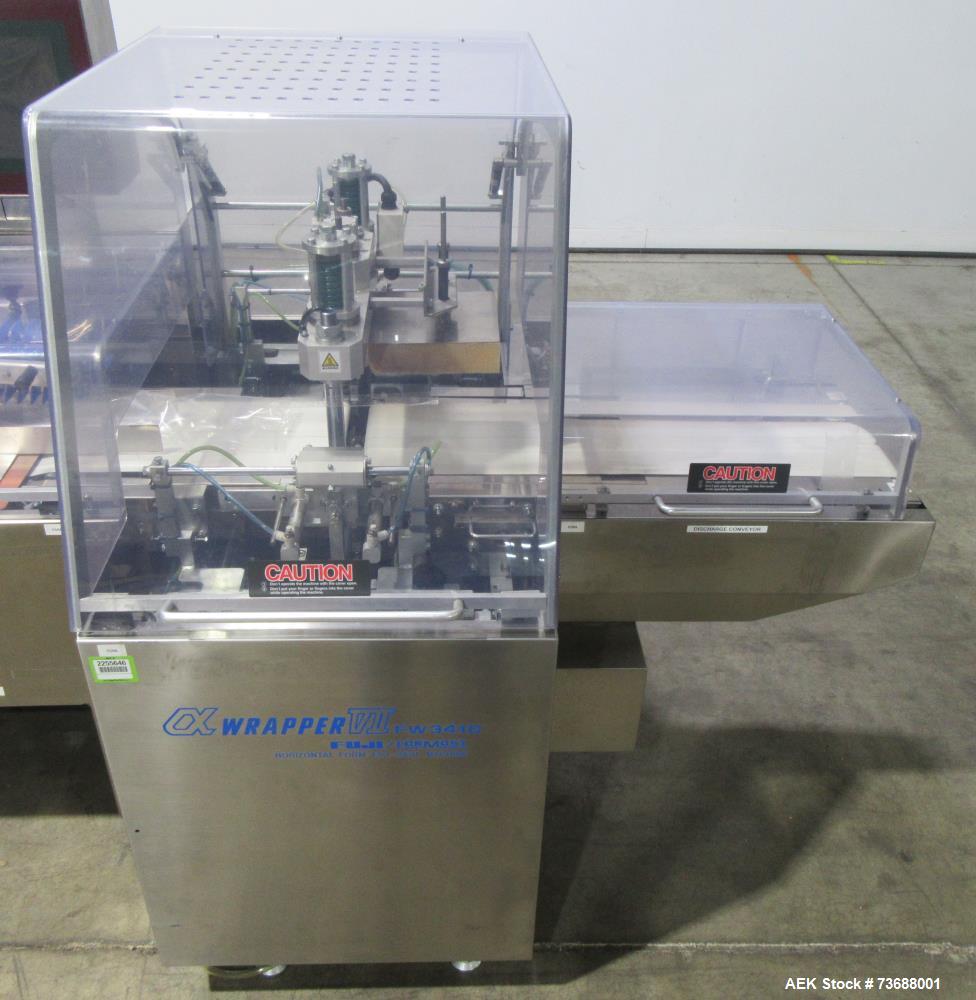

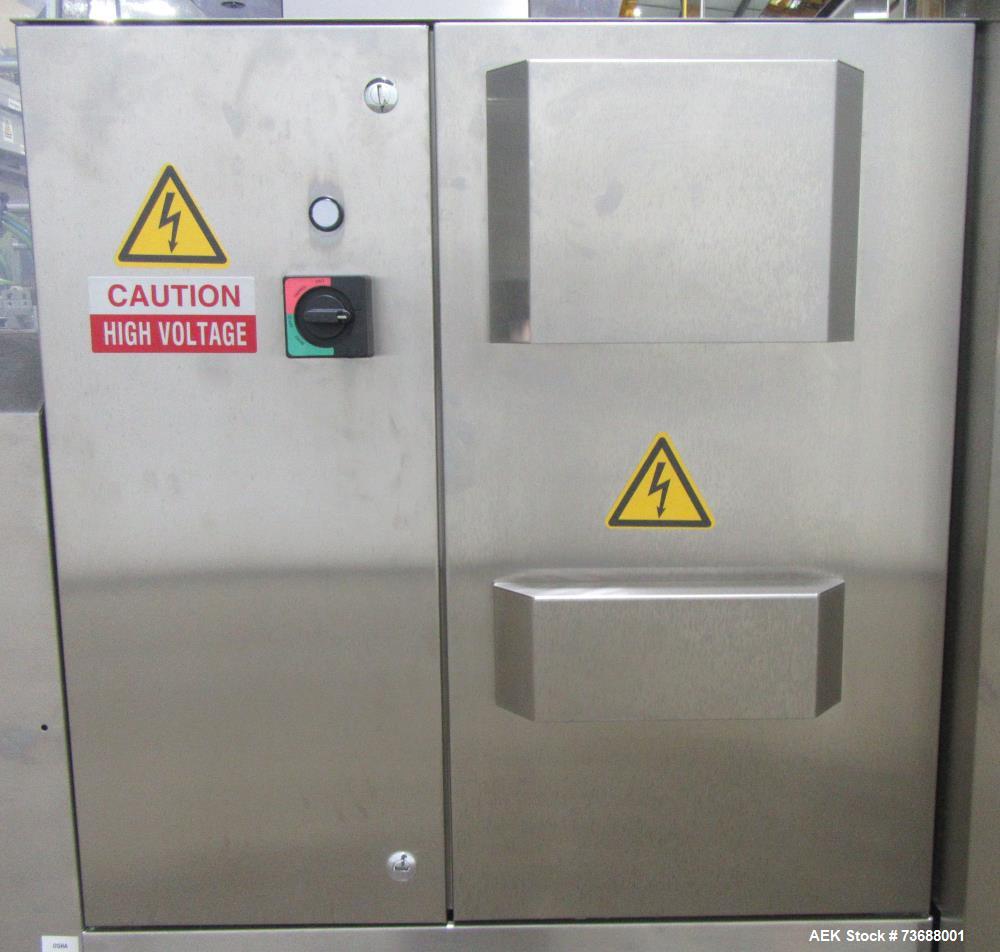

Used Fuji Model FW 3410/Ba7 horizontal box motion flow wrapper designed for flexible high-speed packaging applications, with rated operating speeds from 10 to 150 packages per minute depending on product and package size. The machine handles products ranging from 0.25 to 3.93 inches high, 0.25 to 11 inches wide, and 5.11 to 16.92 inches long, with film widths up to 25 inches. Controls include an integrated control panel with Proface color touchscreen HMI, Yaskawa MP2200 PLC, and Yaskawa servo drives. The system also includes a Markem SmartDate X60 printer, 9-1/2-inch wide infeed and outfeed conveyors, 3-phase 60-cycle 220-volt electrical service, and overall dimensions of approximately 189 inches long x 50 inches wide x 76 inches high.

Specifications

• Manufacturer: Fuji
• Model: FW 3410/Ba7
• Equipment type: Horizontal box motion flow wrapper
• Speed range: 10 to 150 packages per minute
• Speed dependent on: Package and product size
• Product height range: 0.25 to 3.93 inches
• Product width range: 0.25 to 11 inches
• Product length range: 5.11 to 16.92 inches

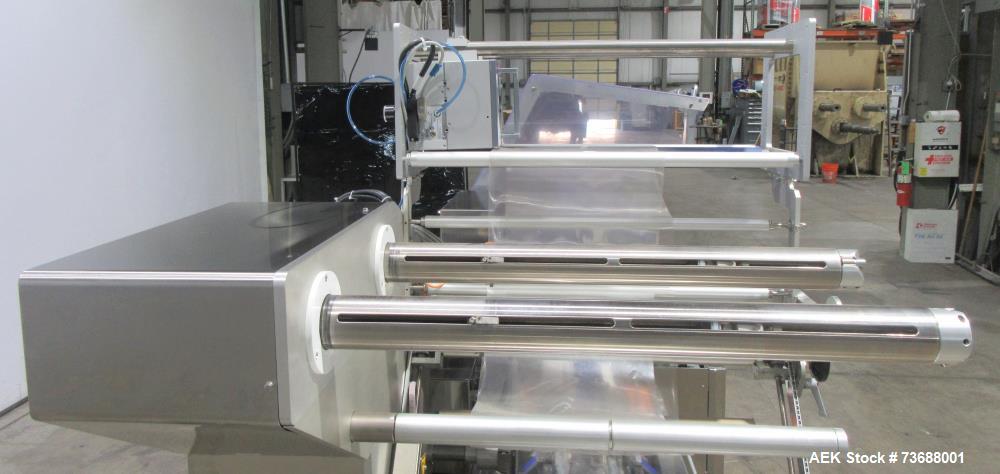

• Maximum film width: 25 inches

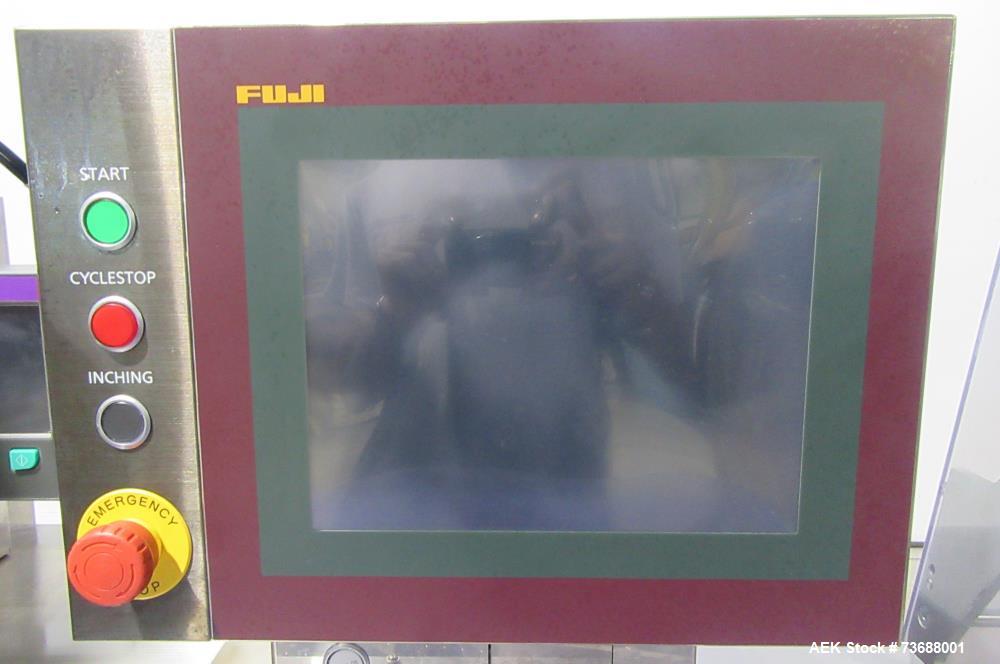

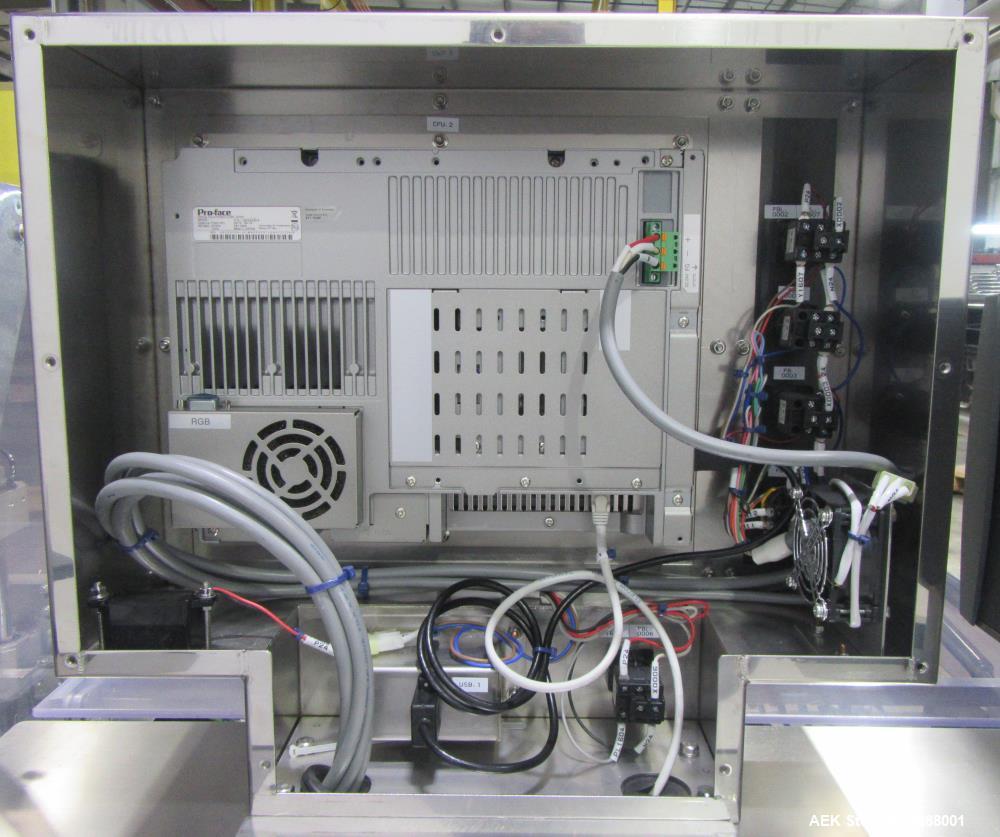

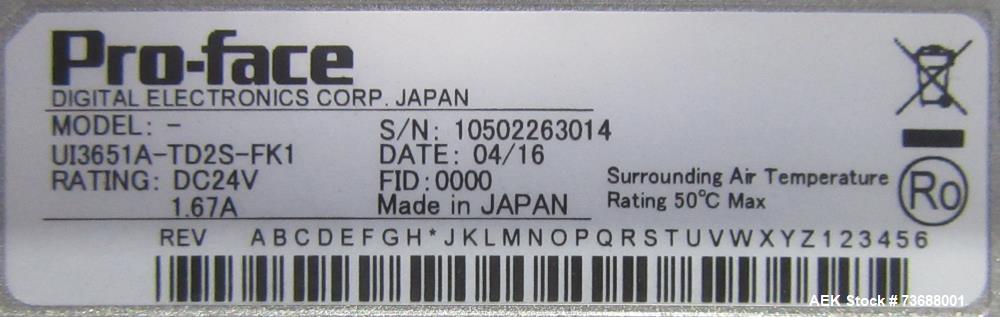

• HMI: Proface color touchscreen

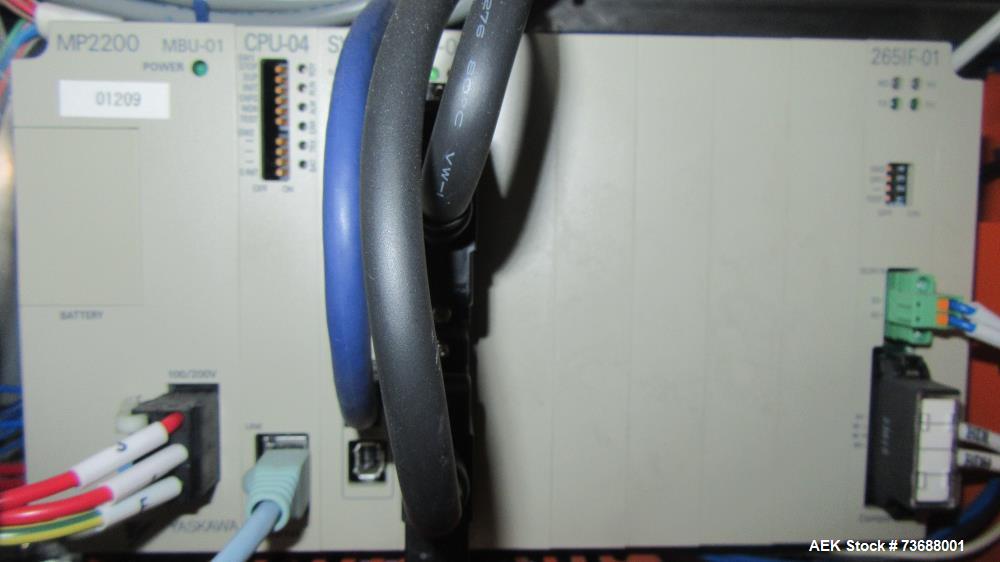

• PLC: Yaskawa MP2200

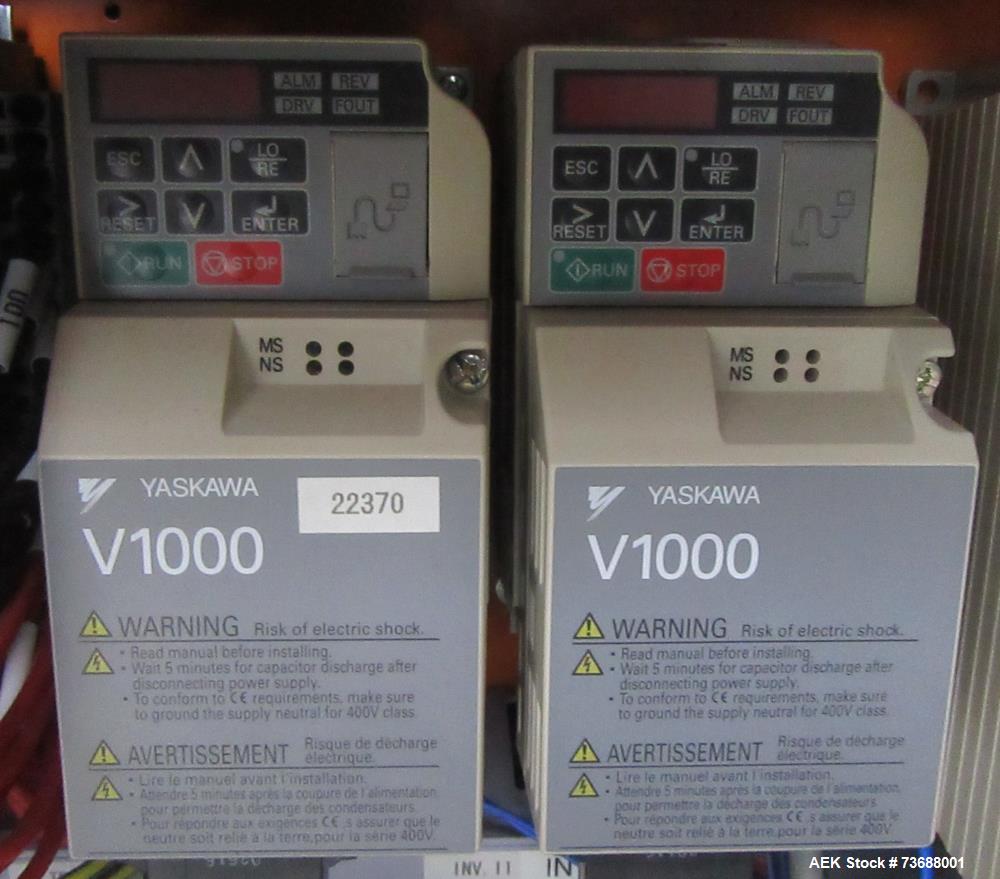

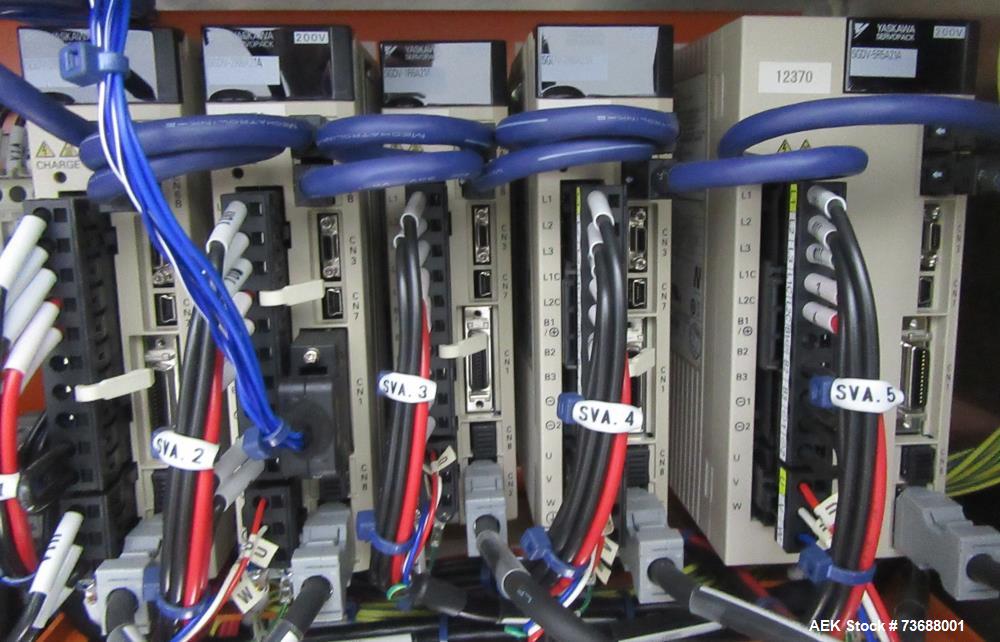

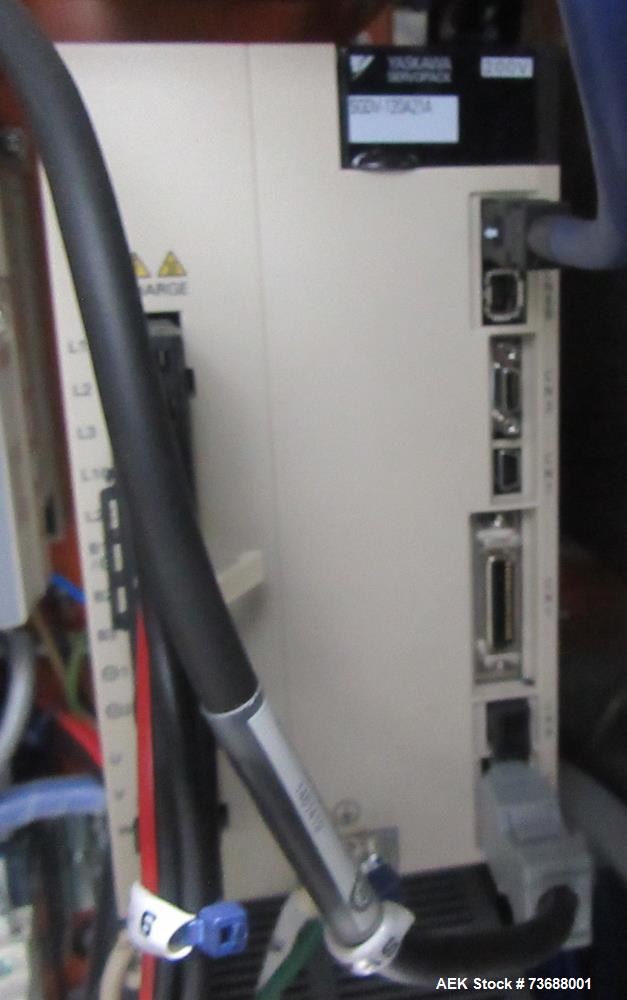

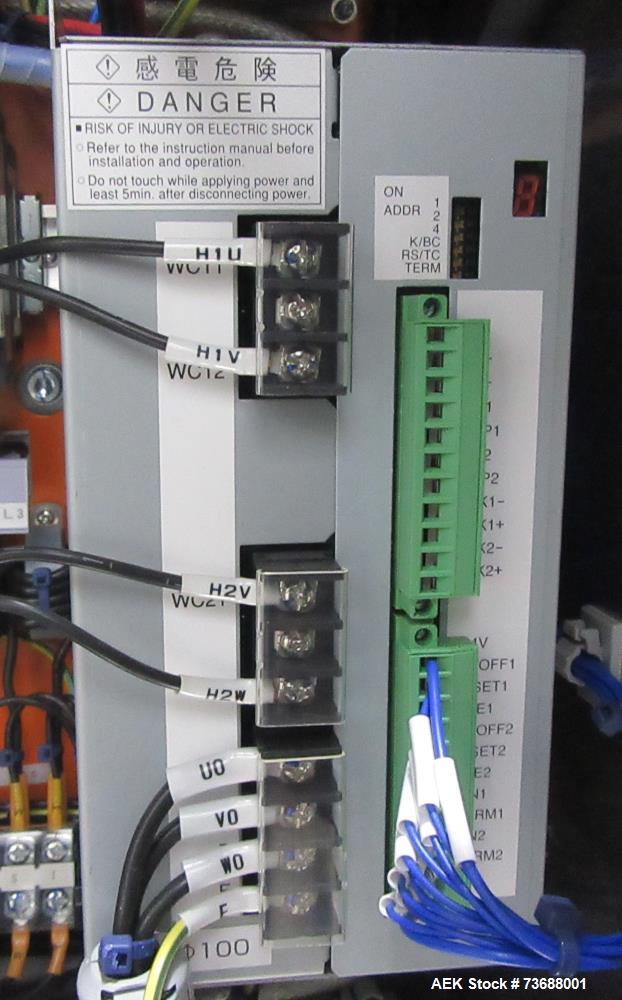

• Servo drives: Yaskawa

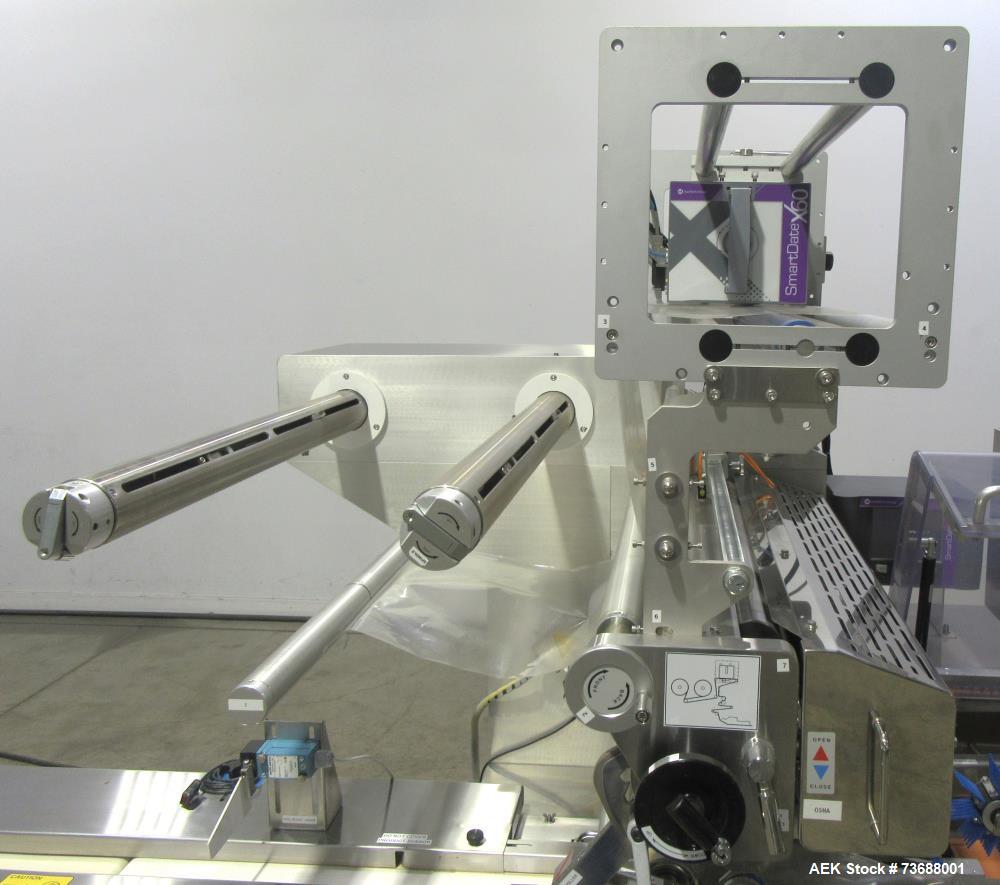

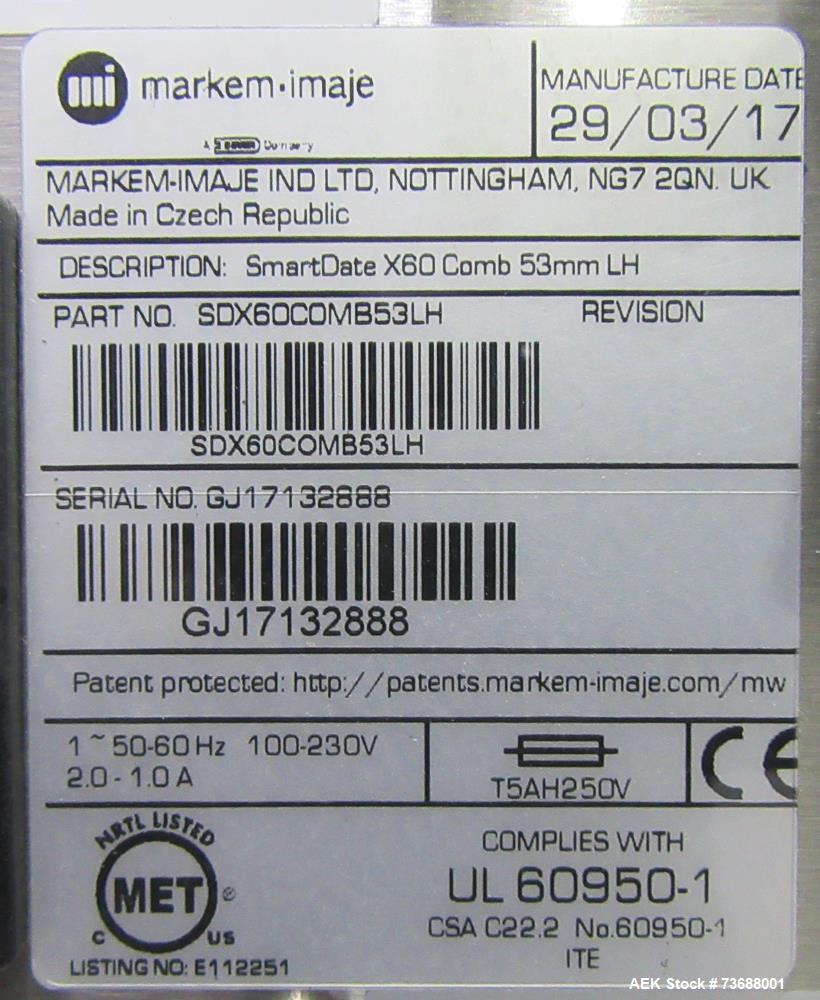

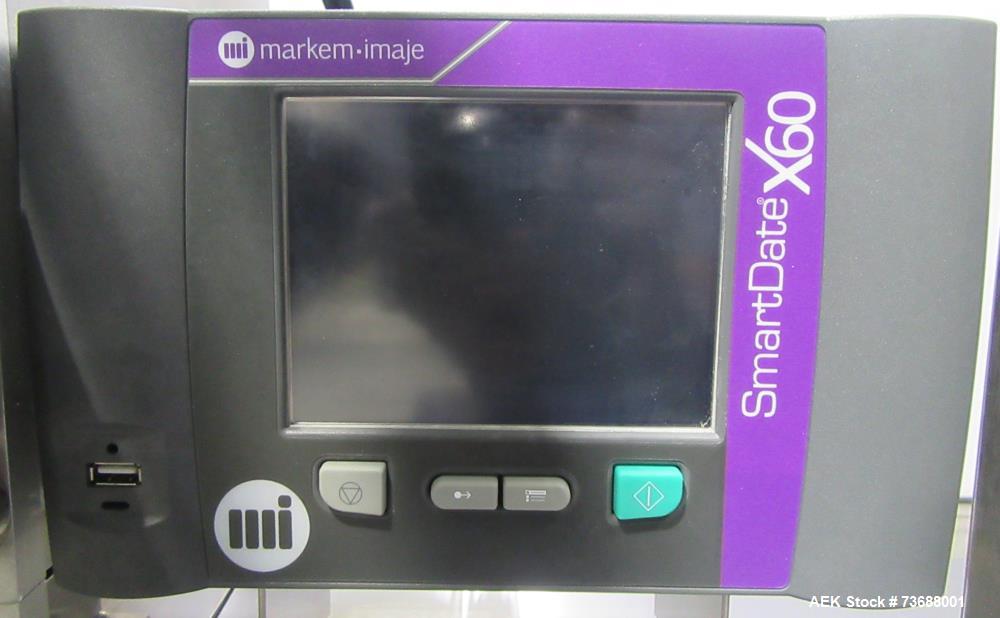

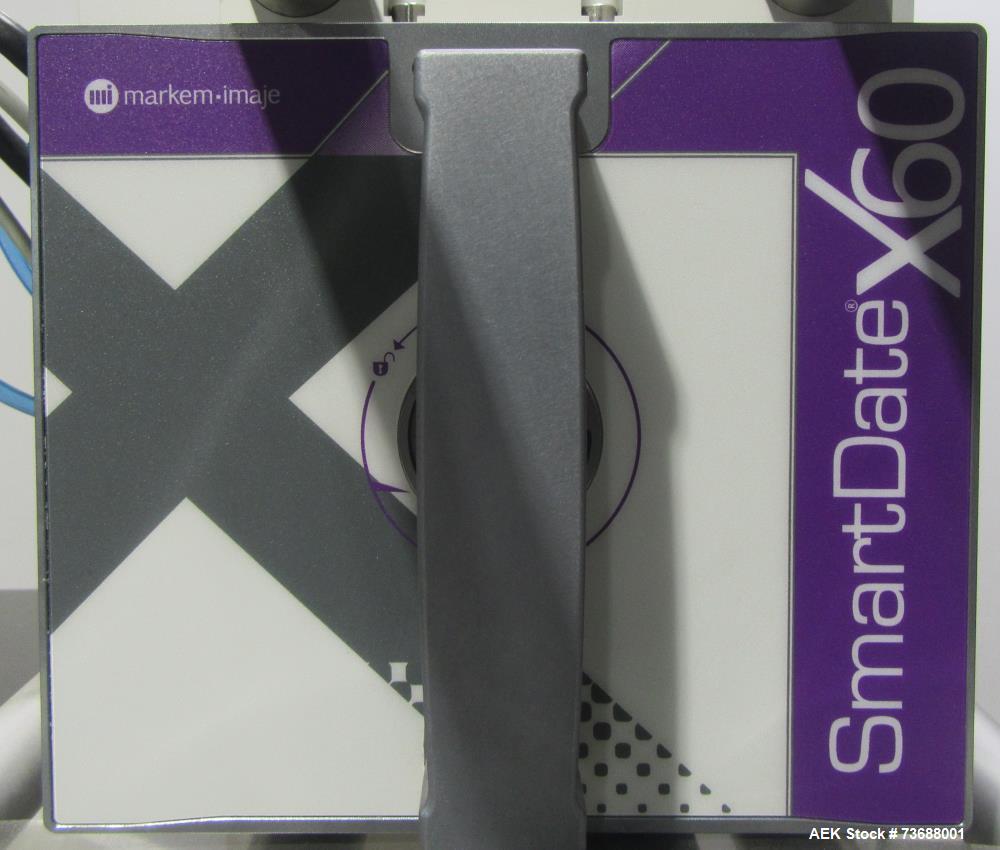

• Printer: Markem SmartDate X60

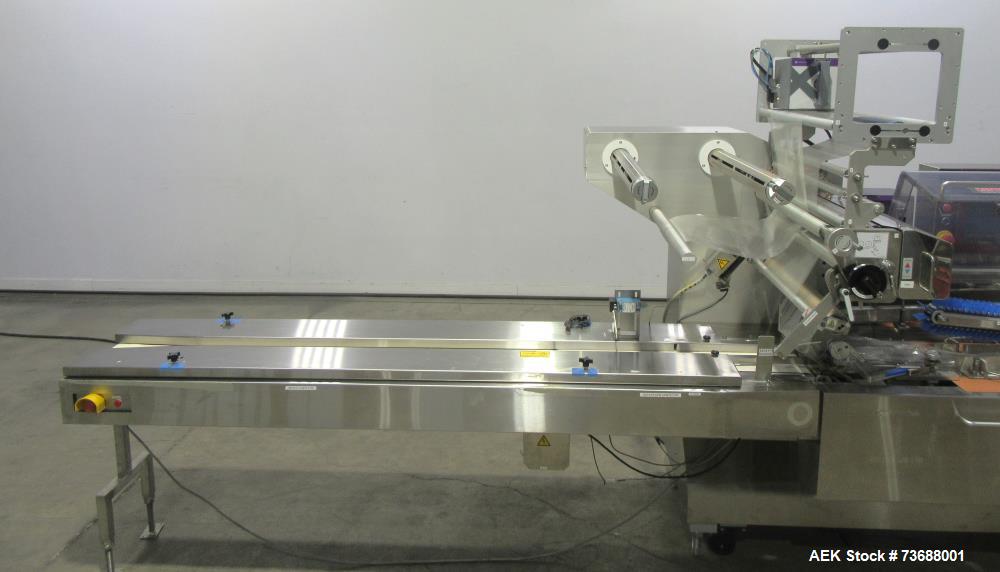

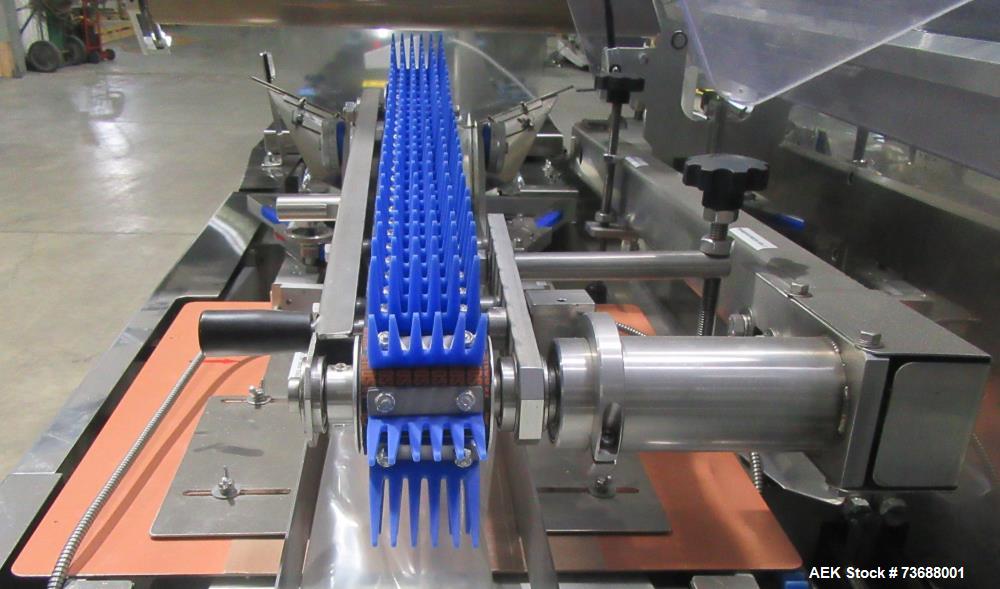

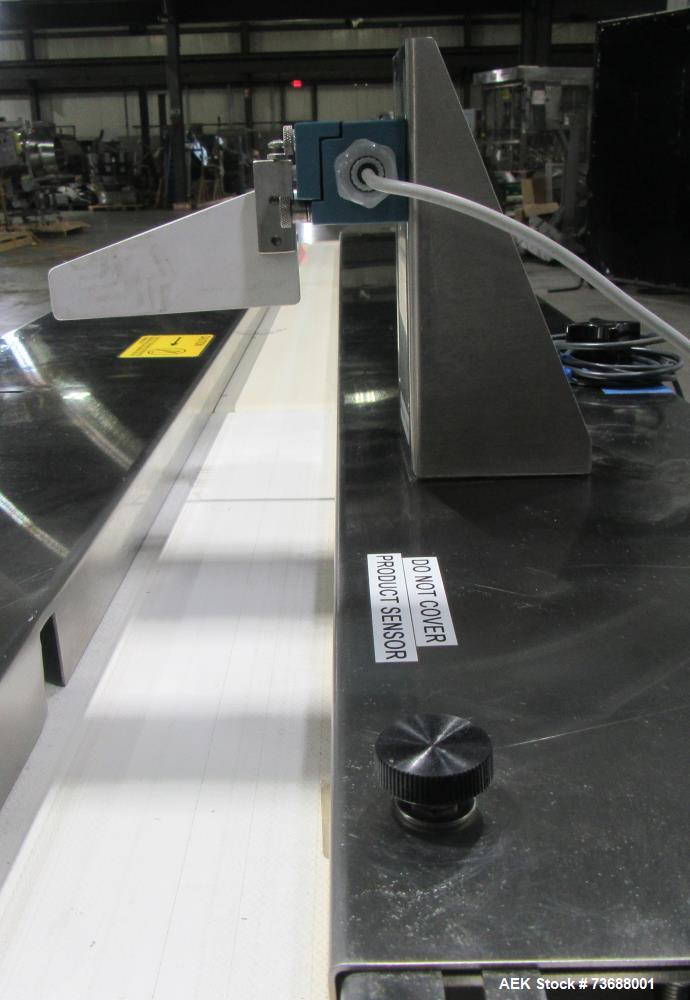

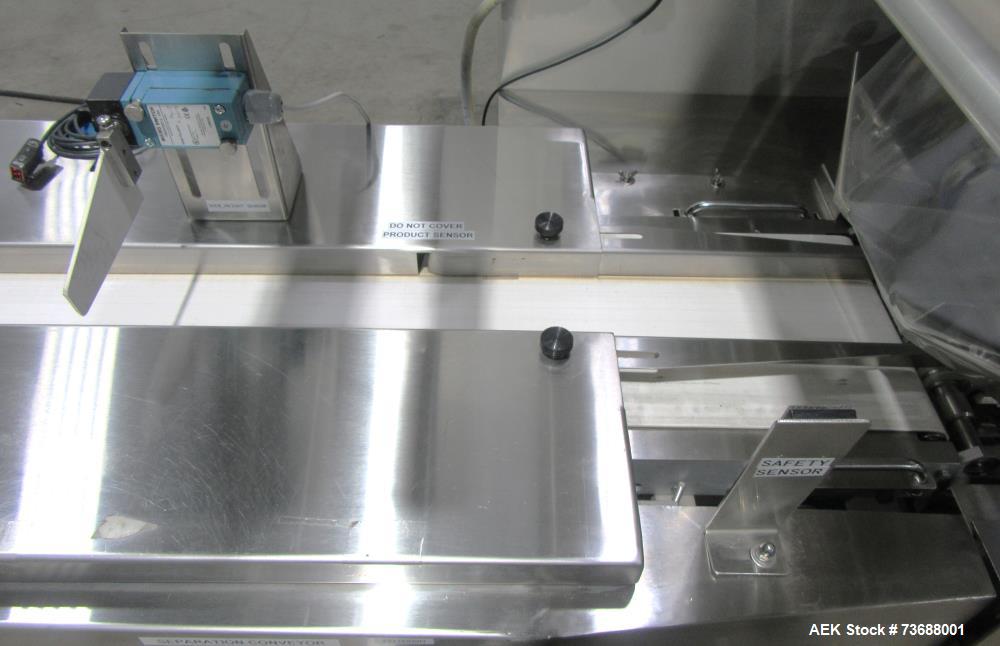

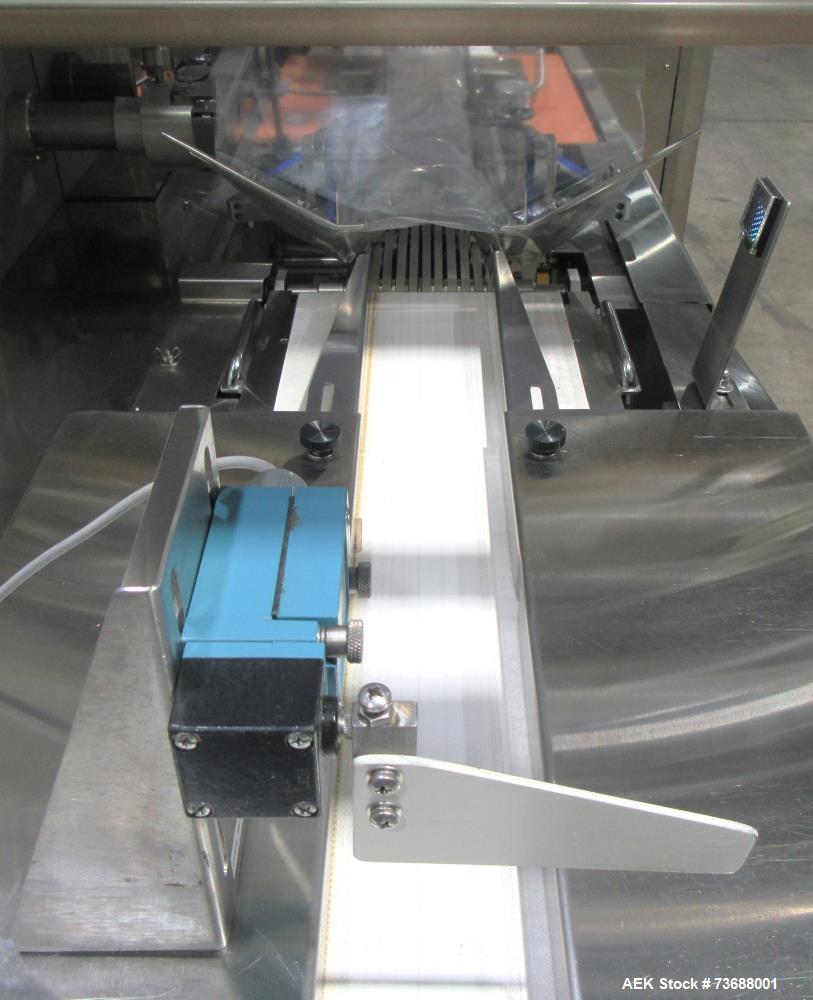

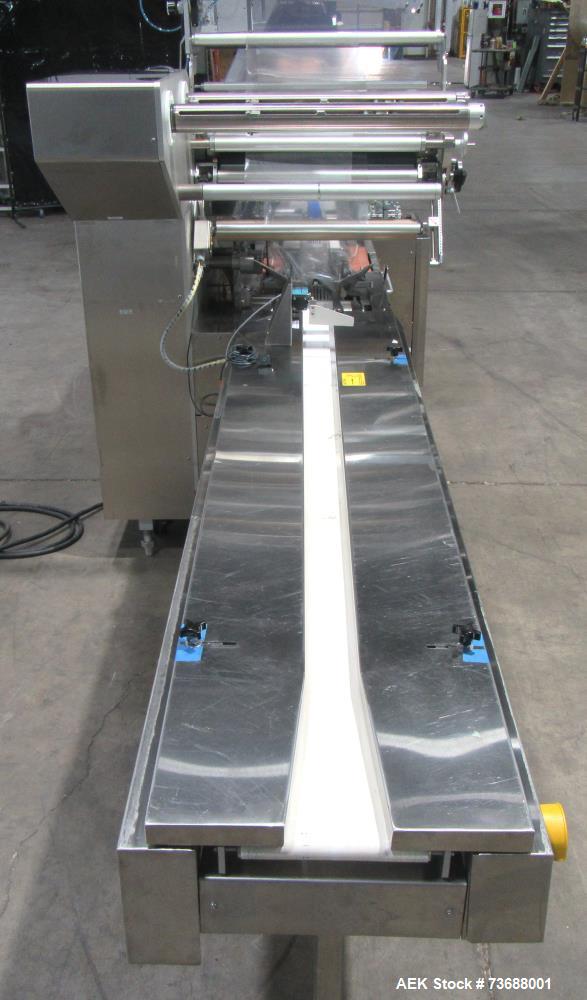

• Infeed conveyor width: 9-1/2 inches
• Infeed conveyor length: 35 inches

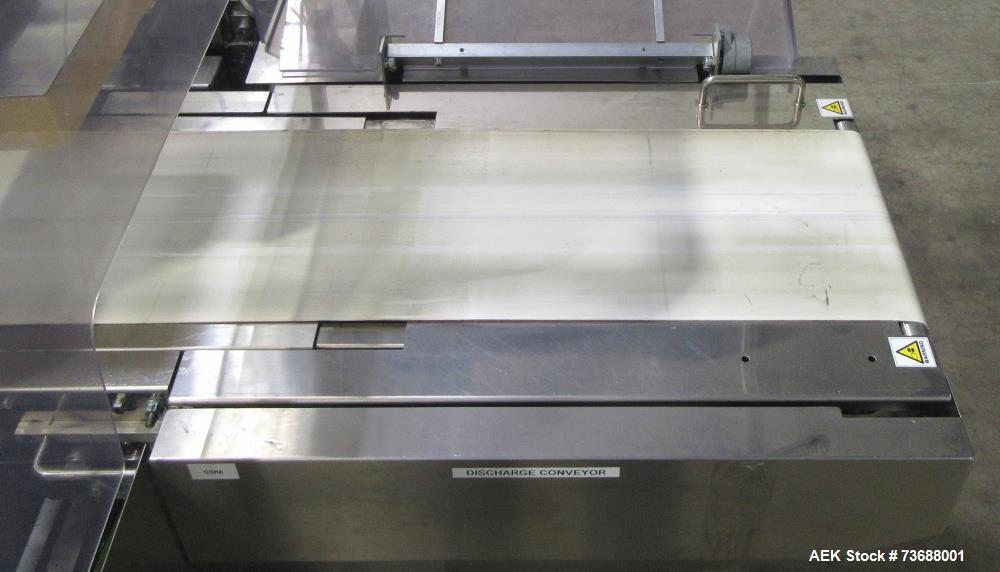

• Outfeed conveyor width: 9-1/2 inches
• Outfeed conveyor length: 98 inches

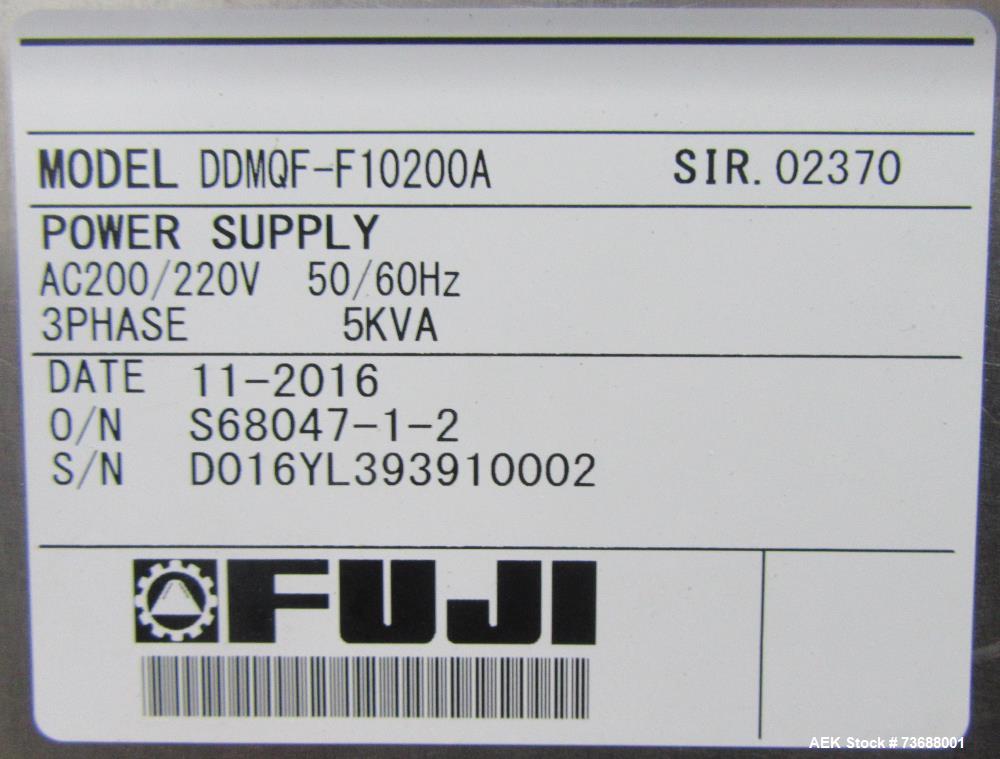

• Electrical: 3-phase, 60-cycle, 220 volts
• Overall length: 189 inches
• Overall width: 50 inches
• Overall height: 76 inches

Applications

• Horizontal flow wrapping
• Box motion packaging
• High-speed product wrapping
• Flexible film packaging
• Individual product packaging
• Retail product packaging
• Date-coded packaged products
• Automated packaging line applications

Suitable Products / Materials

This Fuji flow wrapper may be suitable for products that fall within the specified package size range, including:

• Bakery products
• Snack products
• Candy and confectionery
• Bars
• Packaged food products
• Consumer products
• Personal care products
• Household items
• Medical or industrial products suitable for flow wrapping
• Individually wrapped items

FAQs

• What is the speed range of this Fuji flow wrapper?
  The Fuji FW 3410/Ba7 is rated for approximately 10 to 150 packages per minute depending on package and product size.
• What product sizes can the machine handle?
  The specified product range is 0.25 to 3.93 inches high, 0.25 to 11 inches wide, and 5.11 to 16.92 inches long.
• What is the maximum film width?
  The machine is designed for film widths up to 25 inches.
• What type of controls does the Fuji flow wrapper use?
  The machine includes a Proface color touchscreen HMI, Yaskawa MP2200 PLC, and Yaskawa servo drives.
• Does the machine include a printer?
  Yes. It includes a Markem SmartDate X60 printer.
• What are the conveyor dimensions?
  The infeed conveyor measures 9-1/2 inches wide x 35 inches long, and the outfeed conveyor measures 9-1/2 inches wide x 98 inches long.
• What electrical service is required?
  The machine is rated for 3-phase, 60-cycle, 220-volt electrical service.
• What are the overall machine dimensions?
  Overall dimensions are approximately 189 inches long x 50 inches wide x 76 inches high.
• What is a box motion flow wrapper?

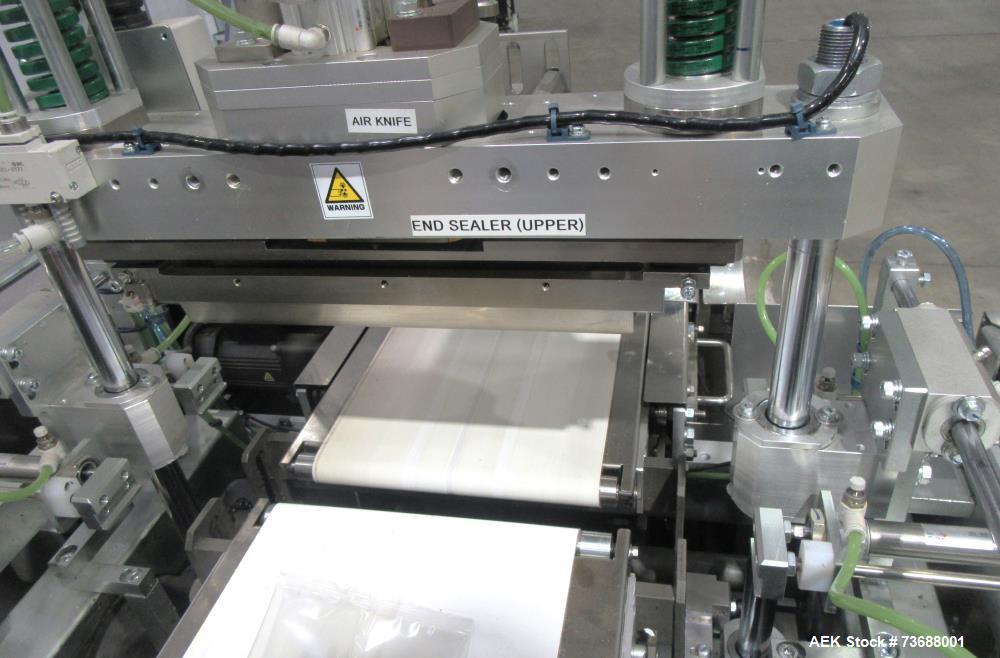

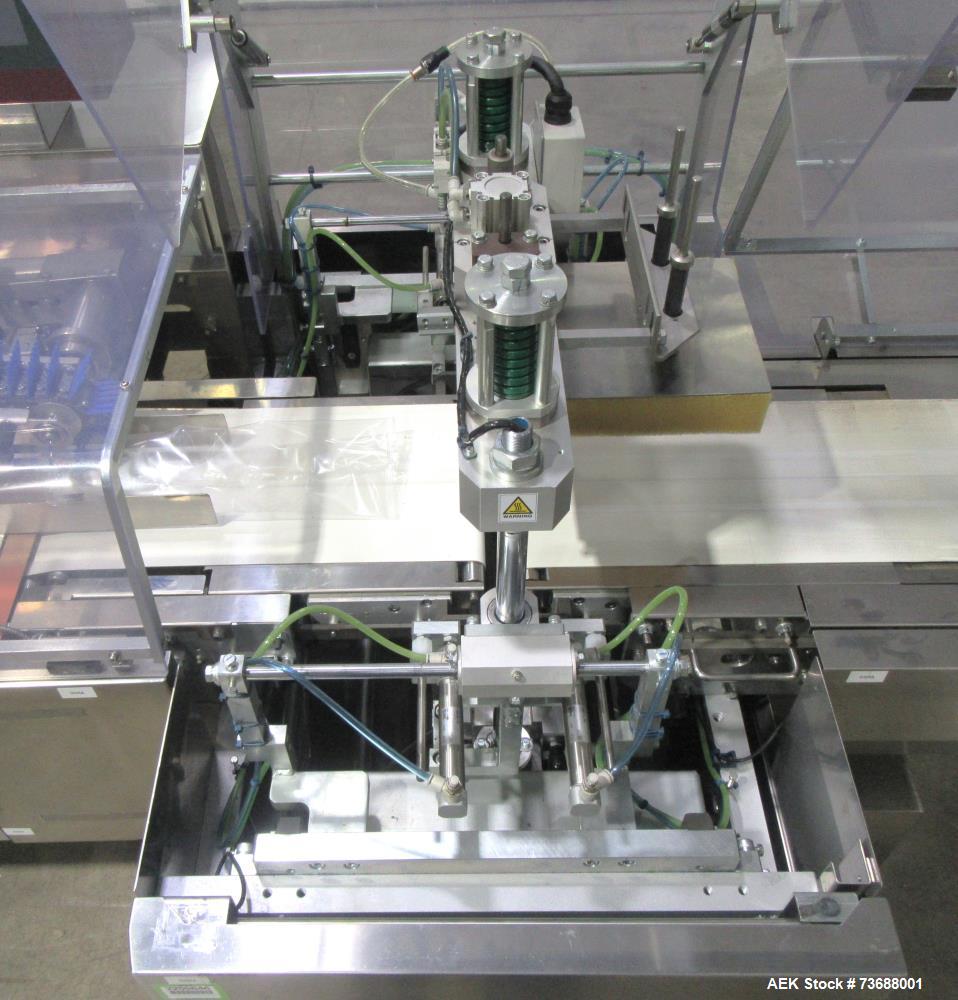

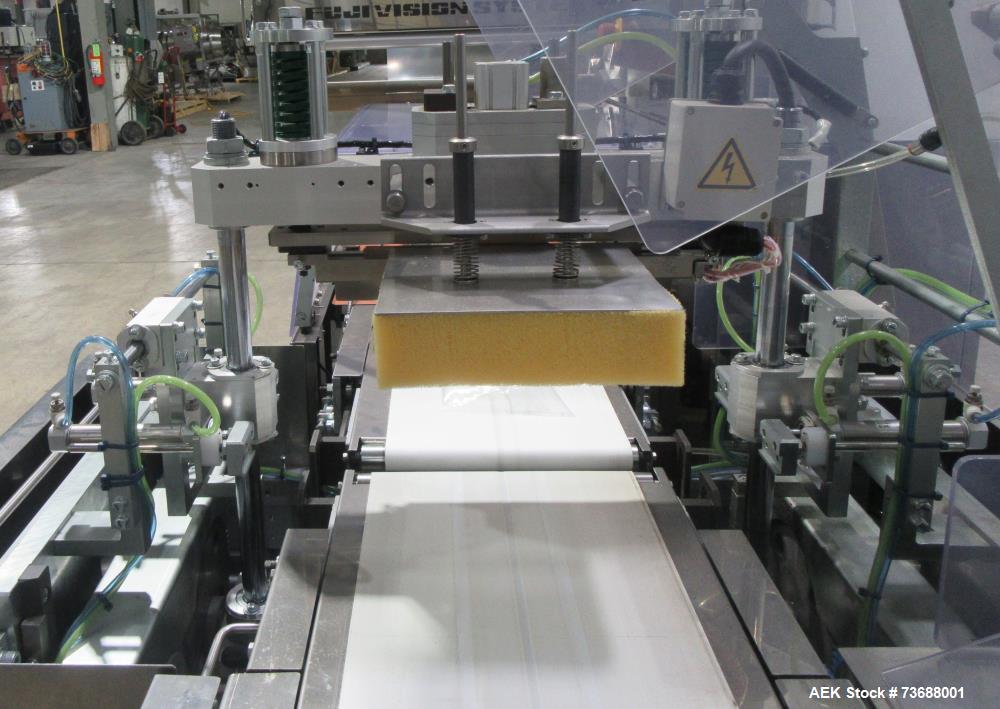

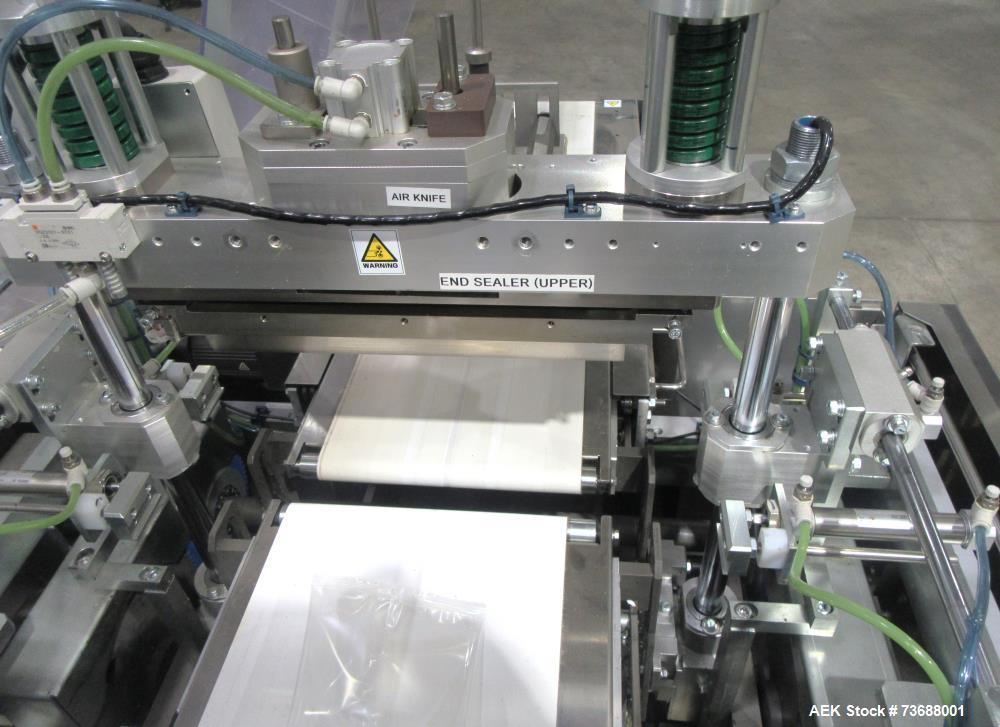

  A box motion flow wrapper uses a sealing motion designed to provide controlled end sealing while packaging products in flexible film.
