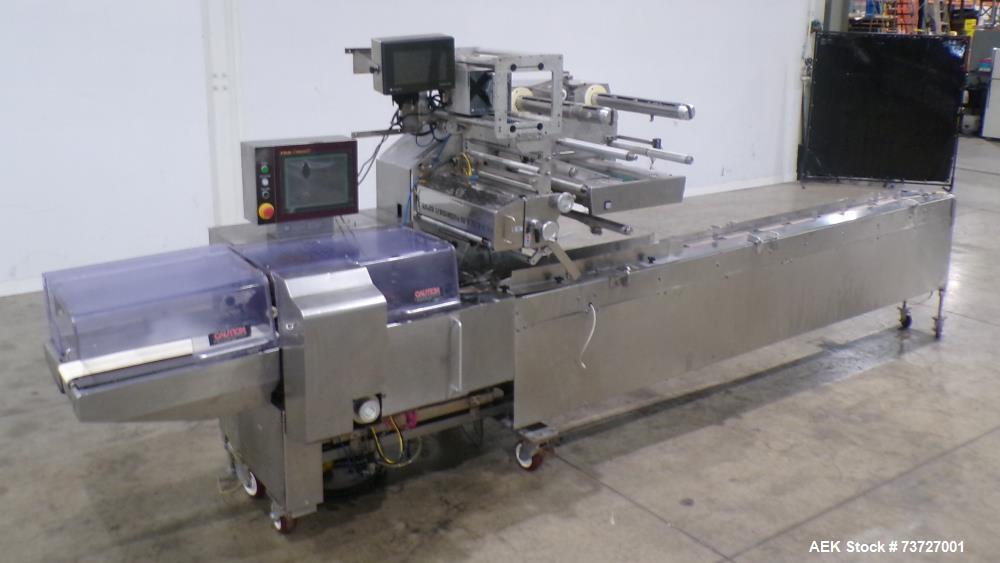

Used Fuji FW-3700 A7 LH High-Speed Horizontal Flow Wrapper – 450 PPM

Manufacturer Information

Fuji Foremost is associated with horizontal flow wrapping and flexible packaging equipment used in food and non-food packaging operations. Fuji flow wrappers are designed to package individual products or groups of products in flexible film, using automated film forming, sealing and cutting operations. This FW-3700 A7 LH model includes Fuji Alpha VII servo controls and Yaskawa automation components.

Main Product Description

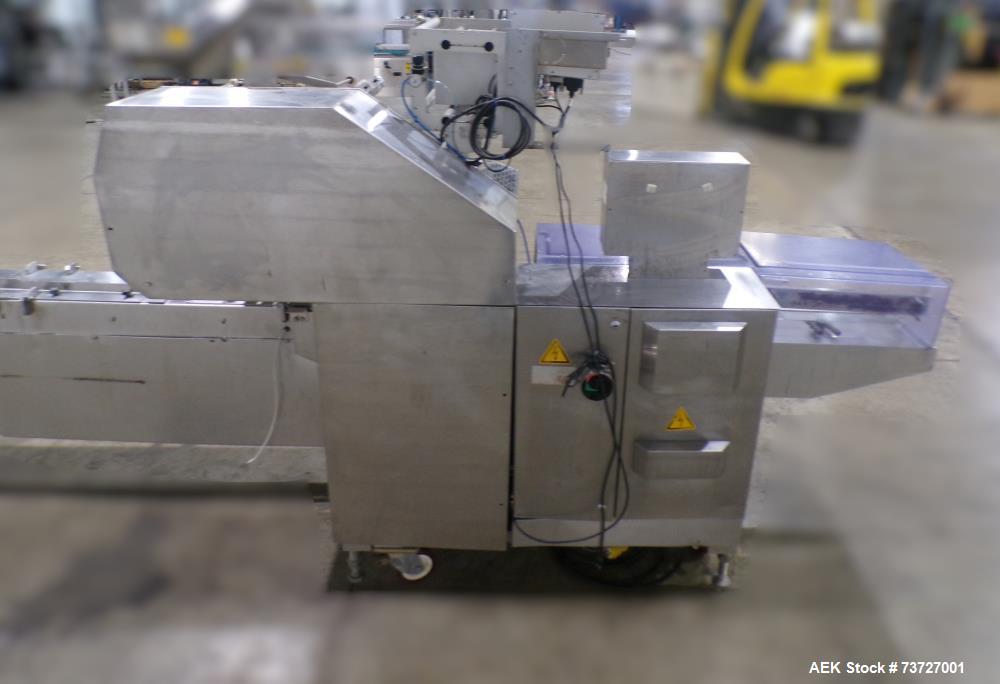

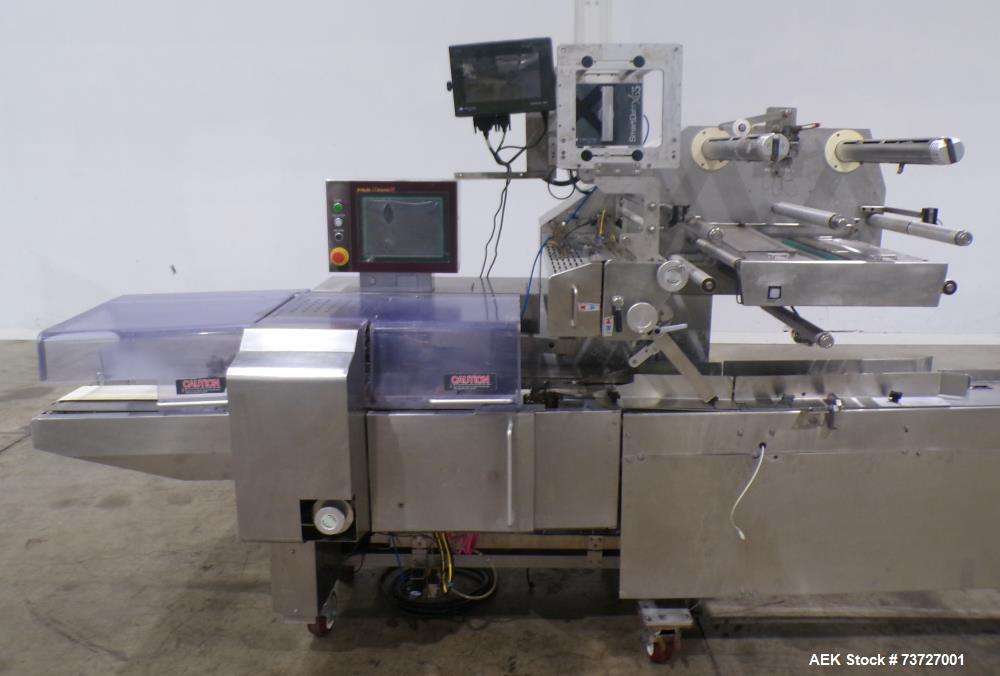

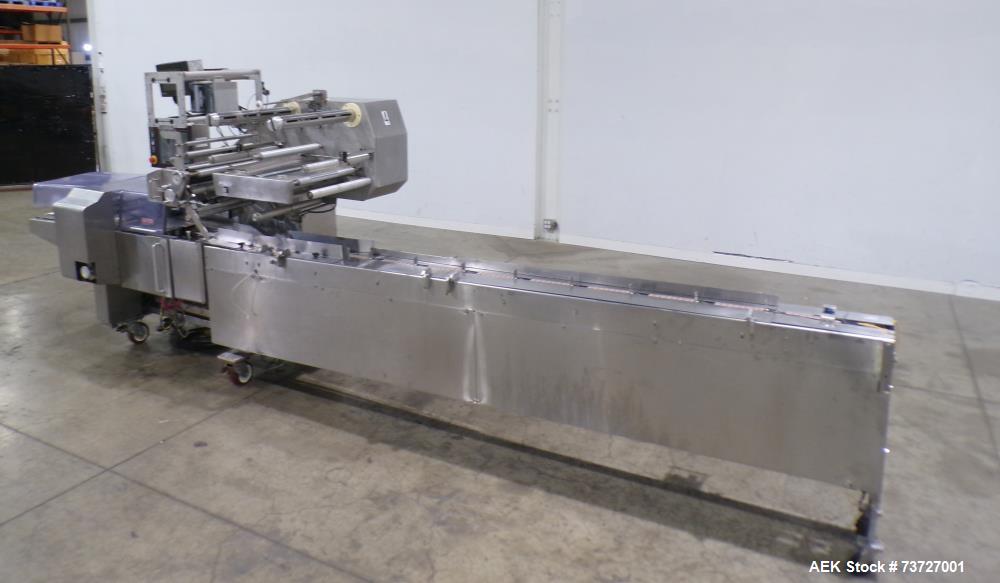

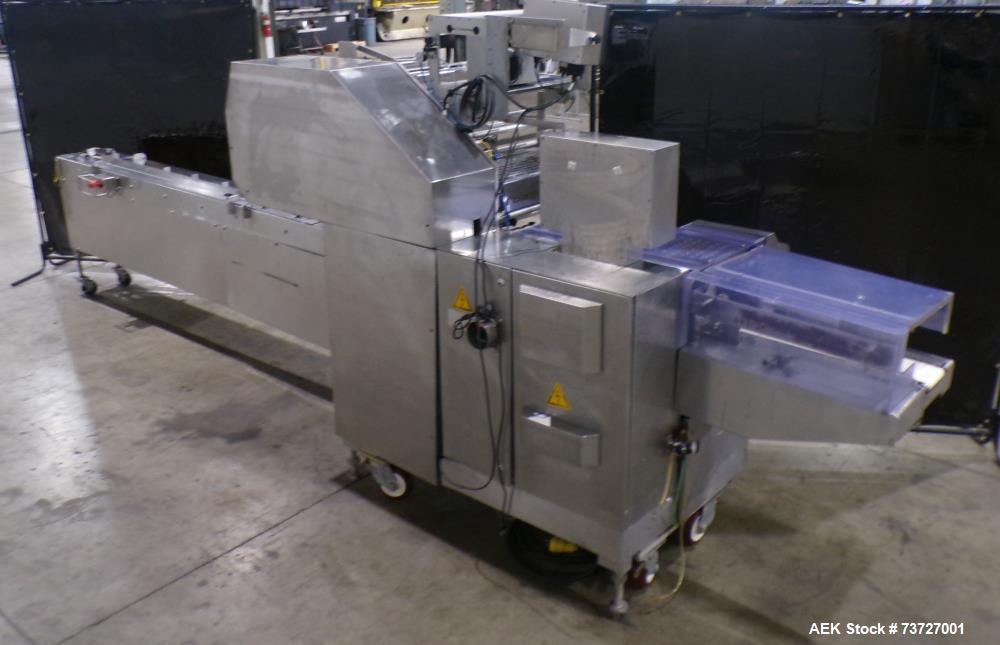

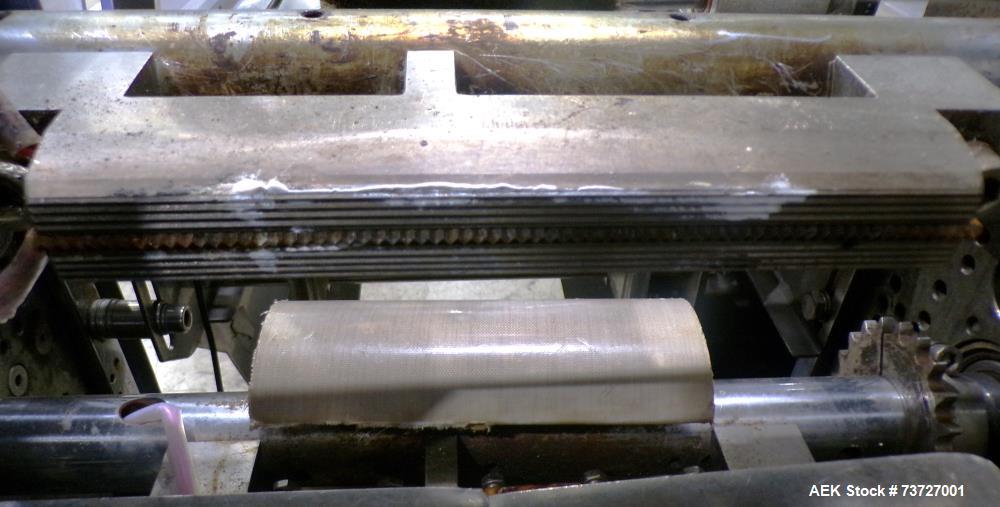

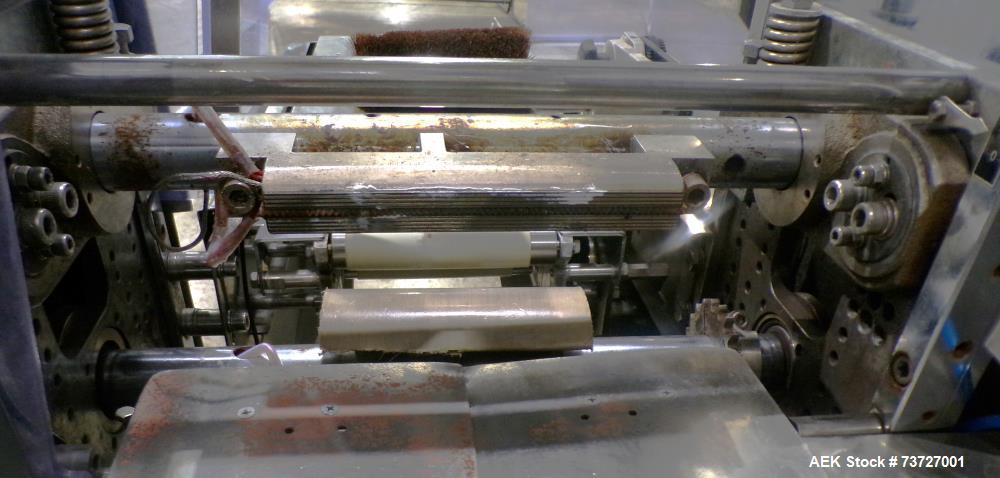

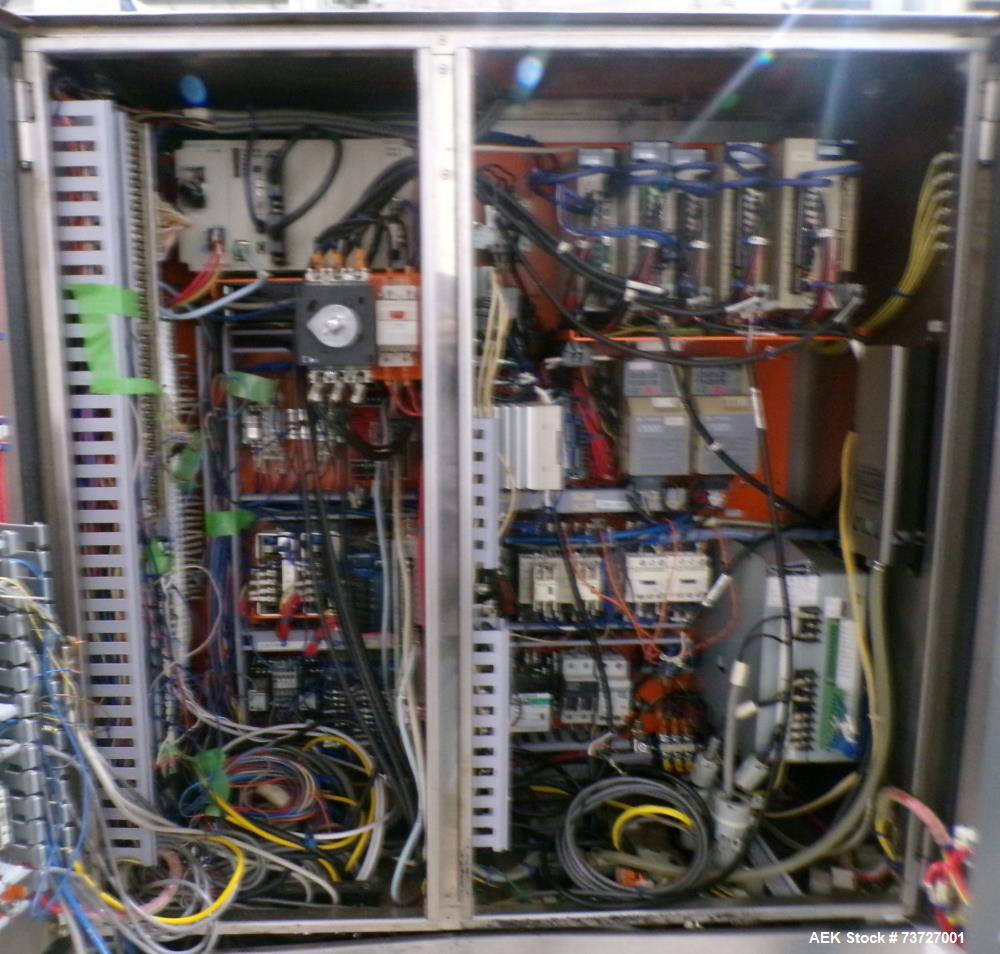

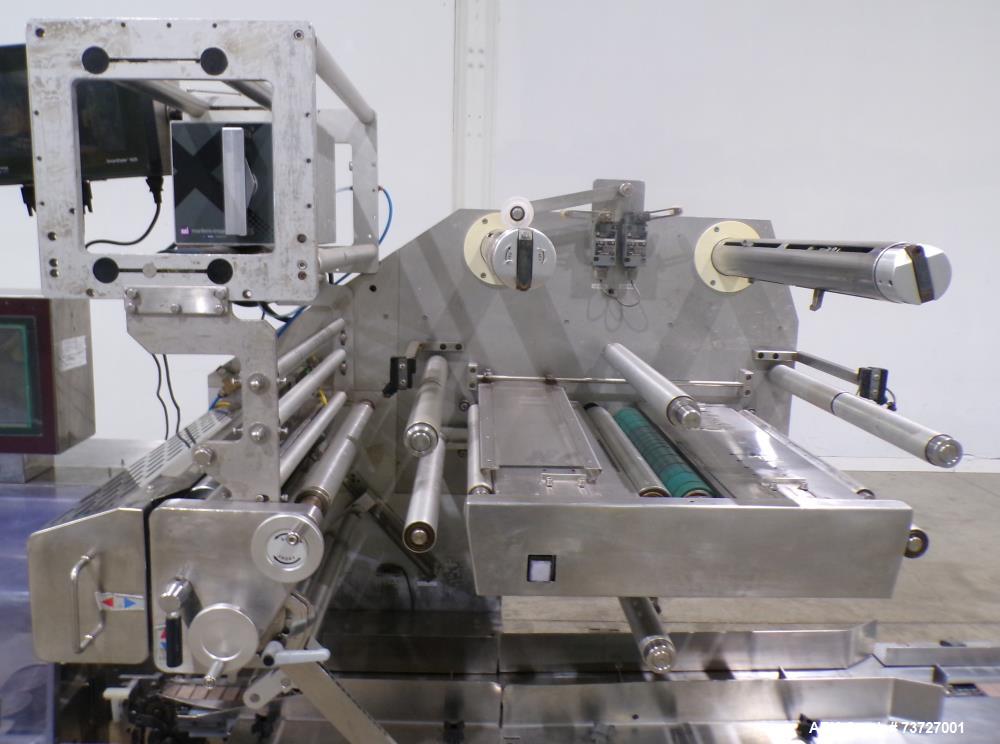

Used Fuji Foremost Model FW-3700 A7 LH high-speed servo horizontal flow wrapper manufactured in 2013, designed for automatic horizontal form-fill-seal (HFFS) packaging of compatible food and non-food products in flexible film. This machine offers rated production speeds from 10 to 450 packages per minute, depending on product dimensions, film characteristics and packaging requirements. It accommodates film web widths up to 17-1/2" and adjustable film cutoff lengths from 1-1/2" to 17-1/2", with maximum product dimensions of approximately 7" wide x 4" high. The wrapper features film print registration, a single (1-up) sealing jaw assembly measuring 8" x 1", horizontal end seals and a serrated knife cutoff system. An integrated Markem SmartDate X65 coder supports printing of production dates, lot codes and other variable package information. Equipped with Fuji Alpha VII servo controls, a Yaskawa MP2200 PLC, Yaskawa Servopack servo drives and Yaskawa V1000 variable frequency drives. Electrical requirements are 208 volts, 3-phase, 60 Hz, 16 amps. This horizontal flow wrapping machine is suitable for evaluating applications involving cookies, crackers, snack bars, granola bars, candy, chocolate bars, bakery products, medical supplies, personal care products and other compatible solid items.

Product Details / Specifications

• Manufacturer: Fuji Foremost

• Model: FW-3700 A7 LH

• Equipment Type: Horizontal Flow Wrapper

• Machine Category: Horizontal Form Fill Seal (HFFS) Packaging Machine

• Machine Configuration: High-Speed Servo Flow Wrapper

• Year Manufactured: 2013

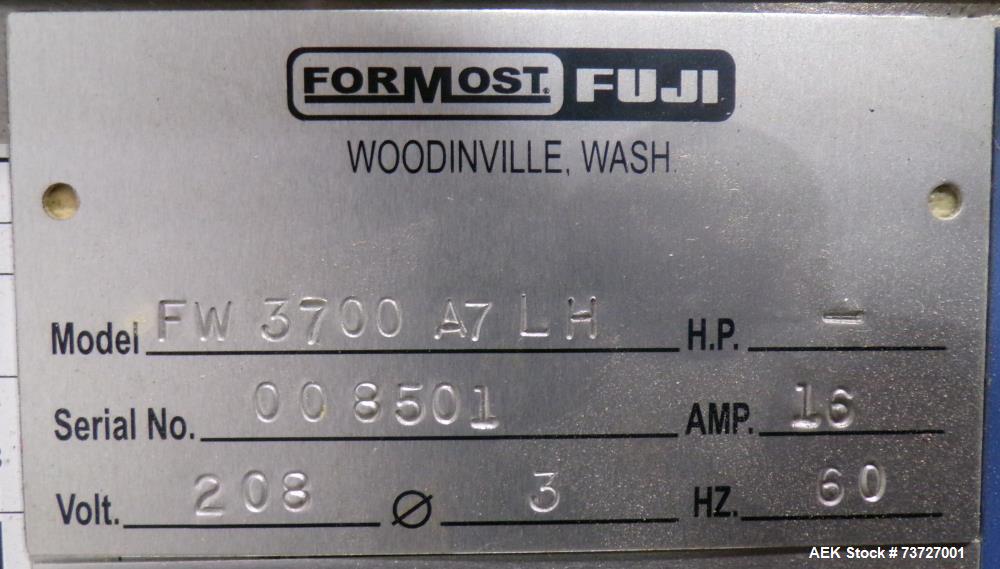

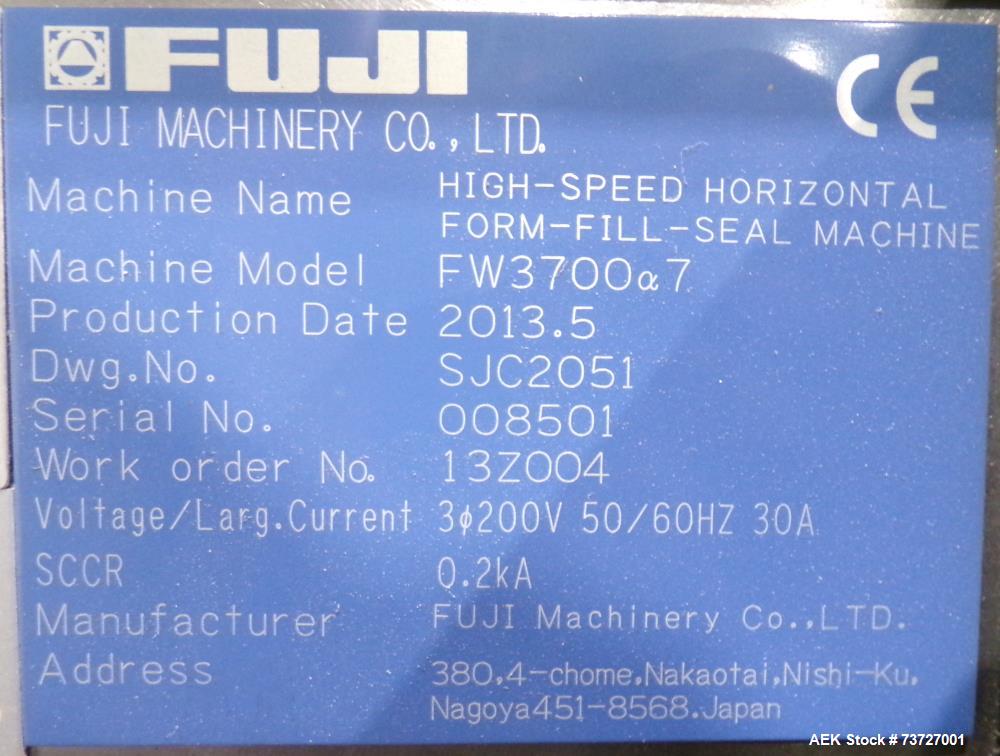

• Serial Number: 008501

• Production Speed: 10–450 packages per minute, application-dependent

• Maximum Film Web Width: 17-1/2"

• Film Cutoff Length: Adjustable from 1-1/2" to 17-1/2"

• Maximum Product Width: Approximately 7"

• Maximum Product Height: Approximately 4"

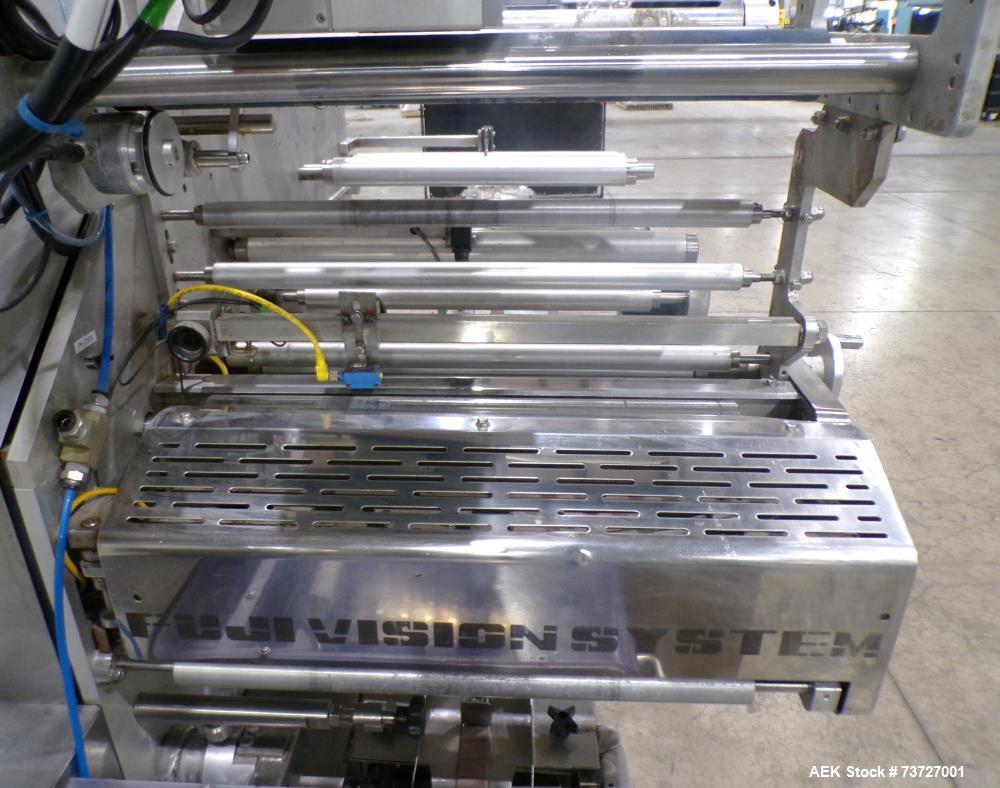

• Film Registration: Print Registration System

• Sealing Jaw Configuration: Single (1-Up)

• Sealing Jaw Dimensions: 8" x 1"

• Sealing Type: Horizontal End Seals

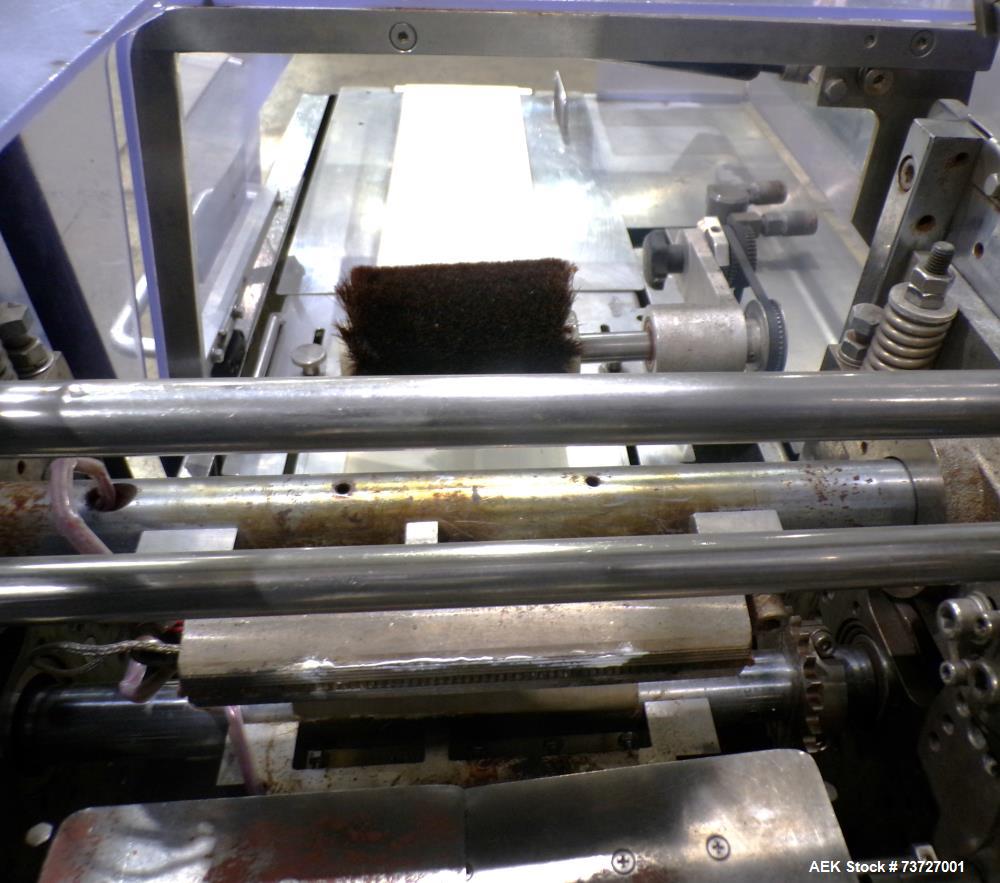

• Cutting System: Serrated Knife Cutoff

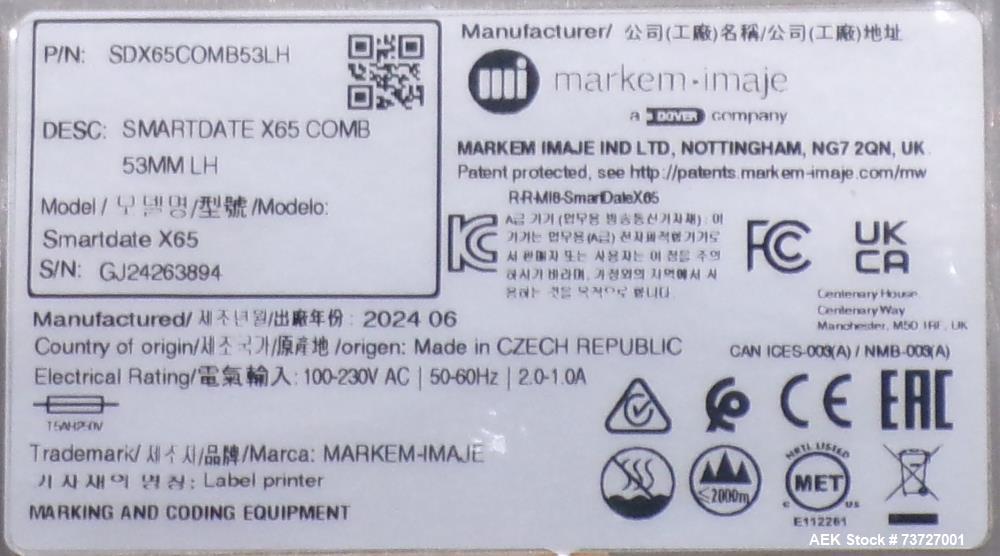

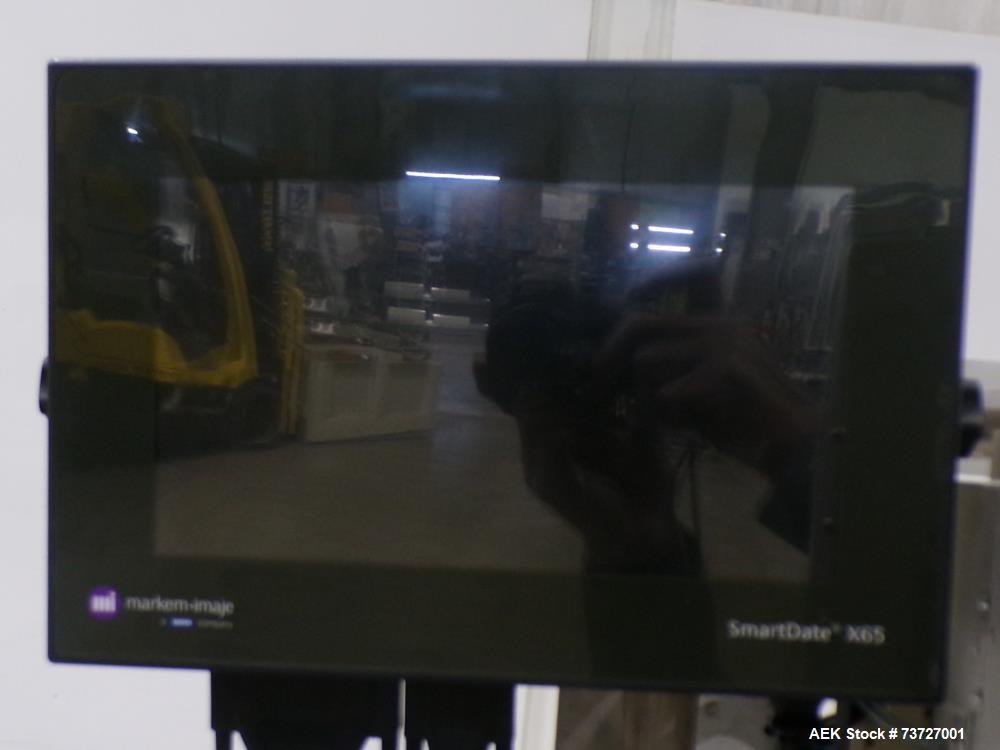

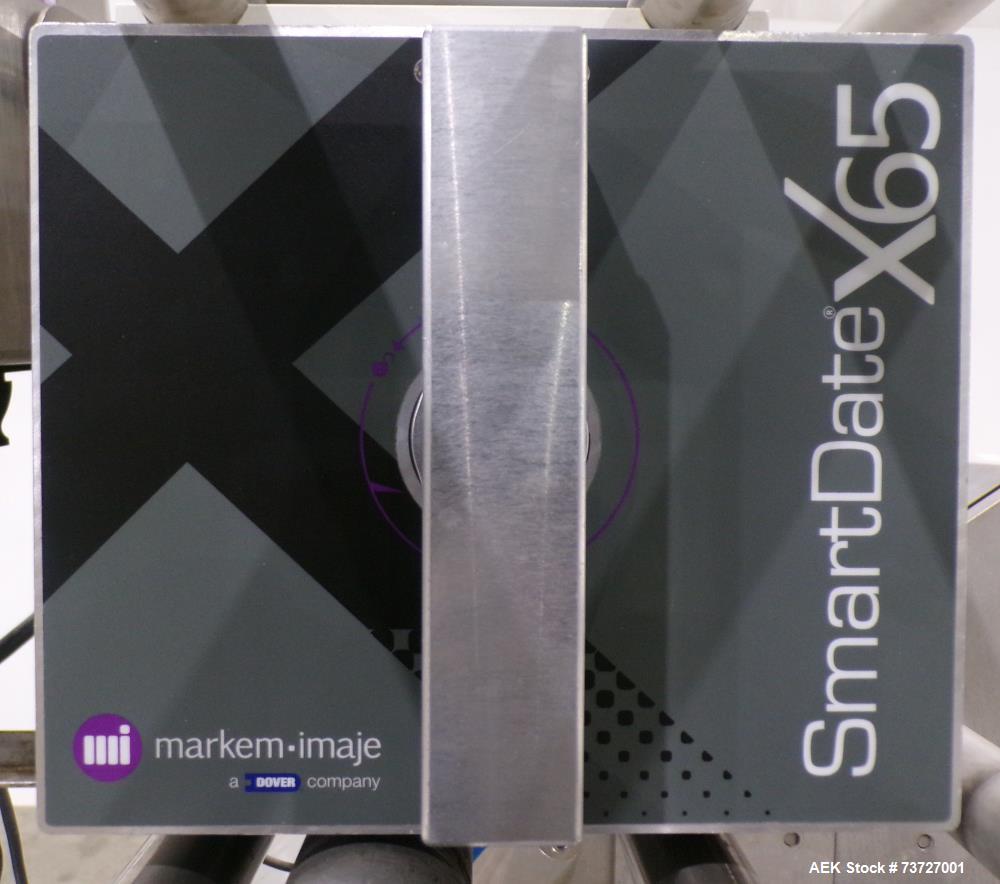

• Date Coder Manufacturer: Markem

• Date Coder Model: SmartDate X65

• Coding Capabilities: Production Dates, Lot Codes and Variable Package Information

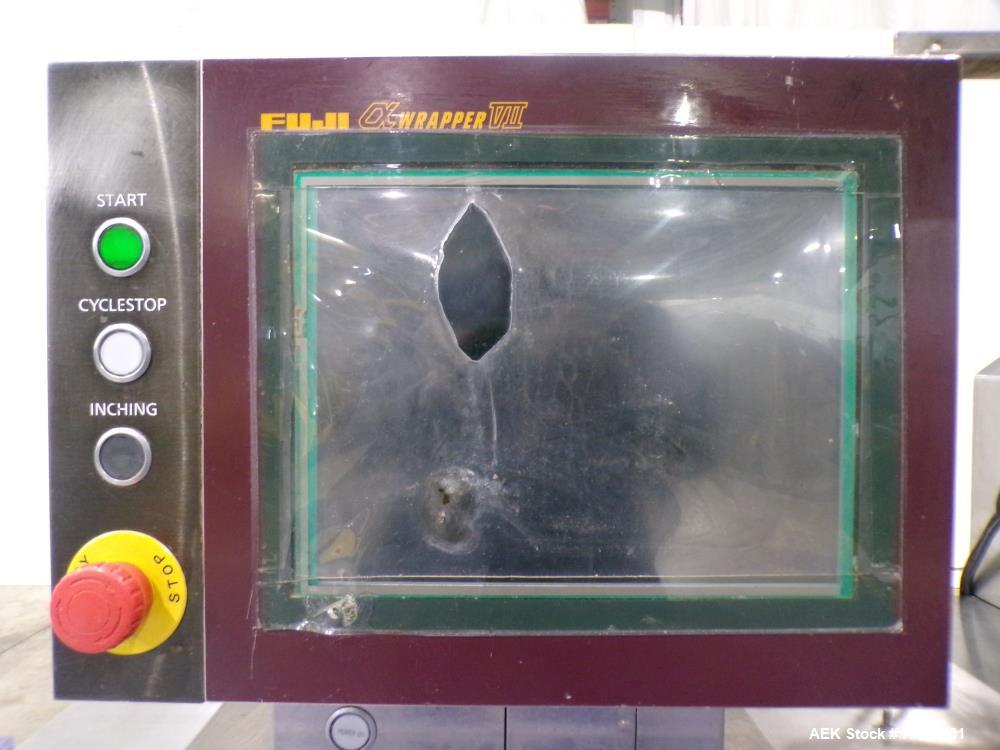

• Servo Control System: Fuji Alpha VII

• PLC Manufacturer: Yaskawa

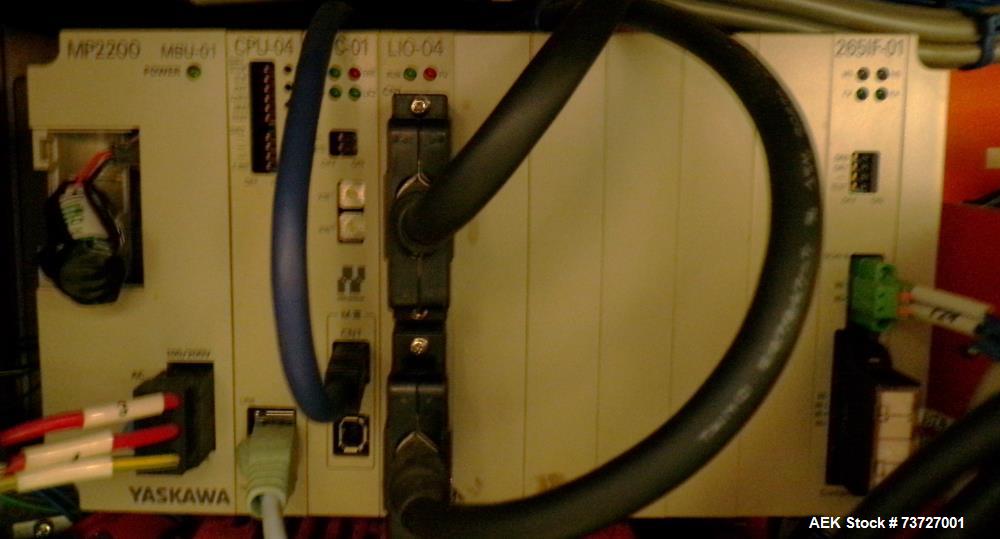

• PLC Model: MP2200

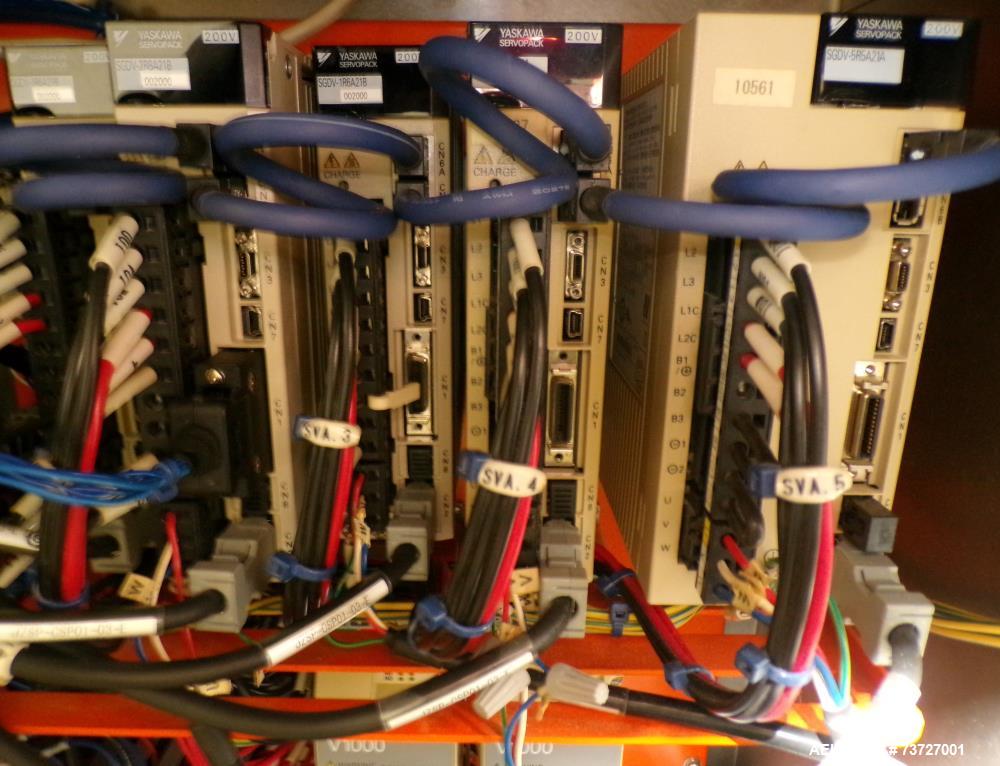

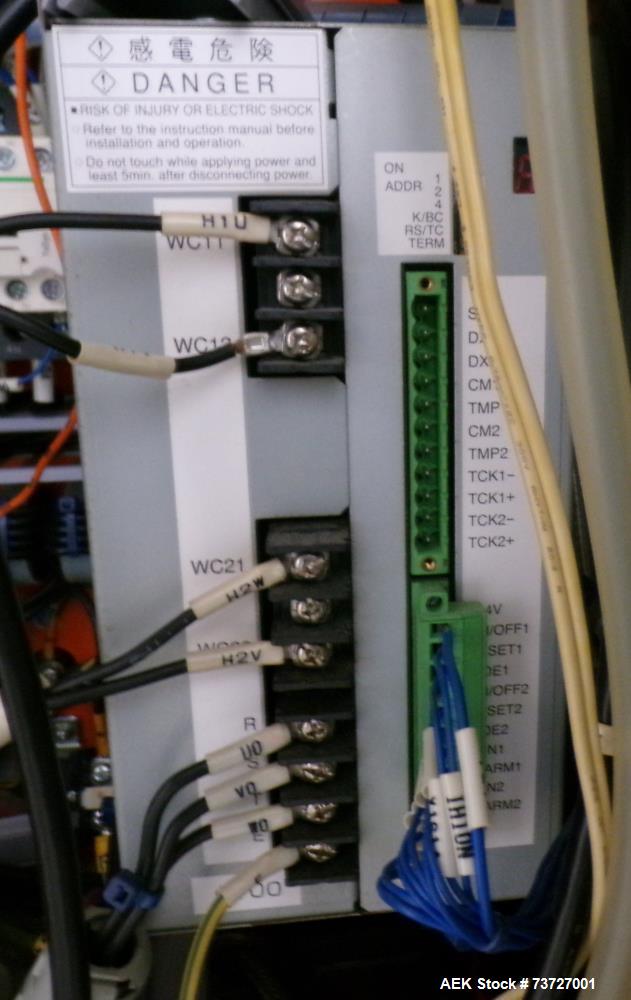

• Servo Drives: Yaskawa Servopack

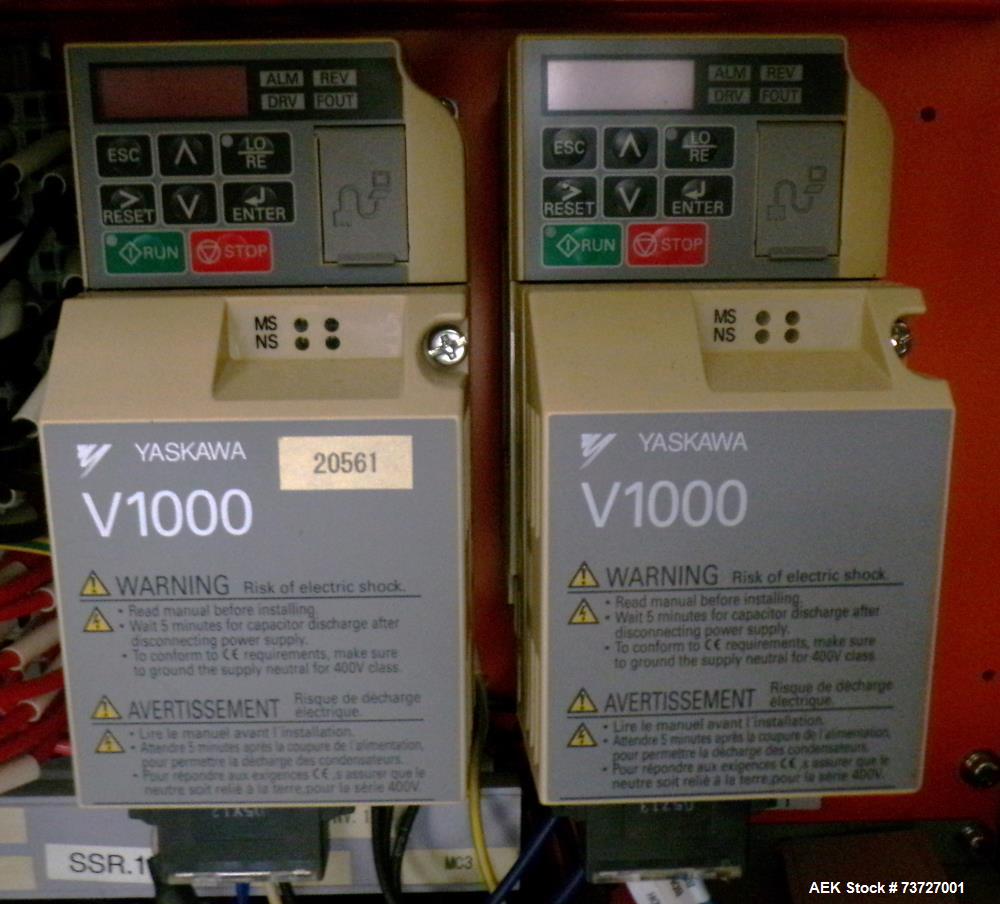

• Variable Frequency Drives: Yaskawa V1000

• Voltage: 208 Volts

• Electrical Phase: 3-Phase

• Frequency: 60 Hz

• Amperage: 16 Amps

• Approximate Overall Length: 211"

• Approximate Overall Width: 41"

• Approximate Overall Height: 79"

Applications

• High-Speed Horizontal Flow Wrapping

• Horizontal Form Fill Seal Packaging

• Pillow-Pack Packaging

• Individual Product Wrapping

• Bakery Product Packaging

• Snack Food Packaging

• Candy and Confectionery Packaging

• Chocolate Bar Packaging

• Granola Bar and Snack Bar Packaging

• Cracker and Cookie Packaging

• Personal Care Product Packaging

• Medical Supply Packaging

• Solid Consumer Product Packaging

• Compatible Industrial Product Wrapping

Suitable Products / Materials

• Cookies

• Crackers

• Granola Bars

• Snack Bars

• Chocolate Bars

• Candy Products

• Confectionery Products

• Bakery Products

• Individually Packaged Food Products

• Medical Supplies

• Personal Care Products

• Compatible Solid Consumer Goods

• Compatible Solid Industrial Products

• Suitable Flexible Packaging Films, Subject to Machine and Application Compatibility

Frequently Asked Questions (FAQs)

- What is the maximum packaging speed of this Fuji FW-3700 flow wrapper?

The machine has a rated production speed range of 10 to 450 packages per minute. Actual production speed depends on product dimensions, film characteristics and operating conditions.

- What type of packaging machine is the Fuji FW-3700 A7 LH?

It is a high-speed servo-driven horizontal form-fill-seal (HFFS) machine designed to wrap compatible products in flexible packaging film.

- What is the maximum film width supported by this machine?

The flow wrapper accommodates film web widths up to 17-1/2".

- What package cutoff lengths can this machine produce?

The machine features adjustable film cutoff lengths ranging from 1-1/2" to 17-1/2".

- What are the maximum product dimensions?

The maximum product dimensions are approximately 7" wide x 4" high. Product length and packaging suitability should be confirmed for the intended application.

- Does this Fuji flow wrapper include a date coder?

Yes. It includes a Markem SmartDate X65 coder for production dates, lot codes and other variable package information.

- What control system is installed on this flow wrapper?

The machine features Fuji Alpha VII servo controls with a Yaskawa MP2200 PLC, Yaskawa Servopack servo drives and Yaskawa V1000 variable frequency drives.

- What types of products can be packaged with this machine?

Potential applications include cookies, crackers, granola bars, snack bars, chocolate bars, candy, bakery products, medical supplies, personal care products and other compatible solid products. Final suitability depends on product and packaging requirements.

- What are the electrical requirements?

The machine requires 208 volts, 3-phase, 60 Hz electrical service and is rated at 16 amps.

- What year was this Fuji flow wrapper manufactured?

The machine was manufactured in 2013.

- Can Aaron Equipment help determine whether this flow wrapper is suitable for my application?

Yes. Aaron Equipment can help review the available machine specifications and discuss product dimensions, production speeds, packaging requirements and equipment compatibility before purchase.

- Can Aaron Equipment help with shipping this Fuji FW-3700 flow wrapper?

Yes. Contact Aaron Equipment to discuss shipping requirements, freight options and logistics assistance. The machine measures approximately 211" long x 41" wide x 79" high, which can assist with preliminary transportation planning. Shipping arrangements and requirements should be confirmed before purchase.

- How can I request pricing or additional information?

Contact Aaron Equipment and reference Fuji Foremost Model FW-3700 A7 LH, Serial Number 008501, to request available pricing, equipment information and purchasing assistance.
