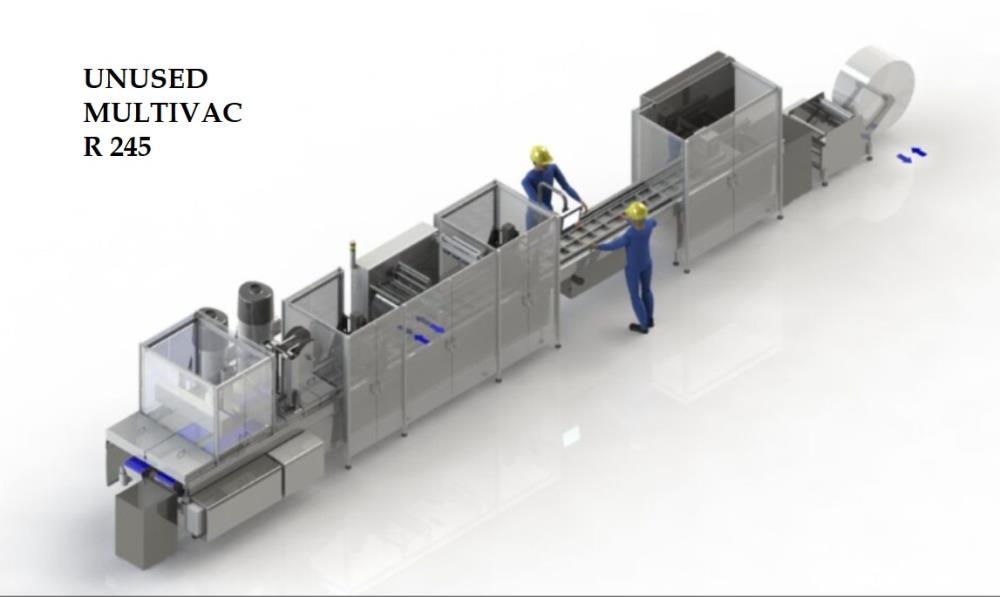

Unused Multivac R 245 Rollstock Packaging Machine – 2021 Medical-Grade

🏭 Manufacturer Info:

• Manufacturer: Multivac

• Model: R 245

• Serial Number: 137146

• Year: 2021

• Condition: Unused

• Country of Origin: Germany

📄 Description:

The Multivac R 245 is a fully automatic, stainless steel horizontal form, fill, and seal (FFS) rollstock packaging machine designed with a hygienic GMP-compliant clean design (IP65-rated). Manufactured in 2021 and never used, this system is equipped with optical inspection, inline printing, and automated product handling, making it ideal for packaging medical supplies or other sterile, high-precision applications. Integrated with a Busch vacuum pump, Bell-Mark thermal printer, and full edge trim management, this system ensures accurate, high-speed packaging performance.

📊 Specifications:

Machine Performance:

• Cycle Rate: Approx. 35 cycles/min (load & layout dependent)

• Product Weight Max: 2500g

• Operating Range:

  • X Axis: 800mm

  • Z Axis: 200mm

Format Dimensions:

• Width: Max 560mm

• Length: Max 500mm

• Height: Max 100mm

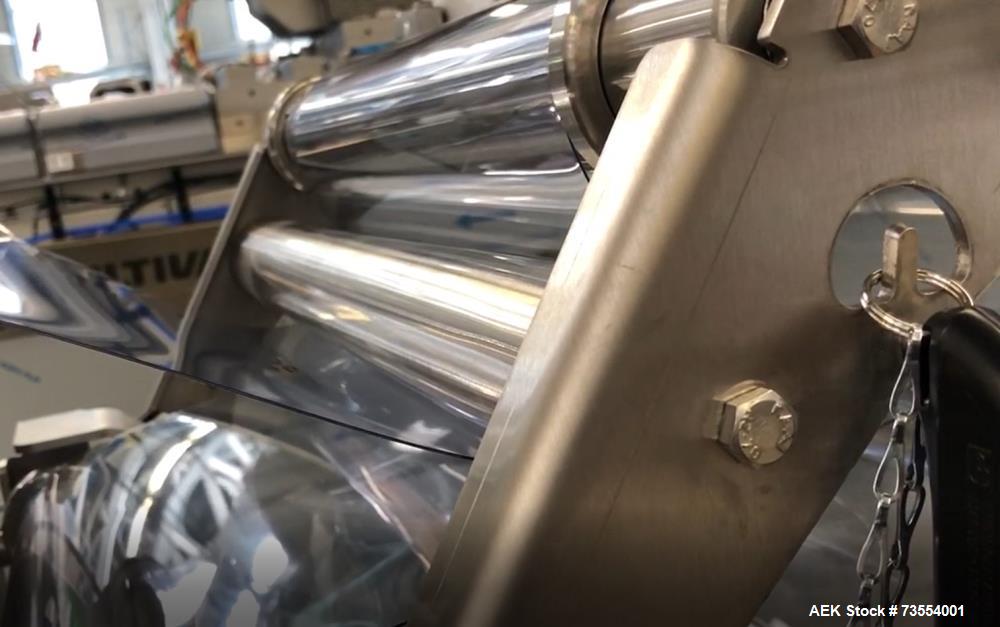

Packaging Material:

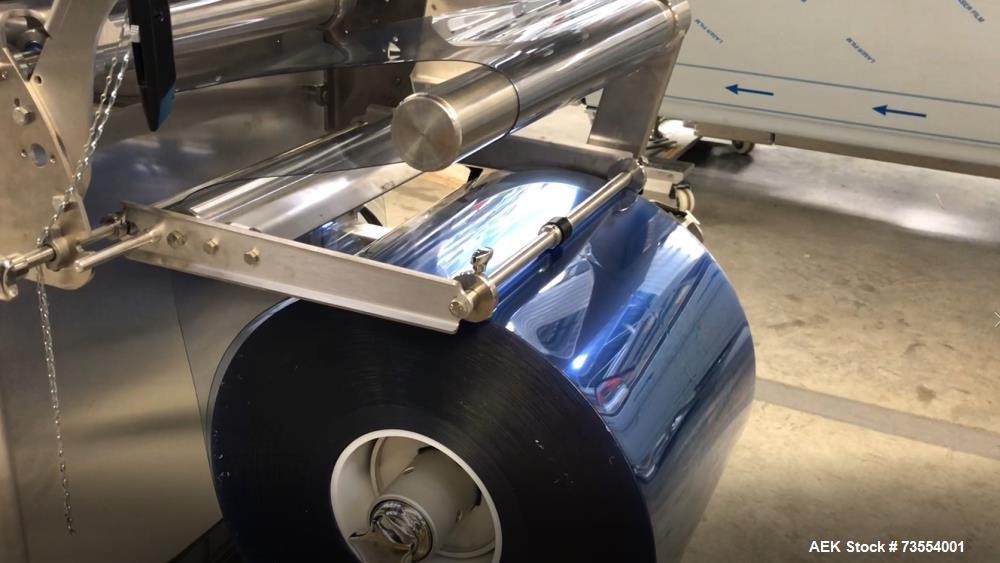

• Bottom Web (Rigid): PETG, 362mm width (+2mm), 30mil thickness

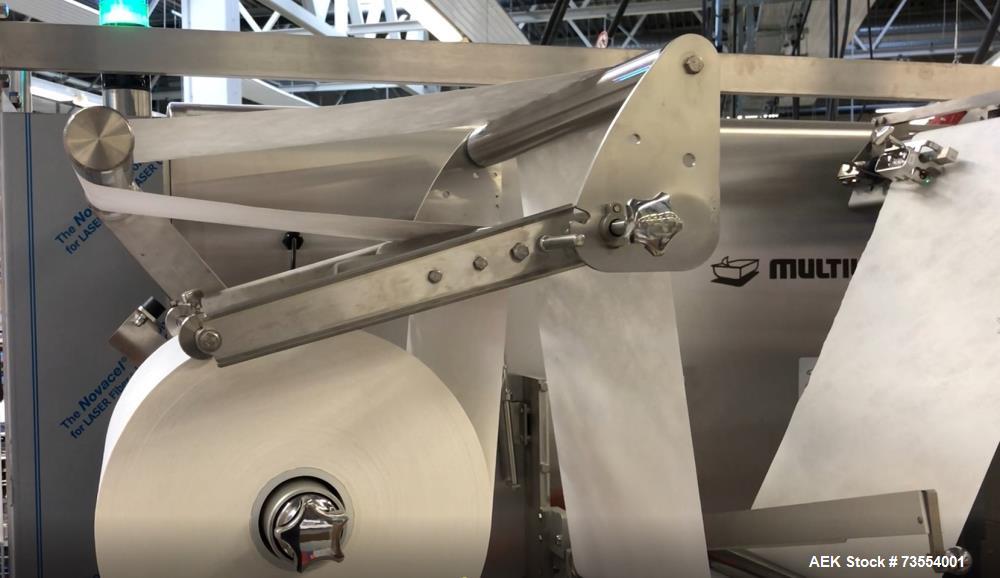

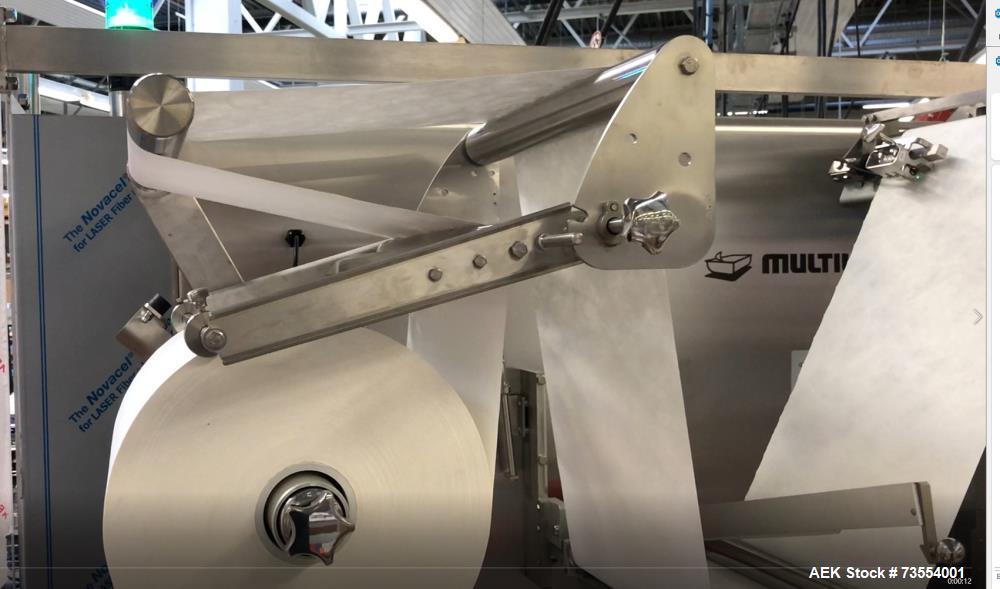

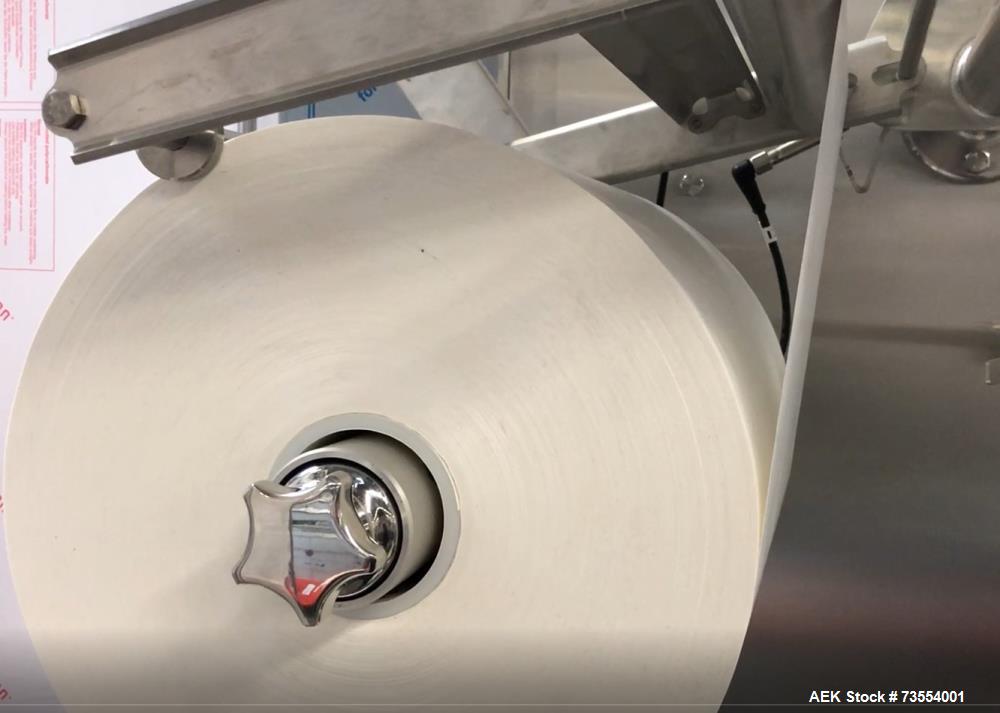

• Top Web (Flexible): Tyvek 1059B, 355mm width (+1mm), 4mil thickness

Integrated Components:

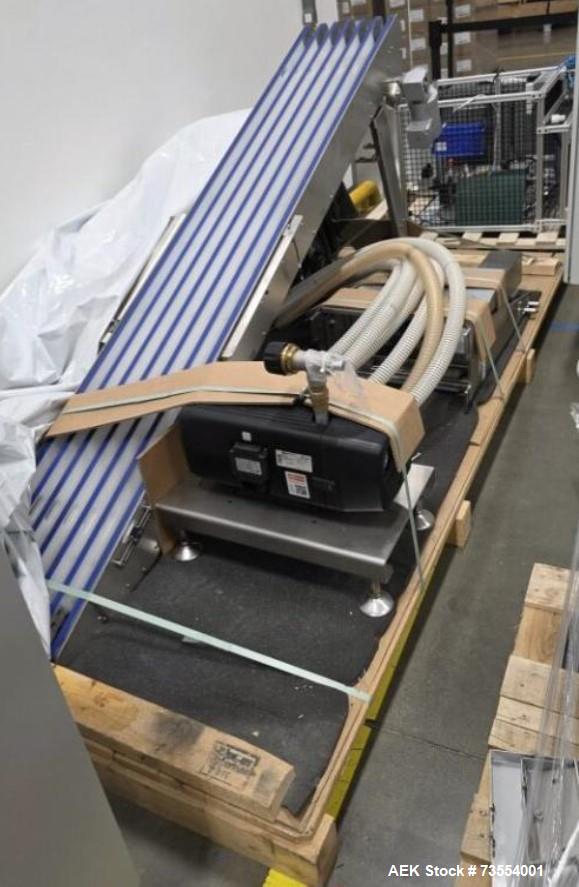

• Vacuum Pump: Busch SV 1025

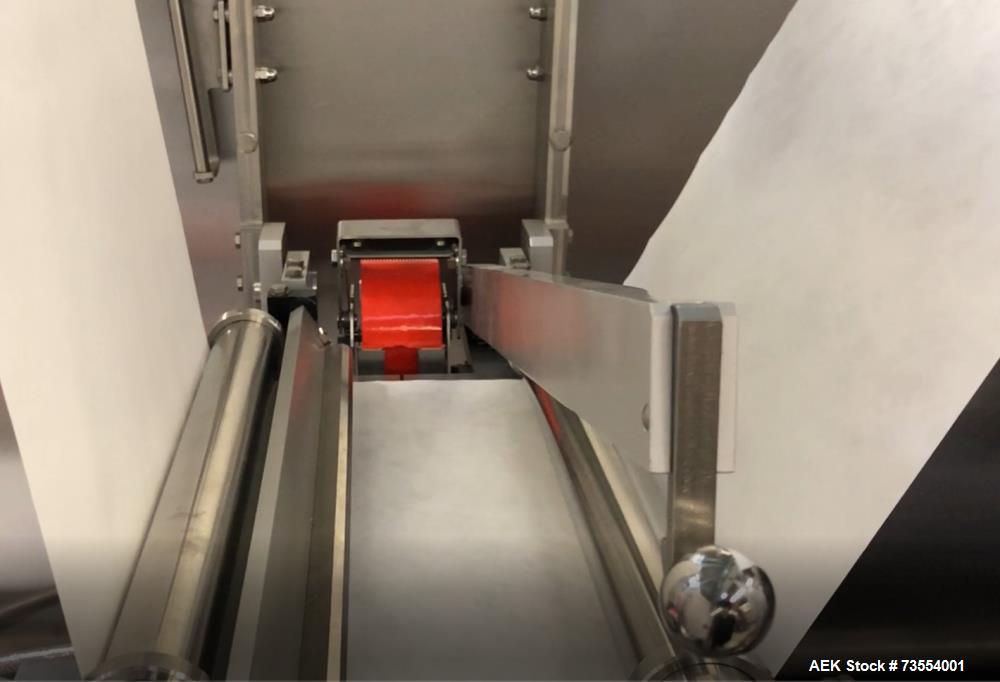

• Printer: Bell-Mark 8.3” EasyPrint MLP thermal transfer printer

• Inspection: Inline optical inspection system with photoelectric print registration

• Gripper System: Suction gripper, 1 lane, 6 channel

• Punching System: FS 08 (lower), FS 87 (upper) steel rule cross-cut punch

• Trim Removal: RSW20 edge trim winder

Controls & Interface:

• Machine Control: IPC 06 with Windows Embedded OS

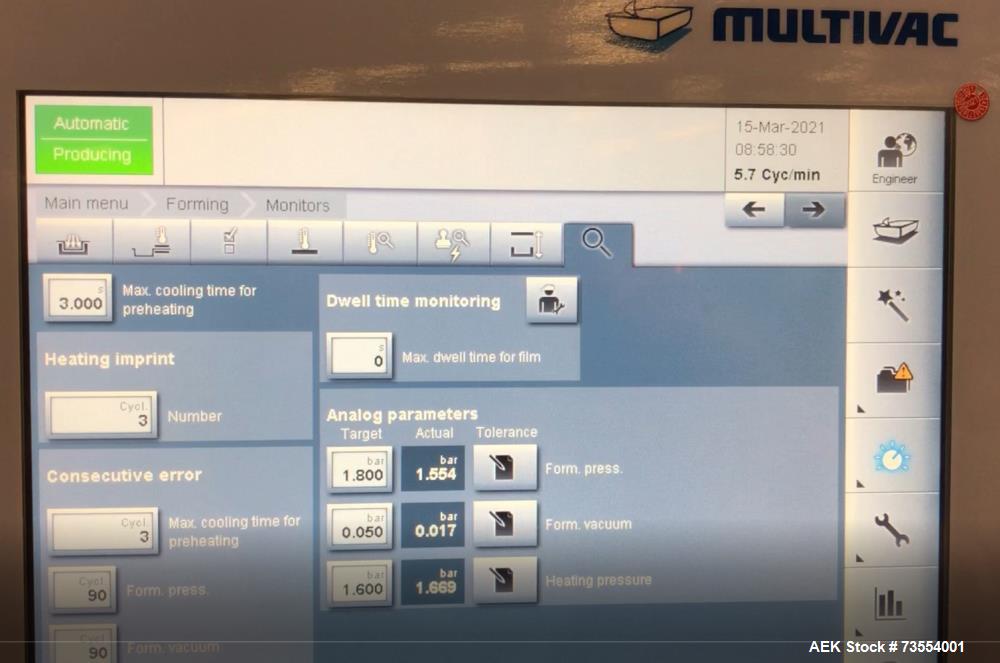

• Touchscreen: 12” HMI 2.0 user interface

• Sensors: PT 100 with Multivac plug-in system

Discharge & Cooling:

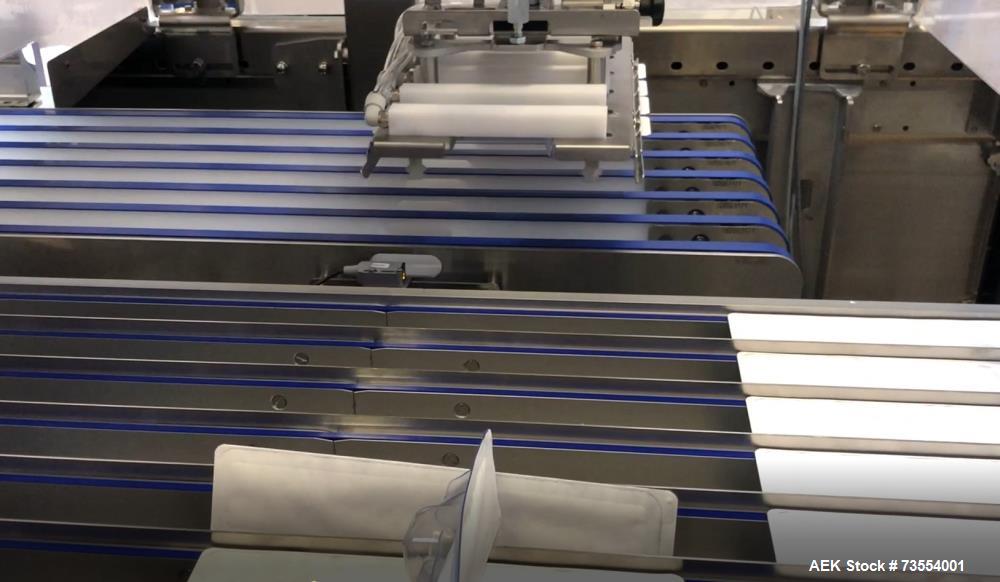

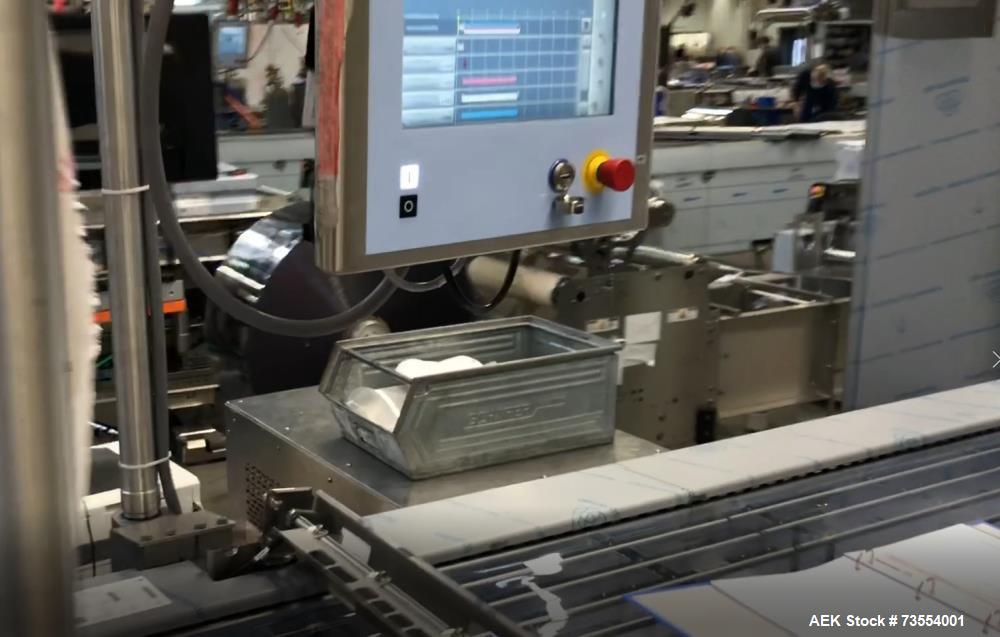

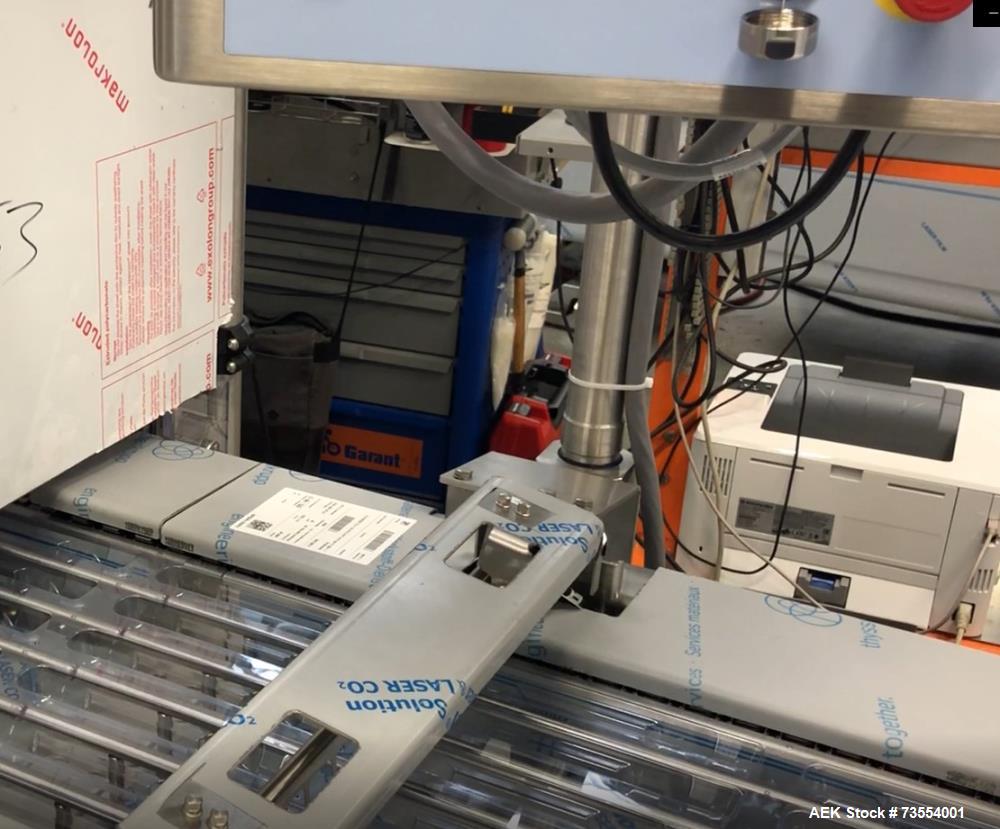

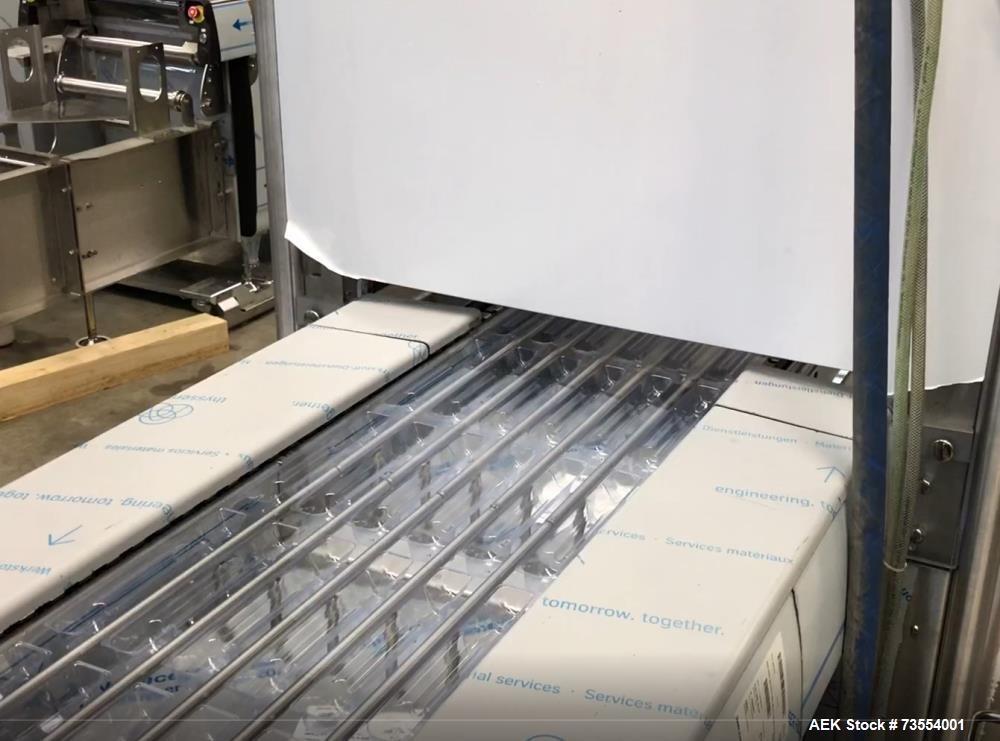

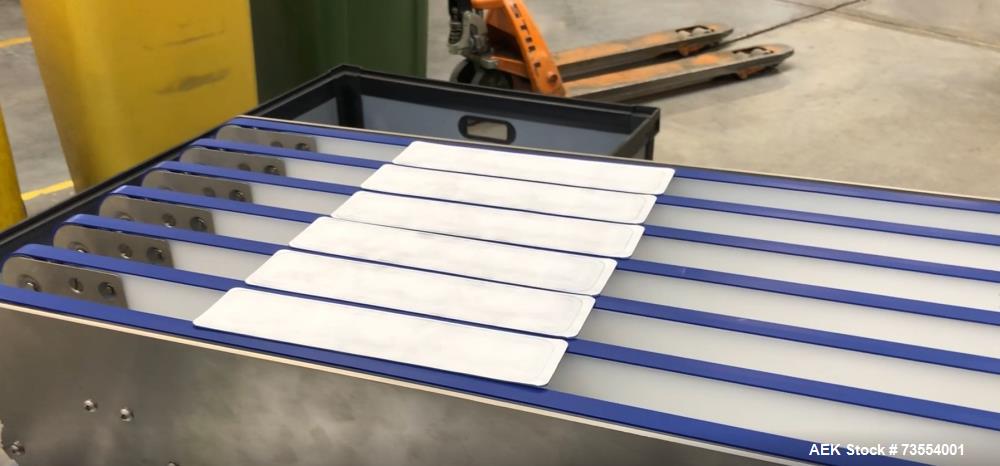

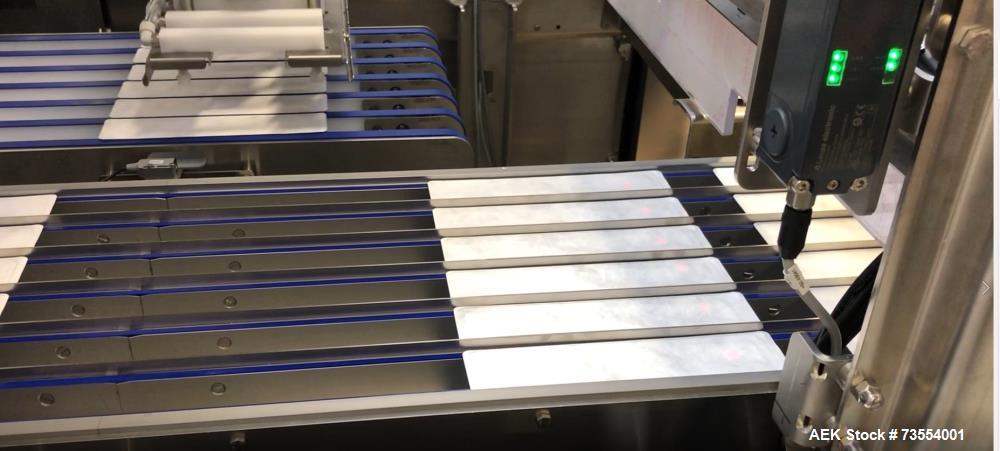

• Conveyor: Flat-top chain, 1700mm long x 400mm wide, frequency-controlled

• Chiller: Dimplex Model JHI-1500-DM recirculating water chiller

Electrical Requirements:

• Power Supply: 3 Phase / 60 Hz / 480V

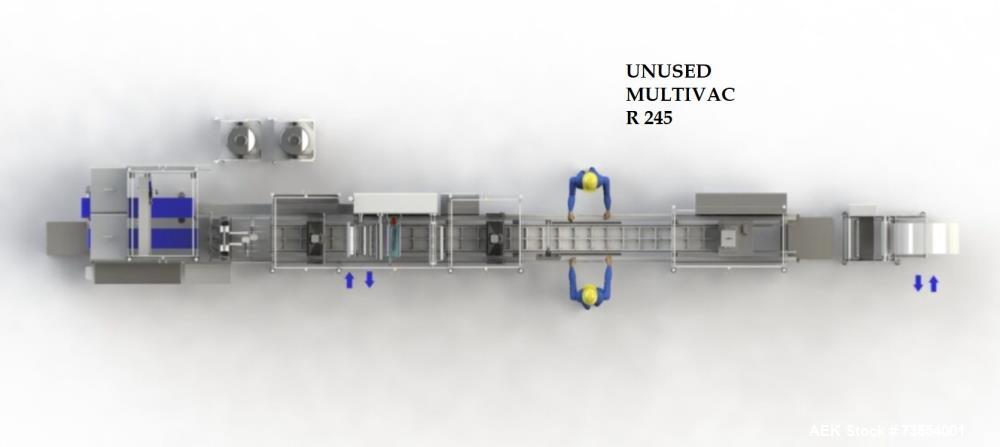

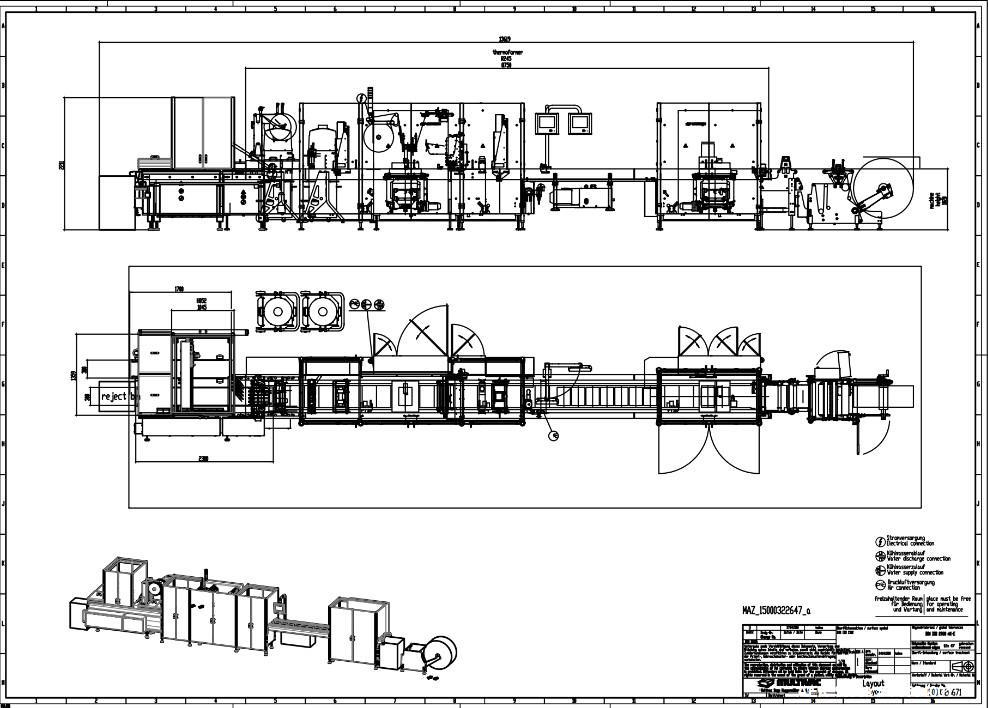

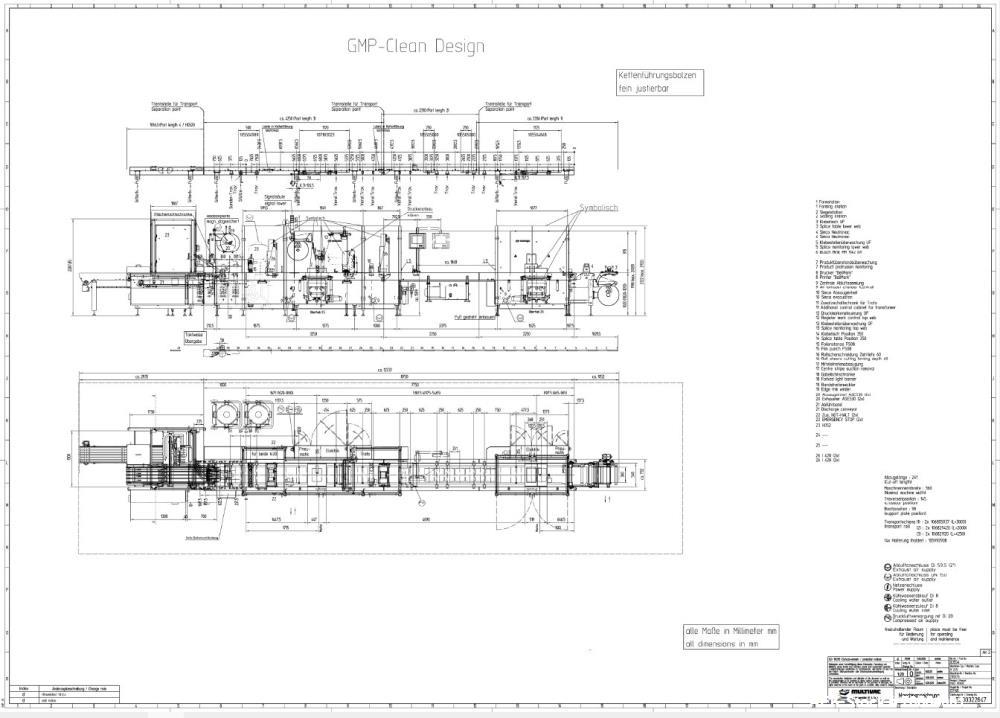

Machine Dimensions:

• Length: 9,217mm

• Width: 1,042mm

• Height: 2,350mm

🧰 Applications:

• Medical device packaging

• Pharmaceutical packaging

• Sterile goods packaging

• Laboratory equipment packaging

• Diagnostics kits packaging

• Cleanroom packaging lines

• Industrial sterile product lines

• Hospital and surgical supply packaging

• High-spec flexible packaging environments

• Thermoformed tray sealing and labeling

📦 Products This Is Used For:

• Syringes, catheters, and IV components

• Medical test kits and diagnostics

• Sterile surgical instruments

• Hospital PPE kits

• Medical device blister packs

• Sample collection kits

• Clinical trial packaging

• Healthcare packaging trays

• Lab consumables

• Electronic medical components
