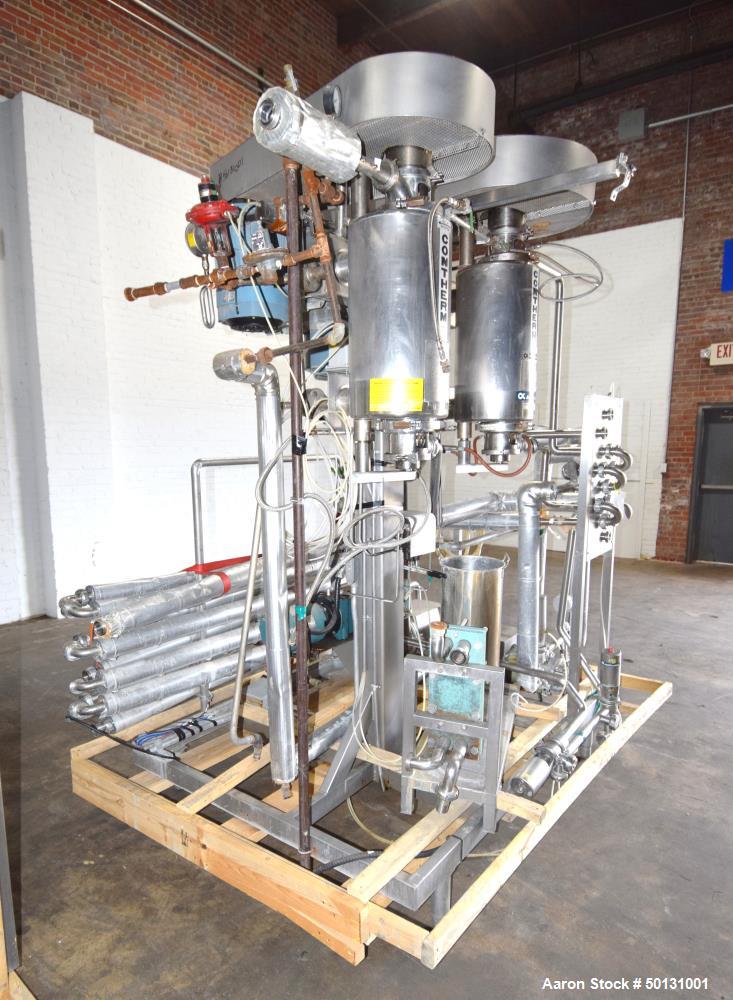

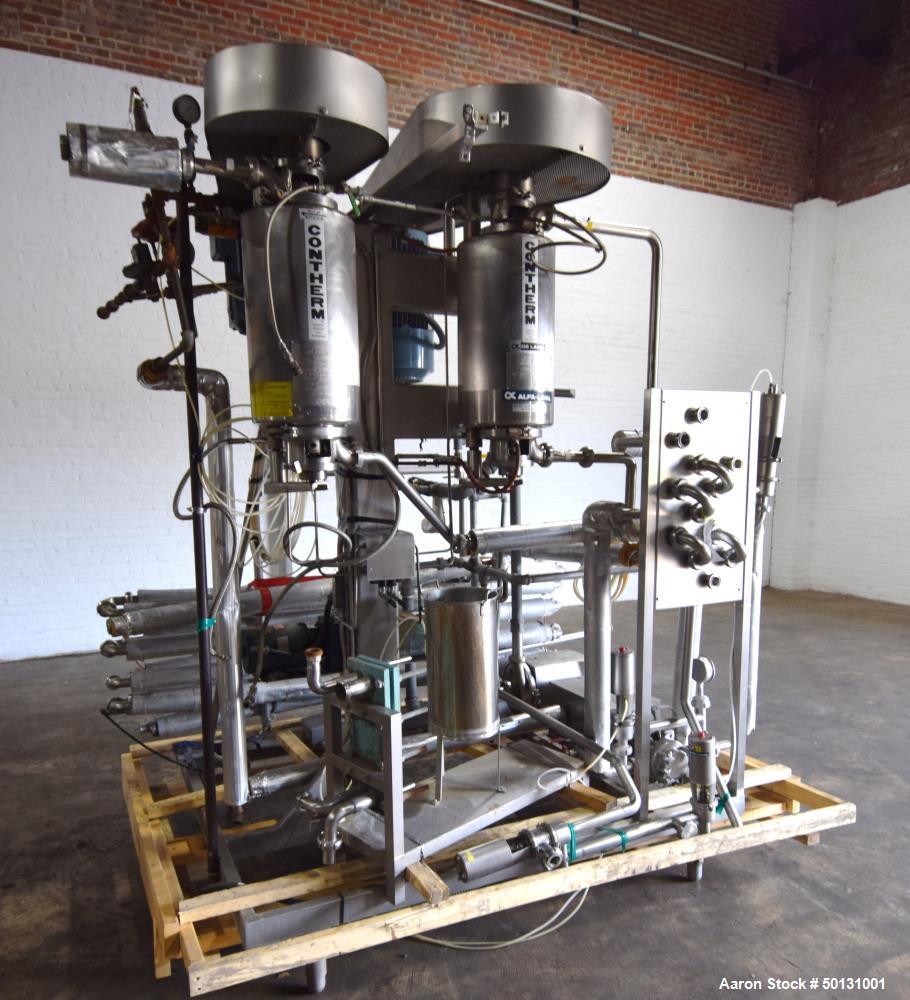

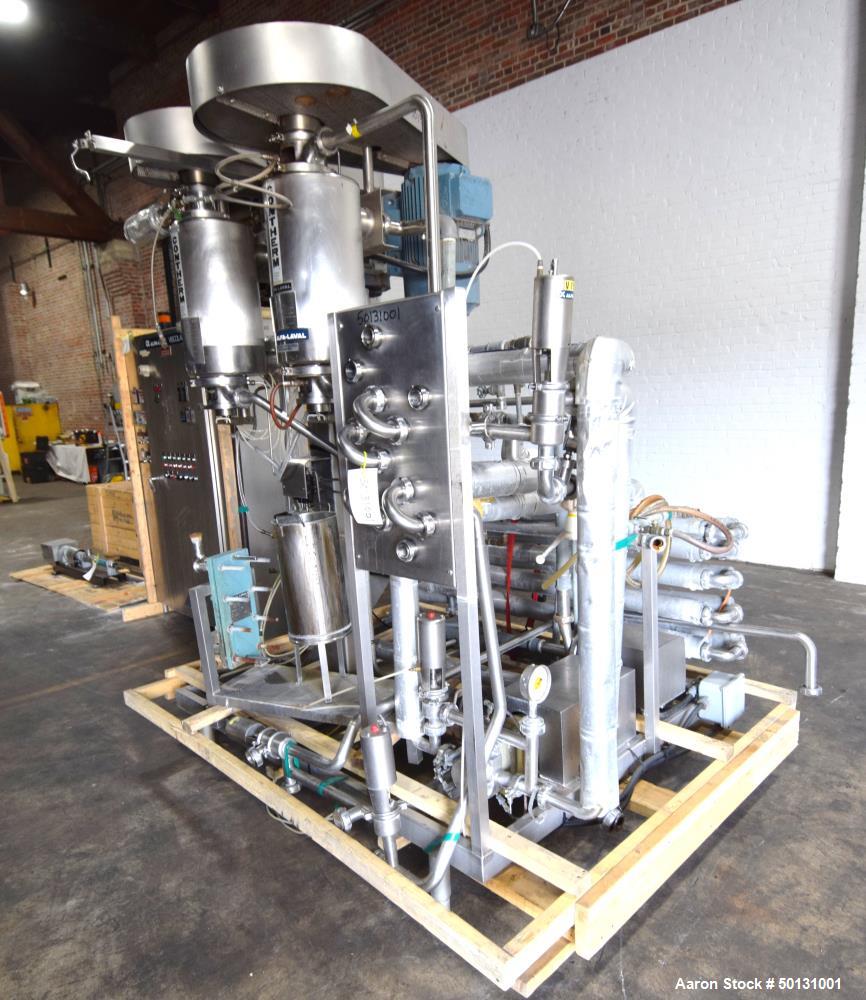

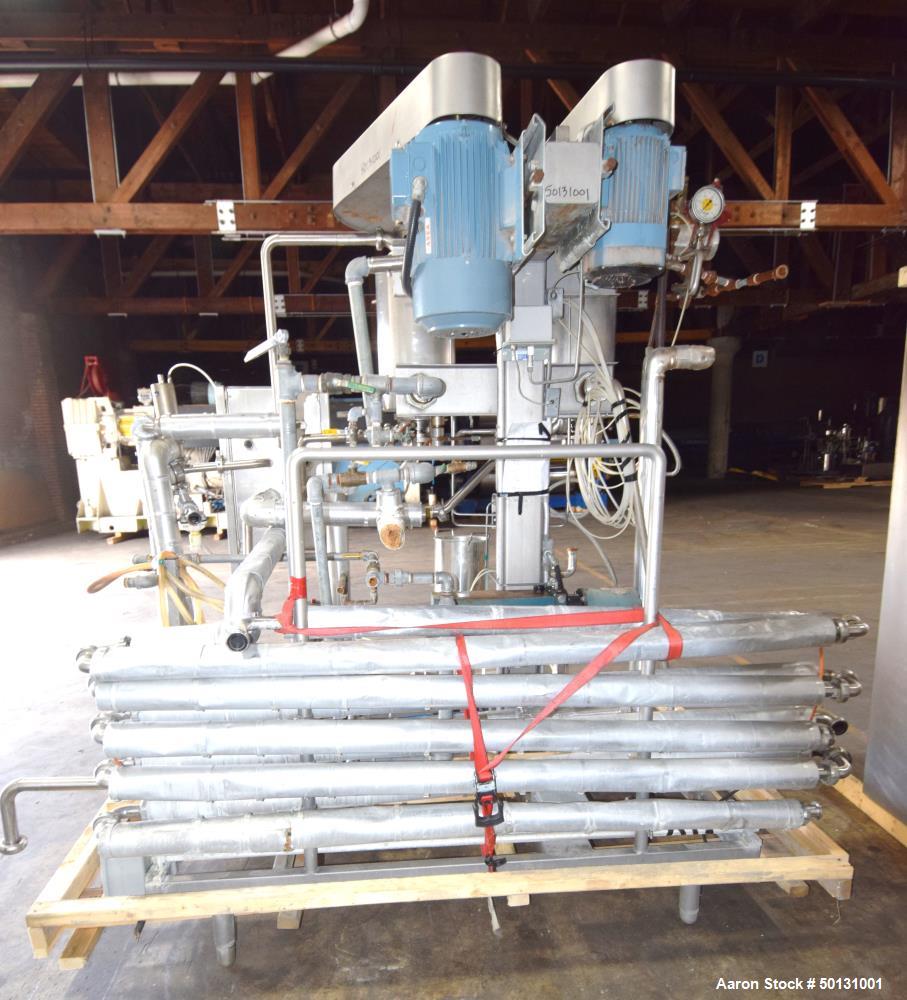

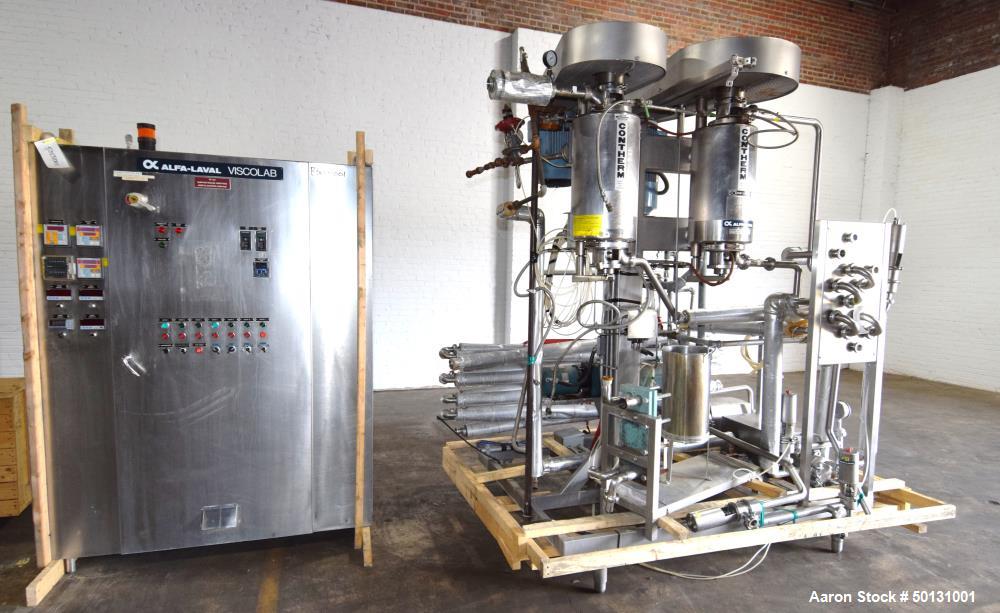

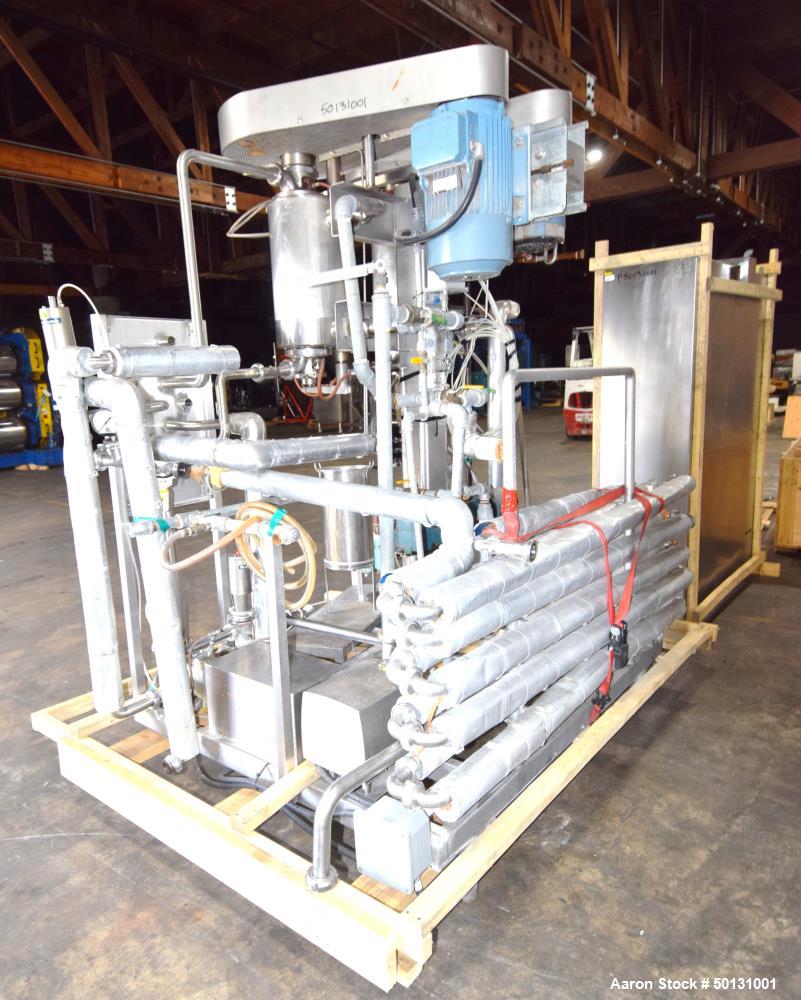

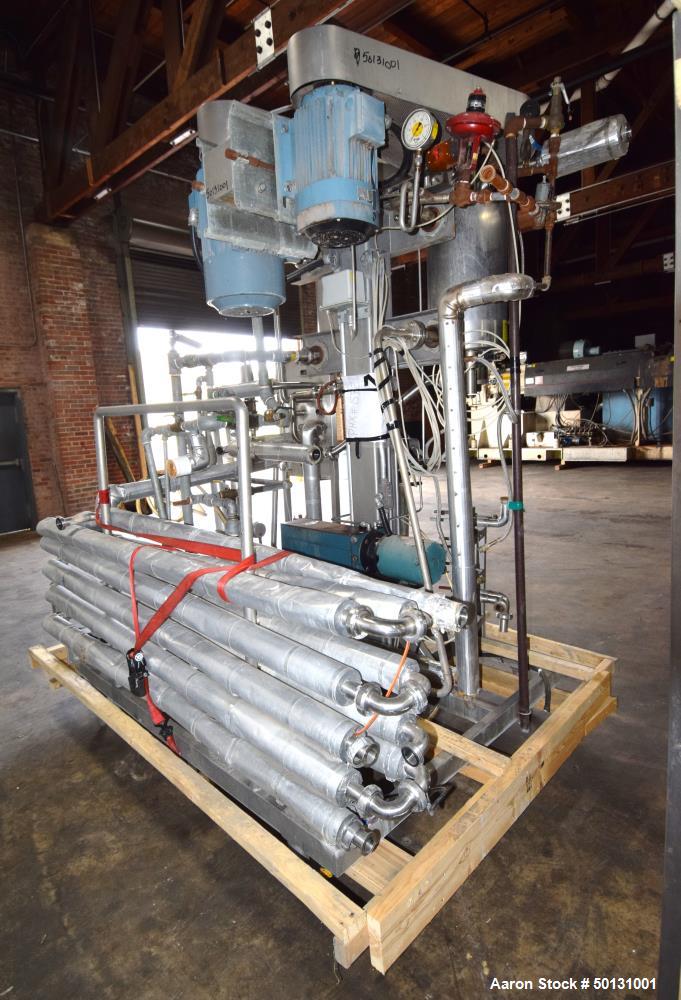

Industrial Used - Alfa Laval Viscolab Scraped Surface Heat Exchanger System

Manufacturer Information:

• Manufacturer: Alfa Laval
• Model: Viscolab Scraped Surface Heat Exchanger System
• Material: Nickel & Stainless Steel

System Components & Specifications:

Scraped Surface Heat Exchangers (SSHEs):

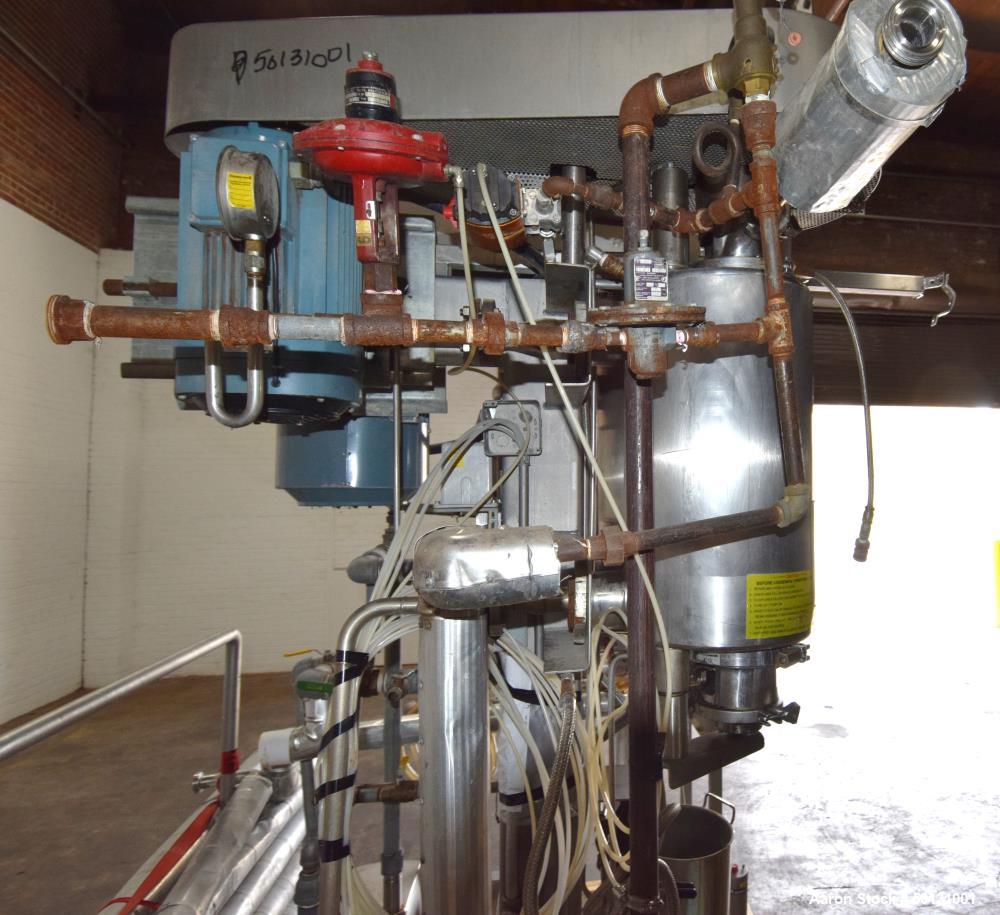

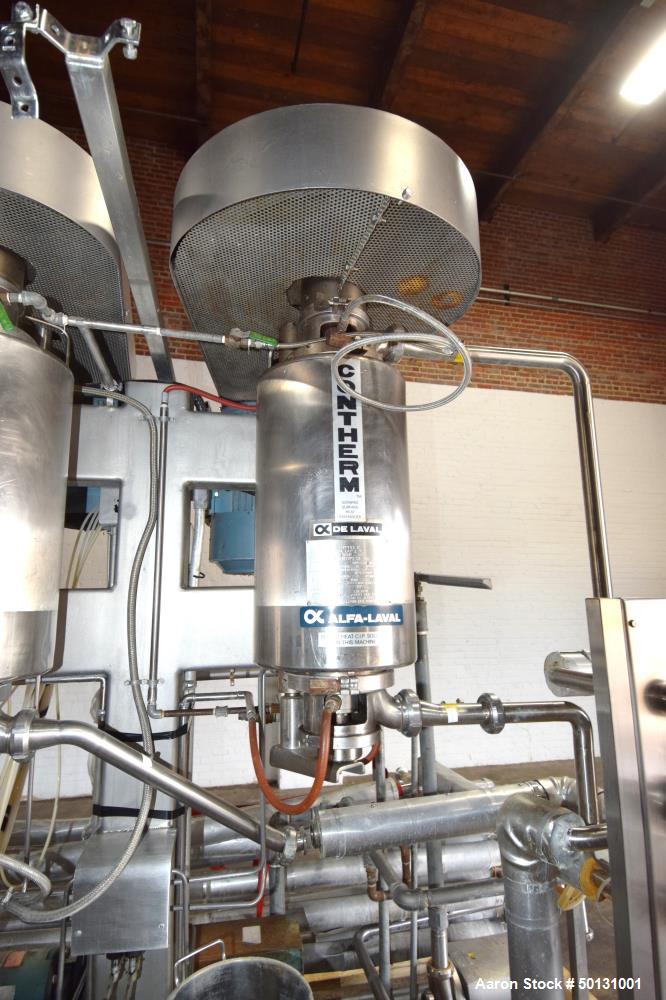

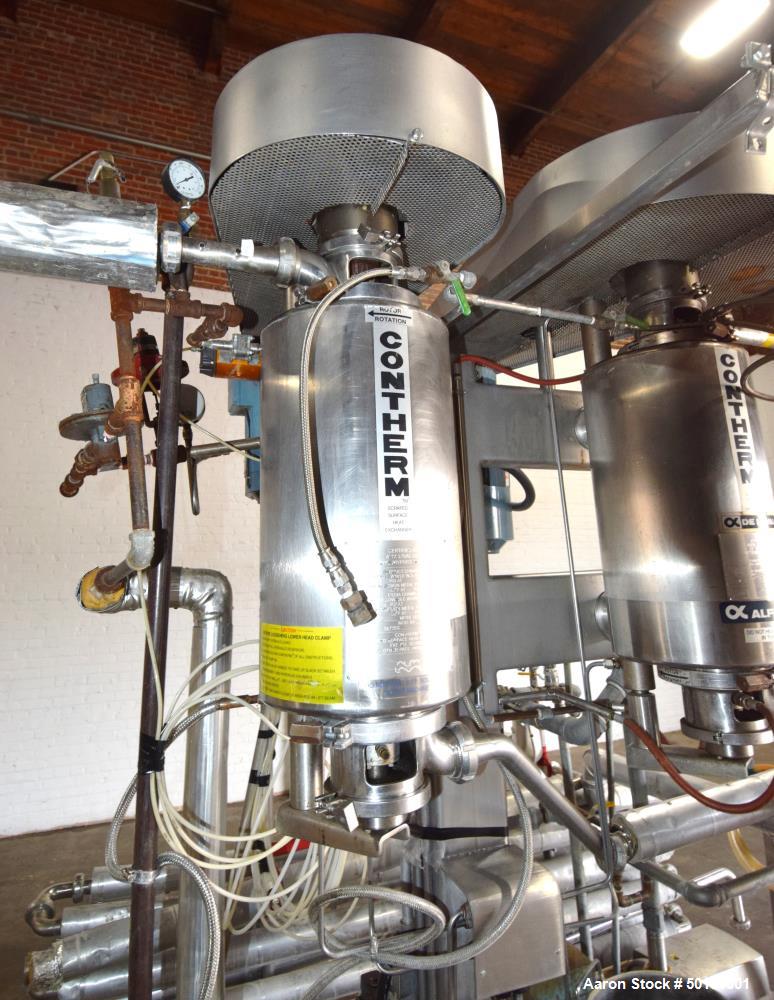

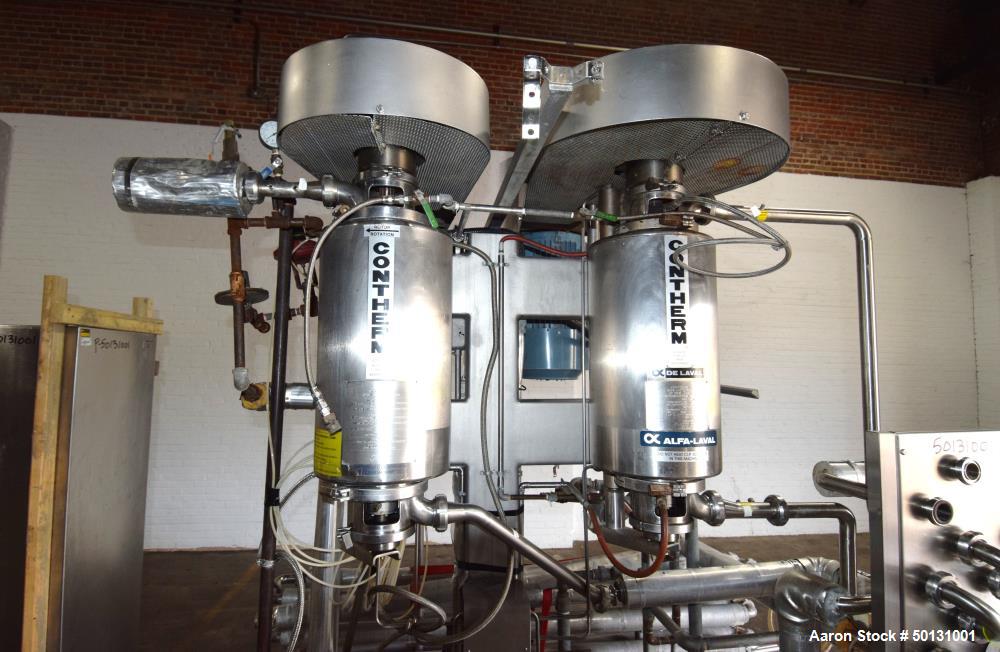

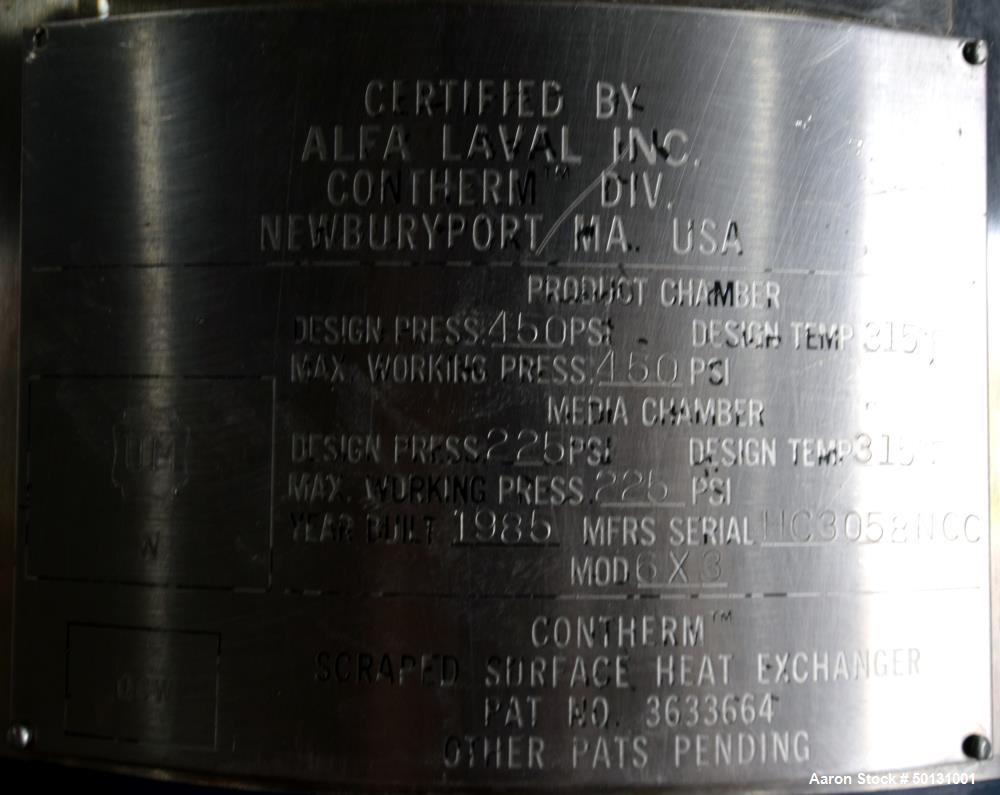

1. Alfa Laval Contherm Scraped Surface Heat Exchanger (Model 6 x 3)

   • Heating Surface: 3 sq. ft.
   • Internal Pressure Rating: 450 PSI at 315°F
   • Jacket Pressure Rating: 225 PSI at 315°F

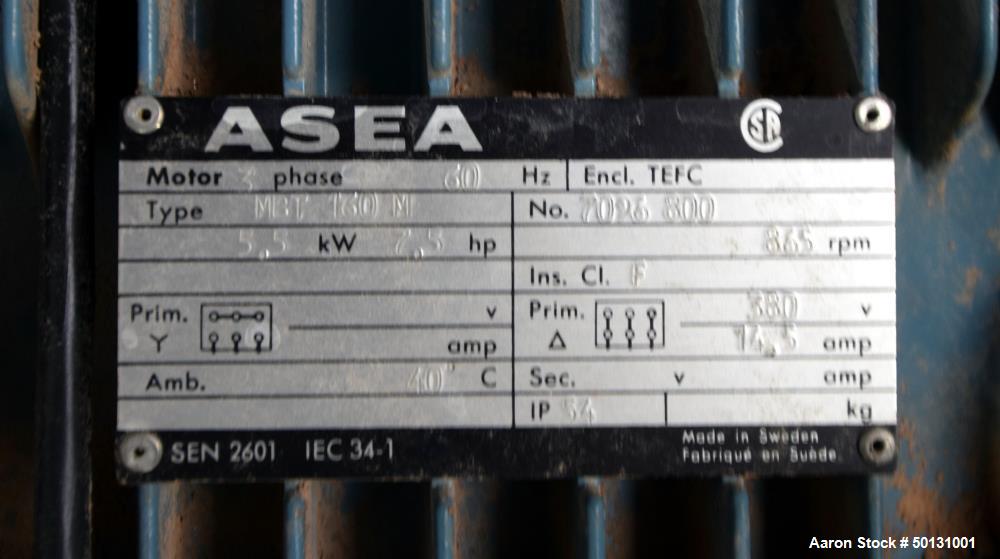

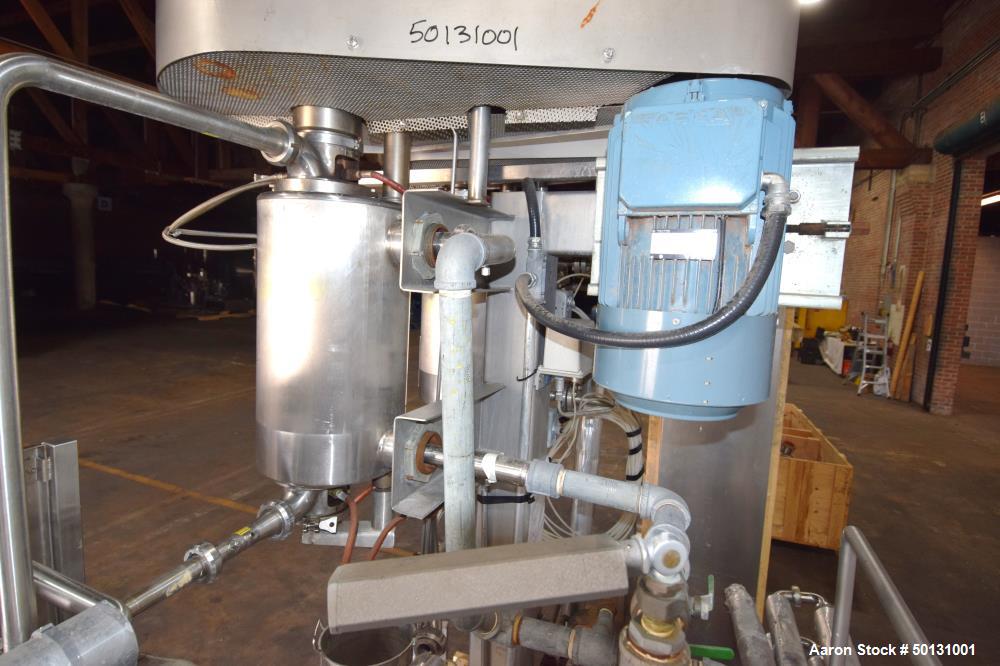

   • Motor: 7.5 HP, 3/60/380V, 865 RPM
   • Serial Number: HC3058NCC
   • Year Built: 1985

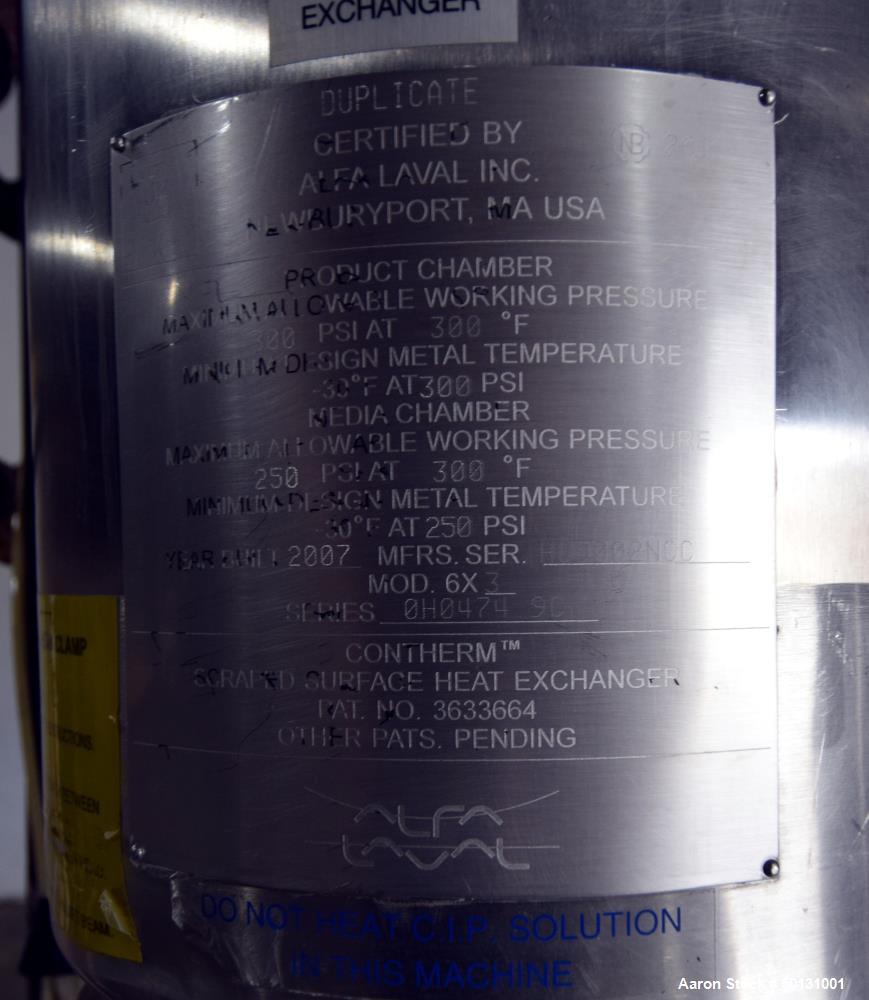

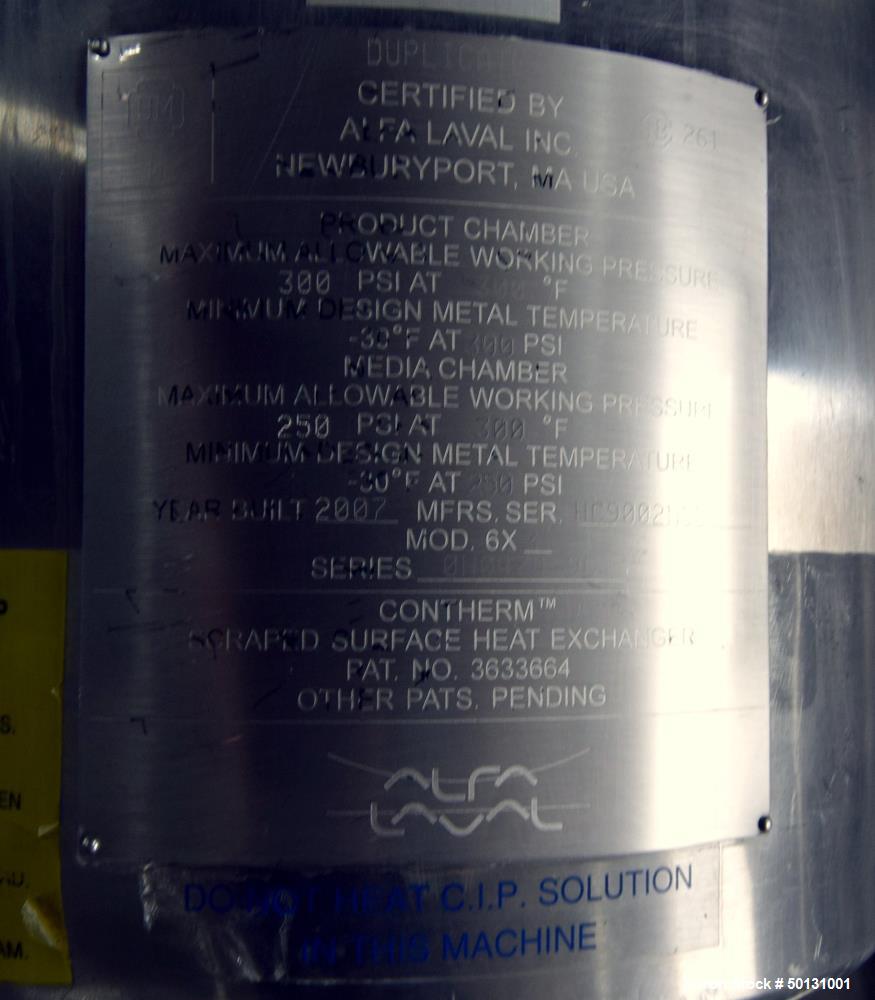

2. Alfa Laval Contherm Scraped Surface Heat Exchanger (Model 6 x 3)

   • Heating Surface: 3 sq. ft.
   • Internal Pressure Rating: 300 PSI at -30 to 300°F
   • Jacket Pressure Rating: 250 PSI at -30 to 300°F

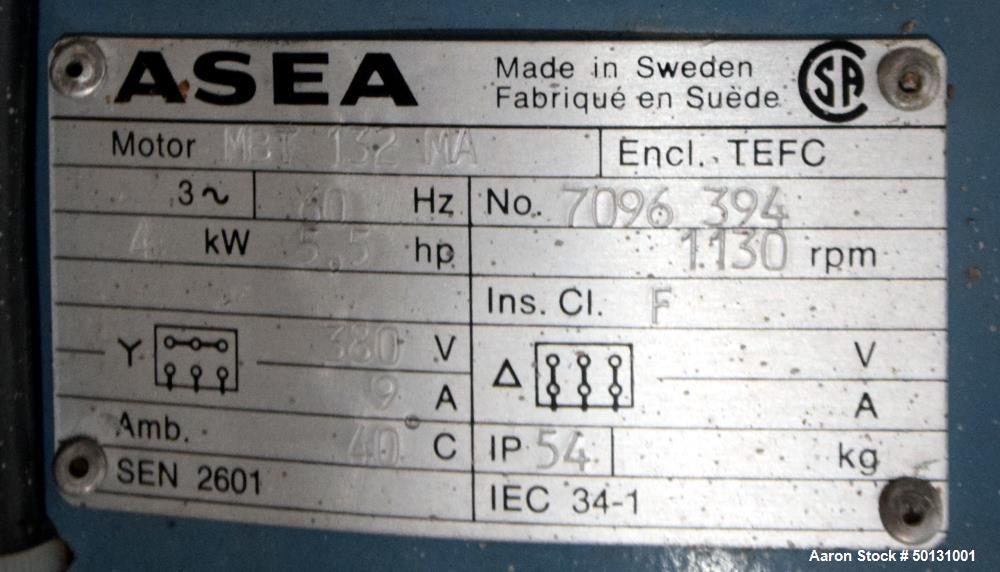

   • Motor: 5.5 HP, 3/60/380V, 1130 RPM
   • Serial Number: HC9002NCC
   • National Board Number: 261
   • Year Built: 2007

Additional Components:

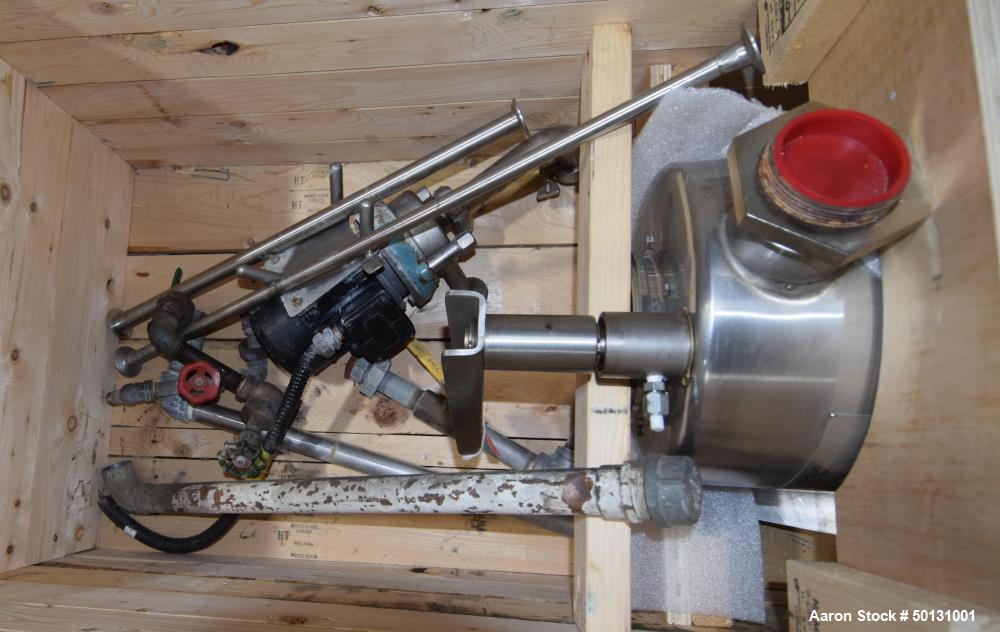

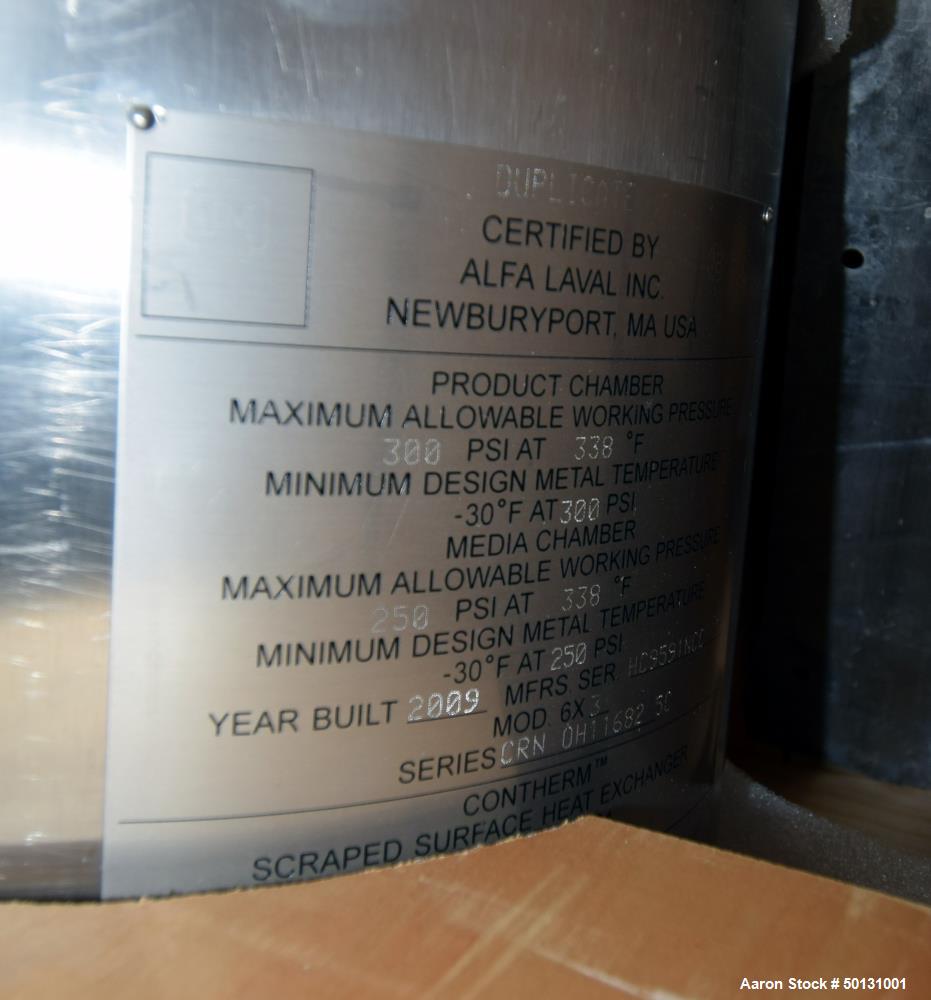

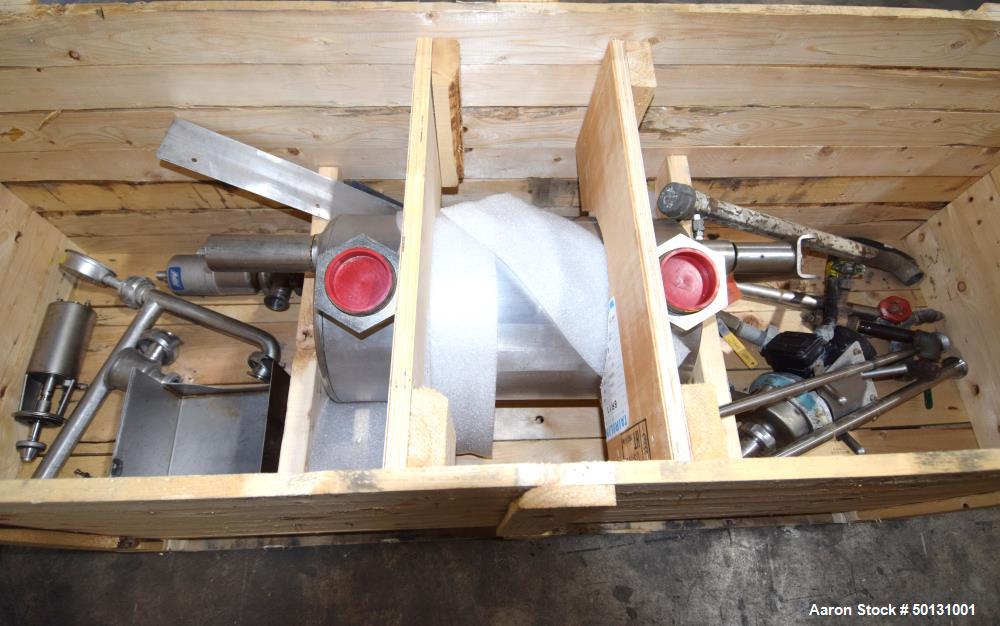

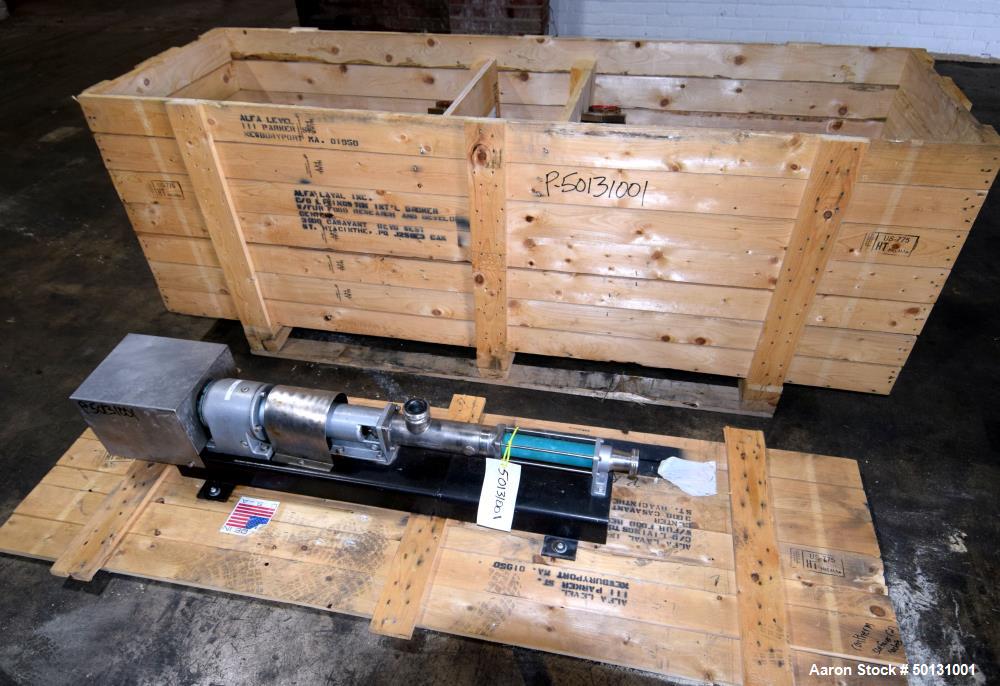

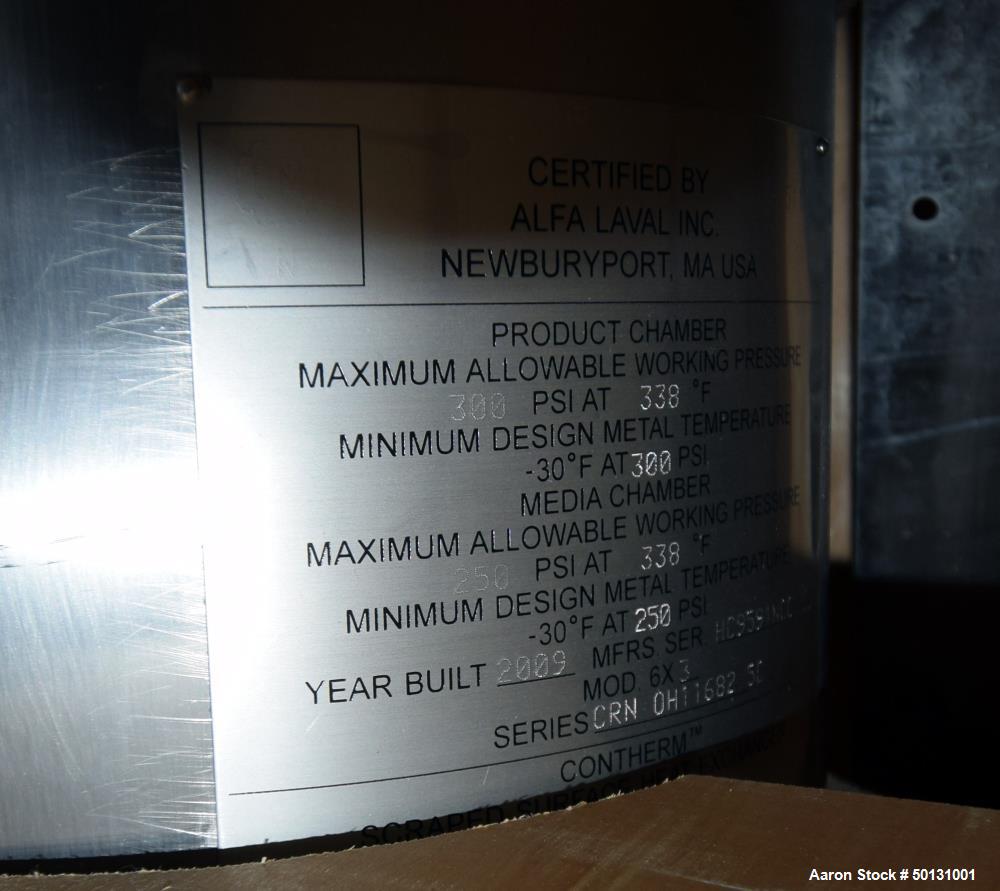

• Spare Contherm Chamber (Model 6 x 3)

  • Serial Number: HC9591NCC
  • National Board Number: 511
  • Year Built: 2009

• Support Structure: Includes a ½ HP Hydraulic Raise & Lower System for Rotors

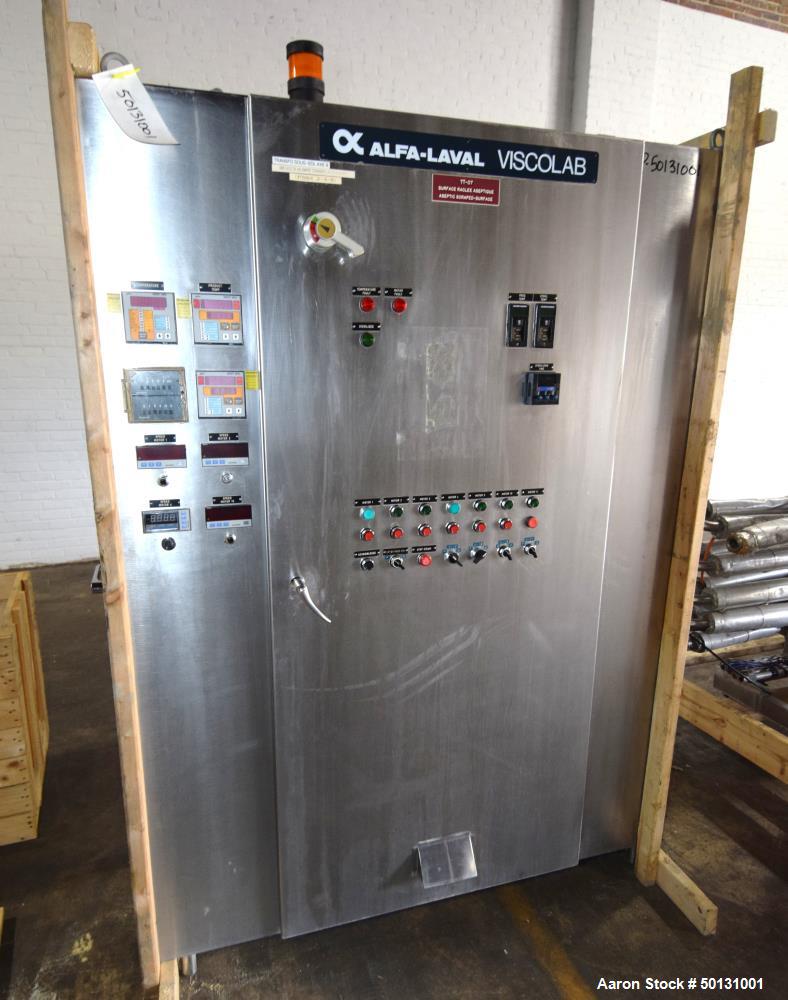

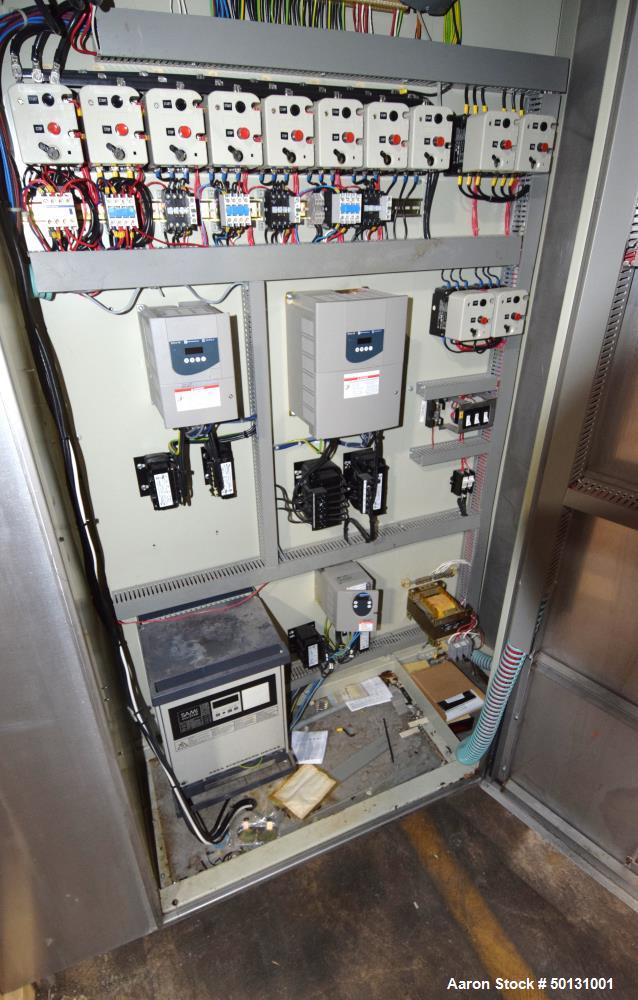

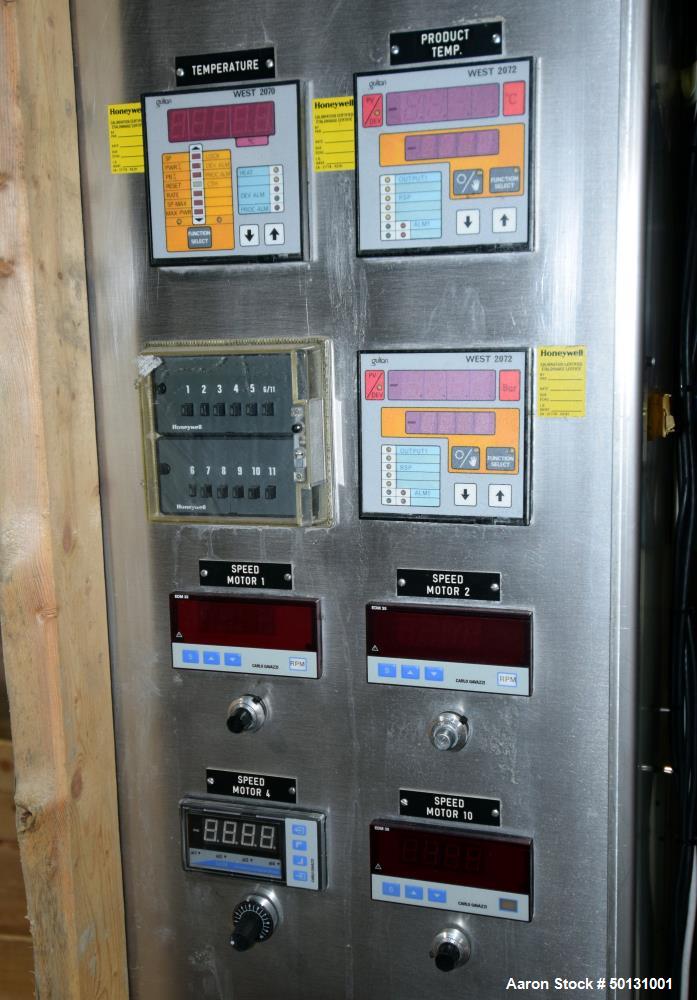

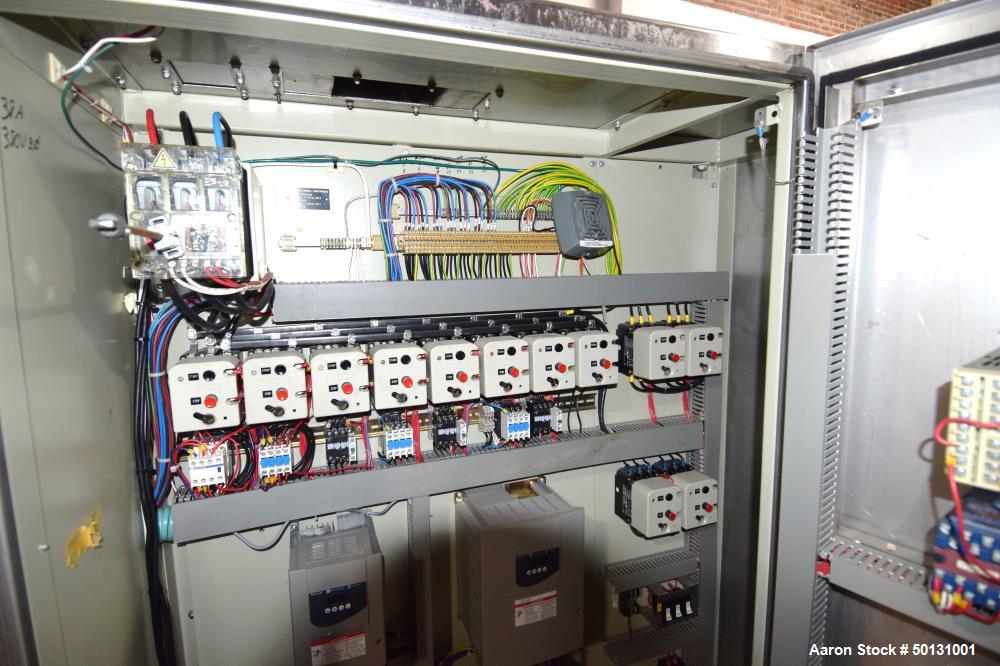

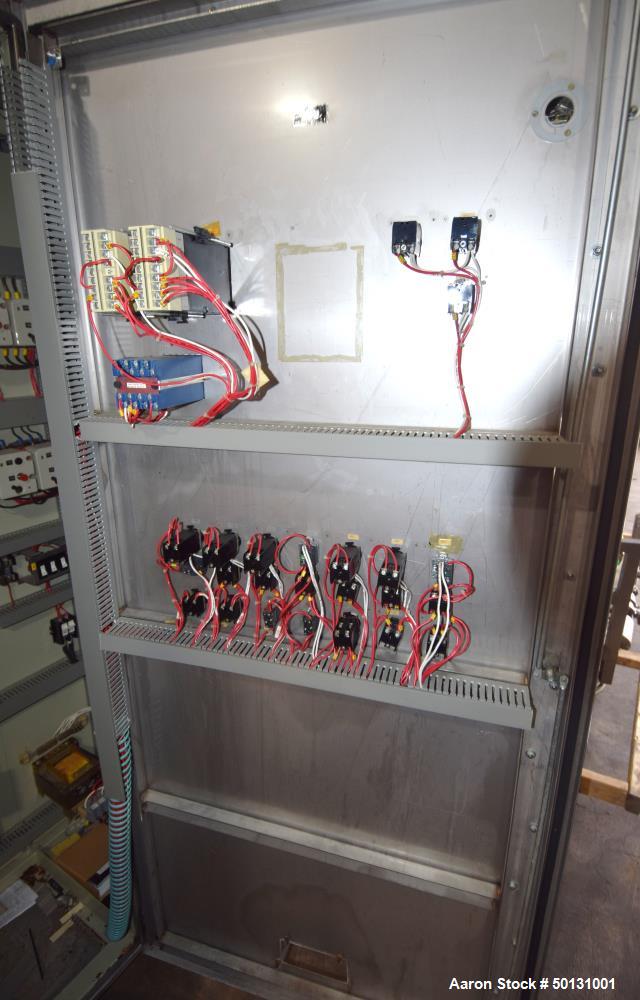

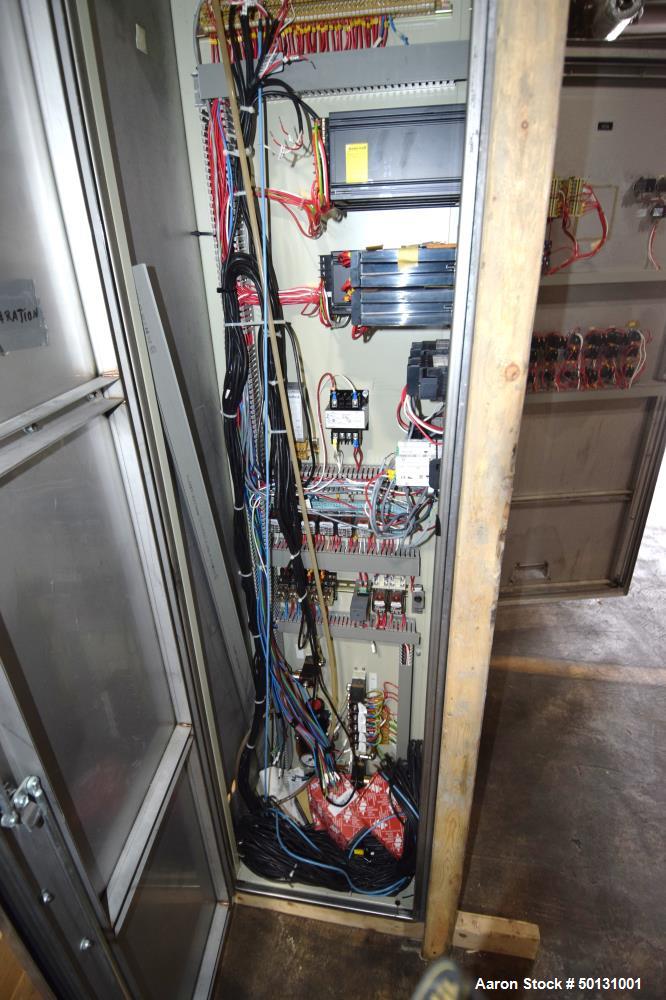

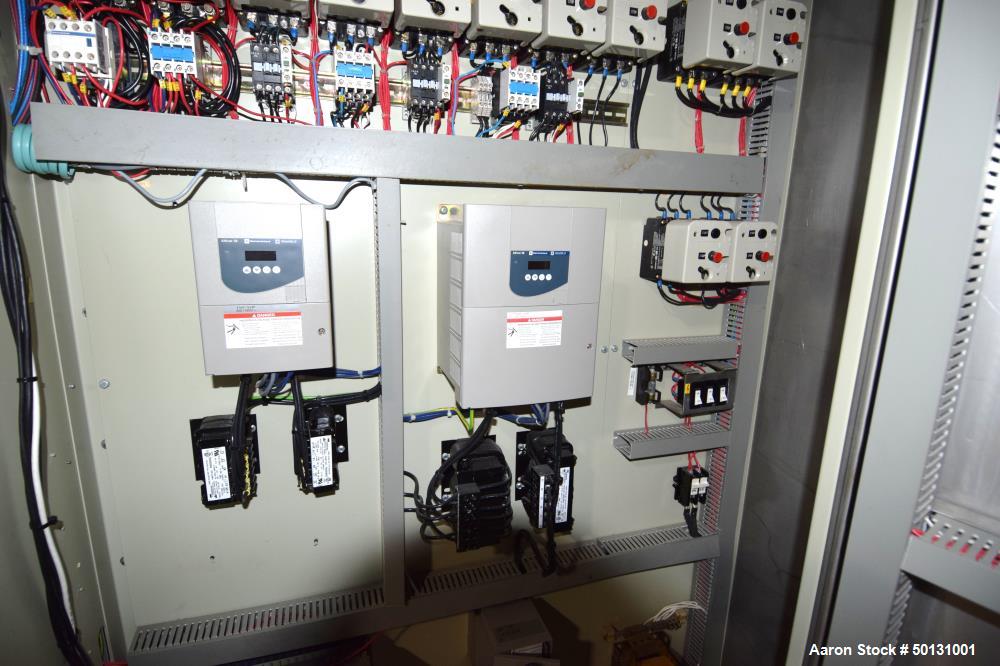

• Control Panel:

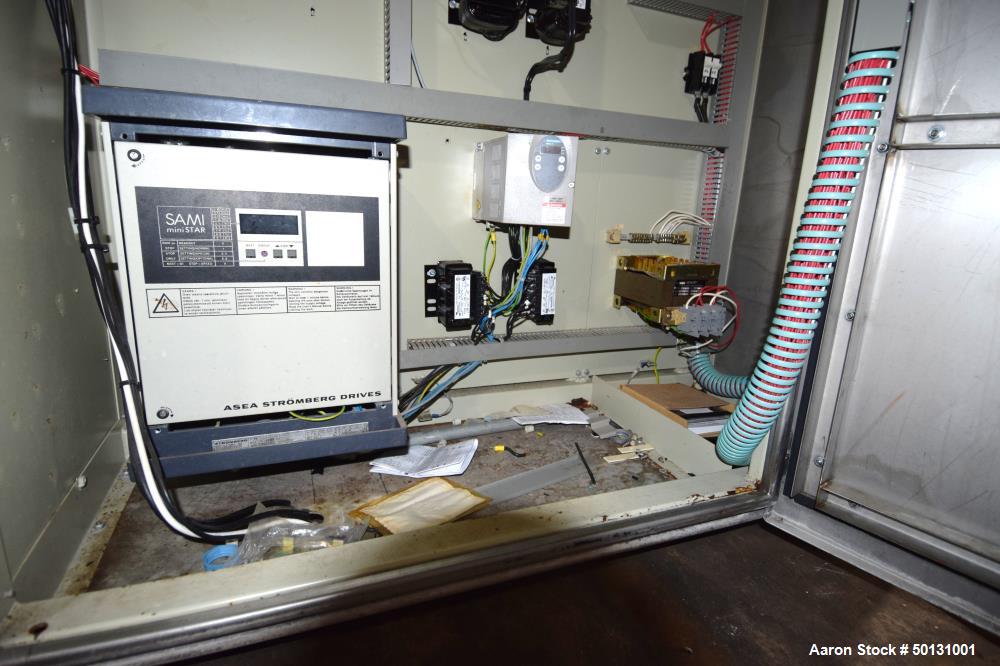

  • SAMI Frequency Converter
  • Altivar Drives

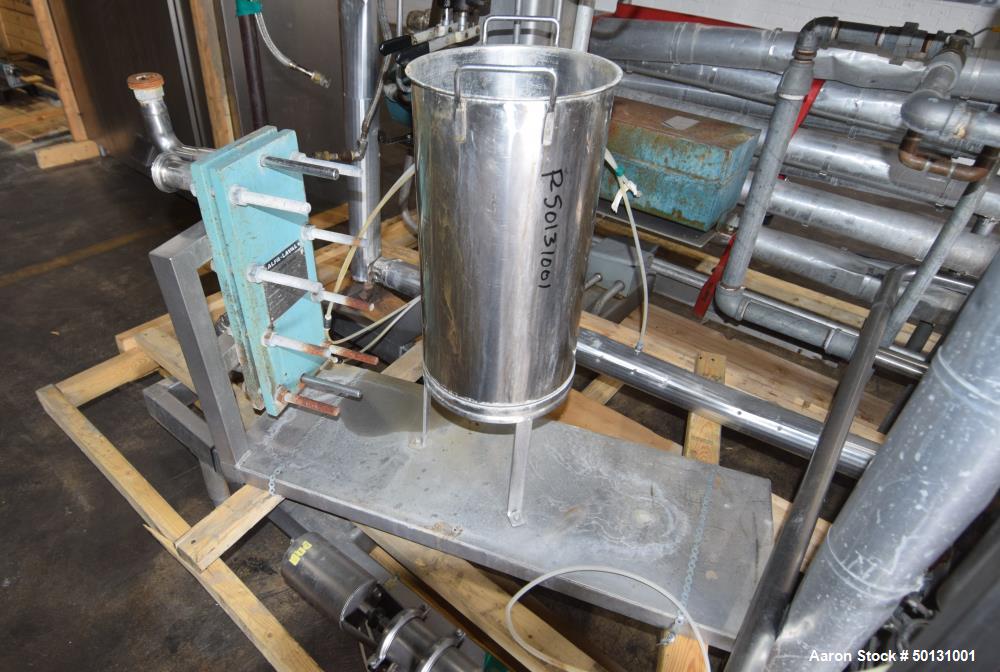

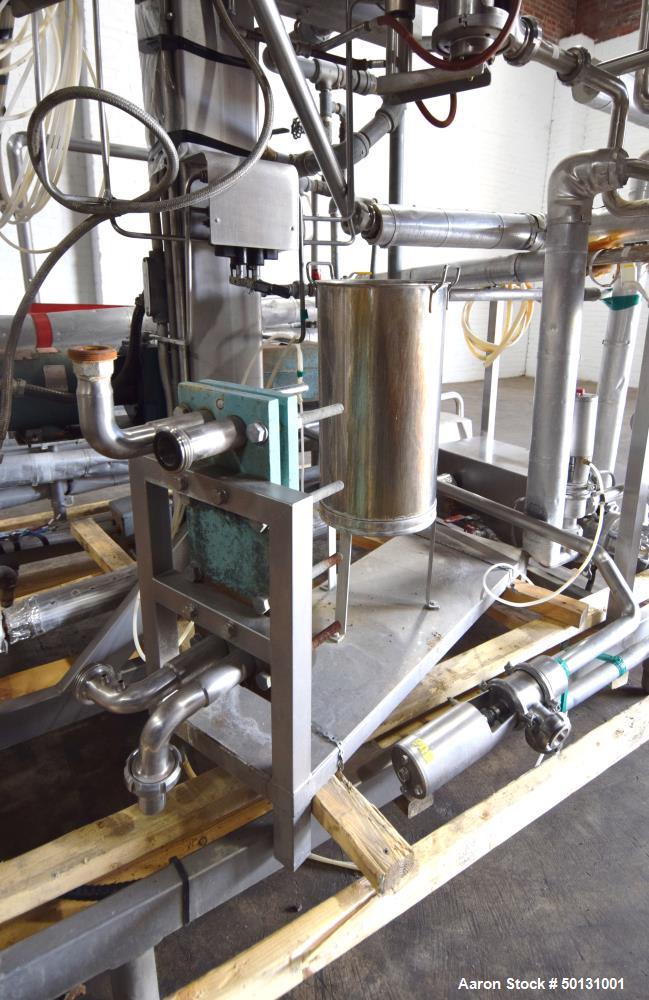

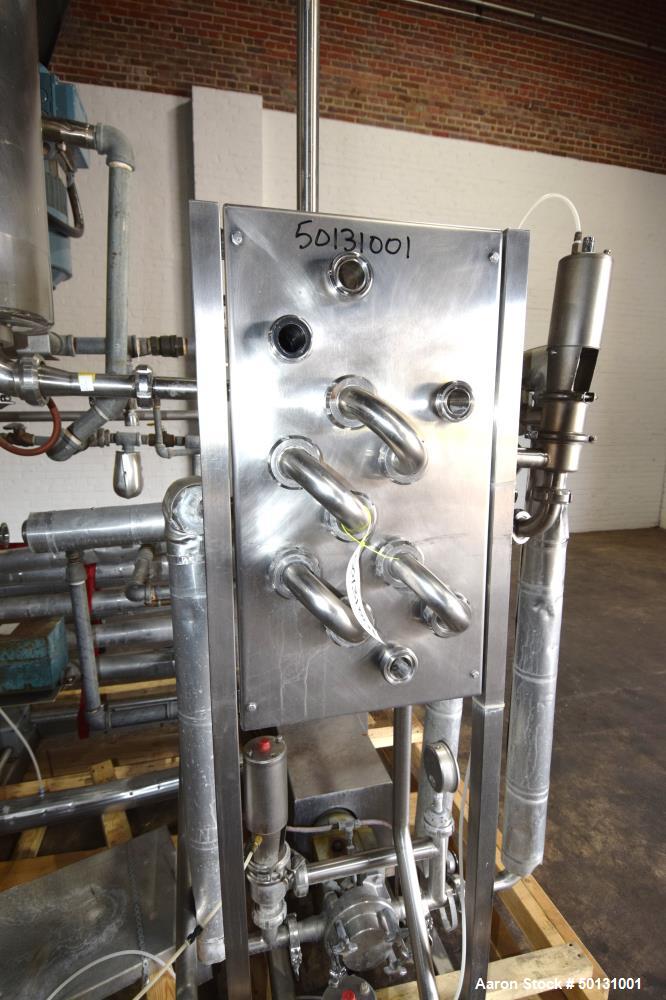

• Alfa Laval Plate Heat Exchanger with Tank

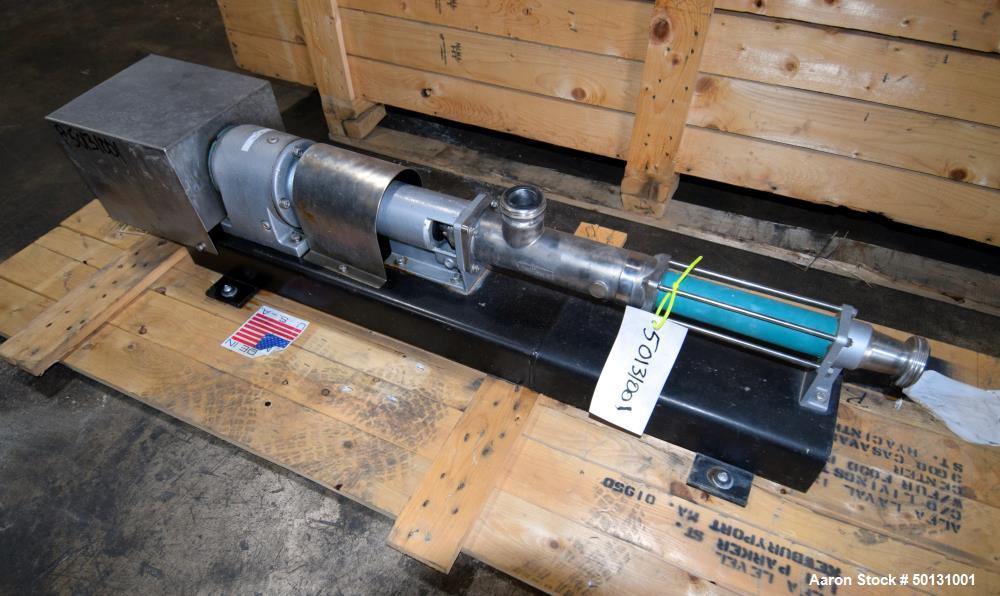

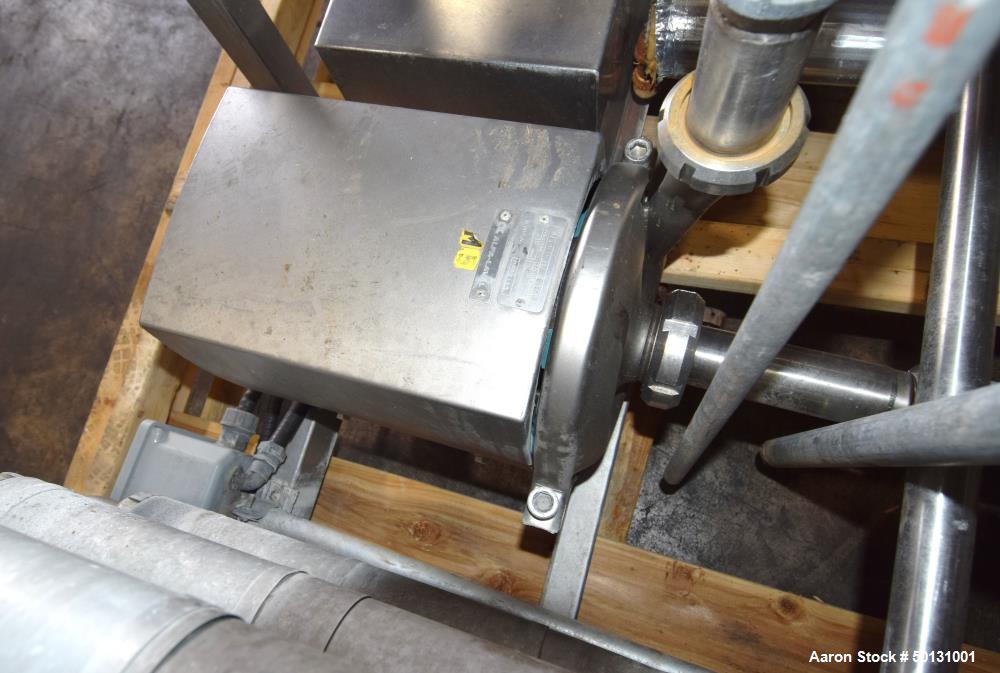

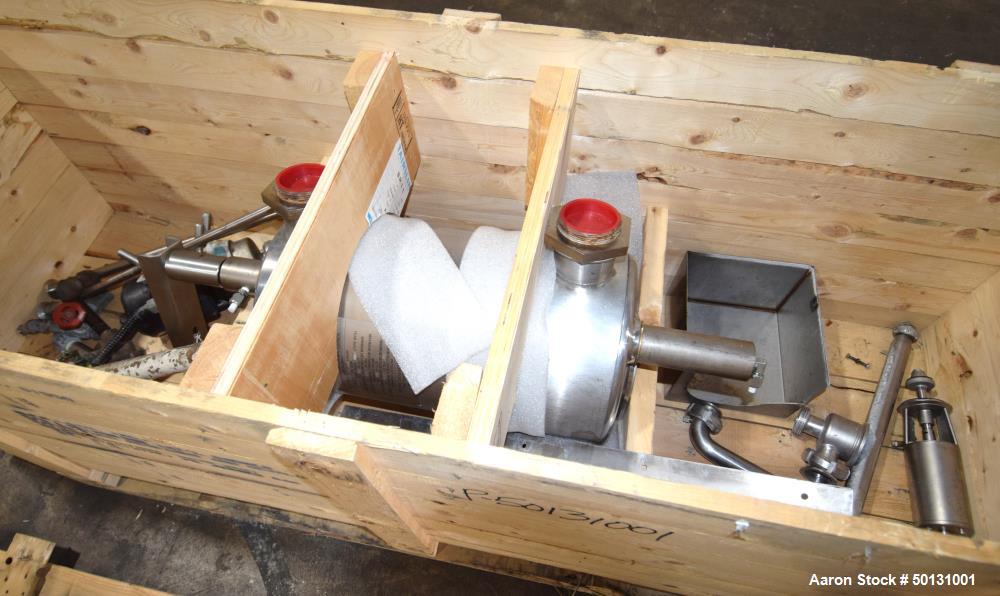

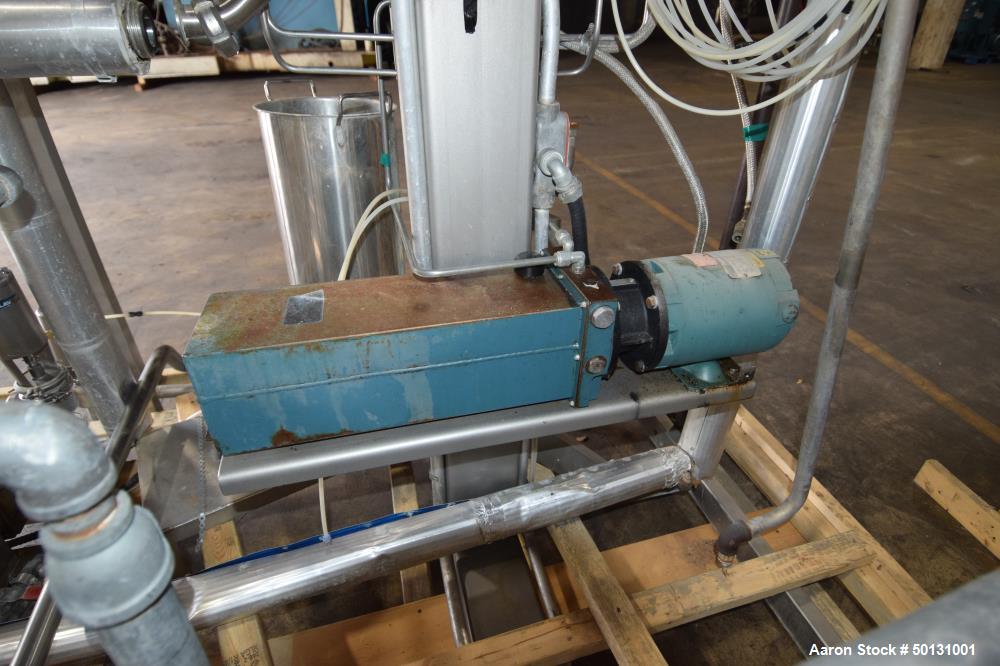

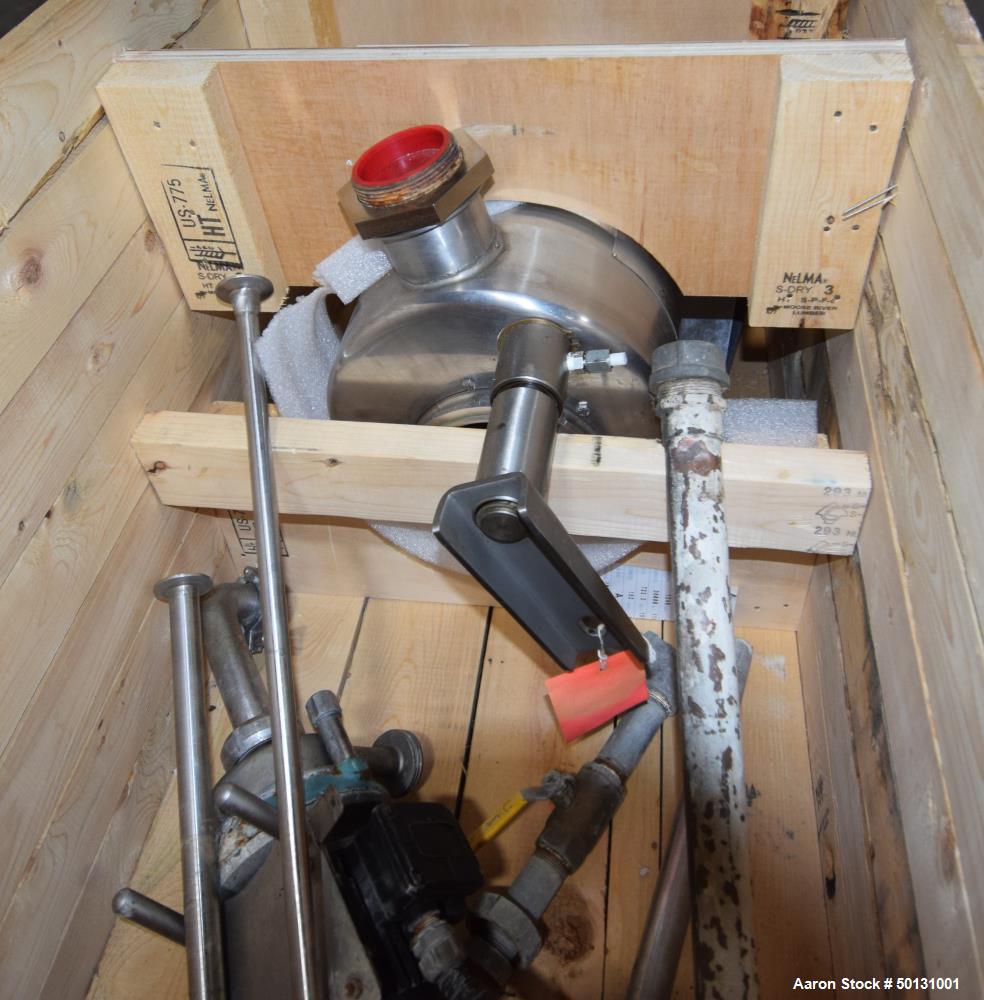

• (4) Pumps

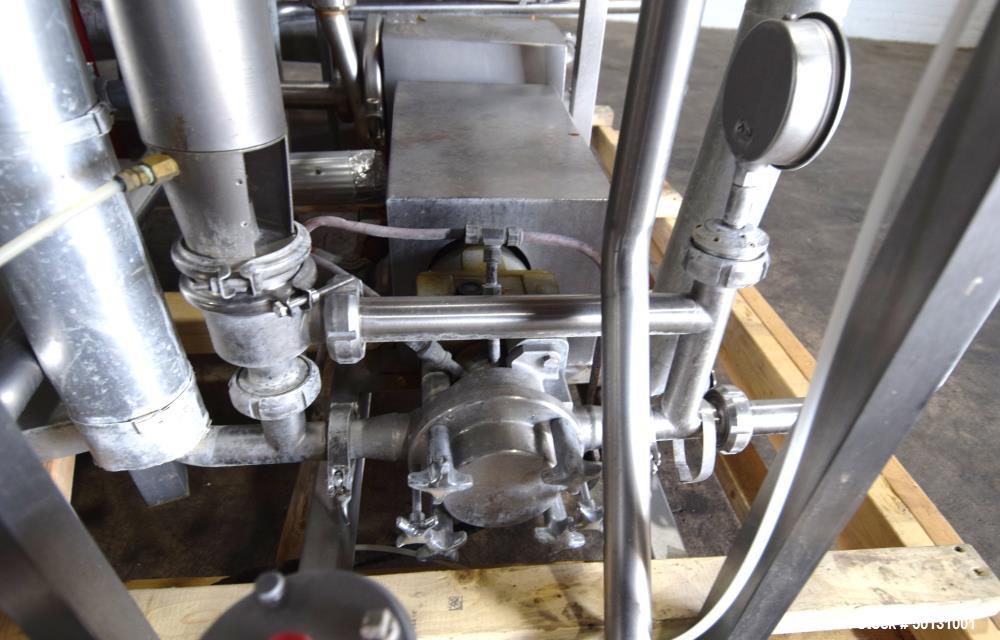

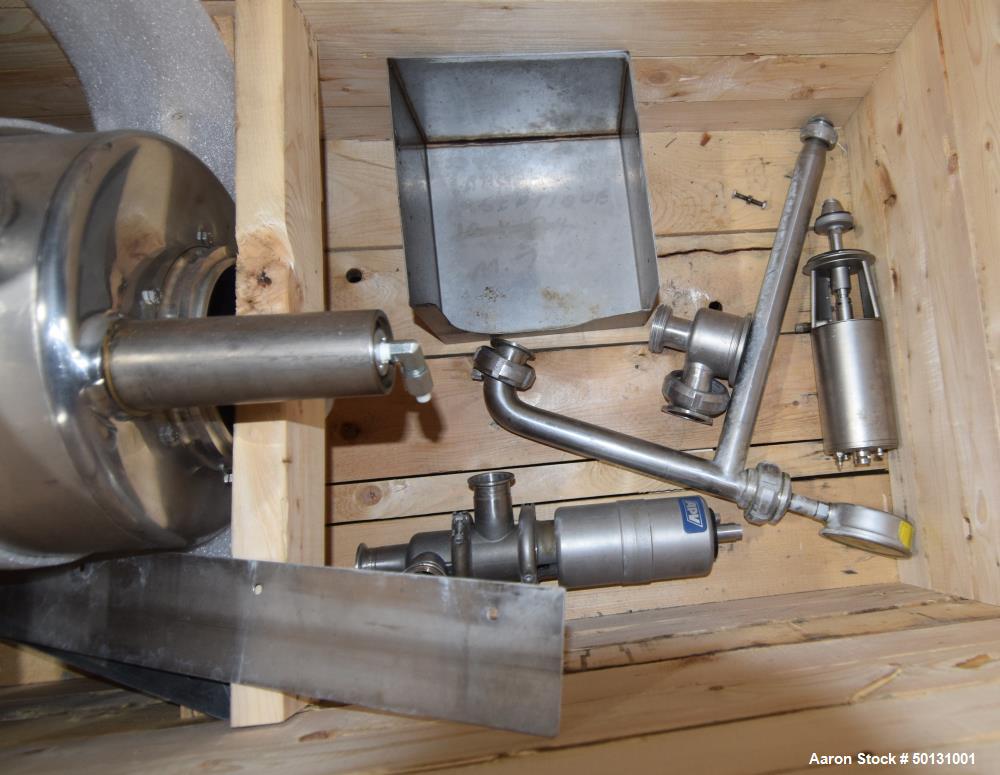

• Miscellaneous Piping and Valves

Applications:

• Food & Beverage Industry: Processing viscous products like sauces, dairy, chocolate, and fruit purees
• Pharmaceutical Industry: Heat exchange for ointments, creams, and liquid formulations
• Chemical Processing: Handling and heating of thick chemical slurries and specialty coatings
• Cosmetic & Personal Care: Processing of gels, lotions, and high-viscosity personal care products
• Nutraceuticals & Supplements: Temperature-controlled processing of vitamin and herbal extracts
• Industrial & Manufacturing: Emulsification and heat exchange of adhesives, polymers, and resins
